SPECIALISED WIRING ACCESSORIES LTD
Part No.
Colour
Cable Range mm2
Volt Rating
Amp Rating
Stranded
Flexible
PIC2
2-way
Orange
0.75 - 2.5
1.5 - 2.5
400
24
PIC4
4-way
Blue
0.75 - 2.5
1.5 - 2.5
400
24
PIC6
6-way
Black
0.75 - 2.5
1.5 - 2.5
600
20
PIC8
8-way
Grey
0.75 - 2.5
1.5 - 2.5
600
20

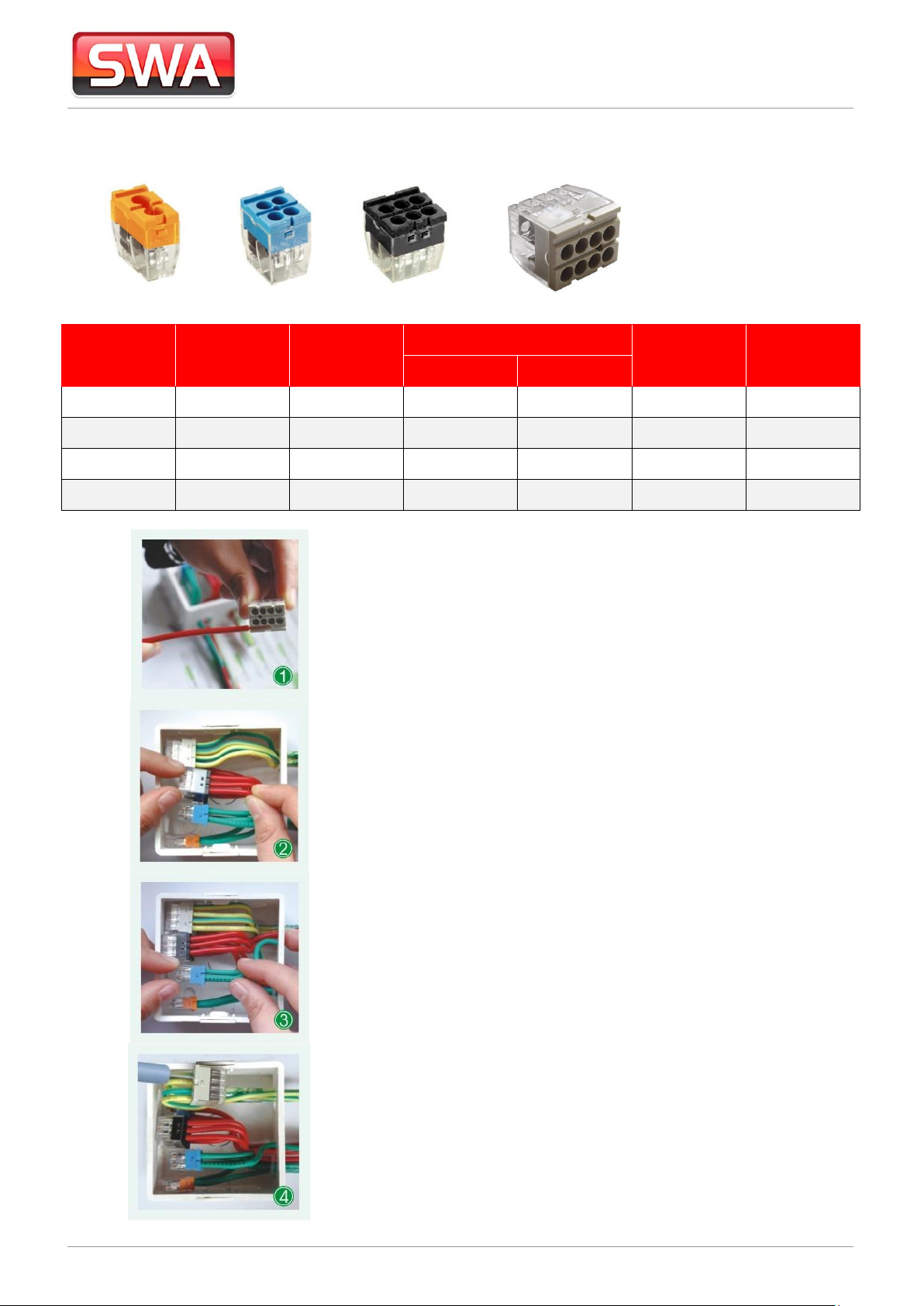

1.Stripping:
Strip solid conductor to 12 mm / 0.47 in.
2.Wire connection:
Insert stripped conductor fully.
3.Wire dismantlement:
Hold conductor to be removed and twist
alternately left and right while pulling the
conductor.
4.Connection test:
Products have test hole for circuit testing.
Abbey Mills Charfield Road Kingswood Wotton-Under-Edge Glos GL12 8RL
Tel: 01453 844 333 Fax: 01453 842 224 E-mail:[email protected]

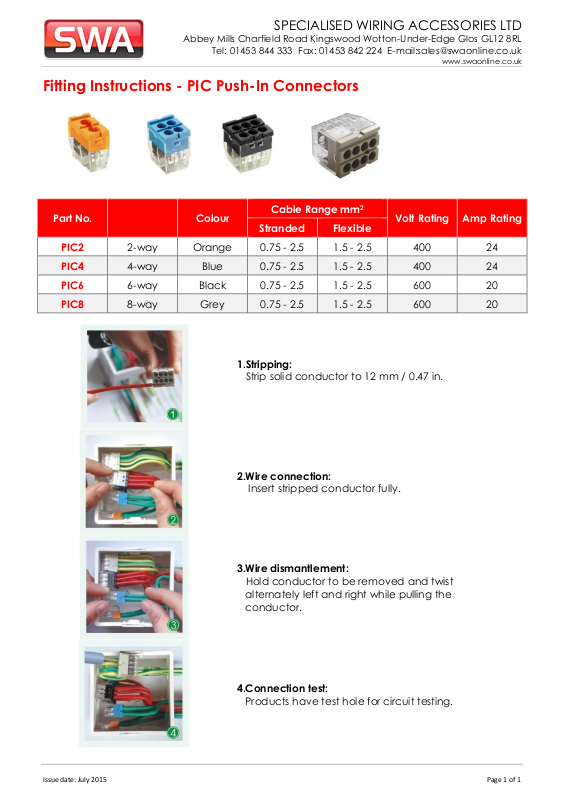

Fitting Instructions - PIC Push-In Connectors
www.swaonline.co.uk
Issue date: July 2015 Page 1 of 1
