Read the instructions and
warnings in this manual
CAREFULLY BEFORE using
this firearm.
2100 Roosevelt Avenue • Springfield, MA 01104
1-800-331-0852 • Fax: 413-747-3317
www.smith-wesson.com
Owner’s Manual
Model 3 Schofield
- 2000 -
Safety Manual - Schofield2 3/16/01 9:15 AM Page 1
READ THESE INSTRUCTIONS
AND WARNINGS CAREFULLY. BE
SURE YOU UNDERSTAND THESE
INSTRUCTIONS AND WARNINGS
BEFORE USING THIS FIREARM.
This SAFETY, INSTRUCTION
and PARTS MANUAL should
always accompany this firearm
and be transferred with it upon
change of ownership or presented
to another person. A copy of the
SAFETY, INSTRUCTION, & PARTS
MANUAL is available FREE upon
request from:
SMITH & WESSON
CUSTOMER SUPPORT CENTER
2100 ROOSEVELT AVENUE
SPRINGFIELD, MA 01104
TEL.: 1-800-331-0852
E-mail: qa@smith-wesson.com
Safety Manual - Schofield2 3/16/01 9:15 AM Page 2
INDEX
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BASIC FIREARMS SAFETY RULES . . . . . . . .5-6
SAFE STORAGE & TRANSPORTATION . . . . . .7-8
NOMENCLATURE . . . . . . . . . . . . . . . . . . .8-9
PREPARATION FOR FIRING . . . . . . . . . . . .9-10
AMMUNITION . . . . . . . . . . . . . . . . . . . .10-12
SERIAL NUMBER IDENTIFICATION . . . . . . . .13
INSPECTING YOUR MODEL 3 SCHOFIELD .14-15
LOADING . . . . . . . . . . . . . . . . . . . . . . .16-17
FIRING . . . . . . . . . . . . . . . . . . . . . . . .18-20
CLEARING MISFIRES . . . . . . . . . . . . . . . . .20
UNLOADING . . . . . . . . . . . . . . . . . . . . . . .21
CLEANING & MAINTENANCE . . . . . . . . . . . .22
SERVICE, SHIPPING & PARTS . . . . . . . . .23-24
WARRANTY . . . . . . . . . . . . . . . . . . . . . . .25
EXTENDED SERVICE POLICY . . . . . . . . . . . .26
WARNINGS . . . . . . . . . . . . . . . . . . . . . . . .27
Safety Manual - Schofield2 3/16/01 9:15 AM Page 3
SAFETY IS YOUR
NUMBER ONE
RESPONSIBILITY!!!!
WARNING: YOU MUST FOLLOW
ALL OF THESE SAFETY RULES TO
ENSURE THE SAFE USE OF YOUR
FIREARM
• Safe gun handling is YOUR personal
responsibility at all times. Firear ms are dangerous
and can cause serious injury and death if they are
misused or used inappropriately. Safety must be the
prime consideration of anyone who owns or handles
firearms.
• Y
ou are responsible for the firearm at all times.
In owning a firearm, you must undertake full-time
responsibility for your firearm’s safety and security.
You must protect yourself and all others against
injury or death from misuse of the firearm.
• Safe storage is your responsibility. In particular,
you must secure firearms safely from children and
unauthorized users. A lock has been provided for
your use with this firearm. A lock is not a substitute
for safe and secure storage as defined in the “Safe
Storage and Transpor tation” section of this manual.
• Accidents are the result of violating the rules of
safe gun handling and common sense.
• For your safety and the safety of others, never
rely on mechanical features alone. Only your
safe gun-handling habits will ensure the safe use of
your firearm. This is your responsibility.
• Never keep ammunition in the same location as
the handgun. Store in a separate and secure
place.
• READ and UNDERSTAND these instructions
before using your firearm.
4
SAFETY
Safety Manual - Schofield2 3/16/01 9:15 AM Page 4
At home, in the field, at the range, or anywhere, the first
concern of every firearm owner should be safety. Apply the following safety rules in every situation, with any kind of firearm.
• BEFORE HANDLING ANY FIREARM,
UNDERST
AND ITS OPERATION.
Not all firearms
are the same. Familiarize yourself with the
mechanical features of any firearm you intend to
use. If you feel uncertain about any operational aspects
of your handgun, please contact Smith & Wesson
at 1-800-331-0852 before proceeding with its operation.
• ALWAYS SAFELY STORE AND SECURE YOUR
FIREARM. Safe and secure storage of your firearm
is one of the most important responsibilities of
firearms ownership. It is a full-time responsibility.
You must always secure your firearm and
ammunition separately so that they are not
accessible to children or other unauthorized persons.
(See Safe Storage Instructions on pages 8-9. )
• ALWAYS TREAT EVERY FIREARM AS IF IT WERE
LOADED AND WOULD FIRE IF THE TRIGGER
IS PULLED. Do not take anyone’s word that the
firearm is unloaded – always check for yourself.
Never pass your firearm to another person until the
cylinder or action is open and you visually check that it
is unloaded. Keep your firearm unloaded and safely stored
when not in use.
• ALWAYS KEEP YOUR FIREARM POINTED IN A
SAFE DIRECTION. Never point a firearm at anyone
or anything you do not intend to shoot whether or not
it is loaded.This is particularly important when
loading, unloading, or field stripping the gun. ALWAYS
control the direction of the firearm.
• NEVER PLACE YOUR FINGER INSIDE THE
TRIGGER GUARD UNLESS YOU INTEND TO FIRE.
Your firearm cannot fire unless the trigger is pulled.
Ensure that other objects do not actuate the trigger.
• ALWAYS BE SURE OF YOUR TARGET AND WHAT
IS BEYOND IT. Always be sure of where the bullet
will strike and shoot only where there is a safe
backstop free of obstructions, water or other
surfaces which can cause ricochets. Do not fire into
the sky.
BASIC FIREARM
SAFETY RULES
5
WARNING!
THE FAILURE TO FOLLOW THESE BASIC
FIREARM SAFETY RULES MAY RESULT IN AN
UNINTENDED DISCHARGE WHICH COULD CAUSE
SERIOUS PERSONAL INJURY OR DEATH.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 5
ADDITIONAL IMPORTANT SAFETY RULES
• Never carry or store a firearm with the hammer or striker in
the cocked position.
• Do not allow a firearm to be used by individuals who have
not read these basic firearms safety rules and do not
understand its safe operation and the rules of safe
gun-handling.
• Be sure all accessor ies, such as holsters and grips,
are compatible with the firearm and that the
accessories do not interfere with safe operation.
• Use the correct ammunition for your particular
firearm as indicated by the marking on the barrel.
Never use non-standard, reloaded, or “handloaded”
ammunition which has not been subjected to internal
ballistic pressure testing.
• Discharging firear ms in poor ly ventilated areas,
cleaning firearms, or handling ammunition may result
in exposure to lead and other substances known to
cause birth defects, reproductive harm, and other
serious physical injury. Review the warnings and
labels for all ammunition and cleaning products
carefully. Have adequate ventilation at all times.
Wash hands thoroughly after exposure.
• Never use alcohol or drugs before or while shooting.
Do not use your firearm if you are on any medication
which impairs, even slightly, your mental or physical
ability.
• Wear eye and hearing protection appropriate for
firearm use every time you discharge your firearm.
Make sure others in the vicinity of where you will be
shooting do so as well.
• Do not allow any alteration or replacement of parts in
your Smith & Wesson firearm unless performed by a
qualified gunsmith using genuine Smith & Wesson
parts. If you do otherwise, improper functioning of
your firearm may occur and serious injury may result.
• Never cross obstacles such as fences or streams
with a loaded firearm.
• Firear m safety training is available. Contact your dealer for
availability.
• Appropr iate use for your firearm means using your firearm
for legal purposes. For example - target shooting and
lawful resistance of deadly criminal force.
• These are basic firear ms safety rules. There are other
common sense safety rules that should be followed at all
times under the circumstances then presented.
SAFE USE OF A FIREARM IS YOUR PERSONAL
RESPONSIBILITY AND THE FAILURE TO FOLLOW ALL
OF THESE BASIC SAFETY RULES MAY RESULT IN
SEVERE PERSONAL INJURY OR DEATH.
BASIC FIREARM SAFETY RULES CONT’D.
6
Safety Manual - Schofield2 3/16/01 9:15 AM Page 6
7
WARNING: SAFE AND SECURE STORAGE OF
YOUR FIREARM IS ONE OF THE MOST
IMPORTANT RULES OF FIREARM SAFETY.
YOUR FAILURE TO FOLLOW THESE RULES
MAY RESULT IN SERIOUS INJURY OR DEATH.
• You must always secure your firearm and ammunition
separately so that they are not accessible to children
or other unauthorized persons.
• Safe and secure storage and transportation of your
firearm are your responsibility. It is a full-time
responsibility.
• AL
WAYS STORE YOUR FIREARM UNLOADED.
Your firearm and ammunition should be stored separately in
places and in a manner inaccessible to children and
unauthorized persons.
• SMITH & WESSON HAS PROVIDED A LOCK FOR
USE WITH YOUR FIREARM. There are also a variety of
other locks and safe storage containers available in the
marketplace which may be appropriate for your particular
needs. Consult your local gunshop, hardware store, or
local police department for guidance on the variety of other
safe storage devices or practices which may be appropr iate
for your particular needs. By purchasing this firearm you
have taken on the responsibility of safely securing the
firearm at all times and preventing its unauthorized use. It
is your personal responsibility to select and use whatever
devices or practices that will enable you to safely secure
your firearm at all times.
DO NOT USE A LOCK ON A LOADED HANDGUN!
Only you can determine what devices or practices are
appropriate for the safe storage of your firearm and
your ammunition.
• NEVER ASSUME THAT A “HIDING” PLACE IS A
SECURE STORAGE METHOD. Others may be aware of
your storage location or come upon it by chance. It is your
personal responsibility to use common sense when storing
and securing your firearm and ammunition and to always
make sure that it is not accessible to children or other
unauthorized persons.
• FOLLOW THE LAW!! You must be familiar with all local,
state, and federal laws regarding the safe storage and
transportation of your firearm. Failure to know and follow
the law may result in unauthorized access or use of your
firearm by another. Obey all laws relating to the storage
and transportation of firearms.
• NEVER TRANSPORT A LOADED FIREARM.
When transporting your firearm, be sure it is unloaded and
that the cylinder or action is open.
SAFE STORAGE &
TRANSPORTATION
Safety Manual - Schofield2 3/16/01 9:15 AM Page 7
8
• Your local police depar tment or gunshop will fur nish you
with available information on storing and/or transporting a
firearm legally.
• YOUR FIREARM IS YOUR RESPONSIBILITY.
Protect your firearm from theft or misuse by untrained or
unqualified individuals.
MAINTENANCE BEFORE STORAGE
When storing, do not encase your firearm in anything that will attract or
hold moisture, for example, leather or heavy cloth. Also, do not store
guns with a plug inserted in the barrel for this can be a contributing
factor to moisture accumulation. If your firearm is to be stored for an
extended period, the bore, chambers and internal working mechanism
should be oiled with acid-free lubricating oil or preservative, and the
external working mechanisms, frame, cylinder and barrel should be
coated with an anti-rust oil. Before using your firearm again, be sure to
clean it. Every time you clean your firearm, check it for signs of wear.
If wear is noted, do not use the firearm. Return it to Smith & Wesson
for service or have it checked by a qualified gunsmith.
MAINTENANCE BEFORE USE
Before using your firearm, it should be cleaned. (See Cleaning
Instructions at page 22.) Your firearm has been treated with either a
preservative or oil to protect it against corrosion. Before using it, all
excess oil should be wiped from the bore, chambers (charge holes),
and exposed areas using a clean swab or patch. A light coat of high
quality gun oil should be applied to the outside surfaces and mechanism. Care should be taken not to oil the mechanism to the degree
that dust and lint may be trapped by the oil.
SAFE STORAGE & TRANSPORTATION CONT’D.
Smith & Wesson handguns are reliable and safe to use when
the basic firearm safety rules are followed. There are a
number of internal safety mechanisms within the
lockwork of the handgun which ensure that the firearm will
not discharge unless the trigger of the handgun is pulled.
That is one reason why it is important to never modify or
alter your firearm. Before you use your handgun, you
should be fully familiar with its operation.
Here is a list of basic firearms terminology.
AMMUNITION - CENTERFIRE - Ammunition which
contains the primer in the center of the base of the case. Among
the most common centerfire handgun cartridges are the .32,
.38 Special, .380, 9mm, .357 Magnum®, .40 S&W®, .45 ACP
and the .44 Magnum®.
AMMUNITION - RIMFIRE - Ammunition which contains the
primer material in the rim. Among the most common rimfire
handgun cartridges are the .22 Long, .22 Shor t, .22 LR, .22CB,
.22BB, and .22 Magnum.
CALIBER - The diameter of a bullet, designated in
hundredths or thousandths of an inch (.357) or in
millimeters (9mm).
DECOCK - The process by which the hammer or striker is safely
lowered.
NOMENCLATURE
Safety Manual - Schofield2 3/16/01 9:15 AM Page 8
9
DOUBLE ACTION - A firing action where the hammer or striker
is drawn back, released, and the gun fired by a single pull of the
trigger.
DOUBLE ACTION ONLY - A firearm designed so that it can only
be fired in double action.
PISTOL - A handgun that contains the cartr idges in a magazine.
REVOLVER - A handgun that contains the cartridges in a
cylinder that revolves at the rear of the barrel.
SINGLE ACTION - A firing action where the hammer or striker is
released from the cocked position by pulling the trigger.
The operation of your handgun will be explained in greater detail
in the pages that follow, as well as a greater description of key
component parts.
NOMENCLATURE CONT’D.
PREPARATION FOR
FIRING
ALWAYS WEAR EYE AND EAR PROTECTION WHICH IS
SPECIFIED FOR FIREARM USE.
• Failure to wear adequate and proper ear protection on
even one occasion can potentially permanently damage
your hearing. Make sure others who are nearby are
wearing ear protection as well.
• Always wear safety glasses, whether indoors or out.
Safety glasses protect your eyes from the firing flash and
particles associated with the discharge of ammunition.
• DO NOT SHOOT AT HARD SURFACES,WATER OR UP
INTO THE SKY. Always select a place to shoot that has a
safe backstop, is free from obstructions and water surfaces
which cause ricochets.
• Always be aware of other people so that persons cannot
accidentally walk into the line of fire.
• Position the shooter and all others so that they are not
within an area where they may be struck by particle-spitting
from a revolver or by ejected cases from other types of
firearms.
• Keep fingers and other parts of your body away from the
muzzle and away from the gap between the revolver barrel
and cylinder, and away from the pistol slide and ejection
port.
• Be alert and always follow the safety instruction of the
range officer.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 9
10
• Be sure that all cylinders and actions of firearms are
open, that chambers are clear of cartridges,
magazines are removed, and that firearms are
pointing in a safe direction before anyone is allowed
in front of the firing position.
• Be alert at all times. Never shoot if you are tired,
cold or impaired in any way.
• Treat your firearm as if it were loaded at all times.
AMMUNITION
PREPARATION FOR FIRING CONT’D.
A. GENERAL PRINCIPLES
• A firearm and ammunition are a system and must work
together. Their performance is closely related. There are
different types of ammunition for different types of firear ms.
Your firearm has been designed for ammunition of a specific
type and a specific caliber. It is impor tant to select the
proper ammunition for your firearm.
!! W
ARNING !!
• Never use ammunition not specifically designated for
use in your firearm. Failure to use the correct type or
caliber of ammunition may cause the firearm to jam, fail
to fire or even generate excessive pressure which can
damage or even rupture your firearm, causing personal
injury or property damage.
• You are responsible for selecting ammunition that meets
industry standards and is appropriate in type and caliber for
this firearm.
• Locate the caliber designation printed on the handgun.
This information indicates the ammunition caliber that
should be used in this firearm. (See figure #1)
B.
HANDLOADED OR RELOADED AMMUNITION
!! WARNING !!
• Never use non-standard,reloaded or “handloaded”
ammunition which has not been subjected to internal
ballistic pressure testing. Reloaded or handloaded
ammunition, may have many manufacturing and quality
variables (such as the type and amount of gun powder).
• Any ammunition that is improperly manufactured,
even in the slightest degree,
may fail to fire or may
generate excessive
internal pressures which
can damage or even
rupture the firearm,
causing personal injury to
the shooter or those in the
immediate vicinity.
FIGURE 1
Safety Manual - Schofield2 3/16/01 9:15 AM Page 10
11
• Use only commercially manufactured ammunition with
internal ballistic pressures which are in strict accordance
with the specifications of the Sporting Arms and
Ammunition Manufacturers’Institute (SAAMI).
• Be certain all ammunition you use complies with the
SAAMI specifications. If you are uncer tain, contact your
ammunition supplier for verification.
C. MISFIRES
• If your firearm fails to fire when the trigger is pulled
(misfires), keep the firearm pointed in a safe direction,
remove your finger from the trigger, and wait 10 seconds.
Only after you have completed all of the above steps,
remove the magazine or open the cylinder and remove the
cartridge from the chamber and dispose of it properly.
Keep your firearm pointed in a safe direction at all times.
• If you have heard an unusual sound or felt an unusual recoil
on firing, stop firing, wait 10 seconds, unload the firearm,
and examine the barrel bore for obstructions.
• Make sure your barrel is clear and free of obstructions.
If you see an obstruction, return your firearm to
Smith & Wesson or take it to a qualified gunsmith. Never
fire a firearm with an obstructed barrel.
D. AMMUNITION SPECIFICS
• Use only ammunition specifically recommended by
Smith & Wesson for your firearm.
• Never mix ammunition.
• Never use a cartridge not specifically designated for use in
your firearm. Pressure from the wrong type of ammunition
may be beyond the capability of your firearm to withstand
and may damage or even rupture your firearm.
• Whenever rimless pistol cartridges are used in the cylinder
of a Smith & Wesson revolver, (except M547) full or
half-moon clips MUST be used to both position and extract
such cartridges. Failure to use ammunition clips with
rimless cartridges may result in malfunction of the revolver.
• Additional ammunition calibers can be fired from the
following list of select calibers.
Caliber on Barrel
Can also Fire
.45 Colt .45 Schofield, .45 S&W
.45 S&W .45 Schofield
.44 Magnum .44 Special
.357 Magnum .38 Special, .38 Special +P
.22LR .22L, .22 Short, .22CB, .22BB
10mm .40 S&W (in revolvers only)
• In some cases, a round of ammunition not specified on your
handgun may fit into the chamber or cylinder. Firing
ammunition not specified on your handgun may cause it to
rupture and cause serious injury or death.
AMMUNITION CONT’D.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 11
12
AMMUNITION CONT’D.
E. AMMUNITION WARNINGS
• “Plus-P” (+P) ammunition generates pressures in excess of
the pressures associated with standard ammunition. Such
pressures may affect the wear characteristics or exceed the
margin of safety built into some revolvers and could
therefore be DANGEROUS.
• “Plus-P” ammunition should not be used in medium
(K frame) revolvers manufactured prior to 1958. Such
pre-1958 medium (K-frame) revolvers can be identified by
the absence of a model number stamped inside the yoke
cut of the frame. (i.e., the area of the frame exposed when
the cylinder is in the open position).
• “Plus-P-Plus (+P+) marking on the ammunition merely
designates that it exceeds established industry standards,
but the designation does not represent defined pressure
limits and therefore such ammunition may vary significantly
as to the pressures generated.
• “Plus-P-Plus (+P+) ammunition is not recommended for use
in Smith & Wesson firearms.
• In the Model 940 revolver, some brands of 9mm parabellum
ammunition may cause difficulty in extracting spent
cartridge cases from the cylinder. If this situation occurs,
thoroughly clean the cylinder charge holes with solvent. If
this condition persists, we recommend changing to another
brand of 9mm parabellum ammunition.
• Smith & Wesson has found wide variations in primer
sensitivity between some brands and types of .22LR
ammunition. Smith & Wesson recommends that before you
put your .22LR handgun into regular use, that you fire
several boxes of your choice of ammunition through it to
determine reliability of ignition. If “failure to fire” occurs, try
different types of brands of .22LR ammunition until a
reliable loading is found.
• The Model 3 Schofield of 2000 is designed to use modern
factory loaded smokeless powder ammunition loaded to
SAAMI specifications.
!!
WARNING !!
DO NOT USE ROUNDS LOADED WITH BLACK POWDER.
DUE TO THE CORROSIVE NATURE OF BLACK POWDER, IT’S
USE IN THIS FIREARM WILL VOID ALL WARRANTIES.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 12
SERIAL NUMBER
IDENTIFICATION
The serial number appears here.
FIGURE 2
FRONT SIGHT
BARREL
HAMMER
BARREL LATCH/
REAR SIGHT
CYLINDER
GRIP
TRIGGER
GUARD
TRIGGER
FIGURE 2a
CYLINDER
RETAINER
13
Safety Manual - Schofield2 3/16/01 9:15 AM Page 13
14
When you inspect your revolver, you must first check to ensure
that it is unloaded. Do this with your finger off the trigger and out
of the trigger guard (Figure 3) and keep the barrel of the gun
pointed in a safe direction. Place the hammer into either the
safety/carry condition or the half cock condition.
(See pages 15 & 16)
INSPECTING YOUR
MODEL 3 SCHOFIELD
!! WARNING !!
Always inspect your revolver visually to be sure the
hammer is in the safety/carry condition (cylinder stop up)
before holstering or carrying it. Remember to keep your
revolver pointed in a safe direction. Never leave a loaded
firearm unattended. (See descriptions on pages 15 & 16 for
Hammer Positions/Conditions)
FIGURE 3
FIGURE 4
Push back the barrel latch and rotate the barrel downward.
With the barrel pointed in a safe direction, continue to open the
frame and barrel until the extractor completes its cycle and
snaps back into the cylinder. (Figures 4 & 4a)
Check all charge holes (chambers) to ensure they are unloaded
and the barrel is free of obstructions.
You must follow this procedure every time your revolver is
handled, inspected, handed to another person, transported or
stored.
FIGURE 3a
FIGURE 4a
Safety Manual - Schofield2 3/16/01 9:15 AM Page 14
At Rest (Hammer Down) Position - (Figure 5)
This is the position where the hammer is fully forward. It will be
in this position, for example, after firing. Do not attempt to open
or close the
revolver from
this position.
YOU WILL
DAMAGE YOUR
REVOLVER
ATTEMPTING TO
OPEN OR
CLOSE THE
BARREL FROM
THIS POSITION.
INSPECTING YOUR SCHOFIELD CONT’D.
Half Cock Condition - Cylinder Stop Down - (Figure 6)
Place the hammer in this condition for all purposes except loaded
carry. The cylinder rotates freely in this position.
FIGURE 6
Saf
ety/Carry Condition - Cylinder Stop Up - (Figure 7)
Place the hammer in this condition anytime the revolver is loaded.
The cylinder is no longer free to rotate in this condition.
FIGURE 7
Full
y Cocked - (Figure 8)
Place the hammer in this position immediately before firing each
round.
YOU WILL
DAMAGE YOUR
REVOLVER
ATTEMPTING TO
CLOSE THE
BARREL FROM
THIS POSITION.
FIGURE 8
15
FIGURE 5
Safety Manual - Schofield2 3/16/01 9:15 AM Page 15
16
LOADING
• Do not load your revolver until you have read and
understand ALL of the instructions in this manual.
• Do not load your revolver until you are at the shooting site
and fully prepared to fire.
• To load your revolver, hold it in one hand with the barrel
pointed in a safe direction and away from you and others
while keeping your finger off the trigger and out of the
trigger guard. Place the hammer into either the
safety/carry condition (cylinder stop up) or the half cock
condition (cylinder stop down).
PLACING YOUR REVOLVER IN THE
SAFETY/CARRY CONDITION
• With the barrel pointed in a safe direction and your finger
out of the trigger guard, push back the frame mounted latch
and rotate the barrel downward. Continue to open the
frame and barrel until the extractor snaps back into the
cylinder.

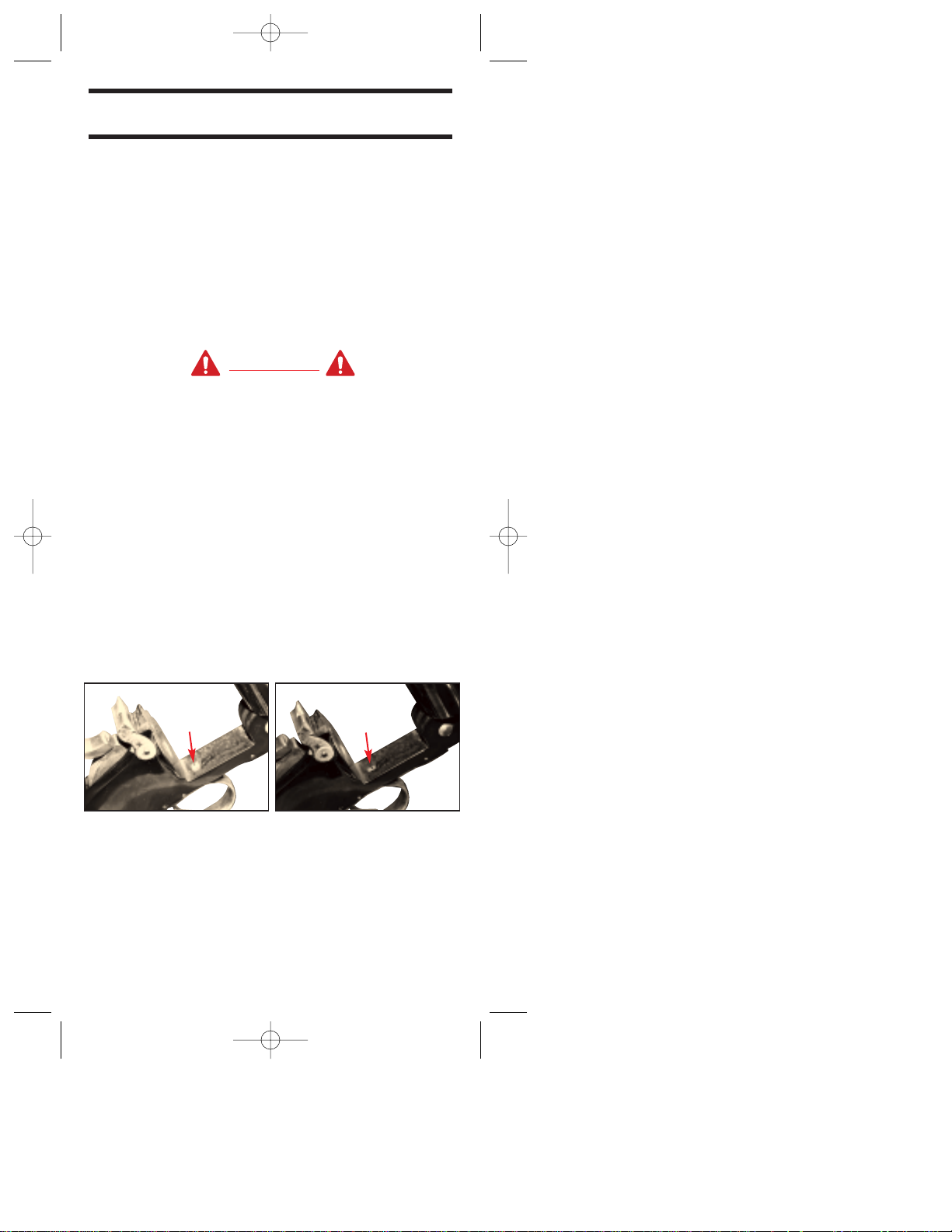

• Look at the cylinder stop. If it is up (in the safety/carry
condition - protruding above the inner frame surface Figure 9), go on to “Closing Your Revolver”. If the cylinder
stop is down (half cock condition - not protruding above the
inner frame surface - Figure 10), do the following:
!!
WARNING !!
IT IS UNSAFE TO REST THE HAMMER ON THE FIRING
PIN WITH A LIVE CARTRIDGE IN THE CHAMBER. THE
FOLLOWING INSTRUCTIONS MUST BE FOLLOWED TO
AVOID UNINTENDED DISCHARGE OF THE FIREARM.
FIGURE 9
FIGURE 10
Safety Manual - Schofield2 3/16/01 9:15 AM Page 16
17
LOADING CONT’D.
FIGURE 13
FIGURE 15
!!
WARNING !!
Always inspect your revolver visually to be sure the
hammer is in the safety/carry condition (cylinder stop up)
before holstering or carrying it. Remember to keep your
revolver pointed in a safe direction. Never leave a loaded
firearm unattended. (See descriptions on pages 15 & 16
for Hammer Positions/Conditions)
CLOSING YOUR REVOLVER
• Load five (5) .45 S&W (Schofield) car tr idges into the
charge holes (chambers). Leave the 6th charge hole empty
for safety. (Figure 13)
• With the hammer still in the safety/carry condition (cylinder
stop up), close the revolver with the empty charge hole
aligned with the barrel opening. (Figure 14)
• Attempt to slightly rotate the cylinder in either direction to
ensure the cylinder is properly locked and the empty
charge hole is still in alignment with the barrel (Figure 15)
• With your revolver still open and unloaded, draw the
hammer rearward slightly. As you do this, pull the trigger
and observe the cylinder stop move to the up position.
(Figure 11)
• Remove your thumb from the hammer and then release the
trigger. The cylinder stop should still be protruding from the
inner frame surface and the hammer is positioned in the
middle of its range of travel. The hammer is now in the
SAFETY/CARRY POSITION. (Figure 12)
FIGURE 11 FIGURE 12
FIGURE 14
Safety Manual - Schofield2 3/16/01 9:15 AM Page 17
18
With your fingers outside of the trigger guard and a firm hold on the
grips, place the thumb of your non-shooting hand on the hammer
spur. Draw the hammer fully rearward until it is cocked as shown in
(Figure 16). The revolver will now fire when the trigger is pulled.
Never touch the trigger until you are ready to fire. To fire, pull the
trigger rearward. After firing, you must fully remove your finger from
the trigger guard and manually fully cock the hammer to be ready to
fire another round.Keep your finger off the trigger and outside the
trigger guard until you are ready to fire again.
WARNING: Always keep the barrel pointed in a safe
direction!
FIRING
WARNING: During firing always keep the barrel
pointed in a safe direction. Always keep your
fingers away from the area between the cylinder and
the barrel during firing.
Your Model 3 Schofield fires only in single action, in which the
hammer must first be manually cocked and the trigger is pulled.
(Figures 16 & 17). Single action tr igger pressure is significantly
less than the Double Action trigger pressure required by other
types of revolvers. As with any handgun, exercise great care in
handling the Schofield when it is loaded and fully cocked.
FIGURE 18
FIGURE 16
FIGURE 17
Decocking (or uncocking):
If you decide not to fire and your revolver is in the fully cocked
position, you must follow these instructions to safely decock the
revolver to the safety/carr y condition.
• Remove your trigger finger from the trigger guard and place
your trigger finger between the cocked hammer and the frame
of the revolver. (Figure 18).
• Push back the frame mounted latch and rotate the barrel fully
open. (Figure 19)
FIGURE 19
Safety Manual - Schofield2 3/16/01 9:15 AM Page 18
19
• Remove all cartridges and empty casings from the firearm.
• Place your trigger finger on the trigger and place your thumb
on the hammer.(Figure 20)
• Pull the trigger to the rear and hold it while lowering the hammer
to the “at rest” position with your thumb.(Figure 21)
• Release the trigger.
• Draw the hammer back to the half cock condition (first click).
(Figure 22)
• Notice the cylinder stop is in the down position. (Figure 23)
• With your revolver still open and unloaded, draw the
hammer rearward slightly. As you do this, pull the trigger
and observe the cylinder stop move to the up position.
• Remove your thumb from the hammer and then release the
trigger. (Figure 24)
• The revolver is now decocked. The cylinder stop should still be
protruding from the inner frame surface and the hammer is
positioned in the middle of its range of travel. The hammer is
now in the SAFETY/CARRY POSITION.(Figure 25)
FIRING CONT’D.
FIGURE 20
FIGURE 21
FIGURE 22
FIGURE 23
FIGURE 24
FIGURE 25
Safety Manual - Schofield2 3/16/01 9:15 AM Page 19
20
CLEARING MISFIRES
If, during firing, a cartridge fails to fire, wait ten seconds while
keeping the barrel pointed in a safe direction. Keep your finger
off of the trigger and out of the trigger guard.
NEVER ATTEMPT TO OPEN OR CLOSE THE BARREL/FRAME
WITH THE HAMMER IN THE “AT REST” POSITION. FAILURE
TO FOLLOW THIS WARNING WILL CAUSE DAMAGE TO YOUR
FIREARM.
Pull back the hammer back to the first click (safety carry or half
cock condition - figure 26). Push back the frame-mounted latch
and rotate the barrel downward. With the barrel pointed in a safe
direction, continueto open the frame and barrel until the extractor
snaps back into the cylinder. Remove the defective cartridge and
dispose of it in a method specifically approved for live round
disposal.
FIRING CONT’D.
Caution: Incomplete Decocking
Failure to hold the trigger fully rearward during the entire time
the hammer is being lowered during decocking may result in the
interruption of the forward movement of the hammer between
the cocked position and the “at rest”position. In this case, the
hammer will appear to have stopped between the full cock and
“at rest” positions. If this occurs, keep the barrel open, keep
your finger off the trigger and out of the trigger guard while
returning the hammer with your thumb to the fully cocked position. Then properly decock the hammer to the “at rest” position
following the decocking procedures outlined on pages 18-19.
FIGURE 26
Safety Manual - Schofield2 3/16/01 9:15 AM Page 20
21
UNLOADING
• Always keep the barrel of your firearm pointed in a safe
direction away from you and others.
• To remove either live cartridges or spent casings from the
cylinder, first point the barrel in a safe direction.
Place the hammer into half cock condition or the
safety/carry condition.
• With the barrel pointed in a safe direction and your finger
out of the trigger guard, push back the frame mounted latch
and rotate the barrel downward. Continue to open the
frame and barrel until the extractor snaps back into the
cylinder.
• Carefully count the cartridges and/or spent casings to be
sure that you have recovered all of them.
• Make a visual check to be sure all charge holes (chambers)
are empty. When unloading your revolver, always be sure
to keep it pointed in a safe direction. Remember, a safe
direction means that you are not pointing the barrel of your
handgun at yourself or any other person.
• Safely secure and store ammunition separately from the
firearm after unloading.
• Be sure to safely secure the firearm when you are done
using it.
NEVER ATTEMPT TO OPEN OR CLOSE THE BARREL/FRAME
WITH THE HAMMER IN THE “AT REST” POSITION. FAILURE
TO FOLLOW THIS WARNING WILL CAUSE DAMAGE TO YOUR
FIREARM.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 21
22
CLEANING AND
MAINTENANCE
!! WARNING !!
Ensure your firearm is unloaded before beginning to clean
it. At all times follow the basic rules of safe gun handling.
Your firearm is a precision instrument and to insure reliable
function, it is necessary to follow a routine maintenance
procedure. After firing your handgun, be sure to unload it
following the procedure outlined in the section entitled
“Unloading” on page 21 before performing any cleaning or
maintenance procedure.Your handgun should be cleaned by
brushing the barrel bore and chamber (charge holes) with a
good powder-removing solvent and bore brush.Wipe the areas
clean with patches or a swab. Using a small brush dipped in
solvent, remove all deposits from around the breech of the
barrel, chamber (charge holes), under the extractor and adjacent
areas which have been subjected to the action of powder or
primer residue. Remove any residue on the frame with light
brushing and a solvent. After cleaning the entire gun, use a cloth
to apply a light film of high quality gun oil to all external metal
surfaces and wipe clean.
After the initial cleaning, there is usually some residue in both
the barrel and cylinder that works out and becomes apparent
within 24-48 hours. This can be removed with a bristle brush
and a light re-application of powder removing solvent after which
the oil film should be re-established on all surfaces.
Cleaning is considered essential in order to ensure the proper
functioning of your handgun.
For additional maintenance, we recommend the services of a
qualified gunsmith. Please refer to section entitled “Service”. If
your firearm will be used or stored in a cold climate, be sure to
use an oil that will not thicken at low temperatures.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 22
23
SERVICE,
SHIPPING & PARTS
SERVICE
Should your Smith & Wesson firearm require service, it should
be returned to Smith & Wesson in its original case or in a
similarly secure container. It is not necessar y to take the gun to
a dealer for shipment. However, before shipping your firearm,
call or e-mail our Customer Service Dept. for authorization and
shipping instructions.
Before shipping your handgun, ensure that the firearm is
unloaded, package it securely, and do NOT ship any ammunition.
The package must NOT bear any markings which indicate the
identity of the contents. Enclose a letter which includes your full
name and address (no P.O. Boxes, please), daytime telephone
number, e-mail address, the serial number of the firearm, and
details of the problem experienced or work desired. Record the
serial number before shipping, in case you wish to check on the
repair status of your firearm.
Ship Centerfire pistols and ALL
revolvers to:
Customer Service, 2100 Roosevelt Avenue, Springfield, MA 01104
Ship ALL .22 caliber pistols to:
Customer Service, 19 Aviation Drive, Houlton, ME 04730
Please call the above telephone number or e-mail the above
address before shipping!!
Since we cannot assume responsibility for custom parts and
accessories, such as stocks, special sights, or holsters, please
remove these items before returning your firearm.
Warranty repair work will begin upon receipt and examination of
the firearm. In the case of repairs or work not covered by the
warranty, a quotation covering the cost of the work plus round
trip transportation charges will be sent to you. Repairs or
modification will begin upon receipt of payment.
Customer Service
2100 Roosevelt Avenue
Springfield, MA 01104
Tel: 800-331-0852 • 413-781-8300
E-mail: qa@smith-wesson.com
For Owners Within The United States
Safety Manual - Schofield2 3/16/01 9:15 AM Page 23
24
SHIPPING
When shipping a firearm, it is most important that you comply
with federal, state, and local laws and regulations. The following
guidelines are meant to help, but you must seek assistance from
the appropriate authorities if necessary.
• Check magazines and chambers to ensure that they
are unloaded. Do not ship ammunition.
• Do not attempt to
MAIL
a handgun; only federally
licensed dealers may mail a firearm.
• If your firearm must be replaced, it may be necessary
to ship the replacement to a dealer rather than directly
to you. You will be requested to furnish a signed FFL
(Federal Firearms License) from your dealer in such an
instance.
• When returning a pistol, please include all magazines
ensuring they are unloaded; they are important to the
proper function of the handgun.
ACCESSORIES & PARTS
Replacement parts and accessories for your Smith & Wesson
firearm are available from your local Smith & Wesson Stocking
Dealer, or directly from the Smith & Wesson Parts Department.
When ordering parts directly from the factory, please provide the
following information:
• Model Number
• Dash Number
• Serial Number
• Approximate date of purchase
• Part view Number (refer to diagram)
• Complete Return Address
• VISA/Discover/MasterCard Number and
Expiration Date
• For Foreign Orders Only, Fax Number or E-mail
Address
SERVICE, SHIPPING, & PARTS CONT’D.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 24
25
WARRANTY
For Owners Within The United States
This warranty is granted by Smith & Wesson, 2100 Roosevelt
Avenue, P.O.Box 2208, Springfield, MA 01102-2208.
This warranty is effective from the date of purchase after
February 1, 1989 and applies to the original owner of any
handgun purchased after that date. With respect to such
handguns, this warranty supersedes any and all other
warranties.
Smith & Wesson handguns are warrantied to be free from defects
in material and workmanship. Any such defects of which
Smith & Wesson receives written notice within one year from the
date of purchase by the original owner, will be remedied by
Smith & Wesson without charge within a reasonable time after
such notification and delivery of the handgun as provided below.
If any unsafe and/or illegal condition if found during warranty
inspection, Smith & Wesson will return the handgun to its original
specification.
Warranty claims (in writing) and the handgun concerned should
be delivered to Smith & Wesson’s Customer Service Department
at the above address. In addition, a copy of the bill of sale in the
owner’s name, or a copy of ATF Form 4473 indicating date of
purchase must be included.
Warranty claims should state the model and serial number of the
handgun concerned and the description of the difficulty experienced. It is recommended that shipments be insured by the
owner, since Smith & Wesson will accept no responsibility for loss
or damage in transit. Transportation and insurance charges for
return to owner will be paid by Smith & Wesson if the claim is
covered by the warranty.
UNDER NO CIRCUMSTANCES SHALL SMITH & WESSON BE
RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES WITH RESPECT TO ECONOMIC LOSS, INJURY OR
PROPERTY DAMAGE, WHETHER AS A RESULT OF BREACH
OF EXPRESS OR IMPLIED WARRANTY, NEGLIGENCE OR
OTHERWISE.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion
may not apply to you in whole or in part.
Smith & Wesson will not be responsible for defects resulting from
careless handling, unauthorized adjustments or modifications,
defective or improper ammunition, corrosion, neglect, abuse,
ordinary wear and tear, or unreasonable use.
Smith & Wesson reserves the right to determine what constitutes
ordinary wear and tear. However, we can rebuild handguns that
have experienced extreme usage or are beyond their normal useful life at a fee that will be quoted to the owner.
This warranty gives you specific legal rights. You may also have
other rights that vary from state to state.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 25
26
EXTENDED
SERVICE POLICY
For Owners Within The United States
Even after the warranty period has expired, Smith & Wesson will
repair, without charge, any handgun purchased by the original
owner on or after February 1, 1989 that is found to have defect in
material or workmanship. Eligibility for this extended service
policy requires returning the Product Registration Card within thirty days of purchase. A copy of the bill of sale in the owner’s name
and the sales receipt should accompany the handgun.
If any unsafe and/or illegal condition is found during warranty
inspection, Smith & Wesson will return the handgun to its original
specification.
This policy covers functional defects;it does not include the hand-
gun’s finish, grips, magazines or sights.
This policy is in addition to and not an extension of the
Smith & Wesson Warranty.
Lifetime Service Policy
Fast Reliable Service
If you have any questions or concerns regarding your
Smith & Wesson product, please give us a call. Our customer
service representatives are product knowledgeable and are here
to help you.
911 Priority Repair Service
In the event of an emergency (repairs needed by law enforcement, an upcoming match or hunting trip), call 1-800-331-0852
and ask for 911 Priority Repair Service. This allows you to speak
with a Smith & Wesson representative. Immediately upon receipt,
your handgun will be assigned to a gunsmith. After the work is
completed, we will return your Smith & Wesson handgun via
overnight delivery.
Safety Manual - Schofield2 3/16/01 9:15 AM Page 26
This handgun is not equipped with a
device that fully blocks use by
unauthorized users. More than 200,000
firearms like this one are stolen from their
owners every year in the United States. In
addition, there are more than a thousand
suicides each year by younger children
and teenagers who get access to firearms.
Hundreds more die from accidental discharge. It is likely that many more children sustain serious wounds or inflict such
wounds accidentally on others. In order to
limit the chance of such misuse, it is
imperative that you keep this weapon
locked in a secure place and take other
steps necessary to limit the possibility of
theft or accident. Failure to take reasonable preventative steps may result in innocent lives being lost, and in some circumstances may result in your liability for
these deaths.
27
Safety Manual - Schofield2 3/16/01 9:15 AM Page 27
Smith & Wesson
2100 Roosevelt Avenue • Springfield, MA 01104
www.smith-wesson.com
REV:SCH040101
