SVT-3100 ACCESS CONTROL CARD READER
(SVT19100)
User Manual
Please read this user manual prior to installing the system, and keep it well for future use.
-1-

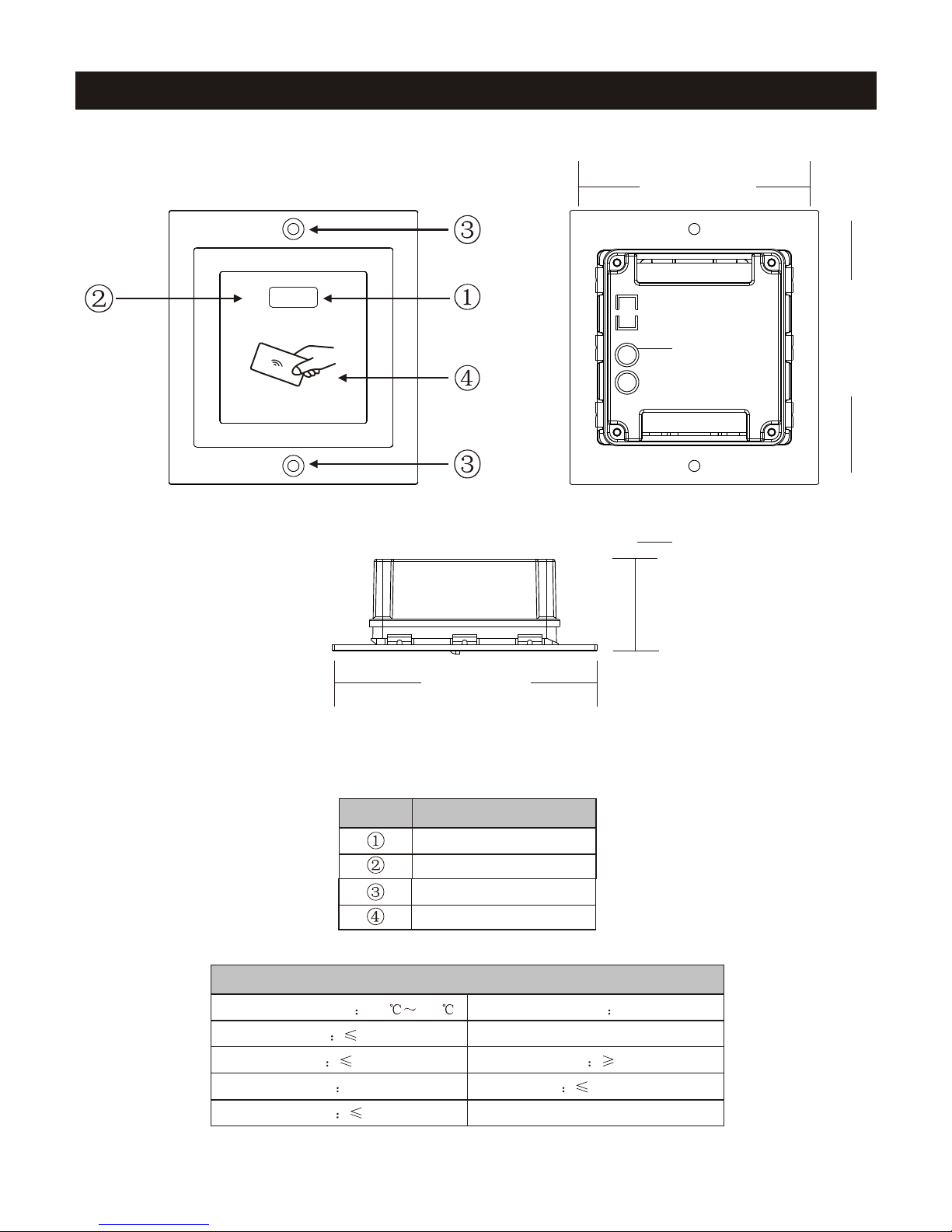

110 mm
100 mm
110 mm
38.5 mm
NO.
Description
Mode indicator
Infrared receptor
Applicable card type ID/IC card
card Capacity: maximum 1000
Sensing distance 2cm
Sensing time 0.8s
Technical Parameters
Ambient temperature -20 +60
Relative humidity 95%
Standby Current 90mA
Operating Voltage DC 14.5V
Operating Current 120mA
Ca
s
e screw
Ant
enna
SVT-3100 ACC
ESS CONTROL CARD READER - SPECIFICATIONS
-2-
Hatch
Install into the wall
Screw hole
Screws
Screw anchors
Screws
Screws
(fix with rain cover)
Rain cover
Wall hole
105 mm
96mm
50mm
(fix with button case)
INSTALLATION (without the rain guard)
INSTALLATION (with the rain guard)
-3-
WIRING CONNECTION
485
NO
COM
NC
Purple
White
Connect to main
board module
P8(4+2)
Connect to main
board module J1
Connect to main
board module
P3(4+2)
Unlock button
Connect to
access control
keypad
Lock
Power supply
DC 14.5V
Red
Black
Note: If it is used as stand alone system, disregard
the wiring in dashed box.
-4-
OPERATION
SVT-3100 ACCESS
CONTROL CARD READER
re
quires the SVT Remote
control for programming.
In the setting mode:
Press 8 with a Di sound, then enter new 4-digits code (XXXX)
and #. After a Di sound, re-enter the new 4-digit code and #.
If two Di sounds is heard, it means the modification is successful.
If enter different codes twice, continued
Di... sound will
be heard,
the modification of code fails. Please modify again.
Press * to return to standby mode.
Notice: If forget admin code, turn on the power again and press #
in 3 seconds until Bi is heard. It means admin code is
restored successfully as default setting.
Press * and #, then enter XXXX (4-digits admin code) and #. A Di
sound indicates entering to the setting mode successfully.
Press * to return to standby mode. (No operation in 20 seconds
will return automatically). The factory default code is 4567.
Enter the setting mode
Modify access control code
Set master card
In the setting mode:
Press 0, a Di sound heard, and press 7 to hear another Di sound.
Then enter the last 6-digits master card number or swipe the
master card. After a Di sound, the setting is completed.
Press * to return to setting mode, and press * again to return to
standby mode.
-5-
In the setting mode:
Press 1. Di sound indicates it is in the adding user card mode.
Enter the last 6-digits of a new card number. If Di sound is heard,
it indicates the adding is successful. Or swipe the new card
instead of adding the card numbers. If a Di sound and another Di
sound are heard, it indicates the adding is successful.
Continuous batch adding new user cards is available. If a
registered card is added, four Di Di Di Di rejection sounds will be
heard. It indicates this card has been registered.
Press * to return to setting mode. Then press * to return to standby
mode. No operation in 30 seconds will return automatically.
Use master card to add user card:
In the standby status, swipe master card once. A Di sound
indicates it is in the adding card mode.
During the adding card mode, swipe each new card will
accomplish with a Di sound. Another Di sound to confirm that the
setting is successful. Registered card will be rejected. After four Di
sounds, swipe master card again to return to standby mode.
Add user card
In the setting mode:
Press 2 with a Di sound. It is in the delete card mode. Enter the
last 6-digits of the card to be deleted. If a Di sound is heard, it
indicates the deletion is successful. Or swipe the card to be
deleted, if a Di sound is heard, and another Di sound indicates
deletion is successful. Continuous batch deleting user cards is
available. If deleted card is deleted again, the access control will
sound four Di rejection sounds. It indicates this card has been
deleted.
Press * to return to setting mode, and press * again to return to the
standby mode. No operation in 30 seconds will return automatically.
Delete user card
Delete all user cards
In the setting mode:
Press 9 with a Di sound heard. And then press 9, continued short
Di sounds can be heard. After it stops, it indicates the deletion of
all user cards is successful.
Press * to return to standby mode. No operation in 30 seconds will
return automatically.
In the setting mode:
Press 3, a Di sound is heard. Enter 6 digits (4-digits building
number and 2-digits machine number), press # with a Di sound.
It indicates the setting is successful.
Press * to return to standby mode. No operation in 30 seconds
will return automatically.
Set building number and machine number
In the setting mode:
Press 4, a Di sound is heard, then enter 2 digits number from 01
to 99 as unlocking time. If a Di sound and another DI sound are
heard, it indicates the unlocking time setting is successful.
Press * to return to standby mode. No operation in 30 seconds
will return automatically.
Set the unlocking time
-6-
The design and specifications of this user manual can be changed without any notification to the user. All
copyright and interpretation rights are reserved to SVT Innovations Inc.
