SVT 2W12120 User Manual

SVT-2 Outdoor Station B/C

User Manual

SVT-2 Outdoor Station B

2W12120

SVT-2 Outdoor Station C

2W12120

Please read this user manual prior to installing the system, and keep it well for future use.

CONTENTS

1.Parts and Functions............................................................................................. 1

2.Terminal Descriptions .......................................................................................... 1

3.Specification ...................................................................................................... 2

4.Mounting .............................................................................................................. 2

4.1 Mounting Without Rain Guard .......................................................................... 2

4.2 Mounting With Rain Guard ............................................................................ 3

4.3 Placing Name Label ...................................................................................... 3

4.4 Adjusting Camera Angle ................................................................................ 4

5.System Wiring and Connections ......................................................................... 4

5.1 Basic Connection........................................................................................... 4

5.2 Electric Lock Connection ............................................................................... 5

5.2.1 Door Lock Controlled with Internal Power ............................................ 5

5.2.2 Door Lock Controlled with Dry Contact ................................................ 5

5.2.3 How to setup the unlock parameter in Monitor ...................................... 6

5.3 Multi Outdoor Stations Connection................................................................ 7

5.4 Multi Indoor Monitors Connection ..................................................................... 8

5.4.1 Basic IN-OUT Wiring Mode ................................................................. 8

5.4.2 With DBC-4 Wiring Mode .................................................................... 9

6.Setup ................................................................................................................... 10

6.1 DIP Switches Settings of Outdoor Station. ....................................................... 10

6.2 DIP Switches Settings of Indoor Monitor .......................................................... 10

6.3 Power Supply.................................................................................................... 12

7.

Cable Requirements ............................................................................................ 13

-1-

1.Parts and Functions

Rain Guard

Camera Lens

Night View LED

Speaker

Name Plate

Call Button

Microphone

90 mm

176 mm

23 mm

2.Terminal Descriptions

BUS

PL

S1+ S2+ S-

1 2

ON

12

ON

MIC adjustment

Lock Control Jumper

Outdoor Station Code DIP

Main Connection Port

1 2 3

SPK adjustment

Note: Outdoor Station B has two call buttons.

-2-

•

Lock Control Jumper:

To select the lock type: see 5.2.1 , 5.2.2

•

Outdoor Station Code DIP:

Total 4 outdoor stations can be supported,see 6.1

•

Main Connect Port:

To connect the bus line and the electric locks.

• BUS: Connect to the bus line, no polarity.

• PL: External lock power input, connect to the power positive(power +).

• S1+, S2+: Lock power(+) output, to connect 2 locks.

• S-: Lock power(-) output, connect to the power(-) input of locks(only when using the camera to
power the locks, if using the external power supply for the locks, the S- will not be connected).

3.Specification

Lock Power supply: 12Vdc, 300mA(Internal Power)

Power Consumtion: 1W in standby, 12W in working

NO, COM dry contact: Max. 48V dc 1.5A

Unlocking time: 1 to 9 seconds, set by Monitor

Working temperature: -10ºC ~ 45ºC

4.Mounting

4.1 Mounting Without Rain Guard

160-165cm

1

2

1 2 3 4

-3-

4.2 Mounting With Rain Guard

160-165cm

1

2

1 2 3 4

4.3 Placing the Name Label

Move the plastic cover away to open the transparent name label cover, insert a name paper, then put
the plastic cover back to the panel.

name label

12

ON

-4-

4.4 Adjusting the Camera Angle

5.1 Basic Connection

Use a screwdriver to loose the screw and then adjust
the angle of the camera ,then fix the screw back to hold
the position of the camera.

5.System Wiring and Connections

-

+

AC~

SVT-2 PC6

12

ON

L1 L2 PL S1+ S2+ S-

-5-

5.2 Electric Lock Connection

5.2.1 Door Lock Controlled with Internal Power

One (1) lock connection

Two (2) lock connection

Note:

1. Electric lock of Power-on-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than 250mA.

3. The door lock control is not timed from Exit Button(EB).

4.

The

Unlock Mode

Parameter on the Indoor Monitor must be set to 0 (by default).

EB

*

LOCK

BUS PL S1+ S2+ S -

LOCK

2

nd

1

ST

2

nd

EB

*

1

ST

Jumper position in 1-2

EB

*

LOCK

Jumper position in 1-2

5.2.2 Door Lock Controlled with Dry Contact

Note:

1. The external power supply must be used according to the lock.

2. The jumper must be taken off before connecting.

3.

Setup the

Unlock Mode

on the Indoor Monitor for different lock types.

• Power-on-to-unlock type:Unlock Mode=0 (by default)

• Power-off-to-unlock type:Unlock Mode=1

BUS PL S1+ S2+ S-

-6-

LOCK

Take off the Jumper

POWER
SUPPLY

LOCK

Take off the Jumper

POWER

SUPPLY

LOCK

connect one lock connect two locks

5.2.3 Unlock parameter setting (set on Indoor Monitor)

Note:

1.

The system must be installed properly before proceding to the Unlock Parameter Setting.

2.

The parameter will be saved automatically,so you only

need

to program

on one monitor.

3.

Please note, the text of the diagrams above may distinguish on each Indoor Monitor series. For
additional information, refer to the corresponding Indoor Monitor User Manual.

BUS PL S1+ S2+ S-

BUS PL S1+ S2+ S-

1.Touch icon on
main menu page.

2.Touch UNLOCK
button and hold for 2s.

3.A digital keypad will
be shown.

About
Local Address 00.00
Video Standard

AUTO

System Verson 00.01.00
Display Driver 1.0
Front 1.0
UI 1.0

INSTALLER SETUP

123

_

-7-

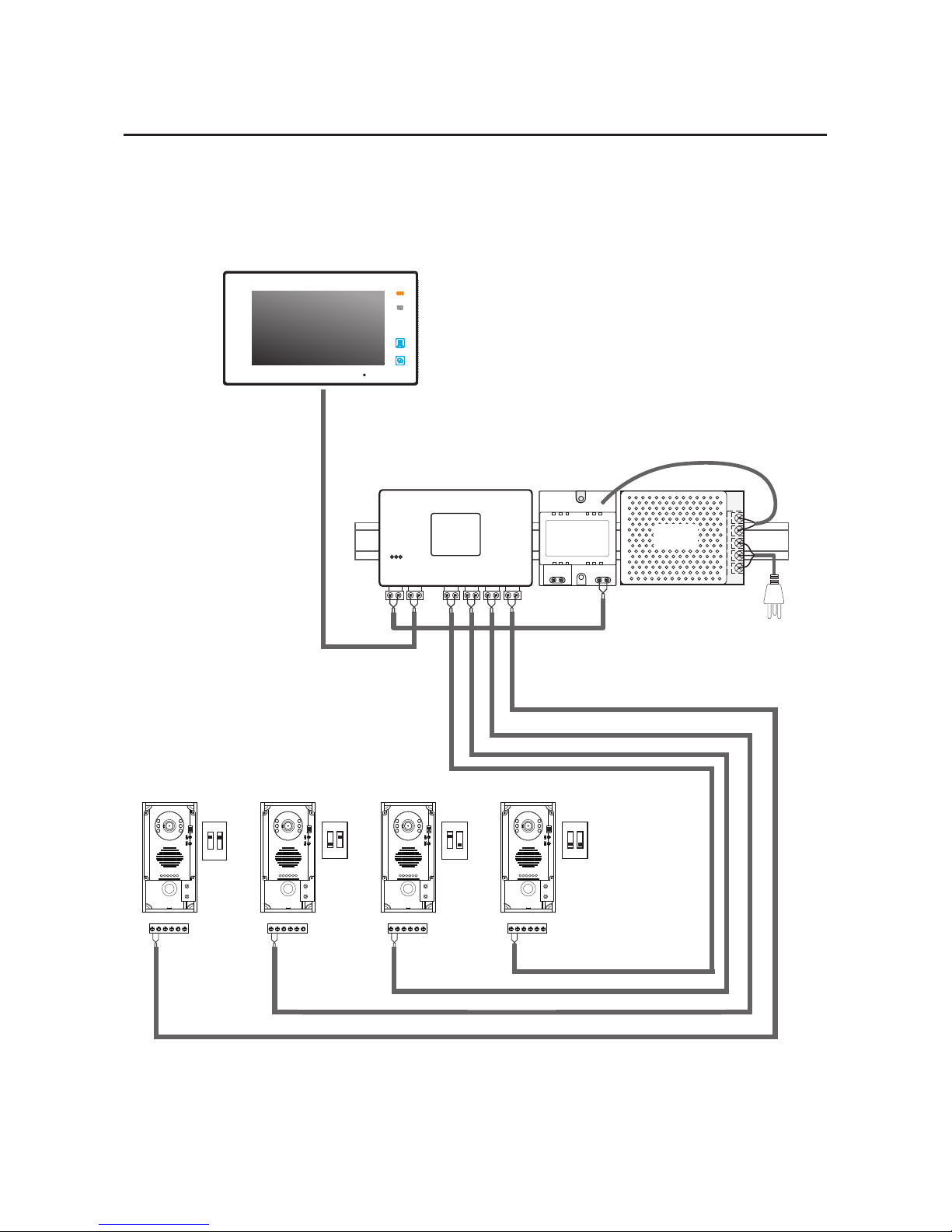

5.3 Multiple Outdoor Stations Connection

85~260VAC

SVT-2

DPS

SVT-2

PS5

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

1 2

ON

1 2

ON

1 2

ON

1 2

ON

1# Camera

ID=00

ID=10

ID=01ID=11

2# Camera3# Camera4# Camera

SVT-2

DBC4

A B C D

BUS

-8-

5.4.1 Basic IN-OUT Wiring Mode

5.4 Multiple Indoor Monitors Connection

AC
~

SVT-2 PC6

-9-

5.4.2 Using SVT-2 DBC-4 device - Wiring Mode

HI

HI

SVT-2

DBC-4

A B C D

IN

OUT

SVT-2

DBC-4

A B C D

IN

OUT

85~260AC

ID=00

1 2

ON

SVT-2

DPS

SVT-2

PS5

-10-

6.Setup

6.2 DIP Switches Settings of Indoor Monitor

6.1 DIP Switches Settings of Outdoor Station

Total 2 bits on the DIP switches can be congured.The switches can be modied either before or after
installation.

Bit state Descriptions

Default setting, ID = 0(00), set to the rst Door Station.

ID = 1(10), set to the second Door Station.

ID = 2(01), set to the third Door Station.

ID = 3(11), set to the fourth Door Station.

1

2

ON

1 2

ON

1 2

ON

1 2

ON

ON(1)

=

OFF(0)

=

ON

ON

There are 3 DIP switches in total. Bits 1 and 2 are reserved and must be on the default position.
The Bit 3 is used to configure the position of each indoor monitor in the connection line. It must be set
to ON if the indoor monitor is in the end of the line, parallel connection, or connected to a SVT-2
DBC-4 module. It must be set to OFF if the indoor monitor is in the middle of the line (daisy chain
connection)

1 2 3

ON

Bit

DIP1&2

Reserved. left to default.

Set to OFF. When the monitor is in the middle of the line in daisy chain connection.

Bit State Description

DIP3

1 2 3

ON

1 2 3

ON

Set to ON. When the montior is at the end of the line or connected to a SVT-DBC4.

-11-

Note:

Call button A: configure indoor monitors with user codes 0 - 15
Call button B: confugure indoor monitors with user codes 16 - 31

A

B

A

Each indoor monitor should be assigned with an address in the system.

SVT-2 Outdoor Station B (2W12120): A maximum of 16 indoor monitors can be connected to the

system. Program the indoor monitors with user codes 0 - 15.

SVT-2 Outdoor Station C (2W12130): 16 indoor monitors can be connected to each call button, with

a maximum of 32 indoor monitors per system.

Input No. User Code Input No. User Code Input No. User Code

8200 Code=0 8211 Code=11 8222 Code=22
8201 Code=1 8212 Code=12 8223 Code=23
8202 Code=2 8213 Code=13 8224 Code=24

8203 Code=3 8214 Code=14 8225 Code=25
8204 Code=4 8215 Code=15 8226 Code=26
8205 Code=5 8216 Code=16 8227 Code=27
8206 Code=6 8217 Code=17 8228 Code=28
8207 Code=7 8218 Code=18 8229 Code=29

8208 Code=8 8219 Code=19 8230 Code=30
8209 Code=9 8220 Code=20 8231 Code=31

8210 Code=10 8221 Code=21

*For additional settings, refer to the Indoor Monitor User Manual.

-12-

6.3 Power Supply

Name Description

Specifications

SVT-2 PC6

SVT-PS5

It provides power for the outdoor stations,
indoor monitors and other accessories. It
supports a maximum of 32 indoor monitors. It
must be used along with a SVT-DPS device.

It supplies power for the outdoor stations,
indoor monitors and other accessories. It
supports up to 8 indoor monitors.

Input Voltage: 100 ~ 240Vac
Input Frequency: 50 ~ 60Hz
Rated Output Voltage: DC 28V, 2V
Rated Output Current: 1.5A

Input Voltage: 100~120VAC (2.5A),

200 ~ 240VAC (1.5A)
Input Frequency: 50 ~ 60 Hz
Rated Output Voltage: 24Vdc
Rated Output Current: 4.5A

-13-

7.

Cable Requirements

Using different cables may affect the maximum distance which the system can reach.

When Monitor quantity < 20

Cable Usage A B C

CAT5 cable (1 pair of wire per
conductor - must solder the ends)

200 feet
60 meters

14 AWG Speaker Wire
(Stranded non-shielded)

When Monitor quantity > 20

Cable Usage A B C

14 AWG Speaker Wire
(Stranded non-shielded)

The farest monitor

B

A

C

SVT-2 /DBC-4

with two or four monitors

SVT-2

DPS

SVT-2

PS5

200 feet
60 meters

100 feet
30 meters

260 feet
80 meters

260 feet
80 meters

130 feet
40 meters

230 feet
70 meters

165 feet
50 meters

100 feet
30 meters

The design and specifications of this user manual can be changed without any notification to the user.
All copyright and interpretation rights are reserved to SVT Innovations Inc.
