SVS 7EX SERIES LIFT
INSTALLATION MANUAL
SVS, INC. Lifting Your Image
2513 Jenks Avenue Tel: 850 -522-4747
Page 2
SVS 7EX SERIES LIFT
INSTALLATION INSTRUCTIONS
SECTIONS:
1: Preliminary Installation Checks ---------------------------------------- Pg. 4
2: Considerations for placement of the lift ----------------------------- Pg. 5
3: Lift's supporting Structure --------------------------------------------- Pg. 5, 6 & 7
4: Lift Installation ---------------------------------------------------------- Pg. 8
5: Ceiling Closure Installation -------------------------------------------- Pg. 8
6: Electrical Wiring and Lift Control ------------------------------------ Pg. 9 & 10
7: Mounting the Projector ------------------------------------------------ Pg 11
8: Cable Management ----------------------------------------------------- Pg 11
9: Setting the Show Position --------------------------------------------- Pg 12
10: Maintenance and Adjustments -------------------------------------- Pg 12
SVS 7EX Series Lift Warranty -------------------------------------------- Pg. 13
Page 3
SVS 7EX SERIES LIFT
GENERAL DESCRIPTION:
The SVS 7EX Series Lift is designed to
support projectors up to 32.5" Wide (82.5
cm) and features lowering distances ranging
from 9' (2.7m) to 22'6" (6.9m). This model
is an ideal solution for residential or
c ommercial A/V applications with
restricted ceiling clearance since the
projector is installed between the scissors.
FEATURES:
MAXIMUM LOWERING DISTANCES:
SVS 7EX-9 LIFT: 9'0" (2.7 m)
SVS 7EX-11 LIFT: 11'3" (3.4 m)
SVS 7EX-13 LIFT: 13'6" (4.1 m)
SVS 7EX-15 LIFT*: 15'9" (4.8 m)
SVS 7EX-18 LIFT*: 18'0" (5.5m)
SVS 7EX-20 LIFT*: 20'3" (6.2m)
SVS 7EX-22 LIFT*: 22'6" (6.9 m)
* Cable Retractor Included
STORAGE, SHOW, SERVICE POSITIONS
LIFTING CAPACITY
LIFT'S WEIGHT
MAXIMUM PROJECTOR SIZE
LOW VOLTAGE CONTROLLER
PRECISION GROOVED DRUM
PATENTED FAIL SAFE DRUM LOCK SYSTEM Insures safety in the event of mechanical failure. 100% safety
QUIET AND STRONG MOTORS
REDUNDANT LIMIT SWITCHES (UP AND
DOWN)
CABLE MANAGEMENT SYSTEM
17.5" (44.5 cm)
19" (48.3 cm)
20.5" (52.1 cm)
22" (55.9 cm)
23.5" (59.7 cm)
25" (63.5 cm)
Note: Lift only- accessories and supporting structure not
included - Projector's height may also affect lift's height.
Projector can easily be:
- Aesthetically stored above the ceiling when not in use
- Automatically positioned for show/operation
- Easily lowered to floor level for service
Up to 700 Lbs (317.52 Kg.)
From 165 Lbs (75 Kg.)
32.5" Wide (82.5 cm)
Supplied with 75' (22.86 m) of cable (22 g./9 conductor).
Accurate, level tracking for consistent screen image
record after 14+ years of manufacturing
Extra quiet for meetings and presentations or simply
for home use.
For secure and safe motor shutdown.
Keep cables and cords out of the way during operation.

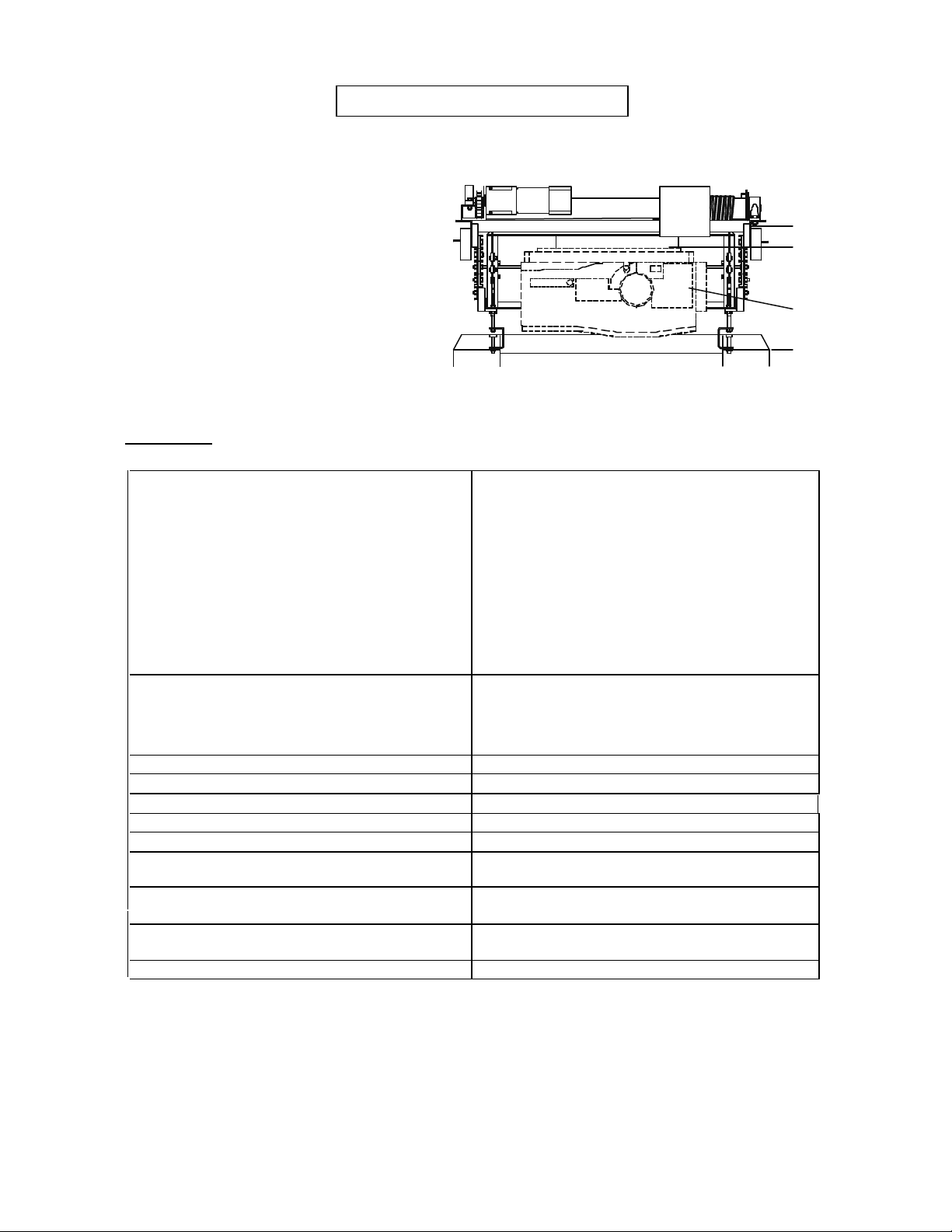

LIFT'S HEIGHT IN CLOSED POSITION:
16" (40.6 cm)
LIFT (6")
MOUNT
PROJECTOR
CLOSURE
Page 4
PLEASE READ THROUGH ALL INSTRUCTIONS (INCLUDING ACCESSORY INSTRUCTIONS)
BEFORE PROCEEDING.
This lift is designed to be used with a re mote control unit, either automatically or manually controlled
and will function without any special training in the "show position". The lift is supplied with a key
switch and can be left in the "show", "auto" or "off" position for normal operation. The "service"
position must be used only by trained technical personnel when the lift is lowered to floor level for
service/access. Normal safety requirements of handling heavy equipment must be followed.
1.PRELIMINARY INSTALLATION CHECKS:
•The support structure should hold at least four (4) times the weight of the lift and projector combined. Always
follow the building codes.
•Required space, lift support, and necessary cabling (i.e. low voltage control lines, audio/video control and power
supplies) should be considered or installed prior to the lift installation.
•Do not install the projector on the lift until the lift, hardware and any other accessories have been properly
installed and operational.
•This lift has been adjusted at factory with cables tightly packed on the drum and leveled for precise tracking,
prior to being shipped from SVS Factory. Do not remove the lift's shipping blocks until instructed to do so
(see Section 4-6). SVS scissor lifts are shipped in a slightly open position to eliminate stress on the limit
switches and to maintain a tight cable pack on the drum. If physical height measurements are taken before
the blocks are removed from the lift, they may not accurately reflect the actual measurement of the lift in a
closed position.
•All weight attached to the lift must be centered between the lift's cables. The balance point of the projector
(also called center of gravity or lens face to base box center) should be placed in line with the cables (+ /- 1").
•For ease of installation, lift can be hoisted into ceiling location with blocks and tackle or by using a ratchet
puller.
•As a reminder, clear all persons and obstructions from the lift's path during its operation. Keep fingers and
other objects away from the scissors and other moving parts. Technical Personnel should always be present
whenever the lift is in a service mode.
Page 5
2. CONSIDERATIONS FOR THE PLACEMENT OF THE LIFT:
•Before beginning the installation, check the
dimensions of the projector to be mounted
against the available space within the lift. Be sure
to include the lens or any accessories which may
add to the overall dimensions of the projector .
To be used with the 7EX Series lift, the projector
cannot be more than 32.5" Wide (82.5 cm)– see
figure 1 & 2a and 2b.

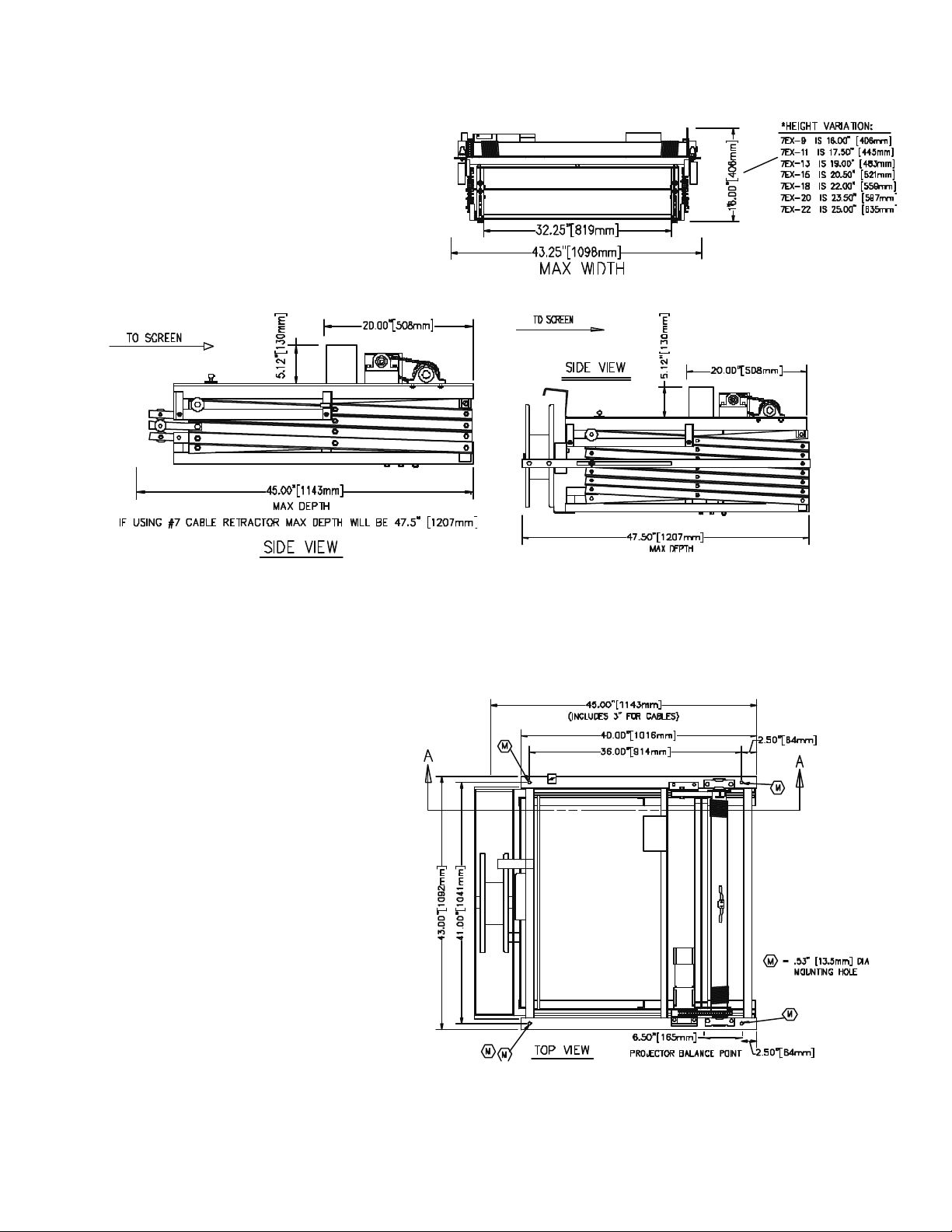

Figure 1. (Front View)
Figure 2a. (Side View)- SVS 7EX-9, 11, 13 Figure 2b. (Side View)- SVSEX-15, 18,20,22
•Preliminary measurements should also be made to layout the orientation of the projector to the screen and
projector to lif t. If the projector lens if offset, the lift position must be offset accordingly to align the lift and the
projector with the center of the screen.
3. LIFT ‘S SUPPORTING STRUCTURE:
The 7EX Series Lift can be mounted from
four ½" threaded rods spaced at 36" Wide
(914 mm) x 41" Deep (1041 mm) -as
shown in figure 3. The threaded rods must
be supported by a rigid structure and should
not extend more than 2' (0.6m). If the
length of the rods exceed 2' (from the
support structure to the lift's top mounting
holes), cross bracing should be installed
between the rods to increase the stability of
the installation -see figure 4.

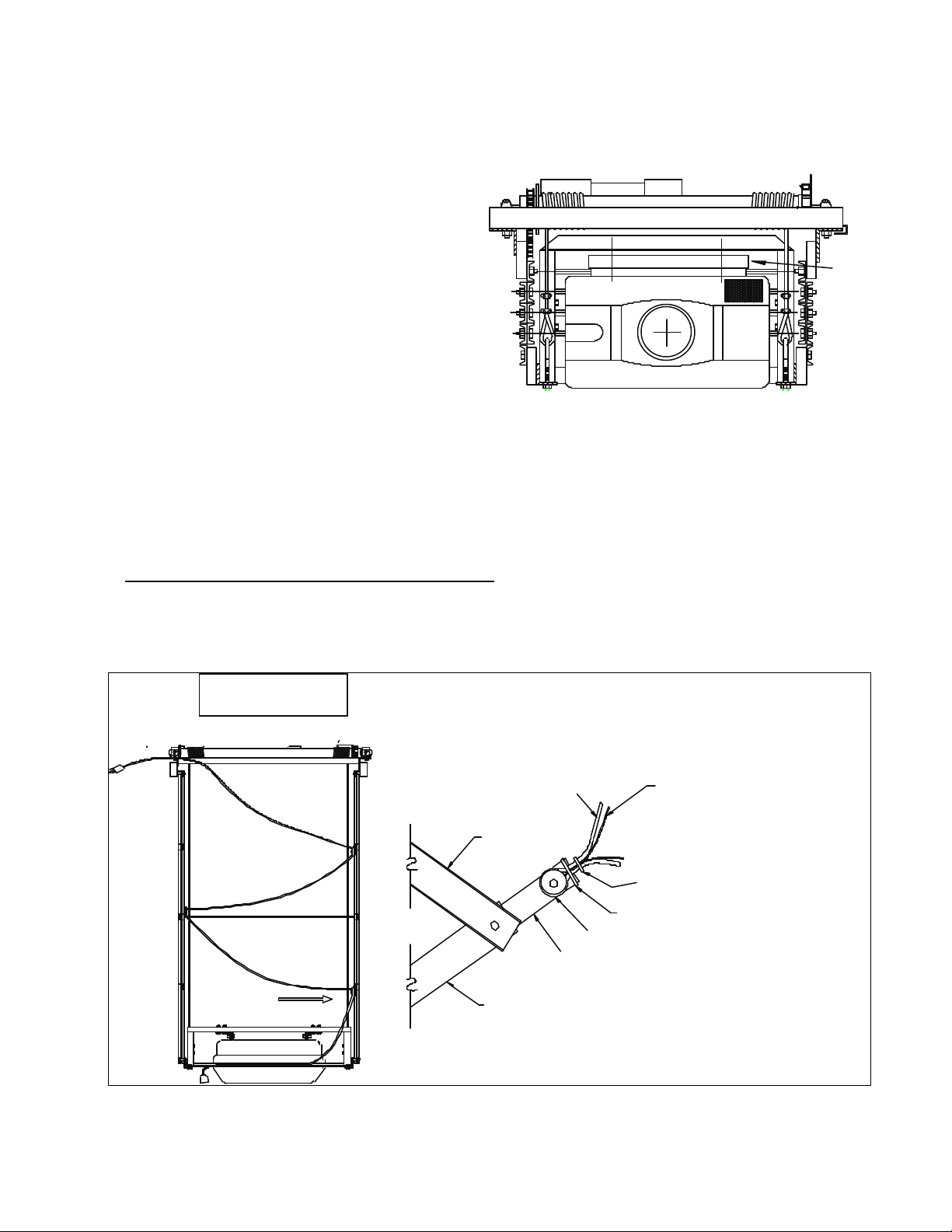

Figure 3 -Lift shown with cable retractor.
Page 6
TO ACHIEVE PROPER HEIGHT.
MAIN CEILING
CROSS BRACING
FALSE CEILING
CORRECT HEIGHT FOR FALSE CEILING
ADJUST THREADED ROD LENGTH
INCORRECT HEIGHT
Figure 4.

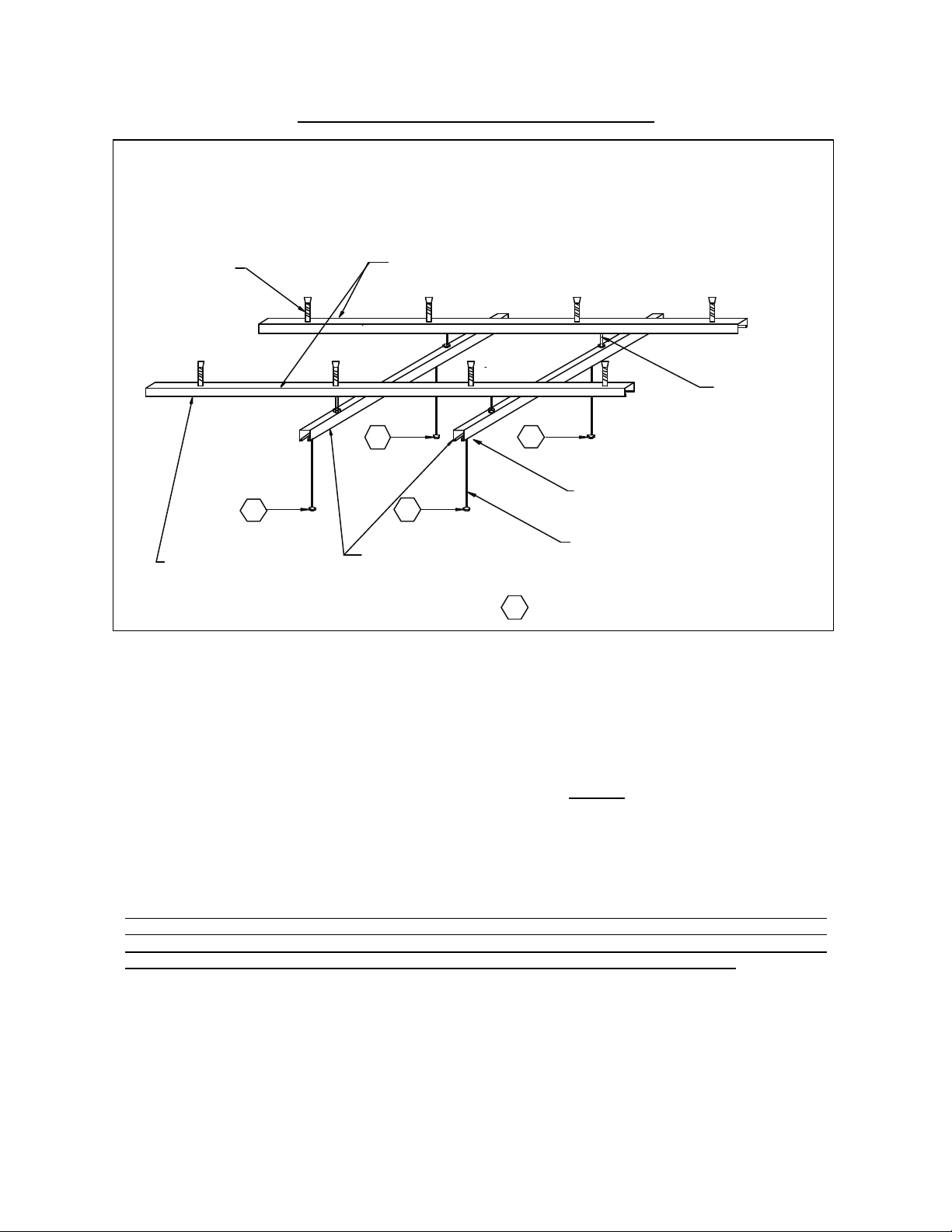

If ceiling clearance allows, an "X-Y" or a cross- supporting structure is strongly suggested (as shown in two
following suggested supporting structures). This will allow front-to-back or side-to-side adjustments if the lift is
found to still be slightly offset with the screen once it has been installed.

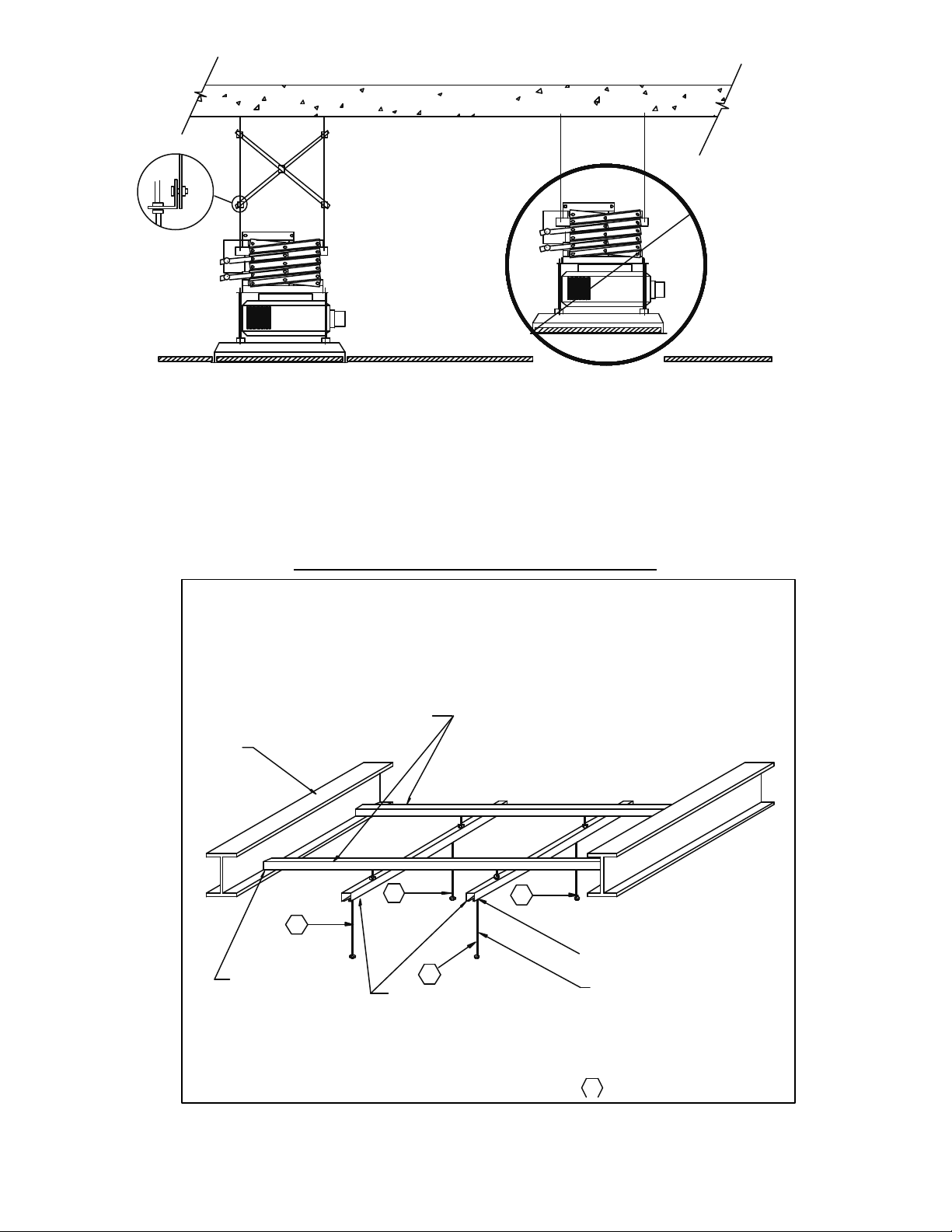

SVS 7EX SERIES LIFT MOUNTING ON EXISTING BEAMS
ALWAYS FOLLOW THE LOCAL BUILDING
CODES. SVS RECOMMENDS THAT ALL MOUNTING
HARDWARE IS RATED TO HANDLE 4 TIMES
THE WEIGHT OF THE PROJECTOR
AND LIFT OR WHICH EVER NUMBER
IS HIGHER.
X - UNISTRUT P1000 T
EXISTING
BEAMS
2 PLCS.
* MOUNTING MATERIALS NOT SUPPLIED BY SVS, INC.
2 PLCS.
M
BEAM CLAMP
UNISTRUT P2824
4 PLCS.
M
M
Y - UNISTRUT P1000 T
2 PLCS.
DO NOT EXCEED RATING OF
UNISTRUT BY SPANNING TOO GREAT
OF A DISTANCE.
1/2" THREADED
RODS 4 PLCS.
M
Figure 5a.
UNSTRUT CHANNEL NUT
P3010 WITH WASHER
AND RETAINING NUT.
8 PLCS.
THREADED ROD, 4 PLCS.
.375" FOR PLASMA AND
LCD LIFT
.5" FOR ALL OTHER
LIFTS
= MOUNTING HOLES
M
Page 7
= MOUNTING HOLES
SVS 7EX SERIES LIFT MOUNTING ON A FLAT CEILING
ALWAYS FOLLOW THE LOCAL BUILDING
CODES. SVS RECOMMENDS ALL MOUNTING
HARDWARE BE RATED TO HANDLE 4 TIMES
THE WEIGHT OF THE PROJECTOR
AND LIFT OR WHICH EVER NUMBER
IS HIGHER.
USE NO LESS THAN EIGHT 1/2"
MACHINE THREAD SHIELDS AND
BOLTS TO SECURE TO CEILING.
X - UNISTRUT
P1000T 2 PLCS.
1/2" THREADED
RODS 4 PLCS.
M
M
USE 10'LENGTH WHEN
POSSIBLE ON EACH X AXIS
MOUNTING MATERIALS NOT SUPPLIED BY SVS, INC.
M
Y - UNISTRUT P1000 T
2 PLCS.
M
UNSTRUT CHANNEL NUT
P3010 WITH WASHER
AND RETAINING NUT.
8 PLCS.
THREADED ROD, 4 PLCS
.375" FOR MINI 4
AND LCD LIFTS
.50" ALL OTHER LIFTS
M
Figure 5b.
Important note for concrete ceiling installations: when attaching the lift to a flat ceiling, SVS suggests two (2)
pieces of #P1000T Unistrut (approx. 10' long -3.04 m), to be installed on the ceiling first. Proper spacing between the 2
pieces will be based on the distance between the top four (4) mounting holes of th e lift (as shown in Figure 1) .
You should use at least four (4) ½" bolts and anchors evenly spaced our on each piece of Unistrut to distribute the weight
of the supporting structure. Attach ½" threaded rods to the Unistrut, using Unistrut #P3010- ½"" channel nuts in the
channel, along with a locking washer and nut below channel to lock into place.
IMPORTANT: IF A #2 PLENUM SHROUD OR A #12 DECORATIVE COVER ARE TO BE INSTALLED
WITH THE SVS 7EX LIFT. PLEASE READ THEIR INSTALLATION INSTRUCTION BEFORE
P ROCEEDING. THE SUPPORTING STRUCTURE SHOULD ALSO ALLOW ENOUGH SPACE TO
INSTALL THE MOUNTING HARDWARE OF THE DECORATIVE COVER AND THE PLENUM SHROUD.
Page 8
4. LIFT INSTALLATION:
a. Preparation:
1. The lift is shipped in a wood crate. Remove the Philips screws from the top lid.
2. Unbolt the lift from the bottom panel of the crate to remove the lift out of the crate.
3. The warranty information and the low voltage controller are located in the white box.
b. Installing the lift in the ceiling:

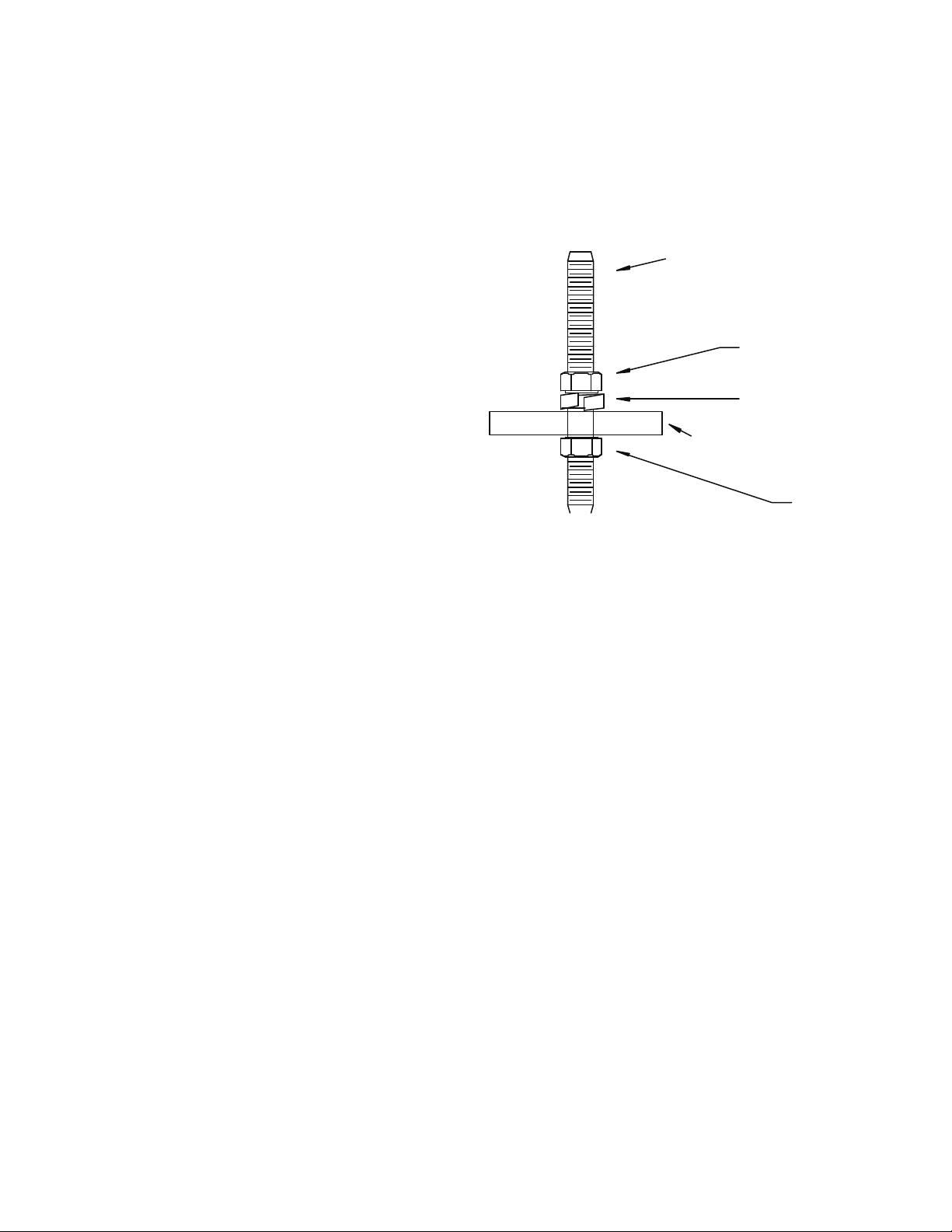

1/2" THREADED ROD
1. Raise the lift, insert it into the ceiling and line
up the four (4) mounting holes of the top frame
to the ½" threaded rods of the supporting
structure. Make sure that there is a top nut and a
flat washer before the lift is mounted –see
Figure 6. Once the lift's top frame has been
1/2" HEXNUT
inserted, add a ½" Hexnut to each threaded rod.
Always leave top nut loose to allow adjustments
LOCK WASHER
until the lift is leveled.
2. Secure the lift to the threaded rods.
TOP FRAME OF LIFT
3. Check that the top frame of the lift is leveled
from front -to-back
and side-to -side.
HEXNUT
4. Secure the top nuts. Do not over tighten
the fasteners before the lift is leveled as it Figure 6.
could distort the top frame.
5. If Power Sensor is used, please refer to the
power sensor instructions, otherwise, plug in the 12 pin connector of the low voltage controller (the Key Switch
Control Box) into the 12 pin receptor of the grey electrical box, which is supplied with the lift and shipped in
the white box located underneath the lid of the shipping crate.
6. Remove the four (4) shipping Blocks from the lift. Never remove the blocks until the lift is properly installed
in the ceiling.
7. Make sure that cables are out of the way of operation.
8. Before lowering the lift, you should have some weight attached to the bottom of the lift in order to keep the
cables tight until the projector is mounted. Both cables are placed on the drum so that they start unwinding
from the inside to the outside of the drum. They are vertical to the eye bolts in the closed position and slightly
angled toward the outside of the drum to avoid friction/rubbing with the previous cable loop.
To avoid cable spill:
- Do not push the bottom frame upward once the lift has been installed.
- Make sure that there is no obstructions in the lift's path. If the bottom frame lowers onto a chair, table or any
other object, this will cause the cables to slack and spill over the drum.
5. CEILING CLOSURE INSTALLATION – Please refer to installation instructions included with the #1
Ceili ng Closure. It is the self-aligning closure system installed underneath the projector and used to conceal the
ceiling hole when the lift and projector are raised in the ceiling. It is attached to the four (4) mounting holes of
the lift's bottom frame with threaded rods.
Page 9
6. ELECTRICAL WIRING AND LIFT CONTROL:
Electrical Connections should be made at this time. The 7 Series lift is controlled with a low voltage 24v/AC
controller called the Key Switch Control Box. This controller can be easily connected to external controllers
like Crestron, AMX etc.

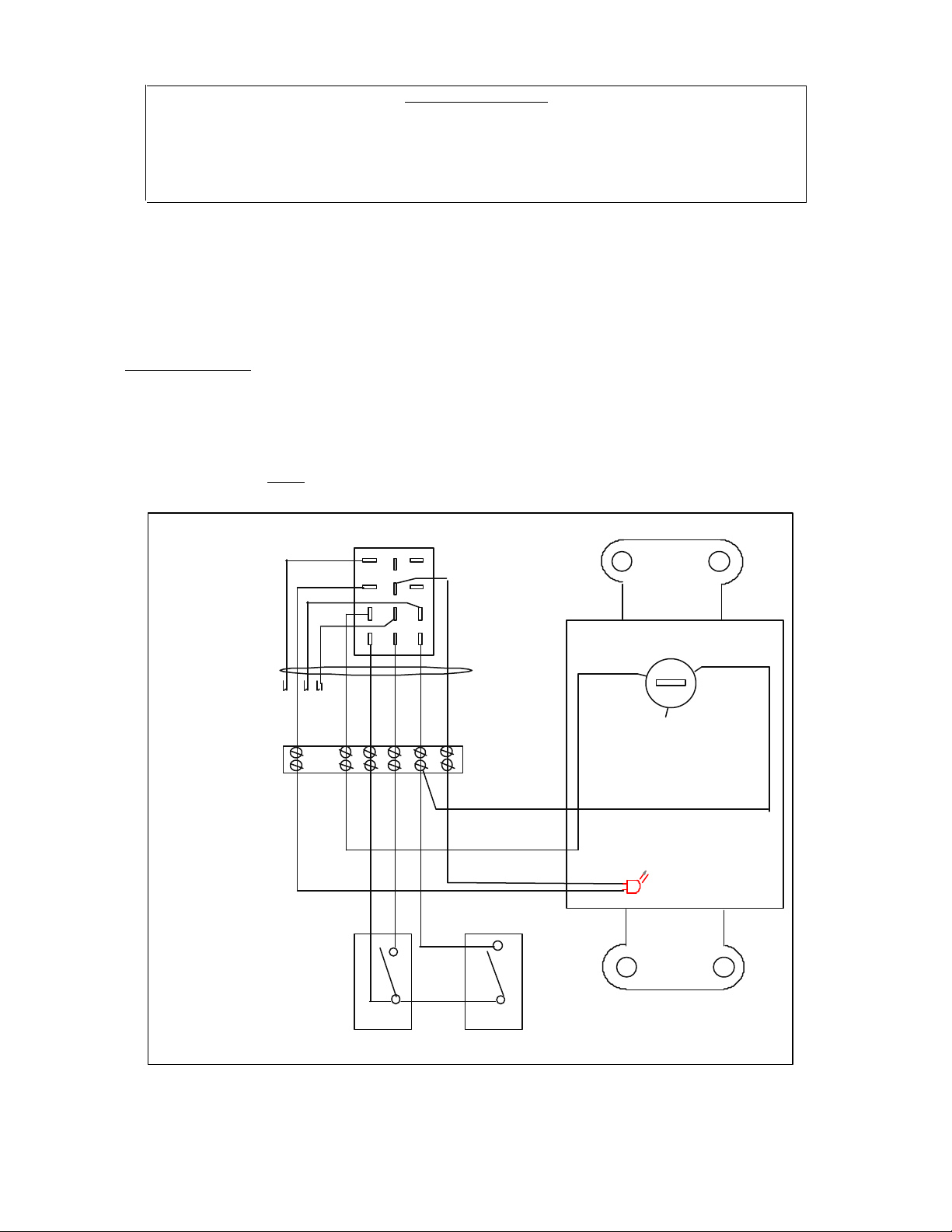

SVS WALL PLATE
WALL PLATE CONTROLLER
YEL
RP2 (CONNECTS TO RJ2)
BLK
PUR
BLU
10
7
12
11
8
9
4 5 6
321
RED
WHT
BRN
GRN
BLK
ORN
BRN
GRN
RED
WHT
BLK
ORN

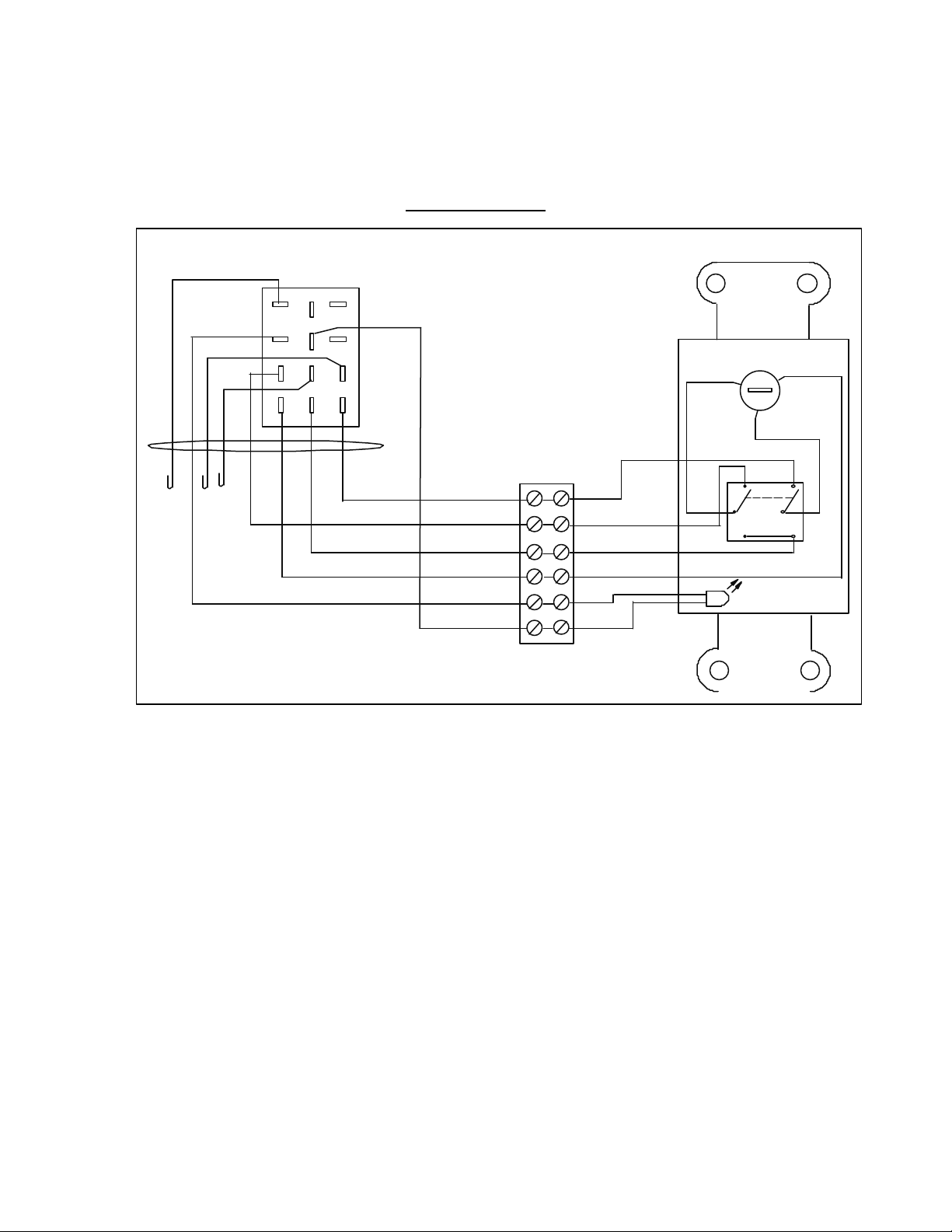

Figure 7.
How to use the low voltage controller:
a. To lower the lift to the show position, turn the keyswitch to the "show" position and press the toggle down.
The lift will stop once the roller compresses the show microswitch. The service mode is used to bypass the
adjusted show position and to set the lift in a service mode, turn the keyswitch to the "service" position and
press the toggle switch down. When the lift reaches its down limits, the lift will stop.
b. To raise the lift back to a storage position, turn the keyswitch to "service" and press the toggle switch up. The
lift will stop once its top frame compresses the up limit switches.
Note: The "up" switch works in both "service" and "show" position on the key switch.
Important: when the lift is set in a service mode, the lift will lower until it has reached its down limit switches.
The toggle switch on the control plate needs to be pressed at all times to activate the lift. It is designed as a
safety feature (the lift can be stopped at any time). The key is an extra precaution as well: when removed, the lift
is secured. If an external controller is use, please make sure that no object is standing in the lift path as it lowers
to a service position.
VIEW FROM BACK
SHOW-OFF-SERVICE
(SERVICE)
1
WHT
(SHOW)
DOWN
GRN
UP
-
+
MOTOR
POWER ON
(24vac)
C
2
BRN
WHT
Page 10
LIFT SPECIFICATIONS
RELAY TWO
RELAY ONE
USA INTERNATIONAL
VOLTAGE 110V/60HZ 220V/50HZ
LOW VOLTAGE CONTROLLER 24v/ac 24v/ac.
CURRENT DRAW 2.3 amps 2.3 amps/1.2 amps
MATERIAL Steel/Aluminum Steel/Aluminum
Power Requirements: 110v/50-60hz -220v/50-60hz
Low Voltage Controller: Supplied with the lift. 12 pin connector plug. 75' of
Cable (22 g./9 conductor).
WHEN USING A TOUCH SCREEN CONTROLLER:
If an external controller is to be us ed (AMX, Crestron), please refer to the following wiring instructions -see
figure 8.
INSTRUCTIONS:
- Program a release of relays to stop on up and down positions.
- Program a time out after the normal run time, 1 or 2 seconds max.
1. Program an exclusive lockout on up and down so both positions cannot be activated at the same time.
2. Hold relays on to move the lift and release relays to stop the lift -always time out or release relay after normal
use. IMPORTANT: Never
leave voltage on the up and down. Always release voltage immediately after the
travel time has been achieved.
YEL
BLK
PUR
BLU
BLK
Terminal Strip
(on newer lifts)
GRN
RP2
10
7
WHT
12
11
8
4 5 6
321
RED
BRN
9
SHOW-OFF-SERVICE
(SHOW)
C
2
ORN
(SERVICE)
GRN
1
GRN
WHT
24VAC
TOUCH SCREEN
RED
BRN
BRN
GRN
ORN
BLK
(VIEWED FROM BACK)
+
-
UP
TOUCH SCREEN
DOWN
INSTALL KEY SWITCH IN
RACK WITH CONTROL PANEL.
MOTOR
POWER ON
BRN
Wiring using Touch Screen Controller (Figure 8).
IF USING ANY OTHER SYSTEMS, PLEASE CONTACT SVS FOR PROPER WIRING TO AVOID
UNSAFE OPERATIONS.
Page 11
7. MOUNTING THE PROJECTOR:
After checking the lift operation and all clearances, the projector can be installed. The projector can be mounted
in two ways: inverted or platform mounted.
–The projector can be attached to the lift by using
a #9 Mounting Bracket, which is the actual
connecting hardware between the projector and
the lift. The base box of the #9 mounting
bracket will need to be bolted to the lift. On
the SVS 7EX lift, the mount will be secured to
PROJECTOR
the "U" shape cross member (saddle of the lift).
The mount base should be centered side to side
with the lift frame.
Figure 9.
–If the projector is non- invertible, it can be placed on a SVS #13 platform (metal shelf used to support
projector).
Note : All weight attached to the lift must be centered between the cables. Balance point of the projector should
be placed in line with cables with +/- 1" of difference.
8. CABLE MANAGEMENT:
- For SVS 7EX -9 Lift, SVS 7EX-11 Lift, SVS 7EX-13 Lift:
These lifts feature cable retainers installed on the scissor extensions in the rear of the lift. These retainers are
used to keep cables and other cords securely out of the way during operation. It is not suggested to attach the
cables to the scissors of the lift as they could get repeatedly pinched when the lift raises and lowers. To keep
projector cords away from scissors, please attach cords as demonstrated in figure 10a.
VIEW FROM BACK
OF PROJECTOR LIFT
VIEW - A
BACK OF
VIDEO PROJECTOR
POWER CORD
SCISSOR
SCISSOR
Figure 10a.
WASHER
EXTENSION
VIDEO CABLE
WIRE TIE AROUND POWER CORD, AND VIDEO LINE
WIRE TIE AROUND EXTENSION, POWER CORD,
AND VIDEO LINE
VIEW - A
(ENLARGED TO SHOW DETAIL)
MOUNT
Page 12

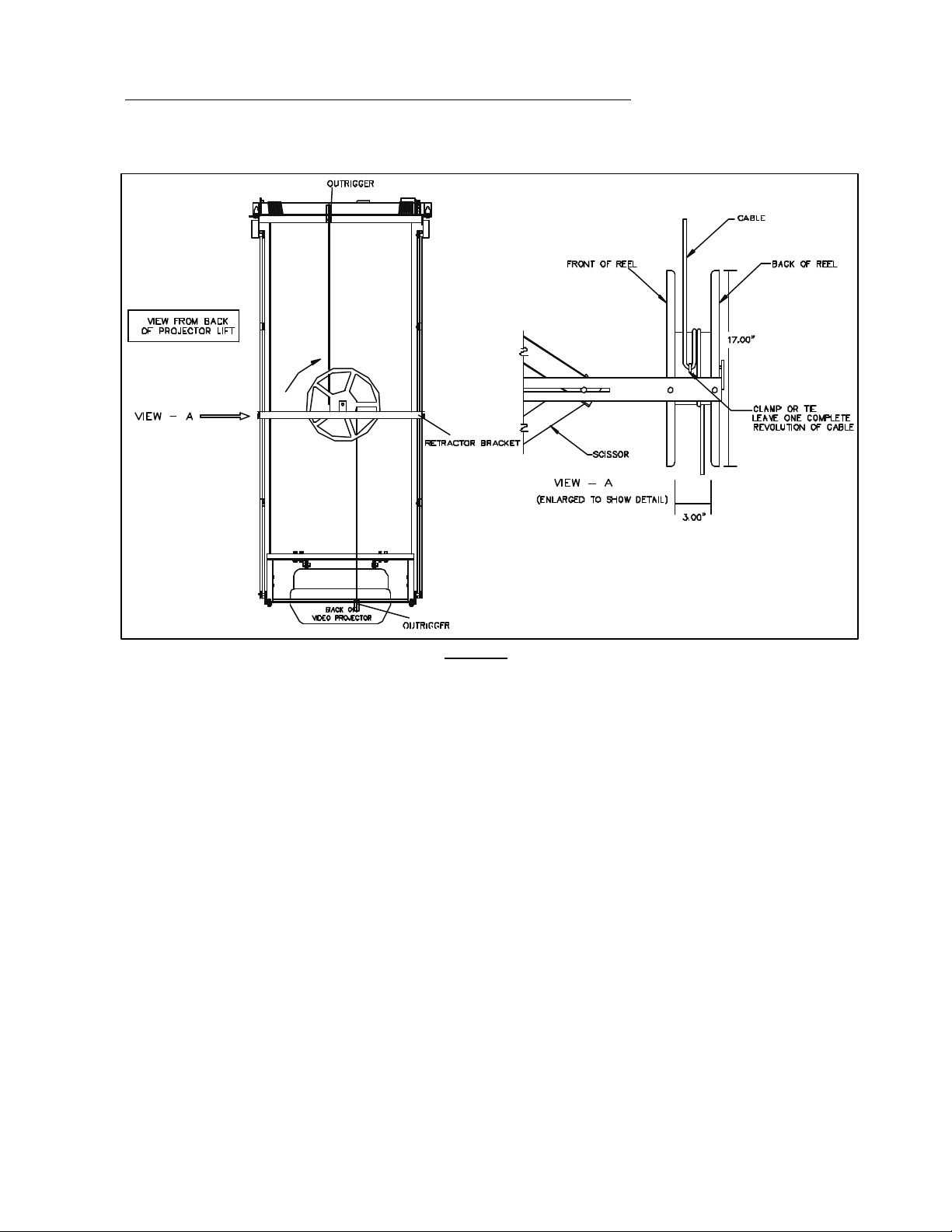

- For SVS 7EX -15 Lift, SVS 7EX-18 Lift, SVS 7EX-20 Lift & SVS 7EX-22 Lift:
These lifts feature a spring loaded cable retractor installed on the scissor extensions in the rear of the lift. This
lift features a automatic cable retractor used to keep the video cables away from the scissors during operation.
This retractor is spring loaded and automatically retracts as lift ascends or descends. figure 10b.
Figure 10b.
Instructions:
1.Lower the lift down to its maximum down position
2.Wind reel clockwise to the following specifications:
- For SVS 7-15, SVS 7-18 and SVS 7-20 lifts, wind 6 complete turns.
- For SVS 7-22 lift, wind 8 complete turns.
3.Lock in this position by placing rods or long screwdriver between reel gaps next to retractor bracket. This will
stop the reel from free wheeling.
4.Clamp yo ur cable securely at the top frame of the lift, using out riggers.
5.Attach upper half of cable to reel between two of the 4 holes with 3/16" tie wraps. Leave wrap semi- loose in
case adjustment is needed
6.Make one and one half turns around the reel counter cl ockwise. Lock cable in the same way as previous step,
to the remaining two holes (180 degrees from first two holes used).
7.Clamp cable securely to lower outrigger on bottom frame -same as #4 step.
8.Run lift up and down to check slack in cable. Cable will be slacked at the top of the lift when in a full up
position, as it will equally be slacked in the full down position.
Note: the cable retractor is located at the center of the scissors, but due to uneven amounts of scissors and
opening time of scissors, there can be slack either at the top or bottom at various positions as the lift lowers.
To accommodate the slack, the clamping on the reel point can be adjusted after tracking up and down. If the
slack is adjusted correctly, the cable will be more even when in the up and down position, with slack
occurring only in the middle position.
9.When proper position is achieved, you can then securely tighten wire tie wraps.
Page 13

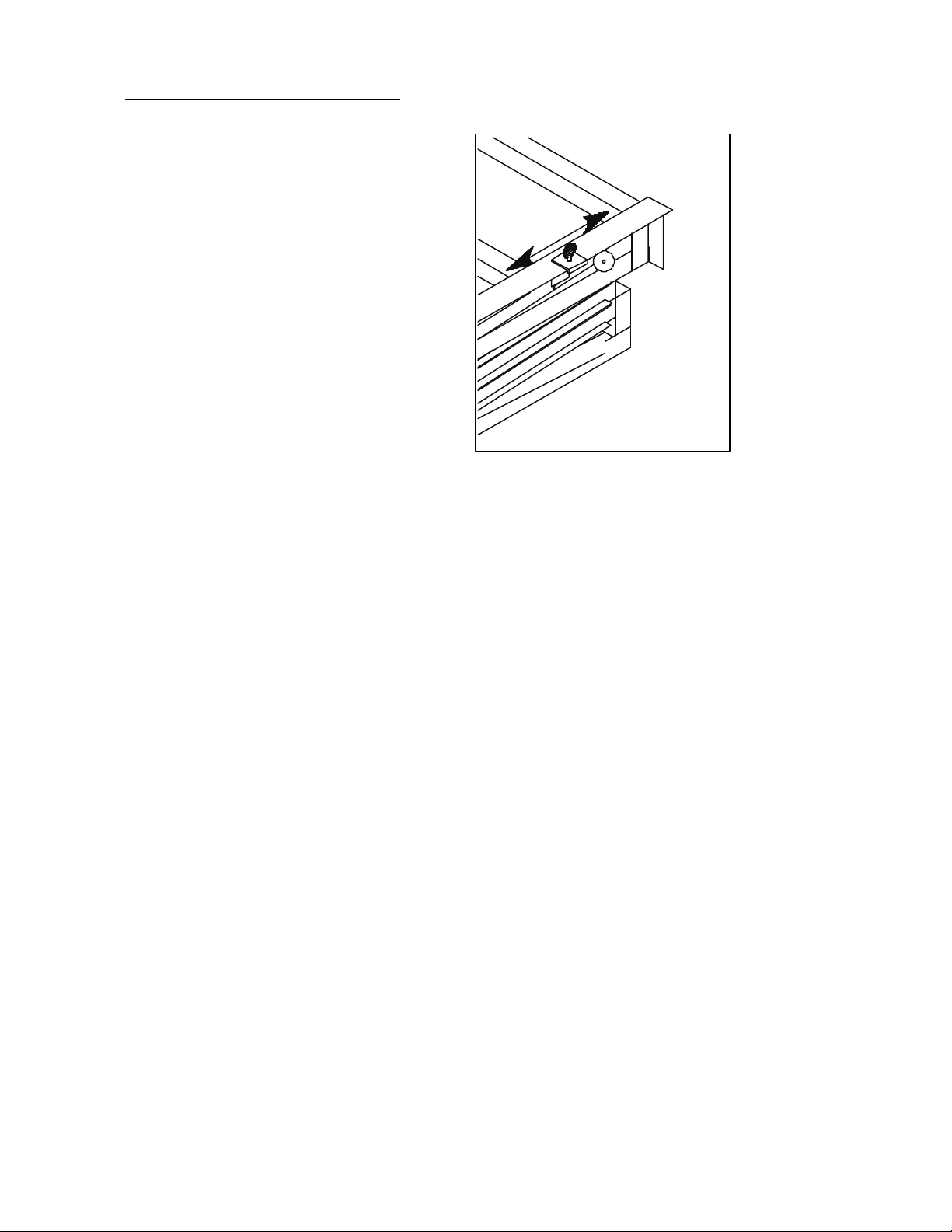

9. SETTING THE SHOW POSITION:
The show position is adjusted by loosening the thumb-screw on the show microswitch bracket, located on the
upper motor frame -as seen in figure 11:
a. Operate the lift in a service mode and lower
REAR OF LIFT
the lift to the desired show position.
b. Loosen the thumb screw and slide the show
microswitch along the roller guide until it
touches the larger retainer washer (as you
ADJUSTABLE SWITCH
position the switch over the roller, you should
hear a slight click when the microswitch is
compressed). Make sure that the microswitch is
not positioned too close to the washer because
it must pass over it when the lift lowers to a
service position.
c. The show position is now set. Raise the lift
back to a closed position, turn the key switch to
the "show" position and press the toggle down.
The show
position is adjustable with an accuracy of
+/-1/8" (0.32 cm).
Figure 11.
10. MAINTENANCE AND ADJUSTEMENTS
•Inspect the lift occasionally for any looseness of bolts, check cables and clamps. Pillow block bearings are pre-
lubricated and motor does not need attent ion. If magnetic brake does not hold properly, it must be replaced
immediately.
•
Level corrections are to be made (with projector mounted) after confirming that the cable is packed tightly and
is straight on the drum.
•Position a level across the front of the projector. Fine alignment is done by adjusting nuts on the bottom of
the eye bolts. Track up and down until satisfactory alignment is achieved.
•For projectors mounted within the ceiling and lowered to a viewing position, level adjustments must be made
at the viewing level.
•After adjustments are completed, check all bolts and clamps for tightness.
•Check drum lock solenoid occasionally – see if arm raises during down travel – all other times it stays in a
locked position. If the solenoid does not pull up, the microswitch will not start motor in the down position.
Check the centrifugal cam located on the drum stop block. It should be able to move freely and will drop
when it reaches the top of the drum, this avoiding contacting the arm of the drum lock. If drum rotates fast,
the cam will lock the arm after the first rotation.
•All scissor bolts are adjusted for no slack, but must not be too tight. To adjust, tighten to approximately 151
Lbs Torque, then back of 1/8". These bolts have nylon locking nuts and should stay at this position.
Page 14
SVS 7EX SERIES LIFT Warranty
SVS provides a limited warranty on all products to cover failures due to defects in materials or workmanship
which occur during normal use. This limited warranty does not cover failures which result from accident,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, modification or service by
anyone other than a factory authorized person or company. Specific product warranties are as follows:
A 5 year parts and 90 day factory labor warranty applies to the following SVS products:
• All scissor style lift models (does not include LCD-1, LITE Lift and QC Lift)
• Plasma Two Lift
• Acc. #4 Power Sensor
• Acc. #5 Power Sensor with Screen Control
• Acc. #7 Cable Retractor
• Acc. #11 Extra Show Position
• Acc. #14 Floor Access Motor Control
• Acc. #15- 12 Volt trigger
A 1 year parts and 90 day factory warranty applies to the following SVS products:
• SVS LCD-1 Lifts (S and L models)
• SVS TMD Lift and Column Lift
• Acc. #1 Ceiling Closure
• Acc. #2 Plenum Shroud
• Acc. #9 Mount
• Acc. #10 Dual Stack Mount
• Acc. #13 and 13R platforms
A 60 day factory labor warranty applies to:
• Acc. #12 Decorative Cover
A Return Material Authorization (RMA) number must be received from SVS prior to the return of any product.
Products returned from SVS must be shipped adequately insured with freight prepaid and the RMA number
clearly noted on the shipping label. Items received freight collect or without RMA numbers clearly noted will be
refused. Lift model, serial number and proof of original purchase date may be required before warrant
performance is rendered.
_____________________ ______Cut-Here__________________________
WARRANTY CARD
CUSTOMER NAME ___________________ SERIAL #________________________
ADDRESS ___________________________ MODEL # SVS 7EX____________
CITY____________ ST______ ZIP _______ DATE PURCHASED _______________
PHONE _____________________________ DATE INSTALLED ________________
PURCHASED FROM __________________ SEND TO: SVS, INC
DEALER NAME ______________________ 2513 JENKS AVENUE
ADDRESS ___________________________ PANAMA CITY, FL 32405
CITY ___________ ST ______ ZIP _______
PHONE _____________________________ PHONE: 850-522-4747
COUTRY ____________________________ FAX: 850-522-4739
CARD MUST BE SENT IN WITHIN 15 DAYS FROM DELIVERY DATE
Loading...
