SVS 7 SERIES LIFT
INSTALLATION MANUAL
SVS, INC. Lifting Your Image
2513 Jenks Avenue Tel: 850-522-4747
Panama City FL 32405 Fax: 850-522-4739
www.svslifts.com
Page 2
SVS 7 SERIES LIFT
INSTALLATION INSTRUCTIONS
SECTIONS:
1: Preliminary Installation Checks ---------------------------------------- Pg. 4
2: Considerations for placement of the lift ----------------------------- Pg. 5
3: Lift's supporting Structure --------------------------------------------- Pg. 5, 6 & 7
4: Lift Installation ---------------------------------------------------------- Pg. 8
5: Ceiling Closure Installation -------------------------------------------- Pg. 8
6: Electrical Wiring and Lift Control ------------------------------------ Pg. 9 & 10
7: Mounting the Projector ------------------------------------------------ Pg 11
8: Cable Management -----------------------------------------------------Pg 11
9: Setting the Show Position --------------------------------------------- Pg 12
10: Maintenance and Adjustments
SVS 7 Series Lift Warranty ----------------------------------------------- Pg. 13
SVS 7 Series LIFT INSTALLATION Page 2 of 13
-------------------------------------- Pg 12
Page 3
SVS 7 SERIES LIFT
GENERAL DESCRIPTION:
The SVS 7 Series Lift is designed to
support projectors up to 26" Wide
(66 cm) and features lowering
distances ranging from 9' (2.7m) to
22'6" (6.9m). This model is an ideal
solution for residential or commercial
A/V applications with restricted
ceiling clearance since the projector is
installed between the scissors.
FEATURES:
MAXIMUM LOWERING DISTANCES:
SVS 7-9 LIFT: 9'0" (2.7 m)
SVS 7-11 LIFT: 11'3" (3.4 m)
SVS 7-13 LIFT: 13'6" (4.1 m)
SVS 7-15 LIFT*: 15'9" (4.8 m)
SVS 7-18 LIFT*: 18'0" (5.5m)
SVS 7-20 LIFT*: 20'3" (6.2m)
SVS 7-22 LIFT*: 22'6" (6.9 m)
* Cable Retractor Included
STORAGE, SHOW, SERVICE POSITIONS
LIFTING CAPACITY
LIFT'S WEIGHT
MAXIMUM PROJECTOR SIZE
LOW VOLTAGE CONTROLLER
PRECISION GROOVED DRUM
PATENTED FAIL SAFE DRUM LOCK SYSTEM
QUIET AND STRONG MOTORS
REDUNDANT LIMIT SWITCHES (UP AND
DOWN)
CABLE MANAGEMENT SYSTEM
LIFT'S HEIGHT IN CLOSED POSITION:
17.5" (44.5 cm)
19" (48.3 cm)
20.5" (52.1 cm)
22" (55.9 cm)
23.5" (59.7 cm)
25" (63.5 cm)
Note: Lift only- accessories and supporting structure not
included- Projector's height may also affect lift's height.
Projector can easily be:
- Aesthetically stored above the ceiling when not in use
- Automatically positioned for show/operation
- Easily lowered to floor level for service
Up to 700 Lbs (317.52 Kg.)
From 165 Lbs (75 Kg.)
26" Wide (66 cm)
Supplied with 75' (22.86 m) of cable (22 g./9 conductor).
Accurate, level tracking for consistent screen image
Insures safety in the event of mechanical failure. 100%
safety record after 14+ years of manufacturing
Extra quiet for meetings and presentations or simply
for home use.
For secure and safe motor shutdown.
Keep cables and cords out of the way during operation.
16" (40.6 cm)
SVS 7 Series LIFT INSTALLATION Page 3 of 13
Page 4
PLEASE READ THROUGH ALL INSTRUCTIONS (INCLUDING ACCESSORY
INSTRUCTIONS) BEFORE PROCEEDING.
This lift is designed to be used with a remote control unit, either automatically or manually
controlled and will function without any special training in the "show position". The lift is
supplied with a key switch and can be left in the "show", "auto" or "off" position for normal
operation. The "service" position must be used only by trained technical personnel when the
lift is loweredto floor levelfor service/access. Normal safety requirements of handling heavy
equipment must be followed.
1. PRELIMINARY INSTALLATION CHECKS:
• The support structure should hold at least four (4) times the weight of the lift and projector combined.
Always follow the building codes.
• Required space, lift support, and necessary cabling (i.e. low voltage control lines, audio/video control
and power supplies) should be considered or installed prior to the lift installation.
• Do not install the projector on the lift until the lift, hardware and any other accessories have been
properly installed and operational.
• This lift has been adjusted at factory with cables tightly packed on the drum and leveled for precise
tracking, prior to being shipped from SVS Factory. Do not remove the lift's shipping blocks until
instructed to do so (see Section 4-6). SVS scissor lifts are shipped in a slightly open position to
eliminate stress on the limit switches and to maintain a tight cable pack on the drum. If physical height
measurements are taken before the blocks are removed from the lift, they may not accurately reflect
the actual measurement of the lift in a closed position.
• All weight attached to the lift must be centered between the lift's cables. The balance point of the
projector (also called center of gravity or lens face to base box center) should be placed in line with the
cables (+ /- 1").
• For ease of installation, lift can be hoisted into ceiling location with blocks and tackle or by using a
ratchet puller.
• As a reminder, clear all persons and obstructions from the lift's path during its operation. Keep fingers
and other objects away from the scissors and other moving parts. Technical Personnel should always
be present whenever the lift is in a service mode.
SVS 7 Series LIFT INSTALLATION Page 4 of 13
Page 5

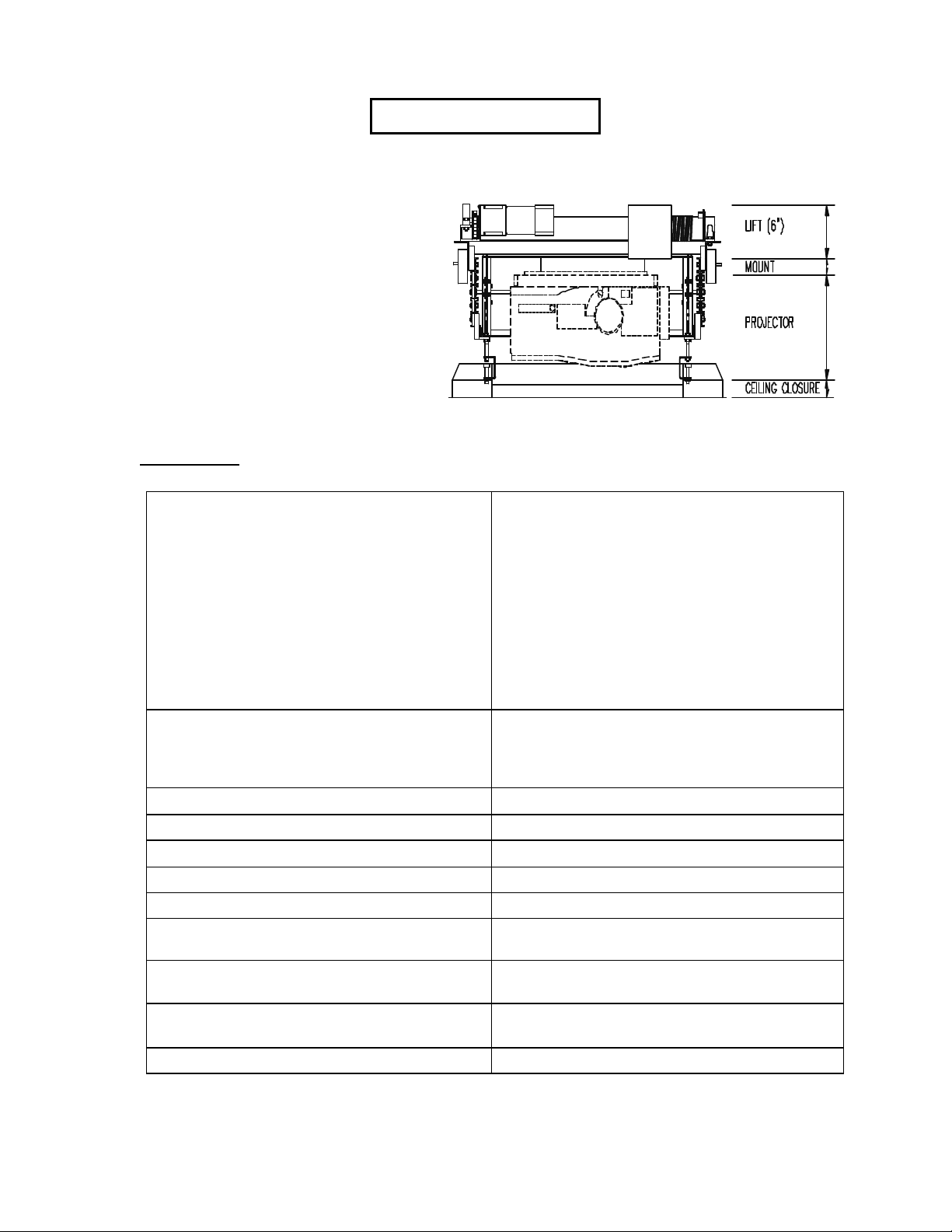

2. CONSIDERATIONS FOR THE PLACEMENT OF THE LIFT:
• Before beginning the installation, check
the dimensions of the projector to be
mounted against the available space
within the lift. Be sure to include the
lens or any accessories which may add
to the overall dimensions of the
projector . To be used with the 7 Series
lift, the projector cannot be more than
26" Wide (66 cm)– see figure 1 & 2a
and 2b.

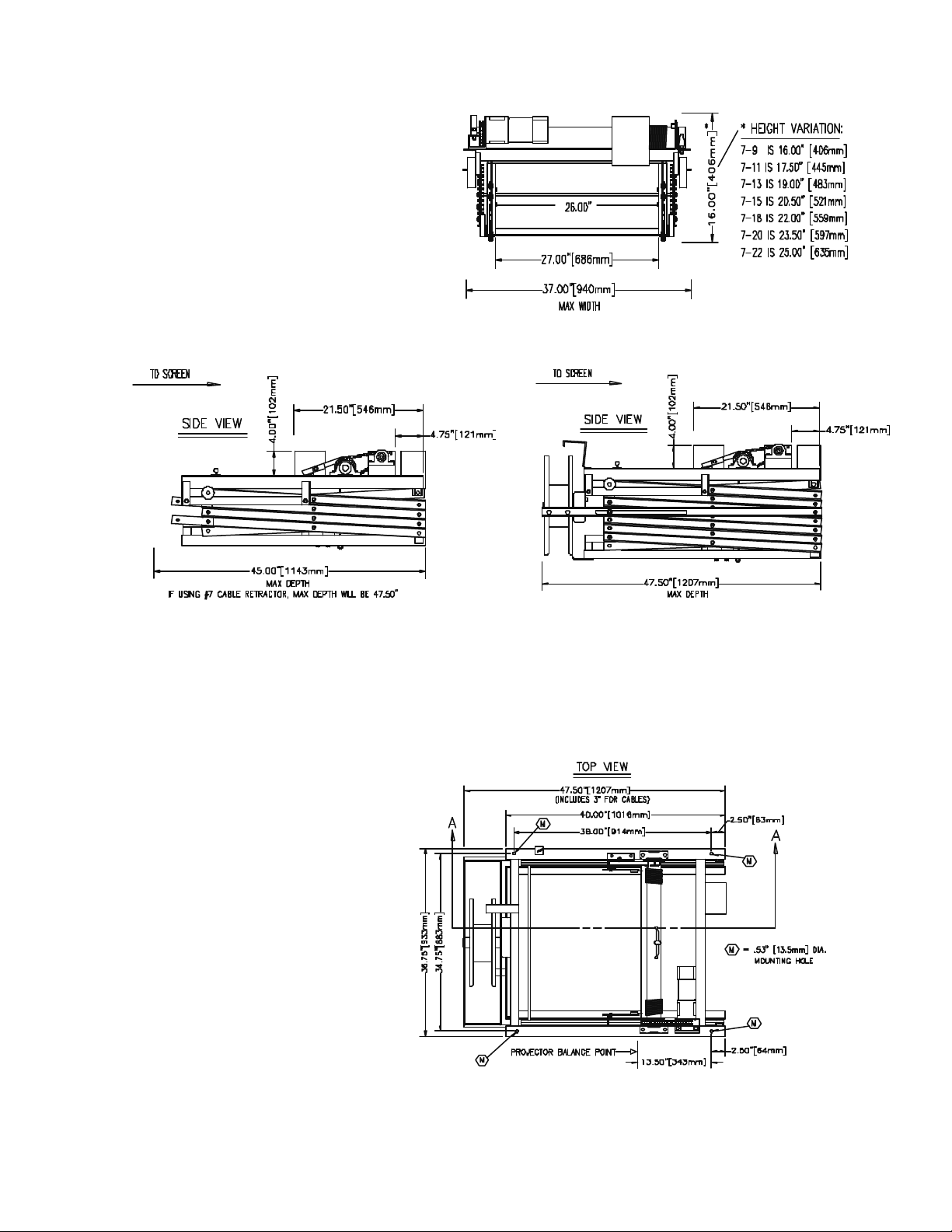

Figure 1. (Front View)
Figure 2a. (Side View)- SVS 7-9, 11, 13 Figure 2b. (Side View)- SVS-15, 18,20,22
• Preliminary measurements should also be made to layout the orientation of the projector to the screen
and projector to lift. If the projector lens if offset, the lift position must be offset accordingly to align
the lift and the projector with the center of the screen.
3 . LIFT SUPPORTING STRUCTURE:
The 7 Series Lift can be mounted
from four ½" threaded rods
spaced at 34.75" Wide (883 mm)
x 36" Deep (914 mm) -as shown
in figure 3. The threaded rods
must be supported by a rigid
structure and should not extend
more than 2' (0.6m). If the length
of the rods exceed 2' (from the
support structure to the lift's top
mounting holes), cross bracing
should be installed between the
rods to increase the stability of the
installation -see figure 4.
Figure 3 -Lift shown with cable retractor.
SVS 7 Series LIFT INSTALLATION Page5 of 13
Page 6

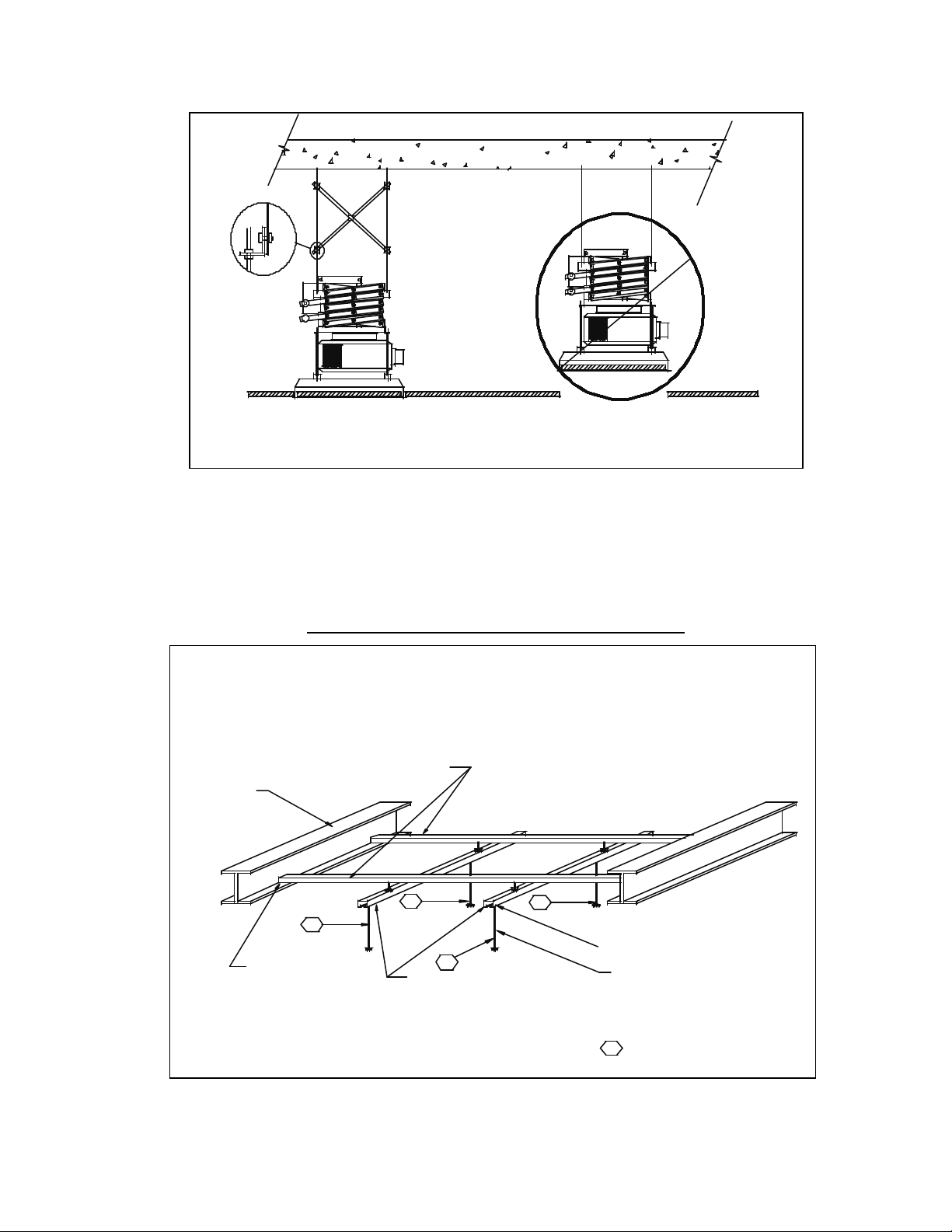

MAIN CEILING
TO ACHIEVE PROPER HEIGHT.
CROSS BRACING
FALSE CEILING
CORRECT HEIGHT FOR FALSE CEILING
ADJUST THREADED ROD LENGTH
INCORRECT HEIGHT
Figure 4.
If ceiling clearance allows, an "X-Y" or a cross-supporting structure is strongly suggested (as shown in two
following suggested supporting structures). This will allow front-to-back or side-to-side adjustments if the
lift is found to still be slightly offset with the screen once it has been installed.

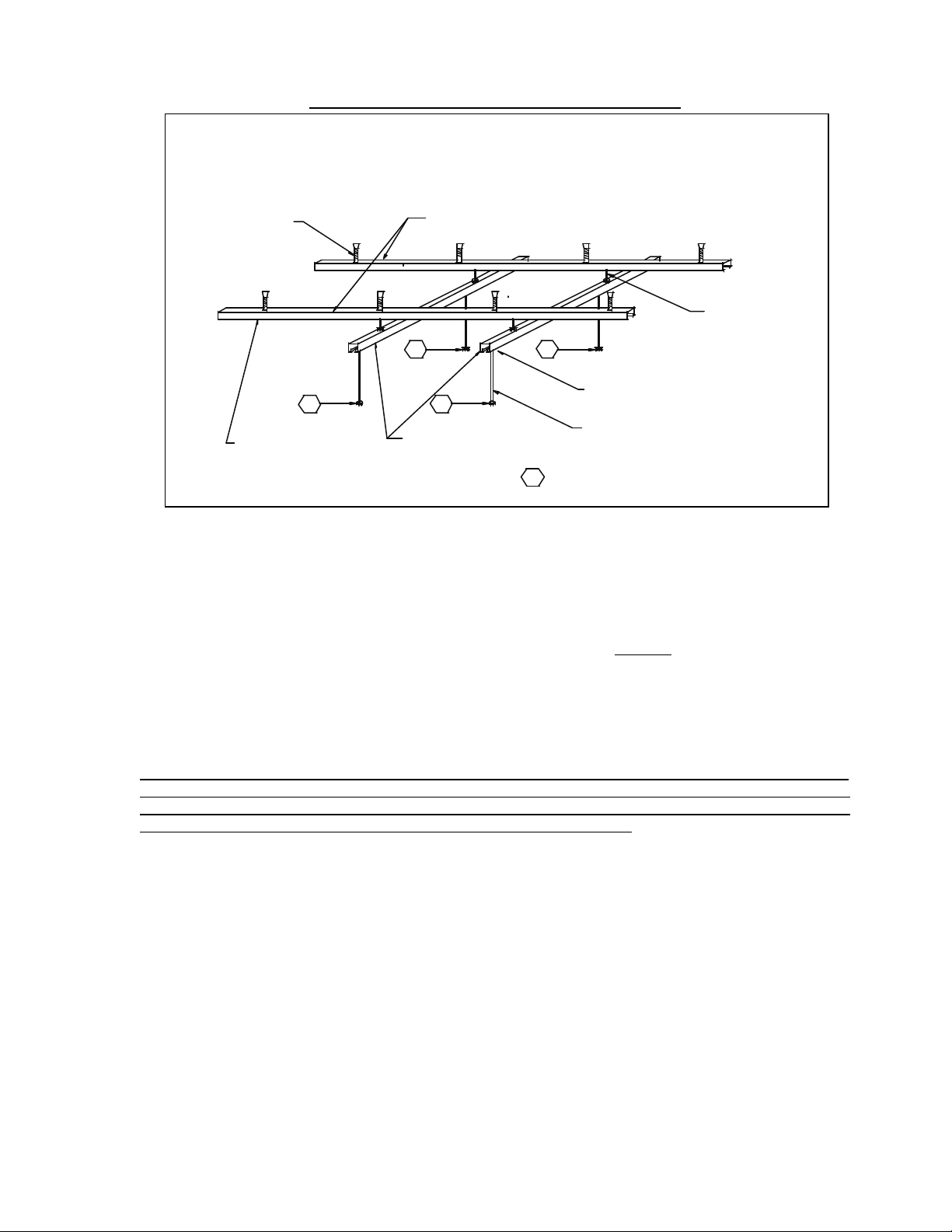

SVS 7 SERIES LIFT MOUNTING ON EXISTING BEAMS
ALWAYS FOLLOW THE LOCAL BUILDING
CODES. SVS RECOMMENDS THAT ALL MOUNTING
HARDWARE IS RATED TO HANDLE 4 TIMES
THE WEIGHT OF THE PROJECTOR
AND LIFT OR WHICH EVER NUMBER
IS HIGHER.
DO NOT EXCEED RATING OF
UNISTRUT BY SPANNING TOO GREAT
OF A DISTANCE.
1/2" THREADED
RODS 4 PLCS.
EXISTING
BEAMS
2 PLCS.
X - UNISTRUT P1000 T
2 PLCS.
SVS 7 Series LIFT INSTALLATION Page6 of 13
M
M
BEAM CLAMP
UNISTRUT P2824
4 PLCS.
* MOUNTING MATERIALS NOT SUPPLIED BY SVS, INC.
M
Y - UNISTRUT P1000 T
2 PLCS.
Figure 5a.
M
UNSTRUT CHANNEL NUT
P3010 WITH WASHER
AND RETAINING NUT.
8 PLCS.
THREADED ROD, 4 PLCS.
.375" FOR PLASMA AND
LCD LIFT
.5" FOR ALL OTHER
LIFTS
= MOUNTING HOLESM
Page 7
SVS 7 SERIES LIFT MOUNTING ON A FLAT CEILING
= MOUNTING HOLES
USE NO LESS THAN EIGHT 1/2"
MACHINE THREAD SHIELDS AND
BOLTS TO SECURE TO CEILING.
M
M
USE 10'LENGTH WHEN
POSSIBLE ON EACH X AXIS
MOUNTING MATERIALS NOT SUPPLIED BY SVS, INC.
Y - UNISTRUT P1000 T
2 PLCS.
X - UNISTRUT
P1000T 2 PLCS.
M
Figure 5b.
ALWAYS FOLLOW THE LOCAL BUILDING
CODES. SVS RECOMMENDS ALL MOUNTING
HARDWARE BE RATED TO HANDLE 4 TIMES
THE WEIGHT OF THE PROJECTOR
AND LIFT OR WHICH EVER NUMBER
IS HIGHER.
1/2" THREADED
RODS 4 PLCS.
M
UNSTRUT CHANNEL NUT
P3010 WITH WASHER
AND RETAINING NUT.
8 PLCS.
THREADED ROD, 4 PLCS
.375" FOR MINI 4
AND LCD LIFTS
.50" ALL OTHER LIFTS
M
Important note for concrete ceiling installations: when attaching thelift to a flat ceiling, SVS suggests two
(2) pieces of #P1000T Unistrut (approx. 10' long -3.04 m), to be installed on the ceiling first. Proper spacing between
the 2 pieces will be based on the distance between the top four (4) mounting holes of the lift (as shown in Figure 1) .
You should use at least four (4) ½" bolts and anchors evenly spaced our on each piece of Unistrut to distribute the
weight ofthe supporting structure. Attach ½" threaded rods to theUnistrut, using Unistrut #P3010- ½"" channel nuts
in the channel, along with a locking washer and nut below channel to lock into place.
IMPORTANT: IF A #2 PLENUM SHROUD OR A #12 DECORATIVE COVER ARE TO BE INSTALLED WITH
THE SVS 7 LIFT. PLEASE READ THEIR INSTALLATION INSTRUCTION BEFORE PROCEEDING. THE
SUPPORTING STRUCTURE SHOULD ALSO ALLOW ENOUGH SPACE TO INSTALL THE MOUNTING
HARDWARE OF THE DECORATIVE COVER AND THE PLENUM SHROUD.
SVS 7 Series LIFT INSTALLATION Page7 of 13
Page 8
4. LIFT INSTALLATION:
a. Preparation:
1. The lift is shipped in a wood crate. Remove the Philips screws from the top lid.
2. Unbolt the lift from the bottom panel of the crate to remove the lift out of the crate.
3. The warranty information and the low voltage controller are located in the white box.
b. Installing the lift in the ceiling:

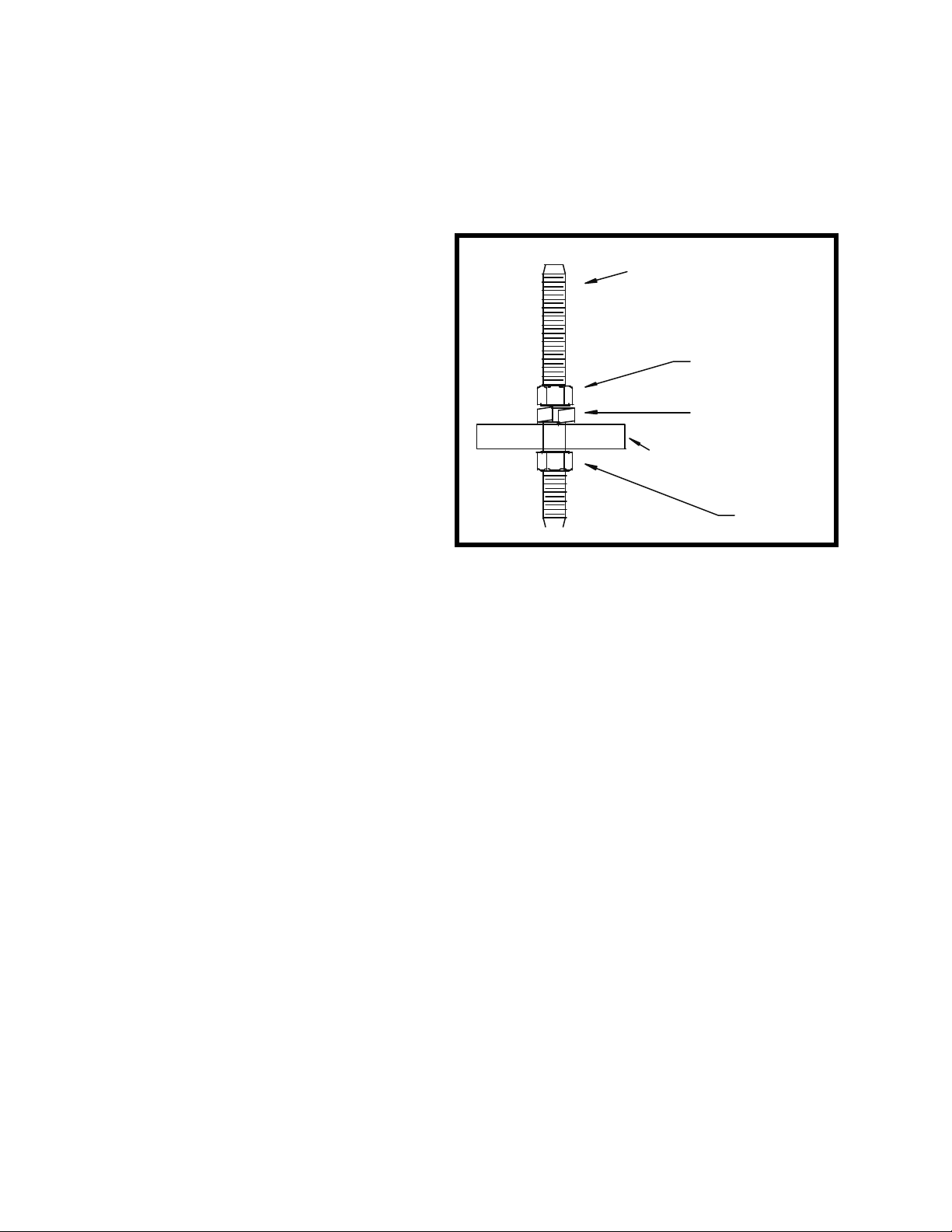

1. Raise the lift, insert it into the ceiling and
line up the four (4) mounting holes of the
1/2" THREADED ROD
top frame to the ½" threaded rods of the
supporting structure. Make sure that there is
a top nut and a flat washer before the lift is
mounted -see figure 6. Once the lift's top
frame has been inserted, add a ½" hexnut
to each threaded rod. Always leave top nut
1/2" HEXNUT
loose to allow adjustments until the lift is
leveled.
LOCK WASHER
2. Secure the lift to the threaded rods.
3. Check that the top frame of the lift is
TOP FRAME OF LIFT
leveled from front-to-back
and side-to-side.
4. Secure the top nuts. Do not over tighten
HEXNUT
the fasteners before the lift is leveled as it
could distort the top frame. Figure 6.
5. If Power Sensor is used, please refer to the power sensor instructions, otherwise, plug in the 12 pin
connector of the low voltage controller (the Key Switch Control Box) into the 12 pin receptor of the grey
electrical box, which is supplied with the lift and shipped in the white box located underneath the lid of the
shipping crate.
6. Remove the four (4) shipping Blocks from the lift. Never remove the blocks until the lift is properly
installed in the ceiling.
7. Make sure that cables are out of the way of operation.
8. Before lowering the lift, you should have some weight attached to the bottom of the lift in order to
keep the cables tight until the projector is mounted. Both cables are placed on the drum so that they start
unwinding from the inside to the outside of the drum. They are vertical to the eye bolts in the closed
position and slightly angled toward the outside of the drum to avoid friction/rubbing with the previous
cable loop.
To avoid cable spill:
- Do not push the bottom frame upward once the lift has been installed.
- Make sure that there is no obstructions in the lift's path. If the bottom frame lowers onto a chair, t
able or any other object, this will cause the cables to slack and spill over the drum.
5. CEILING CLOSURE INSTALLATION – Please refer to installation instructions included with
the #1 Ceiling Closure. It is the self-aligning closure system installed underneath the projector and used to
conceal the ceiling hole when the lift and projector are raised in the ceiling. It is attached to the four (4)
mounting holes of the lift's bottom frame with threaded rods.
SVS 7 Series LIFT INSTALLATION Page8 of 13
Page 9

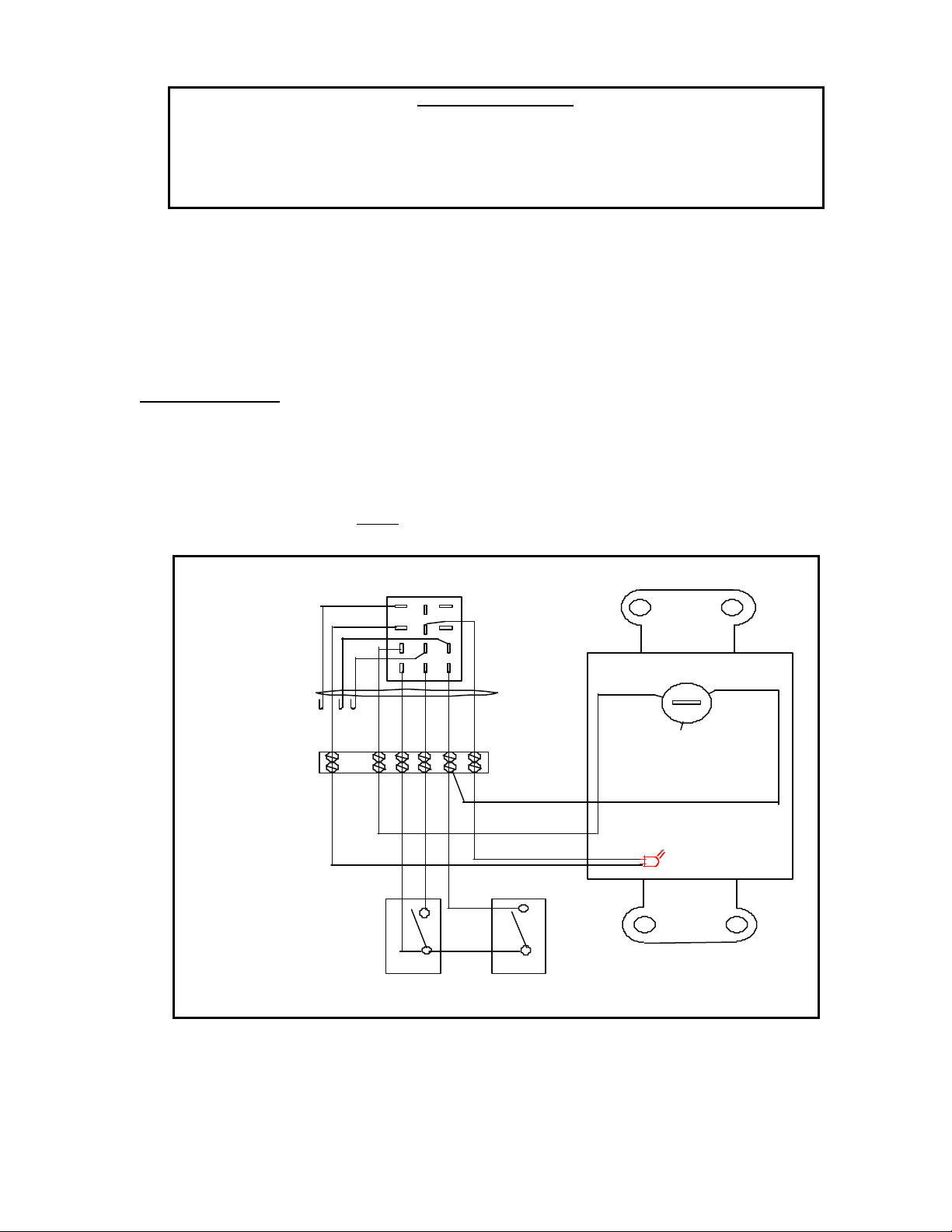

6. ELECTRICAL WIRING AND LIFT CONTROL:
Electrical Connections should be made at this time. The 7 Series lift is controlled with a low voltage
24v/AC controller called the Key Switch Control Box. This controller can be easily connected to
external controllers like Crestron, AMX etc.

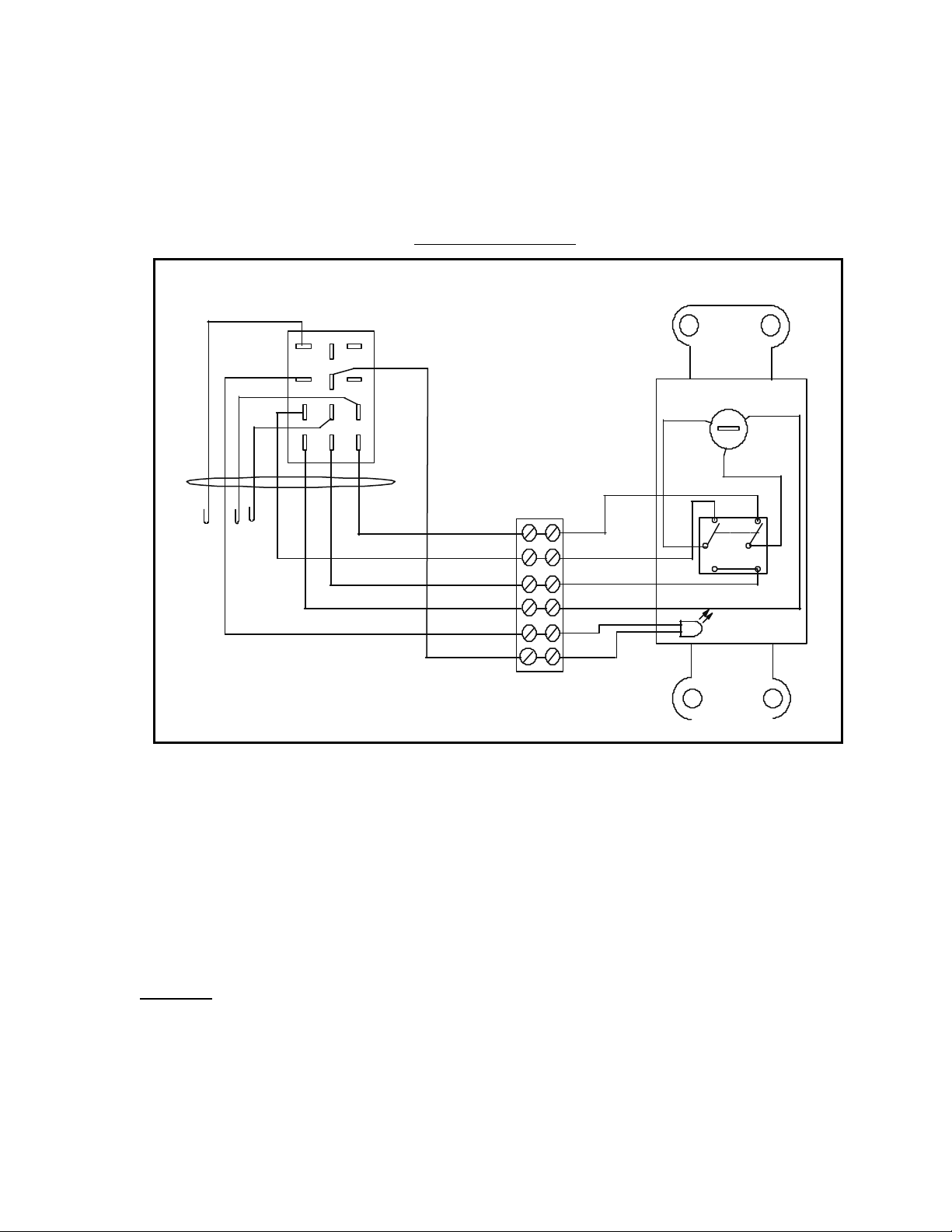

SVS WALL PLATE
WALL PLATE CONTROLLER
YEL
BLK
PUR
BLU
10
7
4 5 6
1
RP2 (CONNECTS TO RJ2)
12
11
8
9
32
Figure 7b.
BRN
GRN
RED
WHT
BLK
ORN
BRN
GRN
RED
WHT
BLK
ORN
VIEW FROM BACK
SHOW-OFF-SERVICE
(SERVICE)
1
WHT
-
+
(24vac)
C
2
(SHOW)
DOWN
BRN
GRN
UP
MOTOR
POWER ON
WHT
Figure 7.
How to use the low voltage controller:
a. To lower the lift to the show position, turn the keyswitch to the "show" position and press the toggle
down. The lift will stop once the roller compresses the show microswitch. The service mode is used to
bypass the adjusted show position and to set the lift in a service mode, turn the keyswitch to the "service"
position and press the toggle switch down. When the lift reaches its down limits, the lift will stop.
b. To raise the lift back to a storage position, turn the keyswitch to "service" and press the toggle switch
up. The lift will stop once its top frame compresses the up limit switches.
Note: The "up" switch works in both "service" and "show" position on the key switch.
Important: when the lift is set in a service mode, the lift will lower until it has reached its down limit
switches. The toggle switch on the control plate needs to be pressed at all times to activate the lift. It is
designed as a safety feature (the lift can be stopped at any time). The key is an extra precaution as well:
when removed, the lift is secured. If an external controller is use, please make sure that no object is
standing in the lift path as it lowers to a service position.
SVS 7 Series LIFT INSTALLATION Page9 of 13
Page 10
LIFT SPECIFICATIONS
USA INTERNATIONAL
VOLTAGE 110V/60HZ 220V/50HZ
LOW VOLTAGE CONTROLLER 24v/ac 24v/ac.
CURRENT DRAW 2.3 amps 2.3 amps/1.2 amps
MATERIAL Steel/Aluminum Steel/Aluminum
Power Requirements: 110v/50-60hz -220v/50-60hz
Low Voltage Controller: Supplied with the lift. 12 pin connector plug. 75' of
Cable (22 g./9 conductor).
WHEN USING A TOUCH SCREEN CONTROLLER:
If an external controller is to be used (AMX, Crestron), please refer to the following wiring instructions
-see figure 8.
INSTRUCTIONS:
- Program a release of relays to stop on up and down positions.
- Program a time out after the normal run time, 1 or 2 seconds max.
1. Program an exclusive lockout on up and down so both positions cannot be activated at the same time.
2. Hold relays on to move the lift and release relays to stop the lift -always time out or release relay after
normal use. IMPORTANT: Never
leave voltage on the up and down. Always release voltage
immediately after the travel time has been achieved.
Terminal Strip
(on newer lifts)
BLK
YEL
BLK
PUR
BLU
GRN
GRN
TOUCH SCREEN
RELAY ONE
RP2
10
7
4 5 6
WHT
WHT
24VAC
RED
RED
12
11
8
9
BRN
BRN
321
ORN
BRN
GRN
ORN
BLK
UP
TOUCH SCREEN
RELAY TWO
(SERVICE)
DOWN
SHOW-OFF-SERVICE
2
BRN
MOTOR
POWER ON
C
1
GRN
(VIEWED FROM BACK)
+
-
INSTALL KEY SWITCH IN
RACK WITH CONTROL PANEL.
(SHOW)
Wiring using Touch Screen Controller (Figure 8).
IF USING ANY OTHER SYSTEMS, PLEASE CONTACT SVS FOR PROPER WIRING TO AVOID UNSAFE
OPERATIONS.
SVS 7 Series LIFT INSTALLATION Page10 of 13
Page 11
IF USING ANY OTHER SYSTEMS, PLEASE CONTACT SVS FOR PROPER WIRING TO
WIRE TIE AROUND POWER CORD, AND VIDEO LINE
AVOID UNSAFE OPERATIONS.
7. MOUNTING THE PROJECTOR:
After checking the lift operation and all clearances, the projector can be installed. The projector can be
mounted in two ways: inverted or platform mounted.
– The projector can be attached to the lift
by using a #9 Mounting Bracket, which is
the actual connecting hardware between
the projector and the lift. The base box
of the #9 mounting bracket will need to
be bolted to the lift. On the SVS 7 lift,
PROJECTOR
MOUNT
the mount will be secured to the "U"
shape cross member (saddle of the lift).
The mount base should be centered side
to side with the lift frame.
Figure 9.
– If the projector is non-invertible, it can be placed on a SVS #13 platform (metal shelf used to support
projector).
Note: All weight attached to the lift must be centered between the cables. Balance point of the projector
should be placed in line with cables with +/- 1" of difference.
8. CABLE MANAGEMENT:
- For SVS 7-9 Lift, SVS 7-11 Lift, SVS 7-13 Lift:
These lifts feature cable retainers installed on the scissor extensions in the rear of the lift. These retainers
are used to keep cables and other cords securely out of the way during operation. It is not suggested to
attach the cables to the scissors of the lift as they could get repeatedly pinched when the lift raises and
lowers. To keep projector cords away from scissors, please attach cords as demonstrated in figure 10a.
VIEW FROM BACK
OF PROJECTOR LIFT
VIDEO CABLE
WIRE TIE AROUND EXTENSION, POWER CORD,
AND VIDEO LINE
VIEW - A
(ENLARGED TO SHOW DETAIL)
VIEW - A
BACK OF
VIDEO PROJECTOR
POWER CORD
SCISSOR
WASHER
EXTENSION
SCISSOR
SVS 7 Series LIFT INSTALLATION Page11 of 13

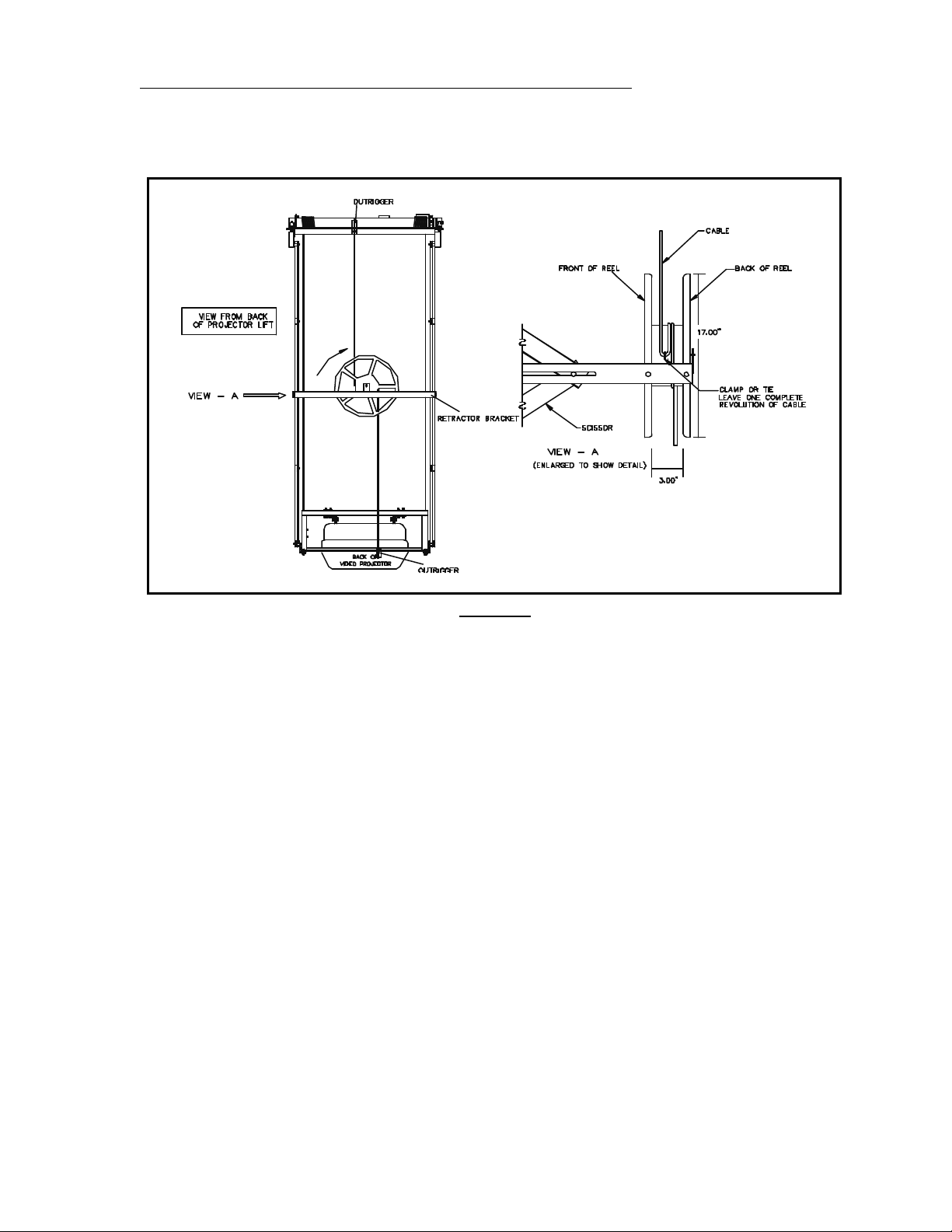

Figure 10a.
Page 12
- For SVS 7-15 Lift, SVS 7-18 Lift, SVS 7-20 Lift & SVS 7-22 Lift:
These lifts feature a spring loaded cable retractor installed on the scissor extensions in the rear of the lift.
This lift features a automatic cable retractor used to keep the video cables away from the scissors during
operation. This retractor is spring loaded and automatically retracts as lift ascends or descends. figure

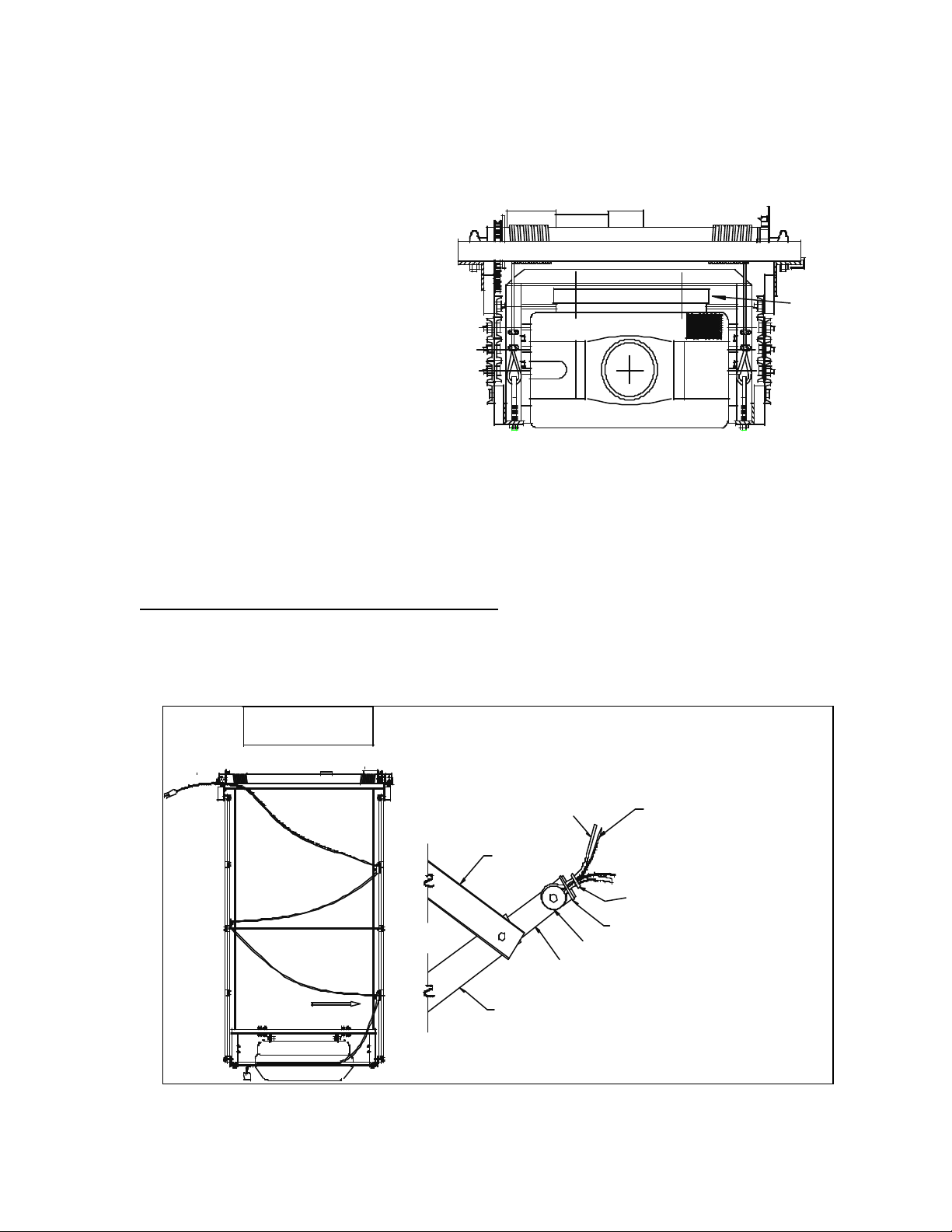

10b.
Figure 10b.
Instructions:
1. Lower the lift down to its maximum down position
2. Wind reel clockwise to the followin specifications:
- For SVS 7-15, SVS 7-18 and SVS 7-20 lifts, wind 6 complete turns.
- For SVS 7-22 lift, wind 8 complete turns.
3. Lock in this position by placing rods or long screwdriver between reel gaps next to retractor bracket.
This will stop th reel from free wheeling.
4. Clamp your cable securely at the top frame of the lift, using out riggers.
5. Attach upper half of cable to reel between two of the 4 holes with 3/16" tie wraps. Leave wrap semiloose in case adjustment is needed
6. Make one and one half tuns around the reel counter clockwise. Lock cable in the same way as
previous step, to the remaining two holes (180 degrees from first two holes used).
7. Clamp cable securely to lower outrigger on bottom frame -same as #4 step.
8. Run lift up and down to check slak in cable. Cable will be slacked at the top of the lift when in a full
up positionl, as it will equally be slacked in the full down down position.
Note: the cable retractor is located at the center of the scissors, but due to uneven amounts of scissors
and opening time of scissors, there can be slack either at the top or bottom at various positions as the
lift lowers. To accommodate the slack, the clamping on the reel point can be adjusted aftertracking up
and down. If the slack is adjusted correctly, the cable will be more even when in the up and down
position, with slack occurring only in the middle position.
9. Wheb proper position is achieved, you can then securely tighten wire tie wraps.
SVS 7 Series LIFT INSTALLATION Page12 of 13
Page 13
9. SETTING THE SHOW POSITION:

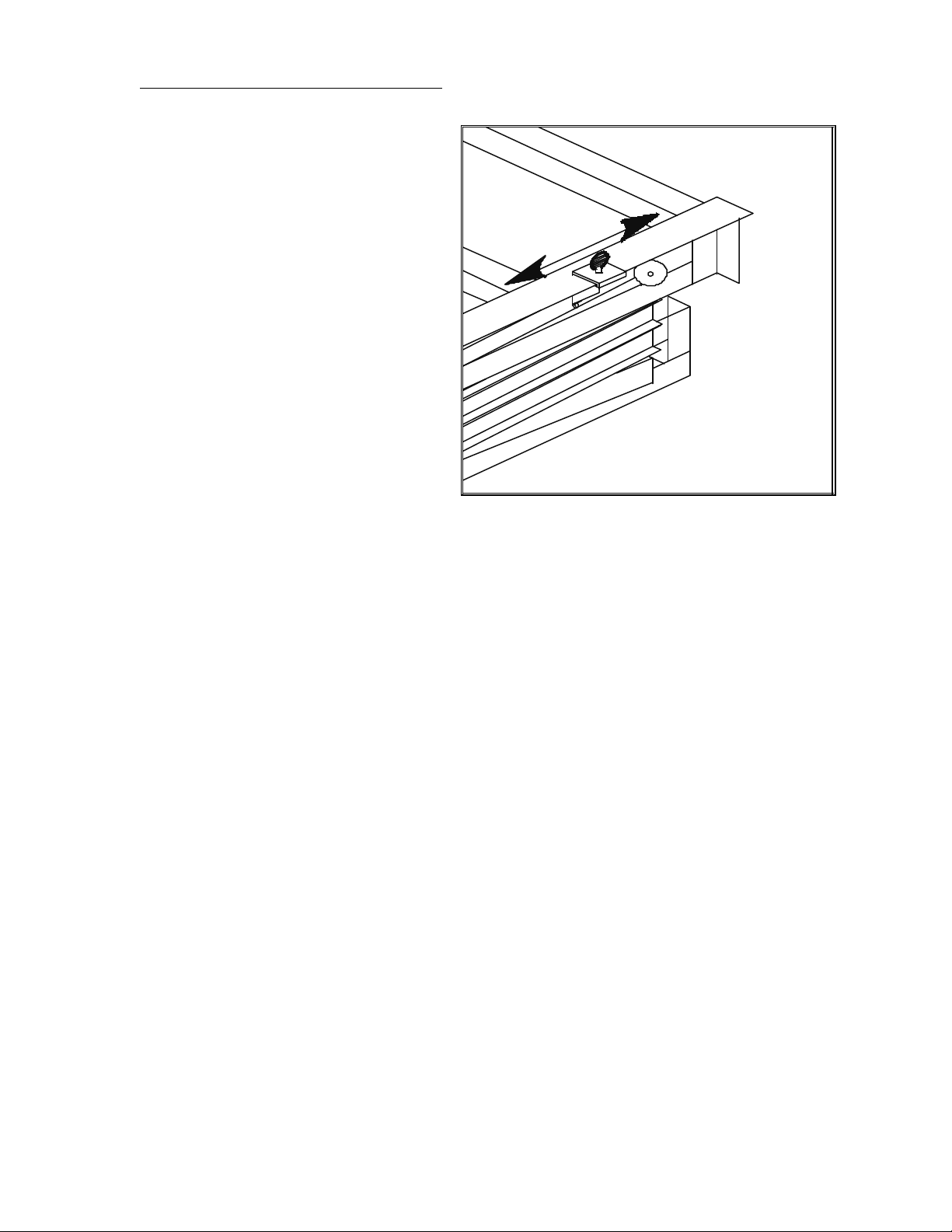

The show position is adjusted by loosening the thumb screw on the show microswitch bracket, located on
the upper motor frame -as seen in figure 11:
a. Operate the lift in a service mode and
REAR OF LIFT
lower the lift to the desired show
position.
b. Loosen the thumb screw and slide the
show microswitch along the roller guide
ADJUSTABLE SWITCH
until it touches the larger retainer washer
(as you position the switch over the roller,
you should hear a slight click when the
microswitch is compressed). Make sure
that the microswitch is not positioned too
close to the washer because it must pass
over it when the lift lowers to a service
position.
c. The show position is now set. Raise the
lift back to a closed position, turn the key
switch to the "show" position and press
the toggle down. The show
position is adjustable with an accuracy of
+/-1/8" (0.32 cm).
Figure 11.
10. MAINTENANCE AND ADJUSTEMENTS
• Inspect the lift occasionally for any looseness of bolts, check cables and clamps. Pillow block bearings
are pre-lubricated and motor does not need attention. If magnetic brake does not hold properly, it
must be replaced immediately.
• Level corrections are to be made (with projector mounted) after confirming that the cable is packed
tightly and is straight on the drum.
• Position a level across the front of the projector. Fine alignment is done by adjusting nuts on the
bottom of the eye bolts. Track up and down until satisfactory alignment is achieved.
• For projectors mounted within the ceiling and lowered to a viewing position, level adjustments must
be made at the viewing level.
• After adjustments are completed, check all bolts and clamps for tightness.
• Check drum lock solenoid occasionally – see if arm raises during down travel – all other times it stays
in a locked position. If the solenoid does not pull up, the microswitch will not start motor in the
down position. Check the centrifugal cam located on the drum stop block. It should be able to
move freely and will drop when it reaches the top of the drum, this avoiding contacting the arm of
the drum lock. If drum rotates fast, the cam will lock the arm after the first rotation.
• All scissor bolts are adjusted for no slack, but must not be too tight. To adjust, tighten to
approximately 151 Lbs Torque, then back of 1/8". These bolts have nylon locking nuts and should
stay at this position.
SVS 7 Series LIFT INSTALLATION Page13 of 13
Page 14
SVS 7 SERIES LIFT Warranty
SVS provides a limited warranty on all products to cover failures due to defects in materials or workmanship
which occur during normal use. This limited warranty does not cover failures which result from accident,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, modification or service by
anyone other than a factory authorized person or company. Specific product warranties are as follows:
A 5 year parts and 90 day factory labor warranty applies to the following SVS products:
• All scissor style lift models (does not include LCD-1, Lite Lift and QC Lift)
• Acc. #4 Power Sensor
• Acc. #5 Power Sensor with Screen Control
• Acc. #7 Cable Retractor
• Acc. #11 Extra Show Position
• Acc. #14 Floor Access Motor Control
• Acc. #15- 12 Volt trigger
A 1 year parts and 90 day factory warranty applies to the following SVS products:
• SVS LCD-1 Lifts (S and L models)
• Acc. #1 Ceiling Closure
• Acc. #2 Plenum Shroud
• Acc. #9 Mount
• Acc. #10 Dual Stack Mount
• Acc. #13 and 13R platforms
A 60 day factory labor warranty applies to:
• Acc. #12 Decorative Cover
A Return Material Authorization (RMA) number must be received from SVS prior to the return of any product.
Products returned from SVS must be shipped adequately insured with freight prepaid and the RMA number
clearlynoted on the shipping label. Items receivedfreight collector without RMA numbers clearly noted will be
refused. Lift model, serial number and proof of original purchase date may be required before warrant
performance is rendered.
_____________________ ______Cut-Here__________________________
WARRANTY CARD
CUSTOMER NAME ___________________ SERIAL #___________________
ADDRESS ___________________________ MODEL # SVS 7-
CITY____________ ST______ ZIP _______ DATE PURCHASED __________
PHONE _____________________________ DATE INSTALLED ___________
PURCHASED FROM __________________ SEND TO: SVS, INC
DEALER NAME ______________________ 2513 JENKS AVENUE
ADDRESS ___________________________ PANAMA CITY, FL 32405
CITY ___________ ST ______ ZIP _______
PHONE _____________________________ PHONE: 850-522-4747
COUTRY ____________________________ FAX: 850-522-4739
CARD MUST BE SENT IN WITHIN 10 DAYS FROM DATE OF INVOICE
SVS 7 Series LIFT INSTALLATION Page14 of 13
Loading...
