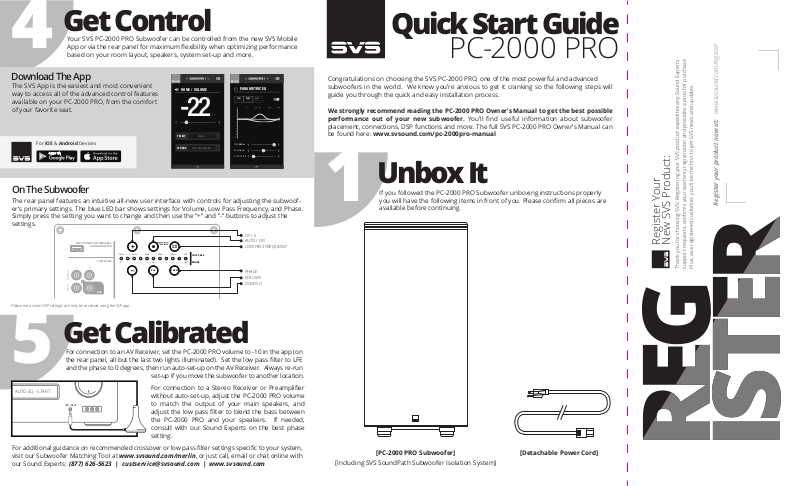

SVS PC-2000 PRO Quick Start Guide

1
4

Get Control

5

Your SVS PC-2000 PRO Subwoofer can be controlled from the new SVS Mobile

App or via the rear panel for maximum flexibility when optimizing performance

based on your room layout, speakers, system set-up and more.

Quick Start Guide

PC-2000 PRO

Download The App

The SVS App is the easiest and most convenient
way to access all of the advanced control features
available on your PC-2000 PRO, from the comfort
of your favorite seat.

For iOS & Android Devices

 HOME / VOLUME

-22

MOVIE

PRESET

LOW PASS FILTER

OPTIONS

PARAMETRIC EQ

PEQ1

PEQ2

ACTIVE

ACTIVE

20 40

0

6

4

2

0

-2

-4

-6

-8

-10

-12

Hz

FREQ: 200

BOOST: 0 dB

Q FACTOR: 1.2

DISABLED

PEQ3

10050

200

On The Subwoofer

The rear panel features an intuitive all-new user interface with controls for adjusting the subwoof­er’s primary settings. The blue LED bar shows settings for Volume, Low Pass Frequency, and Phase.
Simply press the setting you want to change and then use the “+” and “-” buttons to adjust the
settings.

UP (+)

SVS SOUNDPATH WIRELESS

AUDIO ADAPTER

30Hz 40Hz 60Hz 90Hz 140Hz LFE

LINE LEVEL

R

L

INPUT OUTPUT

Please note, some DSP settings can only be accessed using the SVS app.

0°

LFE

+

_

LOW
PASS

90° 180°

VOL

PHASE

LOW PASS

PHASE

AUTO / ON
LOW PASS FREQUENCY

PHASE
VOLUME
DOWN (-)

Congratulations on choosing the SVS PC-2000 PRO, one of the most powerful and advanced
subwoofers in the world. We know you’re anxious to get it cranking so the following steps will
guide you through the quick and easy installation process.

We strongly recommend reading the PC-2000 PRO Owner’s Manual to get the best possible
performance out of your new subwoofer. You’ll find useful information about subwoofer

placement, connections, DSP functions and more. The full SVS PC-2000 PRO Owner’s Manual can
be found here: www.svsound.com/pc-2000pro-manual

Unbox It

If you followed the PC-2000 PRO Subwoofer unboxing instructions properly

you will have the following items in front of you. Please confirm all pieces are

available before continuing.

Register your product now at: www.svsound.com/register

Register Your

New SVS Product:

Thank you for choosing S VS! Registering your SVS produc t expedites any Sound E xper ts

support request s, confirms your warranty registration and provides a proof of purchase.

Plus, as a regis tered customer, you’ll b e the first to get S VS news and updates.

Get Calibrated

For connection to an AV Receiver, set the PC-2000 PRO volume to -10 in the app (on

the rear panel, all but the last two lights illuminated). Set the low pass filter to LFE

and the phase to 0 degrees, then run auto-set-up on the AV Receiver. Always re-run

set-up if you move the subwoofer to another location.

AUTO EQ - START

For additional guidance on recommended crossover or low pass filter settings specific to your system,

visit our Subwoofer Matching Tool at www.svsound.com/merlin, or just call, email or chat online with
our Sound Experts:

MIC INPUT

[phone] | [e-mail] | www.svsound.com

For connection to a Stereo Receiver or Preamplifier

without auto-set-up, adjust the PC-2000 PRO volume
to match the output of your main speakers, and

adjust the low pass filter to blend the bass between

the PC-2000 PRO and your speakers. If needed,
consult with our Sound Experts on the best phase
setting.

[PC-2000 PRO Subwoofer]

[Including SVS SoundPath Subwoofer Isolation System]

[Detachable Power Cord]

REG

ISTER

RL

LFE

2

Set It Up

3

VIEW

RE

VIEW

RE

The location of your subwoofer in the listening environment can affect its performance. If possible, start with corner placement

on the same wall as the front speakers, or anywhere along the front stage in between or outside of your main speakers.

community by writing a review today.

Review your product now at: www.svsound.com/review

Review Your

New SVS Product:

Your SVS produc t is built with the high est standards of engineering excellence to achieve

stunning sound quali ty and dynamics. Honest feedback is important to us and others making

decisions about audio products. Please share your ownership experien ce with the SVS

Corner Placement: offers huge impact and reduces the

potential to encounter bass nulls, or ‘dead spots’. If “boomi­ness” occurs, you can try pulling it away from the wall and
using the DSP tuning controls to smooth performance.

Hook It Up

Line Level Connection – Single LFE Channel

RECEIVER/PREAMP

LINE LEVEL OUTPUTS

SUBWOOFER

(SUB1)

REAR FRONT

CENTER

Front Placement: In between or to the side of the front
channel speakers often results in the best blending with the

main speakers and center channel and minimizes localiza­tion effects.

For most set-ups, a single RCA subwoofer interconnect cable running from the AV Receiver’s “SUB 1” output to the PC-2000 PRO’s

“LFE” line level input is all that’s required to connect the subwoofer into your system. If you run separate Preamplifier and Power
Amplifiers, follow the “Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels” connection guide below.

Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels

SVS SOUNDPATH WIRELESS

LOW

AUDIO ADAPTER

PASS

+

30Hz 40Hz 60Hz 90Hz 140Hz LFE

LOW PASS

INPUT OUTPUT

ONOFF

100V-120V ~ 50-60Hz 800W

LINE LEVEL

0°

PHASE

90° 180°

R

L

_

VOL

PHASE

LFE

TRIGGER INPUT

3V-12V | AC/DC

STA-800D|2

RECEIVER/PREAMP

LINE LEVEL OUTPUTS

Side Wall Placement: Side wall placement is less frequently

used but can be an effective subwoofer location for

excellent accuracy and output.

REAR FRONT

L

R

Need Help?

Our Sound Experts are standing by to help with subwoofer placement, installation,
calibration, AV receiver settings, room rattle and anything else you need advice about.
Just call, email or chat online with our Sound Experts:

[phone] | [e-mail] | www.svsound.com

INPUT OUTPUT

LOW

+

30Hz 40Hz 60Hz 90Hz 140Hz LFE

LINE LEVEL

R

L

LFE

0°

_

PASS

90° 180°

VOL

PHASE

LOW PASS

PHASE
