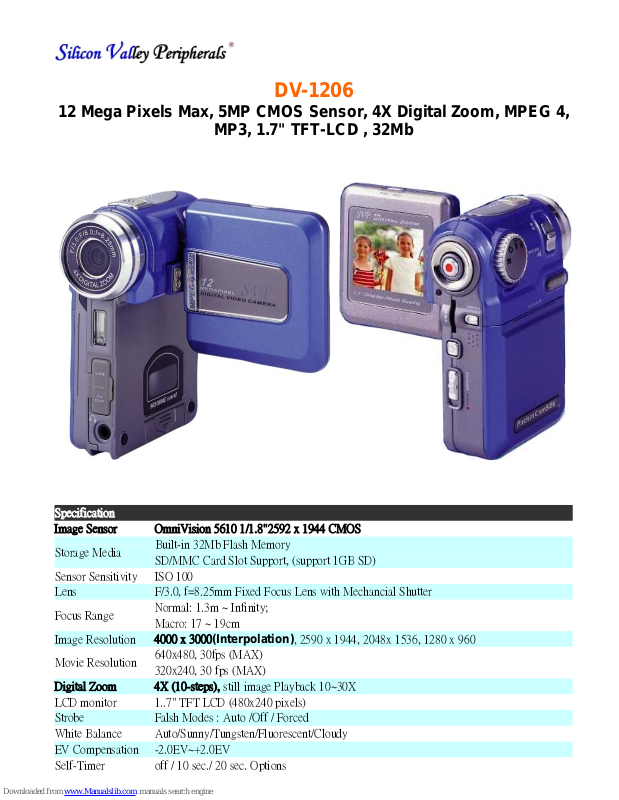

DV-1206
12 Mega Pixels Max, 5MP CMOS Sensor, 4X Digital Zoom, MPEG 4,
MP3, 1.7" TFT-LCD , 32Mb
Specification
Image Sensor OmniVision 5610 1/1.8" 2592 x 1944 CMOS
Storage Media
Sensor Sensitivity ISO 100
Lens F/3.0, f=8.25mm Fixed Focus Lens with Mechancial Shutter
Focus Range
Image Resolution 4000 x 3000 (Interpolation), 2590 x 1944, 2048 x 1536, 1280 x 960
Movie Resolution
Digital Zoom 4X (10-steps), still image Playback 10~30X
LCD monitor 1..7" TFT LCD (480x240 pixels)
Strobe Falsh Modes : Auto /Off / Forced
White Balance Auto/Sunny/Tungsten/Fluorescent/Cloudy
EV Compensation -2.0EV~+2.0EV
Self-Timer off / 10 sec./ 20 sec. Options
Built-in 32Mb Flash Memory
SD/MMC Card Slot Support, (support 1GB SD)
Normal: 1.3m ~ Infinity;
Macro: 17 ~ 19cm
640x480, 30fps (MAX)
320x240, 30 fps (MAX)
PC Interface
PC Cam: USB 2.0 Full speed
Mass Storage: USB 2.0 Full speed
TV out NTSC/PAL
Shutter Mechanical Shutter, 1/2 ~ 1/500 Second
Auto Power Off Off / 2 min. / 5 min. options
Power Supply
Camera: 4 x "AAA" Alkaline batteries
PC Cam: USB 5V
Dimension 90(W) x 70(L) x 37(H) mm
Weight Approx. 133g
Silicon Valley Peripherals Inc.
www.svp-tech.com Email: sales@svp-tech.com
