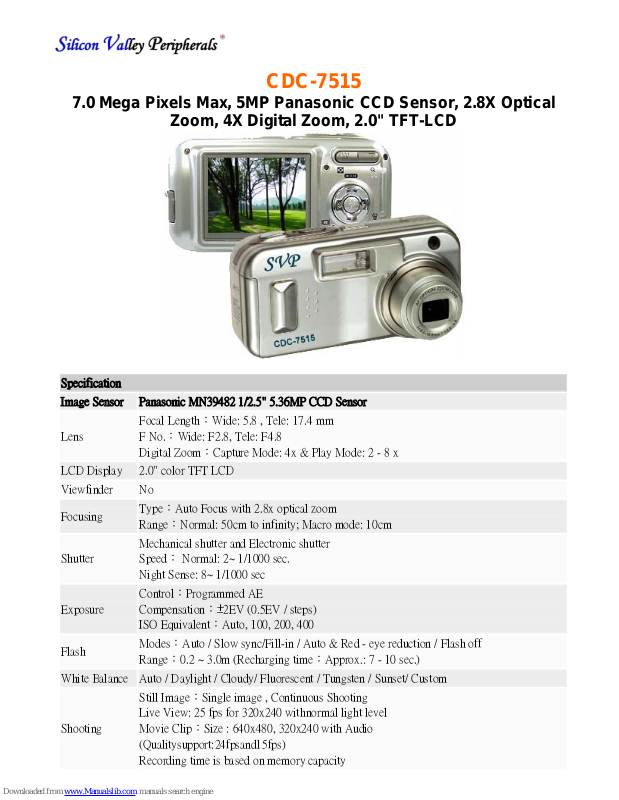

Page 1
CDC-7515
7.0 Mega Pixels Max, 5MP Panasonic CCD Sensor, 2.8X Optical
Zoom, 4X Digital Zoom, 2.0" TFT-LCD
Specification
Image Sensor Panasonic MN39482 1/2.5" 5.36MP CCD Sensor
Focal Length：Wide: 5.8 , Tele: 17.4 mm
Lens
LCD Display 2.0" color TFT LCD
Viewfinder No
Focusing
Shutter
Exposure
Flash
F No.：Wide: F2.8, Tele: F4.8
Digital Zoom：Capture Mode: 4 x & Play Mode: 2 - 8 x
Type：Auto Focus with 2.8x optical zoom
Range：Normal: 50cm to infinity; Macro mode: 10cm
Mechanical shutter and Electronic shutter
Speed： Normal: 2~ 1/1000 sec.
Night Sense: 8~ 1/1000 sec
Control：Programmed AE
Compensation：±2EV (0.5EV / steps)
ISO Equivalent：Auto, 100, 200, 400
Modes：Auto / Slow sync / Fill-in / Auto & Red - eye reduction / Flash off
Range：0.2 ~ 3.0m (Recharging time：Approx.: 7 - 10 sec.)
White Balance Auto / Daylight / Cloudy/ Fluorescent / Tungsten / Sunset/ Custom
Still Image：Single image , Continuous Shooting
Live View: 25 fps for 320x240 with normal light level
Shooting
Movie Clip：Size : 640x480, 320x240 with Audio
(Quality support: 24 fps and 15 fps)
Recording time is based on memory capacity
Page 2
Effect: B/W, Normal, Sepia
Sharpness: Soft, Normal, Vivid
Metering: Multi, Spot
Self-timer 10 sec., 2 sec., Double (No flash ) with LED indicator
Media：Internal memory: 32MB flash memory
External memory: Support SD Card (support 2GB SD)
File Format： Still Image : JPEG EXIF 2.1, DCF 1.0, DPOF 1.1
Storage
Movie Clip : AVI with Audio
PictBridge (Direct printing) support
Image Size： [7M]: 3072x2304 pixels via interpolation, [5M]: 2560x1920 pixels,
[4M]: 2304x1728 pixels, [3M]: 2048x1536 pixels , [2M]: 1600x1200 pixels ,
[1M]: 1024x768 pixels
Photo Frame 9 Frame options
Voice record Yes
Gamming
support
Yes
Image Play Single image / AVI play / Thumbnails / Slide show
Interface
Digital output connector: USB 1.1
Mic-in and video out
Power Source 2 pcs of AA alkaline / 2 pcs of Ni-MH
Dimensions
(WxHxD)
108.5 x 56.5 x 38 mm
Weight 140g (without batteries and card)
Mass Storage Driver (Windows2000/ME/XP, Mac OS 9.2 or later don't need driver)
Software
Application
Ulead PhotoExplorer 8 SE Basic / Explorer 2 (Mac version)
System Requirements
PC with processor better than MMX Pentium 233MHz (XP : Pentium II 300MHz)
Windows 2000/ME/XP
For Windows
Minimum 32MB RAM (XP: 128MB)
140MB of available hard-disk space
USB port, CD-ROM drive
800×600 pixels, 16-bit color display compatible monitor
Power Mac G3 or later
Mac OS 9.2 or later
For Macintosh
Minimum 64MB RAM
110MB of available hard-disk space
USB port, CD-ROM drive
QuickTime 4.0 or later for Movie Clip
www.svp-tech.com Email: [email protected]
Silicon Valley Peripherals Inc.
