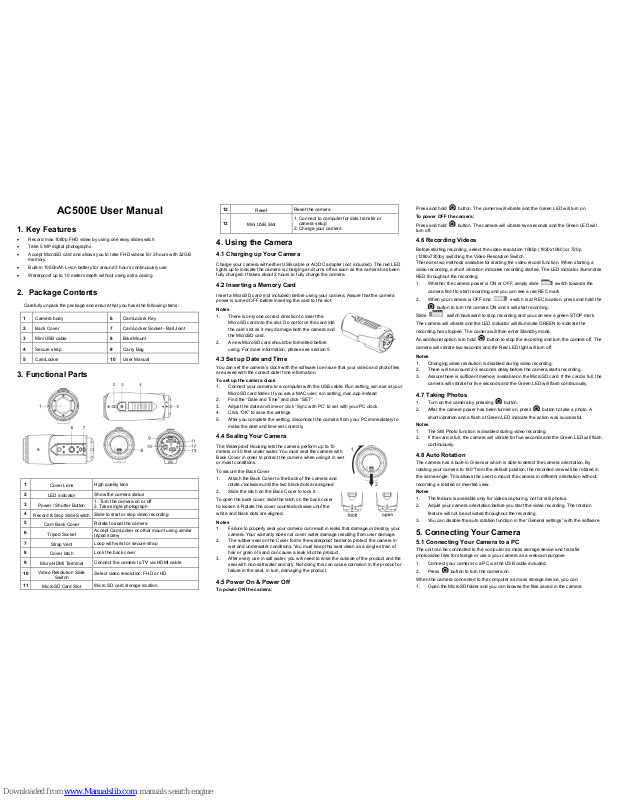

AC500E User Manual
1. Key Features
• Record max 1080p FHD video by using one easy slide switch
• Take 5 MP digital photographs
• Accept MicroSD card and allows you to take FHD videos for 3 hours with 32GB
memory.
• Built-in 1050mAh Li-ion battery for around 3 hours continuously use
• Waterproof up to 10 meters depth without using extra casing
2. Package Contents
Carefully unpack the package and ensure that you have the following items:
1 Camera body 6 CamLocker Key
2 Back Cover 7 CamLocker Socket - Ball Joint
3 Mini USB cable 8 Bike Mount
4 Secure strap 9 Carry Bag
5 CamLocker 10 User Manual
3. Functional Parts
1
Cover Lens
High quality lens
2
LED indicator
Show the camera status
3
Power / Shutter Button
1. Turn the camera on or off
2. Take single photograph
4
Record & Stop Slide Switch
Slide to start or stop video recording
5
Cam Back Cover
Rotate to seal the camera
6
Tripod Socket
Accept CamLocker or other mount using similar
tripod screw
7
Strap Vent
Loop with wrist or secure strap
8
Cover latch
Lock the back cover
9
Micro HDMI Terminal
Connect the camera to TV via HDMI cable
10
Video Resolution Slide
Switch
Select video resolution: FHD or HD
11
MicroSD Card Slot
Micro SD card storage location.
12
Reset
Reset the camera
13
Mini USB Slot
1. Connect to computer for data transfer or
camera setup
2. Charge your camera
4. Using the Camera
4.1 Charging up Your Camera
Charge your camera with either USB cable or AC/DC adapter (not included). The red LED
lights up to indicate the camera is charging and turns off as soon as the camera has been
fully charged. It takes about 2 hours to fully charge the camera.
4.2 Inserting a Memory Card
Insert a MicroSD card (not included) before using your camera. Assure that the camera
power is turned OFF before inserting the card to the slot.
Notes
1. There is only one correct direction to insert the
MicroSD card into the slot. Do not force the card into
the card slot as it may damage both the camera and
the MicroSD card.
2. A new MicroSD card should be formatted before
using. For more information, please see section 5
4.3 Set up Date and Time
You can set the camera’s clock with the software to ensure that your video and photo files
are saved with the correct date/ time information.
To set up the camera clock
1. Connect your camera to a computer with the USB cable. Run setting_win.exe at your
MicroSD card folder. If you are a MAC user, run setting_mac.app instead
2. Find the “Date and Time” and click “SET”.
3. Adjust the date and time or click “Sync with PC” to set with your PC clock.
4. Click “OK” to save the settings.
5. After you complete the setting, disconnect the camera from your PC immediately to
make the date and time set correctly.
4.4 Sealing Your Camera
The Waterproof Housing lets the camera perform up to 10
meters or 30 feet under water. You must seal the camera with
Back Cover in order to protect the camera when using it in wet
or moist conditions.
To secure the Back Cover
1. Attach the Back Cover to the back of the camera and
rotate clockwise until the two black dots are aligned
2. Slide the latch on the Back Cover to lock it.
To open the back cover, slide the latch on the back cover
to loosen it. Rotate the cover counterclockwise until the
white and black dots are aligned.
Notes
1. Failure to properly seal your camera can result in leaks that damage or destroy your
camera. Your warranty does not cover water damage resulting from user damage.
2. The rubber seal on the Cover forms the waterproof barrier to protect the camera in
wet and underwater conditions. You must keep this seal clean as a single strain of
hair or grain of sand can cause a leak into the product.
3. After every use in salt water, you will need to rinse the outside of the product and the
seal with non-salt water and dry. Not doing this can cause corrosion in the product or
failure in the seal, in turn, damaging the product.
4.5 Power On & Power Off
To p ower ON th e ca mera :
Press and hold
button. The camera will vibrate and the Green LED will turn on.
To power OFF the camera:
Press and hold
button. The camera will vibrate two seconds and the Green LED will
turn off.
4.6 Recording Videos
Before starting recording, select the video resolution 1080p (1920x1080) or 720p
(1280x720)by switching the Video Resolution Switch
There are two methods available for starting the video record function. When starting a
video recording, a short vibration indicates recording started. The LED indicator illuminates
RED throughout the recording.
1. Whether the camera power is ON or OFF, simply slide
switch towards the
camera front to start recording and you can see a red REC mark
2. When your camera is OFF and
switch is at REC location, press and hold the
button to turn the camera ON and it will start recording.
Slide
switch backward to stop recording and you can see a green STOP mark.
The camera will vibrate and the LED indicator will illuminate GREEN to indicate the
recording has stopped. The camera will then enter Standby mode.
An additional option is to hold
button to stop the recording and turn the camera off. The
camera will vibrate two seconds and the Red LED light will turn off.
Notes
1. Changing video resolution is disabled during video recording.
2. There will be around 2-3 seconds delay before the camera starts recording.
3. Assure there is sufficient memory available on the MicroSD card. If the card is full, the
camera will vibrate for five seconds and the Green LED will flash continuously.
4.7 Taking Photos
1. Turn on the camera by pressing button.
2. After the camera power has been turned on, press
button to take a photo. A
short vibration and a flash of Green LED indicate the action was successful.
Notes
1. The Still Photo function is disabled during video recording.
2. If the card is full, the camera will vibrate for five seconds and the Green LED will flash
continuously.
4.8 Auto Rotation
The camera has a built-in G-sensor which is able to detect the camera orientation. By
rotating your camera to 180
o
from the default position, the recorded view will be rotated in
the same angle. This allows the user to mount the camera in different orientation without
recording a rotated or inverted view.
Notes
1. The feature is available only for videos capturing, not for still photos.
2. Adjust your camera orientation before you start the video recording. The rotation
feature will not be activated throughout the recording.
3. You can disable the auto rotation function in the “General settings” with the software
5. Connecting Your Camera
5.1 Connecting Your Camera to a PC
The unit can be connected to the computer as mass storage device and transfer
photo/video files for storage or use a your camera as a webcam purpose
1. Connect your camera to a PC via the USB cable included.
2. Press
button to turn the camera on.
When the camera connected to the computer as mass storage device, you can:
1. Open the MicroSD folder and you can browse the files saved in the camera
2. Format the MicroSD card.
To activate the webcam function, press
button during the mass storage function and
the camera can be functioned as a webcam. Press
button again to switch back to
mass storage from webcam mode.
Note: If you cannot find either mode, you can unplug the cable from PC and turn the
camera on and off once and connect the PC again.
5.2 Run the Software
1. Insert a MicroSD card with at least 10MB free space into your camera.
2. Connect your camera to a PC via the USB cable included.
3. Press
button to turn the camera
4. Open the MicroSD card folder inside file manager and you will find the file
“setting_win.exe” and “setting_mac.app). Click the correct file base on the operating
system you are using
Through the software, you can change the camera general setting
1. TV type
2. Frequency
3. Auto power off,
4. Auto rotation,
5. Set date and time.
6. Software language
7. Photo resolution
8. Photo mode
Notes：If you cannot find setting files at your MicroSD folder, you can unplug the cable from
PC and turn the camera on and off once and connect the PC again.
5.3 Connecting Your Camera to a TV/HDTV
You can connect your camera to a TV or HDTV via the HDMI cable (not included). Once
you are connected you can:
1. Take photos or videos by using your TV as a viewfinder
2. Playback any photo or video files saved in the camera
3. Delete any files saved in the camera
4. Format the MicroSD Card
5. Change your camera settings
6. Mounting Your Camera
Action+ Series versatile mount system allows you to attach the AC500E to any type of
helmet (bike, motorcycle, ski, skydive etc.), pole, board (surf, skate, ski etc) and handlebar
(bike and motorcycle).
6.1 Secure Strap
1. Loop one end of the secure strap through the strap hole of the camera. You may use
a pin to help thread it thru the hole.
2. Attach other half to the mount or other secure place
3. Clip both ends together when camera is mounted.
6.2 Fix the CamLocker
1. Fit the screw of the CamLocker to the tripod socket of the camera.
2. Screw the CamLocker until it is tightened on the camera.
6.3 Mounting on the Handlebar or Pole
1. Loosen both bike mount screws.
2. Attach the bike mount to the handlebar or pole and tighten the screws until the mount
is firmly secured.
3. Loosen and detach the ball joint nut from the bike mount.
4. Insert the ball joint into the CamLocker Socket and tighten the nut.
5. Attach the CamLocker and camera into the CamLocker socket. Assure that the
CamLocker nut is tightened securely.
6. The ball joint system allows you to change the angle of the camera. Simply loosen the
nut, adjust the camera angle and re-tighten the nut.
7. Troubleshooting
Problems Causes Solutions
1. LED flashes and
camera turns off
2. Cannot turn on the
camera
Battery is depleted Recharge the camera
Red LED flashes during
recordin
g
Low battery Recharge the camera
Cannot take photos or
video (Green LED
flashes
)
Memory full
Replace with a memory card
with space available for
contents
Cannot take photos or
video (Green and Red
LED flashes
alternatively)
1. MicroSD card is not
inserted
2. MicroSD card has not
been formatted
properl
y
.
1. Insert a SD card
2. Format the MicroSD card at
PC or TV
Cannot find removable
disk after connecting the
camera to the computer.
Connection failure.
1. Make sure all cable
connections are secured
and restart the computer if
necessary.
2. Tr
y
a different USB port.
8. Specification
Sensor 5 Mega pixel CMOS sensor
Lens 120º ultra wide angle field of view
Focus range 0.5m - ∞
Video
1080p :1920x1080 pixels(16:9),30fps
720p:1280x720pixels(16:9),30fps
Format: H.264 compression, saved as MPEG4 (.mov) file
16.0 Mega Pixels:(4608x3456)
5.0 Mega Pixels: (2592x1944)
3.0 Mega Pixels: (2048x1536)
Format: JPEG
Capture Modes: Single photo, Burst mode, Time lapse
Audio
Built-in high quality microphone
ADPCM Compression, Automatic Gain Control
Storage
MicroSD/MicroSDHC with minimum Class 6 (not included)
Average Recording Times: about 6 hours (using 32GB mSD
card in 1080p/30)
Connection
USB2.0 (for data connection and battery charging)
HDMI
Power
Build-in 1050 mAH Rechargeable Li-ion Battery
Battery Life: Approx. 3 hrs
Housing
Durable plastic and fashionable finishing
Depth up to 30 feet / 10 meters
Dimension 96.3mmX40mmX45.8mm
Weight 112.5g
* If you cannot play the file format by existing media player, please download QuickTime Player
and try again.
9. System Requirements
Operating system Windows® 7/XP SP3 /Vista and Mac 10.5 or above
CPU Pentium III or above
RAM At least 64MB
Interface USB port
CD 4x speed CD ROM or above
10. Trademark Information
Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
Pentium® is a registered trademark of Intel Corporation.
Macintosh is a trademark of Apple Inc.
MicroSDTM is a trademark.
Other names and products may be trademarks or registered trademarks of their
respective owners.
IMPORTANT
• Keep the lens clean. Dirt and fingerprints will affect the quality of the
picture.
• Close the Back Cover properly for best water sealing. Do not open it
under water.
• Rinse the camera with clean water after used and keep it dry for storage.
• You can refer to the detail operation instruction at the user manual
For EU only
AM-SVP-AC5E-1
Loading...
