SVOA M521N User Manual

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufactur er or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©August 2006

Trademarks

This product incorporates copyright protection technology that is protected by method claims of certain U.S. pat ents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineer ing or disassembly is prohibited. Intel, Celeron, and Intel Core are trademarks/registered trademarks of Intel Corporation.

Preface

FCC Statement

(Federal Communications Commission)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example near a b ath tub, wash bowl, kitchen sink or laundry tu b, in a wet basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (DC Output 19V, 3.42A minimum AC/DC Adapter, OR by a DC Output 20V, 4.5A minimum AC/DC Adapter if you are using the opt ional port re plicato r- see pages 7 - 15 & C - 5).

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER, TELE-

COMMUNICATION LINE CORD

This Computer’s Optical Device is a Laser Class I Product

III

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele- ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.

Do not leave it in a place where foreign matter or moisture may affect the system.

Don’t use or store the computer in a humid environment.

Do not place the computer on any surface that will block the Vents/Fan Intakes.

Preface

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he computer. Shut the computer down p ro perly and don ’t for get to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

5. Take care when using peripheral devices.

Use only approved brands of peripherals.

Do not disassemble the computer by yourself.

Unplug the power cord befor e attaching peripheral devices.

Perform routine maintenance on your computer.

Preface

Power Safety

The computer has specific power requirements:



Power Safety Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

• Only use a power adapter approved for use with this computer.

• Your AC/DC adapter may be de signed for intern ational travel but it still re quires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-pr ong or a 3-prong ground ed plug. The third prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be su re to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC/DC adapter or car adapter).

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not remove any batteries from the computer while it is powered on.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qualified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.



Battery Disposal & Caution

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

VII

Preface

Cleaning

Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to rain or other liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and screw(s) before turning the computer on.

VIII

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery pack and any spares are fully charged.

2. Power off the computer and peripherals.

3. Close the display panel and make sure it’s latched.

4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.

5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,

check with your travel agent to see if you need any socket adapters.

6. Put the notebook in its carrying bag and secure it with the bag’s straps.

7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters

and/or cables.

8. Anticipate customs - Some jurisdictions may have import restrictions or requ ire proof of ownershi p for both hard-

ware and software. Make sure your “papers” are handy.



Power Off Before Traveling

Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

Preface

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:

Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common. Don’t check it with “normal” luggage. Baggage handlers may not be sufficiently careful. Avoid knock ing the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies) charged.

Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer. Wait a few minutes before turning it on so that any moisture can evaporate.

Preface

Developing Good Work Habits

Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. The following are some tips to reduce the strain:

• Adjust the height of the chair and/or desk so that the keyboard is at or slightly belo w the level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.

• Your knees should be slightly higher than your hips. Place your feet flat on the floor or on a footrest if necessary.

• Use a chair with a back and adjust it to support your lower back comfortably.

• Sit straight so that your knees, hips and elbows form approximately 90-degree angles when you are working.

• Take periodic breaks if you are using the computer for long periods of time.

Remember to:

• Alter your posture frequently.

• Stretch and exercise your body several times a day.

• Take periodic breaks when you work at the computer for long periods of time. Frequent and short breaks are better than fewer and longer breaks.

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

XII

Contents

Notice .................................................................................I

FCC Statement .............................................................II

Instructions for Care and Operation ..........................IV

Power Safety ..............................................................VI

Battery Precautions ...................................................VII

Cleaning .................................................................. VIII

Servicing ................................................................. VIII

Travel Considerations ................................................IX

Quick Start Guide

Overview ........................................................................1-1

Model Designs .............................................................1-2

Advanced Users ...........................................................1-2

Beginners and Not-So-Advanced Users ......................1-2

Warning Boxes ............................................................1-2

Not Included ................................................................1-3

System Software ..........................................................1-3

System Startup ...............................................................1-4

System Map: Top View with LCD Panel Open ............1-5

LED Indicators ................................................. .... ..........1-6

Hot Key Buttons & Keyboard .......................................1-7

Function Keys ...................................................... .... .... ..1-8

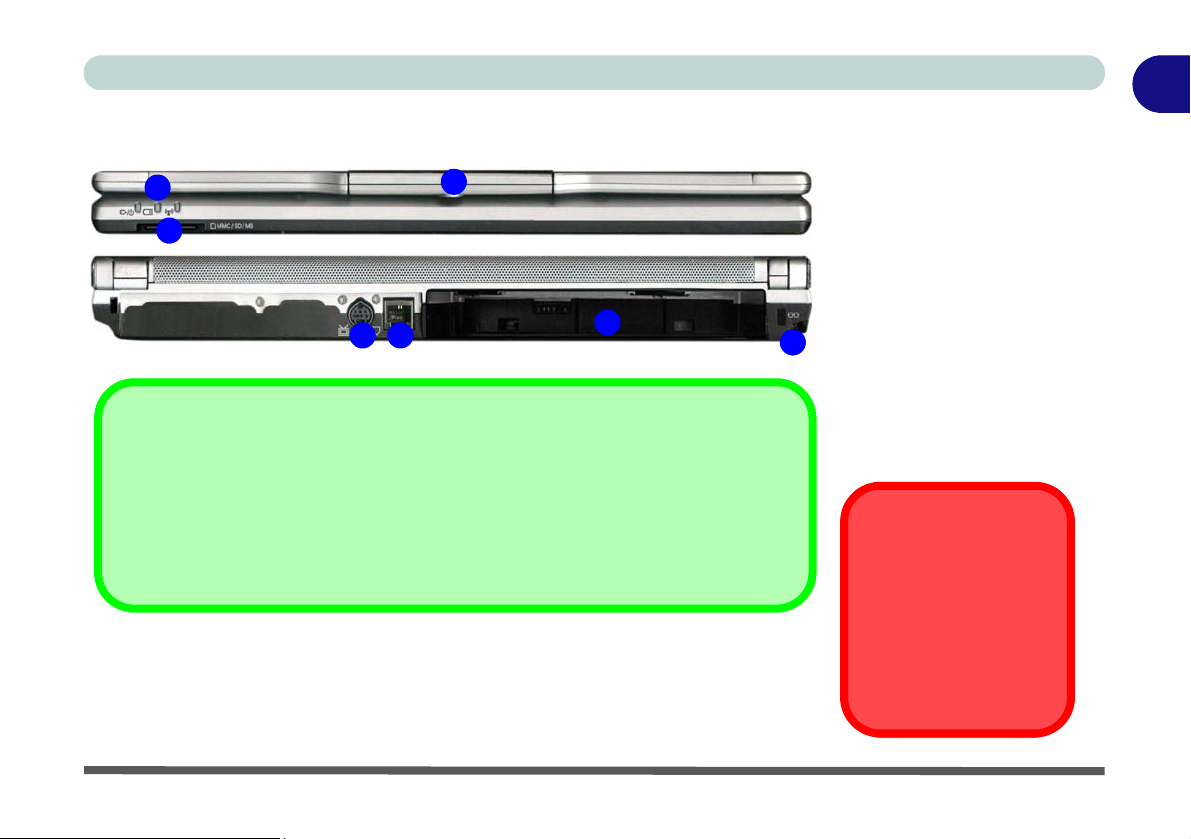

System Map: Front & Rear Views .................................1-9

System Map: Left View ...............................................1-10

Preface

System Map: Right View .............................................1-11

System Map: Bottom View ..........................................1-12

Windows XP Start Menu & Control Panel ..................1-13

Video Features .............................................................1-14

Display Devices & Options ......................................1-14

Power Management Features .......................................1-16

Features & Components

Overview ........................................................................2-1

Hard Disk Drive .............................................................2-2

Optical (CD/DVD) Device ............................................2-3

Loading Discs ..............................................................2-3

Handling CDs or DVDs ...............................................2-4

DVD Regional Codes ..................................................2-5

4-in-1 Card Reader .........................................................2-6

PC Card Slot .................................................. .... ............2-7

Inserting and Removing PC Cards ..............................2-7

TouchPad and Buttons/Mouse .......................................2-8

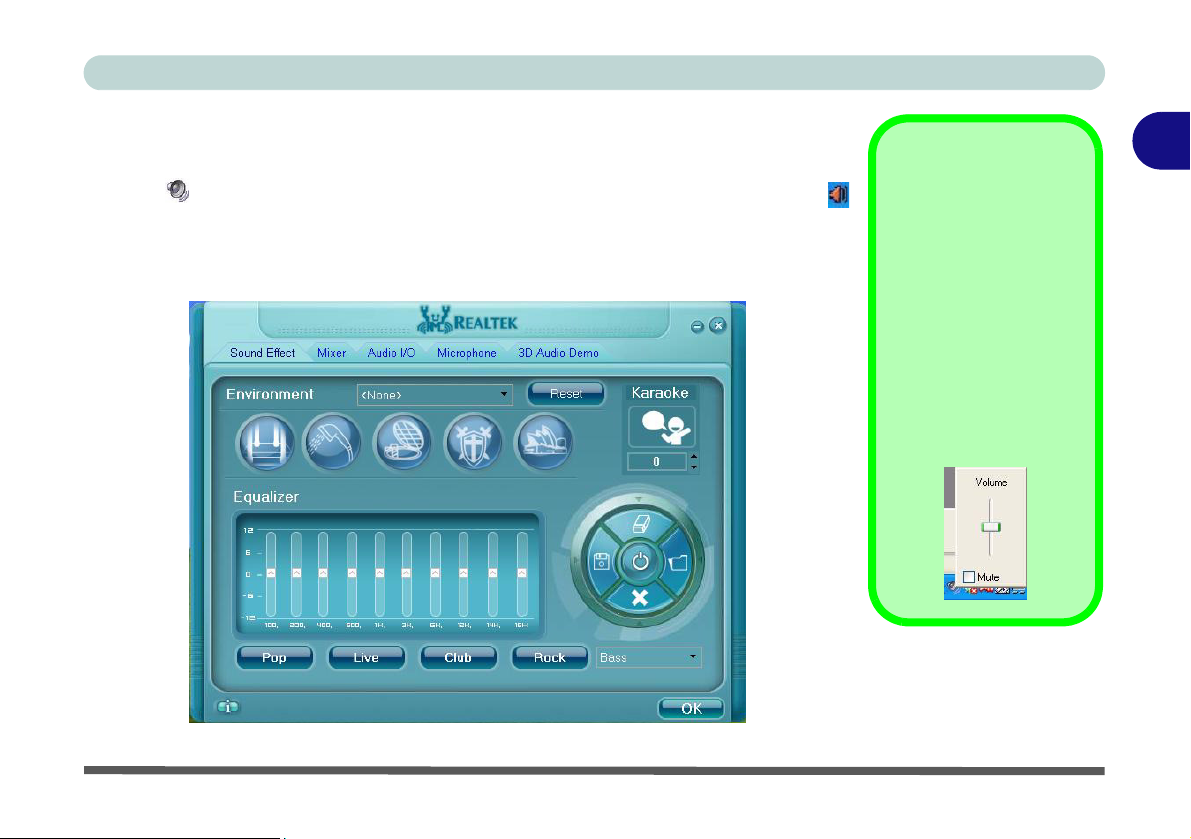

Audio Features ...............................................................2-9

Adding a Printer ................................................. .... ......2-10

USB Printer ..............................................................2-10

Parallel Printer ..........................................................2-10

XIII

Preface

Power Management

Overview ........................................................................3-1

Advanced Configuration and Power Interface ............ 3-1

The Power Sources .............................. .... .... ..................3-2

AC/DC Adapter ......................................................... ..3-2

Battery .........................................................................3-2

Turning on the Computer ...............................................3-3

Power Schemes ..............................................................3-4

System Power Options ................................................... 3-6

Hibernate Mode vs. Shutdown ....................................3-6

Stand by Mode vs. Hibernate Mode ............................3-6

Stand by ......................................................................3-7

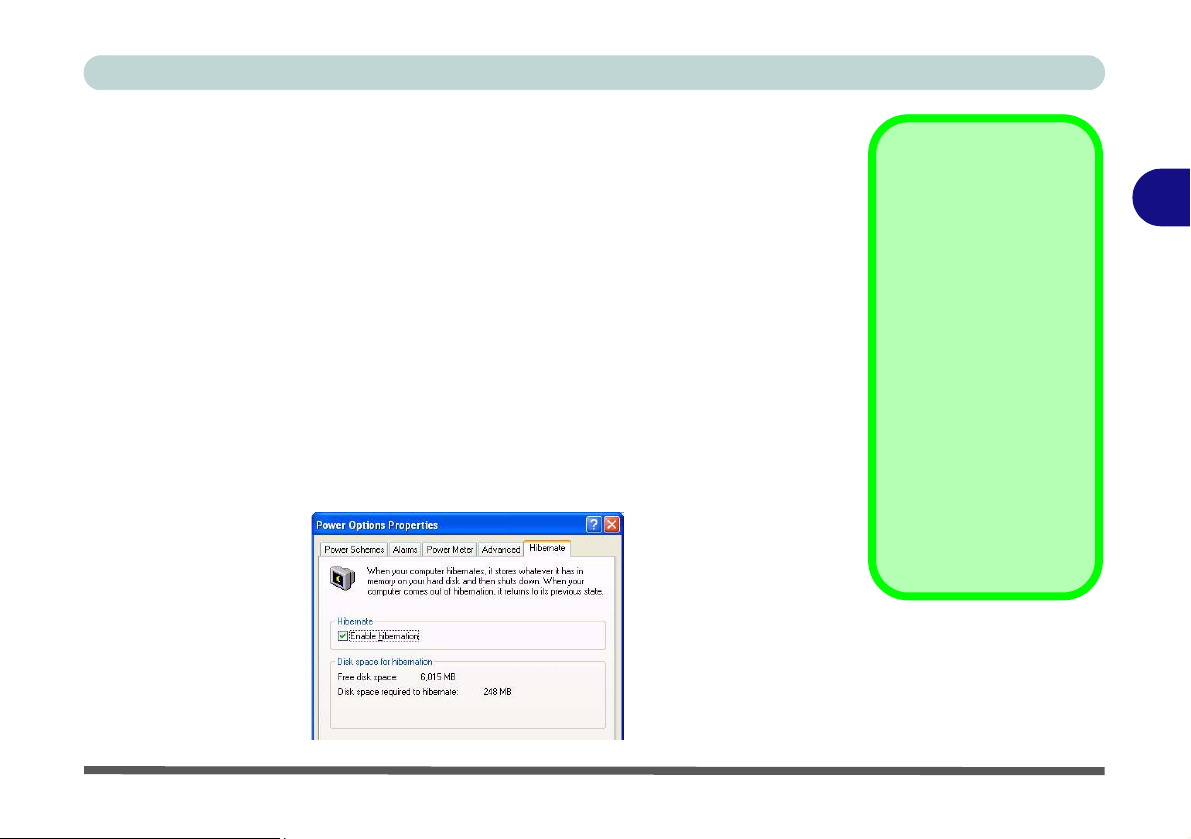

Hibernate ....................................................................3-7

Configuring the Power Button ....................................... 3-8

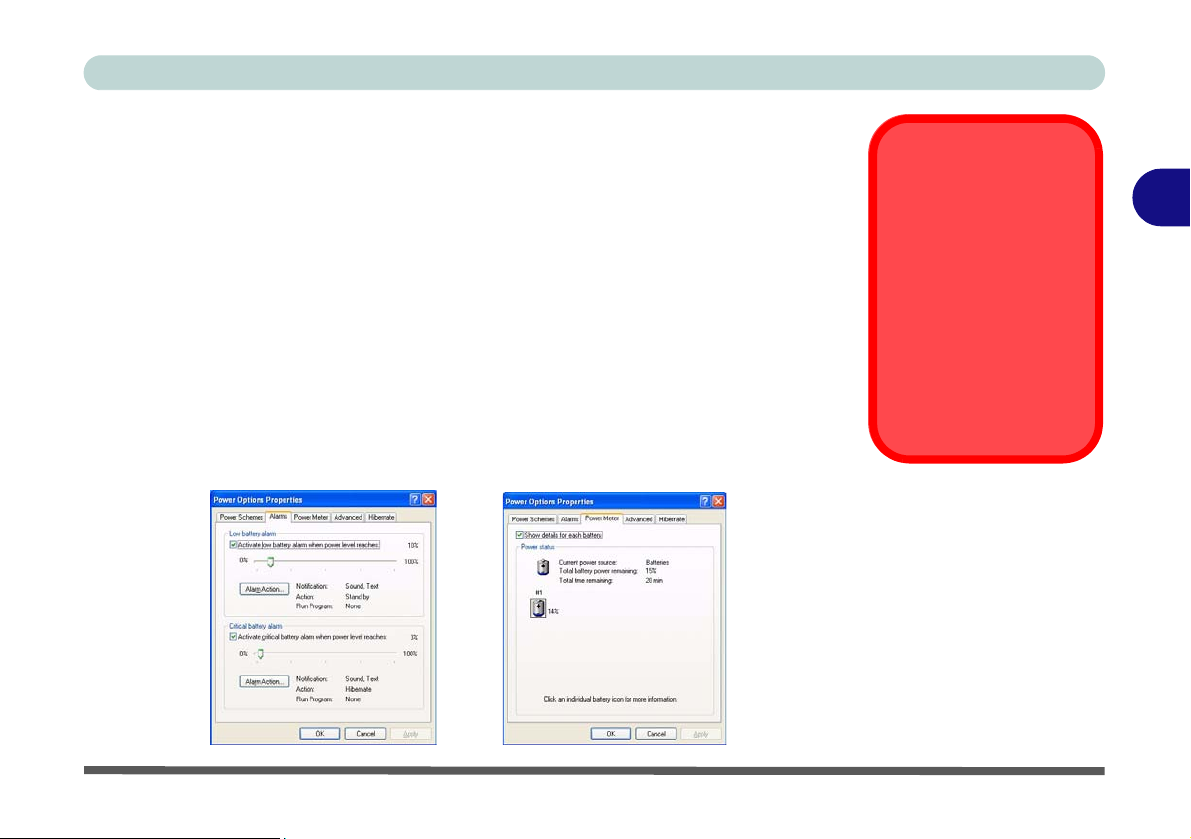

Battery Information .......................................................3-9

New Battery ................................................................3-9

Battery Life .................................................................3-9

Recharging the Battery with the AC/DC Adapter .....3-10

Proper handling of the Battery Pack .........................3-11

Battery FAQ ..............................................................3-12

Drivers & Utilities

What to Install ................................................................4-1

Module Driver Installation ..........................................4-1

Service Packs ................................................. .... .... .... ..4-3

Authorized Driver Message .........................................4-4

Version Conflict Message ...........................................4-4

Updating/Reinstalling Individual Drivers ..................4-4

Driver Installation ..........................................................4-5

Service Pack Installation .............................................4-6

New Hardware Found ..................................................4-6

Manual Driver Installation .........................................4-6

Chipset ........................................................................4-7

Video (VGA) ..............................................................4-7

Audio ..........................................................................4-7

Modem ........................................................................4-8

LAN ............................................................................4-8

TouchPad ....................................................................4-9

PCMCIA/Card Reader ................................................4-9

Hot Key Utility ...........................................................4-9

Wireless LAN ...........................................................4-10

PC Camera ................................................................4-10

Bluetooth ..................................................................4-10

Port Replicator ..........................................................4-10

BIOS Utilities

Overview ........................................................................5-1

The Power-On Self Test (POST) ................................... 5-2

Failing the POST .........................................................5-3

Fatal Errors .................................................................5-3

XIV

Preface

Non-Fatal Errors .........................................................5-3

The Setup Program ........................................................5-4

Entering Setup .............................................................5-4

Setup Screens ......................................................... ......5-5

Main Menu .....................................................................5-6

System Time & Date (Main Menu) ...............................5-6

IDE Channel 0/1 Master (Main Menu) ..........................5-7

System/Extended Memory: (Main Menu) .....................5-7

Advanced Menu .............................................................5-8

Chipset Information Menu (Advanced Menu) ..............5-8

Reset Configuration Data: (Advanced Menu) ...............5-9

Legacy USB Support: (Advanced Menu) ......................5-9

Boot-time Diagnostic Screen: (Advanced Menu) ..........5-9

Power On Boot Beep: (Advanced Menu) ......................5-9

Battery Low Alarm Beep: (Advanced Menu) ...............5-9

Total Graphics Memory: (Advanced Menu) .................5-9

Security Menu ..............................................................5-10

Set Supervisor Password (Security Menu) ..................5-10

Password on boot: (Security Menu) ............................5-11

Fixed disk boot sector: (Security Menu) .....................5-11

Boot Menu ...................................................................5-12

Exit Menu ....................................................................5-13

Upgrading The Computer

Overview ........................................................................6-1

When Not to Upgrade ..................................................6-2

Removing the Battery ....................................................6-3

Upgrading the Hard Disk Drive .....................................6-4

Upgrading the Optical (CD/DVD) Device ....................6-6

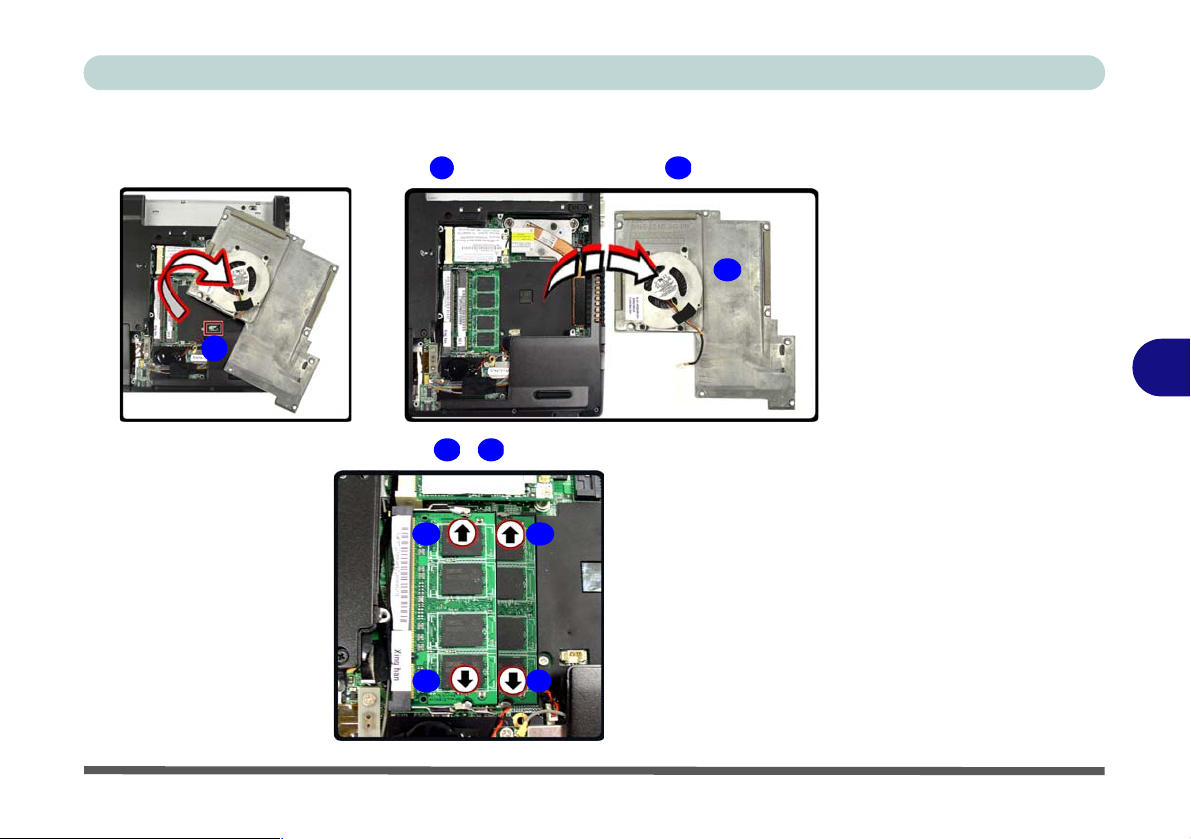

Upgrading the System Memory (RAM) ........................6-8

Modules & Options

Overview ........................................................................7-1

Intel PRO/Wireless WLAN Module ..............................7-2

Intel WLAN Driver Installation .................................7-3

802.11 b/g USB WLAN Module ...................................7-4

802.11 b/g WLAN Driver Installation ........................7-4

PC Camera Module ........................................................7-6

PC Camera Driver Installation ...................................7-7

PC Camera Audio Setup ..............................................7-8

EMAMCAP ...............................................................7-10

PC Camera Hot Key ..................................................7-12

Bluetooth Module ........................................................7-13

Bluetooth Driver Installation ....................................7-13

Port Replicator Module ................................................7-15

Port Replicator Setup Instructions: ...........................7-16

Port Replicator Serial (COM) Port Driver (WinXP) 7-16

Port Replicator Network (LAN) Driver (WinXP) ....7-17

Preface

Troubleshooting

Overview ........................................................................8-1

Basic Hints and Tips ......................................................8-2

Backup and General Maintenance .................................8-3

Viruses ...........................................................................8-4

Upgrading and Adding New Hardware/Software ..........8-5

Problems & Possible Solutions ......................................8-7

Interface (Ports & Jacks)

Overview .......................................................................A-1

Notebook Ports and Jacks .............................................A-2

Built-In Microphone .....................................................A-2

Card Reader Port .......................................................... .A-2

DC-In Jack ....................................................................A-2

External Monitor (VGA) Port .......................................A -2

Headphone/Speaker-Out Jack .......................................A-2

Line-In Jack ..................................................................A-2

Microphone-In Jack ......................................................A-3

Mini-IEEE 1394 Port ....................................................A-3

RJ-11 Phone Jack ..........................................................A-3

RJ-45 LAN Jack ...........................................................A-3

Security Lock Slot ........................................... .... .... .....A-3

S/PDIF-Out Jack ...........................................................A-4

7-Pin S-Video-Out Jack ................................................A-4

USB 2.0/1.1 Ports .........................................................A-4

Optional Port Replicator Ports and Jacks .....................A-5

DC-In Jack ..................................................... .... ...........A-5

External Monitor (VGA) Port .......................................A-5

Parallel Port ...................................................................A-5

Serial Port .....................................................................A-5

RJ-45 LAN Jack ............................................................A-5

USB 2.0/1.1 Ports .........................................................A-6

Intel Video Driver Controls

Intel Video Driver Installation ......................................B-1

Dynamic Video Memory Technology ..........................B-2

Intel Graphics Properties ..............................................B-3

Scheme Options ..........................................................B-5

Display Devices ............................................................B-6

Attaching Other Displays ..............................................B-7

Display Modes ..............................................................B-8

TV Settings .................................................................B-12

Specifications

Processor ....................................................................... C-2

Core Logic ....................................................................C-2

Memory .........................................................................C-2

Security ......................................................................... C-3

BIOS .............................................................................C-3

LCD Options .................................................................C-3

XVI

Video Adapter ...............................................................C-3

Storage .......................................................................... C-3

Audio ............................................................................ C-3

Keyboard & Pointing Device ........................................C-3

PCMCIA ....................................................................... C-4

Card Reader ..................................................................C-4

Interface ........................................................................ C-4

Communication .............................................................C-4

Power Management ......................................................C-4

Power ............................................................................ C-5

Environmental Spec ......................................................C-5

Dimensions & Weight ..................................................C-5

Optional ........................................................................ C-6

Preface

XVII

Preface

XVIII

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk, optical device, 4-in-1 card reader, PC Card), Touch Pad & Mouse, Audio & Printer.

• Chapter 3 The computer’s power saving options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer.

• Chapter 7 A quick guide to the computer’s Wireless LAN, PC Camera, Bluetooth and Port Replicator modules (some of which may be optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external devices.

• Appendix B Information on the Intel Video driver controls.

• Appendix C The computer’s specification.

Overview 1 - 1

Quick Start Guide

Model Designs

This notebook series includes two different model designs which vary slightly in color and appearance. However both designs incorporate the same features, ports and jacks etc.

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to

“What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1 in the User’s Manual. You may also find the notes marked with a  of interest to you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

the information contained in this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand every thing the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

For a more detailed description of any of the interface ports and jacks see

(Ports & Jacks)” on page A - 1.

“Interface

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide

Not Included

Operating Systems (e.g. Windows XP) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the Microsoft Win dows XP (Home & Professional Editions) operating system.



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order listed in Table 4 - 1, on page 4 - 6. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your system hasn’t been properly configured (your service representative may have already done that for you), refer to “What to Install” on page 4 - 1 for installation instructions.

Overview 1 - 3

Quick Start Guide

System Startup

Figure 1 - 1 - AC/DC Adapter Plugged In

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.

4. Attach the AC/DC adapter to the DC-In jack on the left of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter (Note: If you have included the Port Replicator in your purchase option see page 7 -

15).

5. Raise the lid/LCD to a comfortable viewing angle, and press the power button to turn the computer “on”.

6. Adjust the LCD panel to a comfortable viewing angle.

7. The LED Power & Communicatio n indicators show the power and battery status of the computer.



Shutdown

Please note that you should always shut your computer dow n by choosing th e Turn Off Computer command from the Start menu in Windows. This will help prevent hard disk or system problems.

1 - 4 System Startup

System Map: Top View with LCD Panel Open

Quick Start Guide



Wireless Device

Operation Aboard

Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Use the key combinations to toggle power to the WLAN/Bluetooth modules, and check the status indicator icon to see if the module is powered on or not (see Table 1 - 4, on page 1

- 8/Table 1 - 1, on page 1 -

6).

Figure 1 - 2 - Top View with LCD Panel Open

1. Optional PC Camera

2. LCD

3. Built-In Speakers * 2

4. LED Status Indicators

5. Hot-Key Buttons

6. Power Button

7. Keyboard

8. TouchPad and Buttons

9. LED Power & Communication Indicators

10. Built-In Microphone

5 6

System Map: Top View with LCD Panel Open 1 - 5

Quick Start Guide

LED Indicators

The two sets of LED indicators (LED Status Indicators and LED Power & Communication Indicators)

on the computer display helpful information about the current status of the computer.

Icon Color Description

Green Hard Disk Activity

Green Number Lock Activated

Green Caps Lock Activated

Green Scroll Lock Activated

Table 1 - 1 - LED Status Indicators

Icon Color Description

Green The Computer is On

Blinking

Green

Orange

Blinking

Orange

Green The Battery is Fully Charged

Orange

Green

The Computer is in Stand by

Mode

The AC/DC Adapter is Plugged

In & the Computer is Powered

Off

The AC/DC Adapter is Plugged

In & the Battery is Charging

The Battery has Reached

Critically Low Power Status

The WLAN Module is Powered

The Bluetooth Module is

Powered On

Table 1 - 2 - LED Power & Communication Indicators

1 - 6 LED Indicators

Quick Start Guide

Hot Key Buttons & Keyboard

These buttons give instant access to the default Internet browser, e-mail program, and the EMAMCAP PC Camera application. You must install the Hot Key

Utility and PC Camera drivers to enable all the camera functions (see

Camera Driver Installation” on page 7 - 7).

Hot Key Function

“Hot Key Utility” on page 4 - 9 & “PC

Activate the Default E-Mail Program

Activate the Default Internet Browser

Press to Activate the EMAMCAP program

Press Once in EMAMCAP to Take a Still


Press for Over One Second in EMAMCAP to

Start the V ideo Capture Process

(See “PC Camera Hot Key” on page 7 - 12)

Table 1 - 3 - Hot Key Buttons

The keyboard has an embedded numerical keypad for easy numeric data input, and features Function Keys to allow you to change operational features instantly (see Figure 1 - 3).

Function Keys

NumLk &

Numeric

Keypad

Fn Key

Figure 1 - 3 - Keyboard

ScrLk Keys



Other Keyboards

If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not work.

Hot Key Buttons & Keyboard 1 - 7

Quick Start Guide

Function Keys

To use the function keys, press and hold the Fn key, then press the appropriate function key (F1 - F12 etc.).



Special Characters

Some software applications allow the numberkeys to be used with Alt to produce special characters. These special characters can only be produced by using the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make sure that NumLk is on.

1 - 8 Function Keys

Key Function Key Function

Fn Function Key Fn + F8 Decrease LCD Brightness Fn + F1 TouchPad Toggle Fn + F9 Increase LCD Brightness Fn + F3 Mute Toggle Fn + F10 PC Camera Power Toggle Fn + F4 Sleep Toggle (Suspend) Fn + F11 Wireless LAN Power Toggle Fn + F5 Decrease Audio Volume Fn + F12 Bluetooth Power Toggle Fn + F6 Increase Audio Volume Fn + NumLk Number Lock Toggle Fn + F7 Display Toggle Fn + ScrLk Scroll Lock Toggle

Table 1 - 4 - Function Keys

System Map: Front & Rear Views

Quick Start Guide



4-in-1 Card Reader

The card reader allows you to use the most popular digital storage card formats:

MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /

MS Pro (Memory Stick Pro)

Figure 1 - 4

Front & Rear Views

1. LED Power & Communication Indicators

2. 4-in-1 Card Reader

3. Optional PC Camera

4. 7-Pin S-Video-Out Jack

5. RJ-11 Phone Jack

6. Battery Slot (Battery Removed)

7. Security Lock Slot



Extended Battery

Note

Note that when the extended battery is inserted it will cover the computer’s rear ports.

System Map: Front & Rear Views 1 - 9

Quick Start Guide

System Map: Left View

Figure 1 - 5 - Left View

1. DC-In Jack

2. External Monitor Port

3. Mini-IEEE 1394 Port

4. RJ-45 LAN Jack

5. Vent/Fan Intake/Outlet

6. 2 * USB 2.0 Ports

7. PC Card Slot (see page 2 - 7)

2 4



Mini-IEEE 1394 Port

The pictured system includes the 8-Cell Extended battery at the rear of the computer.

To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

1 - 10 System Map: Left View

The Mini-IEEE 1394 Port only supports SELF POWERED IEEE 1394 devices.



Overheating

System Map: Right View

4 5



Changing DVD Regional Codes

Go to the Control Panel and double-click System > Hardware (tab), cli ck Device Manager, then click

the + next to DVD/CD-ROM drives. Double-click on the DVD-ROM device to bring up the Properties dialogue box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code (see “DVD Regional Codes” on

page 2 - 5).

DVD region detection is device dependent, not OSdependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.

Quick Start Guide

Figure 1 - 6 - Right View

1. 1 * USB 2.0 Ports

2. Headphone-Out/Speaker-Out

Jack

3. Microphone-In Jack

4. S/PDIF-Out Jack

5. Line-In Jack

6. Optical (CD/DVD) Device Drive Bay (see page 2 - 3)

The pictured system includes the 8-Cell Extended battery at the rear of the computer.



CD Emergency Eject

If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or similar object that may break and become lodged in the hole.

Media Warning

Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may cause the system to “crash”.

System Map: Right View 1 - 11

Quick Start Guide

System Map: Bottom View

Figure 1 - 7 - Bottom View

1. Battery

2. Component Bay Cover

3. Hard Disk Bay Cover



Battery Information

Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges. See “Battery Informa-

tion” on page 3 - 9 for

full instructions.



CPU

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Overheating

To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

1 - 12 System Map: Bottom View

Quick Start Guide

Windows XP Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop. You can cu stomize the look of the Start menu by right-clicking the Start menu and selecting Properties from the menu.

Click here to toggle Category View

Figure 1 - 8 - Start Menu & Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows XP provides basic controls for many of the fea tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed in

Table 4 - 1, on page 4 - 6. To see all controls it may be necessary to toggle off Category View.

Windows XP Start Menu & Control Panel 1 - 13

Quick Start Guide

Video Features

Your computer will have built-in Intel (Intel GMA 950) on-board video. You can switch display devices, and configure display options, from the Display Properties control panel in Windows as long as the appropriate vid eo driver is installed. For more detailed video information see “Intel Video Driver Controls” on page B - 1.

To access Display Properties in Windows:

1. Click Start, point to Settings and click Control Panel (or just click Control Panel).

2. Double-click Display (icon) - In the Appearances and Themes category.

3. Click Settings (tab) in the Display Properties dialog box.

4. Move the slider to the preferred setting in Screen resolution (Figure 1 - 9 on page 1 - 15).

5. Click the arrow, and scroll to the preferred setting in Color quality (Figure 1 - 9 on page 1 - 15).

6. Click Advanced (button) (Figure 1 - 9 on page 1 - 15) to bring up the Advanced properties tabs.

7. Click Intel( R) Graphics Media Acce lerator Driv er for Mobile (t ab), and click Graphics Propert ies (b utton) to make any video adjustments you require.

8. You can also access Display Properties by right-clicking the desktop and scrolling down and clicking

Properties. Click Settings (tab) and adjust as above.

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT)/external Flat Panel Display or TV as your display device. A VGA monitor/Flat Panel Display connects to the external monitor port, a TV to

the 7-Pin S-Video-Out Jack.

See Table 1 - 5, on page 1 - 15 for a summary of the display modes available.

1 - 14 Video Features

Quick Start Guide

Figure 1 - 9 - Display Properties Desktop

Intel Display Mode Description

Single Mode One of the connected displays is used as the display device Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop

Table 1 - 5 - Display Options

Video Features 1 - 15

Quick Start Guide

Power Management Features

The Power Options control panel icon in Windows (see page 1 - 13) allows you to configure power management features for your computer. You may conserve power throug h individual components such as the monitor or hard disk (by means of Power Schemes), or you may use either Stand by or Hibernate mode to conserve power throughout the system (enable Hibernate support from the control panel as pictured in tention to the instructions on battery care in “Battery Information” on page 3 - 9.

Figure 1 - 10 - Power Options

The computer’s power button, sleep button (Fn + F4 key combination), and lid (closing the lid) may be set to send the computer in to either Stand by or Hibernate mode.

Figure 1 - 10). Pay at-

Power Saving and Performance

Power Schemes may have an affect on your computer performance (see “Power Schemes” on page 3 - 4).

1 - 16 Power Management Features

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components of the computer:

• Hard Disk Drive

• Optical (CD/DVD) Device

• 4-in-1 Card Reader

• PC Card Slot

• TouchPad and Buttons/Mouse

• Audio Features

• Adding a Printer

Overview 2 - 1

Features & Components

Before attempting to access any of the internal components of your computer please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.



Power Safety

Figure 2 - 1

Hard Disk Location

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5 mm.

The hard disk is accessible from the bottom of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 4.

HDD Bay

2 - 2 Hard Disk Drive

Features & Components

Optical (CD/DVD) Device

There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page C - 3). The optical device is usually labeled “Drive D:” and may be used as a boot device if properly set in the BIOS (see

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/DVD onto the disc tray with label-side facing up (use just enough force for the disc to click onto the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you are ready to start. The busy indicator or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupt ed, insert an object such as a straightened paper clip into the emergency eject hole

to open the tray.

“Boot Menu” on page 5 - 12).

will light up while data is being accessed,



Sound Volume

Adjustment

How high the sound volume can be set depends on the setting of the volume control within Win- dows. Click the Volume icon on the taskbar to check the setting (see

“Audio Features” on page 2 - 9).

Figure 2 - 2

Optical Device

Optical (CD/DVD) Device 2 - 3

Features & Components

CD Emergency Eject

If you need to manually eject a CD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. However please do NOT use a sharpened pencil or similar object that may break and become lodged in the hole.

Disk Eject Warning

Don’t try to remove a CD/DVD while the system is accessing it. This may cause the system to “crash”.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 4 Optical (CD/DVD) Device

Features & Components

DVD Regional Codes

To change the DVD regional codes see “Changing DVD Regional Codes” on

page 1 - 11.

DVD Regional Coding

Region Geographical Location

1 USA, Canada

6China

Western Europe, Japan,

South Africa, Middle East & Egypt

South-East Asia, Taiwan, South

Korea, The Philippines, Indonesia,

Hong Kong

South & Central America, Mexico,

Australia, New Zealand

N Korea, Russia, Eastern Europe,

India & Most of Africa

Table 2 - 1

DVD Regional

Coding

Figure 2 - 3

DVD Regions

Optical (CD/DVD) Device 2 - 5

Features & Components

Card Reader Cover

Make sure you keep the cover in the card reader when not is use. This will help prevent foreign objects and/or dust getting in to the card reader.



4-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s). Make sure you install the PCMCIA/Card Reader Card driver (see

• MMC (MultiMedia Card)

• SD (Secure Digital)

“PCMCIA/Card Reader” on page 4 - 9).

• MS (Memory Stick)

• MS Pro (Memory Stick Pro)

Figure 2 - 4

Removable Disks

1. Card Reader

2 - 6 4-in-1 Card Reader

Features & Components

PC Card Slot

The computer is equipped with a PCMCIA 3.3V/5V slot for one type II PCMCIA CardBus PC Card Slot. Make sure you install the PCMCIA/Card Reader Card driver (see

“PCMCIA/Card Reader” on page 4 - 9).

Inserting and Removing PC Cards

• Align the PC Card with the slot and push it in until it locks into place.

• To remove a PC Card, simply press the eject button next to the slot.



PC Card Slot Cover

Make sure you keep the cover in the PC Card slot when not is use. This will help prevent foreign objects and/or dust getting in to the PC Card Slot.

Figure 2 - 5

PC Card Slot

1. PC Card Eject Button

PC Card Slot 2 - 7

Features & Components

If you are using an external mouse your operating system may be able to auto-configure your mouse during its installation or only enable its basic functions. Be sure to check the device’s user documentation for details.



Mouse Driver

TouchPad and Buttons/Mouse

The TouchPad is an alternative to the mouse; however, you can also add a mouse to your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse.

Once you have installed the TouchPad driver (see “TouchPad” on page 4 - 9) you can configure the functions by double-clicking the TouchPad driver icon in the taskbar. You may then configure the TouchPad tapping, buttons, scrolling, pointer motion and sensitivity options to your preferences. You will find further information at www.synaptics.com.

Figure 2 - 6

Mouse Properties

2 - 8 TouchPad and Buttons/Mouse

Features & Components

Audio Features

You can configure the audio options on your computer from the Sounds and Audio Devices

icon in the taskbar/control panel (this will bring up the Realtek Audio Configuration menus). The volume may also be adjusted by means of the Fn + F5/F6 key combi nation.

Windows control panel, or from the Realtek HD Audio Manager



Sound Volume

Adjustment

How high the sound volume can be set depends on the setting of the volume control within Win- dows (and the volume control function keys on the computer). Click the Volume icon on the taskbar to check the setting.

Figure 2 - 7

Realtek Control

Panel

Audio Features 2 - 9

Features & Components

After setting up the printer attach the parallel cable to the printer.

Connect the printer’s parallel cable to the Parallel to USB converter, and then plug the converter into the USB port.

Turn ON the printer, then turn ON the computer.

Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.



Parallel Printer

Adding a Printer

The most commonly used peripheral is a printer. The following conventions will help you to add a printer, however it is always best to refer to the printer manual for specific instructions and configuration options.

USB Printer

Most current printers have a USB interface connection. You may use any one of the ports to connect the printer.

Install Instructions:

1. Set up the printer according to its instructions (unp acking, p aper tray, toner/ink cartridge etc.).

2. Turn ON the computer.

3. Turn ON the printer.

4. Connect the printer’s USB cable to one of the USB ports on the computer.

5. Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

Parallel Printer

This is still a very common type of printer. To use a parallel printer you will need to purchase a parallel to USB converter. The install instructions are in the sidebar.

2 - 10 Adding a Printer

Power Management

Chapter 3: Power Management

Overview

To conserve power, especially when using the battery, your computer uses the ACPI power management system. Power management conserves power by controlling in dividual components of the computer (the monitor and hard disk drive) or the whole system. This chapter covers:

• The Power Sources

• Turning on the Computer

• Power Schemes

• System Power Options

• Configuring the Power Button

• Battery Information

Advanced Configuration and Power Interface

The ACPI interface provides the computer with enhanced power saving techniques and gives the operating system (OS) direct control over the power and thermal states of devices and processors. For example, it enables the OS to set devices into lowpower states based on user settings and information from applications. ACPI is fully supported in Windows XP.



OS Note

Power management functions will vary slight-

ly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

(Note: All pictures used on the following pages are from the Windows XP OS.)

Overview 3 - 1

Power Management

The Power Sources

The computer can be powered by either an AC/DC adapter or a battery pack.

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ DC adapter will damage the computer and its components.

1. Attach th e AC/DC adapter to the DC-in jack on the left of the computer.

2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the AC/DC adapter (see sidebar if you are using the optional Port Replicator).

3. Raise the lid/LCD to a comfortable viewing angle.

4. Press the power button to turn “On”.

Battery

The battery allows you to use your computer while you are on the road or when an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before recharging (see

on page 3 - 12).

“How do I completely discharge the battery?”

We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 9.

3 - 2 The Power Sources

Turning on the Computer

Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.

When the computer is on, you can use the power button as a Stand by/Hibernate/ Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down). Use Power Options in the Windows control panel to configure this feature.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.

Power Button as Stand by or Hibernate Button

If you are using a fully ACPI-compliant OS, (such as Windows XP) you can use the OS’s “Power Options” control panel to set the power button to send the system into Stand by or Hibernate mode (see your OS’s documentation, or “Configuring the Po wer Button” on

page 3 - 8 for details).

Power Management



Shutdown

Note that you should always shut your computer down by choosing the

Turn Off Computer

command from the Start menu in Windows. This will help prevent hard disk or system problems.

Turning on the Computer 3 - 3

Power Management

Power Schemes



Resuming Operation

The system can resume from Monitor or Hard Disk Stand by pressing the Sleep/Resume key combination (Fn + F4), or power button.

Figure 3 - 1

Power Schemes

You can set your computer to conserve power through individual components by means of Power Schemes. You can also adjust the settings for each scheme to set the monitor to turn off after a specified time, and the computer's hard disk motor to turn off if the hard disk drive has not been accessed for a specified period of time (if the system reads or writes data, the hard disk motor will be turned back on). The schemes may also be set to set a specified time for the system to enter Stand by or Hibernate modes (see

“System Power Options” on page 3 - 6).

3 - 4 Power Schemes

Each Windows Power Scheme will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experienc ing any reduced performance (especially under DC/battery power).

Choose the Home/Office Desk scheme for maximum performance when the com- puter is powered from an AC power source. Choose the Max Battery scheme (bear in mind that this scheme may slow down the overall performance of the computer in order to save power) for maximum power saving when the computer is battery (DC power) powered. Windows will use Portable/Laptop as the default scheme.

Power Management

Power Schemes 3 - 5

Power Management

System Power Options

You can use the system power options to stop the computer’s operation and restart

where you left off. This system features Stand by and Hibernate sleep mode levels (Hibernate mode will need to be enabled by clicking the option in the Hibernate tab in the Power Options control panel -

Figure 3 - 2).

Hibernate Mode vs. Shutdown

Hibernate mode and Shutdown are the same in that the system is off and you need to press the power button to turn it on. Their main difference is:

When you come back from hibernation, you can return to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

You can use either method depending on your needs.

Stand by Mode vs. Hibernate Mode

If you want to stay away from your work for just a while, you can put the system on Stand by instead of in hibernation. It takes a longer time to wake up the system from Hibernate mode than from Stand by mode.

3 - 6 System Power Options

Stand by

Stand by saves the least amount of power, but takes the shortest time to return to full operation. During Stand by the hard disk is turned off, and the CPU is made to idle at its slowest speed. All open applications are retained in memory. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Stand by mode to save power.

Hibernate

Hibernate uses no power and saves all of your information on a part of the HDD before it turns the system off. Although it saves the most power it takes the longest time to return to full operation. You can set your computer to automatically enter Hiber nate mode when the battery power is almost depleted. You will need to enable Hibernate mode from the Hibernate tab in the Power Options control panel. The system will resume from Hibernate mode by pressing the power button.

Power Management



System Resume

The system can resume from Stand by mode by:

• Pressing the power button

• Pressing the Sleep/ Resume key combi-

nation

• An incoming call received on the modem (if enabled)

• Network card (Wake On LAN) activity (if enabled)

Figure 3 - 2

Enable Hibernation

System Power Options 3 - 7

Power Management

Configuring the Power Button

The power button may be set to send the computer in to either Stand by or Hiber-

Figure 3 - 3

Power Options

(Advanced - Power

Buttons)

nate mode (Figure 3 - 3). In Stand by mode, the LED will blink green. In Hibernate mode the LED will be off (battery) or orange (AC/DC adapter). If you

are in a power saving mode set to save power through individual components (e.g. hard disk, monitor), the LED will remain green.

Power Button Sleep/ResumeLid

You may also configure the Sleep/Resume key combination (Fn + F4) from the menu illustrated in Figure 3 - 3. In Windows this is referred to as the Sleep button.

3 - 8 Configuring the Power Button

(Sleep) Button



Sleep Button

Battery Information

Please follow these simple guidelines to get the best use out of your battery.

New Battery

Always completely discharge, then fully charge, a new battery (see “Battery FAQ”

on page 3 - 12 for instructions on how to do this).

Battery Life

Your computer’s battery life is dependent upon many factors, including the programs you are running, and peripheral devices attached. Power Options (you may set low battery Alarms and actions, and check the Power Meter from the Power Options control panel), and settings in the OS will help prolong the battery life if configured appropriately.

Power Management



Low Battery

Warning

When the battery is critically low, immediately connect the AC/DC adapter to the computer or save your work, otherwise, the unsaved data will be lost when the power is depleted.

Figure 3 - 4

Power Options

(Alarm & Power

Meter)

Battery Information 3 - 9

Power Management

Battery life may be shortened through improper maintenance. To optimize the life



Conserving Battery

Power

To conserve battery power:

and improve its performance, fully discharge and recharge the battery at least once every 30 days.

We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason see “Removing the Battery” on page 6 - 3.

Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

Close modem or communication applications when they are not being used.

Remove any unused PC Card from the computer (PC Cards quickly use up battery power even if the system enters sleep mode).

Disconnect any unnecessary external devices.

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the computer is turned off but plugged into an electrical outlet, battery charge time is less. (Refer to

tors” on page 1 - 6 for information on the battery charge status, and to “Battery Information” on page 3 - 9 for more information on how to maintain and properly

recharge the battery pack.)

3 - 10 Battery Information

“LED Indica-

Proper handling of the Battery Pack

• DO NOT disassemble the battery pack under any circumstances

• DO NOT expose the battery to fire or high temperatures, it may explode

• DO NOT connect the metal terminals (+, -) to each other



Damaged Battery Warning

Should you notice any physical defects (e.g. the battery is bent ou t of shape after being dropped), or any unusual smells emanating from the notebook battery, shut your computer down immediately and contact your service center. If the battery has bee n d roppe d we do not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fi re. It is recommended that you replace your computer battery every two years.

Power Management

Battery Information 3 - 11

Power Management

Battery FAQ



Caution

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

How do I completely discharge the battery?

Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer by yourself even when you see a message that indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own. Disable the Power Options functions i n the Co ntrol Panel, espe cially any Alarms (unclick the tickboxes - see 3 - 9) and Schemes (change all the settings to Never - see page 3 - 4). As the battery nears the end of its life save and close any critical files.

How do I fully charge the battery?

When charging the battery, don’t stop until the LED charging indicator light changes from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

3 - 12 Battery Information

Chapter 4: Drivers & Utilities

Drivers & Utilities

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes ad vantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-config ured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities.

What to Install

The Device Drivers & Utilities + User’s Manual CDROM contains the drivers and utilities necessary for

the proper operation of the computer (the optional Port Replicator module drivers are supplied on a sep

arate CD-ROM).

Module Driver Installation

The procedures for installing drivers for the Wireless LAN, PC Camera, Bluetooth and Port Replicator

modules are provided in

page 7 - 1. Make sure that the drivers are installed in

the order indicated in Table 4 - 1, on page 4 - 6.

“Modules & Options” on

What to Install 4 - 1

Drivers & Utilities



Navigate (Browse..) to D:

You will notice that many of the instructions for driver in-

stallation require you to “Navigate (Browse) to D:”. We assume that you will install al l drivers and utilities from the built-in CD device and it is assigned to “Drive D:”. In addition, all file extensions can be seen

In this case “D:” is the drive specified for your CD device. Not all computers are setup the same way, and some computers have the CD listed under a different drive letter - e.g. if you have two hard drives (or hard disk partitions) one may be designated as “Drive C:” and the other as “Drive D:”. In this case the CD device may be designated as “Drive E:” - Please make sure you are actually navigating to the correct drive letter for the CD device.

When you click the Browse (button) after clicking Run in the Start menu you will see the “Look in:” dialog box at the top of the Browse window. Click the scroll button to navigate to My Computer to display the devices and drive letters.

4 - 2 What to Install

Figure 4 - 1 - Navigate (Browse..) to..

Service Packs

Check the warnings on the following pages regarding installation of the appropriate Service Pack for your Windows OS. Make sure you have installed the appro priate Service Pack before installing all the drivers.



Service Pack Installed

To see which Service Pack is currently installed on your computer go to the General tab of the System control panel. Right-click the My Computer icon on the desktop or in the Start menu and select Properties. The Service Pack currently installed on your system will be listed under the “System:” heading. (If no Service Pack information is listed, then no Service Pack is installed.)

Drivers & Utilities



Make sure you install Windows XP Service Pack 2 (or a Windows XP version which includes Service Pack 2) before installing any drivers. Service Pack 2 includes support for USB 2.0.

If you have upgraded the system by installing Service Pack 2 (i.e. your Windows XP version does not include Service Pack 2) then follow these instructions:

1.Click Start (menu), point to Settings and click Control Panel (or click Control Panel).

2.Double-click System (icon); System (icon) is in Per- formance and Maintenance (category).

3.Click the Hardware (tab) > Device Manager (button).

4.Click “+” next to Other Devices (if its sub-items are not shown).

5.Right-click Universal Serial Bus (USB) Controller and select Uninstall > OK (if you don’t see the item then there is no need to take any further action).

6.Restart the computer and it will find the USB 2.0 controller.

Windows XP Service Pack 2

What to Install 4 - 3

Drivers & Utilities

Authorized Driver Message

If you receive a message telling you that the driver you are installing is not authorized (Digital Signature Not Found), just click Yes or Continue Anyway to ignore the message and continue the installation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

Version Conflict Message

During driver installation if you encounter any “file version conflict” message, please click Yes to choose to keep the existing (newer) version.

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.To do this go to the Control Panel in the Windows OS and double-click the Add/Remove Programs item. If you see the individual driver listed (if not see below), un install it, following the on screen prompts (it may be necessary to restart the computer). Go to the appropri ate section of the manual to complete the update/reinstall procedure for the driver in question.

If the driver is not listed in the Add/Remove Pro- grams item:

1. Click Start (menu), point to Settings and click Control Panel (or click Start > Control Panel).

2. Double-click System (icon); System (icon) is in Performance and Maintenance (category).

3. Click Hardware (tab) > Device Manager (button).

4. Doubl e-click the device you wish to update/reinstall the driver for (you may need to click “+”).

5. Look for the Update Driver button (check the Driver tab) and follow the on screen prompts.

4 - 4 What to Install

Drivers & Utilities

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual CD-ROM and click Install WinXP Drivers (button),

or Optional (button) to access the Optional driver menu.

If you wish to install the drivers manually see page

4 - 6

1. Check the driver installation order from Table 4 - 1

on page 4 - 6 (the drivers must be installed in

this order) which is the same as that listed in the

Drivers Installer menu below.

2. Click to select the driver you wish to install, after installing each driver it will become grayed out (if you need to reinstall any driver, click the Unlock button).

3. Follow the instructions for each individual driver installation procedure as listed on the following pages.

Figure 4 - 2 - Drivers Installer Screen 1

Figure 4 - 3 - Drivers Installer Screen 2

Driver Installation 4 - 5

Drivers & Utilities

WinXP SP2 Driver Page #

Install the appropriate Service Pack for WinXP Page 4 - 3

Chipset Page 4 - 7

802.11 b/g Wireless LAN Page 7 - 4

Port Replicator Serial Port Page 7 - 16

Port Replicator Network (LAN) Port Page 7 - 17

Video Page 4 - 7 Audio Page 4 - 7

Modem Page 4 - 8

LAN Page 4 - 8

TouchPad Page 4 - 9

PCMCIA/Card Reader Page 4 - 9

Hot Key Utility Page 4 - 9

Intel Wireless LAN Page 7 - 3

PC Camera Page 7 - 7

Bluetooth Page 7 - 13

Table 4 - 1 - Driver Installation

Make sure you install the appropriate service pack for your operating system before installing any drivers (see

“Windows XP Service Pack 2” on page 4 - 3).

New Hardware Found

If you see the message “New Hardware Found” (Found New Hardware Wizard) during the installa tion procedure (other than when outlined in the driver install procedure), click Cancel to close the window, and follow the installation procedure as directed.

Manual Driver Installation

If you wish to install the drivers manually, click the Exit button to quit the Drivers Installer application, and then follow the manual installation procedure for each driver. The manual installation procedure begins with instructions on how to browse to the executable file; “Click Start (menu) > Run

..”.

Service Pack Installation

4 - 6 Driver Installation

Drivers & Utilities

Chipset

1. Click 1.Install Chipset Driver > Yes. OR

Click Start (menu) > Run... and navigate (Browse..) to

D:\Drivers\00Chipset\setup.bat and click OK.

2. Click Next > Yes > Next.

3. Click Finish to restart the computer.

Video (VGA)

1. Click 2.Install Video Driver > Yes. OR

Click Start (menu) > Run... and navigate (Browse..) to

D:\Drivers\01VGA\Setup.exe

and click OK.

2. To continue click Next > Yes.

3. Click Finish to restart the computer.

(one of the following)

Audio

1. Click 3. Install Audio Driver > Yes. OR

Click Start (menu) > Run... and navigate (Browse..) to D:\Drivers\02Audio\Setup.exe and click OK.

2. Click Next (click Continue Anyway if a Hard- ware Installation warning appears, and click Cancel if a “Found New Hardware Wizard” appears).

3. Click Finish to restart the computer.

Driver Installation 4 - 7

Drivers & Utilities

Modem

1. Click 4.Install Modem Driver > Yes. OR Click Start (menu) > Run... and navigate

(Browse..) to (one of the following): D:\Drivers\03Modem\Conexant\Setup.exe D:\Drivers\03Modem\Moto\ssetup.exe

and click OK.

2. Click OK (> OK).

3. The modem is now ready for configuration.



Modem Country Selection

Be sure to check if the modem country selection is appropriate for you (Control Panel > Phone and Modem

Options).

LAN

1. Click 5.Install LAN Driver > Yes. OR

Click S tart (menu) > Run... and navigate (Browse..) to D:\Drivers\04LAN\Setup.exe and click OK.

2. Click Next > Install.

3. Click Finish.

4. The network settings can now be configured.

4 - 8 Driver Installation

Drivers & Utilities

TouchPad

1. Click 6.Install TouchPad Driver > Yes. OR

Click Start (menu) > Run... and navigate (Browse...) to

D:\Drivers\05Touchpad\Setup.exe and click OK.

2. Click Next > Next > Next.

3. Click Finish to restart the computer .

4. You may then configure your TouchPad as out-

lined in “TouchPad and Buttons/Mouse” on

page 2 - 8.

PCMCIA/Card Reader

1. Click

2. Click Next > Finish.

7.Install PCMCIA Driver > Yes

Click

Start

(menu) >

(

Browse... D:\Drivers\06PCMCIA\setup.exe OK

) to

Run

...

and navigate

and click

Hot Key Utility

1. Click 8.Install Hotkey Utility Driver > Yes. OR

Click S tart (menu) > Run... and navigate (Browse..) to

D:\Drivers\07Ap-key\AKSetup.exe and click OK.

2. Click Next.

3. Click Finish to restart the computer.

4. See configuration instructions for the PC Camera hot key on page 7 - 12.

Driver Installation 4 - 9

Drivers & Utilities

Wireless LAN

See install procedure in “Intel PRO/Wireless WLAN

Module” on page 7 - 2 or “802.11 b/g USB WLAN Module” on page 7 - 4.

PC Camera

See install procedure in “PC Camera Driver Installa-

tion” on page 7 - 7.

Bluetooth

See install procedure in “Bluetooth Driver Installa-

tion” on page 7 - 13.

Port Replicator

See install procedures in “Port Replicator Serial

(COM) Port Driver (WinXP)” on page 7 - 16 and “Port Replicator Network (LAN) Driver (WinXP)” on page 7 - 17.

4 - 10 Driver Installation

BIOS Utilities

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer’s built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Setup utility

If your computer has never been set up, or you are mak ing important chan ges to the system (e.g. hard disk setup), then you should review this chapter first and note the original settings found in Setup. Even if you are a beginner, keep a record of the set tings you find and any changes you make. This information could be useful if your system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you are doing. Many of the settings are required by the system, and changing them could cause it to become unstable or worse. If you have any doubts, consult your service representative.



BIOS Settings

Warning

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Set-

up and restore the Setup Defaults with <F9>.

Overview 5 - 1

BIOS Utilities

The Power-On Self Test (POST)



POST Screen

1.BIOS information

2.CPU type

3.Memory status

4.Enter Setup prompt appears only during

POST

Note: The POST screen

as pictured is for guideline purposes only.

Figure 5 - 1

POST Screen

Each time you turn on the computer, the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM (memory).

As the POST proceeds, the computer will tell you if there is anything wrong. If there is a problem that prevents the system from booting, it will display a system summary and prompt you to run Setup.

If there are no problems, the Setup prompt will disappear and the system will load the operating system. Once that starts, you can’t get into Setup without rebooting.

CPU0 = 1 Processor Detected, Cores per Processor = 2 Genuine Intel (R) CPU T2300 @ 1.666GHz 503M System RAM Passed 2048 KB L2 Cache System BIOS shadowed Video BIOS shadowed Fixed Disk 0: FUJITSU MHV2060BH ATAPI CD-ROM: UJDA770 DVD/CDRW Mouse intialized

Press <F2> to enter SETUP

5 - 2 The Power-On Self Test (POST)

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the problem (make a note of this message!) followed by the prompt:

• Press <F1> to resume

• <F2> to enter Setup

Press F1 to see if the boot process can continue. It may work, without the correct configuration.

Press F2 to run the Setup program and try to correct the problem. If you still get an error message after you change the setting, or if the “cure” seems even worse, call for help.

BIOS Utilities

The Power-On Self Test (POST) 5 - 3

BIOS Utilities

The Setup Program

The Phoenix Setup program tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration).

Entering Setup

To enter Setup, turn on the computer and press F2 during the POST. The prompt

(Press F2 to Enter Setup) seen in few seconds after you turn on the system. If you get a “Keyboard Error”, (usually because you pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and then hold down F2 when prompted. The Setup main menu will appear.

Figure 5 - 1 on page 5 - 2 is usually present for a

5 - 4 The Setup Program

Setup Screens

The following pages contain additional advice on portions of the Setup.

Along the top of the screen is a menu bar with five (5) menu headings. When you select a heading, a new screen appears. Scroll through the features listed on each screen to make changes to Setup.

Instructions on how to navigate each screen are in the box along the bottom of the screen. If these tools are confusing, press F1 to call up a General Help screen, and then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may execute a command.

BIOS Utilities



Setup Menus

The Setup menus shown in this section are for reference only. Your computer’s menus will indicate the configuration appropriate for your model and options.

The Setup Program 5 - 5

BIOS Utilities

Figure 5 - 2

Main Menu

PhoenixBIOS Setup Utility

Main

Main Advanced Security Boot Exit

5 - 6 Main Menu

System Time: [16:11:05]

System Date: [05/21/2006]

IDE Channel 0 Master [FUJITSU MHV2060BH-(S1)] IDE Channel 1 Master [UJDA770 DVD/CDRW-(SM)]

System Memory: 640 KB Extended Memory: 514048 KB

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

<Tab>, <Shift Tab>, or <Enter> selects field.

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings. Some applications may also alter data files to reflect these changes.

IDE Channel 0/1 Master (Main Menu)

Press Enter here to open the sub-menu to show the configuration of hard disks and CD/DVD device(s) on the computer’s IDE Channels. Use the Auto (Type:) setting to have the items configured automatically for you.

System/Extended Memory: (Main Menu)

This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

BIOS Utilities

Main Menu 5 - 7

BIOS Utilities

Advanced Menu

Figure 5 - 3

PhoenixBIOS Setup Utility

Advanced Menu

Main Advanced Security Power Boot Exit

Chipset Information Menu

Reset Configuration Data: [No] Legacy USB Support: [Enabled] Boot-time Diagnostic Screen: [Enabled] Power on Boot Beep: [Disabled] Battery Low Alarm Beep: [Enabled] Total Graphics Memory: [128MB]

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Advanced

Item Specific Help

Display Chipset information.

Chipset Information Menu (Advanced Menu)

Press Enter here to open the sub-menu which displays infor mation on the CPU and BIOS version.

5 - 8 Advanced Menu

Reset Configuration Data: (Advanced Menu)

This item is set to No as default. You can change the setting to Yes if you have in- stalled a new add-on which has reconfigured the system, resulting in such a serious system conflict that the operating system is unable to boot.

Legacy USB Support: (Advanced Menu)

Use this menu item to enable/disable the support for Legacy Universal Serial Bus.

Boot-time Diagnostic Screen: (Advanced Menu)

Use this menu item to enable/disable the Boot-time Diagnostic Screen (or POST screen - see

“The Power-On Self Test (POST)” on page 5 - 2).

Power On Boot Beep: (Advanced Menu)

Use this menu to enable/disable the single beep sound at the end of the POST. This item is "Disabled" by default.

Battery Low Alarm Beep: (Advanced Menu)

Use this menu item to enable/disable the battery low alarm beep.

BIOS Utilities

Total Graphics Memory: (Advanced Menu)

Press Enter here to select the amount of pre-allocated graphics memory. The default setting is 128MB, and this may be adjusted to either 64MB or 224MB.

Advanced Menu 5 - 9

BIOS Utilities

PhoenixBIOS Setup Utility

Main Advanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

Supervisor Password controls access to the setup utility.

Security

Supervisor Password Is: Clear

Set Supervisor Password [Enter]

Password on boot: [Disabled] Fixed disk boot sector: [Normal]



Security Menu

The changes you make here affect the access to the Setup utility itself, and also

access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your software OS.

Figure 5 - 4

Security Menu

Set Supervisor Password (Security Menu)

You can set a password for access to the Setup utility. This will not affect access to the computer OS, (only the Setup utility) unless you choose to set a Password on Boot (see over).

5 - 10 Security Menu

Password on boot: (Security Menu)

Specify whether or not a password should be entered to boot the computer. If “Enabled” is selected, only users who enter a correct password can boot the system (see

the warning in the sidebar). The default setting is “Disabled”.

Note: To clear existing passwords press Enter and type the existing password, then

press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance.

Fixed disk boot sector: (Security Menu)

If you choose “Write Protect” this will protect against viruses being written to the hard disk boot sector (this is not a substitute for installing an anti-virus program - see

“Viruses” on page 8 - 4).

BIOS Utilities



Password Warning

If you set a boot password (Password on boot is “Enabled“), NEVER forget your password.

The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

Security Menu 5 - 11

BIOS Utilities

PhoenixBIOS Setup Utility

Main Advanced Security Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

Keys used to view or configure devices: Up and Down arrows select a device. <+> and <-> moves the device up or down. <f> and <r> specifies the device fixed or removable. <x> exclude or include the device to boot. <Shift + 1> enables or disables a device. <1 - 4> Loads default boot sequence.

Boot priority order:

1: USB FDC:

2: USB KEY: 3: IDE CD: UJDA770 DVD/CDRW-(SM) 4: IDE HDD: FUJITSU MHV2040BH-(S1) 5: PCI SCSI: 6: PCI BEV: 7: 8:

Excluded from boot order:

: USB HDD: : USB CDROM:

Boot

Boot Menu

Figure 5 - 5

Boot Menu

When you turn the computer on it will look for an operating system (e.g. WindowsXP) from the devices listed in this menu, and in this priority order. If it cannot

find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order. Item specific help on the right is available to help you move devices up and down the order.

5 - 12 Boot Menu

Exit Menu

BIOS Utilities

PhoenixBIOS Setup Utility

Main Advanced Security Boot Exit

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Execute Command F10 Save and Exit

Exit

Item Specific Help

Exit System Setup and save your changes to CMOS.

Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Set

up defaults that will return the Setup to its original state, and erase any previous

changes you have made in a previous session.

Figure 5 - 6

Exit Menu

Exit Menu 5 - 13

BIOS Utilities

5 - 14

Upgrading The Computer

Chapter 6: Upgrading The Computer

Overview

This chapter contains information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help. Before you begin you will need:

• A small crosshead or Phillips screwdriver

• A small regular slotted (flathead) screwdriver

• An antistatic wrist strap Before working with the internal components you will need to wear an antistatic

wrist strap to ground yourself because static electricity may damage the compo nents.

The chapter includes:

• Removing the Battery

• Upgrading the Hard Disk Drive

• Upgrading the Optical (CD/DVD) Device

• Upgrading the System Memory (RAM)



Warranty Warning

Please check with your service representative before undertaking any upgrade procedures to find out if this will VOID your warranty.

Please make sure that you review each procedure before you perform it.

Overview 6 - 1

Upgrading The Computer

When Not to Upgrade



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnect-

ed all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

These procedures involve opening the system’s case, adding and sometimes replacing parts.You should not perform any of these upgrades if:

• Your system is still under warranty or a service contract

• You don’t have all the necessary equipment

• You’re not in the correct environment

• You doubt your abilities Under any of these conditions, contact your service representative to purchase or re-

place the component(s).



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upgrade, remember to replace the cover(s) and screw(s) before turning the computer on.

Upgrading the Processor

If you want to upgrade your computer by replacing the existing processor with a faster/new one you will need to contact your customer service representative. We recommend that you do not do this yourself, since if it is done incorrectly you may damage the processor or mainboard.

6 - 2 Overview

Upgrading The Computer

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery. Your computer may come with a standard battery

4 5

, or an optional extended battery , depending on your purchase configuration.

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow (it will remain in place).

3. Slide the latch in the direction of the arrow, and hold it in place.

4. Slide the battery out of the computer in the direction of the arrow .

1 2

2 1



Warranty Warning

Please check with your service representative before undertaking any upgrade procedures to find out if this will VOID your warranty.

Extended Battery

Note

Note that when the extended battery is inserted it will cover the computer’s rear ports.

Figure 6 - 1

Battery Removal

Removing the Battery 6 - 3

Upgrading The Computer

Upgrading the Hard Disk Drive



HDD System

Warning

New HDD’s are blank. Before you begin make sure: You have backed up any data you want to keep from your old HDD.

You have all the CD-ROMs and FDDs required to install your operating system and programs. If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan to install. Copy these to a removable medium.

Figure 6 - 2

Hard Disk Cover

Removal

The hard disk drive can be taken out to accommodate other 2.5" Serial (SATA) hard disk drives with a height of 9.5mm (h) (see

“Storage” on page C - 3). Follow your

operating system’s installation instructions, and install all necessary drivers and utilities (see “Driver Installation” on page 4 - 5), when setting up a new hard disk.

1. Turn off the computer, and turn it over and remove the battery.

2. Locate the hard disk bay cover and remove screw .

3. Carefully lift the hard disk assembly up out of the bay at point , and disconnect the cable at point .

6 - 4 Upgrading the Hard Disk Drive

Upgrading The Computer

4. Remove screws - to release the hard disk from the assembly cover, and reverse the process to install any new hard disk.

4 7

Figure 6 - 3

Hard Disk Assembly

Removal

Upgrading the Hard Disk Drive 6 - 5

Upgrading The Computer

Upgrading the Optical (CD/DVD) Device

1. Turn off the computer, and turn it over and remove the battery.

2. Locate the component bay cover and remove screws

1 8

- .

Figure 6 - 4

Removing the

Component Cover

6 - 6 Upgrading the Optical (CD/DVD) Device

2 3

Upgrading The Computer

3. Carefully (a fan and cable are attached to the under side of the cover) lift up the component bay cover.

4. Carefully disconnect the fan cable , and remove the cover .

5. Remove the optical device screw

6. Use a screwdriver to carefully push out the optical device at point .

7. Reverse the process to install the new device.

9 10

Figure 6 - 5

Removing the

Optical Device

Upgrading the Optical (CD/DVD) Device 6 - 7

Upgrading The Computer

Upgrading the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line (SODIMM) DDRII (DDR2) type memory modules (see details of supported module types). The total memory size is automatically d etected by the POST routine once you turn on your computer.

1. Turn off the computer, and turn it over and remove the battery.

2. Locate the component bay cover and remove screws

“Memory” on page C - 2 for

1 8

- .

Figure 6 - 6

Removing the

Component Cover

6 - 8 Upgrading the System Memory (RAM)

Upgrading The Computer

3. Carefully (a fan and cable are attached to the under side of the cover) lift up the component bay cover.

4. Carefully disconnect the fan cable , and remove the cover .

9 10

5. Gently pull the two release latches - on the sides of the memory socket.

11 12

10 1011 12

11 12

Upgrading the System Memory (RAM) 6 - 9

Figure 6 - 7

Removing the Bay

Cover

Figure 6 - 8

RAM Module

Release

Upgrading The Computer

6. The RAM module will pop-up, and you can remove it.



Contact Warning

Be careful not to touch the metal pins on the module’s connecting edge. Even the cleanest hands have oils which can attract particles, and

degrade the module’s performance.

Figure 6 - 9

RAM Module

Removal

7. Pull the latches to release the second module if necessary.

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

9. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE the module; it should fit without much pressure.

10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

11. Replace the cover (and make sur e you reconnect the fan cable to mainboard from the underside of the cover) and the screw.

12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

6 - 10 Upgrading the System Memory (RAM)

Modules & Options

Chapter 7: Modules & Options

Overview

This chapter contains the information on the WLAN, PC Camera, Bluetooth and Port Replicator modules which may come with your computer, depending on the

configuration purchased. If you are unsure please contact your service representa tive.

• Intel PRO/Wireless WLAN Module

• 802.11 b/g USB WLAN Module

• PC Camera Module

• Bluetooth Module

• Port Replicator Module



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Overview 7 - 1

Modules & Options



Wireless Device

Operation Aboard

Aircraft

Intel PRO/Wireless WLAN Module

If you have included an Intel PRO/Wireless 3945ABG (802.11a/b/g) PCIe WLAN module in your purchase option, make sure that the Wireless LAN module is on (the

LED will be orange) before installing the driver.

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Use the Fn + F11 key combination to toggle power to the WLAN module, and check the indicator to see if the module is powered on or not (see Table 1 - 1, on

page 1 - 6/Table 1 - 4, on page 1 - 8).

Use the Fn + F11 key combination (see “Function Keys” on page 1 - 8) to toggle power to the Wireless LAN module (make sure you install the drivers in the order indicated in

To get help on the network settings you can view the User Guide from the Intel PROSet / Wireless menu.

Figure 7 - 1

Installation Screen

7 - 2 Intel PRO/Wireless WLAN Module

Table 4 - 1, on page 4 - 6).

Intel WLAN Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers & Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional and then click 1.Wireless Lan > Yes.

3. Click Install Software (button).

4. Click the button to accept the license and click Next > Next > OK.

5. Click OK to complete the installation.

6. You can configure the settings by going to the Intel (R) PROSet Wireless

control panel (Start > Pr ograms/All Programs > In tel PROSet Wirele ss), or by double-clicking the taskbar icon .

Modules & Options



User Guide

You can view the User Guides from the

Drivers & Utilities + User’s Manual CD-ROM

Click

Browse CD

and navigate (Browse...)

D:\Others\WLan\In-

tel\Autorun.exe

click Click

(button) as per

1 on page 7 - 2

View User Guide

Figure 7 - 2

Intel PROSet/

Wireless

Device

(button)

and

Figure 7 -

Intel PRO/Wireless WLAN Module 7 - 3

Modules & Options



Wireless Device

Operation Aboard

Aircraft

802.11 b/g USB WLAN Module

If you have included an 802.11 b/g USB WLAN module in your purchase option, make sure that the Wireless LAN module is on (the installing the driver.

LED will be orange) before

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Use the Fn + F11 key combination to toggle power to the WLAN module, and check the indicator to see if the module is powered on or not (see Table 1 - 1, on

page 1 - 6/Table 1 - 4, on page 1 - 8).

Use the Fn + F11 key combination (see “Function Keys” on page 1 - 8) to toggle power to the Wireless LAN module (make sure you install the drivers in the order indicated in

802.11 b/g WLAN Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

2. Click Optional and then click 1.Wireless Lan > Yes.

3. Choose the language you prefer, and click OK.

4. Click

5. Click Finish to complete the installation.

6. The operating system is the default setting for Wireless LAN control in

7. Access any available wireless networks from Network Connections >

7 - 4 802.11 b/g USB WLAN Module

Table 4 - 1, on page 4 - 6).

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

Windows XP (see overleaf). Wireless Network Connection menu in Windows (see sidebar overleaf), or

click the icon in the taskbar, and click View Wireless Connections.

Modules & Options



Network

Connection

Use the

work Connections

trol panel to access available wireless networks (

Network Connections

Show all Connections

Windows Net-

con-

Start > Se tting s >

Start > Connect To >

Figure 7 - 3

Wireless Network

Control Panels

802.11 b/g USB WLAN Module 7 - 5

Modules & Options

PC Camera Module



Taking Still Pictures

You may take still pictures in the Windows XP operating system.

See “PC Camera Hot

Key” on page 7 - 12 for

instructions on using the PC Camera hot key to take still pictures.

Double-click the My Computer icon on the

desktop, or go the Start menu and point to My Computer, then click it.

Double-click the

USB2.0 1.3M PC CAM

icon.

If you have included a PC Camera module in your purchase option, you will have the appropriate software CD provided for your module. Before installing the PC

Camera driver, make sure that the optional PC Camera is on. Use the Fn + F10 key combination (see

“Function Keys” on page 1 - 8) to toggle power to the PC Cam-

era module. Make sure you install the drivers in the order indicated in Table 4 - 1,

on page 4 - 6.



Latest PC Camera Driver Information

Check the PC Camera CD, and any accompanying insert pages, for the latest updated information on the PC Camera driver, which may override the information provided here.

Click Take a new pic-

ture in the Camera Tasks box.

7 - 6 PC Camera Module

PC Camera Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers & Utilities + User’s Manual CD-ROM into the CD/DVD drive (click Cancel

if you see a “New Hardware Found” message).

2. Click Optional, and then click 2.PC Camera, Web cam > Yes.

3. Click Next.

4. Click Finish > OK to restart the computer.

5. Press the Fn + F10 key combination to power on the PC Camera module

6. Press the PC Camera hot key, or run the EMAMCAP application soft-

ware from the USB2.0 1.3M PC CAM item in the Start > Programs/All Programs menu.

Modules & Options

PC Camera Module 7 - 7

Modules & Options

PC Camera Audio Setup

If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows.

1. Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double-click the Sounds & Audio Devices icon (Sounds, Speech, and Audio Devices in Category Vi ew).

2. Click Advanced in the Device volume tab.

Figure 7 - 4

Device Volume >

Advanced

3. Click Options and scroll down and click Properties.

Figure 7 - 5

Master Volume >

Properties

7 - 8 PC Camera Module

SVOA M521N User Manual
