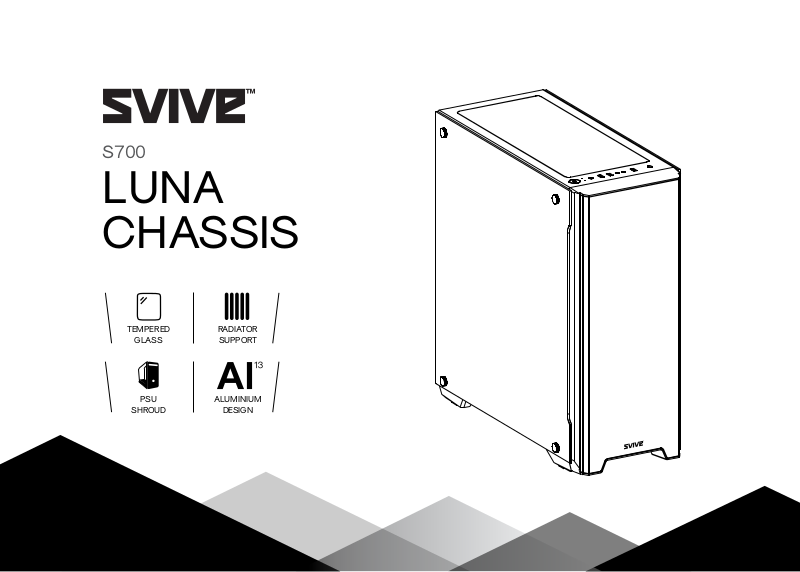

Svive Luna, S700 User Manual

S700
LUNA CHASSIS
TEMPERED
GLASS
PSU
SHROUD
ALUMINIUM
DESIGN
Power button
HDD signal
Power signal Reset
USB3.0
Fan button MIC earphone
USB2.0
Tempered Glass
Tempered Glass
Dust cover
Thumb screw
SPECIFICATIONS
Power button
HDD signal
Power signal Reset
USB3.0
Fan button MIC earphone
USB2.0
Steel panel
Tempered Glass
Tempered Glass
Dust cover
Dust cover
Chassis Size (DxWxH): 435x205x477mm
Motherboard Type: ATX Micro ATX
Drive Bays: 2x3.5 HDD 2.5” SSD +1x2.5” SSD
PCI Slots: 7 Slots
Power Supply: Standard ATX PSU, Boom PSU
placement
Fan Space (optional): 3x12cm fan in front (optional) or suppo
360mm cooling system
3x12cm fan in top (optional) or suppo
360mm cooling system 1x12cm fan in rear cover (optional) 3x12cm fan in the boom cover (optional)
12cm Fan
Mainboard
2.5”SSD*1
PSU (ATX)
12cm Fan*3
PCI*7
12cm Fan*3
12cm Fan*3
3.5”HDD*2
PRODUCT HIGHLIGHTS
Steel front panel.
Top fan controller buon.
Tempered glass side window oers
a direct view of the inner system.
Boom PSU placement.
Dust cover on top.
Dust cover
Tempered Glass
Power button
HDD signal
Power signal Reset
USB3.0
Fan button MIC earphone
USB2.0
Steel panel
REMOVE SIDE COVER
2.5” Tray
2.5”SSD
2.5”SSD
3.5”HDD
M3*4.5 Screw
HDD Bracket
HDD Bracket
6*6 hexagon scew
6*6 hexagon scew
M3*4.5 Screw
Stand off M4*10*6
Twist o four screws on the tempered glass side
panel then open the le panel.
Remove the screws on the back of the case,
pull the right side panel to release it, and open.
3.5” / 2.5” DEVICES INSTALLATION
How to Install 3.5“ HDD
Fix 3.5” HDD into the 3.5” conveer bracket.
Slide the bracket back to the 3.5” drive bay
and lock it.
How to Install 2.5“ SSD
Use the screw to fix 2.5” SSD on the tray.
Then mount it on the 2.5’’ bay area.
M3*4.5 Screw
2.5” Tray
2.5”SSD
2.5”SSD
HDD Bracket
3.5”HDD
Thumb screw
Thumb screw
HDD Bracket
INSTALL POWER SUPPLY
6*6 hexagon scew
M3*4.5 Screw
Stand off M4*10*6
PCI
PCI slot
6*6 hexagon scew
PCI
PCI slot
Use 4 pcs 6x6 hexagon screw to fix the power
supply.
INSTALL MAINBOARD
Lay down the case.
Align the stand-o holes of the mainboard
with the mainboard tray and screw in the stand-os.
Make sure the holes on the mainboard and chassis line up properly before securing the screws.
6*6 hexagon scew
M3*4.5 Screw
Stand off M4*10*6
INSTALL PCI
Fan
Fan
Fan
Fan
Dust cover
360 Cooling System
360 Cooling System
Power 4PIN
Top fan button
Fan connector
Fan 4PIN
Take o the PCI slot and inse the PCI device. Put back the PCI slot and fasten the screw.
PCI
PCI slot
6*6 hexagon scew
REMOVE THE FRONT PANEL
Pull the front panel then open it.
INSTALL FAN
Connect top fan buon with 3pin fan connector and 4PIN power connector with PSU.
Dust cover
Fan
Fan
360 Cooling System
Fan
Fan connector
Fan 4PIN
Fan
360 Cooling System
Top fan button
Power 4PIN
CABLE CONNECTION GUIDE
USB3.0 connection
HD Audio connection
AC’97 Audio connection
USB2.0 connector
AUD_GND
PRESENCE#
SENSE1_RETURN
SENCE2_RETURN
PORT1L
PORT1R
PORT2R
SENSE_SEND
PORT2L
KEY
AUD_GND
KEY
N/C
MIC
MIC_BIAS
FP_OUT_R
FP_OUT_L
N/C
FP_RET_R
FP_RET_L
Cabletie, for cable management
Bm6x27 screw, x the fan
M4x10x6 stand/o, for mainboard
6x6 hexagon screw, for PCI, PSU
BM6x5 screw, for HDD
M3x4.5 screw, for mainboard and SSD
ACCESSORY KIT
Impoed by Svive, Østre Kullerød 4, N-3241 Sandeord, Norway Made in China www.svivelife.com
