Page 1
2.0 USB Multimedia
Speaker System
OPERATION
MANUAL
SVEN 357
www.sven.
Page 2
ENG
2.0 USB Multimedia
Speaker System
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the rm which carried out
the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.
PACKAGE CONTENTS
• Speaker system – 1 pc
• Operation Manual – 1 pc
• Warranty card – 1 pc
SAFETY PRECAUTIONS
• Do not open the MSS and do not perform repairs by yourself. Service and repairs should be
performed only by qualied specialists at authorized service centers. The list of authorized service
centers is on www.sven..
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplier or the ground, for it causes damage to the power amplier output stage.
• Make sure that foreign objects do not get inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose
it to direct sunlight.
• Do not place any open ame sources on or close to MSS.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
• If the MSS does not operate, unplug it and address your dealer.
TECHNICAL DESCRIPTION
SPS-357 2.0 USB Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS has a built-in audio and signal cables enabling to connect it to a PC, laptop,
CD/MP3 player and other audio devices. The MSS is powered via a PC or laptop USB port, or via a
5V DC power supply with the built-in USB power cable. The speaker with an audio input and a control
panel is named the active one.
Technical support is on www.sven..
2
Page 3
ENG
User’s Manual
MSS special features
• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound
sources
• Powered via a USB port
• Volume control
• Headphone and microphone jacks
Control panel
a Microphone jack
b VOL: power knob; volume control knob
c Headphone jack
SVEN 357
Fig. 1.
3
Page 4
ENG
2.0 USB Multimedia
Speaker System
PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener at least one meter away.
• Place MSS far away from monitors and TV sets, as insignicant image distortion in these supersensitive
devices is possible.
MSS Connecting
SPS-357 2.0 USB Multimedia Speaker System can be connected to virtually any audio source: MP3/
CD player, PC sound card, etc. (see connection diagram, Fig. 2).
• Before making any connections, make sure that the MSS power supply is disconnected. Plug the
built-in 3.5 mm mini-jack signal cables: connect the audio cable (green mini-jack) to the audio output
jack of your sound source and the microphone cable (pink mini-jack) – to the microphone jack (see
connection diagram, Fig. 2).
• Connect the built-in USB power cable to a USB port of your PC, laptop or to a 5V DC power supply
(not included).
• Turn on your audio source.
• Adjust the master volume level by turning the VOL control knob b. To increase the volume, turn the
knob clockwise; to reduce it, turn the knob counterclockwise.
• Plug your microphone into the microphone jack a, and your headphones into the headphone
jack c.
Notes:
• After nishing using the MSS, mind to switch it off.
• To improve the sound quality, use the Line-Out output of your sound card.
Passive
speaker
Аctive
speaker
4
PC
Socket
Mobile device
to audio source
to MIC input
Audio cable
USB jack

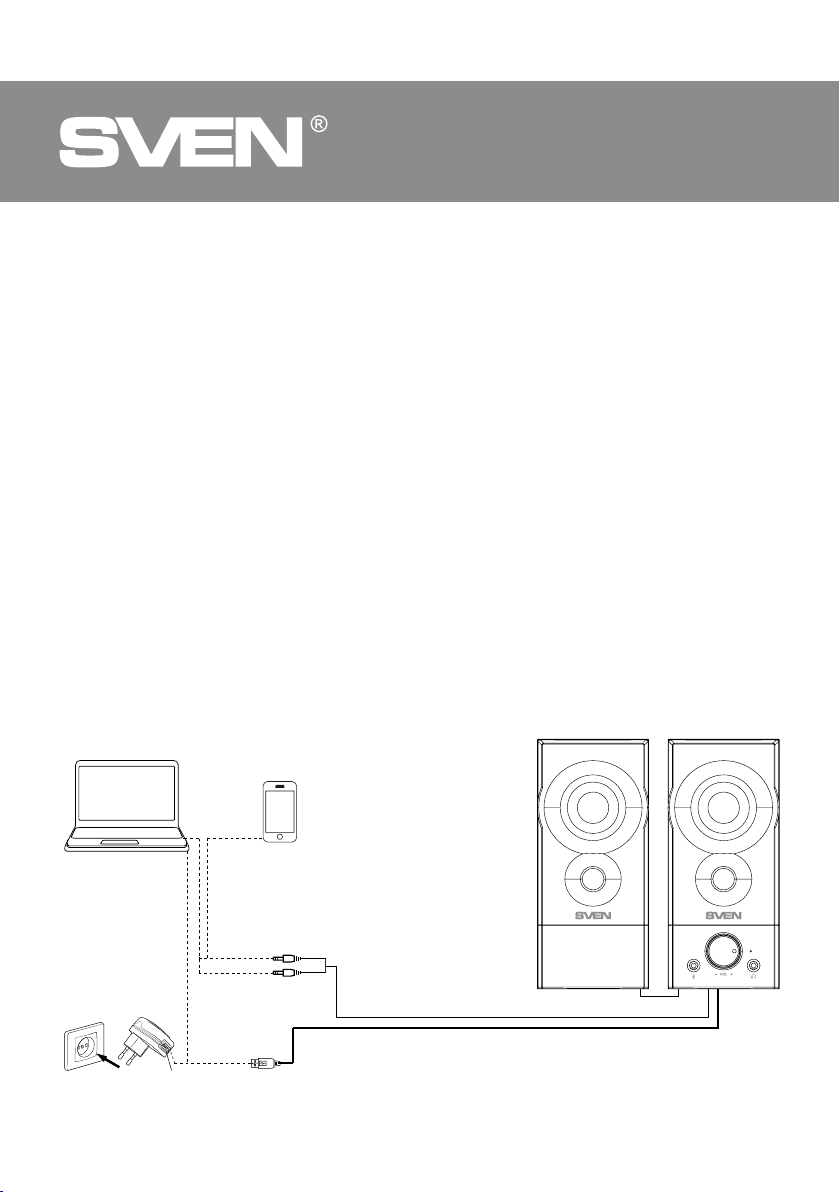

Fig. 2. Connection diagram
Page 5
ENG
User’s Manual
TROUBLESHOOTING
Problem Cause Solution
The MSS does not
turn on.
No sound. The volume level is set at minimum
There is too quiet
sound of speakers.
Distortion of sound. Large amplitude of the input
TECHNICAL SPECIFICATIONS
Parameter, measurement unit Value
Output power (RMS), W 6 (2 × 3)
Frequency response, Hz 90 – 20 000
Speaker diameter, mm Ø 45
Power supply, V USB/DC 5 V
Dimensions (one speaker) (W × H × D), mm 78 × 175 × 105
Weight, kg 0,55
Notes:
• Technical specications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specications and package contents are subject to change without notice due
to the improvement of SVEN production.
The MSS isn’t connected to a
mains outlet.
value.
Improperly connected audio
source.
The volume level is set at minimum
value.
signal.
SVEN 357
Check the connection.
Adjust the volume control
knob.
Connect audio source
correctly.
Adjust the volume control
knob.
Turn down the source volume
and MSS volume.
5
Page 6
2.0 USB Multimedia
Speaker System
Model: SPS-357
Импортер в России: OOO «РЕГАРД», 105082, РФ,
г. Москва, ул. Фридриха Энгельса, д.75, стр. 5.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите в га
рантийном талоне или на сайте www.sven..
Гарантийный срок: 12 мес.
Срок службы: 2 года7Производитель: «СВЕН ПТЕ.
Лимитед», 176 Джу Чиат Роуд, № 02-02, Сингапур,
427447. Произведено под контролем «Свен Скандина
вия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-
02, Singapore, 427447. Produced under the control of Oy
Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
-
-
