Portable Speaker System with
Bluetooth and FM-radio
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2019. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the rm which carried out
the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.
APPLICATION
SVEN PS-75 portable multimedia speaker system with Bluetooth and FM-radio is designed for
operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth
protocol. It can be also used in internet telephony, during video conferences, in multimedia
applications, in interactive games. There is a built in FM-tuner, and player with USB ash and with
micro SD memory card.
PACKAGE CONTENTS
• Speaker system – 1 pc
• USB to micro USB power cable – 1 pc
• Mini-jack to mini-jack signal cable – 1 pc
• User’s Manual – 1 pc
• Warranty card – 1 pc
SPECIAL FEATURES
• Bluetooth wireless signal transmission
• Built-in audio les player from USB-ash and microSD card storage devices
• Built-in FM tuner
• Wired connection
2
Technical support is on www.sven..
Page 3
ENG
User’s Manual

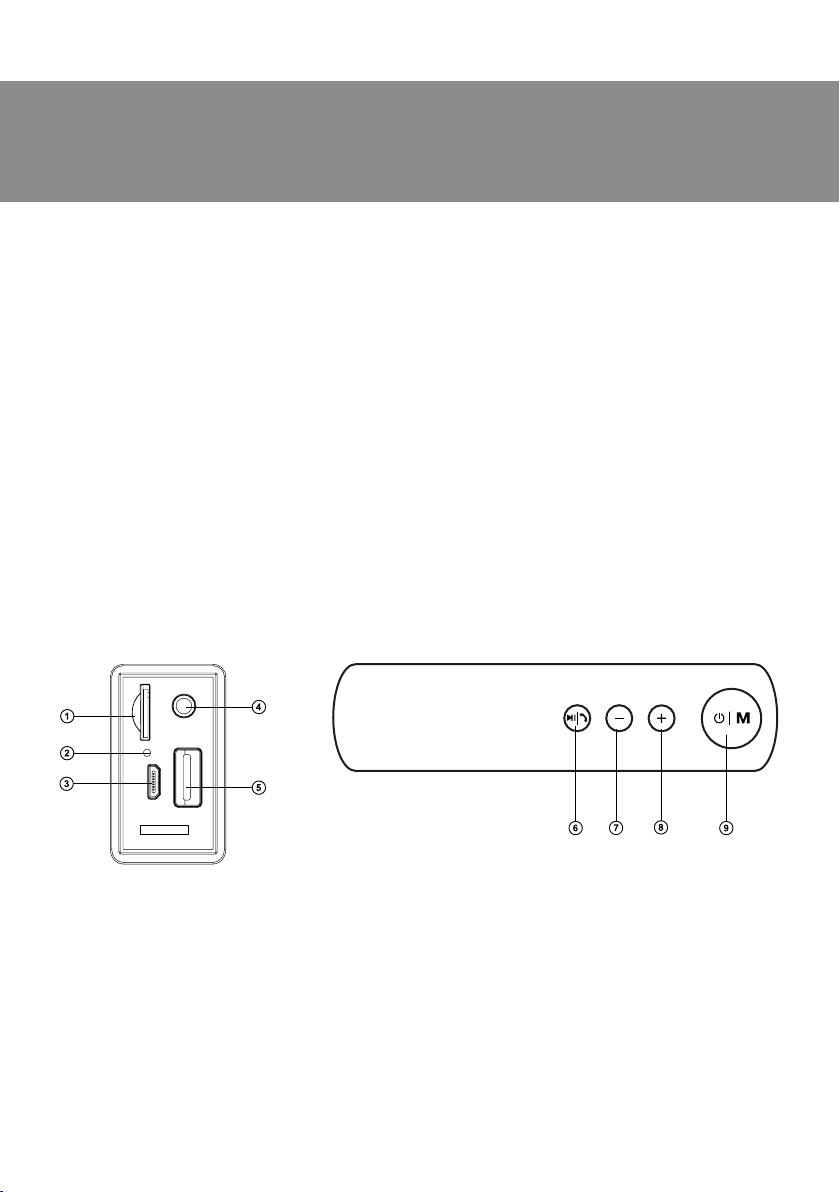

SPEAKER SYSTEM DESCRIPTION
a Micro SD card slot
b Indicator
c Micro USB jack for charger connecting Speaker system to laptop / PC USB port
d AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
e USB-ash card slot
f Play/Pause button (in Player and Bluetooth mode);
Start/Stop auto scan (long pressing in Radio mode);
Mute (short pressing in Radio mode or AUX);
Answer an incoming call
g Volume decrease button (short pressing);
Previous track (long pressing in Player and Bluetooth mode);
Previous station (long pressing in Radio mode)
h Volume increase button (short pressing);
Next track (long pressing in Player and Bluetooth mode);
Next station (long pressing in Radio mode)
i Switch mode button: Bluetooth/FM/Player/AUX (short pressing);
POWER button (long pressing)
PS-75
Fig. 1.
3
Page 4
ENG
Portable Speaker System with
Bluetooth and FM-radio
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the application.
Speaker system battery charging
• Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable
(included). During battery charging the indicator is red. Indicator goes out when the battery is
charged.
• The battery is used in the speaker system as an integral part of the device, therefore do not try to
extract or replace it, because this can result in the warranty cancellation or the device damage.
OPERATION MODES
Bluetooth mode
• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible
devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic
devices can interfere with the signal transfer.
• Turn on the speaker in Bluetooth mode.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone,
notebook, smartphone, etc.). «SVEN PS-75», massage will be displayed on the screen which is to be
connected to*.
• When connection is successful, there will be a short beep and the indication of the search mode on
speaker system is over**.
Radio mode
To improve the quality of radio reception, connect the microUSB – USB cable (included) to the
microUSB input or the mini-jack signal cable to the mini-jack (included) to the AUX input.
• Turn on the speaker system – press button i several times until, the radio mode will turn on. Long-
term pressing button f activates auto search mode. After scanning completion, the rst scanned
radio station will start to operate automatically. With buttons g and h (long pressing) select
a desired radio station.
Player mode
Attention! The le system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not
recommended to use the micro SD Ultra Speed.
• The system will enter the Player mode automatically when a carrier (USB ash or SD card) is
connected to corresponding ports. Use button f to switch between Play / Pause modes. You can
control tracks by using buttons g (previous track) and h (next track) (long pressing).
* You might have to enter “0000” code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search mode
activation is not obligatory. Choose the item name «SVEN PS-75» and the “connect” command on
the source.
4
Page 5
ENG
User’s Manual
PC
Socket
The use in the wired mode (AUX)
• Connect the 3.5 mm mini-jack cable to the 3.5 mm mini-jack (included) to the AUX input and the
3.5 mm jack to the signal source.
• Turn on the speaker in AUX mode – press the button j several times until the speaker goes into
AUX mode.
TECHNICAL SPECIFICATIONS
Frequency response, Hz
Output power (RMS), W 6 (2 × 3)
Membrane, mm Ø 36
Radius of operation Bluetooth, m до 10
Battery capacity, mA * h 1200
Power supply USB/DC 5V
Weight, g 450
Dimensions, mm 205 × 60 × 60
Notes:
• Technical specications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specications and package contents are subject to change without notice due to
the improvement of SVEN production.
USB jack
Parameter, measurement unit Value
Mobile device
Mini-jack to mini-jack
signal cable
USB to micro USB
power cable
Fig. 2. Connection diagram
microphone: 50 – 16 000
PS-75
speaker: 120 – 20 000
