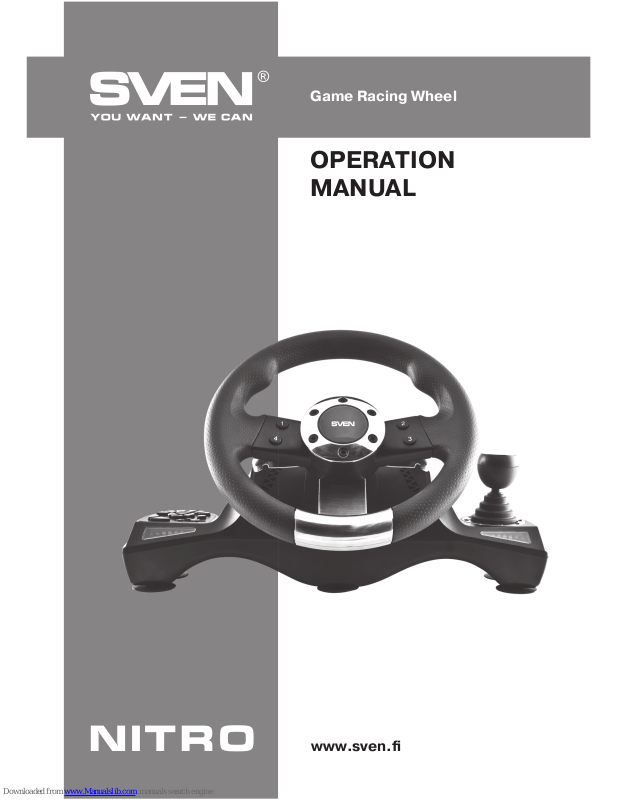

OPERATION
MANUAL
NITRO
Game Racing Wheel
CONTENTS
1. DESCRIPTION ..................................................................................
2. SAFETY PRECAUTIONS ......................................................................
3. PACKAGE CONTENTS .......................................................................
4. SPECIAL FEATURES ...........................................................................
5. SYSTEM REQUIREMENTS ....................................................................
6. DESCRIPTION OF THE СONSTRUCTION ....................................................
7. CONNECTION AND INSTALLATION .............................................. . ........
8. TROUBLESHOOTING ................................................................... . ...
Congratulations on the purchase of Sven game racing wheel!
Please read this Operation Manual before using the unit and retain this Operation Manual in safe
place for future reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information of this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damages which have arisen from the information,
contained in the given Manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
2
2
2
2
2
3
5
9
Technical support is on www.sven.fi
ENG
1
Operation Manual
NITRO
ENG
2
Game Racing Wheel
1. DESCRIPTION
NITRO Game Racing Wheel is specially designed for PC. Ergonomic design with rubber coating
and rubber suction caps ensure optimum comfort and stability. The modern optimized wheel
design delivers ultimate real gaming experience. 270 degree wheel rotation, adjustable sensitivity,
button mapping, unique nature wind conditioner create a surreal racing experience that will satisfy
any driving fan.
2. SAFETY PRECAUTIONS
• Do not disassemble or repair the device on your own. Maintenance and repairs should be carried out
by qualified staff of the service centre only.
• Protect the device from direct impact of high humidity, dust, strong magnetic fields, vibrations, high
temperatures, toxic liquids and gases.
• Instructions for device maintenance: for cleaning the case of the device please use clean soft
cloth. Do not use such solvents as gasoline or spirit for cleaning, since these solvents can damage
the surface of the device.
• Do not drop the device not to have it damaged.
3. PACKAGE CONTENTS
• Game Racing Wheel — 1 pc
• Pedal unit — 1 pc
• Fxation stands — 2 pcs
• Software CD disk —1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
4. SPECIAL FEATURES
• Ergonomic design of game racing wheel
• Wheel diameter – 10" (254 mm)
• Steering angle – 270 degrees
• Supports: Windows XP/Vista/7/8
• USB Interface
• Built-in vibration feedback and cooling fan for more realistic effect
• Indication of accelerating and braking force
• Three-stage sensitivity adjustment to adapt to different driving racing games
• Two axes, D-Pad, Tiptronic lever for changing gears, 12 additional keys
• Rubber coating of the wheel for comfortable driving
• 8 reprogramming buttons
• 6 rubber suction caps and 2 fixation stands for secure fixation to the table
• Digital and Analog Modes available
• Spring-loaded accelerator and brake pedals (included)
5. SYSTEM REQUIREMENTS
• USB port available
• Operational System Windows XP/Vista/7/8
m
o
p
q
n
l
Fig. 3. Key panel
7
5
1
1
1
2
6
8
MODE
9
10
Sensitivity
LO MID HI
j
g
Red Orange OrangeGreen Green Red
Fig. 1. Front view
6. DESCRIPTION OF THE CONSTRUCTION
a Racing wheel
b Rubber coating
c Buttons 1, 4
d Paddle shifters
e Ventilation grids
f Key panel
g Braking indication
h Buttons 2, 3
i Lever for changing gears
j Accelerating indication
k Rubber suction
caps
l Buttons 7–12
m D-Pad
n Buttons 9–10
o MODE button
p ON/OFF MODE
indication
q Sensitivity control
r Foot pedal port
s Headlights
t USB Cable
u Brake pedal
v Acceleration pedal
w Foldable stand for feet
Fig. 2. Lever for changing gears
–
+
R
k
j
d
h
b
b
a
c
d
e
i
e
g
f
ENG
3
Operation Manual
NITRO
