USER’S MANUAL
www.sven.fi
Wall Mount for LED/LCD TVs
and Monitors
FS17-21
1
ENG
CONTENTS
1. BUYER RECOMMENDATIONS ....................................................
...........
2. APPLICATION ................................................................................
3. SAFETY PRECAUTIONS ............................................................
..........
4. SPECIAL FEATURES ......................................................................
........
5. PACKAGE CONTENTS ..................................................................
............
6. MOUNTING AND INSTALLATION....................................................
........
7. TECHNICAL SPECIFICATIONS ................................................
.............
1
2
2
2
2
3
5
Congratulations on your purchase of the Sven wall mount!
COPYRIGHT
© 2015. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
1. BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the number of
the wall mount corresponds to that in the warranty card. Remember: in case of warranty card loss
or discrepancy of numbers you forfeit the right for warranty repairs.
• Before installing and using the wall mount, read this Manual carefully.
Technical support is on www.sven.fi.
FS17-21
User’s Manual
2
ENG
4 pcs 4 pcs 4 pcs
4 pcs
4 pcs 4 pcs
4 pcs 4 pcs 4 pcs
4 pcs 1 pc4 pcs 2 pcs 2 pcs4 pcs
ST8X50
1 pc
Components and Accessory Kit
M4×18 M5×18 M6×18
M4×30
M5×30 M6×30
Ø12 × Ø4
Ø12 × Ø 5 Ø12 × Ø 6 Ø12 × Ø 8,5
4 pcs
25 mm100 × 100 mm
200 × 100 mm
12" – 32"
30 – 81 cm
2. APPLICATION
FS17-21 is designed for wall-mounting LED/LCD TV sets and monitors.
3. SAFETY PRECAUTIONS
• Do not exceed the maximum load specified in the Manual to avoid accidents or damage.
• Before installing the wall mount, read this Manual carefully and follow all the instructions when
installing. To ensure safe and reliable mounting, it’s recommended that installation be done by
qualified specialists.
• Position your mount away from internal electric wires, water and gas pipes and other dangerous
objects.
• Install the mount on walls of solid brick, concrete, wood or other material providing equivalent
support.
• When installing the mount on a wooden wall, drill the holes as close as possible to the center of
the board to provide secure support.
• Fasten the screws until they are fixed. Do not use electric tools for this purpose.
• For safety reasons, do not install the wall mount alone.
4. SPECIAL FEATURES
• VESA: 100 × 100/ 200 × 100 mm
• Diagonal compatibility: 12" – 32"/
30 – 81 cm
• Assembled and ready to install
• Level included
• Space-saving slim design
• Easy installation and mounting
• High-strength polymer coating
• Security locks
5. PACKAGE CONTENTS
• Mount — 1 pc
• Mounting accessory kit — 1 pack
• User’s Мanual — 1 pc
• Warranty card — 1 pc
Wall Mount for LED/LCD TVs
and Monitors
ENG
3

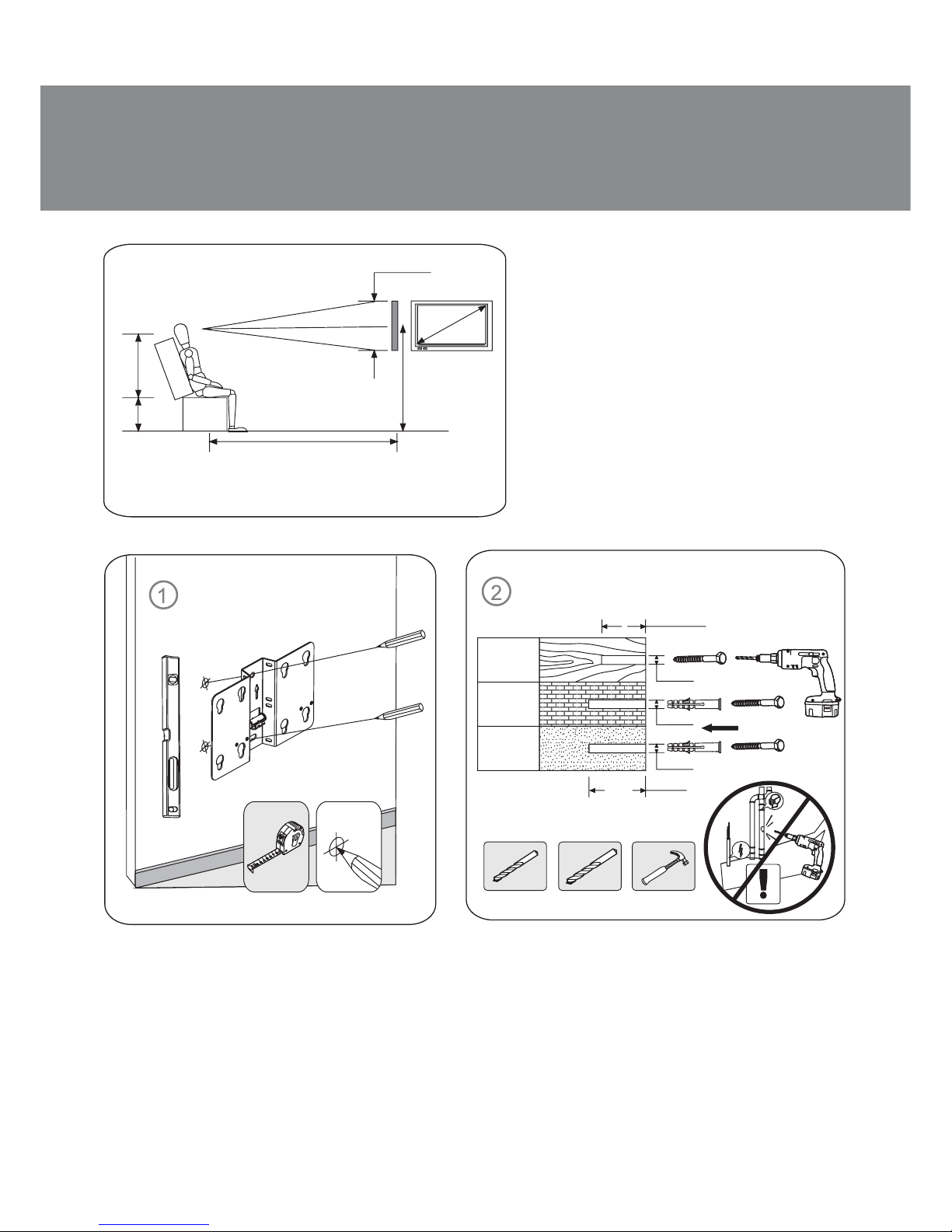

6. MOUNTING AND INSTALLATION
• Choose a wall to hang your mount on.
It’s recommended that the height H and
the distance L from the viewer be calculated according to the formulas in the
figures on the left.
• Then, place the mount against the wall
and mark the spots where the holes
should be drilled (see Fig. a). In a wooden
wall, drill two Ø 5 mm and 30-40 mm deep
holes; in a brick or concrete wall, drill
Ø 10 mm and 60 mm deep holes (Fig. b).
H = ?
b
Ø 5
Ø 5 Ø 10
30-40 mm
60 mm
Ø 10
Ø 10
Wooden
wall
Brick
wall
Concrete
wall
L = (3 ~ 5) a
H = c + d
L
c
d
a
FS17-21
User’s Manual
ENG
4
13 мм
Маx 1.5N·M
• Fix the mount on the wall using dowels (see
Fig. c).
• Fix the suitable screws and washers (included in the package) on the rear panel of your
TV, as shown in Fig. d.
• Hang your TV on the wall mount, as shown in
Fig. e. The security locks will snap shut.

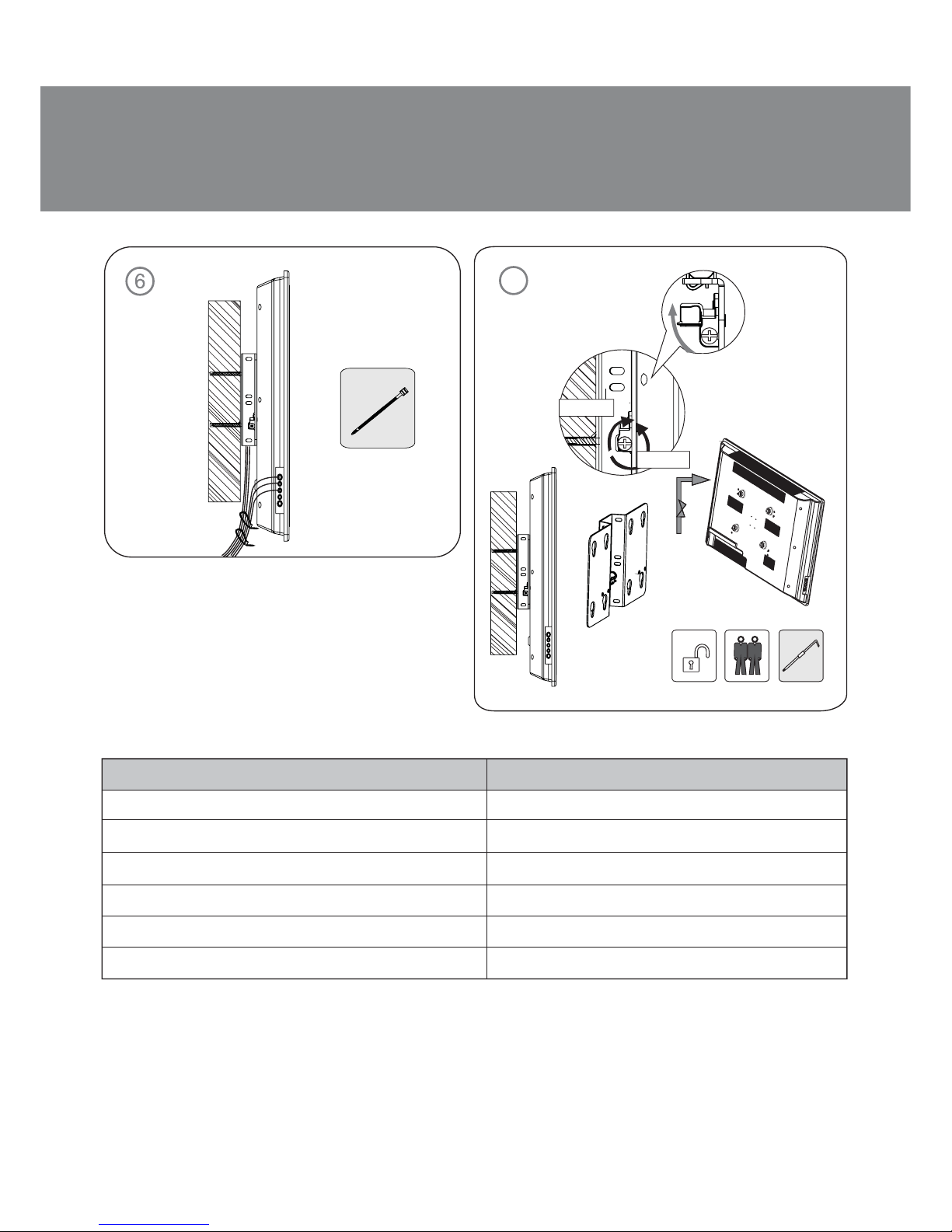

• For convenience, fasten the cables with ties (included), as shown in Fig. f.
Wall Mount for LED/LCD TVs
and Monitors
ENG
5
• To unmount your TV, loosen the screws using
the screwdriver from the package (See Fig. g).
Lift your TV slightly and take the screws out of
the holes.
Release
the lock
7
OK
Max 0.8N·M
Close
Open
Parameter, measurement unit
Diagonal compatibility, inch/cm
VESA range, mm
Maximum load, kg
Mounting type
Distance from wall, mm
Coating type
Value
12 – 32/30 – 81
100 × 100/200 × 100
35
fixed
25
high-strength polymer
7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of
SVEN production.
FS17-21
User’s Manual
Wall Mount for LED/LCD TVs
and Monitors
Модель: FS17-21
Импортер в России: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
в гарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 5 лет.
Срок службы: 15 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176
Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае
.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the control
of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka,
Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
