www.sven.ѵ
OPERATION
MANUAL
FANCY
Multimedia USB
Speaker System 2.0
ENG
1
Operation Manual
FANCY
2
2
2
3
3
3
4
5
5
CONTENTS
1. INTRODUCTION ....................................................................................
2. SAFETY PRECAUTIONS ...........................................................................
3. PACKAGE CONTENTS .............................................................................
4. SPECIAL FEATURES ...............................................................................
5. LOCATING ............................................................................................
6. DESCRIPTION OF CONSTRUCTION .............................................................
7. INSTALLATION AND OPERATION GUIDE .......................................................
8. TROUBLE SHOOTING ...........................................................................
9. TECHNICAL SPECIFICATION ....................................................................
Technical support is on www.sven.Н
Congratulations on your purchase of the Sven speaker system!
Please read this operation manual before using the unit and retain this operation manual in safe place
for future reference.
COPYRIGHT
© 2011. SVEN Company Ltd. Version 1.0 (V 1.0).
This manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eԚorts to make this manual more exact, some discrepancies may occur. The
information of this manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damages which have arisen from the information,
contained in the given manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damages; if the product was damaged during transportation, address the ԛrm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
ATTENTION!
Do not switch on speaker system immediately after you bring it in a room from environment with
negative temperature! Unpacked speaker system should be placed in conditions of room’s
temperature at least 4 hours.
ENG
2
Multimedia USB
Speaker System 2.0
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
1. INTRODUCTION
FANCY Multimedia USB Speaker System 2.0 (MSS) is designed to play music and sound games,
movies etc. MSS has built-in bridge ampliԛer, acoustic and signal cable due to which it can be
connected to virtually any audio source (CD/DVD-players, TV, PC, etc.). MSS is connected to
power supply via USB-port of a PC, laptop or 5V DC adapter with a cable USB. The speaker
which has audio and control panel is named active one.
2. SAFETY PRECAUTIONS
• To avoid electric shock do not open MSS and do not perform repairs by yourself.
• Do not allow circuit of wires (including grounded ones) between speakers, power ampliԛer or
ground, for it causes damage of power ampliԛer output stage.
• Do not put foreign objects inside the holes of MSS. Make sure that needles, hair pins, coins,
insects etc. do not get inside.
• Protect MSS from high humidity, water and dust. Do not locate it in areas with high level of
humidity and dust.
• Protect MSS from heating: do not locate it near a heat source or expose to direct sunlight.
• Do not use gasoline, alcohol or other solvents when cleaning, since they may damage stained
surface of MSS. Clean it with dry soft cloth only.
• If MSS does not operate, unplug it and refer to service personnel.
3. PACKAGE CONTENTS
• Speakers — 2 pcs
• Double-sided scotch — 2 pcs
• Operation manual — 1 pc
• Warranty card — 1 pc
ENG
3
Operation Manual
FANCY
Fig. 1. Speakers construction
4. SPECIAL FEATURES
• U.S.S. (Ultra Sound System) – built-in bridge ampliԛer ensures output power 4 times higher than
that of AB class ampliԛers
• Original design allows to bend Ԝexible stand to diԚerent sides
• Power supply via USB-port of a PC, laptop or 5V DC adapter
• Volume control
• Audio sources stere oaudio input: PC, laptop, MP3 or CD-player, etc.
• Headphone jack Ø 3,5 mm
• Original Ԝexible stand
• Magnetic shielded drivers
• Double-sided scotch for ԛxing to a table or to a wall is included
• Plastic case of speakers
5. LOCATING
• Place speakers symmetrically to the listener at the distance not less than one meter, speakers can
be wall-mounted.
• Place MSS far away from TV sets, as insigniԛcant image distortion in supersensitive monitors and
TV sets is possible.
6. DESCRIPTION OF CONSTRUCTION
a Speakers
b Acoustic cable
c Power LED
d ON/OFF: Power switch
e Volume control knob
f : Headphone jack
g USB cable
h Signal cable
Active speaker
a
c
b
d
e
f
6
8
ENG
4
7. INSTALLATION AND OPERATION GUIDE
FANCY Multimedia Speaker System can be connected to virtually any audio source: MP3/CD, PC
sound card, laptop, etc. (see Fig. 2 below).
• Before connecting, make sure that MSS is unplugged. Connect signal cable mini-jack 3,5 mm h
built-in active speaker to audio output of the sound source, for example laptop, as shown in the
diagram above.
• Plug connector of the USB-power cable g to the USB-port of the laptop, PC or the adapter 5V
DC.
• Set volume level to minimum by turning VOLUME control knob e counterclockwise until it stops.
• Turn on PC power supply, turn on audio source.
• Adjust volume level by turning VOLUME control knob e.
Notes:
• After Нnishing operation with MSS, mind to turn off the USB-cable from the PC, laptop
USB port or adapter 5V DC.
• To enhance sound quality, use Line-Out output of soundcard.

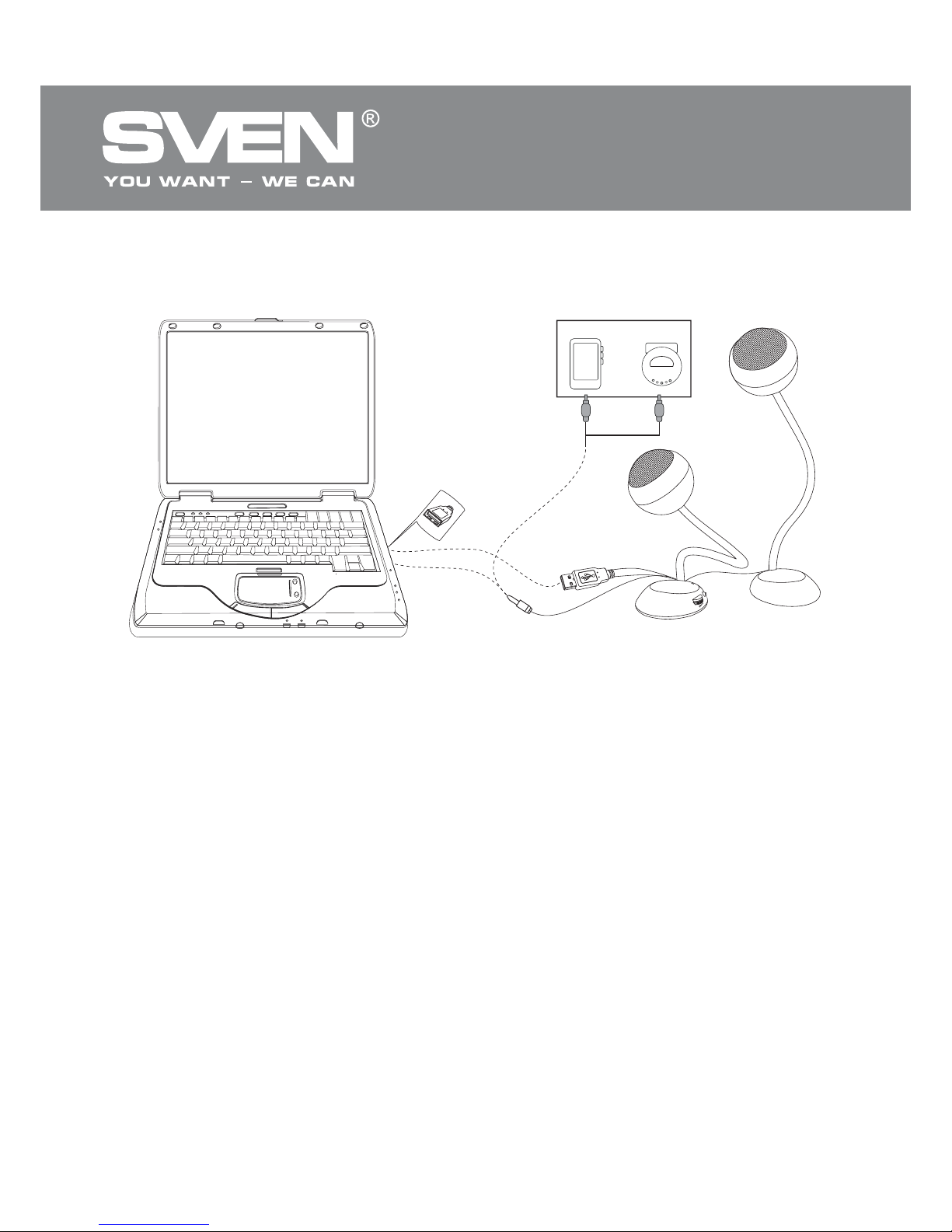

Fig. 2. Connection diagram
Laptop
MP3 CD
or
Multimedia USB
Speaker System 2.0
ENG
5
Operation Manual
FANCY
Parameter, measurement unit
Output power(RMS), W
Frequency range, Hz
S/N ratio, dB
Speaker dimension, mm
Power supply, V
Signal cable length, m
Dimensions (one satellite) (W × H × D), mm
Weight, kg
Value
5 (2 × 2,5)
80 – 20 000
> 70
Ø 50
USB/DC 5
1
70 × 300 × 80
0.42
Notes:
• Technical speciНcation given in this table is supplemental information and can not give
occasion to claims.
• Technical speciНcation is subject to change without notice due to improvement of SVEN
production.
9. TECHNICAL SPECIFICATION
If none of the above methods can not solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
MSS does not
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
Cause
MSS is not connected to the mains outlet.
Power switch is oԚ.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust volume control knob.
Connect audio sources correctly.
Adjust volume control knob.
Turn down source volume
and MSS volume.
8. TROUBLE SHOOTING
ǀǢǘǙǟǰ: FANCY
ƼǠǣǢǤǦǙǤ ǖ DŽǢǥǥǜǜ: ǂǂǂ «DžƾƴǁƸƼdžDŽƹƿ»,
111024, DŽLj, Ǘ. ǀǢǥǞǖǔ, ǧǟ. ƴǖǜǔǠǢǦǢǤǡǔdz, ǘ. 65, ǥǦǤ. 1.
LJǣǢǟǡǢǠǢǫǙǡǡǔdz ǢǤǗǔǡǜǛǔǪǜdz ǖ DŽǢǥǥǜǜ: ǂǂǂ «DŽdž-Lj»,
105082, Ǘ. ǀǢǥǞǖǔ, ǧǟ. LjǤǜǘǤǜǩǔ ǑǡǗǙǟǰǥǔ, ǘ. 75, ǥǦǤ. 5.
LJǥǟǢǖǜdz ǗǔǤǔǡǦǜǝǡǢǗǢ ǢǕǥǟǧǚǜǖǔǡǜdz ǥǠǢǦǤǜǦǙ ǖ
ǗǔǤǔǡǦǜǝǡǢǠ ǦǔǟǢǡǙ ǜǟǜ ǡǔ ǥǔǝǦǙ www.sven.ѵ
ƷǔǤǔǡǦǜǝǡǯǝ ǥǤǢǞ: 12 ǠǙǥ.
DžǤǢǞ ǥǟǧǚǕǯ: 2 ǗǢǘǔ
ǃǤǢǜǛǖǙǘǙǡǢ ǣǢǘ ǞǢǡǦǤǢǟǙǠ «DžǖǙǡ DžǞǔǡǘǜǡǔǖǜdz
ƿǜǠǜǦǙǘ», 48310, Ljǜǡǟdzǡǘǜdz
, ƾǢǦǞǔ,
ƾǢǦǢǟǔǩǘǙǡǦǜǙ, 15. DžǘǙǟǔǡǢ ǖ ƾǜǦǔǙ.
ǀǢǘǙǟǰ:
FANCY
ǃǢǥǦǔǫǔǟǰǡǜǞ/ǹǠǣǢǤǦǙǤ ǖ LJǞǤǔǺǡǹ: džǂƶ «Džƶƹǁ NJǙǡǦǤ».
ƾǜǺǖǥǰǞǔ ǢǕǟǔǥǦǰ, Ǡ. ǃǙǤǙdzǥǟǔǖ-ljǠǙǟǰǡǜǪǰǞǜǝ,
ǖǧǟ. ƷǙǤǢǺǖ ƸǡǹǣǤǔ, 31.
ǃǤǜǛǡǔǫǙǡǡdz, ǥǣǢǚǜǖǫǹ ǖǟǔǥǦǜǖǢǥǦǹ Ǧǔ ǖǹǘǢǠǢǥǦǹ
ǣǤǢ ǕǙǛǣǙǞǧ ǦǢǖǔǤǧ ǘǜǖ. ǧ ǞǙǤǹǖǡǜǪǦǖǹ Ǜ ǙǞǥǣǟǧǔǦǔǪǹǺ.
LJǠǢǖǜ ǗǔǤǔǡǦǹǝǡǢǗǢ ǢǕǥǟǧǗǢǖǧǖǔǡǡdz ǘǜǖǹǦǰǥdz ǖ
ǗǔǤǔǡǦǹǝǡǢǠǧ ǦǔǟǢǡǹ ǔǕǢ ǡǔ ǥǔǝǦǹ www.sven.ѵ
ƷǔǤǔǡǦǹǝǡǜǝ ǦǙǤǠǹǡ: 12 Ǡǹǥ.
DžǦǤǢǞ ǥǟǧǚǕǜ: 2 ǤǢǞǜ
džǢǖǔǤ ǥǙǤǦǜǨǹǞǢǖǔǡǢ/ǠǔǷ ǗǹǗǹǷǡǹǫǡǜǝ ǖǜǥǡǢǖǢǞ.
njǞǹǘǟǜǖǜǩ
ǤǙǫǢǖǜǡ ǡǙ ǠǹǥǦǜǦǰ.
ƻǕǙǤǹǗǔǦǜ ǖ ǥǧǩǢǠǧ ǠǹǥǪǹ.
ƶǜǗǢǦǢǖǟǙǡǢ ǣǹǘ ǞǢǡǦǤǢǟǙǠ «DžǖǙǡ DžǞǔǡǘǜǡǔǖǹdz
ƿǹǠǹǦǙǘ», 48310, Ljǹǡǟdzǡǘǹdz, ƾǢǦǞǔ, ƾǢǦǢǟǔǩǘǙǡǦǹǷ, 15.
ƻǤǢǕǟǙǡǢ ǖ ƾǜǦǔǺ.
Produced under the control of Oy Sven Scandinavia Ltd.
15, Kotolahdentie, KOTKA, Finland, 48310.
Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
FANCY
Multimedia USB
Speaker System 2.0
