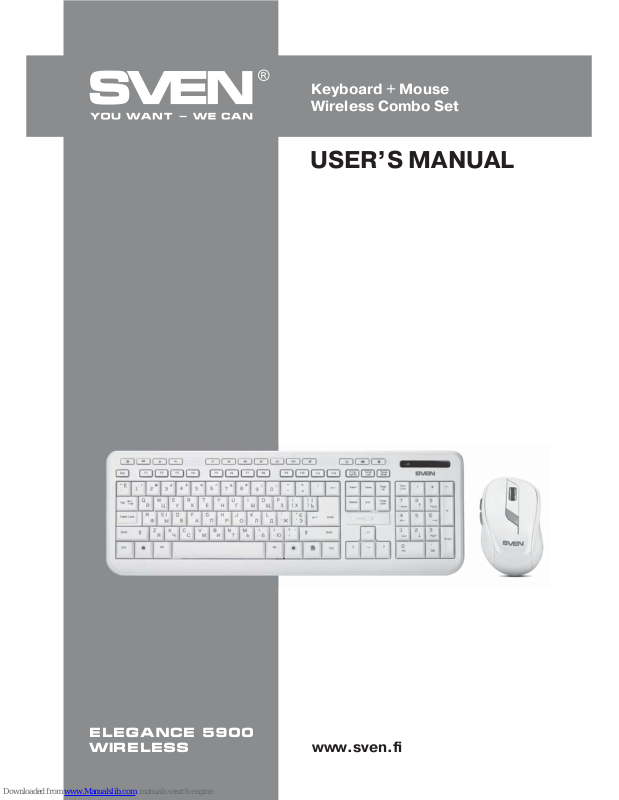

Page 1
www.sven.fi
USER’S MANUAL
Keyboard + Mouse
Wireless Combo Set
elegance 5900
Wireless
Page 2
ENG
1
User’s Manual
elegance 5900
Wireless
CONTENTS
1. SPECIAL FEATURES ...............................................................................
2. PACKAGE CONTENTS ..............................................................................
3. SYSTEM REQUIREMENTS .........................................................................
4. MOUSE DESCRIPTION ..........................................................................
5. INSTALLATION ........................................................................................
6. CONNECTION ........................................................................................
7. DESCRIPTION OF SHORTCUT BUTTONS FUNCTIONS .................
.....................
8. TROUBLESHOOTING .............................................................. . .... . .......
9. TECHNICAL SPECIFICATIONS ...................................................................
Congratulations on your purchase of the Sven Keyboard + Mouse Wireless Combo Set!
Please read this User’s Мanual before using the unit and retain this User’s Мanual in a safe place for
future reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Мanual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Мanual more exact, some discrepancies may occur. The
information in this Мanual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Мanual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the firm which carried out
the delivery; if the product functions incorrectly, address the dealer at once.
2
2
2
2
2
3
4
4
4
Technical support is on www.sven.fi
Page 3
ENG
2
Keyboard + Mouse
Wireless Combo Set
1. SPECIAL FEATURES
• Ergonomic design of the keyboard and mouse
• Energy-saving wireless technology
• 2.4 GHz USB nano receiver
• Coverage range up to 10 m
• Automatic detection, no need to match the receiver with the pointing device
• 14 shortcut buttons for Internet and Multimedia
• Compatible with Windows XP/Vista/7/8
• USB Interface
• Low operation noise
• Wireless mouse with 5 buttons and scroll wheel
• Forward/back navigation buttons
• 800/1600 dpi mouse resolution
2. PACKAGE CONTENTS
• Wireless keyboard — 1 pc
• Wireless mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
• ААА batteries — 3 pcs
• User’s manual — 1 pc
• Warranty card — 1 pc
3. SYSTEM REQUIREMENTS
• Windows XP/Vista/7/8.
• Free USB port.
4. MOUSE DESCRIPTION
a Scroll wheel
b Additional navigation buttons
c Dpi resolution switch
d ON/OFF: рower switch
e Optical sensor
f Battery compartment
g Nano receiver
h USB connector
5. INSTALLATION
• Open the cover of the mouse battery compart-
ment f, insert 2 AAA batteries into the battery
compartment matching the polarity, and close
the cover of the battery compartment (Fig. 4).
• Open the cover of the battery compartment at
the bottom of the keyboard, insert AAА battery
matching the polarity, and close the cover of the
battery compartment (see Fig. 4).
Fig. 1. Top view
Fig. 2. Bottom view
Fig. 3. Nano receiver
g
h
a
d
e
f
b
c
Page 4
6. CONNECTION
• Сonnect the included nano receiver g to a free PC USB port (Fig. 5).
• Turn on the mouse with the on/off switch d (the ON position). To activate the mouse, press any
button of the mouse or turn the scroll wheel. If the mouse is connected correctly, it will turn on
automatically.
•
After finishing work turn off the mouse with the power switch d (the OFF position). After this, you
can pull out the receiver g from the PC USB port and insert it into the mouse (Fig. 6). When using
the receiver again, pull it out from the mouse (Fig. 7) and connect it to the PC USB port again.
•
If the mouse or keyboard don’t work, connect them to the nano receiver again. To reconnect the
mouse to the nano receiver, press its right button and the scroll wheel at the same time and, while
holding them, pull out and insert the 2.4 GHz nano receiver back into the USB port. To reconnect the
keyboard to the nano receiver, press its «ESC» и «K» buttons at the same time and, while holding
them, pull out and insert the 2.4 GHz nano receiver back into the USB port.
Notes:
• Do not place the receiver into a confined metal space (table drawer, box, safe), as a metal
screen does not transmit radio signals.
• If batteries run down, there are «lapses» in operation of the mouse or keyboard. In such
a case replace the batteries with new ones (Fig. 4).
• If there is a long
pause in operation of
the mouse or keyboard, they enter the
Sleep mode. To enter
the working mode
just press any button.
Fig. 4
Keyboard
battery
compartment
Keyboard battery
compartment cover
Mouse battery
compartment cover
Fig. 6 Fig. 7
Fig. 5. Receiver connection
ААА type batteries
3
ENG
User’s Manual
elegance 5900
Wireless
Page 5
ENG
4
Keyboard + Mouse
Wireless Combo Set
Value
104
14
5 + 1 (scroll wheel)
Rus/Ukr/Eng
Windows XP/Vista/7/8
USB
more than 20,000,000 strokes
up to 10
800/1600
2.4
458 × 24 × 159
67 × 41 ×106
444/82
Parameter, measurement unit
Q-ty of keyboard keys
Q-ty of shortcut buttons
Q-ty of mouse buttons
Keyboard layout
OS required
Interface
Error-free running time
Coverage range, m
Mouse resolution, dpi
Frequency, GHz
Size of keyboard (W × H × L), mm
Size of mouse (W × H × L), mm
Weight of keyboard / mouse, g
9. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of
SVEN production.
Problem
The keyboard
and mouse are
not working.
Solution
1. Check whether the batteries have been installed correctly. If necessary,
replace the batteries with new ones matching the polarity.
2. Pull out the USB receiver and insert it back, make sure that it is not damaged.
3. Reprogram the USB nano receiver using the software you can download at
www.sven.fi.
4. We recommend that you address your nearest service center.
If none of the above methods can solve the problem, please seek professional advice at your nearest
service center. Never attempt to repair the product yourself.
7. DESCRIPTION OF SHORTCUT BUT TONS FUNCTIONS
8. TROUBLESHOOTING
Е
Open home web page
Start default E-mail program
Open My Favorites
Go to search page
Turn off media player
Go to previous track
Go to next track
Play/Pause
Volume down
Volume up
Mute on/off
Open My Compute
Start media player
Start/Close Calculator
Page 6
Модель: Elegance 5900 Wireless
Импортер в России: ООО «СКАНДИТРЕЛ», 111024,
РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75,
стр. 5. Условия гарантийного обслуживания смотрите в гарантийном талоне или на сайте www.sven.fi
Гарантийный срок: 12 мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
Keyboard + Mouse
Wireless Combo Set
elegance 5900
Wireless
