Sven DIVA Operation Manual

Portable Multimedia USB
Speaker System 2.0

OPERATION
MANUAL

DIVA

www.sven.ѵ

ENG

Operation Manual

Congratulations on your purchase of the Sven speaker system!

Please read this operation manual before using the unit and retain this operation manual in safe place
for future reference.

COPYRIGHT

© 2011. SVEN Company Ltd. Version 1.0 (V 1.0).
This manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eԚorts to make this manual more exact, some discrepancies may occur. The
information of this manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damages which have arisen from the information,
contained in the given manual.

DIVA

UNPACKING

Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damages; if the product was damaged during transportation, address the ԛrm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.

ATTENTION!

Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
roomtemperature for at least 4 hours.

CONTENTS

1. INTRODUCTION .....................................................................................

2. SAFETY PRECAUTIONS ...........................................................................

3. PACKAGE CONTENTS ............................................................................

4. SPECIAL FEATURES ...............................................................................

5. LOCATING ............................................................................................

6. CONTROL PANEL .......................................................................... ........

7. INSTALLATION AND OPERATION GUIDE .......................................................

8. TROUBLE SHOOTING .............................................................................

9. TECHNICAL SPECIFICATION .....................................................................

2
2
2
3
3
3
3
4
5

Technical support is on www.sven.Н

1

ENG

Portable Multimedia USB
Speaker System 2.0

1. DESCRIPTION

DIVA Portable Multimedia USB Speaker System 2.0 (MSS) is designed to play music and sound
games, movies etc. MSS has built-in bridge ampliԛer, acoustic and signal cable due to which it can
be connected to virtually any audio source (CD/DVD-players, TV, PC, etc.). MSS is connected to
power supply via USB-port of a PC, laptop or 5V DC adapter with a cable USB. The speaker which
has audio and control panel is named active one.

2. SAFETY PRECAUTIONS

• To avoid electric shock do not open the MSS and do not perform repairs by yourself.

• Do not allow circuit of wires (including grounded ones) between speakers, power ampliԛer or

ground, for it causes damage of power ampliԛer output stage.

• Do not put foreign objects inside the holes of the MSS. Make sure that needles, hair pins, coins,
insects etc. do not get inside.

• Protect the MSS from high humidity, water and dust. Do not locate it in areas with high level of
humidity and dust.

• Protect the MSS from heating: do not locate it near a heat source or expose to direct sunlight.

• Do not use gasoline, alcohol or other solvents when cleaning, since they may damage the

paint-coated surface of the MSS. Clean it with dry soft cloth only.

• If the MSS does not operate, unplug it and address your dealer.

Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.

3. PACKAGE CONTENTS

• Multimedia Speaker System — 1 pc

• Operation manual — 1 pc

• Warranty card — 1 pc

2

ENG

Operation Manual

4. SPECIAL FEATURES

• U.S.S. (Ultra Sound System) – built-in bridge ampliԛer ensures output power 4 times higher than

that of AB class ampliԛers

• Power supply via USB-port of a PC, laptop or 5V DC power supply

• Volume control

• Power LED

• Easy connection to various audio devices

• Headphone jack Ø 3.5 mm

• Microphone jack Ø 3.5 mm

• Magnetic shielded drivers

• Plastic case of speakers

5. LOCATING

• Place speakers symmetrically to the listener at a

distance not less than one meter.

• Place MSS far away from TV sets, as insigniԛcant image
distortion in supersensitive monitors and TV sets is
possible.

DIVA

a

b

c

de

6. CONTROL PANEL

a : POWER switch
b VOL: VOLUME control knob
c : Headphone jack
d : Microphone jack
e Power LED

Fig. 1. Control panel

7. INSTALLATION AND OPERATION GUIDE

DIVA Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC
sound card, etc. (see connection diagram, Fig. 2).

• Before connecting, make sure that MSS is unplugged. Plug built-in ampliԛed speakers signal
cables with mini-jack 3.5 mm: acoustic cable (mini-jack green) – to the audio sound source and
microphone cable (mini-jack pink) – to the microphone jack (see connection diagram, Fig. 2).

• Plug connector of the USB-power cable to the USB-port of the PC, laptop or the 5V DC power
supply.

Notes:

• To connect MSS to CD/DVD/TV-players, stereo signal cable mini-jack to mini-jack and
adapter RCA to mini-jack (not included) should be used.

• Set volume level to minimum by turning VOLUME control knob b counterclockwise until it stops.

• Turn on PC power supply, shift POWER switch a, power LED e will illuminate.

• Turn on audio source.

• Adjust volume level by turning VOLUME control knob b.

3

ENG

Portable Multimedia USB
Speaker System 2.0

Passive

speaker

ACOUSTIC CABLE

MIC CABLE

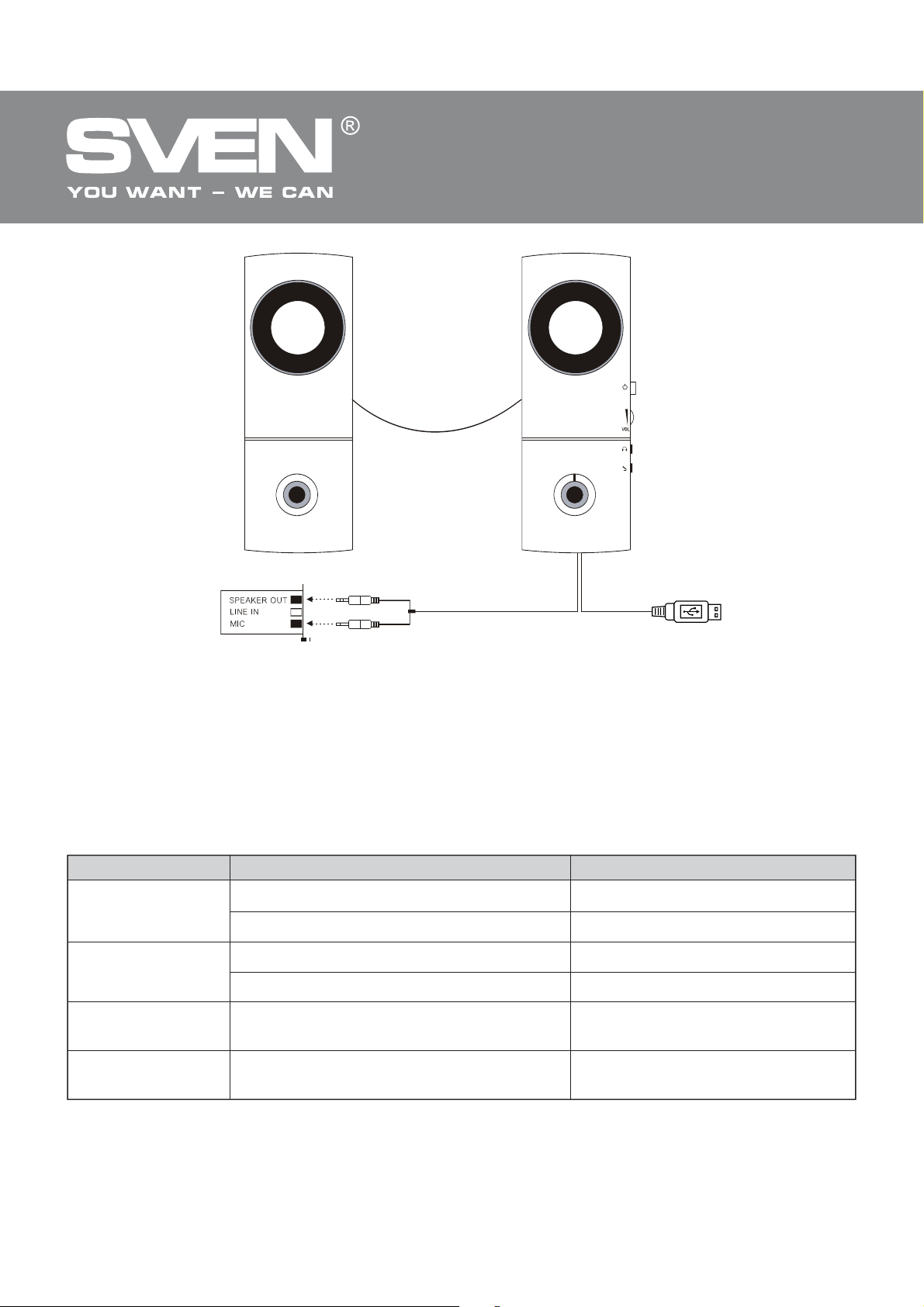

Fig. 2. Connection diagram

• Plug headphone into the headphone jack c, and microphone into the microphone jack d.

Notes:

• After Нnishing operation with MSS, mind to unplug it.

• To enhance sound quality, use Line-Out output of soundcard.

ƴctive
speaker

PC/DC=5V

8. TROUBLE SHOOTING

Problem

MSS does not
turn on.

No sound.

There is too quiet
sound of speakers.

Distortion of
sound.

If none of the above methods can not solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.

Cause

MSS is not connected to the mains outlet.

Power switch is oԚ.

Volume level is set at minimum value.

Improperly connected audio source.

Volume level is set at minimum value.

Large amplitude of the input signal.

Solution

Check the connection.

Turn on the switch.

Adjust volume control knob.

Connect audio sources correctly.

Adjust volume control knob.

Turn down source volume
and MSS volume.

4

ENG

Operation Manual

9. TECHNICAL SPECIFICATION

Parameter, measurement unit

Output power (RMS), W

Frequency range, Hz

S/N ratio, dB

Speaker dimension, mm

Power supply, V

Cable USB length, m

Cable with mini-jack Ø 3.5 mm length, m

Dimensions (one satellite) (W × H × D), mm

Weight, kg

DIVA

Value

4 (2 × 2)

150 – 18 000

ѐ 95

Ø 57

USB/DC 5

1.2

1.2

70 × 182 × 96

0.45

Notes:

• Technical speciНcation given in this table is supplemental information and cannot give
occasion to claims.

• Technical speciНcation is subject to change without notice due to improvement of SVEN
production.

5

Portable Multimedia USB
Speaker System 2.0

ǀǢǘǙǟǰ:
ƼǠǣǢǤǦǙǤ ǖ DŽǢǥǥǜǜ: ǂǂǂ «DžƾƴǁƸƼdžDŽƹƿ»,
111024, DŽLj, Ǘ. ǀǢǥǞǖǔ, ǧǟ. ƴǖǜǔǠǢǦǢǤǡǔdz, ǘ. 65, ǥǦǤ. 1.
LJǣǢǟǡǢǠǢǫǙǡǡǔdz ǢǤǗǔǡǜǛǔǪǜdz ǖ DŽǢǥǥǜǜ: ǂǂǂ «DŽdž-Lj»,
105082, Ǘ. ǀǢǥǞǖǔ, ǧǟ. LjǤǜǘǤǜǩǔ ǑǡǗǙǟǰǥǔ, ǘ. 75, ǥǦǤ. 5.
LJǥǟǢǖǜdz ǗǔǤǔǡǦǜǝǡǢǗǢ ǢǕǥǟǧǚǜǖǔǡǜdz ǥǠǢǦǤǜǦǙ ǖ
ǗǔǤǔǡǦǜǝǡǢǠ ǦǔǟǢǡǙ ǜǟǜ ǡǔ ǥǔǝǦǙ www.sven.ѵ
ƷǔǤǔǡǦǜǝǡǯǝ ǥǤǢǞ: 12 ǠǙǥ.
DžǤǢǞ ǥǟǧǚǕǯ: 2 ǗǢǘǔ
ǃǤǢǜǛǖǙǘǙǡǢ ǣǢǘ ǞǢǡǦǤǢǟǙǠ «DžǖǙǡ DžǞǔǡǘǜǡǔǖǜdz
ƿǜǠǜǦǙǘ», 48310, Ljǜǡǟdzǡǘǜdz
ƾǢǦǢǟǔǩǘǙǡǦǜǙ, 15. DžǘǙǟǔǡǢ ǖ ƾǜǦǔǙ.

ǀǢǘǙǟǰ:
ǃǢǥǦǔǫǔǟǰǡǜǞ/ǹǠǣǢǤǦǙǤ ǖ LJǞǤǔǺǡǹ: džǂƶ «Džƶƹǁ NJǙǡǦǤ».
ƾǜǺǖǥǰǞǔ ǢǕǟǔǥǦǰ, Ǡ. ǃǙǤǙdzǥǟǔǖ-ljǠǙǟǰǡǜǪǰǞǜǝ,
ǖǧǟ. ƷǙǤǢǺǖ ƸǡǹǣǤǔ, 31.
ǃǤǜǛǡǔǫǙǡǡdz, ǥǣǢǚǜǖǫǹ ǖǟǔǥǦǜǖǢǥǦǹ Ǧǔ ǖǹǘǢǠǢǥǦǹ
ǣǤǢ ǕǙǛǣǙǞǧ ǦǢǖǔǤǧ ǘǜǖ. ǧ ǞǙǤǹǖǡǜǪǦǖǹ Ǜ ǙǞǥǣǟǧǔǦǔǪǹǺ.
LJǠǢǖǜ ǗǔǤǔǡǦǹǝǡǢǗǢ ǢǕǥǟǧǗǢǖǧǖǔǡǡdz ǘǜǖǹǦǰǥdz ǖ
ǗǔǤǔǡǦǹǝǡǢǠǧ ǦǔǟǢǡǹ ǔǕǢ ǡǔ ǥǔǝǦǹ www.sven.ѵ
ƷǔǤǔǡǦǹǝǡǜǝ ǦǙǤǠǹǡ: 12 Ǡǹǥ.
DžǦǤǢǞ ǥǟǧǚǕǜ: 2 ǤǢǞǜ
džǢǖǔǤ ǥǙǤǦǜǨǹǞǢǖǔǡǢ/ǠǔǷ ǗǹǗǹǷǡǹǫǡǜǝ ǖǜǥǡǢǖǢǞ.
njǞǹǘǟǜǖǜǩ
ƻǕǙǤǹǗǔǦǜ ǖ ǥǧǩǢǠǧ ǠǹǥǪǹ.
ƶǜǗǢǦǢǖǟǙǡǢ ǣǹǘ ǞǢǡǦǤǢǟǙǠ «DžǖǙǡ DžǞǔǡǘǜǡǔǖǹdz
ƿǹǠǹǦǙǘ», 48310, Ljǹǡǟdzǡǘǹdz, ƾǢǦǞǔ, ƾǢǦǢǟǔǩǘǙǡǦǹǷ, 15.
ƻǤǢǕǟǙǡǢ ǖ ƾǜǦǔǺ.

DIVA

, ƾǢǦǞǔ,

DIVA

ǤǙǫǢǖǜǡ ǡǙ ǠǹǥǦǜǦǰ.

Produced under the control of Oy Sven Scandinavia Ltd.
15, Kotolahdentie, KOTKA, Finland, 48310.
Made in China.

® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
