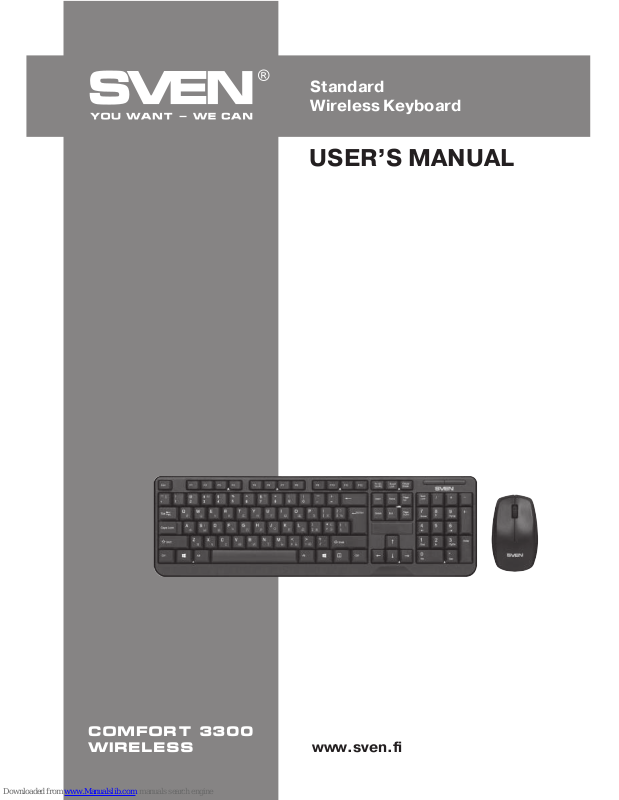

www.sven.fi
USER’S MANUAL
Standard
Wireless Keyboard
Comfort 3300
Wireless
ENG
1
User’s Manual
Comfort 3300
Wireless
CONTENTS
1. SPECIAL FEATURES ...............................................................................
2. PACKAGE CONTENTS ..............................................................................
3. SYSTEM REQUIREMENTS .........................................................................
4. INSTALLATION ........................................................................................
5. CONNECTION ........................................................................................
6. TROUBLESHOOTING ...........................................................................
7. TECHNICAL SPECIFICATIONS ................................................................ ...
Congratulations on your purchase of the Sven Keyboard + Mouse Wireless Combo Set!
Please read this User’s Мanual before using the unit and retain this User’s Мanual in a safe place for
future reference.
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Мanual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Мanual more exact, some discrepancies may occur. The
information in this Мanual is given on ‘as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Мanual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
2
2
2
2
3
4
4
Technical support is on www.sven.fi.
ENG
2
Keyboard + Mouse
Wireless Combo Set

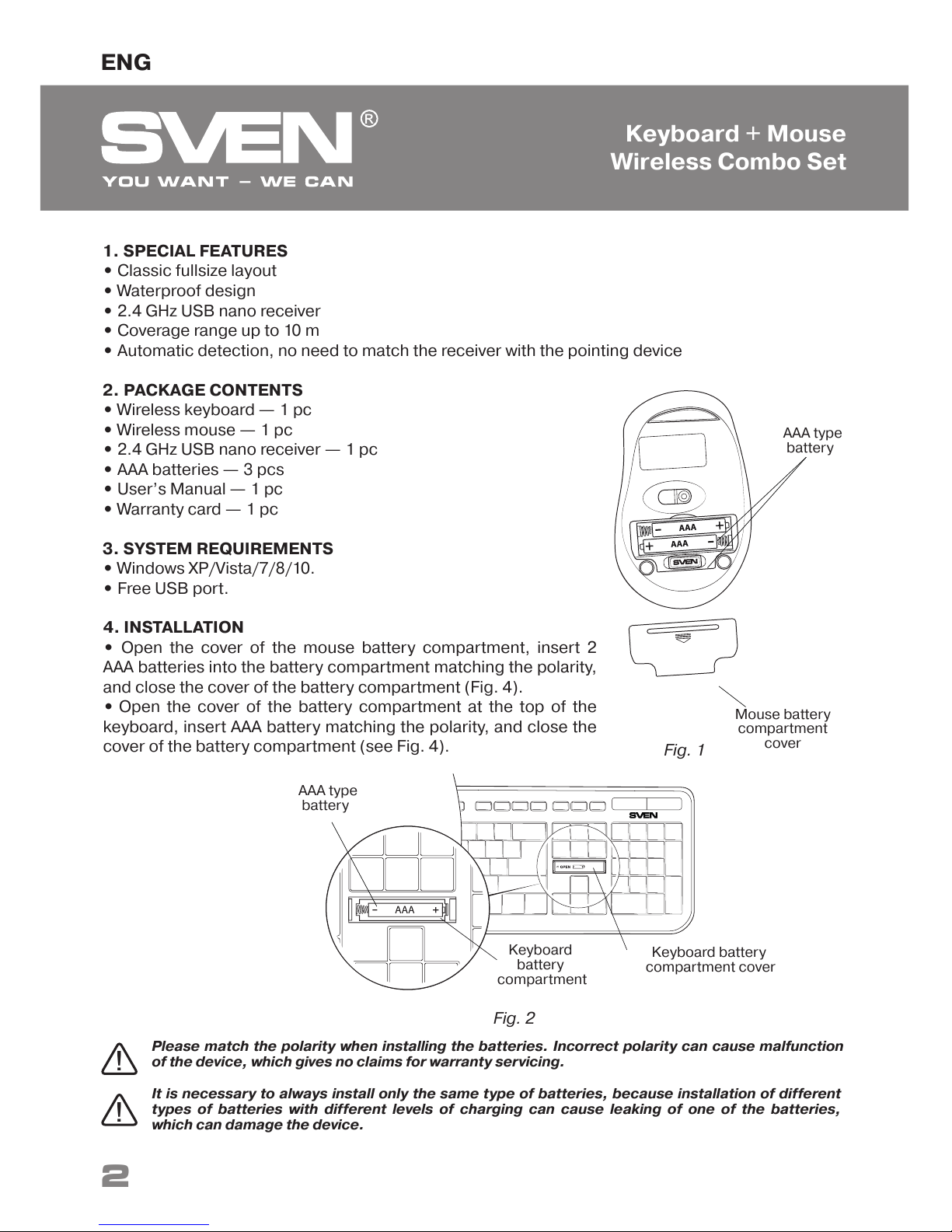

1. SPECIAL FEATURES
• Classic fullsize layout
• Waterproof design
• 2.4 GHz USB nano receiver
• Coverage range up to 10 m
• Automatic detection, no need to match the receiver with the pointing device
2. PACKAGE CONTENTS
• Wireless keyboard — 1 pc
• Wireless mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
• ААА batteries — 3 pcs
• User’s Manual — 1 pc
• Warranty card — 1 pc
3. SYSTEM REQUIREMENTS
• Windows XP/Vista/7/8/10.
• Free USB port.
4. INSTALLATION
• Open the cover of the mouse battery compartment, insert 2
AAA batteries into the battery compartment matching the polarity,
and close the cover of the battery compartment (Fig. 4).
• Open the cover of the battery compartment at the top of the
keyboard, insert AAА battery matching the polarity, and close the
cover of the battery compartment (see Fig. 4).
Please match the polarity when installing the batteries. Incorrect polarity can cause malfunction
of the device, which gives no claims for warranty servicing.
!
!
It is necessary to always install only the same type of batteries, because installation of different
types of batteries with different levels of charging can cause leaking of one of the batteries,
which can damage the device.
Keyboard
battery
compartment
Keyboard battery
compartment cover
ААА type
battery
Mouse battery
compartment
cover
ААА type
battery
Fig. 1
Fig. 2
ENG
3
Comfort 3300
Wireless
User’s Manual

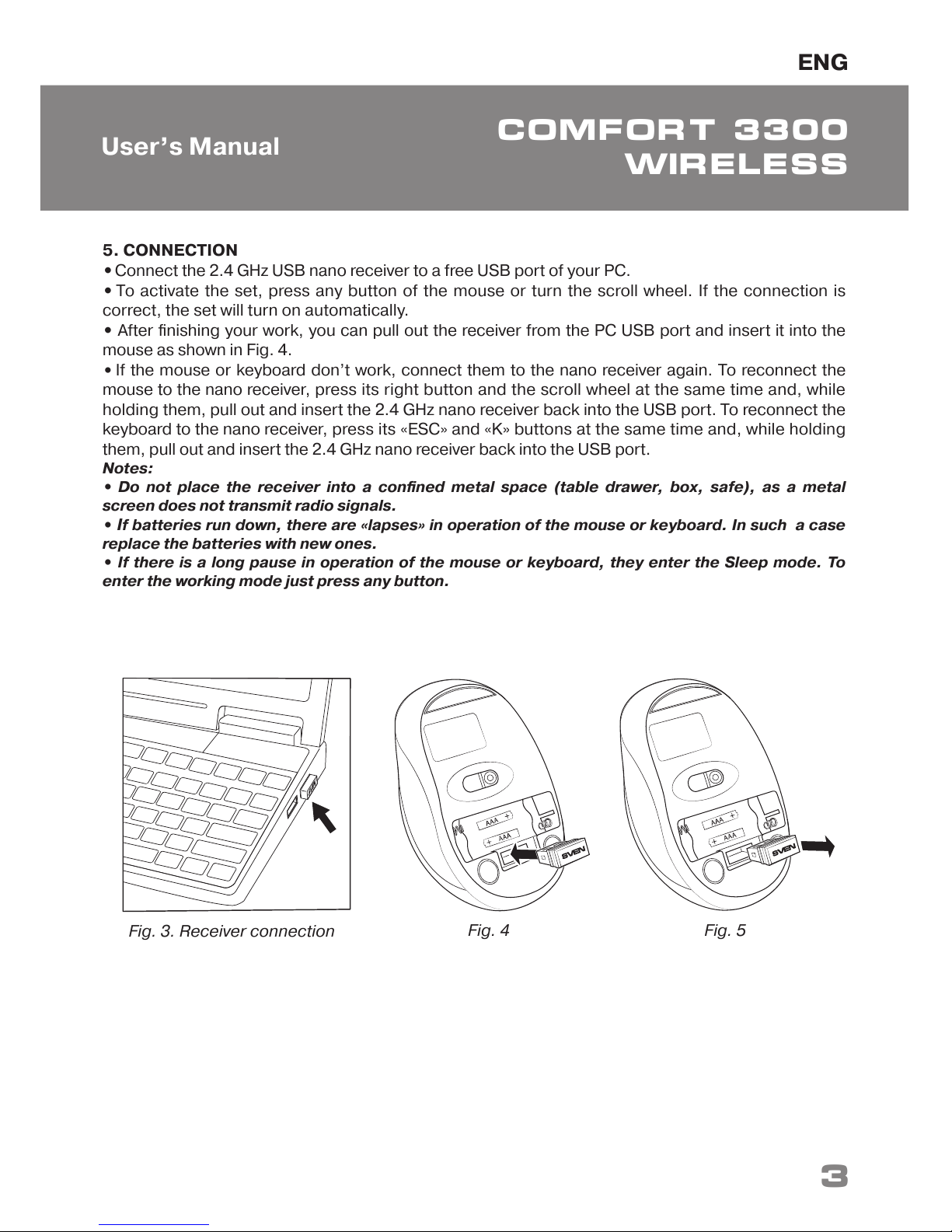

5. CONNECTION
• Connect the 2.4 GHz USB nano receiver to a free USB port of your PC.
• To activate the set, press any button of the mouse or turn the scroll wheel. If the connection is
correct, the set will turn on automatically.
• After finishing your work, you can pull out the receiver from the PC USB port and insert it into the
mouse as shown in Fig. 4.
• If the mouse or keyboard don’t work, connect them to the nano receiver again. To reconnect the
mouse to the nano receiver, press its right button and the scroll wheel at the same time and, while
holding them, pull out and insert the 2.4 GHz nano receiver back into the USB port. To reconnect the
keyboard to the nano receiver, press its «ESC» and «K» buttons at the same time and, while holding
them, pull out and insert the 2.4 GHz nano receiver back into the USB port.
Notes:
• Do not place the receiver into a confined metal space (table drawer, box, safe), as a metal
screen does not transmit radio signals.
• If batteries run down, there are «lapses» in operation of the mouse or keyboard. In such a case
replace the batteries with new ones.
• If there is a long pause in operation of the mouse or keyboard, they enter the Sleep mode. To
enter the working mode just press any button.
Fig. 4 Fig. 5
Fig. 3. Receiver connection
ENG
4
Keyboard + Mouse
Wireless Combo Set

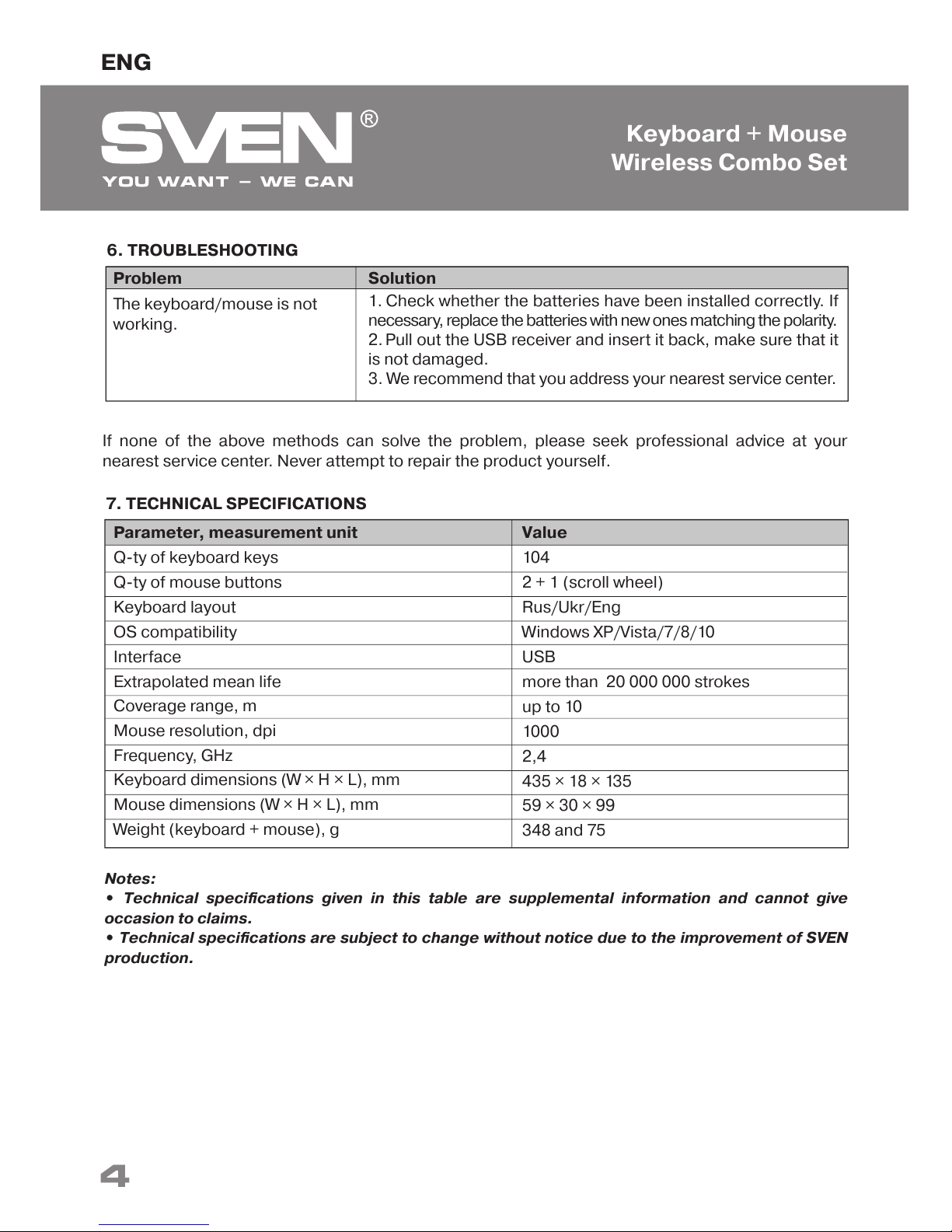

6. TROUBLESHOOTING
Problem
The keyboard/mouse is not
working.
Solution
1. Check whether the batteries have been installed correctly. If
necessary, replace the batteries with new ones matching the polarity.
2. Pull out the USB receiver and insert it back, make sure that it
is not damaged.
3. We recommend that you address your nearest service center.
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Value
104
2 + 1 (scroll wheel)
Rus/Ukr/Eng
Windows XP/Vista/7/8/10
USB
more than 20 000 000 strokes
up to 10
1000
2,4
435 × 18 × 135
59 × 30 × 99
348 and 75
Parameter, measurement unit
Q-ty of keyboard keys
Q-ty of mouse buttons
Keyboard layout
OS compatibility
Interface
Extrapolated mean life
Coverage range, m
Mouse resolution, dpi
Frequency, GHz
Keyboard dimensions (W × H × L), mm
Mouse dimensions (W × H × L), mm
Weight (keyboard + mouse), g
7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN
production.
2.0 Multimedia Speaker System
Automatic Voltage Regulator
Стабилизатор напряженияСтабилизатор напряжения
Automatic Voltage Regulator
2.0 Multimedia Speaker System 2.0 Multimedia Speaker System
SPS-619
Comfort 3300
Wireless

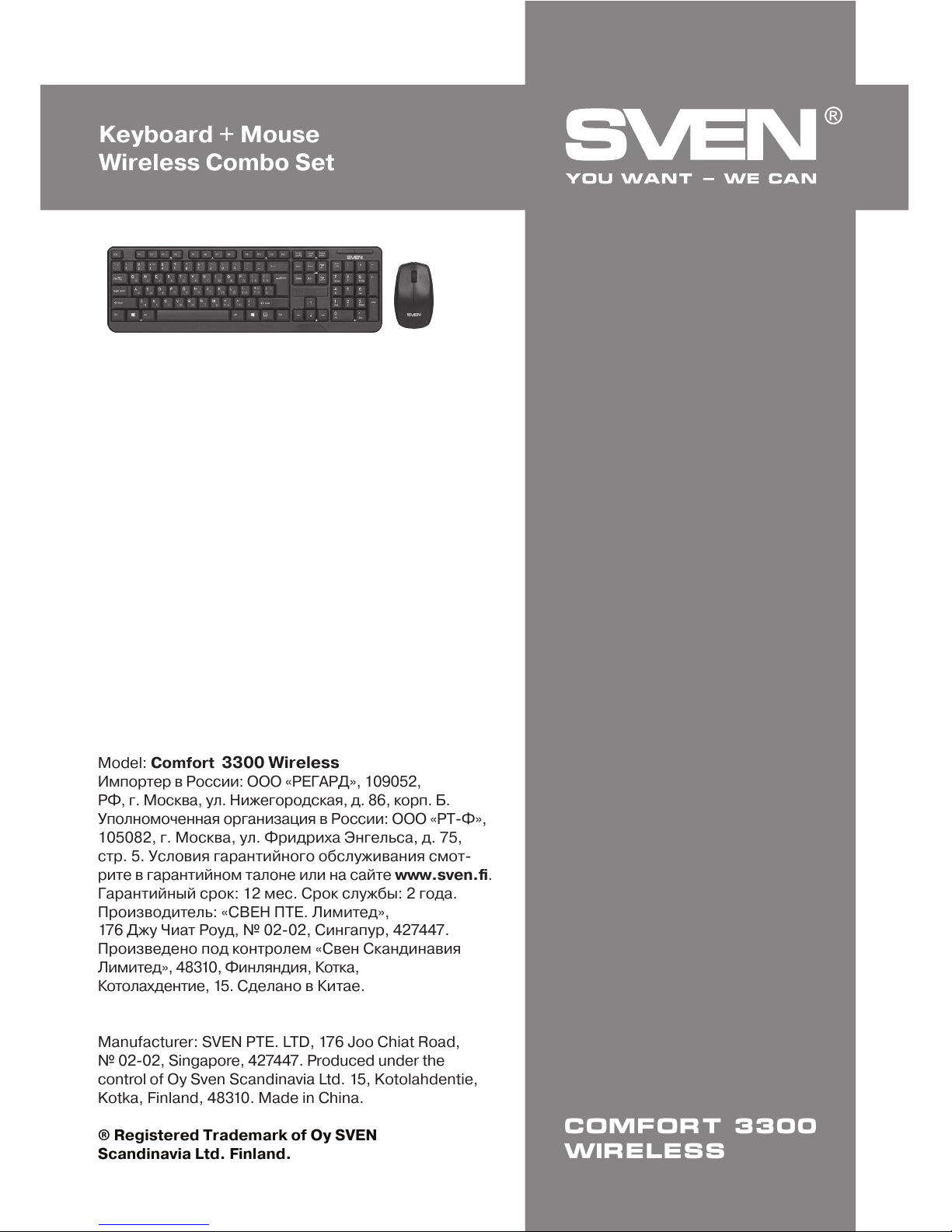

Мodel: Comfort 3300 Wireless
Импортер в России: OOO «РЕГАРД», 109052,
РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75,
стр. 5. Условия гарантийного обслуживания смот-
рите в гарантийном талоне или на сайте www.sven.fi
.
Гарантийный срок: 12 мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
