SVAT Electronics WSE300 User Manual

WSE300

WSE300

WIRELESS COLOUR CMOS OUTDOOR CAMERA with 2.5" LCD SCREEN

Caméra Sans Fil pour l'Extérieur et Moniteur avec Écran LCD de 2.5"

User's Manual

Manuel de l'utilisateur

*This product transmits its signal using public air waves.

The signal may be intercepted without your consent by a third party.

*Ce produit transmet son signal utilisant des vagues d'air publiques. Le signal

peut être intercepté sans votre consentement par un tiers.

www.svat.com

www.svat.com

IMPORTANT SAFETY PRECAUTIONS
PLEASE READ BEFORE INSTALLING

Congratulations on your purchase of the 2.4GHz Wireless Color LCD Monitoring System. Please
read these safety and operating instructions carefully before installing and using this system.

• Keep the camera, monitor and AC/DC adapter cords out of reach of children.

• Do not place the camera, monitor and AC/DC adapter cords in a crib or playpen.

• Do not use the camera near water or damp and wet environments, such as a bathtub,
laundry tub, kitchen sink, or wet basements.

• Locate the camera, monitor and AC/DC adapters where there is adequate ventilation.
Do not locate the camera in direct sunlight.

• Do not locate the camera, monitor and AC/DC adapters near heat sources such as heat
registers, radiators, ovens, furnaces or other appliances with high operating temperatures.

• Do not use with extension cords. Use only the AC/DC adapters provided with this system.
***Note: Use of other adapters may damage the units and void your warranty.

• Only plug components into standard household voltage outlets (110V- 240VAC, 50Hz or 60Hz).

• Do not place cords from the AC/DC adapters, camera or monitor where they can be
pinched or stepped on. Protect the cords by keeping them out of the way of children, pets
and routine household traffic. Do not place heavy objects on power cords or cover cords
with rugs or carpet.

• When cleaning, use a DRY, lint-free cloth. Unplug the camera, monitor and AC/DC adapters
before cleaning. NEVER immerse any components in water and do not spray cleaners or
solvents on the units. Doing so may damage the units or cause electrical shock.

• Unplug the AC/DC adapters from the wall outlet when the system is not in use.

• Mishandling, alterations or modifications not approved by the manufacturer will void
the warranty.

CAUTION!

• Connect this unit ONLY to other compatible units. Do not connect it to any other type of
alarm or auxiliary device. Connecting anything else to this unit may damage it or prevent it
from operating properly.

• Do not paint over the camera.

• This system uses public airwaves for wireless operation. The sound and video may be
broadcast to and picked up by other 2.4 GHz receiving devices. Conversations and images
from other rooms near the camera may be broadcast and picked up. To protect your
privacy, always turn the camera off when not in use.

IMPORTANT!

ACCESSORIES- Do not place video monitor or equipment on an unstable cart, stand or table.
The video monitor or equipment may fall causing serious injury to a child or adult, and serious
damage to the equipment. Wall or shelf mounting should follow the manufacturer's instruction,
and should use a mounting kit approved by the manufacturer.

• Video monitor equipment and cart combinations should be moved with care.

• Quick stops, excessive force, and uneven surfaces may cause the equipment and cart
combination to overturn.

VENTILATION- Slots and openings in the cabinet and the back or bottom are provided for

ventilation and to ensure reliable operation of the video monitor or equipment and to protect if
from overheating. These openings must not be blocked or covered. The openings should never
be blocked by placing the video monitor on a bed, sofa, rug, or other similar surface. Video
monitor or equipment receiver should never be placed near or over a radiator or heat register.
Video monitor or equipment receiver should not be placed in a built-in installation such as a
bookcase unless proper ventilation is provided.

www.svat.com

INCLUDED IN THIS SYSTEM:

• 1 Wireless camera

• 1 Monitor

• 1 Earphone

• 1 AV Cable

• 2 Adapters

• 2 Lithium Ion Batteries

• Battery & Battery Clip

PARTS OF THE SYSTEM

Volume Control

Power Switch

Video Output

Power Jack

Earphone Jack

Stand for Monitor

Mini LCD Display

Channel Indicator

Speaker

www.svat.com

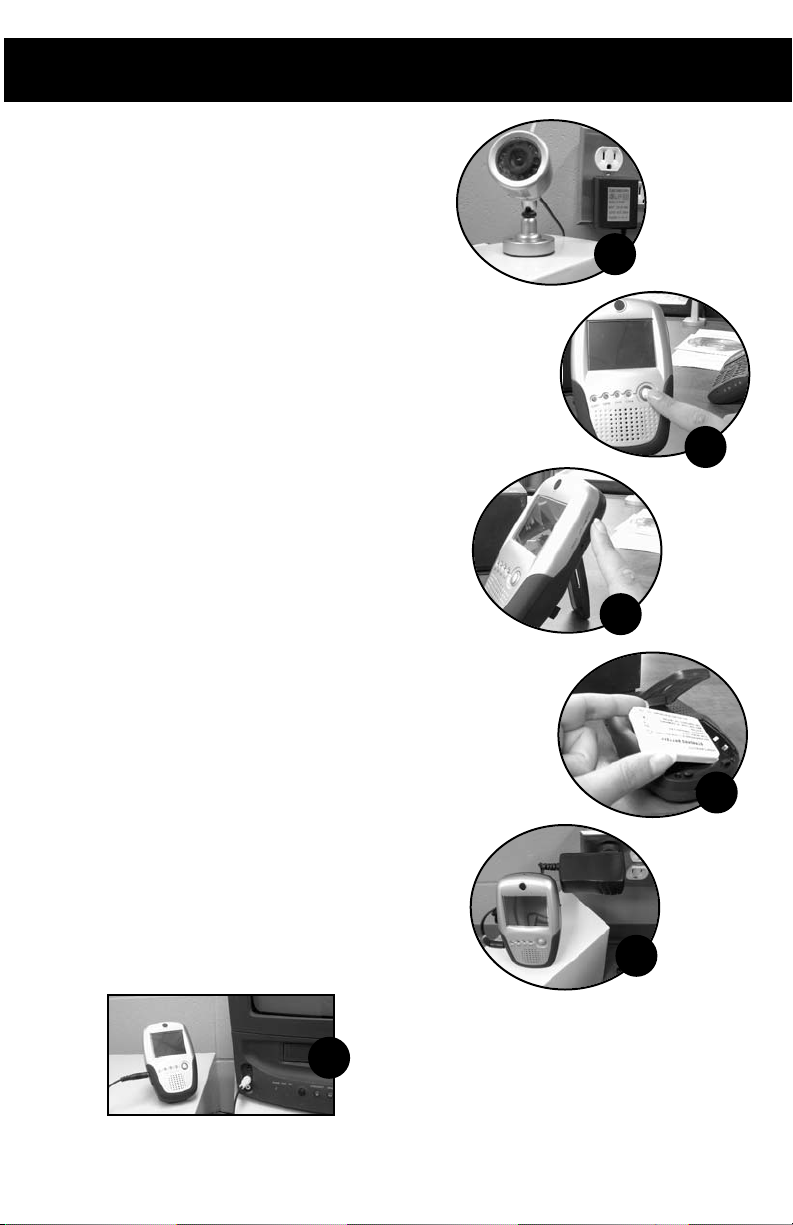

GENERAL SETUP

1. Connect the power jack of adapter

(DC 8V) to camera.

2. Turn on the monitor. Make sure that the

active channel on the monitor is the
same that is on the camera. Wait for
the LCD screen to display images.

3. Adjust the volume control to preferred

setting.

BATTERY INSTALL

4. The monitor should be turned off. Open

the battery compartment in the back of
the monitor. Install the rechargeable ion
lithium battery for portability purposes.

AC POWERED/RECHARGING

5. You can connect the adapter (DC +5V)

to power on receiver and charge up
the battery at the same time. The
indicator will light while charging and
turn off when the charging is complete.

MONITOR TO VIDEO FUNCTION

6. The monitor has one video output

which can be used to connect to a
VCR for recording. Connect the video
output wire to the output on the
monitor. Connect the yellow RCA end
of the wire to your VCR’s yellow input
connection.

NOTE: In order to view and record the images from the
WSE300, you must have the VCR on it’s input channel (not
channel 3). Other names for the input channel are line

1/2, AV channel, TV/Video channel and AUX channel.

1

2

3

4

5

6
