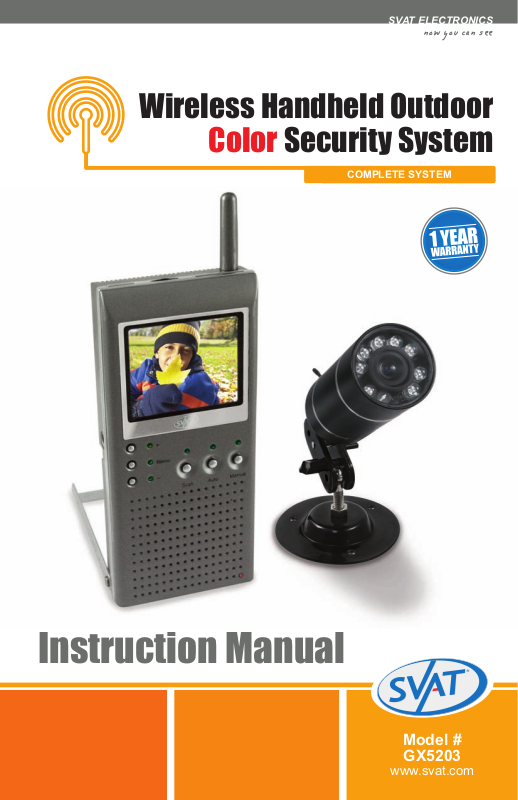

SVAT ELECTRONICS
now you can see
Wireless Handheld Outdoor
Color Security System
COMPLETE SYSTEM
Instruction Manual
Model #
GX5203
www.svat.com
SVAT ELECTRONICS
now you can see
GX5203 www.svat.com
SVAT ELECTRONICS
now you can see
PRODUCT W
PRODUCT W
ARRANTY
ARRANTY
& REGISTRA
& REGISTRA
TION
TION
Please visit our website at www.svat.com to apply for your
products warranty registration.
The warranty registration for is located under the support tab on the SVAT website.
We take quality very seriously. This is why all of our products come with a one year warranty from the
original purchase date against defects in workmanship and materials.
If you have warranty or support issues please contact us using any of the following methods:
SVAT Electronics USA SVAT Electronics Canada Phone: 866.946.7828
2315 Whirlpool St., Unit 333 4080 Montrose Road Fax: 888.771.1701
NIagara Falls, New York Niagara Falls, ON Email: support@svat.com
USA 14305 Canada L2H 1J9 Website: www.svat.com
Warranty Terms
1. SVAT products are guaranteed for a period of one year from the date of purchase against defects in
workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price
at SVAT's option.
2. When service is required, the warranty is validated by the submission of a fully completed warranty card.
3. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered
with contrary to the applicable instruction manual.
4. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this
warranty.
5. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself
and no other warranty, expressed or implied is provided. SVAT assumes no responsibilities for any other
claims not specifically mentioned in this warranty.
6. This warranty does not cover the shipping cost, insurance or any other incidental charges.
7. You MUST call SVAT before sending any product back for repair. You will be given a Return Authorization
number. When returning the product for warranty service, please pack it carefully in the original box with all
supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem
(include RA #).
8. This warranty is valid only in Canada and the U.S.A.
9. This warranty card cannot be re-issued.
CAUTION
RISK OF ELECTRIC SHOCK, DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Graphic Symbol Explanation:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE
GX5203 www.svat.com
SVAT ELECTRONICS
now you can see
ABLE OF CONTENTS
TTABLE OF CONTENTS
WHAT IS INCLUDED ............................................................1
WHAT IS COMPATIBLE........................................................1
FEATURES............................................................................2
THINGS TO CONSIDER ......................................................2
INSTALLING THE CAMERA ................................................3
INSTALLING THE MONITOR................................................3
AVOIDING INTERFERENCE ................................................4
ADVANCED FEATURES ......................................................4
OPERATING MODES ..........................................................5
CONNECTING TO A VCR ....................................................5
MONITOR FUNCTIONS........................................................6
TROUBLESHOOTING ..........................................................7
SPECIFICATIONS............................................................8 - 9
WHA
WHA
Portable Battery Clip
WHA
WHA
The GX5203 is compatible with TVs, VCRs, DVRs, computers and other SVAT systems including:
GX5203
T IS INCLUDED
T IS INCLUDED
1 LCD Monitor
T IS COMPAA
T IS COMP
WSE201C
1 Color Camera
3.5mm to RCA
(male) Wire
WSE103C
Mounting Bracket
2 Power Adapters
TIBLE
TIBLE
GX515
- Mounting Hardware
- 1 Year Warranty
- Instruction Manual
- Online/Toll Free Tech Support
GX517
Any TV or VCR
1
SVAT ELECTRONICS
now you can see
Congratulations on your purchase of the GX5203. The GX5203 consists of a
wireless LCD monitor/receiver and a wireless bullet-hole camera, and is an
ideal product for covert monitoring in your home or business.
FEA
TURES
FEA
TURES
• 2.4GHz wireless technology
• Bullet-hole color camera with night vision
• 2.5" TFT-LCD screen
• The LCD monitor has 3 modes: Scan, Auto, and Manual
• Adjustable brightness, color, contrast, alarm volume and audio volume
• Monitor can be connected to a VCR/DVR using the A/V output port
• Camera meets IP54 standard for outdoor use
• Expandable - supports up to 3 cameras
• Manual or auto switching between cameras
• Adjustable cycle time cameras
• Battery operable for portable monitoring
THINGS T
THINGS T
For best performance, follow these simple guidelines:
• Camera(s) should be installed between 8 and 13 feet above the area to
be monitored
• For best transmission, avoid installations where there are thick walls or major
obstructions between the camera and the LCD monitor.
• Ensure there are no obstructions in the camera's view, to maximize viewing area.
GX5203
O CONSIDER BEFORE INST
O CONSIDER BEFORE INST
ALLA
ALLA
TION
TION
2
SVAT ELECTRONICS
now you can see
INST
INST
1. Unpack the camera.
2. The camera's channel number can be set by unscrewing the lens part of camera to
3. Decide whether the camera will be wall-mounted or sit on a desk/table top. If wall
4. If using the 9V camera power adapter, just connect power jack. Make sure the
INST
INST
ALLING THE CAMERA
ALLING THE CAMERA
open the lens cover, and adjusting the dip switches.
mounting, use the mounting hardware in the package. The camera can be adjusted
for either mounting scenario by rotating the camera to the required position.
camera is positioned no more than 5 1/2 feet from an AC power outlet.
ALLING THE LCD MONIT
ALLING THE LCD MONIT
(TRANSMITTER)
(TRANSMITTER)
OR
OR
Main Operation
1. Plug the monitor's power supply into the power jack located inside the battery
compartment of the monitor. The monitor can also be operated using 4-AAA batteries.
Note: It is recommended that you use the provided AC adapter to power the monitor.
Batteries are recommended for portability and can last up to 200 minutes.
2. Turn on the monitor by pressing the power button on the top of the unit.
3. To connect the monitor to a VCR or DVR for recording purposes, use the 3.5mm to
RCA wire and connect the appropriate end to the A/V output port on the monitor, and
the other corresponding ends to the audio and video inputs of the VCR/DVR.
GX5203
3
SVAT ELECTRONICS
now you can see
Avoiding Interference
The 2.4 GHz video signals pass easily through your home's interior walls, but the signal
may be reflected by power wires or plumbing inside the wall. If reception is poor, moving
the camera or monitor may fix this problem. Houses with steel frames may experience
interference as well. Microwave ovens, cordless phones and wireless routers are the
most common sources of interference. Try to avoid mounting the monitor near these or
other sources of RF interference.
ADV
Multi-Camera Operation
The GX5203 is designed to work with up to 3 cameras. Additional cameras are sold
separately (indoor - WSE103C / outdoor - WSE201C).
*IMPORTANT
When using more than one camera, make sure you assign each camera a specific
channel (1-3). The channel switch is located on the front of the camera.
Accordingly the DIP switch located on the back of the monitor should be adjusted to
reflect the channel in use.
ANCED FEA
ADV
ANCED FEA
TURES
TURES
GX5203
4
SVAT ELECTRONICS
now you can see
OPERA
OPERA
The system can be set to operate in one of 3 modes: SCAN, AUTO or MANUAL. The
desired operating mode can be selected using the buttons on the front panel of the
monitor.
TING MODES
TING MODES
Scan
Pressing the SCAN button places the system in scan mode. The monitor's screen will go
blank (standby mode) while the system continuously scans active cameras. Press the
MANUAL or AUTO button to cancel this mode.
Auto
Pressing the AUTO button places the system into auto mode. In this mode, the system
automatically rotates through all active cameras. To avoid searching the channels that do
not have cameras/transmitters assigned to them, set those corresponding dip switches
(located on the back panel of the monitor) to the OFF position.
The dwell/cycle time (time taken to switch between cameras) is preset to four seconds
and can be adjusted between 2-30 seconds. To adjust the dwell/cycle time, hold down
both the AUTO and MANUAL buttons simultaneously. The monitor will chime for each
second it is adding to the dwell time. Release the buttons, and the LED light will flash for
each second that was added to the dwell time. Increasing the dwell/cycle time past 30
seconds will revert it back to 2 seconds.
Manual
To view a specific camera on the monitor, press the MANUAL button. The monitor will
switch to a different camera each time the MANUAL button is pressed. To avoid
searching the channels that do not have cameras assigned to them, set those
corresponding dip switches (located on the back panel of the monitor) to the OFF
position.
CONNECTING TO A VCR
You can connect a VCR to the system to allow recording of your camera footage. To
connect the receiver to a VCR for recording purposes, use the RCA adapter cable and
connect the appropriate ends to the A/V Out jack on the receiver, and the other
corresponding ends to the audio and video inputs of the VCR.
GX5203
5
SVAT ELECTRONICS
now you can see
MONIT
MONIT
OR FUNCTIONS
OR FUNCTIONS
Power
• Press to turn the monitor on/off
Alarm Volume
• The ALARM VOLUME of the monitor can be changed by adjusting the Alarm
Volume Tuner located on the top of the monitor.
Volume
• The sound level can be adjusted by pressing the + or - buttons on the front of
the monitor.
Menu
• Press the Menu button to get the following options:
• LED on, adjust brightness using + or -
• LED flashing, adjust color using + or -
• LED off, adjust contrast using + or -
GX5203
6
SVAT ELECTRONICS
now you can see
TROUBLESHOOTING
If you are having trouble operating this product, please consult the guide below.
Symptom Remedies
No camera Picture 1. Check all connections and AC adapters. Make
sure camera(s) and monitor are switched ON.
2. Ensure camera(s) and monitor are set to correct
channels.
3. Make sure camera is within range of the monitor.
Blank Monitor 1. Make sure the monitor is switched ON.
2. If using the AC adapter, make sure it is
plugged in.
3. Make sure the rechargeable battery is charged.
4. Make sure the camera's AAA batteries are
charged.
Interference on
Camera Picture
Audio problems 1. Ensure the volume is turned up sufficiently on
GX5203
1. Make sure each camera is within range, and that
no obstructions are blocking the signal.
2. Try repositioning the camera, monitor, or both to
improve the reception quality.
3. Reposition other nearby equipment transmitting
on the 2.4 GHz frequency.
the monitor.
2. Make sure the sound is within the microphone
range.
3. If the unit emits a loud wailing sound (feedback),
try moving the camera away from the monitor or
angle the Monitor differently.
7
SVAT ELECTRONICS
now you can see
SPECIFICA
SPECIFICA
TIONS
TIONS
INDOOR MONITOR
Number of Cameras Supported ....................3
Monitor Type ..................................................Color TFT-LCD
Screen Size....................................................2.5"
Wireless Frequency........................................2.4GHz
Channel Frequencies ....................................2.414, 2.432, 2.468
Number of Cameras Supported ....................3
Output Terminal ..............................................1CH RCA Out
Resolution ......................................................480 x 284 Pixels
Speaker..........................................................Yes
Motion Activated Alert ....................................Compatible
Audio Activated Alert ......................................Compatible
Auto-Scanning................................................Yes
Battery Operable ............................................Yes, 4 x AAA
Rechargeable Battery (optional - GX519B)
Self Charging..................................................No
Handheld........................................................Yes
Video On/Off Button ......................................No
Adjustable Contrast........................................Yes
Adjustable Brightness ....................................Yes
Adjustable Color ............................................Yes
Adjustable V-Hold ..........................................No
Operating Temperature ..................................14°F ~ 140°F
Operating Humidity ........................................85%
Housing Material ............................................ABS Plastic
Housing Color ................................................Graphite Grey
Monitor Power Input ......................................DC 9V 800mA
Power Adapter Input ......................................AC 120V 60Hz
Dimensions ....................................................7" x 2.75" x 1"
Weight ............................................................0.4lbs
GX5203
8
OUTDOOR CAMERA
Image Sensor ................................................1/4" CMOS Color
Outdoor Use ..................................................Yes
IP Rating ........................................................IP54
Maximum Wireless Range
Optimum Wireless Range (Line of Sight)............100ft
Wireless Frequency........................................2.4GHz
Wireless Channel Frequencies ......................2.414, 2.432, 2.468
Resolution ......................................................360 Horizontal TV Lines
Night Vision ....................................................Yes
Number of IR LEDs and Range ....................8, up to 10ft
IR LED Control ..............................................Auto, CDS Sensor
Min. Illumination ............................................0 lux
Battery Operable ............................................Yes, 9V
Viewing Angle ................................................69 Degrees
TV System......................................................NTSC
Focal Length ..................................................6.0mm
Focus Type ....................................................Fixed
Microphone ....................................................Yes
Motion Detection ............................................No
Audio Activation..............................................No
Sun Shield......................................................No
Housing Material ............................................Aluminum
Housing Color ................................................Midnight Black
Electronic Shutter Speed ..............................1/60 - 1/15,000 sec
Signal/Noise Ratio..........................................48dB
Power LED Indicator ......................................No
Camera Bracket ............................................Yes
Operating Temperature ..................................-4°F ~ 104°F
Operating Humidity ........................................85%
Camera Power Input ......................................DC 9V 300mA
Power Adapter Input ......................................AC 120V 60Hz
Dimensions ....................................................3.25" x 1.25" x 1.25"
Weight ............................................................0.2lbs
(Line of Sight) ..........300ft
SVAT ELECTRONICS
now you can see
GX5203
9
SVAT ELECTRONICS
now you can see
T SUPPORTS CRIME ST
SVSVAAT SUPPORTS CRIME ST
Crime Stoppers programs are operated as non-profit charities and are managed by a
volunteer board of directors who raise funds and pay rewards to individuals who
anonymously call with information that helps solve crime.
Rewards are paid for tips that lead to the arrest and indictment of people charged with
felony offenses, and to date Crime Stoppers statistics show a conviction rate of
approximately 95%.
To receive more information about Crime Stoppers or to make a charitable donation
please fill in the fields on the back of this page, cut on the dotted line and mail in.
HERE
PLACE
POSTAGE
OPPERS
OPPERS
P.O. Box 614
U.S.A 76004-0614
Arlington, Texas
CRIME STOPPERS INTERNATIONAL
GX5203 www.svat.com
SVAT ELECTRONICS
now you can see
T SUPPORTS CRIME ST
SVSVAAT SUPPORTS CRIME ST
OPPERS
OPPERS
To receive more information about Crime Stoppers or to make a charitable donation
please fill in the fields below, cut on the dotted line and mail in.
NAME:_____________________________________________ PHONE:_____________________________________
ADDRESS:_________________________________________ CITY:________________________________________
PROV/STATE:__________________ COUNTRY:_____________________ POSTAL/ZIP CODE:__________________
E-MAIL ADDRESS:_________________________________________________________________________________
Charitable donations can be made to “CSI” by returning this card in an envelope with your check or money order to
the address on the other side.
Crime Stoppers International is an organization of community based civilian Crime Stoppers
programs, which assist police in solving crime. You can find more information about
Crime Stoppers at www.c-s-i.org
Local Crime Stoppers programs are partnerships between the public, media and local policing
organizations. Each program is run by a citizen board, whose purpose is to advertise a local
telephone number, which anonymous persons can call with information regarding a crime. Callers
(tipsters) may be eligible for a cash reward for their information.
If your community does not have a Crime Stoppers program and would like information about
starting one, return this card with the following information.
CRIME STOPPERS INTERNATIONAL
THANK YOU
Amount $__________________
GX5203 www.svat.com
SVAT ELECTRONICS
now you can see
GX5203 www.svat.com
SVAT ELECTRONICS
now you can see
www
www
Disclaimer
SVAT does not endorse any of SVAT products for any illegal
activities. SVAT is not responsible or liable in any way
shape or form for any damage, vandalism, theft or any
other action that may occur while a SVAT product is in use
by the purchaser.
.svat.com
.svat.com
Model #
GX5203
www.svat.com
Loading...
