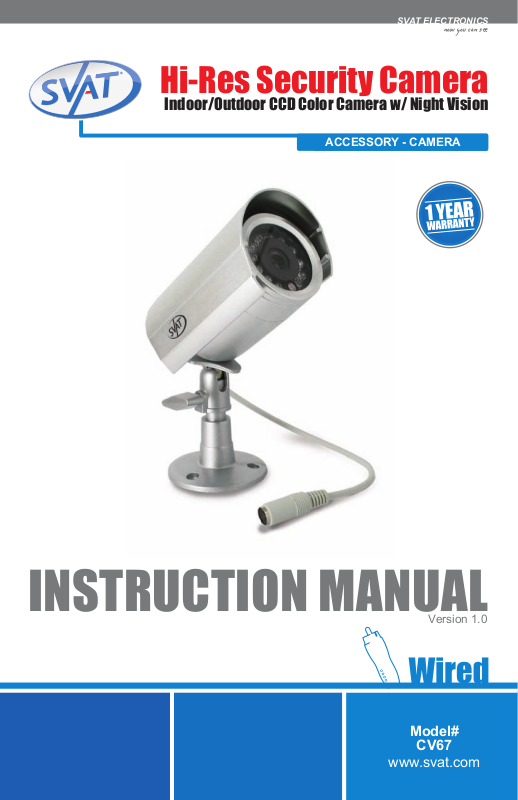

SVAT Electronics CV67 User Manual

SVAT ELECTRONICS

now you can see

Hi-Res Security Camera

Indoor/Outdoor CCD Color Camera w/ Night Vision

ACCESSORY - CAMERA

INSTRUCTION MANUAL

Version 1.0

Model#

CV67

www.svat.com

SVAT ELECTRONICS

!IMPORTANT! PLEASE READ!

now you can see

NEED
HELP?

DO NOT RETURN THIS

PRODUCT TO THE STORE

Please contact a SVAT customer support representative rst regarding any
additional information on product features, specications or help with set-up.

Please contact us via one of the methods below:

Email:

[e-mail]

Online live web chat:

Visit www.svat.com

Toll free telephone:

1.866.946.7828

Toll free fax:

1.888.771.1701

For more product information visit www.svat.com

Note: This is manual version 1.0 for this product, you may nd updated versions by visiting our website

2

SVAT ELECTRONICS

now you can see

PRODUCT WARRANTY & REGISTRATION

Please visit our website at www.svat.com to

apply for your product’s warranty registration.

The warranty registration form is located under the support tab on the SVAT website.

We take quality very seriously. This is why all of our products come with a one year warranty from
the original purchase date against defects in workmanship and materials.

If you have warranty or support issues please contact us using any of the following methods:

SVAT Electronics USA SVAT Electronics Canada Phone: [phone]
2315 Whirlpool St., Unit 333 4080 Montrose Road Fax: [phone]
Niagara Falls, New York Niagara Falls, ON Email: [e-mail]

USA 14305 Canada L2H 1J9 Website: www.svat.com

Warranty Terms

1. SVAT products are guaranteed for a period of one year from the date of purchase against defects in
workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price
at SVAT’s option.

2. When service is required, the warranty is validated by the submission of a fully completed warranty card.

3. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered
with contrary to the applicable instruction manual.

4. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of
this warranty.

5. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself
and no other warranty, expressed or implied is provided. SVAT assumes no responsibilities for any other
claims not specically mentioned in this warranty.

6. This warranty does not cover the shipping cost, insurance or any other incidental charges.

7. You MUST call SVAT before sending any product back for repair. You will be given a Return Authorization
number. When returning the product for warranty service, please pack it carefully in the original box with all
supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem
(include RA #).

8. This warranty is valid only in Canada and the U.S.A.

9. This warranty card cannot be re-issued.

CAUTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Graphic Symbol Explanation

CV67 www.svat.com

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of insinuated “dangerous voltage” within the product’s enclosure that
may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating maintenance (servicing) instructions in the literature accompanying the
appliance.

SVAT ELECTRONICS

now you can see

Table of Contents

1.WHAT IS INCLUDED ................................................................................................................... 1

2. CAMERA FEATURES AND FUNCTIONS .............................................................................................................1

3.INSTALLATION ............................................................................................................................2

4. MOUNTING ..................................................................................................................................2

5. STEP BY STEP ..............................................................................................................................2

6. TROUBLESHOOTING ................................................................................................................. 3

7. SPECIFICATIONS ........................................................................................................................4

NOTES ............................................................................................................................................... 5

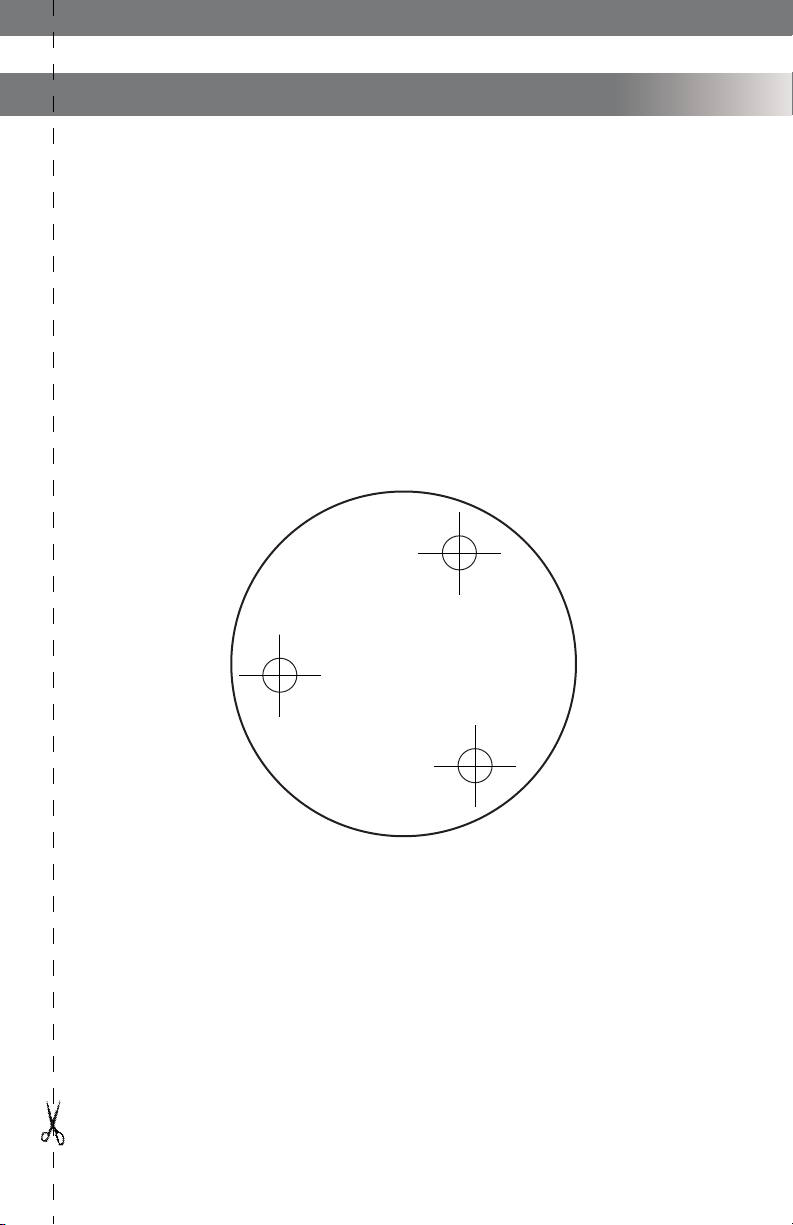

DRILLING TEMPLATE ...................................................................................................................6

1.WHAT IS INCLUDED

TABLE OF CONTENTS

• Power Adapter for Camera

• 1 Year Warranty

• Instruction Manual

• Online/Toll Free Support

• Mounting Hardware

1 Indoor/Outdoor

Night Vision CCD

Color Camera

2 Window

Warning Stickers

60ft 4 PIN DIN

to RCA (male)

Video/Power Wire

2. CAMERA FEATURES AND FUNCTIONS

CCD Cameras

1. Sun Shield helps prevent glare
from bright lights.

2. Infrared (IR) LEDs allows the
camera to see in the dark up to
15ft away.

3. CDS Sensor turns on the infrared
LEDs when it gets dark out.

4. Camera Housing made of anodized
aluminum to prevent rust.

5. Camera Mount allows the camera
to be desk or wall mountable.

6 . Connection to Video / Power Wire

Converts to RCA.

CV67 1

SVAT ELECTRONICS

IMPORTANT INFORMATION

While this camera is weatherproof, it is not waterproof. Please do not install it in
areas that receive direct rain or under eaves trough draining spots. Do not cut the
DC power cable of this camera to t with another power source. Do not cut the
video connection wire to t with a different video connection type. Any unauthorized
modications will void your warranty.

3.INSTALLATION

THINGS TO CONSIDER BEFORE YOU INSTALL YOUR CAMERA

• The camera should be installed between 8 and 13ft above the area to be monitored.

• Ensure there are no obstructions in the camera’s view, to maximize viewing area.

• Ensure that the sunshade is positioned to avoid glare and position camera away from direct
sunlight.

• Decide whether the camera will be wall-mounted or sit on a desk/table top. If wall
mounting, use the mounting hardware in the package. We recommend that the mounting
bracket is secured using the included screws for all installations.

• This camera comes with 60ft of video/power wire. Please make sure that you mount the
cameras no more than 60ft from the TV/monitor/VCR/DVR.

• We recommend using a surge protected power bar to protect the cameras

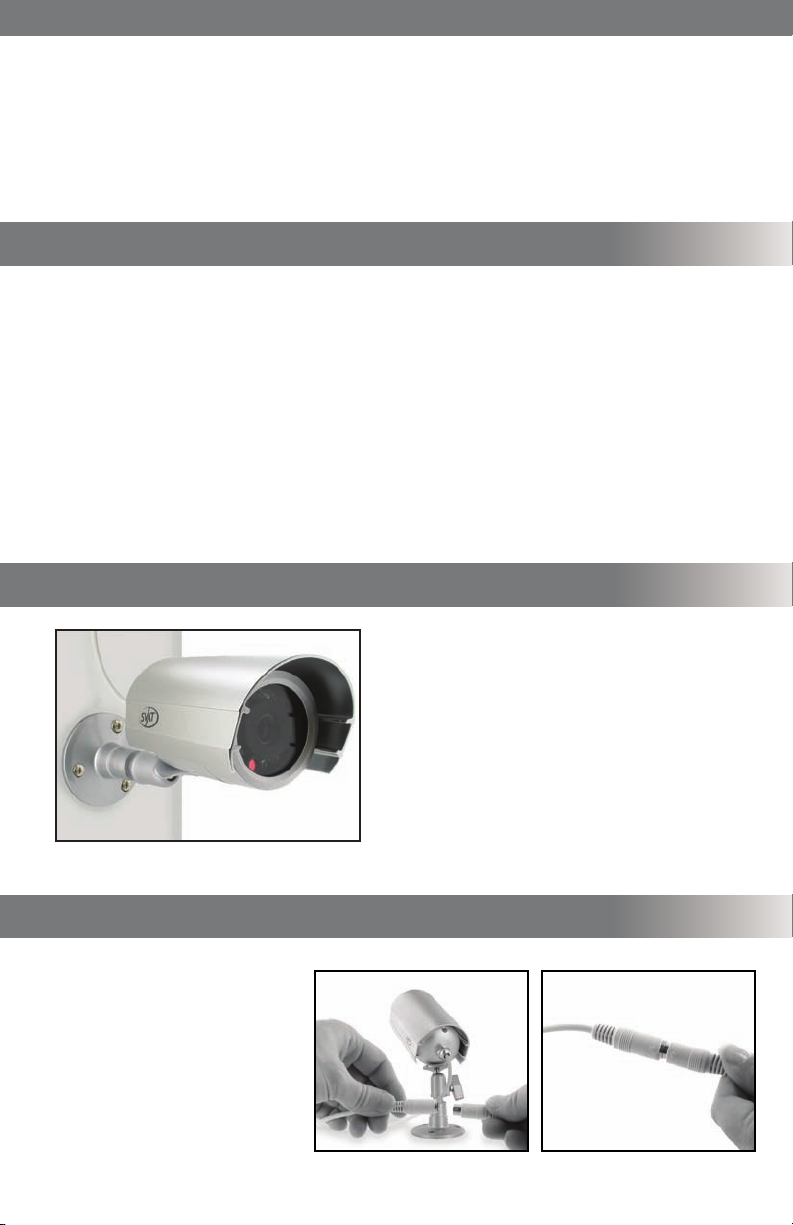

4. MOUNTING

now you can see

1. Screw the mounting bracket into the camera’s
mounting hole, turning it clockwise.

2. Mount the camera in the desired location no
more than 60 feet from the TV/Monitor/VCR/
DVR unless you have purchased additional
wiring. You may wall mount or desk mount
these cameras.

3. Adjust cameras to the desired viewing angles.

5. STEP BY STEP

1. Plug the 4 PIN DIN female
connection on the camera
into the 4 PIN DIN male
connection on the 60ft
video/power wire.

2. Match the two arrows on top
of both connecting cables.

CV67 2

1 2

SVAT ELECTRONICS

now you can see

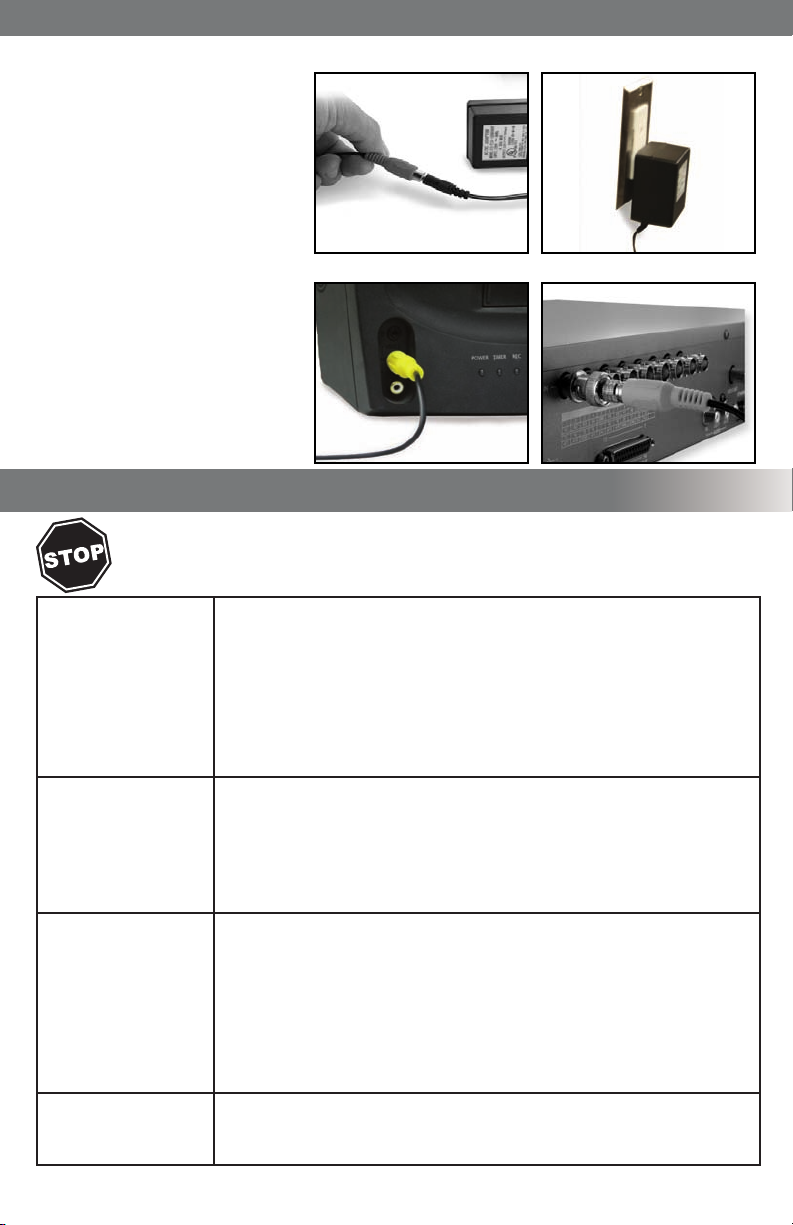

3. Plug the camera’s power supply
into the power jack located on
the 60ft video/power wire.

4. Plug the camera’s power adapter
into an AC outlet.

5. Connect the 60ft video/power
wire’s male RCA plug to the
VIDEO IN port of your TV/
monitor/VCR/DVR.

6. If your VIDEO IN port is a
BNC connection (common with
DVR units), you will need to
attach the BNC to RCA adapter
before connecting the camera.

3 4

5 6

6. TROUBLESHOOTING

Before contacting technical support, please use follow the troubleshooting tips below
for solutions to common problems

- Make sure your TV/monitor is on the correct video input
channel. This is NOT channel 3. Common terms for this channel
is INPUT, AV CHANNEL, LINE 1, LINE 2 and AUX. Please

No picture/signal:

Picture is too bright:

Picture is too dark:

Night Vision is

not working:

CV67 3

use your TV or VCR manual to correctly identify this channel.

- If your camera is connected to a VCR/DVR, make sure that it is
properly connected to your TV/monitor.

- Check all connections to make sure they are secure and properly connected.

- Check your power supply to ensure that the camera is powered up.

- Make sure your camera is not aimed at direct sunlight.

- Adjust the sunshade by sliding it forwards to block out excess light.

- Make sure nothing is obstructing the CDS sensor on the camera.
If the CDS sensor is blocked, night vision mode will be active
and may produce extra light in your camera’s picture.

- Move your camera to another location.

- If using at night, make sure your camera’s subject is no more than
15ft away (may vary based on amount of ambient light available).

- If using during the day, your camera may not be getting enough light.
Adjust the sunshade by sliding it backwards to let in more light.

- Check the brightness and contrast settings on your TV/monitor

- If your camera is connected to a VCR/DVR, check the
brightness and contrast settings on the VCR/DVR

- Move your camera to another location.

- The night vision turns on automatically when light levels drop.
Try the camera in a pitch black setting. The area that it is in may
have too much light and may not activate the sensor.

SVAT ELECTRONICS

7. SPECIFICATIONS

OUTDOOR CAMERA

Camera Type ............................................................................................................... Bullet

Image Sensor .....................................................................................1/4" Color Sharp CCD

Resolution ....................................................................................................... 420 TV Lines

Outdoor Use .................................................................................................................... Yes

IP Rating ........................................................................................................................IP65

Focal Length ..............................................................................................................3.6mm

Focus Type ................................................................................................................... Fixed

Night Vision .................................................................................................................... Yes

Number of IR LEDs and Range .......................................................................12, up to 15ft

IR LED Control ............................................................................. Automatic (CDS Sensor)

Min. Illumination .......................................................................................................... 0 lux

IR Wavelength ............................................................................................................850nm

Video Output ..................................... 4 PIN DIN (60ft 4 PIN DIN to RCA (male) Video/Power Wire Included)

TV System...................................................................................................................NTSC

Microphone ...................................................................................................................... No

Motion Detection ............................................................................................................. No

Viewing Angle ....................................................................................................60 Degrees

Electronic Shutter ..................................................................................1/60 ~ 1/100000 sec

BLC .................................................................................................................................. No

AGC ..................................................................................................................... Automatic

ELC ...................................................................................................................... Automatic

Line Lock ......................................................................................................................... No

Iris Control ....................................................................................................................... No

White Balance ...................................................................................................... Automatic

Sun Shield ....................................................................................................................... Yes

IR Cut Filter ..................................................................................................................... No

Housing Material ................................................................................ Anodized Aluminum

Housing Color .............................................................................................. Platinum Silver

Signal/Noise Ratio ..................................................................................................... >48dB

Camera Bracket ............................................................................................................... Yes

Operating Temperature ..................................................................................-14°F ~ 122°F

Operating Humidity .......................................................................................................98%

Camera Power Input ...................................................................................DC 12V 300mA

Power Adapter Input ...........................................................................................120V 60Hz

LED Power Indicator ....................................................................................................... No

Dimensions ............................................................................... 5.5"x5"x.2.44" (with stand)

Weight ................................................................................................... 0.85lbs (with stand)

now you can see

CV67 4

NOTES

NOTES

SVAT ELECTRONICS

now you can see

Customer Information Card

User’s Name:

Company Name:

Address:

Postal Code:

Phone Number:

Email:

Model Number of Product:

Serial Number of Product:

Purchase Date:

Place of Purchase:

NOTE: We recommend that you keep a record of your purchase receipt with your manual for any
future returns or support issues.

CV67

5

SVAT ELECTRONICS

now you can see

DRILLING TEMPLATE

To wall mount the camera, drill three holes using a 3/16" drill bit and the template below.
Insert supplied wall anchors into holes and secure camera to wall with supplied screws.

CV67

DRILL HOLES IN

THESE POSITIONS

SVAT ELECTRONICS

now you can see

SVAT SUPPORTS CRIME STOPPERS

Crime Stoppers programs are operated as non-prot charities and are managed by a volunteer board

of directors who raise funds and pay rewards to individuals who anonymously call with information that
helps solve crime.
Rewards are paid for tips that lead to the arrest and indictment of people charged with felony offenses,
and to date Crime Stoppers statistics show a conviction rate of approximately 95%.

To receive more information about Crime Stoppers or to make a charitable donation please ll in the
elds on the back of this page, cut on the dotted line and mail in.

HERE

PLACE

POSTAGE

CRIME STOPPERS INTERNATIONAL

P.O. Box 614

Arlington, Texas

U.S.A. 76004-0614

CV67 www.svat.com

SVAT ELECTRONICS

now you can see

SVAT SUPPORTS CRIME STOPPERS

To receive more information about Crime Stoppers or to make a charitable donation

please ll in the elds below, cut on the dotted line an mail in.

CRIME STOPPERS INTERNATIONAL

Crime Stoppers International is an organization of community based civilian Crime Stoppers

programs, which assist police in solving crime. You can nd more information about Crime Stoppers

at www.c-s-i.org.

Local Crime Stoppers programs are partnerships between the public, media and local policing

organizations. Each program is run by a citizen board, whose purpose is to advertise a local telephone

number, which anonymous persons can call with information regarding a crime. Callers (tipsters)

may be eligible for a cash reward for their information.

If your community does not have a Crime Stoppers program and would like information about starting

one, return this card with the following information.

NAME:

ADDRESS: _________________________________CITY: _______________________________

PROV/STATE: _____________ COUNTRY: _____________ POSTAL/ZIP CODE: ____________

E-MAIL ADDRESS: _______________________________________________________________

Charitable donations can be made to “CSI” by returning this card in an envelope with your check or

money order to the address on the other side.

Amount $

THANK YOU

_____________________________________PHONE: ____________________________

CV67 www.svat.com

SVAT ELECTRONICS

VISIT US ON THE WEB!

now you can see

► Product Information

► User Manuals

► Quick Start Guides

► Specication Sheets

► Software Updates

► Firmware Upgrades

www.svat.com

Disclaimer

SVAT does not endorse any of SVAT products for any illegal activities.
SVAT is not responsible or liable in any way shape or form for any
damage, vandalism, theft or any other action that may occur while a
SVAT product is in use by the purchaser.

Model#

CV67

www.svat.com
