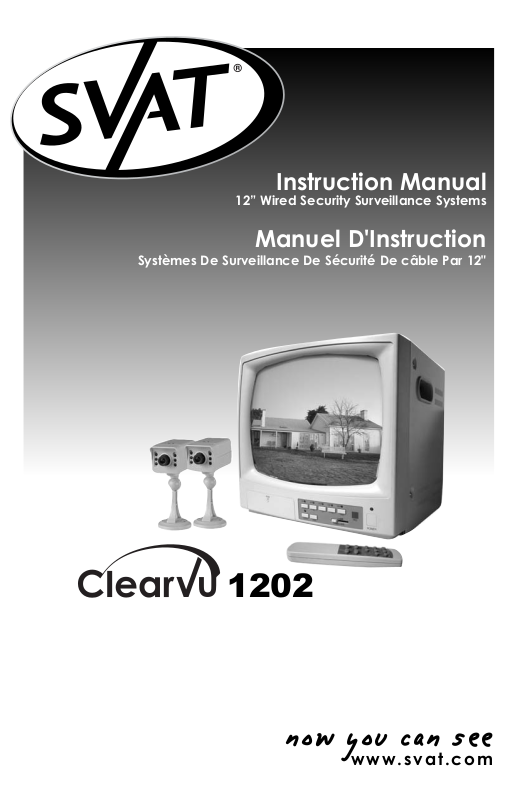

SVAT Electronics 1202 User Manual
12” Wired Security Surveillance Systems
Instruction Manual
www.svat.com
now you can see
Systèmes De Surveillance De Sécurité De câble Par 12"
Manuel D'Instruction
1202
www.svat.com
TABLE OF CONTENTS
ENGLISH PAGE #
Table Of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction / Whats Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation / How To Operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting / Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
FRANÇAIS PAGE #
Introduction / Ce qui Est Inclus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caractéristiques du produit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation/Comment Fonctionner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Dépannage/Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
www.svat.com
INTRODUCTION
Congratulations on your purchase of SVAT’s ClearVu 1202. You will soon
find out that this product has many applications, some that we may not
even have mentioned. The following instruction manual will go over your
products, its features, and how to install it. Please read over all of the
instructions and maintenance information so you can extend the life of
this great product.
For more information on your wired security system and on any other
SVAT product, visit www.svat.com.
Please note that SVAT does not endorse any applications of this unit for any illegal activities.
What's included:
The following components should be included with your system. Please
check that you have them all before begining installation:
A: 2x B/W CCD Cameras with 6 Infrared LEDs
B: 12" 4 Channel Monitor
C: Remote Control
(batteries not included)
D: 18V DC 2400mA Power Adapter
E: 2x 60' DIN(Audio/Video) Cable
F: 4x BNC to RCA Connectors
Not Shown: Warning Stickers, Warranty Registration, Crime Stoppers insert,
Mounting Harware and Manual
A
BC
D
EF
3
*Actual Product May Not Be Exactly As Shown
www.svat.com
Product Features (see diagrams below)
The camera uses a 4 pin DIN connection in the back. This connection, using one plug, contains the power, audio and video
for the camera. The power for the camera is being received
from the monitor.
Camera is equipped with 6 infrared LEDS which let you view
the action in near total darkness. The camera can be mounted
in virually any position using the supplied bracket, even on ceilings (simply unscrew the bracket from the bottom of the camera and screw it in to the top)
1. Headhone jack
2. 50/60 Hz system switch
3. V-Hold adjustment knob
4. Brightness control knob
5. Contrast adjustment knob
6. AUTO switch
7. TIME switch
8. VOLUME adjustment switch
9. C1 button + Auto Timer Light 2 sec
10. C2 button + Auto Timer Light 5 sec
11. C3 button + Auto Timer Light 10 sec
12. C4 button + Auto Timer Light 15 sec
13. TALK button +Auto Timer Light 20 sec
14. REC (Remote Control Sensor)
15. POWER button
16. Power Button Light
1
23 4 5 6
7
8
9
10 11 1213
14
15
16
MONITOR FRONT VIEW
MONITOR BACK VIEW
17. 18V DC 2400mA Power Input Jack
18. CH1-4 (Video/Audio Input DIN Connector)
19. VIDEO1-4 (Video Input RCA or BNC Connector)
20. VIDEO OUT (BNC Connector)
21. AUDIO OUT (BNC Connector)
POWER: Turns monitor on/off
AUTO: switches system to auto mode
TALK: dissabled
2S: Auto Switching Timer - 2 sec
5S: Auto Switching Timer - 5 sec
10S: Auto Switching Timer - 10 sec
15S: Auto Switching Timer - 15 sec
20S: Auto Switching Timer - 20 sec
C1 - C4: Switches between Cameras
19
20
2117 18
REMOTE CONTROL
4
(FIG-1)
(FIG-2)
