SVAT GX5201 Instruction Manual

SVAT ELECTRONICS

Now You Can See

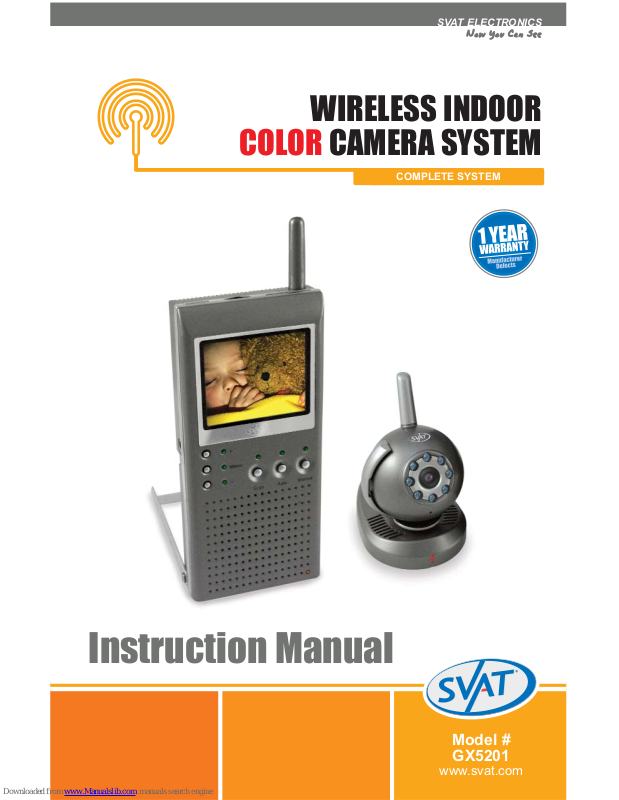

WIRELESS INDOOR

COLOR CAMERA SYSTEM

COMPLETE SYSTEM

Instruction Manual

Model #
GX5201

www.svat.com

Graphic Symbol Explanation:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating maintenance (servicing) instructions in the literature
accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE

GX5201

www.svat.com

SVAT ELECTRONICS

Now You Can See

PRODUCT WARRANTY & REGISTRATION

Please visit our website at www.svat.com to apply for your

products warranty registration.

The warranty registration for is located under the support tab on the SVAT website.

We take quality very seriously. This is why all of our products come with a one year warranty from the
original purchase date against defects in workmanship and materials.

If you have warranty or support issues please contact us using any of the following methods:

SVAT Electronics USA SVAT Electronics Canada Phone: [phone]
2315 Whirlpool St., Unit 333 4080 Montrose Road Fax: [phone]
NIagara Falls, New York Niagara Falls, ON Email: [e-mail]
USA 14305 Canada L2H 1J9 Website: www.svat.com

Warranty Terms

1. SVAT products are guaranteed for a period of one year from the date of purchase against defects in
workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price
at SVAT's option.

2. When service is required, the warranty is validated by the submission of a fully completed warranty card.

3. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered
with contrary to the applicable instruction manual.

4. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this
warranty.

5. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself
and no other warranty, expressed or implied is provided. SVAT assumes no responsibilities for any other
claims not specifically mentioned in this warranty.

6. This warranty does not cover the shipping cost, insurance or any other incidental charges.

7. You MUST call SVAT before sending any product back for repair. You will be given a Return Authorization
number. When returning the product for warranty service, please pack it carefully in the original box with all
supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem
(include RA #).

8. This warranty is valid only in Canada and the U.S.A.

9. This warranty card cannot be re-issued.

CAUTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

GX5201

1

SVAT ELECTRONICS

Now You Can See

TABLE OF CONTENTS

WHAT IS INCLUDED ............................................................1

WHAT IS COMPATIBLE ........................................................1

FEATURES............................................................................2

THINGS TO CONSIDER ......................................................2

INSTALLING THE CAMERA ................................................2

INSTALLING THE MONITOR................................................3

ADVANCED FEATURES..................................................3 - 5

MONITOR FUNCTIONS........................................................5

TROUBLESHOOTING ..........................................................6

SPECIFICATIONS ................................................................7

DRILLING TEMPLATE ..........................................................8

GX515B ACCESSORY..........................................................9

WHAT IS INCLUDED

WHAT IS COMPATIBLE

The GX5201 is compatible with TVs, VCRs, DVRs, computers and other SVAT systems including:

- 2 Window Warning Stickers

- Mounting Hardware

- 1 Year Warranty

- Instruction Manual

- Online/Toll Free Tech Support

1 Monitor

1 Camera

WSE201

WSE103

GX515

GX522

ClearVu DVRs

Any TV or VCRs

1 RCA Wire

2 Power Adapters

GX5201

2

SVAT ELECTRONICS

Now You Can See

FEATURES

- 2.4 GHz wireless technology

- Plug & Play installation

- 2.5 inch TFT-LCD screen

- Adjustable brightness, color, contrast, alarm volume and audio volume

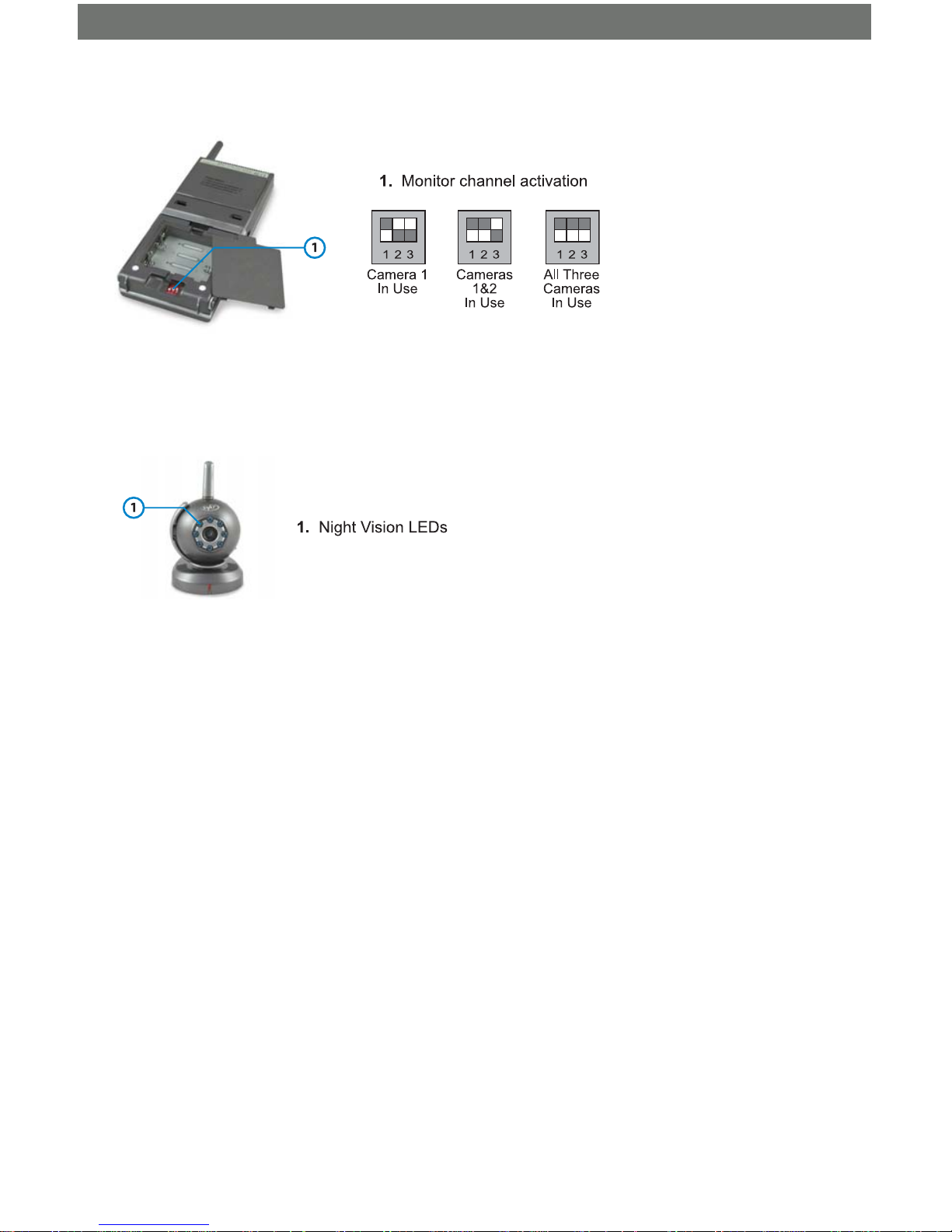

- The system supports up to 3 cameras

- IR Night vision allows you to see in the dark up to 10ft away

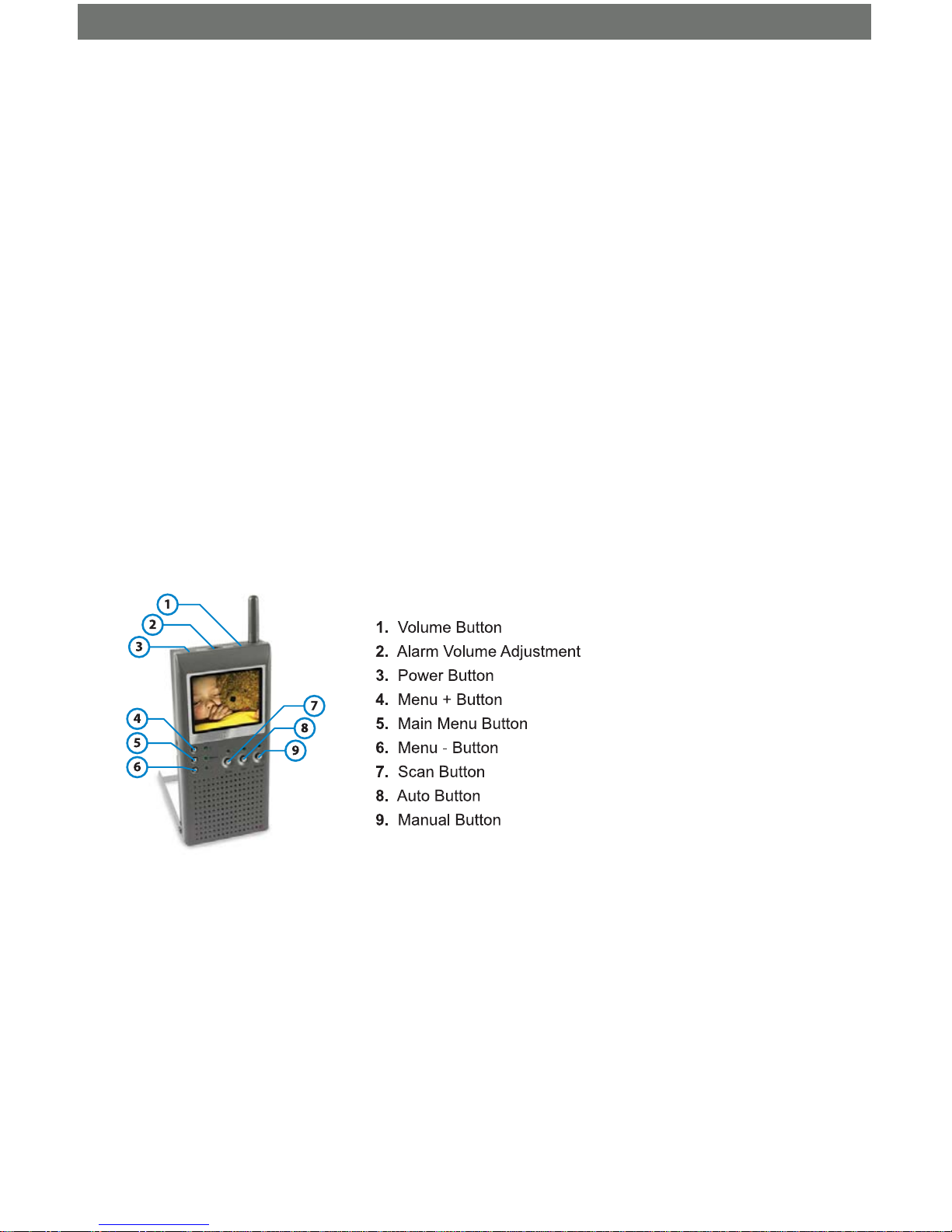

- The LCD monitor has 3 modes: Scan, Auto, and Manual

- Monitor can be connected to a VCR/DVR using the A/V output port

- Color camera with sound activated alarm

- Adjustable delay/cycle time between cameras in Auto mode

- Both LCD monitor and camera can be wall or desk mounted

THINGS TO CONSIDER BEFORE INSTALLATION

For optimal performance, follow these simple guidelines:

- For best transmission, ensure there are no thick walls or major obstructions
between the camera and LCD monitor.

- Ensure there are no obstructions in the camera's view, to maximize viewing
area. Examples: plants, toys, etc.

INSTALLING THE CAMERA

1. Unpack the camera

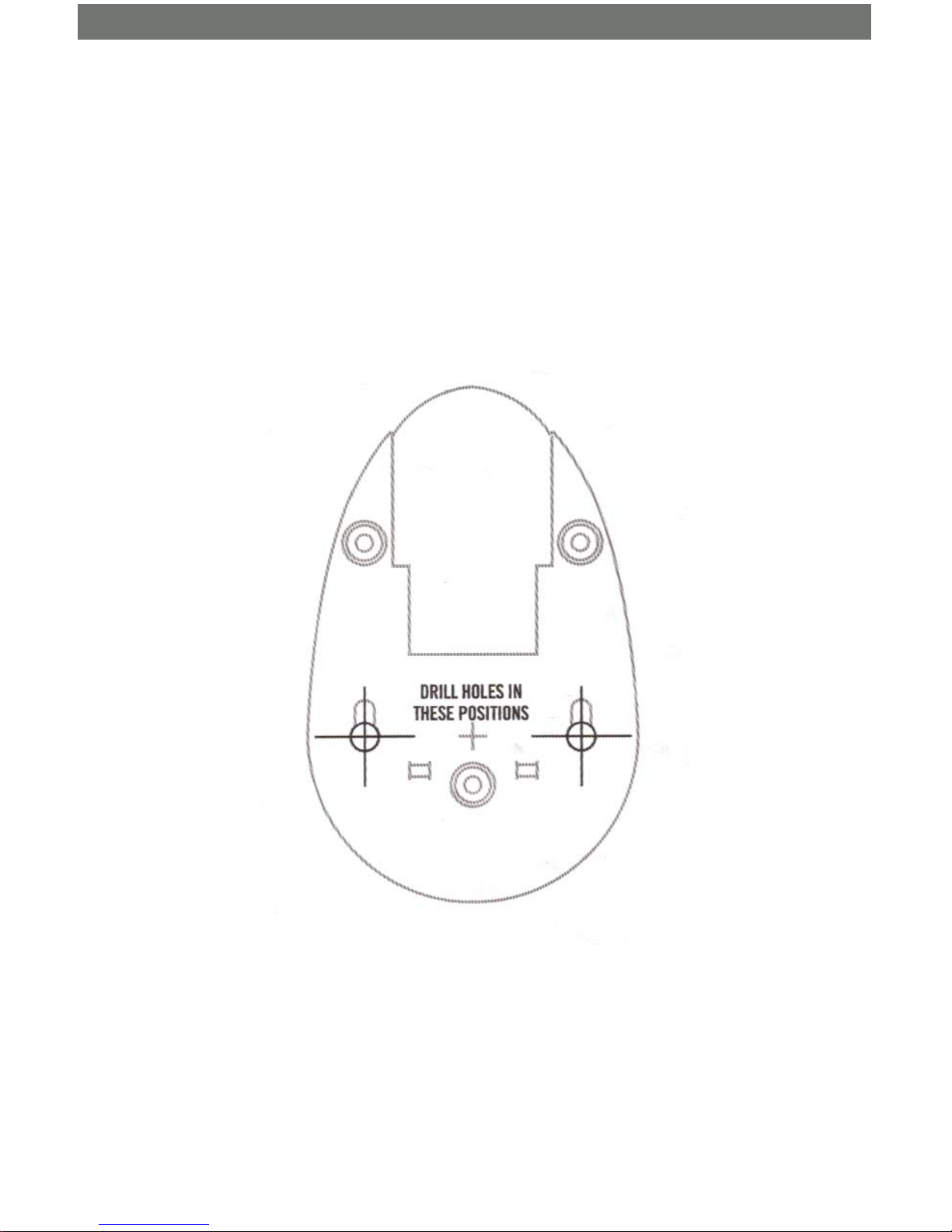

2. Decide whether you want to wall mount or desk mount the camera. If you are wall

mounting, there is a useful hole drilling guide included in the package. If wall

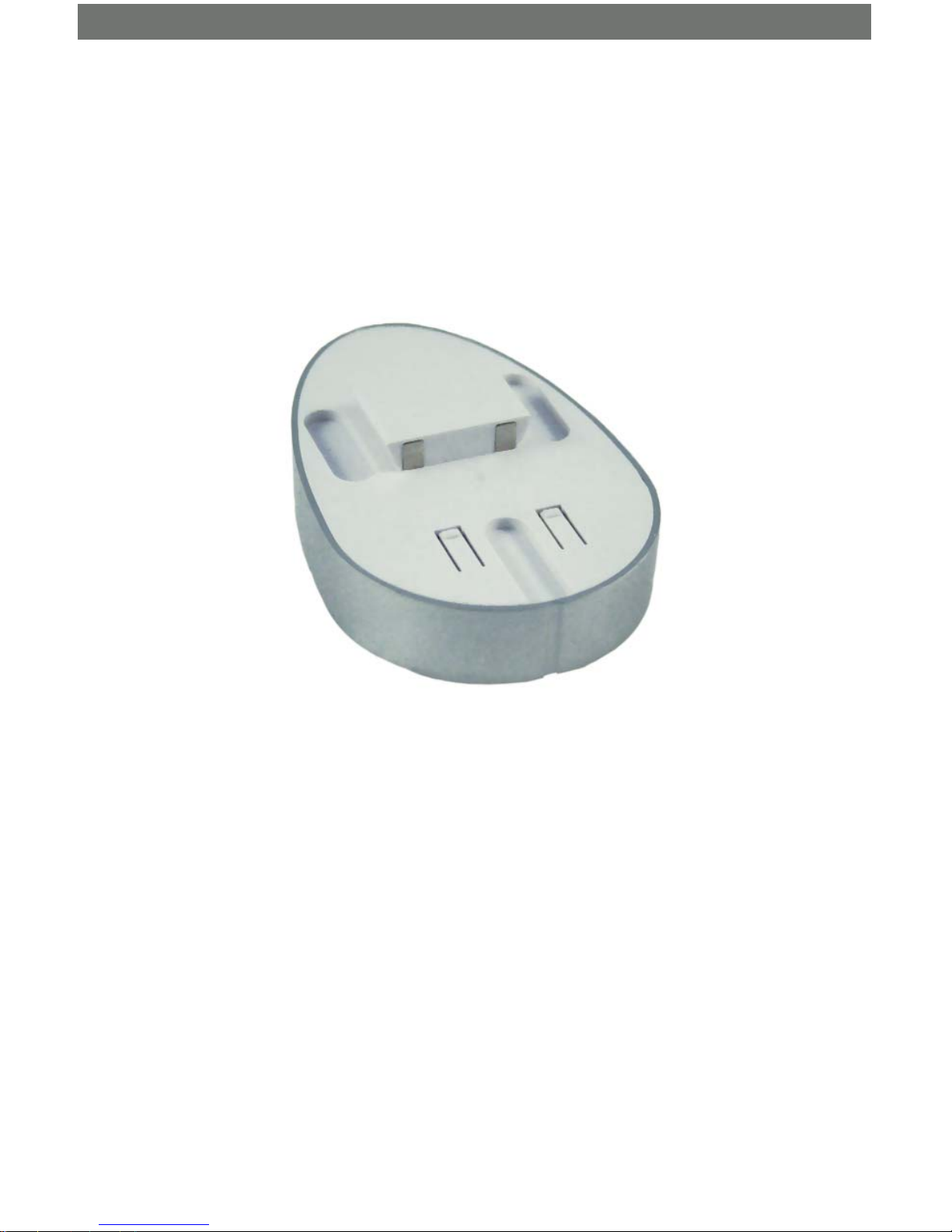

mounting, the battery pack should not be used [battery pack sold separately(GX5I5B)].

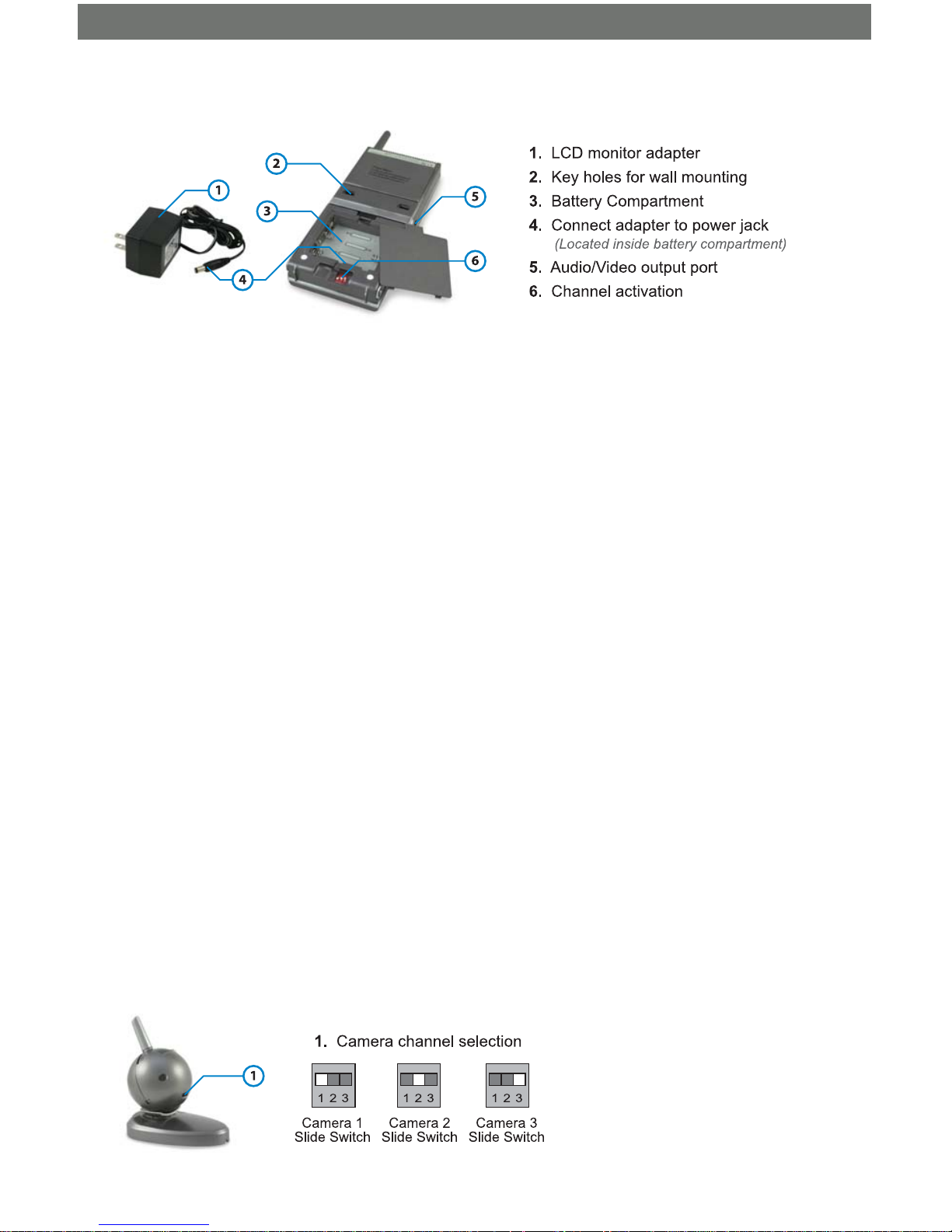

3. If you are using the 9V camera power adapter, connect the power jack to the input on
the base of the camera.

4. You can adjust the sensitivity for the sound alert feature by adjusting the sound trigger
dial found beside the camera's antenna (explained further in Advanced Features)

5. The camera installation is now complete.
