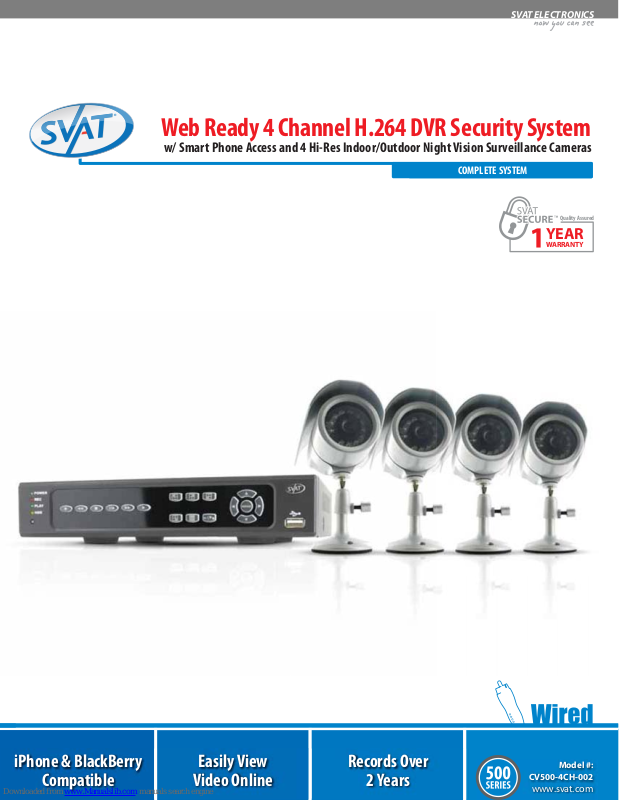

Web Ready 4 Channel H.264 DVR Security System
w/ Smart Phone Access and 4 Hi-Res Indoor/Outdoor Night Vision Surveillance Cameras
COMPLETE SYSTEM
Quality Assured
YEAR
WARRANTY
Records up to
iPhone & BlackBerry
480 Days (320GB)
Compatible
Easily View
Video Online
View
Online
Motion Activated
Records Over
Recording
2 Years
Model #
CLEARVU11
www.svat.com
Model #:
CV500-4CH-002
www.svat.com
Page 2
Web Ready 4 Channel H.264 DVR Security System
w/ Smart Phone Access and 4 Hi-Res Indoor/Outdoor Night Vision Surveillance Cameras
FEATURES
Record Over 2 Years of Video Footage
The 500GB hard drive can hold over 2 years of continuous video1 and is
optimized for 24/7 surveillance. We only use hard drives that are specically
designed for high capacity writing, which ensures long product life and
accurate video data storage. Your DVR will alert you when your memory
space is full so that you can overwrite your old video, stop the unit
from recording, or backup and transfer your video footage.
iPhone & BlackBerry
Compatible
Access live video footage directly from
your iPhone or BlackBerry. This DVR uses
3G technology, which is specically
designed to transmit high quality video
and audio on your smart phone. Your
DVR can also be set up to email your
hand-held whenever specic activity
occurs, such as motion detection.
View Video Online with No
Service Fees
Regardless of where you are in the world, you can view your DVR’s
live or recorded video footage on any Internet accessible
computer with Internet Explorer. See what is happening on your
property and check in on your employees or family members.
(Supports DDNS)
Cutting Edge H.264
Compression
The CV500-4CH-002 utilizes H.264
compression—the latest and most
advanced compression level available
for a DVR system. You will see an
amazing picture but save almost 50%
on storage space versus DVRs with
MPEG-4 compression! H.264 maximizes
your hard drive space.
24/7 Lifetime Live Customer Support
Assistance is available whenever you need it. Simply visit www.svat.com for video networking
guides, simple tips on how to protect your property, and instructional videos on topics such as
camera placement. Our customer support team can be reached by phone 24/7, or by e-mail
and live web chat services so that you will always have access to an expert.
Four Professional Grade Hi-Res Cameras
Four high resolution color cameras provide you with a clear and consistent picture at 420 TV
lines of resolution. They allow you to better distinguish facial features, which can help in the
positive identication of individuals. The cameras can be used indoor and outdoor. Each one
is built with professional grade aluminum housing and a sunshade to help prevent glare,
deterioration and rusting.4
View in the Dark with Automatic Night Vision
The cameras come equipped with night vision, allowing you to see any monitored area (up to
15ft away!5) in total darkness. Each camera has 12 infrared LEDs that activate automatically
when it becomes dark and deactivate during the day to save energy. You will always be able to
see what is happening in your yard or at your business after-hours.
1 Recording capacity may vary based on recording resolution and quality, lighting conditions and movement in the scene. Based on a 500GB hard
drive, using lowest quality settings.
2 Requires broadband router and broadband Internet connection–not included. Internet Explorer is required.
3 To see which other smart phone devices are compatible, please visit our website: www.svat.com. SVAT is not aliated with BlackBerry or Apple and
compatibility may change without notice.
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
Advanced Motion Activated Recording
You have the option to record video only when motion is detected. Finding important video
footage using the playback feature is easy, and will also save you time and conserve hard drive
space. You can even set individual cameras to detect motion while the others continuously
record. Advanced motion detection settings ensure that false alarms are not triggered—the
easy motion detection “mask” allows you to block out areas with constant movement, such as
roads or blowing trees so that only suspicious activity is recorded.
Connect Easily to Your Computer
This DVR includes a VGA output which allows you to connect to a computer monitor for viewing
purposes. This gives you another option when viewing the activity captured by your cameras.
USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage
with a USB ash drive or external USB hard drive.6 Your video footage then becomes portable
for easy viewing and archiving on any PC.
4 Not for use in direct exposure to water, rain or snow.
5 IR illumination range up to 15ft (4.5m) under ideal conditions. Objects at or beyond this range may be partially or completely obscured,
depending on the camera application.
6 USB ash drive and external hard drive not included.
-Video playback software is not Mac compatible.
Page 3
1 YEAR WARRANTY
WHERE DO I PLACE THE CAMERAS AT MY BUSINESS?
Camera
Locations
The most important areas to monitor
with your cameras are your entranceways. By doing this, you will have visual
conrmation of everyone who enters
and exits your building.
Important Areas
Monitor areas and rooms
where valuables, such as
your safe, high ticket
products and condential
documents are kept.
Store Aisles
Position cameras on to aisles
so you can observe any
suspicious activity when
viewing live or recorded
footage.
Inventory Rooms
The FBI calls employee theft
the fastest growing crime in
America.
SVAT ELECTRONICS
Parking Lot
Cameras will help deter
criminals from targeting your
vehicle or those of your
employees.
WHERE DO I PLACE THE CAMERAS AT MY HOME?
Camera
Locations
Main level monitoring is essential as
nearly 80% of residential intrusions
occur through the rst oor. Start by
mounting near your doorways and
windows and then continue to your
back and side yards.
• DVR with 500GB HDD
• 4 Indoor/Outdoor Night Vision CCD Cameras
• 10ft Power Adapter for DVR
• 10ft RJ-45 Cable
• IR Remote Control (batteries included)
• USB Mouse
Garage
Having a camera mounted on
the front of your garage is a
highly visual deterrent that
keeps criminals from getting
access to a doorway or tools
that may aid in a break-in.
Pool
Security systems not only
protect your possessions,
they can protect your family.
Having cameras around your
pool increases the overall
safety of that area.
Driveway
Vehicle theft is not uncommon, and monitoring your
driveway also allows you to see
who approaches your home.
WHAT IS INCLUDED
• 1 Power Supply for Cameras
• 4 x 60ft 4 PIN DIN to RCA (male) Video/Power Wires
• 12ft RCA Cable
• Four-to-One Camera Power Adapter
• 5 BNC Connectors (RCA to BNC)
• Software CD
Shed
Your shed is often lled with
valuable items—bicycles, a
lawnmower, gardening tools
etc. Backyard entries are
extremely common, so create
a noticeable security presence.
• Quick Start Guide
• Instruction Manual
• 1 Year Warranty
• 2 Window Warning Stickers
• 24/7 Lifetime Live Customer Support
Model #
Model #
CV500-4CH-002
CLEARVU2
www.svat.com
www.svat.com
Page 4
SPECIFICATIONS
DVR
Display.......................................4CH DVR
Functionality..............................Triplex
Video Compression.....................H.264
Number of cameras supported...4
Resolution .................................NTSC : 720 X 480 / PAL: 720 X 576
Recording Time..........................Max 345 days with 1T HDD
Recording Resolution.................NTSC: 720 x 240 / PAL : 720 x 288
Recording Frame Rate................120FPS (320x 240), 60FPS (720 x 240 )
Recording Qualities....................Low, Medium, High, Best
Recording Modes .......................Manual/Schedule (motion, alarm, video loss)
Recording Media........................HDD (Backup via USB)
Storage Capacity........................500 GB (Maximum 1.5 Tb)
Autostart Recording................... Yes
Auto Resume Recording.............Yes
HDD Type....................................InternalSATA
Video Format..............................NTSC / PAL
Video Loss Alarm........................Auto Detect Alarm
Video Inputs...............................4 CH Composite BNC
Video Display Output .................1 CH Composite BNC (Monitor)
Audio Input................................ 1CHRCA
Audio Output .............................1CH RCA
Audio Codec ...............................ADPCM
VGA Video Output ......................Yes
Live Resolution...........................NTSC : 720 X 480 / PAL: 720 X 576
Audio Bitrate..............................8 kbps
Live Frame Rate..........................120 FPS
Live Viewing...............................Full, Quad, ZOOM, SEQ
Network Protocol.......................TCP/IP, DDNS, DHCP, PPPoE, RTSP
Network LAN IP..........................Static, Dynamic
Network Connection ..................10/100 BaseT Ethernet (RJ-45)
Back-up.....................................USBFlashdrive
Backup File Compression...........Format .264 (Includes Viewing Software onUSB)
Play Search Mode.......................Time/Date, Event list
Play Speed .................................X 2 X 4 X 8
Pan/Tilt/Zoom............................Yes
PlaybackMode .........................Full, Quad
OSD and System Menu Display...Yes
OSD Language Display ...............English, Chinese, Simple Chinese, Japanese,
Polish, Hebrew, Italian, French, Spanish, Greek,
Russian, Ukrainian, Hungarian
Time and Date Stamp Display ....Yes
Password Protection...................Yes. Menu, Clear HDD, Online Access
Adjustable Screen Settings.........Color, Brightness, Contrast, Hue
File Transfer................................Ethernet, HDD, USB
Operating System.......................Linux
Processor....................................ARM 9
Disk Full Warning .......................Yes
Automatic Overwrite Option ......Yes
Playback Navigation...................Rewind, Play, Pause, Stop, Forward
Alarm Speaker Wattage .............N/A
LED Indicators ............................POWER,REC, PLAY, HDD
Housing Material........................Aluminum
Housing Color.............................Gray
Cooling.......................................Fan Based
Power Input ...............................12V DC 4.16A
Power Consumption...................12W (Without HDD)
Power Adapter Input..................100V 50/60HZ~240 50/60HZ
Operating Temperature..............0°F~104°F
Alarm Sensor Inputs...................Yes, 4
Alarm Sensor Connection...........Terminal connector
Dimensions ................................8.5" (W) x 1.7"(H) x 7.9"(D)
Weight....................................... 3.1lbs
USB Port.....................................2 USBfor USB Flashdrive, Mouse or Firmware
Remote Control..........................Yes, IR
Supported Peripherals ...............USBMouse, Remote Control, USB Flash Drive
Alarm Sensor Inputs...................Yes, 4
Alarm Relay Outputs ..................Yes, 1
PTZ Protocols (RS-485).............Pelco-D, Pelco-P,Hunt, Lilin, Dyna color, Eyeview,
EP-Pelco-D, EP-Pelco-D
Mac Compatible?........................No
PC Requirements for Software CD
CPU ............................................1 GHz or Above
RAM ...........................................256MB or Above
OS ..............................................Microsoft Windows 2000/ XP/Vista
Monitor Resolution ....................1024x768
CAMERA
Camera Type...............................Weatherproof Color IR CCD Camera
Image Sensor............................. 1/4" Color SHARP CCD
Resolution..................................420 TV Lines
Outdoor Use ...............................Yes
IP Rating ....................................IP65
Focal Length ..............................3.6mm
Focus Type..................................Fixed
Optimal Focal Distance...............20 ft.
Night Vision................................Yes
Number of IR LEDs and Range....12, up to 15ft
IR LED Control.............................Automatic (CDS Sensor)
Min. Illumination .......................0 lux
IR Wavelength............................850nm
Video Output..............................4 PIN DIN to RCA
TV System ..................................NTSC
Microphone................................No
Motion Detection .......................No
Viewing Angle............................90 Degrees
Electronic Shutter.......................1/60 ~ 1/100000 sec
AGC ............................................Automatic
ELC .............................................Automatic
Line Lock....................................No
Gamma Correction .....................>0.45
White Balance............................Automatic
Sun Shield.................................. Yes
Housing Material........................Anodized Aluminum
Housing Color.............................Platinum Silver
www.svat.com
Signal/Noise Ratio......................>48dB
Camera Bracket..........................Yes
Lens Mount type ........................M12
Pan/Tilt/Zoom............................No
Operating Temperature..............-10° ~ 60°C / Degrees
Operating Humidity ...................98%
Camera Power Input...................DC 12V 300mA
Power Adapter Input..................120V 60Hz
LED Power Indicator...................No
Dimensions ................................4.75"(L) x 2.5"(W)x 5"(H)
Weight....................................... 0.7 lbs
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
SVAT, CLEARVU and “now you can see”
are trademarks of SVAT Electronics.
©2009 SVAT Electronics
All Rights Reserved
Model#:
CV500-4CH-002
UPC: 871363009036
Loading...
