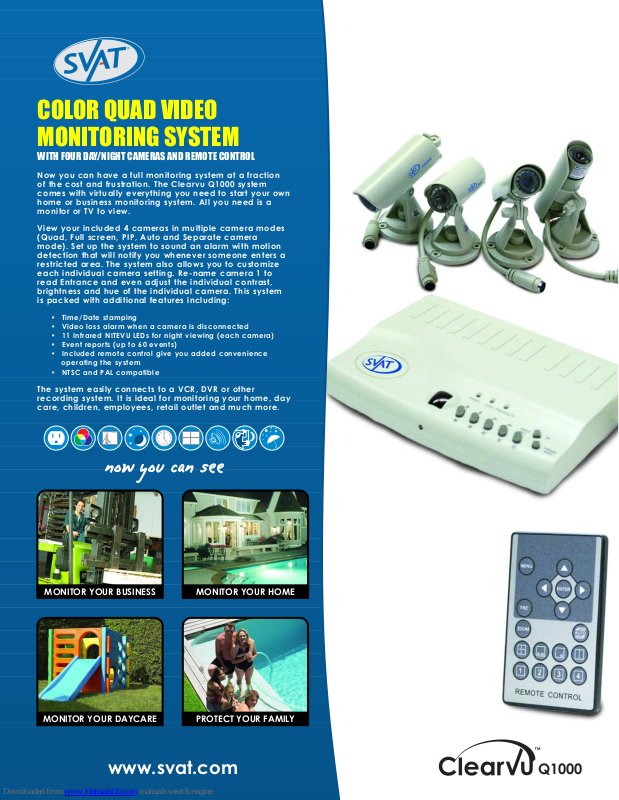

SVAT CVQ1000, ClearVu Q1000 Specifications

www.svat.com

now you can see

Now you can have a full monitoring system at a fraction
of the cost and frustration. The Clearvu Q1000 system
comes with virtually everything you need to start your own
home or business monitoring system. All you need is a
monitor or TV to view.

View your included 4 cameras in multiple camera modes
(Quad, Full screen, PIP, Auto and Separate camera
mode). Set up the system to sound an alarm with motion
detection that will notify you whenever someone enters a
restricted area. The system also allows you to customize
each individual camera setting. Re-name camera 1 to
read Entrance and even adjust the individual contrast,
brightness and hue of the individual camera. This system
is packed with additional features including:

•

Time/Date stamping

•

Video loss alarm when a camera is disconnected

•

11 Infrared NITEVU LEDs for night viewing (each camera)

•

Event reports (up to 60 events)

•

Included remote control give you added convenience
operating the system

•

NTSC and PAL compatible

The system easily connects to a VCR, DVR or other
recording system. It is ideal for monitoring your home, day
care, children, employees, retail outlet and much more.

COLOR QUAD VIDEO
MONITORING SYSTEM

WITH FOUR DAY/NIGHT CAMERAS AND REMOTE CONTROL

MONITOR YOUR DAYCARE PROTECT YOUR FAMILY

MONITOR YOUR BUSINESS MONITOR YOUR HOME

TM

Q1000

COLOUR QUAD VIDEO MONITORING SYSTEM WITH FOUR DAY/NIGHT CMOS CAMERAS AND REMOTE CONTROL

FEATURES

• Motion Detection feature sounds alarm (when turned on)

• Quad screen modes let you see multiple locations at the
same time

• Remote control access for channels and audio

• Manual and automatic switching of camera views

• Easily connects to a TV, VCR, computer or DVR

• Change individual camera settings

• Cameras are ceiling, wall and desk mountable

APPLICATIONS

• Convenience stores • Hospitals

• Warehouses • Parking lots

• Day cares • Schools

• Restaurants • Retail stores

• Residential

WEIGHT & DIMENSIONS & UPC

• Switcher: 218 x 202 x 44mm • Camera: 105 x 55 x 86mm

• Switcher: 0.3kgs • Camera: 0.1kgs

Clearvu, SVAT and “now you can see”

are trademarks of SVAT Electronics.

©2006 SVAT Electronics. All Rights Reserved.

Output Jack

(Monitor or TV A/V input)

SVAT ELECTRONICS

4080 Montrose Road
Niagara Falls, ON L2H 1J9
Toll Free: 1.866.946.7828

WHAT’S INCLUDED

• Four Colour Cameras with Mounting Brackets and Screws

• One Remote Control

• One RCA Audio/Video Cable to Output to TV

• One Controlling Station

• One Power Adapter

• Four 60 foot Cables (to connect cameras to base station)

• Instruction Manual

• One Year Warranty

• Toll Free Tech Support

• Window Warning Stickers

SPECIFICATIONS

• Camera: CMOS

• Camera Resolution: 330 TV lines

• Camera Power Source: Supplied by Switcher

• Camera Power Consumption: 0.22W

• Camera Light Source: 11 IR LEDs

• Camera Installation: Wall-mounted

• Camera Operating Temperature: -10

o

C ~ +50oC

• Switcher Power Source: DC 12V / 1A Adapter

• Switcher Frequency: 310/434 MHz

• Switcher Channel Scan Period: 1-99sec (Adjustable)

• Switcher Video Format: NTSC/PAL

• Switcher Power Consumption: 100mA

• Switcher Video: Input(DIN x 4) Output(DIN x 1)

www.svat.com

now you can see

Camera Connectors

Power Supply Input

Camera Buttons

Quad/Menu/ESC

Zoom LED

Freeze/Auto LED

Freeze/Auto Scan Button

Ok/Enter Button

Power LED

Remote Control

CDS (light) Sensor

Adjustable Camera Angles

Camera Connector (4 Pin Din)

Wall-mount Base

11 IR LEDs (night viewing)

IR Ray Reciever

TM

Q1000
