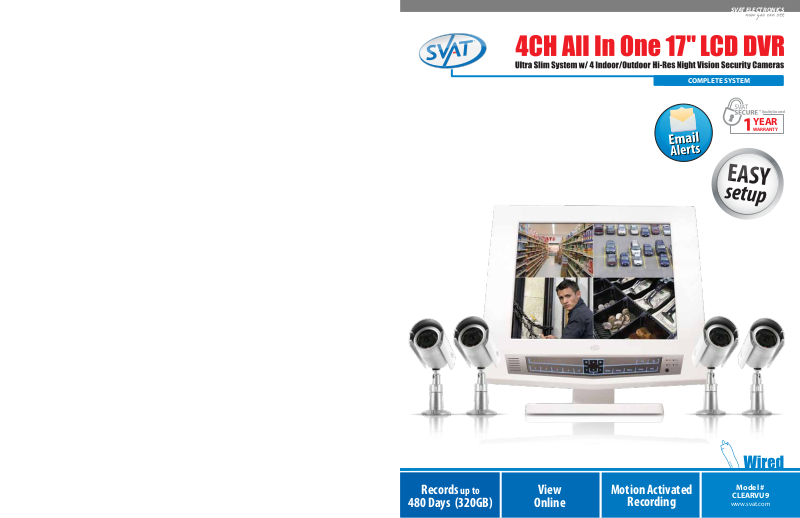

SVAT ELECTRONICS
COMPLETE SYSTEM
Quality Assured
YEAR
WARRANTY
Records up to
Records up to
480 Days (320GB)
480 Days (320GB)
View
View
Online
Online
Motion Activated
Motion Activated
Recording
Recording
Model #
Model #
CLEARVU9
CLEARVU2
www.svat.com
www.svat.com
FEATURES
Record up to 480 Days
1
This DVR utilizes the advanced Seagate SV35 hard drive.
The 320GB hard drive has a 5 year warranty and was
designed by Seagate for optimization with DVRs to
ensure secure and consistent recording for years.
(5 year warranty through Seagate).
4 Hi-Res Indoor / Outdoor CCD Cameras
The high quality CCD image sensors in these cameras provide a clear, crisp and
consistent picture at 420 TV lines of resolution. They also allow you to better
distinguish facial features, which can help in the positive identication of individuals.
Each camera is built for the outdoors with professional grade weatherproof housing
and a sunshade.
Pan/Tilt/Zoom (PTZ) Support
This DVR is compatible with PTZ cameras. Control your PTZ camera
locally and over the web (PTZ camera and cable not included).
6
View Video Online
w/ No Service Fees
View live or recorded footage from any computer with Internet Explorer,
anywhere in the world (other web browsers are not compatible). This unit also
features auto time syncing, which makes the time on your video footage
consistent with the ocial time. The unique design of the DVR operating
system also means you don't have to sign up for any additional services.
2
(Supports DDNS)
Night Vision (Infrared)
The cameras come equipped with 12
infrared (IR) LEDs that allow you to see
in the dark, up to 15ft away!
activate automatically when it gets
dark, and deactivate during the day to
save energy (CDS sensor).
5
They
Password Protection
Ensure that only authorized users can change
DVR settings or halt recording.
Stylishly Integrated 17" LCD
The LCD prole is amazingly slim. View crisp clean video on the
17" screen. The CLEARVU9 instantly transforms your
viewing space into a vibrant, clutter-free, security
base station.
VESA Mount
The back panel of the DVR allows the unit
to be safely wall mounted, and all cables
meet VESA guidelines for organized cable
management.
Electroluminescen
DVR Control Panel
The buttons on the DVR are
backlit blue, allowing you to
easily operate the system in
the dark.
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
1 YEAR WARRANTY
FEATURES
Email Alerts
This system helps keep you notied of events happening in your
monitoring location. You can set the unit to automatically send
alerts to your email inbox whenever motion is detected or
when cameras lose power. Up to 7 dierent email addresses can
receive these alerts.
USB/DVD/CD Backup
You can transfer video footage to a USB ash drive for archiving
or osite viewing. You can also transfer your footage using an
external DVD/CD writer.
3
Net View
SVAT ELECTRONICS
Triplex DVR
RecordPlay
This DVR gives you the ability to play, record, and remotely
view at the same time. Seamlessly play back your video
footage or enter menu screens while recording and viewing
over the Internet.
Pre-Event Recording Time
Never miss the events that cause the DVR to begin recording.
When the system is in motion activated recording mode, you
can set the DVR to store up to 5 seconds of video footage
before the movement actually happened, ensuring that you
don't miss anything.
Auto-Start Recording
The DVR instantly begins recording when you
rst power it on. It will resume recording after any
power loss, providing you with a stable, worry-free
security system.
4
Advanced Motion
Activated Recording
You can set the DVR to record only when motion is detected
and alert you with an audible alarm. You can even set
individual cameras to detect motion, and only video from those
cameras will be recorded. Motion Mask allows you to block
areas with constant motion, ensuring that only suspicious
activity is recorded.
Covert Mode
This system oers a covert way of recording so you have the
option to keep your camera locations discreet. The DVR will
record footage, but the camera channel will display a blue
screen. This option is customizable for each camera to meet
your needs.
WHAT IS INCLUDED
2 Way Internet Communication
This system comes equipped with audio support and allows
2 way communication between the DVR and a remote PC
when connected via the Internet.
Mouse/Remote Control
Navigate the onscreen menu with the included USB mouse
and remote control.
24/7 Scheduled Recording
Set up a weekly recording schedule, and specify which hours
of the day you want to continuously record, motion detect
record, or not record at all. All video is time and date stamped
for easy searching and playback.
Search by Date, Time, or Event
Finding your recorded footage is easy. Simply choose the
desired date and time range, and the requested video clips
will appear. Clips are also labeled by event, which makes it
easy to nd footage that was captured
17" LCD DVR
with 320GB HDD
4 Outdoor Night
Vision CCD Cameras
• 8.5 ft DC12V Power Adapter for DVR
• 4 Power Adapters for Cameras
4 x 60ft 4 PIN DIN to RCA
(Male)/Power Cables
• Mounting Hardware
• Online/Toll Free Support
10ft RJ-45 Cable 4 Window Warning
Stickers
• Instruction Manual / Quick Start Guide
• 1 Year Warranty
5 RCA to BNC
Connectors
• USB Mouse
• Software CD
Model #
Model #
CLEARVU9
CLEARVU2
www.svat.com
www.svat.com
SPECIFICATIONS
17" LCD DVR
Display........................................................ 17" Color TFT-LCD
Functionality...............................................Triplex
Video Compression......................................MPEG-4
Number of Cameras Supported ...................4
Output File Format...................................... AVI
Resolution...................................................NTSC: 704x480 / PAL: 704x576
Recording Frame Rate.................................120 FPS (Fully Adjustable)
Recording Time...........................................Up to 480 Days
(On Lowest Quality Settings)
Recording Resolution..................................CIF, 2 CIF, D1
Recording Qualities.....................................Low, Standard, High, Highest
Recording Modes ........................................Continuous, Scheduled, Motion, Alarm
Recording Media.........................................320GB HDD
Storage Capacity.........................................Unlimited (320GB Included)
Autostart Recording.................................... Yes
Auto Resume Recording..............................Yes
HDD Type.....................................................Internal
Removable HDD.......................................... No
Video Format...............................................NTSC/PAL
Video Loss Alarm.........................................Yes
Video Inputs................................................4 BNC / 4 x 6 PIN DIN
Video Display Output ..................................1 Spot Out (BNC)
Audio Input................................................. 4 RCA Composite
Audio Codec ................................................G.711
Audio Output ..............................................1
Live Resolution............................................NTSC : 704 X 480 / PAL: 704 X 576
Audio Bitrate...............................................64 kbps
Live Frame Rate...........................................120 FPS
Live Viewing................................................Full, Quad, Zoom, Sequence
Network Protocol........................................TCP/IP, DDNS, DHCP
Network LAN IP...........................................Static, Dynamic
Network Connection ...................................9/90 BaseT Ethernet (RJ-45)
Back-up.......................................................USB/External DVD/CD Writer
(Not Included)
Play Speed ..................................................1X, 2X, 4X, 8X, 16X, 32X, 64X
Supporting reverse/forward playback
Pan/Tilt/Zoom Camera Support ..................Yes
OSD and System Menu Display....................Yes
OSD Language Display ................................English
Time and Date Stamp Display .....................Yes
Password Protection....................................Yes
Adjustable Screen Settings..........................Color, Brightness, Contrast, Tint
File Transfer.................................................USB, External DVD/CD Writer
Operating System........................................Proprietary
Processor.....................................................Proprietary
Disk Full Warning ........................................Yes
Automatic Overwrite Option .......................Yes
Playback Navigation....................................Rewind, Fast Forward, Play,
Pause, Stop
LED Indicators .............................................Power, Record, Network, Alarm
Housing Material.........................................High Density Resin
Housing Color..............................................Ivory White
Power Input ................................................12V DC 5A
Power Consumption....................................60W
Power Adapter Input...................................90V 50/60HZ~240 50/60HZ
(switching adapter)
Operating Temperature............................... 32°F~113°C
Operating Humidity ....................................<90%
Alarm Sensor Inputs....................................Yes, 4
Alarm Sensor Connection............................Terminal Block
Firmware Upgradeable ...............................Yes, via USB port
Remote Control...........................................Yes
Supported USB Peripherals USB Flash Drive, External CD Writer,
External DVD Writer
Alarm Sensor Inputs....................................Yes, 4
Alarm Relay Outputs ...................................Yes, 1
PTZ Protocols...............................................Supporting 20 Protocols
Dimensions .................................................18.5" x 18" x 7.5"
Weight........................................................ 17.0 lbs.
CAMERA
Camera Type................................................Bullet
Image Sensor.............................................. 1/4" Color Sharp CCD
Resolution...................................................420 TV Lines
Outdoor Use ................................................Yes
IP Rating .....................................................IP65
Focal Length ...............................................3.6mm
Focus Type...................................................Fixed
Night Vision.................................................Yes
Number of IR LEDs and Range.....................12, up to 15ft
IR LED Control..............................................Automatic (CDS Sensor)
Min. Illumination ........................................0 lux
IR Wavelength.............................................850nm
Video Output...............................................4 PIN DIN (60ft 4 PIN DIN to
Video/Power Wire Included)
TV System ...................................................NTSC
Microphone.................................................No
Motion Detection ........................................No
Viewing Angle.............................................60 Degrees
Electronic Shutter........................................1/60 ~ 1/100000 sec
BLC..............................................................No
AGC .............................................................Automatic
ELC ..............................................................Automatic
Line Lock.....................................................No
Iris Control...................................................No
White Balance.............................................Automatic
Sun Shield................................................... Yes
IR Cut Filter .................................................No
Housing Material.........................................Anodized Aluminum
Housing Color..............................................Platinum Silver
Signal/Noise Ratio.......................................>48dB
Camera Bracket...........................................Yes
Operating Temperature............................... -14°F ~ 122°F
Operating Humidity ....................................98%
Camera Power Input....................................DC 12V 300mA
Power Adapter Input...................................120V 60Hz
LED Power Indicator....................................No
Dimensions .................................................5.5" x 5" x 2.44" (with stand)
Weight........................................................ 0.85lbs (with stand)
- Supported File Compression MPEG-4
1. Recording capacity may vary based on recording resolution and quality, lighting conditions
and movement in the scene.
2. Requires broadband router and broadband Internet connection – not included
3. Not Included.
4. For continuous recording during power outages, we recommend using a UPS surge protector.
5. IR illumination range up to 15ft (4.5m) under ideal conditions. Objects at or beyond this
range may be partially or completely obscured, depending on the camera application.
6. Not for use in direct exposure to water, rain or snow.
Not Mac Compatible.
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
SVAT, CLEARVU and “now you can see”
are trademarks of SVAT Electronics.
©2008 SVAT Electronics
All Rights Reserved
Model#:
CLEARVU9
UPC: 871363006981
Loading...
