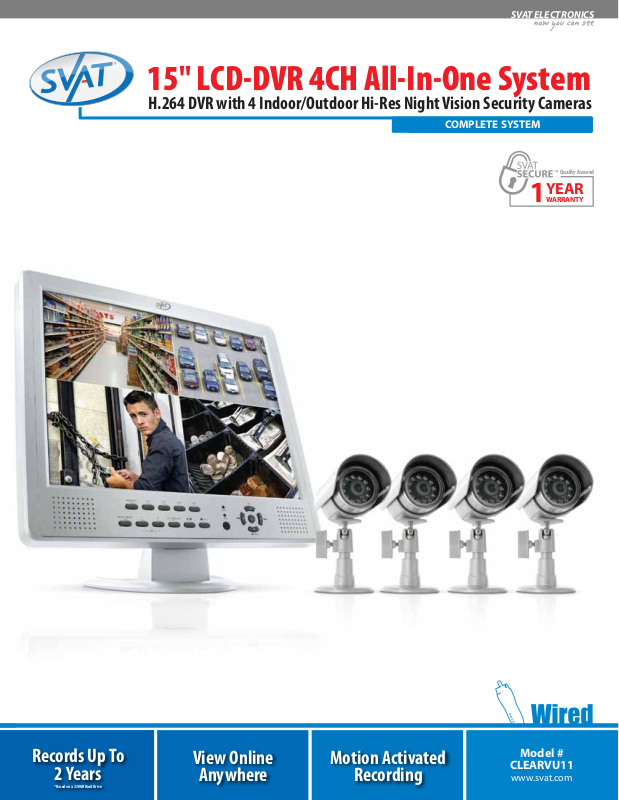

SVAT ELECTRONICS
15" LCD-DVR 4CH All-In-One System
H.264 DVR with 4 Indoor/Outdoor Hi-Res Night Vision Security Cameras
COMPLETE SYSTEM
Quality Assured
YEAR
WARRANTY
Records Up To
Records up to
480 Days (320GB)
2 Years
*Based on a 320GB Hard Drive
View Online
View
Anywhere
Online
Motion Activated
Motion Activated
Recording
Recording
Model #
Model #
CLEARVU11
CLEARVU11
www.svat.com
www.svat.com
15" LCD-DVR 4CH ALL-IN-ONE SYSTEM
H.264 DVR with 4 Indoor/Outdoor Hi-Res Night Vision Security Cameras
FEATURES
Smartphone
Compatible
Access live or recorded footage
directly from your mobile
device. Your DVR can also be
set up to e-mail your
hand-held whenever
programmed activity occurs.
Record Up To 2 Years
The Seagate® SV35 Series™ hard drive is the only drive
specically designed and optimized for 24x7 surveillance digital
video recording; providing the reliability, performance, and
capacity required to protect people, property and processes.
View Video Online with No Service Fees (Supports DDNS)
View live or recorded footage from any
computer with Internet Explorer − anywhere in
the world. The unique design of the DVR
operating system also means you don't have to
sign up for any additional services.
H.264 Compression
H.264 Compression is the latest
and most advanced compression
level available for a DVR system.
You will see the same high
quality results as MPEG-2 video,
but save almost 50% on storage
space. H.264 maximizes your
hard drive while still providing
an amazing picture.
24/7 Lifetime Live
Customer Support
Assistance is available whenever
you need it. Visit www.svat.com
for simple tips, help with
networking, and videos. Our
customer support team can be
reached by phone 24/7, or by
e-mail and live web chat
services.
Stylishly Integrated 15" LCD
The LCD prole is sleek and light. View crisp, clean video on the 15"
screen. The CLEARVU11 instantly transforms your viewing space into
a vibrant, clutter-free security base station.
USB/DVD/CD Backup
You can transfer video footage to a USB ash drive for archiving or
osite viewing. You can also transfer your footage using an external
DVD/CD writer.
Auto-Start Recording
The DVR instantly begins recording when you rst power it on. It will
resume recording after any power loss, providing you with a stable,
worry-free security system.
Advanced Motion Activated Recording
You can set the DVR to record only when motion is detected and alert
you with an audible alarm. You can even set individual cameras to
detect motion, and only video from those cameras will be recorded.
Motion Mask allows you to block areas with constant motion,
ensuring that only suspicious activity is recorded.
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
View in the Dark with Automatic Night Vision
The cameras come equipped with multiple infrared (IR) LEDs that
allow you t o see in th e dar k, up to 1 5ft aw ay! Th ey ac tivate
automatically when it gets dark, and deactivate during the day to save
energy (CDS sensor).
4 Hi-Res Indoor/Outdoor Cameras
These compact and durable cameras provide a clear and consistent
picture. They also allow you to better distinguish facial features,
which can help in the positive identication of individuals. Each
camera is built for the outdoors with professional grade
weatherproof housing and a sunshade.
Six Simultaneous Actions
The CLEARVU11 is a hexaplex system, which gives you the ability to
record, view live footage, playback, back-up, control, and view online
all at the same time. Seamlessly play back your video footage or
enter menu screens while recording and viewing over the Internet.
Covert Mode Protects your Camera Locations
This system oers a covert way of recording so you have the
option to keep your camera locations discreet. The DVR will
record footage, but the camera channel will display a blue
screen. This option is customizable for each camera to meet
your needs.
Adjustable Pre-Event Recording Time
Never miss the events that cause the DVR to begin recording.
When the system is in Motion Activated Recording Mode, you
can set the DVR to store video footage before the movement
actually happens, ensuring that you don't miss anything.
1) Not all mobile devices are compatible with this system. To see which devices are compatible
please visit our website: www.svat.com
2) Requires broadband router and broadband Internet connection – not included. Internet
Explorer is the recommended browser.
3) Recording capacity may vary based on recording resolution and quality, lighting conditions
and movement in the scene. Based on a 320GB hard drive, using lowest quality settings.
4) DVD/CD writer not included. USB ash drive not included.
5) For continuous recording during power outages, we recommend using a UPS surge protector.
6) IR illumination range up to 15ft (4.5m) under ideal conditions. Objects at or beyond this range
may be partially or completely obscured, depending on the camera application.
7) Not for use in direct exposure to water, rain or snow.
1 YEAR WARRANTY
WHERE DO I PLACE THE CAMERAS AT MY BUSINESS?
Camera
Locations
The most important areas to monitor
with your cameras are your entranceways. By doing this, you will have visual
conrmation of everyone who enters
and exits your building.
Important Areas
Monitor areas and rooms where
valuables, such as your safe, high
ticket products and condential
documents, are kept.
Store Aisles
Position cameras on to aisles so
you can observe any suspicious
activity when viewing live or
recorded footage.
Inventory Rooms
Protect your inventory. In 2007,
one in every 28.2 employees was
apprehended for theft from their
employer.
SVAT ELECTRONICS
Parking Lot
Cameras will help deter
criminals from targeting your
vehicle or those of your
employees.
WHERE DO I PLACE THE CAMERAS AT MY HOME?
Camera
Locations
Main level monitoring is essential as
nearly 80% of residential intrusions
occur through the rst oor. Start by
mounting near your doorways and
windows and then continue to your
back and side yards.
• 15" LCD DVR with 320GB HDD
• 4 Indoor/Outdoor Night Vision Cameras
• PS/2 Mouse
• Remote Control for DVR
• Software CD
Garage
Having a camera mounted on
the front of your garage is a
highly visual deterrent that
keeps criminals from getting
access to a doorway or tools that
may aid in a break-in.
Pool
Security systems not only
protect your possessions, they
can protect your family. Having
cameras around your pool
increases the overall safety of
the area.
WHAT IS INCLUDED
• 10ft RJ-45 Cable
• 4 x 60ft 4 PIN DIN to RCA (male)
Power Cables
• 5 RCA to BNC Connectors
• 1-4 Port Power Supply for Cameras
• 8.5ft DC12V Power Adapter for DVR
Driveway
Vehicle theft is not uncommon,
and monitoring your driveway
also allows you to see who
approaches your home.
Shed
Your shed is often lled with
valuable items—bicycles, a
lawnmower, gardening tools
etc. Backyard entries are
extremely common, so create a
noticeable security presence.
• Quick Start Guide
• 4 Window Warning Stickers
• Instruction Manual
• 1 Year Warranty
• 24/7 Lifetime Live Customer Support
Model #
Model #
CLEARVU11
CLEARVU2
www.svat.com
www.svat.com
SPECIFICATIONS
LCD-DVR
System
OS ..............................................Embedded Linux 2.6
Multiplex ...................................Sixfold operation - simultaneous record, live,
playback, backup, control, & remote access
Certication ..............................FCC, CE, LVDS, etc.
Video
Format .......................................NTSC/EIA or PAL/CCIR
Input..........................................4-CH, BNC, 1Vp-p/75ohm
Monitor......................................15"LCD
Output .......................................BNC x 1, 1Vp-p/75ohm
Loss Detection............................ Yes
Motion Detection .......................Yes, with congurable detection area & sensitivity
Audio
Input..........................................1 RCA-jack connectors, line-in level (100mV-2Vrms)
Output .......................................1 RCA-jack connectors, line-out level (up to 2Vrms)
Record
Compression ..............................Video: H.264
Audio: ADPCM
Frame Rate (IPS) & Resolution ...NTSC – 30 / 720*480, 60 / 720*240, 120 / 360*240
PAL – 25 / 720*576, 50 / 720*288, 100 / 360*288
Mode..........................................Manual/Schedule/Alarm/Motion
Pre-Record Time......................... 0 - 10 seconds
Post-Record Time .......................0 - 60 minutes
Display
Resolution.................................. NTSC – 720*480, PAL – 720*576
Split Windows............................1/4
Frame Rate.................................Up to 30 (NTSC) / 25 (PAL) IPS per display window
Freeze ........................................Yes
Sequential Switch ......................User adjustment
Digital Zoom ..............................X2, X4
Playback
Frame Rate (IPS) & Resolution ...NTSC – 30 / 720*480, 60 / 720*240, 120 / 360*240
PAL – 25 / 720*576, 50 / 720*288, 100 / 360*288
Search ........................................Date/time, Camera, Alarm, Motion, & Video Loss
Operation................................... Play, Fast Forward, Backward, Pause, Stop, etc.
Remote I.E. and HEM can also Print
HDD............................................Half-size DVR - 1 set of 3.5“ HDD,
Max. 320GB of HDD storage size
Partitions ...................................Congurable alarm partition size
Congurable auto-overwrite
Backup....................................... 1 USB 2.0 ports for USB 2.0 disk drives
Alarm
Input..........................................4 contact or TTL/CMOS signal, polarity selectable
Output .......................................1 Normally Open, 1 Normally Closed relay output
Buzzer........................................Yes
Triggered by............................... Sensor input, Video loss, & Motion
Event Log...................................Yes
www.svat.com
Network
Ethernet..................................... 1 RJ-45 10/100BaseT Ethernet connector
Web ...........................................Remote setup, monitoring, backup, alarm
notication, & remote software upgrade
E-mail ........................................Alarm notication to stationary or mobile devices
Video..........................................1/4 split-window & Seq Mode
Audio .........................................Bidirectional
Protocol......................................TCP/IP, HTTP, PPPoE, DHCP, DDNS, TSP
Remote Users............................. Up to 5 users simultaneously
Bandwidth .................................TCP/IP type dynamic sliding window control
Remote Stations.........................PC
Control
I/R..............................................1 D-type female connector for PTZ
1 optional D-type female connector for PTZ
RS-232 .......................................2-pin for PTZ control
RS-485 .......................................1 D-type female connector for PTZ
1 optional D-type female connector for PTZ
Setup
Local ..........................................On screen setup via keypad, I/R remote controller
and mouse
Remote ......................................Setup & upload via Windows application software
Multi-lingual..............................English, Simplied Chinese, Portuguese, Italian,
Russian, Turkish
Reliability
System recovery.........................Auto power on after power loss recovery
Timer .........................................Built-in real time clock
Security......................................Multi-level password (3 levels, up to 18 accounts)
Power .......................................DC12V-5A,18W Max.
Operating Temperature.........+32°F ~ +122°F
CMOS CAMERA
Image sensor .............................1/4" CMOS Color
Outdoor use ...............................Yes
IP Rating ....................................IP55
Resolution.................................. 400 TV Lines
Night Vision................................Yes
Number of IR LEDs and Range....11, up to 20ft
IR LED control.............................Auto
Min. Illumination .......................0 lux
Battery Operable........................ No
Viewing Angle............................65 Degrees
Focal Length ..............................6.0 mm
Focus Type ..................................Fixed Focus
Connector ..................................RCA
Sun Shield.................................. yes
Housing Material........................Metal
Electronic shutter speed.............1/60 ~ 1/100,000 sec
Signal/Noise Ratio......................>48dB
Operating Temperature ..............+14°F ~ +140°F
Camera Power Input...................DC 12V 200mA
Dimensions ................................3"x 2" x 4.5" (with stand)
Weight....................................... 0.65 lbs (with stand)
SVAT Electronics
Toll Free: 1.866.946.7828
www.svat.com
SVAT, CLEARVU and “now you can see”
are trademarks of SVAT Electronics.
©2008 SVAT Electronics
All Rights Reserved
Model#:
CLEARVU11
UPC: 871363007544
Loading...
