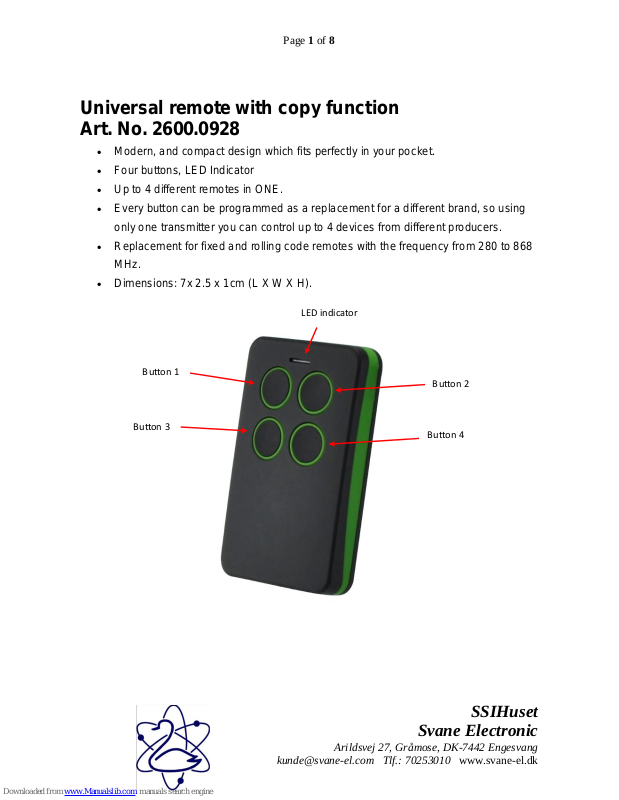

Universal remote with copy function
Art. No. 2600.0928

• Modern, and compact design which fits perfectly in your pocket.

• Four buttons, LED Indicator

• Up to 4 different remotes in ONE.

• Every button can be programmed as a replacement for a different brand, so using

only one transmitter you can control up to 4 devices from different producers.

• Replacement for fixed and rolling code remotes with the frequency from 280 to 868

MHz.

• Dimensions: 7x 2.5 x 1cm (L X W X H).

Button 2

Button 1

Button 3
Button 4

LED indicator

Page 2 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

Instructions

Standard Programming

1. Hold button 1 and press button 2 four times, then release both buttons.
a. The LED on the universal remote will flash quickly every 2

seconds

2. Press the button to be copied on the original remote and place it about

2-3 cm from the universal remote, head to head, until the universal
remote starts flashing quickly.

3. While the universal remote is flashing press the desires button on the

universal remote. Cloning is finished when the led turns off.

4. Repeat the process for the other buttons.

AMC Programming: Automatic matching code

Note: For selected models only (see compatibility list)

1. Press the desired button on the universal remote until the receiver emits

the code.

2. The LED will flash quickly. Release the button for successful code

matching.

Page 3 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

Seed Code emission

Note: For BFT units only (see section about BFT programming)

1. Press and hold button 1 and 2 on the universal remote at the same time

until the LED flashes quickly.

2. Release the 2 buttons and press the desired button. Seed code is then

successfully sent.

BFT Programming

1. Hold button 1 and press button 2 four times, then release both buttons.
a. The universal remote LED will flash quickly every 2 seconds

2. Place the original remote in front of the universal remote, distance 2-3

cm.

3. Press and hold the desired button on the original remote until the light is

constant and then emits a double flash every 2 seconds.

4. Transmit the seed code of the original remote by pressing the hidden

button in the rear of the remote or with newer models, press buttons 1
and 2 simultaneously.

5. The LED will flash quickly. Press the desired button to store the copied

code. The light will turn off.

6. Use the AMC procedure to pair the new remote with the receiver.

Page 4 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

FAAC and Genius Programming

Important! Ensure that the remote being copied from is the master.

1. Press any button. The LED should emit a double flash.

2. Hold button 1 and press button 2 four times.

3. Place the original remote at the head of the universal remote about 2-3

cm in distance.

4. Press and hold the desired original remote-control button until the

universal remote switches to a constant light and then emits a double
flash every 2 seconds.

5. Prepare the FAAC/Genius remote control for sending the seed code by

simultaneously pressing button 2 and 3.

6. While the FAAC/Genius LED is flashing, place it in front of the universal

remote, 2-3 cm away. The press the button to copy until remote led
begins flashing quicker for confirmation of code copy.

V2 Programming

1. Hold button 1 and press button 2 four times. Then release both buttons.
a. The LED of the universal remote will flash quickly every 2

seconds

2. Place the original remote in front of the universal remote about 2-3 cm

away.

3. Press and hold the desired button of the original remote until the remote

light is constant on and then emits a double flash every 2 seconds.

4. Press and hold the same button on the original remote once again
a. Now the LED will flash quickly.

5. Press the desired button on the universal remote for copying until the

LED turns off.

6. Use the AMC procedure to pair the new remote with the receiver.

Page 5 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

Known compatibility list

Brand

Programming

Models

ACM

STANDARD

TX2, TX2 Color, TX4

ADYX

AMC

TE4433H BLUE, 433-HG BRAVO

AERF

STANDARD

COMPACT, HY-DOM, MERCURI B, MERCURY
C, SABUTEN, MARS,SATURN,ST3/N, TERRA,
TMP-1, TMP-2, UNITECH

ALLMATIC

AMC

BROWN, BROWN RED, BRO.OVER, PASS,
MINIPASS, TECH3

APERIO

STANDARD

GO, GO PRO, GO MINI

APERTO
(SOMMER)

STANDARD

TX02-434-2, TX02-868-2, BLUE, 4025 TX02-868­2, 4022 TX02-434-2, 4020-TX03-434,

APRIMATIC

AMC

TR2/TR4, TM4,TXM

ATA

STANDARD

PTX4 BLUE, PTX4 PINK

AVIDSEN

STANDARD

104251, 104250,104250 OLD, 104250 RED,
104257, 104350, 654250

BALLAN

STANDARD

FM400, FM400E, FM404B,4013

BENINCA

AMC

TO.GO WV, TWV, ROLLKEY, APPLE, LOT,
WCV, CUPIDO, TO GO QV, IO, LOT2WCV,
LOT1W, LOT2W, LOT4W, LOT1WM, LOT2WM,
T2W,T4W

BESIDE

STANDARD

BEZAP, HIT

BFT

BFT and AMC

MITTO, MITTO M (MITTO2M/MITTO4M), MITTO
RCB (RCB02/RCB04), MITTO A ( MITTO
2A/MITTO4A), MITTO B, TRC (TRC2/TRC4),
GHIBLI, MURALE, KLEIO, TE01, TE02, TE04,
RB4 MURALE

CAME

STANDARD

T431, T434, TOP432A, TOP434A, TOP432,
TAM432SA, TOP432NA

CARDIN

AMC

TRQ S449
(TRQ449100/TRQ449200/TRQ449300/TRQ4494

00), TRQ 449 GREEN (PRECODE), TXQ S449
(TXQ449200/TXQ449300/TXQ449400), TXQ
S449 GREEN, TRQ S486
(TRQ486200/TRQ486300/TRQ486400), TXQ
S486 (TXQ486200/TXQ486400), S437 TX,
XRADO, S449, S476TX2, S476TX, S486

CASALI

STANDARD

JA33 AMIGO, GENIUS/CASALI A252RC

CASIT

STANDARD

ERTS92B, ERTS92T, ERTS476D, ERTS20DQ,
ERTS20DQ, ERTS476D, ERTS476Q

CELISA

STANDARD

S10 1, S10 2

Page 6 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

CHAMBERLAIN /
LIFTMASTER/
MOTORLIFT

STANDARD

953ESTD, 371 LM, 971 LM, 84330E, 94334CE,
94333E/94334E/94335E, 9747E, 1A5639-7,
1A5477, 1A6487, 132B2372, 84330EML/
9333EML/ 94335EML, 84330EML/ 84333EML/
84335EML, 8747EML

CLEMSA

STANDARD

MUTANCODE, T, T-8, E-CODE N,
MASTERCODE MV

CPS

STANDARD

TCP3.CPS, TCP3.CPS2, TCP3.CPS4, TCP3

DASPI

AMC

HAPPY2, POPS 2, ZERO RC(ZERO 2RC, ZERO
4RC)

DEA SYSTEM

STANDARD

TR MIO, 133 1, 433 2, 433 4, GENIE, PUNTO
S2, PUNTO 278, GOLDR, GENIE R 273, GENIE
R-GT2N

DELMA

STANDARD

MIXARD 433 1, MIXARD 433 2, KING 433 2

DICKERT

STANDARD

MAHS433 01, MAHS433 04

DITEC

AMC

GOL, GOL4C, BIXLS2, BIXLP2, BIXAG4, BIXLG

DOITRAND

STANDARD

MPSTF2E, JAUNE

DOORMATIC

STANDARD

SAW

DOORHAN

STANDARD

TRANSMITTER 4

DUCATI

STANDARD

TSAW1, TSAW2, TSAW3, 124, TE2

ECOSTAR

STANDARD

RSE, RSC, RSZ

ELBE

STANDARD

501, 502, 504, 502A, 504A

ERREKA

STANDARD

IRIS, ROLLER 2, ROLLER 433, ROLLER 868,
SOL433, SOL868, VEGA 433, VEGA 868

ELCA

STANDARD

IRIS, ASTER 2, ASTER 1000, ASTER 1001

FAAC

FAAC

XT4 433 RC, TM1 433 DS, TM2 433 DS, TM3
433 DS, 433L2, 433L4, TM22 433 SLP, TM4 433
SLP, TML 433SLH, TML 868 SLH, DL 868 SLH,
XT 868SLH, XT 433 SLH, T 868 SLH, T 433
SLH, XT 433 RC, TE433HG

FADINI

AMC

JUBI-SMALL, 433 M2, ASTRO 433-2, ASTRO
433-4, JUBI2/JUBI4

FERPORT

STANDARD

TAC1, TAC2, TAC4, TAC 1K, TAC 2K, TAC 4K,
TAC2KR

GIBIDI

STANDARD

OPEN TMB, OPEN OUT, AU1600, AU1600
WOOD, AU1680, AU1680 WOOD, DOMINO

GULLIVER

STANDARD

MDW

GENIUS

AMC

AMIGO, AMIGOLD, KILO, BRAVO, ECHO

GENIE

AMC

GITR-3, GIT, GICT390, GIFT390-1, G3T-BX,
G1T-BX, GM3T, GICTD, GIFTD

GIBIDI

STANDARD

AUO1590, AU1600, DOMI-NO, AU1680 WOOD,
GIBIDI, AU1610, AU1810, AUO3000, DTC 4334

HORMANN

STANDARD

HSM2, HSM4

JCM

STANDARD

NEO, TWIN, GO, GO PORTIS, GO NORTON

JAY

STANDARD

UBEI X1SL1, UBET 11, UBET 21, UBET, 31,
UBET 41, UBET 61

Page 7 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

KBLUE

STANDARD

ETH-TEL01

KEY

STANDARD

900TXB-42R, SUB44, TXB-44R, TXG-44R

KING GATES

STANDARD

STYLO, CLIPPER

KLING

STANDARD

KUA, KUA E, KUA S

LABEL

STANDARD

SPYCO, RJW4E

LEB

STANDARD

TMW

LINCE

STANDARD

LR2035

LIFE

STANDARD

FIDO

LINEAR

STANDARD

MCT-11, ACT-21. ACT-22, STING RAY ACT-31,
STINGRAY ACT34B

MHOUSE

STANDARD

TX4

MA

STANDARD

TX1, TX2, TX3

MARATEC

STANDARD

D101, D12, DIGITAL302, DIGITAL304

MERLIN/PROLIFT

STANDARD

M230T(PROLIFT), M340R(PROLIFT)

MERLIN2.0

STANDARD

E945M, E943M, E940M

MERLIN/PROLIFT

STANDARD

M842(GREEN REMOTE), M832(GREEN
REMOTE), M844(GREEN REMOTE), C945,
C940, C943

MHOUSE

AMC

TX4, TX3, GTX4

MOOVO

AMC

MT4G

MONSEIGNEUR

STANDARD

ARC

NICE

AMC

SMILO, FLOR-S, VERY-VR, INTI, FLO2, FLO4,
FLOR-S ERA, ONE(ON),ON ERA, ERGO,
PLANO, ONE(ON FM)

NORTON

STANDARD

NEO, TXCD, GO NORTON, GO MINI NORTON

NOVOTECNICA

AMC

BIXL

NOVOFERM

STANDARD

NOVOTRON 502-504-512MIX43-2, MTR40-2,
MCHS43-2, MHS43(2-4), MNHS433(2-4), MCHS,
MINI-NOVOTRON 504, MICRO-NOVOTRON
502, MICRO-NOVOTRON 504, MICRO­NOVOTRON 31, MICRO-NOVOTRON 51, MINI­NOVOTRON 30, MINI-NOVOTRON 50, MNHS

NOLOGO

STANDARD

ECO DIP

NORMSTAHL

STANDARD

T433

O & O

AMC

T.COM, TWIN, TX TWIN, TWIN TX2/TX4(NEO),
T.COM R4-2/T.COM R4-4, T.COM R8-2/T.COM
R8-4

OG

STANDARD

OG62,OG64

OPENOUT

STANDARD

TMQ

PECCININ

STANDARD

TX MEMBRANA

PORTAMATIC

STANDARD

MPH01, MPH02

PRASTEL

AMC

TC2E(4E), SLIM, BFOR,MPSTP2E, MPSTPF2,
MPSTF4, MPSTF2RE, MPSTF4RE, MPSTP2E,
MPSTP2E BLUE, MTE(MT4E,MT2E), TRQ-

Page 8 of 8

SSIHuset

Svane Electronic

Arildsvej 27, Gråmose, DK-7442 Engesvang

[e-mail] Tlf.: 70253010 www.svane-el.dk

P(TRQ4P,TRQ2P), MPSTLE(MPSTLE(MPSTL­1E, MPSTL-2E, MPSTL-4E)

PROEM

STANDARD

ER4C4ACS

PROGET

STANDARD

ETY_433N2, ETY_433N4

PUJOL

STANDARD

MARTE, P215, TWIN, VARIO, VARIO MARS,
VARIO OCEAN, NEO

QUASAR

STANDARD

433

RIB

STANDARD

LITHIO

ROPER

STANDARD

NEO, GO ROPER, GO MINI ROPER

SABUTOM

STANDARD

BROVER, BROSTAR

SEA

STANDARD

SMART DIP

SEAV

STANDARD

BE-HAPPY RS(BE-HAPPY-RS1,BE-HAPPY­RS2,BE-HAPPY-RS3), BE-SMART RSX, BE­HAPPY RH1, BE-HAPPY RH2, BE-HAPPY RH3

SECULUX

STANDARD

NEO

SILVELOX

STANDARD

Mhz 2007, QUARZ SAW

SICE

STANDARD

4790207

SIMINOR

STANDARD

CVXNL, MITTO, SIM433

SECURVERA

STANDARD

SV R2C, SV R4C, SV R6C

SERAI

STANDARD

OG/52, OG54, OG82, OG84, OG/28, OG48,
OG62, OG64

SIMINOR

STANDARD

S433(2T-4T), ER2C4ACS, ER4C4ACS

SOMFY

STANDARD

TELIS, K-EASY, K-EASY NEW, K-EASY OLD,
MITTO, KEY GO RTS, TELIS RTS, KEYTIS RTS,
KEYTIS RTS NS, ALARMA

SOMMER

STANDARD

4010, 4011, 4014 TX03-434-2, 4013 TX03-434-4,
4020 TX03-868-4, 4026 TX03-868-2, 4022 TX02­434-2, 4025 TX02-868-2, 4031 TX08-868-4

STAGNOLI

STANDARD

KALLISTO, VENUS AV223

TAU

AMC

250k-SLIMRP, 250K-SLIMR, 250T-4RP

TELCOMA

STANDARD

FM 402, FM 402E, FM400E, FM400

TOR LIFT

STANDARD

TORMIT4

VDS

AMC

TRQ P, ECO-R

VRAWFORD

STANDARD

EA433 4K, SMART2, SMART3

V2

V2 and AMC

PHOENIX 433-868, TXC, TSC, TRC, HANDY,
SERIE ROYAL: TRR/43, TRR2/43, TRR4/43,
PHOX 433
