SVA185WX1-02TB
Specification
32 pgs1.2 Mb0

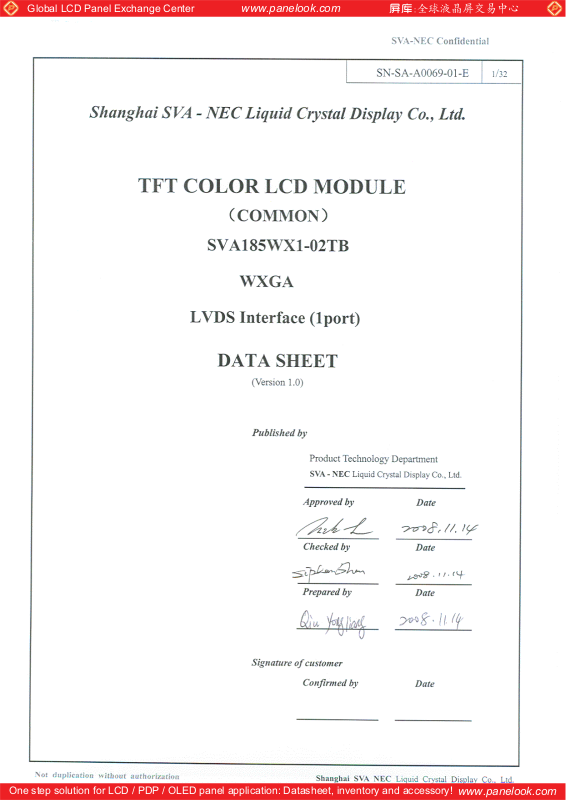

SVA-NEC SVA185WX1-02TB Specification

Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SN-SA-A0069-01-E 2/32
INTRODUCTION
• WARRANTY
meets the product specifications set forth in this document. If this product under normal operation is found to be
non-conforming to the product specifications, and such non-conformance is promptly notified to SVA-NEC within
one (1) year after the delivery date, and further such non-conformance is solely attributable to SVA-NEC,
SVA-NEC shall repair the non-conforming product or replace it with a conforming one, free of charge. However,
this warranty does not apply to any non-conformance that can be found easily by incoming inspections or those resulting from any one of the following˖
1) Unauthorized or improper repair, maintenance or modification
2) Operation or use against specifications, instructions or warnings given by SVA-NEC
3) Any other causes attributable to customer
In case SVA-NEC repairs or replaces a product after the one (l)-year warranty period, SVA-NEC shall be entitled
to charge for such repair or replacement. Those replaced parts shall be covered with six (6)-month warranty period
from the replacement day. Non-conforming products may be replaced with substitutes instead of repair when the
manufacture of this product has been terminated.
EXCEPT AS EXPRESSLY SET FORTH HEREIN, SVA-NEC DISCLAIMS ANY WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, AND DISCLAIMS ANY REMEDIES.
• MAINTENANCE
The specifications of maintenance parts may be partially changed within equivalent quality or better. In this
product, SVA-NEC will not accept to maintain for only mounting parts on circuit board (e.g. connector, fuse,
capacitor, resistor, etc.) and only backlight conformation parts (e.g. reflector sheet, light guide plate, etc.).
If SVA-NEC is planning discontinuation for this product, SVA-NEC shall inform it to customers in six
(6)-months advance from the issued date of official agreements. In addition, after product discontinuation,
SVA-NEC may replace substitutes instead of maintenance parts with whole product.
CHANGE CONTROL
•
For the purpose of product improvement, this product design may be changed for specifications, appearance,
parts, circuits and so on. In case a design change is affected on the product specifications, SVA-NEC shall inform it
to customers in advance.
HANDLING OF DOUBTFUL POINTS
•
Any question arising out of, or in connection with, this SPECIFICATION or any matter not stipulated herein will
be settled each time upon consultation between both parties.
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SN-SA-A0069-01-E 3/32
CONTENTS
INTRODUCTION ....................................................................................................................................................... 2
CONTENTS................................................................................................................................................................. 3
1. OUTLINE ................................................................................................................................................................ 4
1.1 STRUCTURE AND PRINCIPLE.................................................................................................................. 4
1.2 APPLICATIONS ............................................................................................................................................ 4
1.3 FEATURES .................................................................................................................................................... 4
2. GENERAL INFORMATION................................................................................................................................... 5
3. BLOCK DIAGRAM ................................................................................................................................................ 6
4. DETAILED SPECIFICATION ................................................................................................................................ 7
4.1 MECHANICAL SPECIFICATIONS ............................................................................................................. 7
4.2 ABSOLUTE MAXIMUM RATINGS............................................................................................................ 7
4.3 ELECTRICAL CHARACTERISTICS.......................................................................................................... 8
4.4 POWER SUPPLY VOLTAGE SEQUENCE AND RIPPLE........................................................................ 10
4.5 INTERFACE AND CONNECTOR PIN ASSIGNMENT............................................................................ 12
4.6 LVDS I/F DATA CHART............................................................................................................................. 14
4.7 DISPLAY COLORS AND INPUT DATA SINGALS.................................................................. ................15

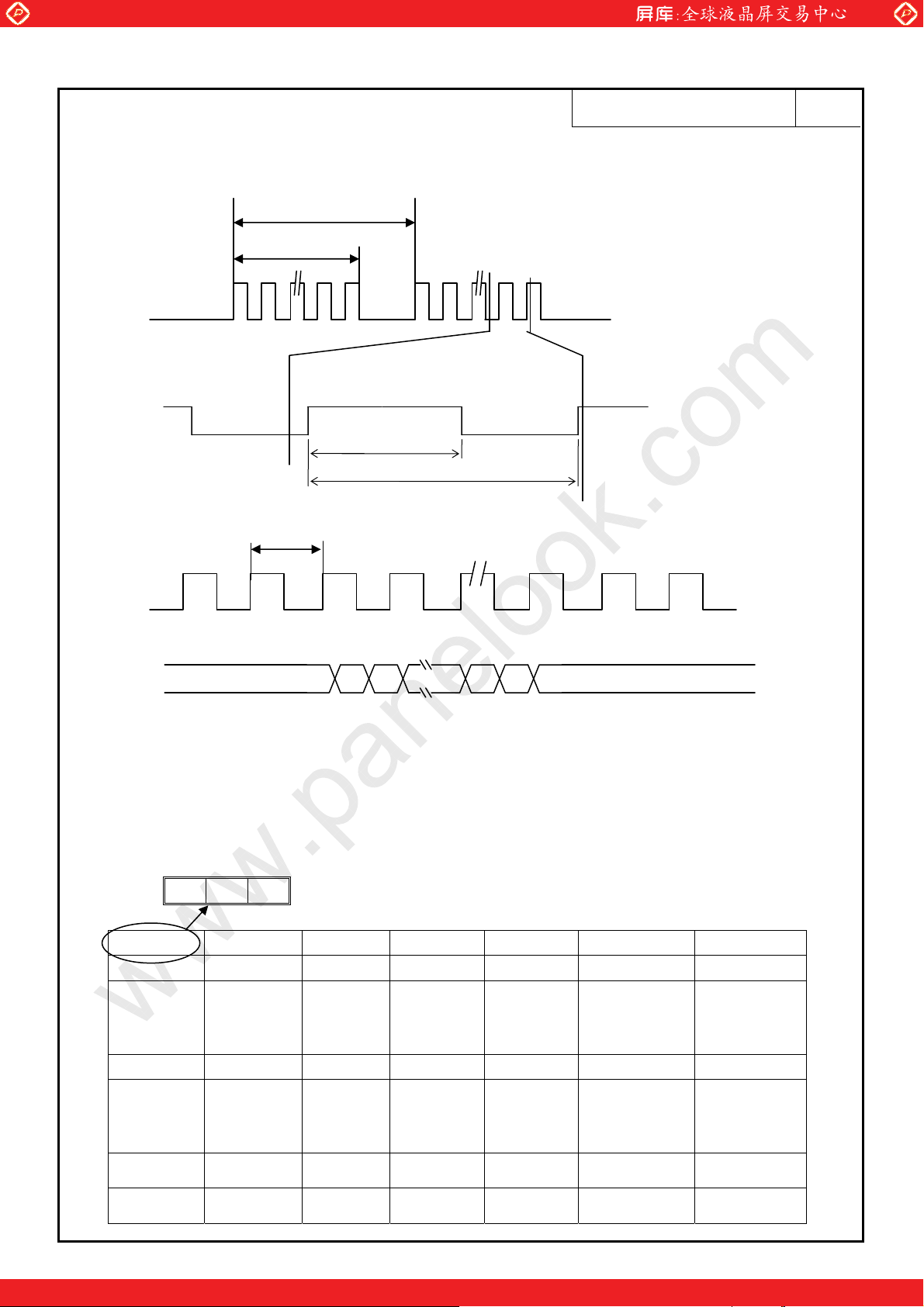

4.8 INTERFACE TIMMING ............................................................................................................................. 16

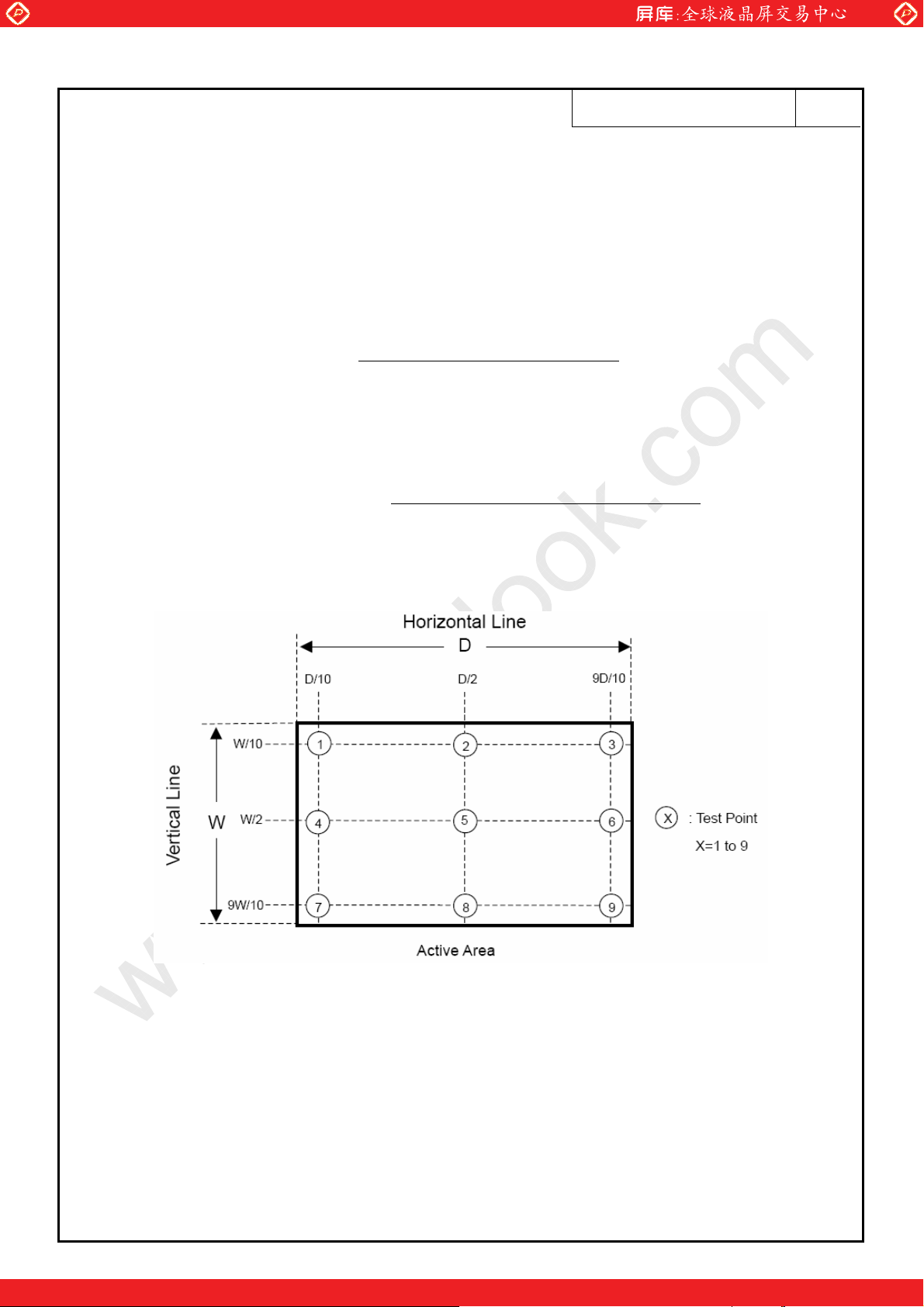

4.9 OPTICS........................................................................................................................................................ 18
5. RELIABILITYS TESTS........................................................................................................................................ 21
6. ESTIMATED LUMINANCE LIFETIME ............................................................................................................. 22
7. MARKINGS .......................................................................................................................................................... 23

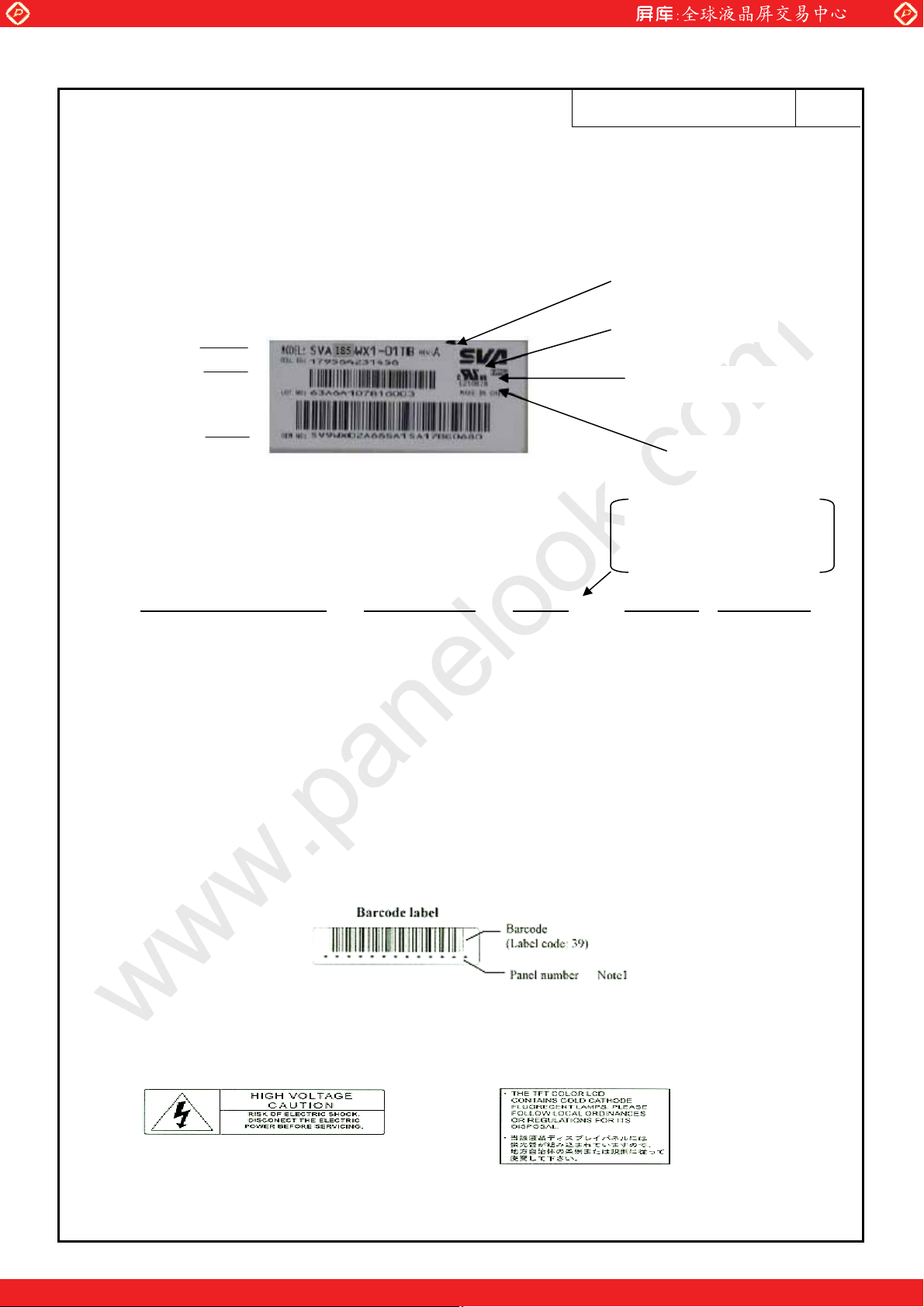

7.1 PRODUCT LABEL ..................................................................................................................................... 23
7.2 BARCODE LABEL..................................................................................................................................... 23
7.3 OTHER MARKINGS .................................................................................................................................. 23
7.4 INDICATION LOCATIONS ....................................................................................................................... 24
8. PACKING, TRANSPORTATION AND DELIVERY............................................................................................ 25

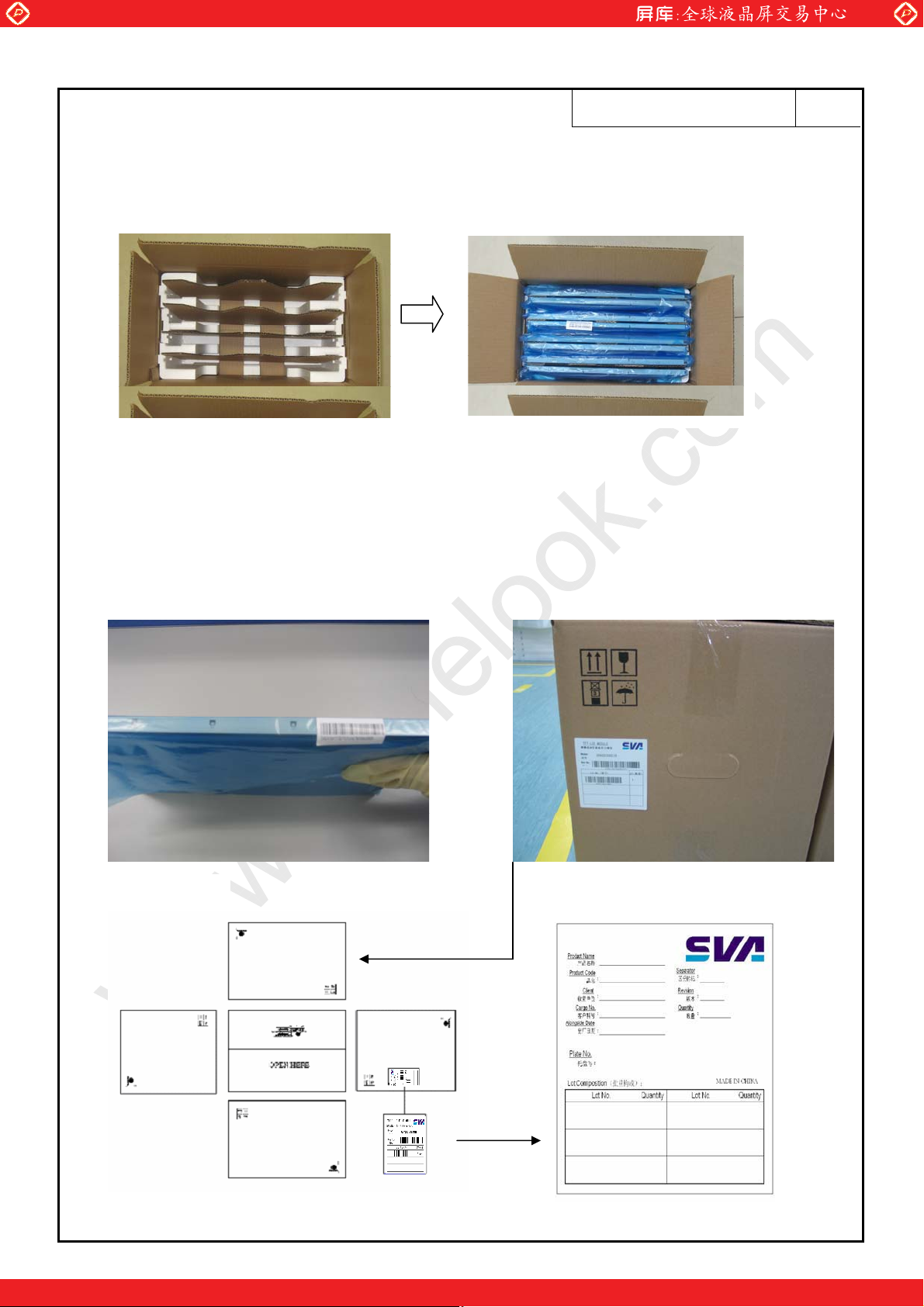

8.1 PACKING .................................................................................................................................................... 25
8.2 INSPECTION RECORD SHEET................................................................................................................ 25
8.3 TRANSPORTATION ................................................................................................................................... 25
8.4 SIZE AND WEIGHT FOR PACKING BOX............................................................................................... 25

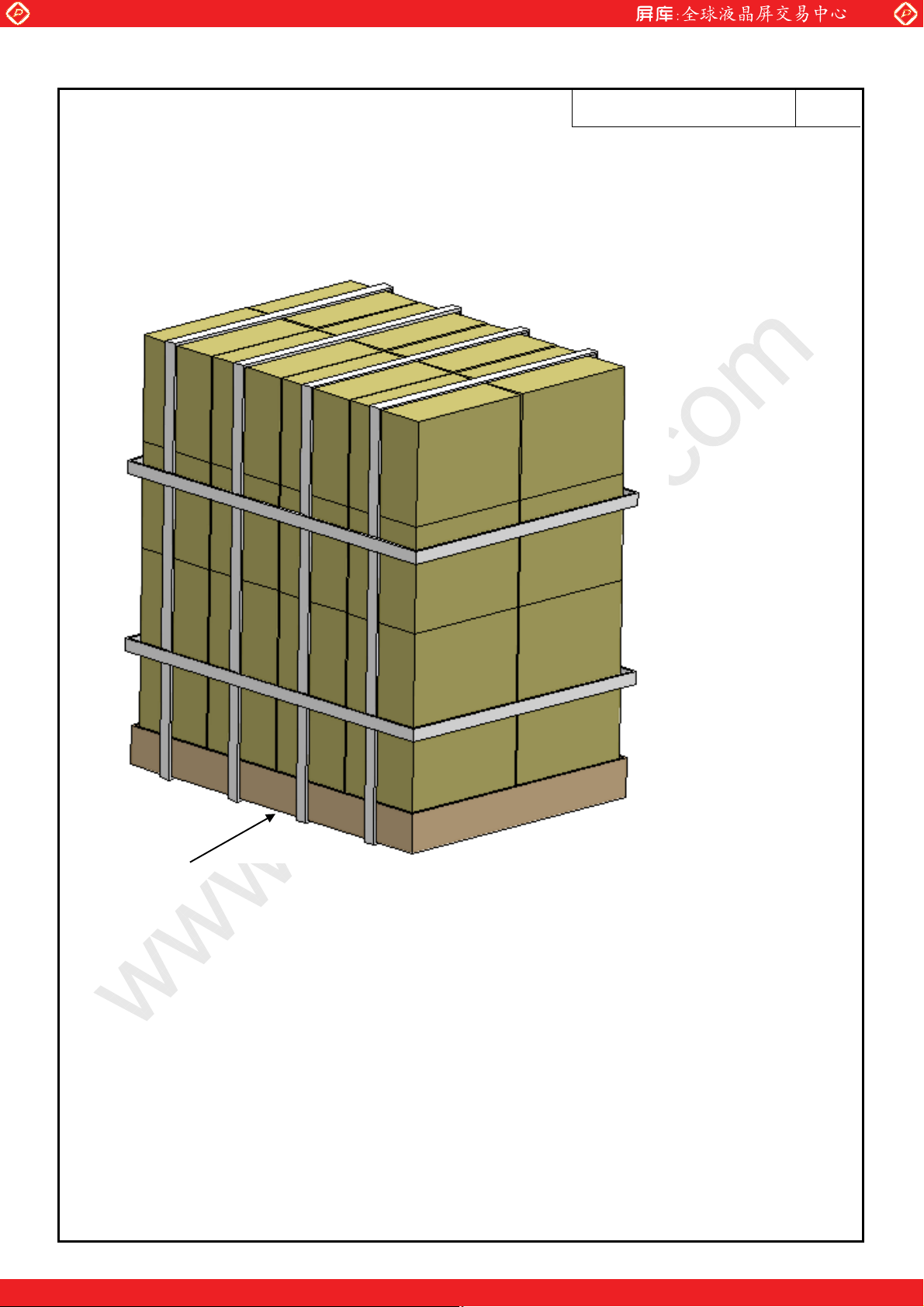

8.5 OUTLINE FIGURE FOR PACKING.......................................................................................................... 26
9. PRECAUTIONS .................................................................................................................................................... 28
9.1 MEANING OF CUTION SIGNS ................................................................................................................ 28
9.2 CAUTIONS
9.3 ATTENTIONS ............................................................................................................................................. 28

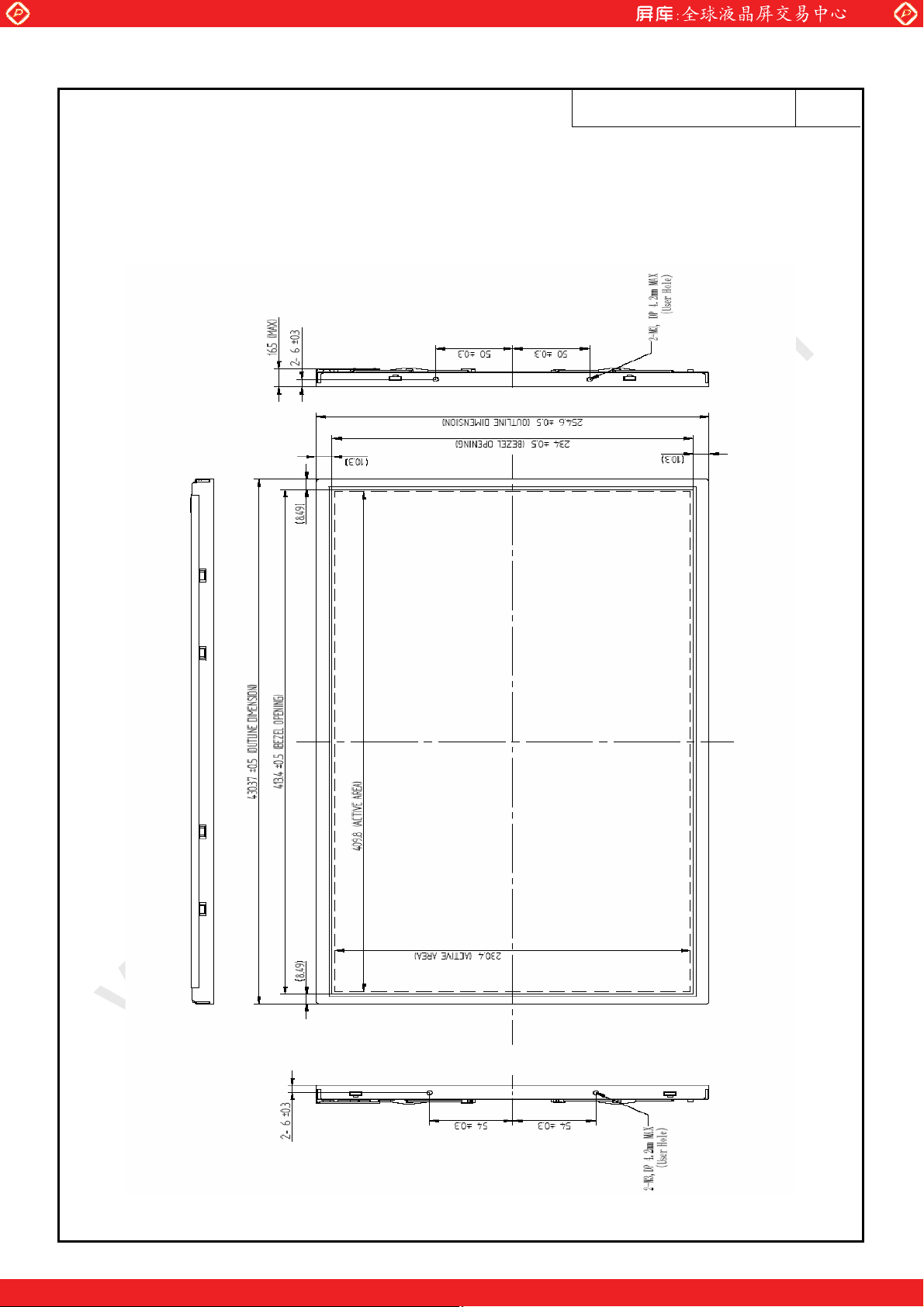

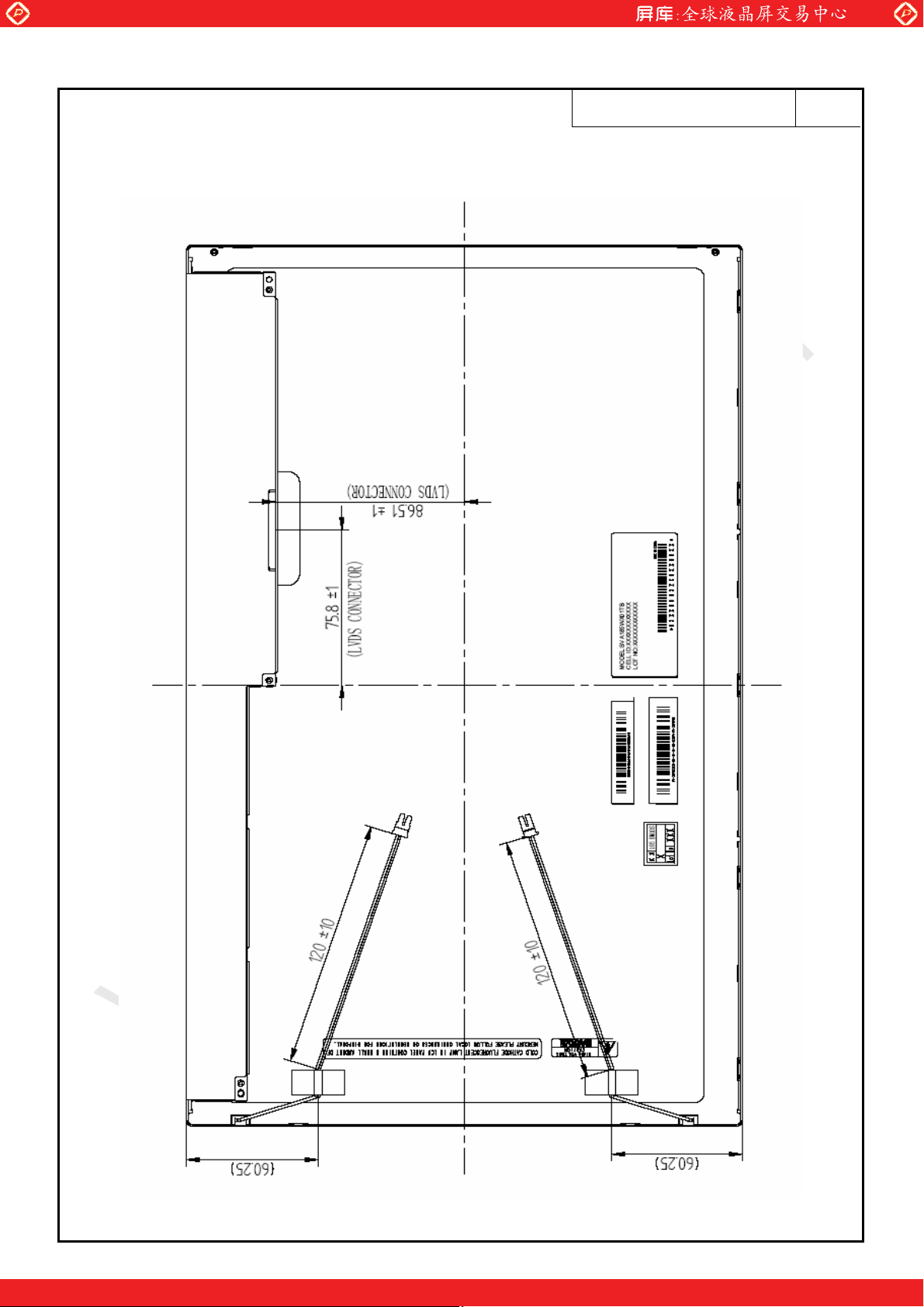

10.OUTDRAWING ................................................................................................................................................... 30
................................................................................................................................................. 28
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SN-SA-A0069-01-E 4/32
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
SVA185WX1-02TB module is composed of the amorphous silicon thin film transistor liquid crystal display
(a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array
glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are modulated into
best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive the
individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted
light through the TFT array of red, green and blue dots.
1.2 APPLICATIONS
• For Monitor / TV application
1.3 FEATURES
• a-Si TFT active matrix
• LVDS interface
• R.G.B input 8bit, 16.77 millions colors (6bit+Hi-FRC)
• Resolution: (1,366×768 pixels)
• High contrast ratio: 1000:1
• High response time (Ton+Toff=5 ms˅
• High gamut: (against NTSC 72%typ.)
• Edge light type backlight (2 CCFL lamps)
• Inverter less
• RoHS compliance
• TCO’03 compliance
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
2. GENERAL INFORMATION
Display area
Drive system
Display color
Pixel
Pixel arrangement
Pixel pitch
Module size
Weigh t
Contrast ratio
Viewing angle
(At the contrast ratio 10
˖
1)
SN-SA-A0069-01-E 5/32
409.8 (W) x 230.4 (H) mm (typ.)
a-Si TFT active matrix
16,777,216 colors (6bit+FRC)
1,366 (H) x 768 (V) pixels
RGB (Red dotǃGreen dotǃ Blue dot) vertical stripe
0.3 (H) x 0.3 (V) mm
430.37 (W) x 254.6 (H) x 16.5 (D)(max.) mm
(1900)g (max.)
1000:1 (typ.)
• Horizontal: 85°/85°(L/R);
• Vertical: 80°/80° (U/D)
Color gamut
Response time
Luminance
Transmissive Mode
Surface treatment
Signal system
Power supply voltage
Backlight
Power consumption
At LCD panel center
72 % (typ.) [against NTSC color space]

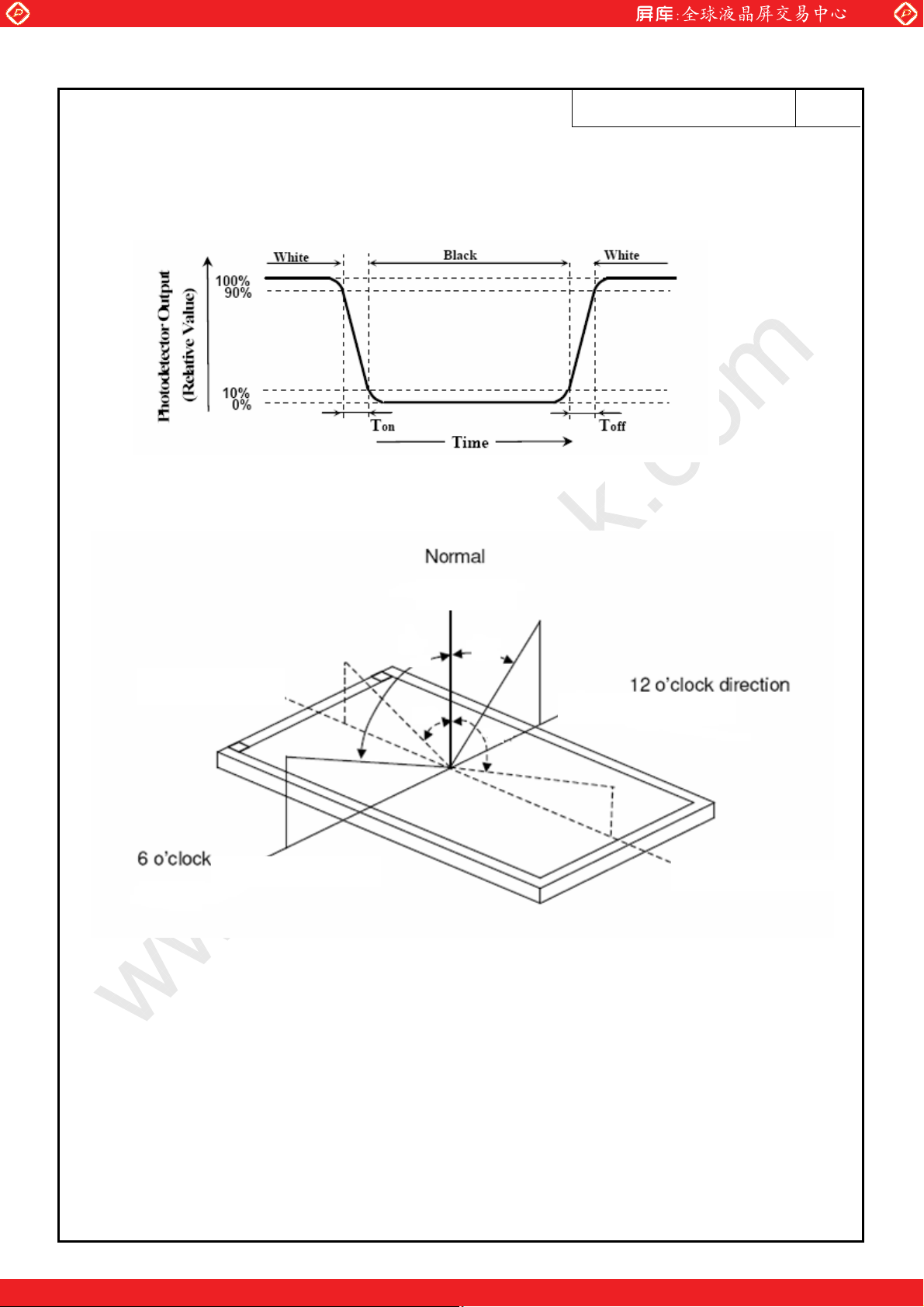

Ton (white 90% black 10%) + Toff (black 10% white 90%)
5ms (typ.)
At IBL = (10.0)mArms / lamp
250cd/m
TN Mode,Normally White
AG type,Hardness 3H
LVDS 1port
LCD panel signal processing board˖5V
Edge light type˖2 cold cathode fluorescent lamps
At IBL=(10.0)mArms / lamp and checkered flag pattern
(TBD)W (Typ.)
2
(typ.)
[ RGB :8-bit, Dot clock (CLK), Data enable (DE)]
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. BLOCK DIAGRAM
LCDMODULE I/F
D0-
D0+
D1-
D1+
D2-
D2+
CLK-
CLK+
D3-
D3+
VCC
VBLH1/2
VBLC2/2
100¡
100¡
100¡
100¡
100¡
FUSE
DC/DC
Converter
6KOKPI%QPVTQNNGT
LVDS Receiver
Power
SN-SA-A0069-01-E 6/32
Source Driver
4098 columns
Gate Driver
 LCD Panel
768 rows
H:1366h3˄R,G,B˅ V:768
Edge side backlight
FG
Note: System ground(GND), FG (Frame ground) in the product should be connected together in customer
equipment.
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
4. DETAILED SPECIFICATION
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
Module size 430.37 (W) ×254.6 (H) ×16.5 (D) mm
Display area 409.8 (W) x 230.4 (H) (typ.) mm
Display dot number 1366×3(H) ×768(V) -
Pixel pitch 0.3(H)×0.3(V) mm
Color arrangement RGB (Red dotǃGreen dotǃ Blue dot) vertical stripe -
Display color 16,777,216(6bit+Hi FRC) color
Weight (1900) (max.) g
SN-SA-A0069-01-E 7/32
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage
for signals
Operating temperature Top 0 ~ +50 ć
Note1: Display signals are D0+/-, D1+/-, D2+/-, D3+/- and CK+/-.
Note2: No condensation
LCD panel signal board VCC -0.3 ~ +6.0 V Ta = 25ć
Display signals
Note1
Storage temperature Tst -20 ~ +60 ć -
Relative humidity
Note2
Operating altitude
Storage altitude
Vi -0.3 ~ +2.63 V Ta = 25ć
RH
-
-
 90 % Ta  40ć
 85 % 40 <Ta 50ć
4,850
13,600
m 0°CTa55°C
m -20°CTa60°C
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SN-SA-A0069-01-E 8/32
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 Driving for LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VCC 4.5 5.0 5.5 V -
Power supply current ICC - TBD1 TBD mA at VCC = 5.0V
Permissible ripple voltage VRP - - 150 mV For VCC
Differential input threshold
voltage for LVDS receiver
Low VTL -100 mV
High VTH - - 100 mV
at VCM =
1.25V
3
Input voltage width for LVDS receiver Vi 0 2.62 V -
Rush current +TWUJ - - TBD A Note1.
1: Checkered flag pattern (EIAJ ED-2522)2: 2H1V dot inverse pattern
3: Common mode voltage for LVDS receiver
Note1.Measurement Conditions:
GND
5V
Q1
R1
47K
S2
1
2
5V
3
SW- SP DT
12V
R2
1K
R3
20K
C3
Cap 10uF/16V
C2
Cap 1uF/16V
MOSFE T- N
Q2 MOSFE T- N
GND
F1
Fuse (2 A)
GND
C1 Cap 1uF/16V
VDD
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(
www.panelook.com
4.3.2 Driving for backlight lamp
Parameter Symbol min. typ. max. Unit Remarks
Lamp voltage VBLH - (600) - Vrms
Lamp current IBL - 10.0 - mArms Note3
Lamp starting voltage
(discharge stabilization voltage)
Lamp oscillation frequency FO 30 50 80 kHz Note4
Note1: The backlight of this product is made up of 2-piece lamp. The specification above is only for each lamp.
Note2: The voltage timing cycle of each lamp should be set as the same phase. [Vs] and [VBLH] is the voltage
between the high port and low port, the value is the characteristic of lamp. The starting voltage of inverter
should be higher than the value. The possibility of not lighting exists by the lower voltage, so the suitable
voltage should considered by the test.
Vs
(750)
(1100)
-
-
-
-
SN-SA-A0069-01-E 9/32
Ta=25°C) Note1
IBL=10.0mA
Note2ǃNote3
Vrms
Vrms
Ta = 2 5 ć
Note2ǃNote3
Ta =0 ć
Note2ǃ3
Note3: The asymmetric ratio of working waveform for lamps (Lamp voltage peak ratio, Lamp current peak ratio
and waveform area ratio) should be less than 5% (See the following figure). If the waveform is asymmetric,
DC (Direct current) element applies into the lamp. In this case, a lamp lifetime may be shortened, because a
distribution of a lamp enclosure substance inclines toward one side between low voltage terminal (Cold
terminal) and high voltage terminal (Hot terminal).
Pa
Sa
Sb
Pb
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative
Sa: Waveform space for positive part, Sb: Waveform space for negative part
Note4: In case “FO” is not the recommended value, beat noise may display on the screen, because of interference
between “FO” and “1/th”. Recommended value of “FO” is as following.
FO = 1/4 × 1/th × (2n-1)
Th: Horizontal signal period(See
“4.˔.1 Timing characteristics”.)
|Pa - Pb| / Pb × 100 İ 5% |Sa - Sb| / Sb × 100 İ 5%
n: Natural number (1, 2, 3 ……)
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
4.4 POWER SUPPLY VOLTAGE SEQUENCE AND RIPPLE
4.4.1 Power supply voltage sequence
90%
t˘20ms * 1
4.0V
VA L I D
90%
VCC
0V
Interface Signals *2
Backlight signal
0V
ON
90%
10%
0.5ms˘Tr˘10ms
90%
0˘t˘50ms
90%
10%
90%
SN-SA-A0069-01-E 10/32
10%
Toff ˚500 ms
0˘t˘50ms
t˚450ms
t˚90ms
*1: VCC should be above 4.0 V while VCC ON period.
*2 :The signal line is not connected with the module, at the end of cable the terminal resistor of 100 should
be added.
Note1: In terms of voltage variation (voltage drop) while VCC rising edge is below 4.5 V, a protection circuit
may work, and then this product may not work.
Note2: If some of interface signals of this product are cut while this product is working, even if the signal input
to it once again, it might not work normally. If customer stops the interface signals, they should cut
VCC.
Note3: The backlight power supply voltage should be inputted within the valid period of interface signals, in
order to avoid unstable data display.
4.4.2 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as the following table,
but there might be noise on the display image.
VCC(5V to drive the panel)
Ripple voltage İ150mV˄Including spike noise˅
Not duplication without authorization Shanghai SVA NEC Liquid Crystal Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
+ 22 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
