Thank you for purchasing this Svago ZG-Recliner.
To ensure that you don’t overlook any of your chair’s features,and that you use it
safely, read this manual carefully.Then sit back,relax,and enjoy!
IMPORTANT SAFETY INSTRUCTIONS ........................................................... 1-2
CHAIR COMPONENTS ......................................................................................... 3
CHAIR SPECIFICATIONS ...................................................................................... 4
CHAIR DIMENSIONS ............................................................................................ 5
PLACING THE CHAIR ............................................................................................ 6
INSTALLATION ................................................................................................... 7-9
PREPARATIONS PRIOR TO USE ........................................................................ 10
PROGRAM OPERATION GUIDE
..................................................................
11-13
MAINTENANCE PROCEDURES ........................................................................ 14
TROUBLESHOOTING ......................................................................................... 15
WARRANTY INFORMATION ........................................................................16-18
Warranty Card (Attachment)
TABLE OF CONTENTS
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:08
Page 3
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
DANGER: To reduce the risk of electrical shock, always unplug Svago™ from the
electrical outlet immediately after using and before cleaning.
WARNING: To reduce the risk of burns, fre, electric shock or injury to persons:
• Do not put hands or fngers near the footrest mechanism on the under side of the
chair while this product is running. Touching the mechanism can result in injury.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualifed person in order to avoid a hazard.
• An appliance should never be left unattended when plugged in. Unplug from outlet
when not in use, and before putting on or taking of parts.
• Close supervision is necessary when this product is used by, on, or near children, in
valids, or disabled persons. Keep children away from extended foot support (or other
similar parts).
• Use this product only for its intended use as described in this manual. Do not use at
tachments not recommended by the manufacturer.
• Never operate this product if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return this
product to a service center for examination and repair.
• Do not carry this appliance by supply cord or use cord as a handle.
• Always keep the power cord away from heated surfaces.
• Never operate this product with the air openings blocked. Keep the air openings
free of lint, hair, and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:08
Page 4
2
• Do not use this product when standing on a damp foor, or when any part of the
body is in contact with plumbing or any similar ground.
• Do not use this product if noise above normal sound is heard.
• Do not stand on or in appliance. Use only while seated.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Please consult your doctor if you have any doubts about using this chair or if you are
pregnant, undergoing medical treatment, using a medical electronic device or are
receiving oxygen.
• Comfortable clothing is recommended while using this product.
• If you feel any abnormal discomfort during the operation of this product, turn of
the power immediately and do not use the product. Consult your physician.
• Do not pull on the AC cord.
• When using this product after it has been in storage, check to see that the product
is operating properly prior to use.• Always confrm that there are no obstacles behind
the product and that there is sufcient space to recline.
• Do not attempt to repair this product yourself.
• This product is designed for personal in-home use.
Commercial use will void warranty.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the other). This plug will ft in a polarized outlet only one way. If the plug
does not ft fully in the outlet, reverse the plug. If it still does not ft, contact a quali
fed electrician to install the proper outlet. Do not change the plug in any way.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:08
Page 5
3

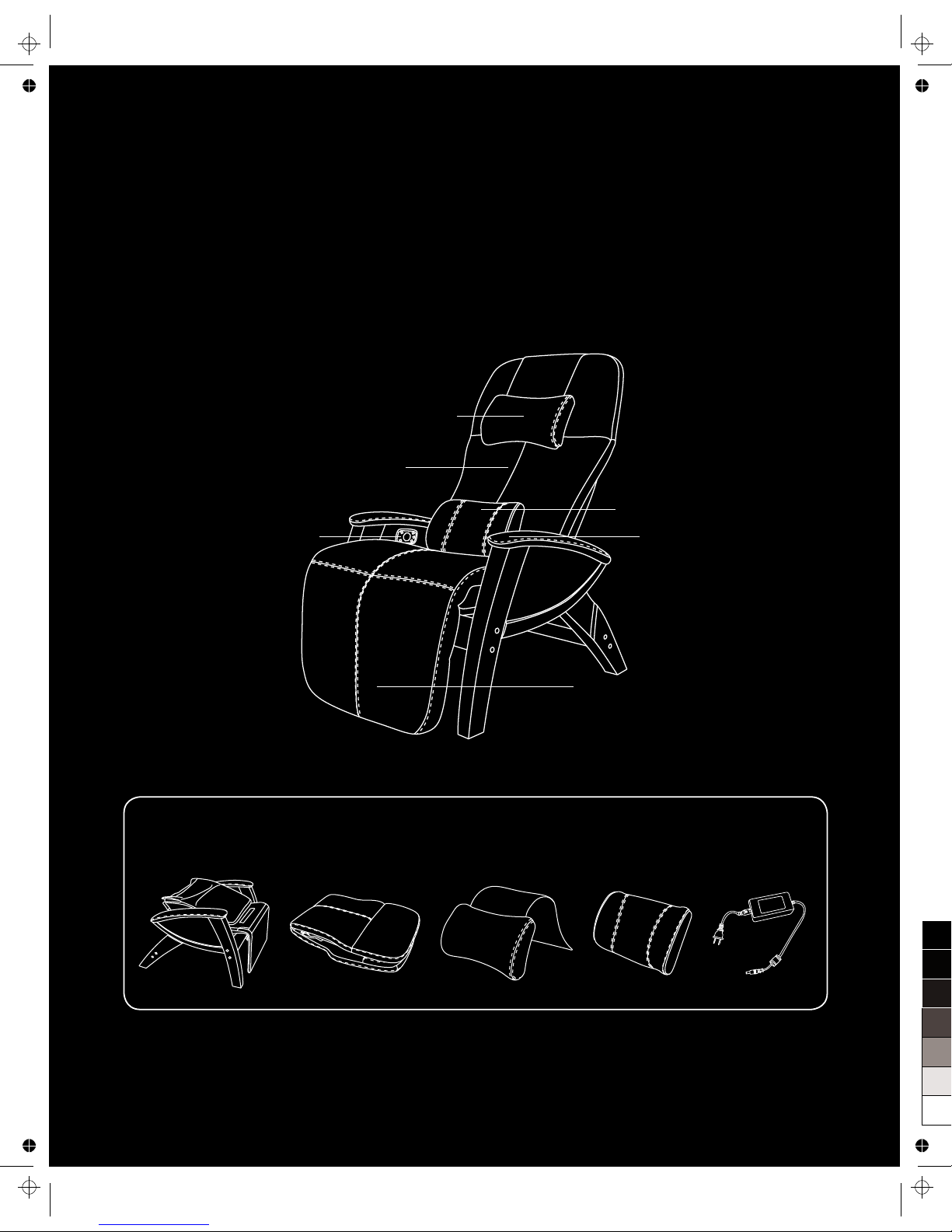

CHAIR COMPONENTS
w
Pillow
Head rest
Lumbar cushion
Arm rest
Seat rest
Foot rest
Control
Back rest
Check the accessories frst
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:08
Page 6
4
Specifications
Description
Model No. SV410
Rated Voltage In-put 110-120V
Rated Frequency
Out-put
24V DC 3A
60Hz
Rated Power Consumption
Auto Timer
15 minutes
72W
Dimensions (L*W*H)
Chair Upright:43.3"x30.7"x47.5"
Packing Carton: 45”*32”*33.9”
Chair Reclined:63”*30.7”*30”
Weight Net Weight
Gross Weight
150 lbs
110 lbs
Maximum Load Weight
28”
400 lbs
Required Recline Clearance
Usage Condition
Storage temperature 20 -55 Storage ℃ ℃
humidity level 30-85RH
Environmental temperature 10 -40 ℃ ℃
Contrasting humidity level 30-85RH
Storage Condition
Equipped with overheating and power
surge detectors
Safety Feature
CHAIR SPECIFICATIONS
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:30
Page 7
CHAIR DIMENSIONS
H: 47.5"
L: 43.3"
L: 35"
L: 30.7"
L: 17"L: 11"
5
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:30
Page 8

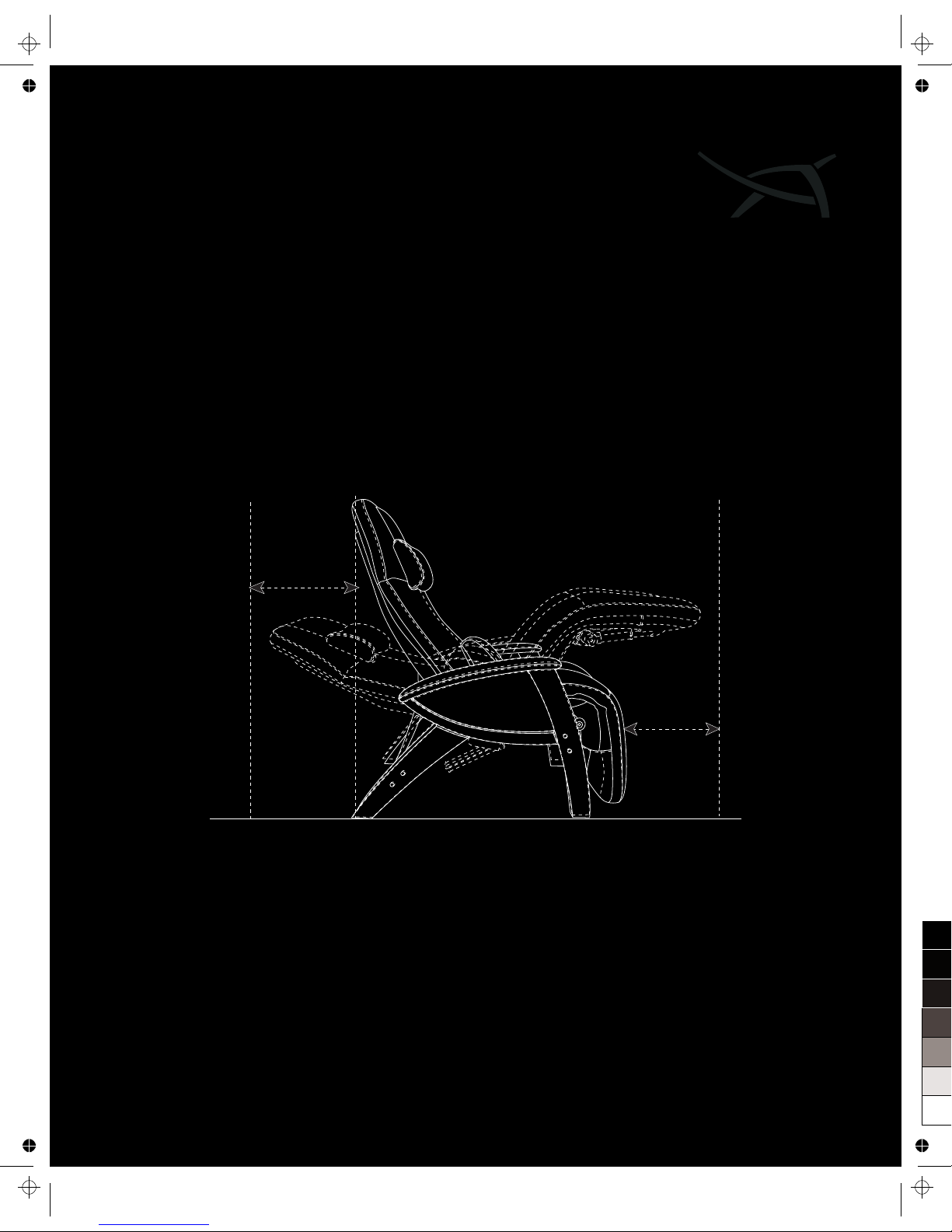

28" or more
PLACING THE CHAIR
1. Lay a carpet, etc. on the set-up place.
It prevents damaging the foor, and mufes the noise during use.
2. Ensure there is sufcient space to allow the chair to recline.
In order not to touch the wall or other things when reclined, allow a clearance of
70cm(28 ) or more to the front and the back of the chair."
Notes
• Place the chair on a level surface.
• Keep the chair at least 1 meter(3ft) away from AV machines like a TV or radio.
• Do not keep the chair in a place with high humidity like a bathroom.
• Do not keep the chair in a place where it will be exposed to direct sunshine for an
extended period, or in a place near a heater where the temperature may reaches high
levels.
6
28" or more
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:30
Page 9
7
INSTALLATION

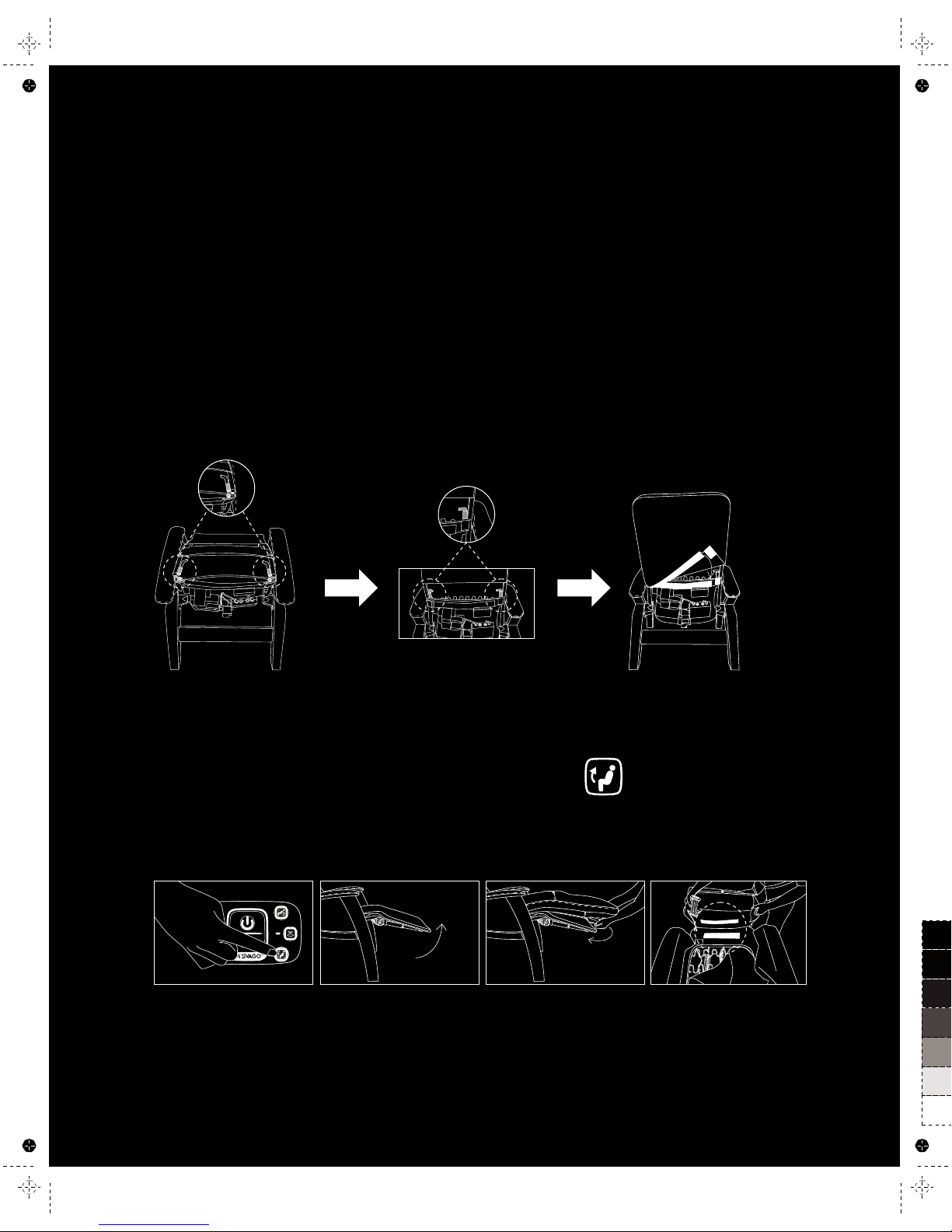

Step 1:
Unpack and lift out the chair.
Step 2:
Unfold the backrest frame, fix the “L” latch, and attach the rear fabric cover by Velcro.
Step 3:
Connect the power source, press the leg-rest-raise button and lift up the leg rest.
Insert the leg frame into the rear pocket of leg-rest cushion.Tidy and attach the seat pad
by Velcro.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:30
Page 10
8
Step 5:
Tidy, pull the seat pad to the seat frame as much as possible, align the Velcro and then
attach the seat pad.
Step 4:

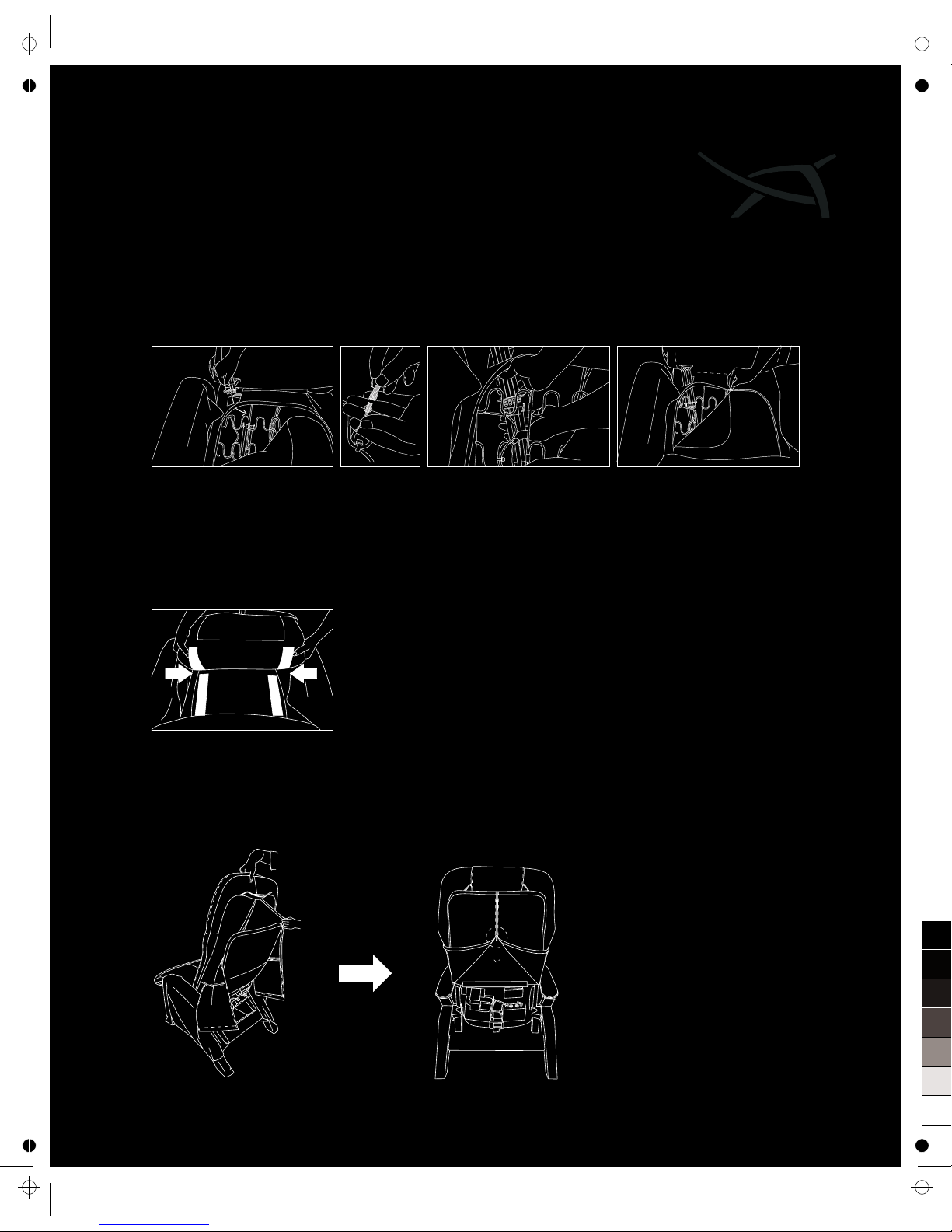

Pull the air hoses in the back pad through the fabric cover pocket on the seat. Please
align hoses in the back pad at the connectors. Connect to the connectors and the heat
coils, then zip up.
Step 6:
Unzip the rear cover of back pad, put it onto the head rest frame, and then zip up.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 11
9
Step 7 :
Attach the pillow to the head rest by the Velcro.
Step 8 :
Place the lumbar cushion on one seat.
Lumbar cushion
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 12
10
1. Check the cloth of the chair
Prior to use, be sure to check that the cover cloth or the cloth of other parts is not
torn. If a tear is found, stop using the chair immediately, unplug the power source,
and obtain service. If the chair is used with torn cloth, it may result in injury or electric
shock.
2. Check the power cord
Check that there is neither breakage or damage to the power adaptor.
Check that the cords are not caught or placed beneath the chair.

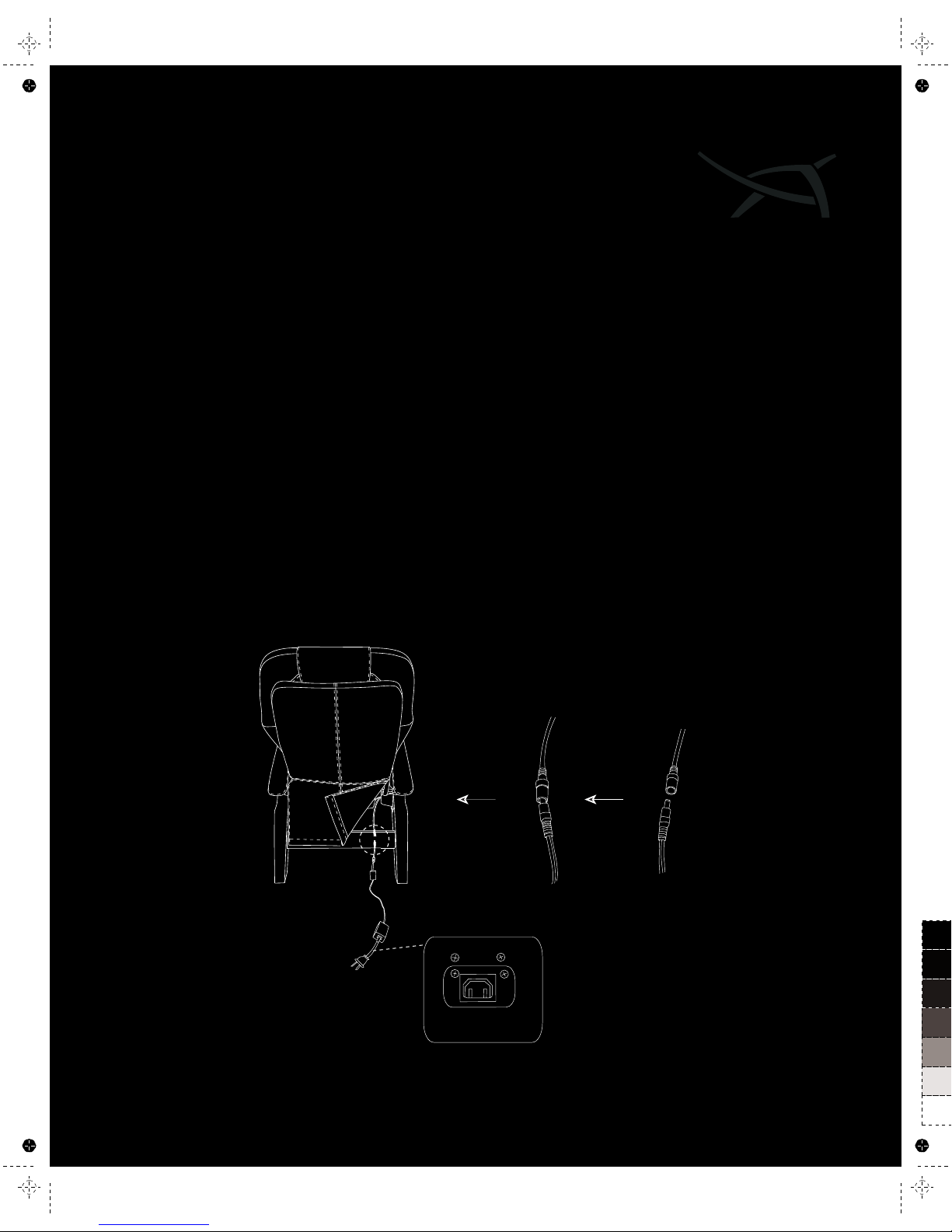

3. How to connect the power source.
1) Connect the power adaptor with the chair.
2) Insert the power plug into an outlet.
PREPARATIONS PRIOR TO USE
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 13
11
PROGRAM OPERATION GUIDE

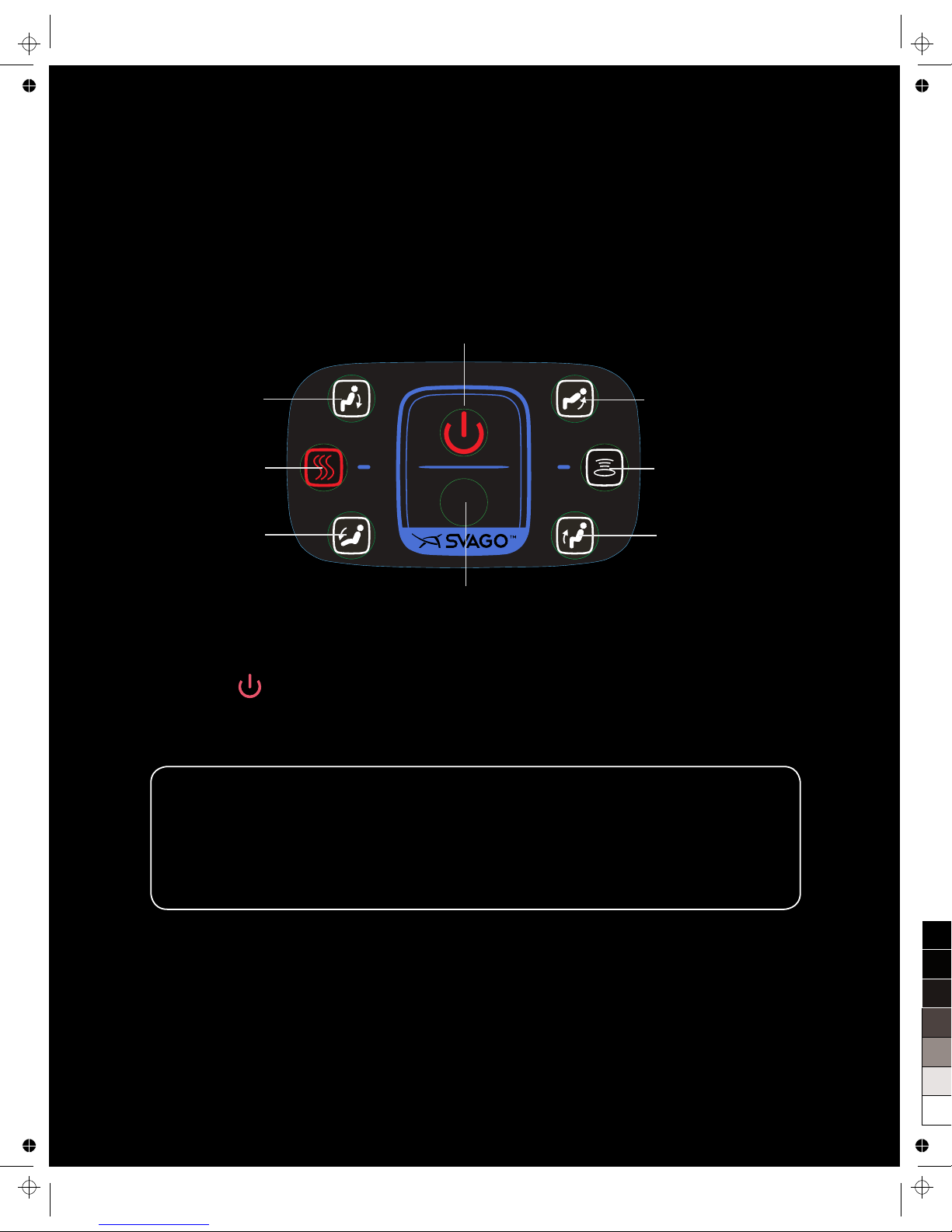

1. On/Of
When you press the button, the ON/OFF lamp illuminates, the chair is in idle, and will
start to work when you press any other function buttons.
When you want to suspend the operation in the middle or have felt some
abnormality with your body.
Press the on/of button.
Operation stops and all the lamps with extinguish.
ZGR
3
1
4
8
7
5
2
6
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 14
12
2. ZGR
When you press the button, the back rest, foot rest, and seat are automatically
adjusted to prearranged reclining angles.
• Reclining can be stopped during the reclining motion by pressing either the ZGR
button, Back rest Recline/Restore, or Leg rest Raise/Restore.
• When the reclining motion is stopped by pressing buttons other than the ON/OFF
button, press the desired button for motion.
• After achieving the ZGR position, you still may adjust the angles of back rest and
foot rest, by pressing the relevant buttons.
3/4. Backrest Recline/Raise
Press the button to activate the back rest motion, and press again when the desired
angle is achieved.
• The angle of the seat will be changed automatically in accordance with the angle of
the back rest.
• The motion can be stopped by pressing either the ZGR button,or Back rest
Recline/Raise.
• During the back rest motion, the chair has no response when you press either Leg
rest Raise/Lower, Heating or Vibration.
NOTE:
Be sure to check that there is no-one or any pets around the chair prior to adjusting
the back rest. It may result in an accident or injury.
5/6. Leg rest Raise/Lower
Press the button to activate the leg rest motion only, and press again when the
desired angle is achieved.
• The motion can be stopped by pressing either the ZGR button, or Leg rest Raise/
Lower.
• During the leg rest motion, the chair has no response when you press either Back
rest Recline/Raise, Heating or Air massage.
ZGR
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 15
13
7. Heating
Press the button to start heating located in lumbar and seat center, with the button
lamp on.
Press the button again to stop the heating, with the button lamp of.
• Heating will pause during any recline adjustments and will resume automatically
after adjustments stop.
8. Air Massage
Four large airbags are built into the chair and independently inflate and deflate in
predetermined sequences. They stretch muscles to loosen tension with a soft massage
that improves circulation and relieves body fatigue.Press the Air button one time can
star it ,perss second time can stop it.
• Air massage will pause during any recline adjustments and will resume auto matically
after adjustment stop.
Automatic Shut-of
• The Svago has a 15 minute automatic shut-of function. All operations will stop af
ter 15 minutes and can be re-set by pressing any of the function buttons.
CAUTIONS - AFTER USE
• Bring the chair to its upright position.
• Turn of the power.
• If the chair is not be used for an extended time, disconnect the power cord.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 16
14
WARNING
Be sure to disconnect the power plug from the outlet prior to maintenance
NOTE
Do not attempt to use benzene. Thinner alcohol ,alkaline detergent or bleaching agent
for cleaning,as this may result in deformation, discoloration or cracking.
HEAD REST, BACK PAD, SEAT COVER, ARM REST, FOOT REST, PILLOW(LEATHER)
Perform daily maintenance by wiping with a soft dry cloth. When parts are badly soiled,
adopt the following maintenance procedure.
1. Soak a soft cloth in diluted neutral kitchen detergent and squeeze it well. Wipe the
main unit with the damp cloth in a tapping motion.
2. Soak a cloth in clean water, and squeeze it well. Wipe of the remaining detergent
with the damp cloth.
3. Wipe it with a dry cloth afterwards.
• Do not force-dry with a drier.
• Do not force contact with vinyl products for an extended period. It may cause discol
oration.
NOTES
• Leather is a natural material, so imperfections grain, dye variations and natural mark
ings do not constitute a defect.
• Polyurethane foam padding tends to soften and light creases may form on the leather
cover over a period of three months. These are natural occurrences and do not require
any type of maintenance.
• A professional cleaner should be contacted for particular types of stains such as ink
marks.
MAINTENANCE PROCEDURE
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 17
15
Type of Troubles
Check points
Countermeasures
Check that the
power plug is
securely plugged
into the outlet.
Push the power
plug into the outlet
securely.
Check that the
power adaptor is
well connected
to the chair.
Well connect the
DC terminals
between the chair
and power adaptor.
Operation failure
The chair stops in the
middle of operation.
This phenomenon is caused by the timer,
but not a problem.
Check that there is
no obstruction.
Remove the
obstruction.
Impossible to recline.
Impossible to raise or
lower the foot rest.
TROUBLESHOOTING
WARNING
If the trouble still persists after following the proper countermeasures,stop using
the chair to avoid possible accidents. Disconnect the power plug from the outlet and
consult Svago service department. Do not attempt to repair the chair, instead contact a
certifed technician.
If you continue to have problems, please read the warranty card and contact the
Svago service department.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:32
Page 18
16
Svago products have the following warranty:
Svago ZG-Recliners provide a one year in home servicing warranty and a two
year parts warranty. Svago customer service will not issue Return Material Authoriza
tions (RMAs) for products. In case of missing parts or service issues, please contact the
Svago service department. Svago will not issue Return Material Authorizations (RMAs)
to buyers.
SERVICE AND TECHNICAL SUPPORT
WARRANTY INFORMATION
• Consumers may contact Svago’s Customer Service Department at 1-877-977-0756
between 10.00am and 6.00pm EST, Monday through Friday or email us at
[email protected] or visit our web site at www.cozziausa.com for warrant and
• Consumers are required to provide the unit serial number and dated proof of pur
chase (sales receipt) when they contact the Svago service department regarding a
repair.
• A Svago customer service representative will attend to most consumer inquiries but
in some cases a technical service specialist will be required to provide enhanced sup
port.
• Non warrant repair is provided on a ‘per incident’ basis. Svago customer service will
verify that the unit has failed and provide instructions for repair. All applicable repairs,
parts, shipping, handling, local tax and a ‘ per incident’ fee will be charged for non-warranty repairs and support calls.
• Proof of purchase (original receipt) is required for all warranty repairs or servicing.
service issues.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:37
Page 19
17
EXTENDED WARRANTIES
• Svago ofers extended warranty programs to enhance ownership of Svago products.
Extended warranty provides a three year limited repair or replacement massage chair
warranty with on-site service.
• Please visit www.cozziausa.com for the latest terms and pricing for extended warran
ties.
PRODUCT REPAIRS
• Many Svago parts may be installed by the consumer in his/her own home with parts
and instructions supplied by Svago ,such as remote controller replacements that do
not require a technician.
• Floor Models and Demonstration Units have a pro-rated Warranty period that be
gins the day the model is placed on the foor and connected to an electrical outlet by
the retail partner. Proof of purchase is required in order to obtain warranty service
and parts. Non-warranty parts and service are available at a ‘per incident’ charge.
• Warranty Coverage Period: warranty coverage starts at the time the consumer pur
chases their chair. Proof of purchase is required for all warranty repairs. The warranty
time period is measured by continuous calendar days based on the seven day week.
• Field Service: Svago Customer Service Department will diagnose and schedule an au
thorized service provider to repair the chair in the customer’s residence.
• Parts: all parts deemed necessary for repairs will be shipped to the customer at no
charge by the Svago Service Department.
CONSUMER WARRANTY LIMITATIONS AND EXCLUSIONS
• Warranties are only valid in the 48 contiguous United States and Canada and are
contingent upon the consumer operating the chair according to the corresponding
instruction manual.
• The warranty only applies to Svago products and does not include any accessories or
enhancements.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Page 20
18
• Field service requires pre-approval and must be performed by Svago’s authorized
feld service personnel. Field service is only available in the United States and major
metropolitan areas in Canada.
• Softening of foam and flling composites in pillows, pads and memory foam occurs
naturally and does not constitute a defect under this warranty.
• Fading, wear and piling of fabric occurs naturally and does not constitute a defect
under this warranty.
• Natural markings, grain and dye variations in leather do not constitute a defect un
der this warranty.
• Warranties do not cover any loss or damage resulting from improper installation,
unauthorized repairs or modifcations, improper use of the electrical/power supply,
loss of power, a dropped product, a malfunction or damage of an operating part due
to failure to implement the manufacturer’s recommended maintenance, transporta
tion damage, theft, abuse, misuse, neglect, vandalism or environmental conditions
(fre, foods, rust, corrosion, sand, dirt, windstorm, hail, earthquake or exposure to
weather conditions). Loss of use during the period the product is at a repair facility or
is otherwise awaiting parts or repair.
• Damage due to shipping and handling does not constitute a defect under
this warranty
• Under no circumstances shall Svago or its representatives be liable for indirect con
sequential or incidental damage (including damages for lost profts, business interrup
tion, bodily injury, medial problems) even if the other party has been advised of the
possibility of such damages or possible problems.
• Warranties are non-transferable and shall be in lieu of any other warranty express or
implied, including but limited to any implied warranty or merchantability of ftness for
particular use.
• Svago’s sole liability and the purchaser’s exclusive remedy shall be for repair, or at
Svago’s option, for the replacement of the defective part. Notwithstanding the above,
if replacement parts for defective materials are not available, Svago reserves the right
to make substitutions in lieu of repair or replacement.
• All warranties begin on the date of purchase, no allowance or extension is ofered
for delivery and/or installation.
• Warranties do not apply to rental, business, commercial, institutional or other nonresidential users.
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Page 21
WARRANTY REGISTRATION FORM
Product Serial No.(Located on product)
Purchase Price: Model No:
Date Purchased:
First Name: Last Name:
Address:
City: State: Zip Code:
Phone:
Email:
Please mail to:
Svago Manufacturing,lnc.
14515 E DON JULIAN RD
CITY OF INDUSTRY, CA 91746
Tel:1-877-977-0656
Fax:1-800-521-4712
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Page 22
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Page 23
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Page 24
REDEFINING ZG-RECLINER
0
5
25
75
95
100
SV410-明-20160918
2016年9⽉22⽇14:00:42
Loading...
