SMARTPLAY PRO+ INFOTAINMENT SYSTEM

AUDIO MANUAL

• Keep the booklet with the vehicle at all times • Contains important information on audio operation.

Part No. 99011M66TD0-74E

May, 2022

ENG.

Page 2

This Audio Manual applies to vehicles produced by

MARUTI SUZUKI INDIA LIMITED that are equipped

with SMARTPLAY PRO+ INFOTAINMENT SYSTEM.

Disclaimer:

All information in this manual is based on the latest

product information available at the time of publication.

Due to improvements or other changes, there may be

discrepancies between information in this manual and

your Smartplay Pro+ Infotainment System.

MARUTI SUZUKI INDIA LIMITED reserves the right to

make production/feature changes/ improvements at any

time, without notice and without incurring any obligation

to make the same or similar changes to Smartplay Pro+

Infotainment System previously built or sold.

This Smartplay Pro+ Infotainment System may not

comply with standards or regulation of other

countries and user discretion in highly solicited.

Page 3

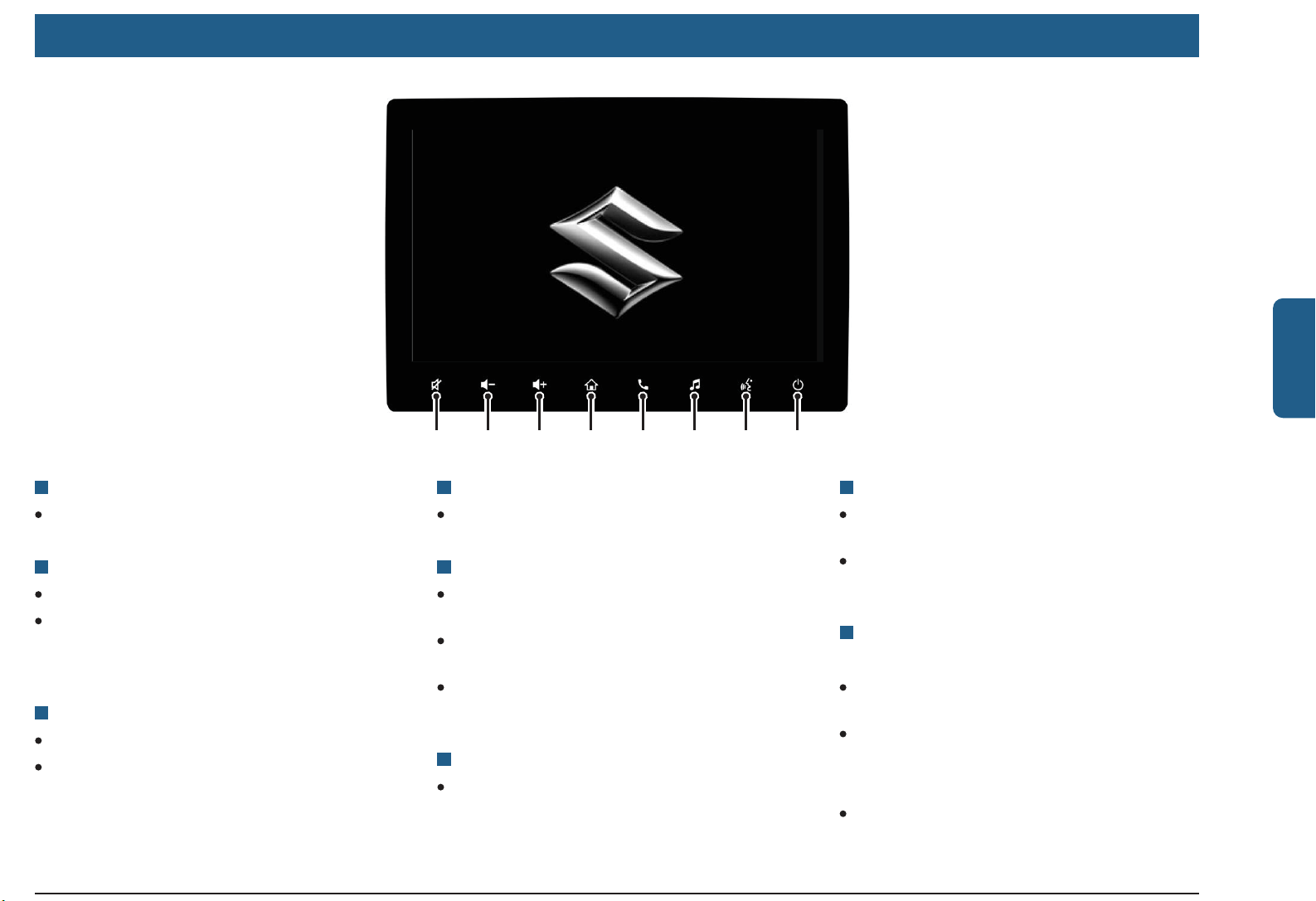

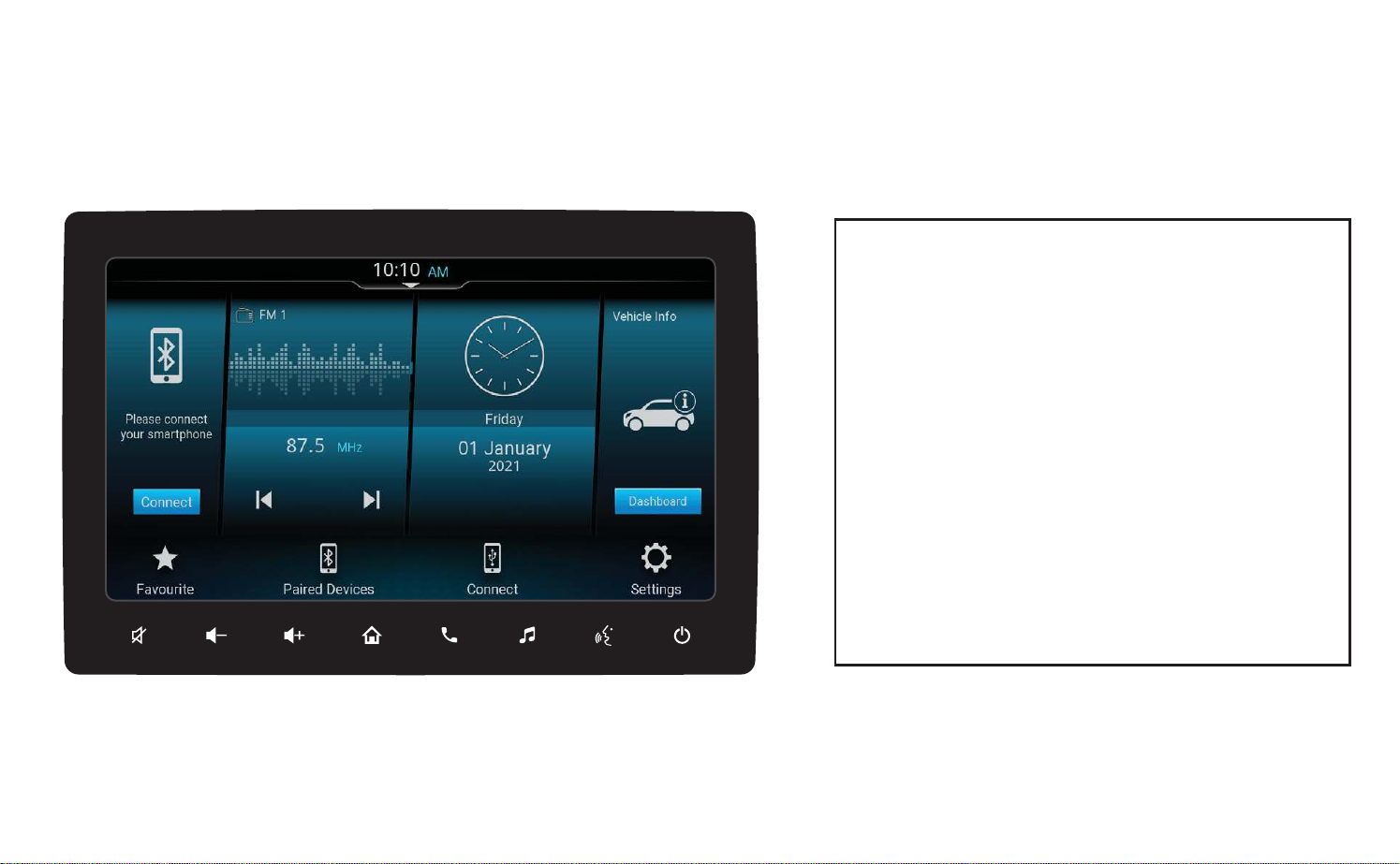

Infotainment System - Control Elements

en | 1

English

1. Mute Button

Switches between Mute/Unmute.

2. Volume Down Button

Short tap: Decreases volume by 1 level. Long tap: Decreases volume till the

button is released or minimum volume limit is reached.

3. Volume Up Button

Short tap: Increases volume by 1 level Long tap: Increases volume till the

button is released or maximum volume limit is reached.

1 8

4. Home Button

Displays the Home screen.

5. Phone Button

Display Bluetooth or projection phone

screen.

Display available device list (If no device

paired)

Display paired device list (if no device

connected)

6. Source Button

Opens the source menu for Radio

listening and Media playing.

43 65 7

7. Voice Recognition Button

Short tap: Activate or restarts Onboard

Voice Assistant.

Long tap: Activates or restarts

Smartphone Voice Recognition

8. Power Button

System is in normal operating mode

Short tap: Switches between Wallpaper

and Normal operating mode.

Long tap: Switches to Standby mode.

System is in standby mode

Short tap: Switches to Display ON.

Page 4

English

2 | en

Contents

Infotainment System - Control Elements ......1

Contents ...........................................................2

1 About This Manual .......................................4

1.1 Conventions ..............................................4

1.2 Safety Guidelines ......................................4

1.2.1 General Safety Guidelines ....................4

1.2.2 Safety Guidelines While Driving ............ 4

1.2.3 System Care and Maintenance ............. 5

2 Introduction ...................................................6

2.1 Features......................................................6

2.2 Control Elements .......................................6

2.3 Other Modes of Control ............................6

2.3.1 Steering Wheel Control (SWC)

Elements ...............................................6

2.4 Screen Elements .......................................7

2.5 Home Screen Elements ............................7

2.6 Fixed Screen Elements .............................8

2.6.1 Status Bar .............................................8

2.6.2 Quick Access Hub .................................8

2.7 Generic Screen Elements .........................9

2.8 Screen Operations ..................................10

2.8.1 Tapping a Screen Object .....................10

2.8.2 Swiping on Screen ..............................10

2.8.3 Zooming the Map View .......................10

2.8.4 Displaying the Parent Screen / Menu..10

3 Getting Started ............................................11

3.1 System Switch On/Off ............................. 11

3.2 Wallpaper Mode .......................................11

3.3 Manage Settings ...................................... 11

3.3.1 Accessing Settings .............................. 11

3.4 Manage System Settings ........................ 11

3.4.1 Managing Display Settings................11

3.4.2 Managing Date and Time Settings ....12

3.4.3 Managing Language .........................13

3.4.4 Managing Keypad Display ................13

3.4.5 Managing SWC Scroll .......................13

3.4.6 Managing Security Settings ..............14

3.4.7 Welcome Message Settings ..............14

3.4.8 Viewing System Details .....................15

3.4.9 Resetting to Factory Settings ............15

3.4.10 Managing Attenuate Volume During

Reverse .............................................15

3.4.11 Displaying Quick Guide .....................15

3.5 Manage Media Settings ...........................16

3.5.1 Accessing the Media Settings

Screen ...............................................16

3.5.2 Setting AGC-Automatic Sound

Level Adjustment ...............................16

3.5.3 Setting Sound Sense ........................16

3.5.4 Setting Balance and Fader................16

3.5.5 Setting Equalizer Presets ..................16

3.5.6 Setting Volumes ................................17

3.5.7 Managing Speed Dependent Volume

Control ...............................................17

3.5.8 Setting System Beep.........................17

Contents

3.5.9 Setting AM Active ..............................17

3.5.10 Setting DRM Active ...........................17

3.5.11 Setting DRM ......................................17

3.5.12 Radio Text .........................................17

3.5.13 Seek Preset with Current Band ......... 18

3.6 Manage Connectivity Settings ...............18

3.6.1 Accessing the Connectivity Setting

Screen .................................................18

3.6.2 Managing Paired Device List ..............18

3.6.3 Managing Phone Settings ................... 18

3.6.4 Managing Wi-Fi ................................... 19

3.6.5 Managing Wi-Fi Settings ..................... 19

3.6.6 Managing Voice Assistant ...................20

3.7 Managing Vehicle Alerts .........................20

4 Radio............................................................21

4.1 FM / AM and *DRM Radio Mode .............21

4.1.1 Radio / Tuner Screen .......................22

4.1.2 Change The Bands ..........................23

4.1.3 Change The Radio

Station / Service ..............................23

4.1.3.1 Using The Station List .....................23

4.1.3.2 Using The Seek Elements ...............23

4.1.3.3 Using The Change Frequency

Elements ..........................................23

4.1.3.4 Using The Presets ........................... 23

4.1.3.5 Using SWC ......................................23

4.1.4 Manage The Presets .......................23

4.1.4.1 Setting A Preset Manually ................23

4.1.4.2 Storing Presets Automatically .......... 23

4.1.5 AV Off Function................................23

Page 5

Contents

en | 3

5 Phone...........................................................24

5.1 Establish Connection ..............................24

5.2 Enable Bluetooth .....................................24

5.3 Pair Devices .............................................24

5.3.1 Initiating from System ..........................24

5.3.2 Initiating from Phone ...........................25

5.4 Manage Bluetooth Paired Devices .........26

5.5 Phone Functions .....................................27

5.5.1 Making an Outgoing Call ..................... 27

5.5.2 Managing an Incoming Call.................28

5.5.3 Managing the Second Incoming Call ..29

5.5.4 Managing the Third Incoming Call ......29

5.5.5 Managing Active Call...........................30

5.5.6 Managing Interactive Responses ........ 30

5.5.7 Swapping Between Multiple Calls ....... 30

5.5.8 Managing Messages (SMS) ................ 31

5.5.9 Activating Smartphone Voice

Recognition .........................................31

6 Media ...........................................................32

6.1 Connect Media .........................................32

6.1.1 Connecting a USB Source ..................32

6.1.2 Connecting a Bluetooth Audio .............33

6.1.3 Connecting an iPod ............................. 33

6.2 Play Media ................................................34

6.3 Media Screen ...........................................34

6.4 Manage Media ..........................................35

6.5 Manage Audio ..........................................35

6.5.1 Playing/Pausing Music ........................ 35

6.5.2 Setting a Track as Favourite ...............35

6.5.3 Managing Music Volume .....................35

6.5.4 Repeating Music Track........................35

6.5.5 Playing Random Music .......................36

6.5.6 Playing Next / Previous Tracks ...........36

6.5.7 Performing Fast Forward /

Fast Rewind ........................................36

6.5.8 Browsing Through the

Media Content .....................................36

6.5.9 Playing Tracks from a

Folder / Media Category ......................36

6.5.10 Viewing Music Track Information.......36

6.5.11 Viewing the Media Favourites List.....36

6.6 Play Videos ..............................................37

7 Smartphone Linkage ..................................39

7.1 Apple CarPlay ..........................................40

7.1.1 Accessing Apple CarPlay ....................40

7.1.2 Managing Calls, Message an

Communication Action ........................41

7.2 Android Auto ............................................41

7.2.1 Installing Android Auto.........................41

7.2.2 Accessing Android Auto ......................41

8 Vehicle Information ....................................43

8.1 *Vehicle Alerts ..........................................43

8.1.1 Managing Vehicle Alerts ......................44

8.2 *Vehicle Information ................................44

8.3 *Vehicle Control .......................................45

8.4 Viewing Past Trip Details .......................46

8.5 Reverse Park Assist System

*Installed model only .............................. 46

8.6 *Rear View Camera (RVC) .......................47

8.6.1 RVC Settings .......................................47

8.7 *Surround View Camera (SVC) ...............47

8.7.1 SVC Settings ....................................... 47

9 Bluetooth Remote Control App

(Smart Play Pro) ..........................................48

9.1 Installing the App ................................. 48

9.1.1 Supported OS Version ........................48

9.2 Connecting The App ............................ 48

10 Smartplay Pro Sync App ..........................49

11 Software Update .......................................52

12 Voice Control ............................................54

12.1 Voice Control (Start / Stop) .................54

12.2 How Voice Control Works ...................54

12.3 Opening The Menu For An Operating

Mode ...................................................55

12.4 Selecting From A List ..........................55

12.5 Voice Assistant Settings ...................... 55

12.6 Help For Voice Control ........................ 56

13 Abbreviations ............................................57

14 Trademarks ...............................................58

15 Information Systems Security .................59

16 Certication...............................................60

English

Page 6

4 | en

About This Manual

English

1 ABOUT THIS MANUAL

This guide contains the following details:

Controls, options and operation that are

available in the infotainment system.

Alerts and Important notes related to a

functionality/feature.

A list of abbreviations used in this guide

with their explanation.

These details will help you to understand and use your vehicle Infotainment system.

1.1 CONVENTIONS

The various conventions used in the manual are:

Bulleted List

- Sub Bulleted List Features marked with a star (*) are

not standard in every vehicle. Check with your Maruti Suzuki dealer to

conrm the list of features available in

your vehicle.

System represents the vehicle Infotain-

ment system.

Text provided within a Grey box always

indicates to alerts or important information, which must be followed. Non-adherence to these cautions may cause harm to you and/or other persons or to the infotainment system. The different cautions used in the manual are listed below:

ALERT :

Text that indicates actions that might

cause harm to user/equipment or increase the potential for unauthorized access.

NOTE :

Text that provides some additional import-

ant information, which when ignored can cause inconvenience or tips that will help you in using the equipment.

1.2 SAFETY GUIDELINES

Always keep this manual in the vehicle, for easy and quick access, when needed. If you sell or lend the vehicle, make sure this manual is available in the vehicle along with other standard booklets.

Please read and follow the safety guidelines listed in this section to avoid injury or equipment damage.

1.2.1 GENERAL SAFETY GUIDELINES

ALERT :

Avoid exposure of the infotainment

system to water or excessive moisture as it can cause electric shocks, re, or other damages.

Exercise caution when setting the volume

of your infotainment system as permanent hearing loss may occur if you play your music at loud volume.

Avoid improper access of the infotainment

system as it is a sophisticated electronic device.

1.2.2 SAFETY GUIDELINES

WHILE DRIVING

ALERT :

To avoid accidents, ensure that you follow

all trafc regulations while operating the

system.

Glance at the screen of the infotainment

system only when necessary. If prolonged viewing of the screen is required, park the vehicle in a safe location and engage the hand brake.

Set the volume to a level that allows you to

hear outside trafc and other warnings.

Page 7

About This Manual

en | 5

1.2.3 SYSTEM CARE AND MAINTENANCE

Exert utmost care while using the infotainment system to avoid any damage to it. Partial or complete loss of the infotainment system functions due to intentional misuse is not covered under warranty.

ALERT :

Avoid spraying/spilling of cleaning solu-

tions, perfumes, car fresheners, beverages, chemicals or any liquids on the touch screen surface. Also ensure that any liquid does not enter the system, it may damage the screen and the system. The warranty of the system will be void, if liquid ingress marks are observed inside the system.

Some pixels in the display are darker/

brighter than others, this is an inherent characteristics of liquid crystal displays and not a malfunction.

Avoid usage of hard or sharp objects

like pen, key, USB stick, etc. to touch the screen, as it may cause scratches on the screen surface.

Do not use excessive force while using the

infotainment system, USB socket, It might cause damage to the system or component.

Unauthorized interconnections may result

in the malfunctioning of the infotainment system. Always contact the Maruti Suzuki dealer for the changes to the vehicle or system.

Do not open the infotainment system as

incorrect usage may damage the system. Further, warranty is void, if the Infotainment system is opened.

Avoid addition of any accessories such

as external ampliers or replacement of

vehicle speakers, which will lead to the

modication of the standard factory wiring

connections.

Use a soft, clean and dry cleaning cloth to

clean the touch screen surface. If required, use a lint-free cloth damped with a cleaning solution such as isopropyl alcohol, or an isopropyl alcohol and water solution ratio of 50:50. Be sure to follow the solvent

manufacturer’s precautions and directions.

Avoid usage of paint or color, sticky or

strong alcohol based spray, lotion or liquid on the infotainment system. This may cause permanent damage to the system and stop it from functioning correctly.

Parking directly under sunlight for pro-

longed duration may increase the car’s

temperature, which may damage the system. Let the car interior cool down, before using the system.

Do not use the product in abnormal or

faulty conditions such as no screen, no sound, cracked or distorted sound.

Do not use guidance information in this

product for guidance to emergency facilities, etc.

Be sure to remove the negative terminal of

the battery before service.

Installation, removal, reinstallation and

wiring shall be performed by a specialist, to avoid any potential damage to system.

This product has ventilation holes in the

case to protect it from overheating. To

avoid the risk of re, do not block those

holes or cover the product with a cloth.

Graphic symbol

The above description placed on the prod-

uct means direct current.

Connect to the proper power supply.

The operation of this equipment is subject

to the following two conditions:

1. This equipment or device may not cause harmful interference and

2. This equipment or device must accept any interference, including that which may cause undesired operation.

Do not attach any protective sheet to the

touch panel. This may slow the response time or cause malfunction.

This product contains software and data

that are copyrighted by a third party licensed by our company under a license agreement. Removing, copying, modifying or otherwise removing software (updates, including data) from the system is strictly prohibited by law, unless otherwise ex-

pressly permitted in the user’s manual.

Infotainment system may not operate as

per intended behavior at high / low temperatures.

English

Page 8

6 | en

Introduction

English

2 INTRODUCTION

The system provides you with high-end functionalities to:

Manage in-vehicle entertainment capa-

bilities.

View information about some vehicle

features.

Handle certain vehicle feature controls.

NOTE :

To prevent draining of car battery, operate

the system while car engine is running.

In a car equipped with a keyless entry

system, if you move the key close to the system, the system may not operate. In addition, if you move the key close to the system or a Bluetooth audio device, sound skipping may occur. Keep the key away from the system.

2.1 FEATURES

Key features of the system include:

9” IPS HD touch screen. AM (AM1 and AM2) / FM (FM1, FM2,

FM3) *DRM (DRM1 and DRM2) USB (up to 128GB and 20,000 media

les), iPod and Bluetooth audio media

and multimedia support. Bluetooth connection to phones (up to

19 devices) for supporting features like

downloading phone-book, phone calls,

and audio playback.

Handsfree/Bluetooth support with

advance functions like ‘Set contacts as Favourite’ and ‘Reject with SMS’ for

incoming calls.

Infotainment System control from *Steer-

ing Wheel Control (SWC).

Integrated with Vehicle features like

*Rear View Camera (RVC), *Re verse Park Assist System (RPAS) and *Surround View Camera (SVC).

Additional support for mobile applica-

tions like *Android Auto and *Apple CarPlay to enhance the vehicle experience.

NOTE :

Features marked with a star (*) are not

standard in every vehicle. Check with your

Maruti Suzuki dealer to conrm the list of

features available in your vehicle.

All screens used in the user manual are for

illustration purpose only. Actual screen in the system may differ.

2.2 CONTROL ELEMENTS

To quickly access the commonly used functions and options of the infotainment system, you can tap (short tap/long tap) the 8 buttons at the bottom of the system (See “Infotainment System - Control Elements” on page 1).

NOTE :

To long tap a button, touch the button and

continue holding / touching the button for 2 seconds or more.

2.3 OTHER MODES OF CONTROL

The system can also be controlled from

Steering Wheel Controls (SWC)

2.3.1 STEERING WHEEL CONTROL (SWC) ELEMENTS

Various operations can be performed using the following SWC elements:

1. Volume +

Short press: Increases volume by 1

level.

Long press: Increases volume till the

button is released or maximum volume limit is reached.

2. Volume -

Short press: Decreases volume by 1

level.

Long press: Decreases volume till the

button is released or minimum volume limit is reached.

NOTE :

Always pay attention on the road while

operating SWC during driving.

Page 9

Introduction

en | 7

3. Down or Left / Up or Right

Short press:

- FM / AM: Switches to the previous / next Preset.

- DRM: Skips to the previous / next available service.

- Media: Skips to previous / next track.

- Contacts / Log screen: Scrolls down/up the list, if SWC Scroll is ON.

Long press:

- FM / AM: Initiates auto seek until the next valid station is displayed

- DRM: Skips to the available service on the next / previous frequency

- Media: Initiates fast rewind / fast forward.

4. ON Hook: Rejects or ends call.

OFF Hook

Short press:

- Displays phone call log screen.

- If SWC scroll is used in a list, selects option from station list / call list / song / media list.

- In Incoming call screen, accepts call.

Long press: During ongoing call / active

Call, toggles between private mode and handsfree.

Voice Recognition (VR)

Short press:

- Activate or restarts Onboard Voice Assistant.

Long press:

- Activates voice control of connected smartphone or Restart VR.

- show discoverable screen (If no Bluetooth connected)

NOTE :

Smartphone Voice Recognition feature is

available only if supported by the smartphone.

Voice prompts will be skipped if the voice

control system is already activated.

Voice Recognition feature cannot be

turned on during an active call, incoming call or while dialing a call, RVC, RPAS and Power Off.

Mode

Toggles between available audio sourc-

es.

In the standby mode, power ON the

infotainment system.

Mute

Mute / Unmute the audio source.

2.4 SCREEN ELEMENTS

The screen elements can be grouped into 3 categories depending on their availability:

Home screen elements Fixed screen element Generic screen elements

2.5 HOME SCREEN ELEMENTS

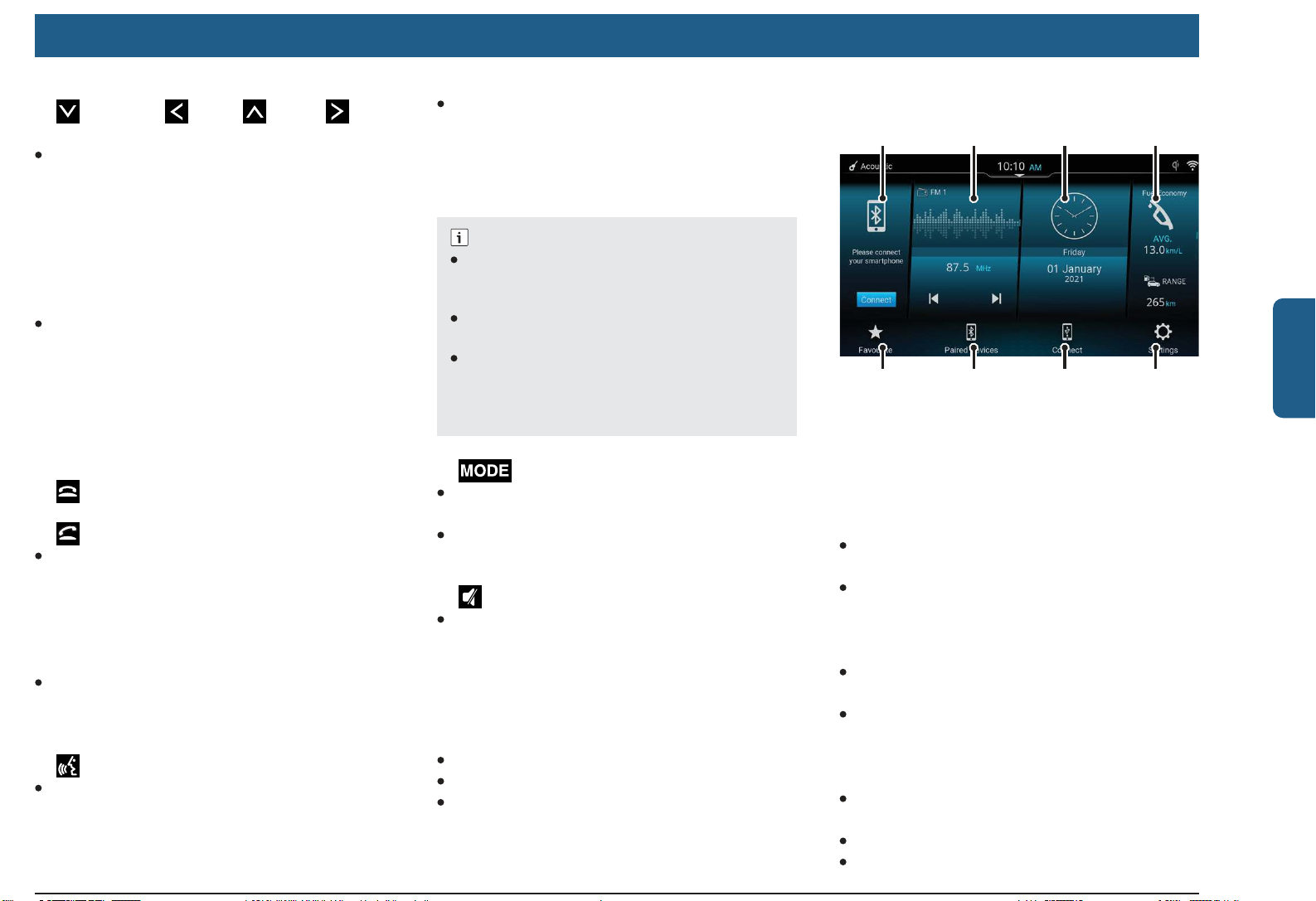

1 4

5 6 7 8

Figure 2: Home Screen Tiles

The Home screen of the system contains 4 tiles and 4 icons, which allows quick access to important functions.

1. Display the Connect/Call widget :

Short press whole panel to go to the

corresponding screen.

Slide right to edit position with Vehicle

Info tile.

2. Display the Media widget: Press whole panel to go to the corre-

sponding screen.

Slide right to edit position with Date &

Time tile.

3. Display the Date & Time widget: Press whole panel to go to the corre-

sponding screen. Slide up-down to change the media. Slide left to edit position with Media tile.

2 3

English

Page 10

8 | en

Introduction

English

4. Display the Vehicle Info widget: Press whole panel to go to the corre-

sponding screen.

Slide left to edit position with Connect/

Call tile.

5. Display Favourite items.

If no favourite is selected

Short press the favourite button to go to

select favourite screen.

Long press no function.

If favourite is selected

Short press to go to corresponding

favourite screen.

Long press the favourite button to go to

select favourite screen.

6. Tap to view Paired Device List screen.

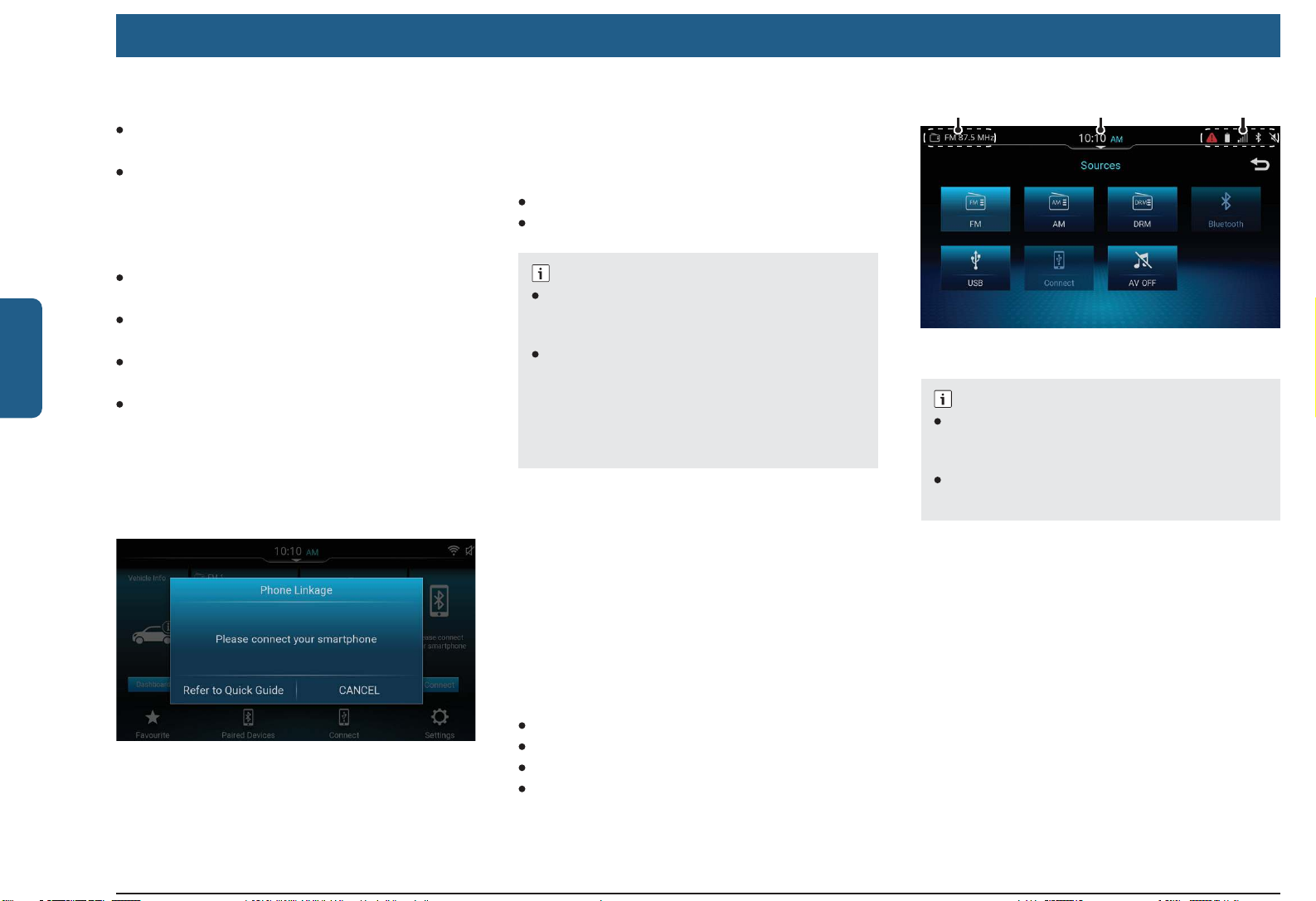

7. Display popup to inform user to connect

smartphone.

Figure 3: Connect Smartphone Popup

8. Tap to display System Setting screen

2.6 FIXED SCREEN ELEMENTS

The following collection of screen elements

appear at  xed location, across most of the

system screens:

Status Bar Quick Access Hub

NOTE :

Status Bar is not visible on all screens. Status Bar and Quick Access Hub are not available on projection screens.

The Status Bar and the Quick Access Hub are unavailable in the display off

mode, Popup screens or noti cations

and screens where some actions are performed during rear parking assistance and active call, etc.

2.6.1 STATUS BAR

The Status Bar is displayed on top of all screens. It contains the following details:

1. Displays the currently active *Navigation application and / or played audio source details. Tap to view the *Navigation / Radio / Media screen.

2. Displays the current time on Quick Access Hub tab.

3. Displays the following indicators:

Vehicle alerts Bluetooth status Phone battery level Phone network signal strength

1 2 3

Figure 4: Status Bar

NOTE :

Bluetooth, Phone battery level and network signal strength status are displayed

only when connected for handsfree pro le.

The information depends on status received from the phone.

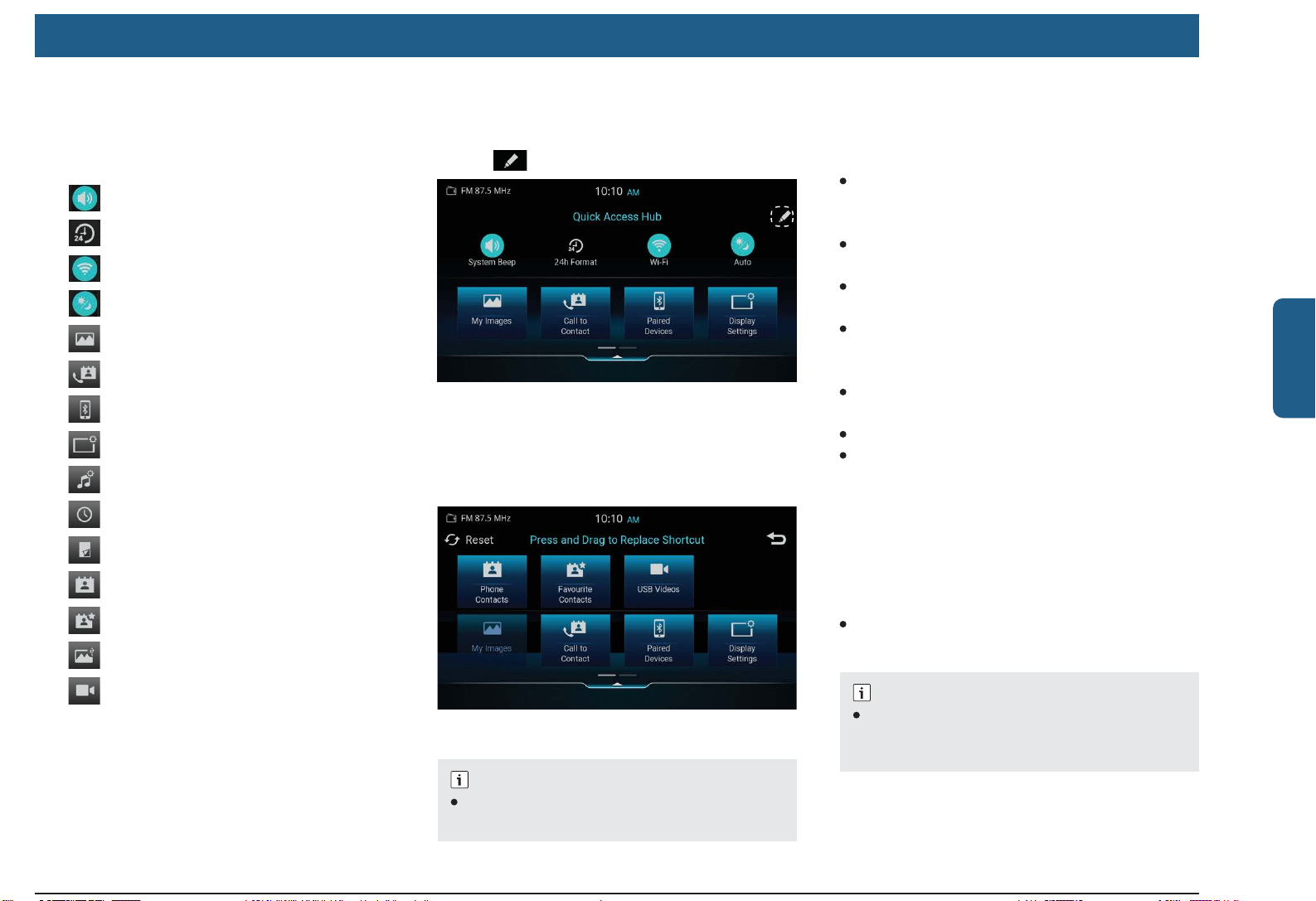

2.6.2 QUICK ACCESS HUB

There are total 15 shortcuts. The  rst 4

shortcuts (System beep, 24h Format, Wi-Fi

and Auto) are  xed and set by default,

which cannot be removed or replaced. You

can con gure the other shortcuts to a  xed set of pre-de ned options. If more than 8 or all the 15 shortcuts are con gured, the

shortcuts are displayed in 2 screens with 8 shortcuts in each screen.

Page 11

Introduction

en | 9

Swipe through the screens to browse through the shortcuts in the Hub. List of possible shortcuts:

10.

11.

12.

13.

14.

System Beep

24h Format

Wi-Fi

Auto

My Images

Call to Contact

Paired Devices

Display Settings

Media Settings

Date & Time Settings

Quick Guide

Phone Contacts

Favourite Contacts

USB Photos

SETTING A SHORTCUT

To set a shortcut:

1. Tap

Figure 5: Quick Access Hub

2. Press and Drag the Shortcut menu until the other position of shortcut menu for exchanging.

at Quick Access Hub screen.

2.7 GENERIC SCREEN ELEMENTS

The following screen elements are available:

Button: Used to con rm an option or

execute an action associated with the button.

Radio Button: Used to select / deselect

an option from list.

Toggle Switch: Used to toggle between

ON / OFF options.

Arrows with slider/without slider: Used to

scroll through a list of options like Tuner Status list, Phone Contact list, etc.

Keypad: Used to type information, like

Contact name, number, etc. Dialpad: Used to dial numbers. Popup: A small screen, which is dis-

played on top of a screen. Generally

displays:

- Progress of an action.

- Important system / function / feature

speci c messages.

- Prompts for your con rmation before

performing an action. Back Button: Displays the previous

menu / screen, if applicable.

English

15.

USB Videos

Figure 6: Quick Access Hub Edit Screen

NOTE :

To replace a shortcut, Drag and drop as required.

NOTE :

By default, the popups disappear once the

action is completed or after the precon g-

ured timeout period.

Page 12

10 | en

Introduction

English

2.8 SCREEN OPERATIONS

The system screen elements can be accessed using the touch screen or the SWC. You can use the screen elements to perform the following actions:

Tap a screen object Swipe on screen Zoom the Map view Display the parent screen

2.8.1 TAPPING A SCREEN OBJECT

To select an object perform the following step: You can use the screen elements to perform the following actions:

Short tap: A short tap on the display

surface is sufcient to operate most

controls.

Long tap: Some functions require a long

tap. In this case, keep your ngertip on

the display surface for around 2 seconds.

ALERT :

Avoid usage of hard or sharp objects

like pen, key, USB stick, etc. to touch the screen, as it can cause scratches on the screen surface.

SETTING VALUES Perform any one of the following:

USING BUTTONS OR ARROWS

Tap or continue to press the

screen icons or the required ( , , ,

) arrows to select the required value in

the range.

USING SLIDER

Drag the slider left or right to set the

required value in the range.

USING THE SWC

Press

/ decrease the value in a range. However, this option is available only if the Scroll Through Steering Wheel Controls option is enabled.

or SWC arrows to increase

2.8.2 SWIPING ON SCREEN

You can scroll through a list or map by:

USING ARROWS BESIDE THE LIST

Tap the required arrows (

displayed beside the list.

SWIPING THE LIST

Swipe through the list items.

, , , )

SCROLLING THE VISIBLE MAP

AREA.

Touch the map display area and let your

nger rest on the surface. Then move your nger over the surface to scroll the

displayed section of the map.

NOTE :

This function is only available if the naviga-

tion application is launched through any of the linkage mode.

2.8.3 ZOOMING THE MAP VIEW

Place two ngers on the map display area and let your ngers rest on the surface. Then move your ngers towards one an-

other (zoom in) or away from one another (zoom out).

2.8.4 DISPLAYING THE PARENT SCREEN / MENU

Tap the screen elements.

(Back) icon from the system

USING THE SWC

Press the Up

as per your requirement.

or the Down arrows

Page 13

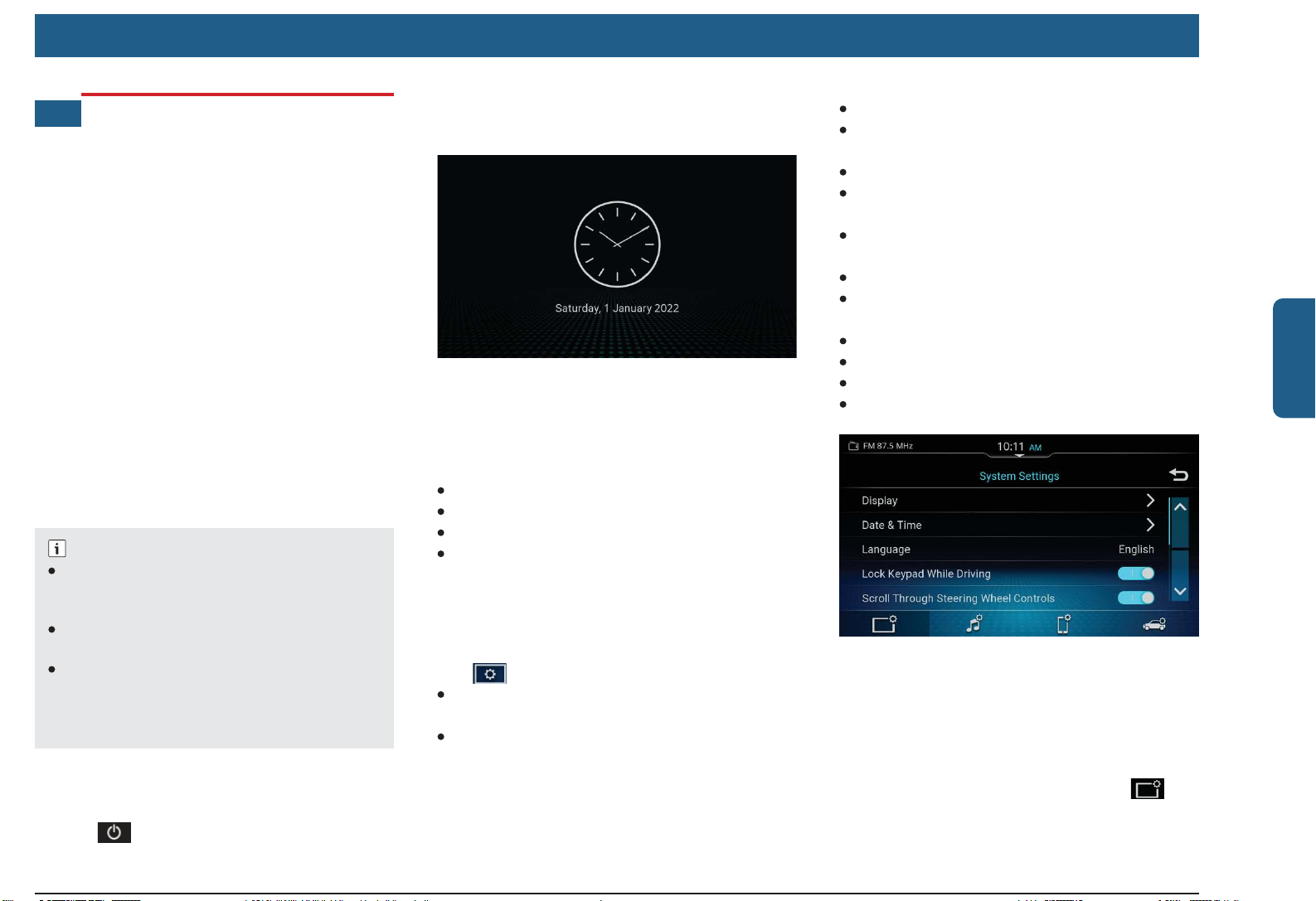

Getting Started

en | 11

3 GETTING STARTED

All the functions and features of the system can be used after the system is switched ON.

3.1 SYSTEM SWITCH ON/OFF

The system is switched ON automatically when you switch the ignition lock of the vehicle from OFF to ACC. After switching on followed by startup animation, the home screen will appear. The system also plays the audio source that was active before system was switched OFF or one of the currently available / connected audio source. The system is switched OFF automatically when you switch the ignition lock of the vehicle from ACC to OFF.

NOTE :

Welcome message is played when the unit

is turned ON. This function is ON by default.

This function can be turned OFF from the settings. (Refer to page 14)

If the Security PIN Input screen appears, enter the Security PIN. For more information, refer to “Managing Security Settings” on page 14.

3.2 WALLPAPER MODE

To avoid distraction while driving, short tap the tem in the wallpaper mode. The screen will

control element to put the sys-

go into wallpaper mode and the audio will continue to play in the background.

Figure 7: Wallpaper Mode

3.3 MANAGE SETTINGS

You can change the following settings of the system:

System Settings Media Settings Connectivity Settings Vehicle Info Settings

3.3.1 ACCESSING SETTINGS

To access the settings screens, perform the following steps: Tap

control element on the system.

In the Home screen: The system dis-

plays the System Settings screen.

In other screens: The system displays

the respective settings screen.

3.4 MANAGE SYSTEM SETTINGS

Using the various System Settings options, you can perform the following actions:

Handle the system display settings Set / change system date and time

details Language setting Lock / unlock the system keypad while

driving Enable / disable list scrolling through

SWC Welcome Message Setting Enable / disable Attenuate Volume

During Reverse Display Security setting screen Display Quick Guide View System Software detail Reset to factory setting

Figure 8: System Settings Screen

3.4.1 MANAGING DISPLAY SETTINGS

DISPLAYING THE DISPLAY SETTINGS SCREEN

In the System Settings screen, tap The system displays the Display Settings screen.

English

Page 14

12 | en

Getting Started

English

CHANGING DISPLAY BRIGHTNESS

1. Tap Brightness.

2. Tap + or - to set the brightness to a value in the range of 0 to 20.

CHANGING DISPLAY CONTRAST

1. Tap Contrast.

2. Tap + or - to set the contrast to a value in the range of 0 to 20.

NOTE :

To set value, you can also drag the slider

in the required eld.

DISPLAYING MODE

1. The system displays the current mode of the vehicle on this option. Auto will be default mode. If the headlights of the vehicle are switched ON the system will be in Night mode, else it will be in Day mode.

2. You can select item by pressing anywhere in the respective box.

3. The display brightness will be automatically set accordingly.

NOTE :

If speedometer illumination is set to 7th

step, system brightness will always remain in day mode in spite headlights are turned ON/OFF.

DISPLAYING WALLPAPER MODE

1. The system will display Wallpaper Mode screen.

2. Tap Clock Type. The system displays the Clock Type screen. Choose among the available options.

3. Tap Wallpaper to enable / disable wallpaper option.

4. Tap Select Wallpaper from available options.

3.4.2 MANAGING DATE AND TIME

SETTINGS

Using the date and time settings you can:

Enable / disable synchronization of the

system date and time with the GPS.

Enable / disable the display of system

time in the 24 hour format.

Set/change the date and time of the

system either automatically or manually.

Enable / disable day light savings.

DISPLAYING THE DATE AND TIME SETTINGS SCREEN

In the System Settings screen, tap the Date & Time option. The system displays the Date and Time Settings screen.

ENABLING SYNCHRONIZATION WITH GPS

Tap Sync with GPS. The system enables synchronization with GPS.

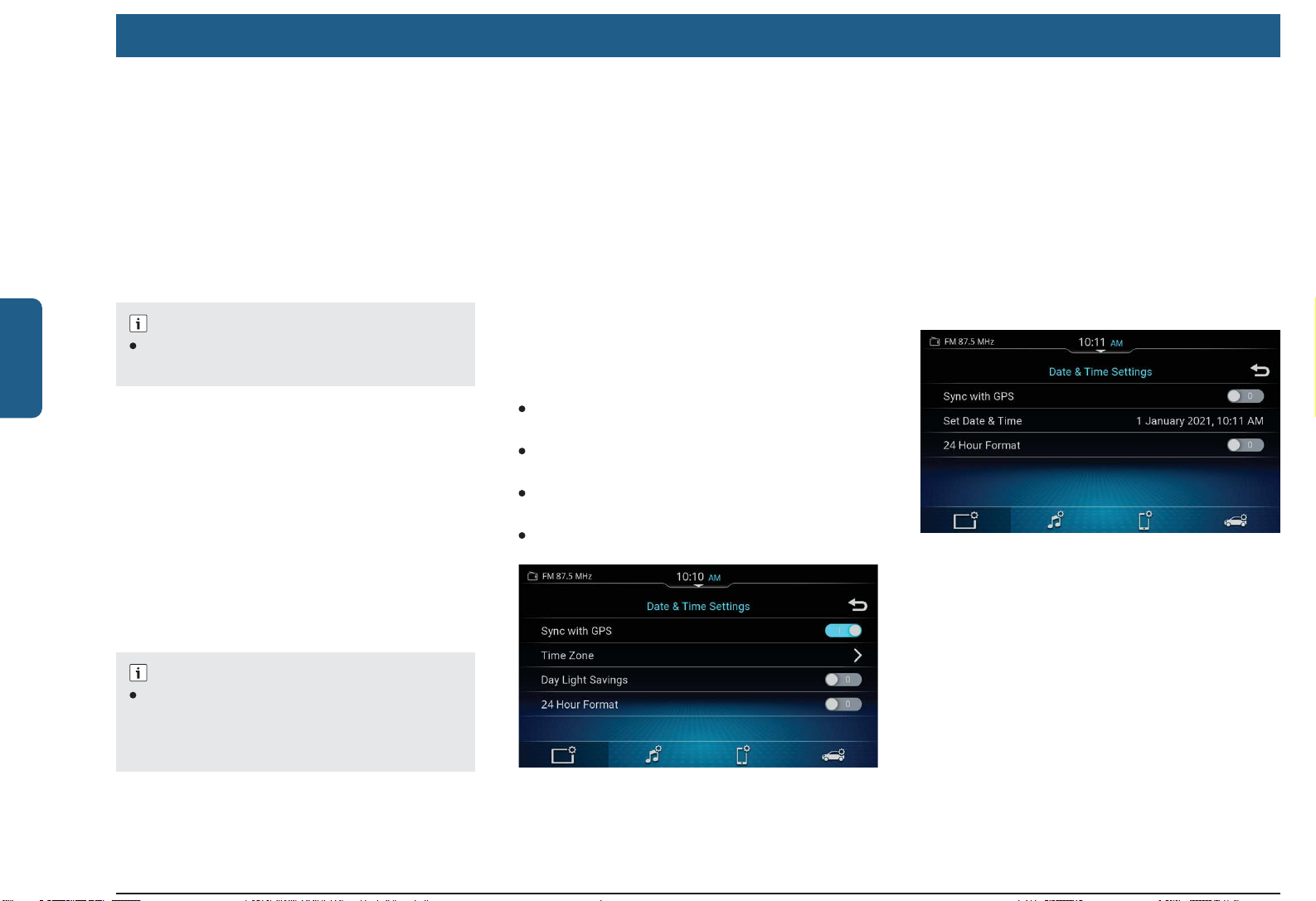

Figure 10: Date & Time Setting (GPS OFF)

SETTING DATE AND TIME

Auto-setting date and time

1. Ensure Sync with GPS option is enabled.

2. Tap the Time Zone option. The system displays the Set Time Zone screen.

3. Scroll through the time zones list and select the required time zone.

Figure 9: Date & Time Settings

Page 15

Getting Started

en | 13

3.4.3 MANAGING LANGUAGE

In the Language Setting screen, you can select the desired language listed on the screen.

NOTE :

Depending upon destination, available lan-

guage options in language settings screen may vary.

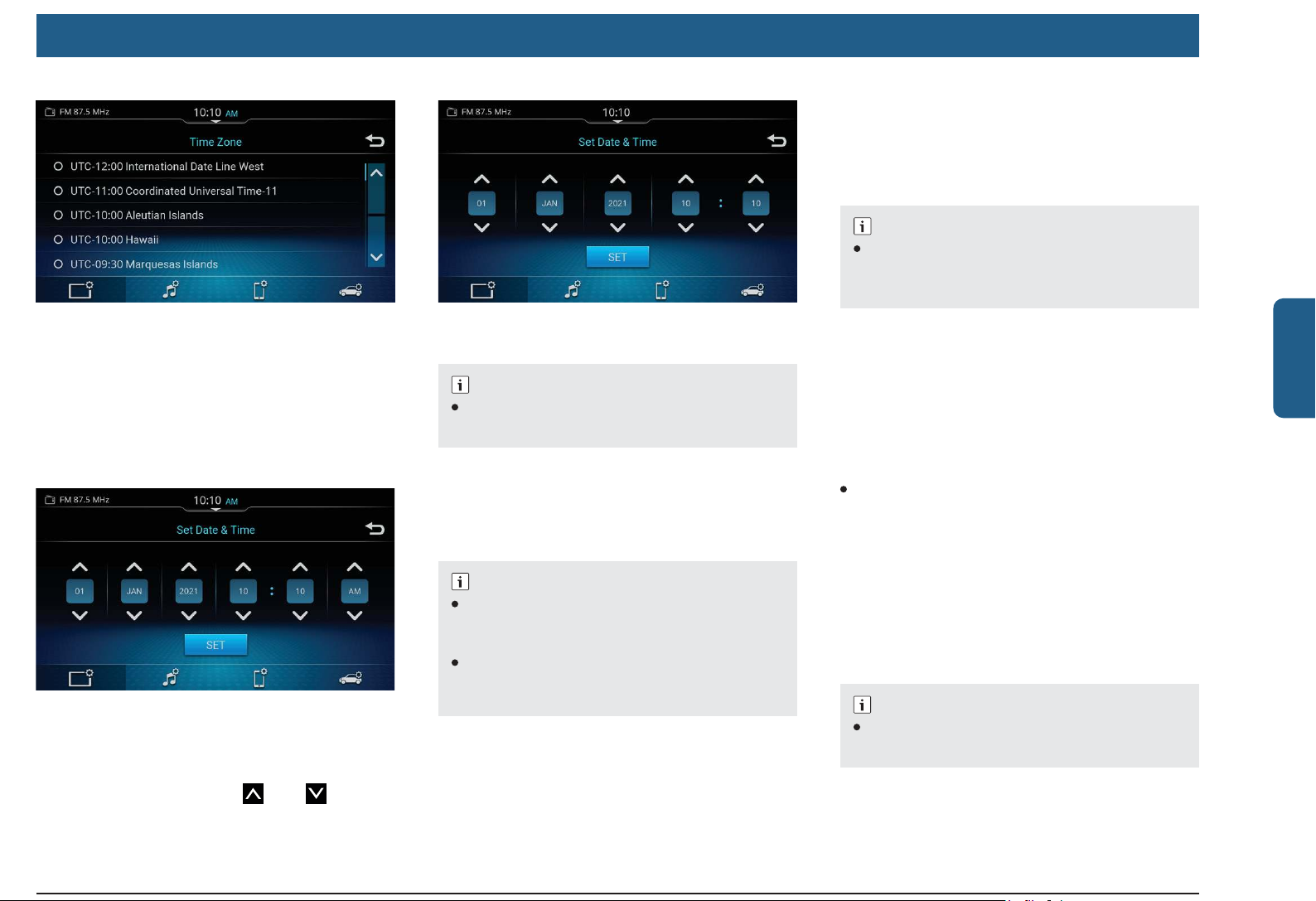

Figure 11: Time Zone Screen

Manual setting date and time

1. Ensure Sync with GPS option is disabled.

2. Tap the Set Date & Time option. The system displays the Set Date & Time screen.

Figure 12: Set Date & Time Dialog Box

3. In the screen, select the required date, month, year, hour, minute and time period (AM/PM) using the

and arrows.

4. Tap SET.

Figure 13: Set Date & Time Dialog Box - 24 Hour Format

NOTE :

AM / PM is available only if 24 Hour For-

mat is disabled.

ENABLING DAY LIGHT SAVING

Tap Day Light Savings. The system enables the day light savings for the current time zone.

NOTE :

The Day Light Savings option will be

available only if Sync with GPS option is enabled.

The time will be increased by 1 hour only if

Day Light Saving is applicable for the time zone

ENABLING 24 HOUR FORMAT

Tap 24 Hour Format. The system enables the 24 hour format.

3.4.4 MANAGING KEYPAD DISPLAY

The system keypads (Smart search keyboard, Rename head unit keyboard) are locked to avoid distraction while driving. To disable the setting:

In the System Settings screen, tap Lock

Keypad While Driving option.

3.4.5 MANAGING SWC SCROLL

To enable scrolling of lists using SWC, perform the following steps: In the System Settings screen, tap Scroll Through Steering Wheel Controls.

NOTE :

SWC Scroll is unavailable in Apple Car-

Play / Android Auto linkage modes.

English

Page 16

14 | en

Getting Started

English

3.4.6 MANAGING SECURITY SETTINGS

To enable a PIN authentication to ensure that only authentic users are able to use the system:

1. In the System Settings screen, tap Se-

curity.The system displays the Security PIN Settings screen.

2. Tap Security PIN Protection. The system

prompts you to enter a 4 digit PIN.

3. Enter a 4 digit PIN of your choice and

tap OK. The system prompts you to

re-enter the PIN for verication and conrmation.

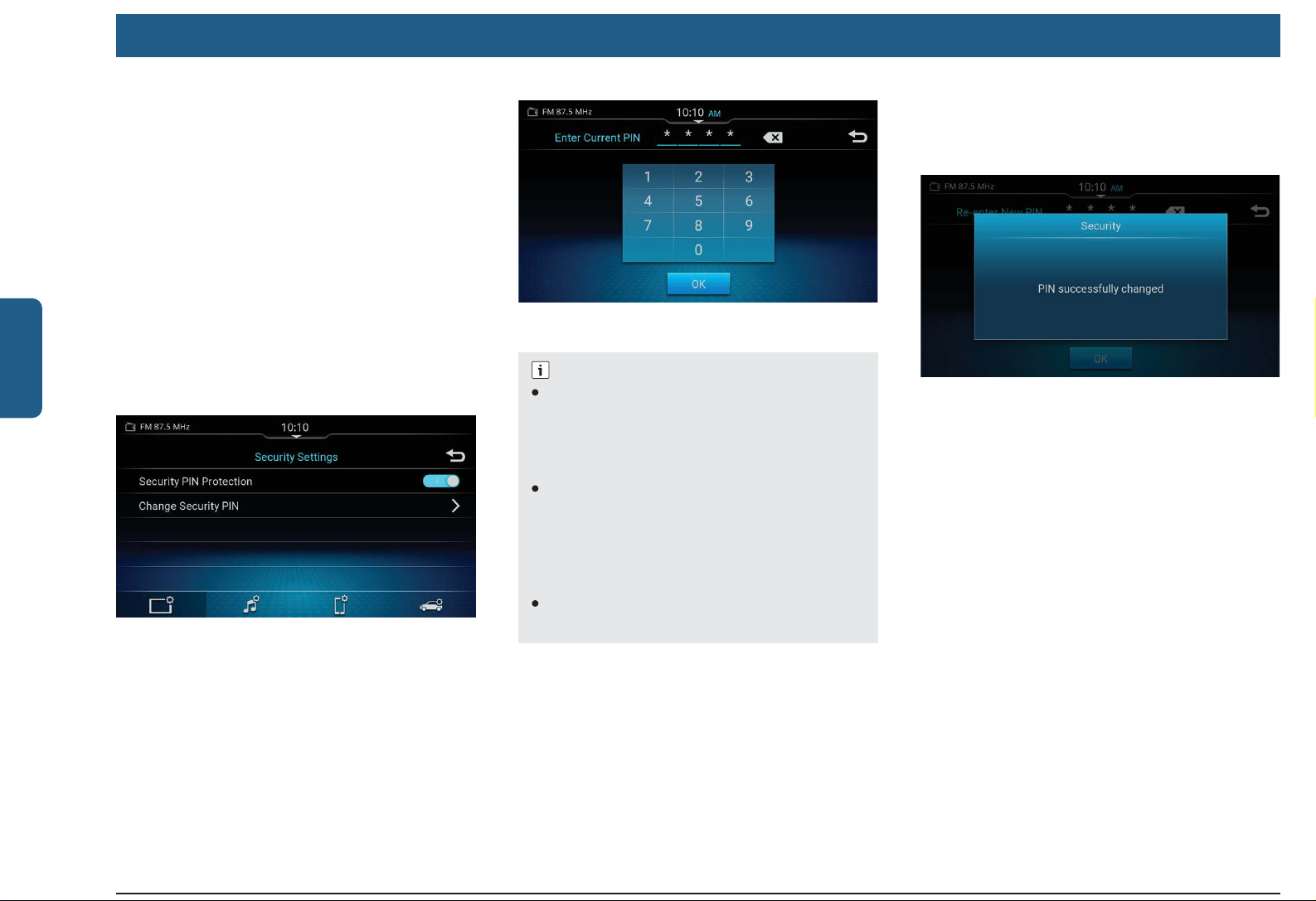

Figure 14: Security PIN Setting Screen

Figure 15: Security PIN Keypad

NOTE :

If you enter an incorrect security PIN 5

times, the device will be locked and an ap-

propriate notication is displayed. Please

contact your Maruti Suzuki dealer to get the device unlocked.

If security PIN protection has been en-

abled, the Security PIN Input Screen will appear whenever the system has been separated from the operating voltage of the vehicle. For example, in case of the replacement of the vehicle battery.

System will restart after enter correct

security PIN.

CHANGING THE PIN

1. In the Security Settings screen, tap Change Security PIN. The system prompts you to enter the current PIN.

2. Enter the current PIN and tap OK.

3. If the PIN entered is correct, the system prompts you to enter the new PIN.

4. Enter the PIN of your choice and tap OK. The system prompts you to re-enter

the PIN for verication and conrmation.

Figure 16: Security PIN Change Conrmation

5. Re-enter the PIN and tap OK. The

system displays a prompt conrming the

PIN change.

DISABLING PIN SECURITY

1. In the Security Settings screen, tap the enabled Security PIN Protection option. The system prompts you to enter the current PIN.

2. Enter the current PIN and tap OK. The

system displays a prompt conrming the

PIN deactivation.

3.4.7 WELCOME MESSAGE

SETTINGS

1. In the Welcome Message Settings screen, you can choose to enable / disable Welcome Message on startup.

Page 17

Getting Started

en | 15

2. Tap Message Type to select welcome message from the list or write your own custom message.

Figure 17: Welcome Message Settings Screen

NOTE :

System may not be able to read all the special characters entered by user.

System may not be able to accurately spell out the message entered by user.

Welcome message is supported in English language only.

3.4.8 VIEWING SYSTEM DETAILS

To check the current version of the system software: In the System Settings screen, tap System info and Software Update. The system displays the System Version, Open Source License and Software Update.

Figure 18: System Information Screen

The system uses open source license. To view information about it, tap Open Source License in the System Info and Software Update screen. The system dis plays the Open Source License screen with details.

3.4.9 RESETTING TO FACTORY SETTINGS

When you reset the system to the factory settings, the following changes that you made in the system will be lost:

All changes made to the general set-

tings, system, audio, tuner, security PIN and phone settings will be backed to default.

To reset the system to factory settings:

1. In the System Settings screen, tap

Reset to Factory Settings. The system

prompts you to con rm whether you

want to reset all setting to factory defaults.

2. Tap YES. The system will start resetting

all settings to factory defaults.

NOTE :

If security PIN is enabled and if you want to perform factory reset, system will prompt for entry of correct security PIN.

If you forget the security PIN, system reset shall not happen and in such cases, please contact your Maruti Suzuki dealer to reset your security PIN.

3.4.10 MANAGING ATTENUATE VOLUME DURING REVERSE

You can choose to enable or disable Attenuate Volume During Reverse.

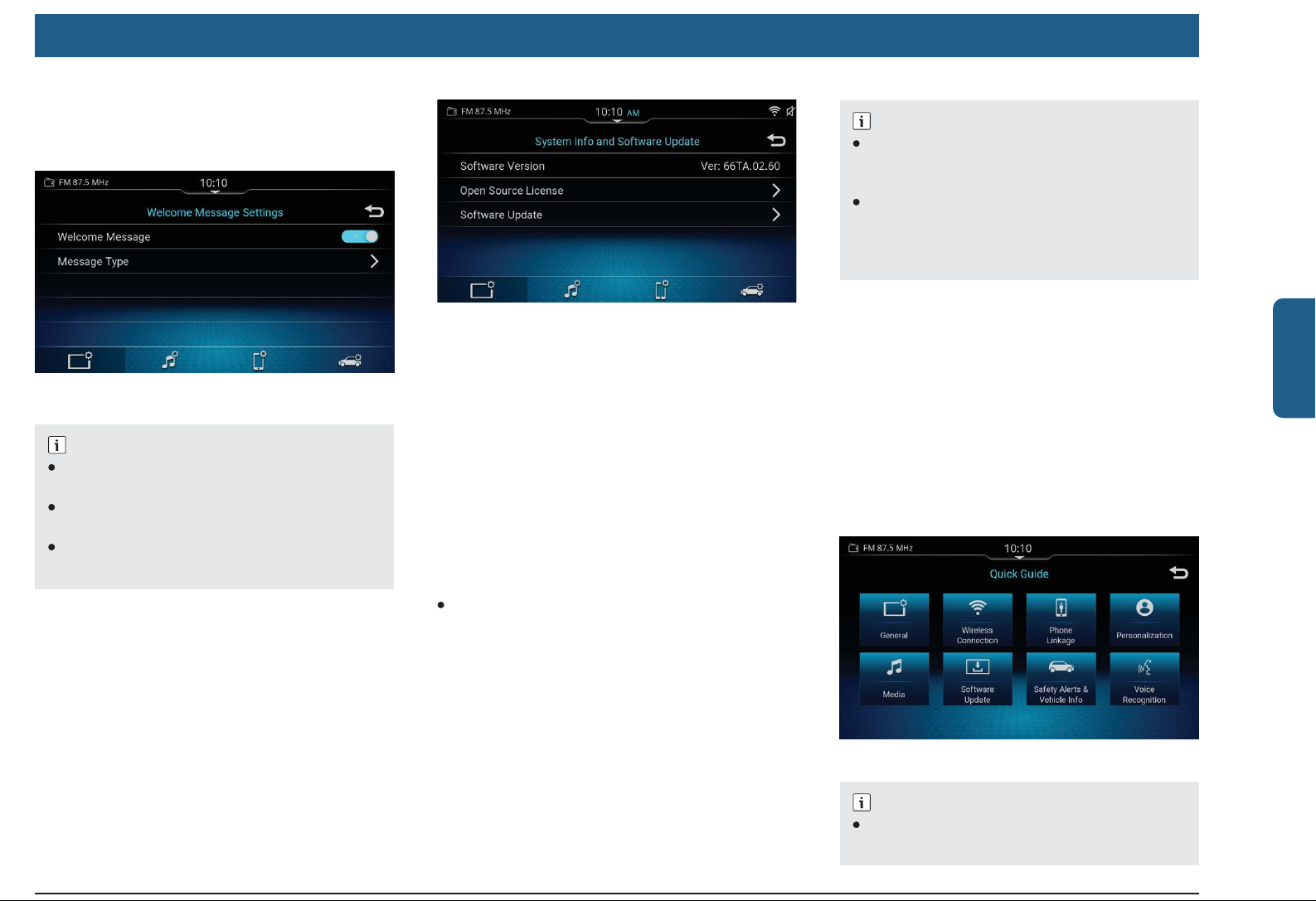

3.4.11 DISPLAYING QUICK GUIDE

1. In the System Settings screen, tap Quick

Guide. The system displays the Quick

Guide Screen.

2. Tap on the required guide icon.

Figure 19: Quick Guide Screen

NOTE :

Viewing Quick Guide is unavailable during driving condition.

English

Page 18

16 | en

Getting Started

English

3.5 MANAGE MEDIA SETTINGS

Using the various Media Settings options, you can perform the following actions:

Set Bass, Middle and Treble values Set Balance and Fader values Set Equalizer presets Set Phone call, Ringtone, Phone Alert

etc.

Enable / disable speed dependent vol-

ume control Setting System Beep Enable / disable the AM Active option Enable / disable the DRM Active option Setting DRM Enable / disable Radio Text Enable / disable cross-band preset up /

down

The displayed contents differ depending on the model.

3.5.1 ACCESSING THE MEDIA SETTINGS SCREEN

Tap the screen with the available options is displayed.

icon. The Media Settings

3.5.2 SETTING AGC-AUTOMATIC SOUND LEVEL ADJUSTMENT

In the Media Settings screen, tap AGC-Automatic Sound Level Adjustment to enable / disable AGC-Automatic Sound Level Adjustment.

3.5.3 SETTING SURROUND SENSE

1. In the Media Settings screen, tap sur-

round sense. The system displays the Arkamys Sound Ambience screen.

2. Tap on the given option to enable the

corresponding sound mode.

NOTE :

Surround Sense setting may vary depending upon vehicle model and grade.

3.5.4 SETTING BALANCE AND FADER

1. Tap Balance Fader. The system displays

the Balance Fader Settings screen.

2. Using the

the sound distribution in your vehicle.

Figure 22: Balance Fader Screen

MANAGING BALANCE & FADER SETTINGS

1. In the Balance & Fader Settings Screen,

tap Driver to adjust the balance at the center and fader at front.

2. In the Balance & Fader Settings Screen,

tap Rear to adjust the balance at the center and fader at rear.

, , , arrows change

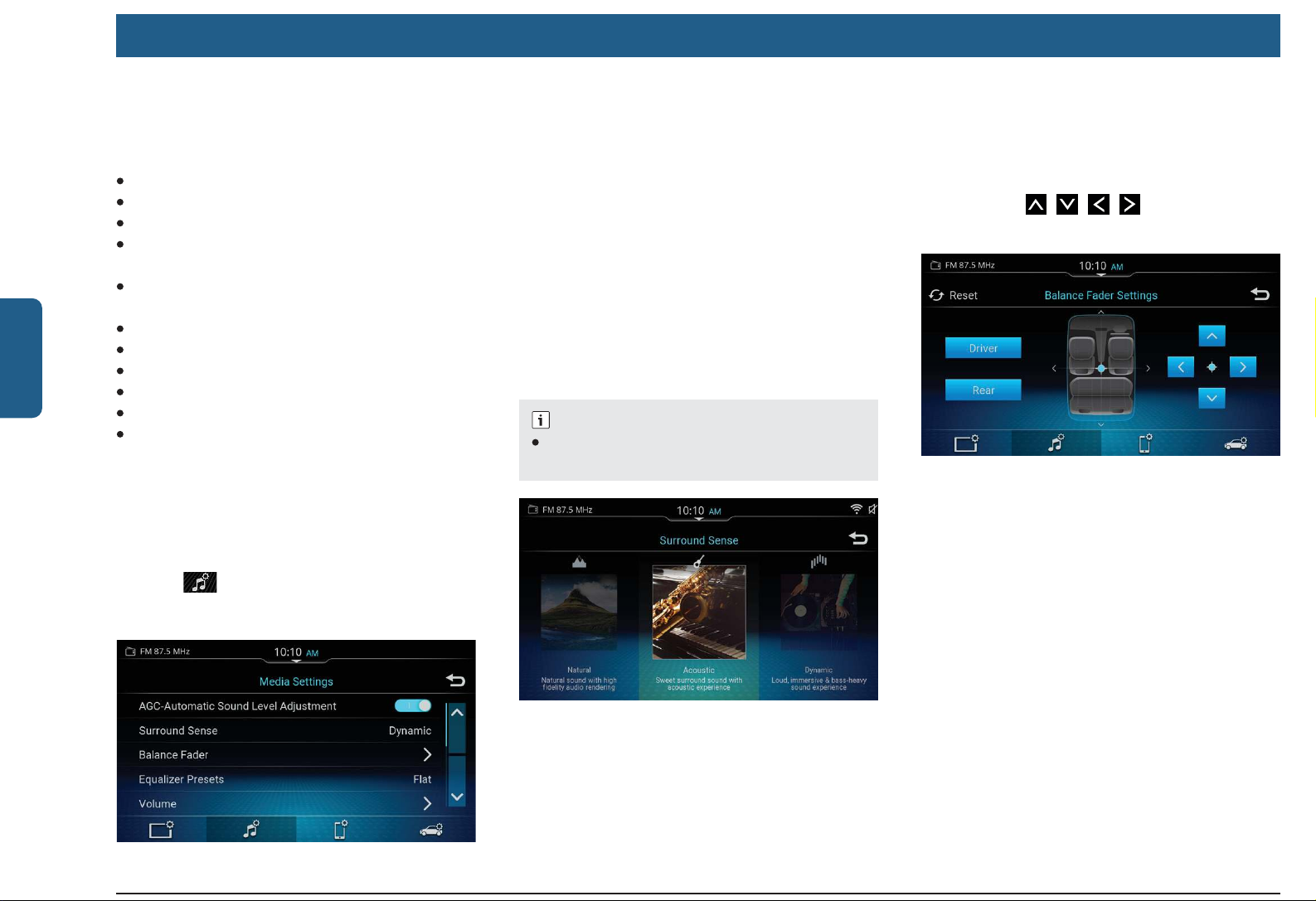

Figure 20: Media Setting Screen

Figure 21: Surround Sense Screen

3.5.5 SETTING EQUALIZER PRESETS

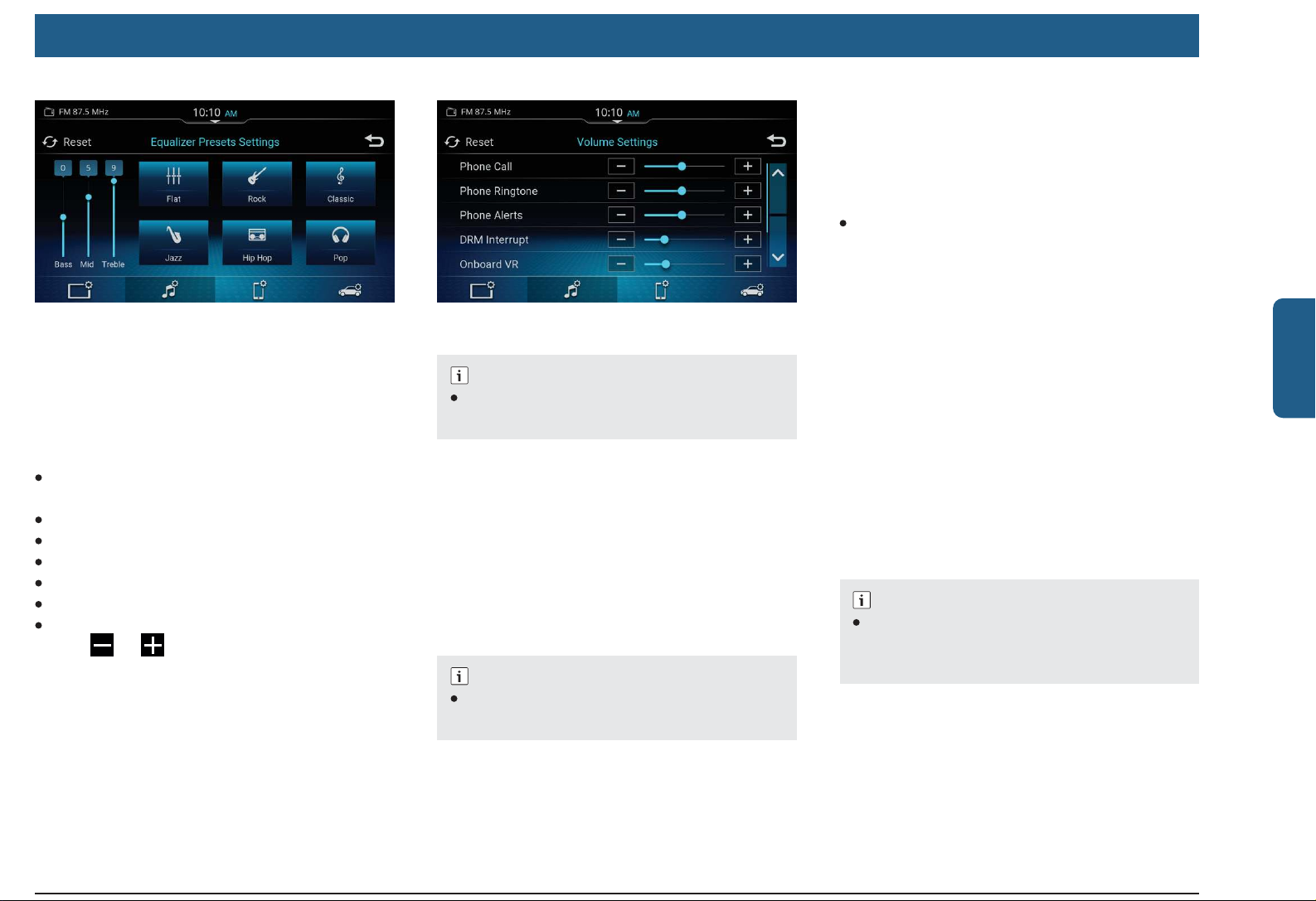

1. In the Media Settings screen, tap

Equalizer Presets. The system displays Equalizer Presets Settings screen.

2. Tap on the required Equalizer Preset

icon.

Page 19

Getting Started

Figure 23: Equalizer Presets Settings Screen

3.5.6 SETTING VOLUMES

1. Tap Volume. The system displays the Volume Settings screen.

2. Using the Volume setting options, you can set the volume of:

Phone calls attended/made using the

system

Phone ringtone Phone alerts DRM Interrupt Onboard VR Vehicle Alert SMS Read aloud.

3. Tap the currently set volume and set it to a new value.

or to increase or decrease

Figure 24: Volume Setting Screen

NOTE :

To set value, you can also drag the slider

in the required eld.

3.5.7 MANAGING SPEED DEPENDENT VOLUME CONTROL

1. In the Media Settings screen, tap Speed

Dependent Volume Control.

2. In the displayed screen, select the

required Speed Dependent Volume Control option (Off/Low/Medium/ High).

NOTE :

To disable Speed Dependent Volume

Control, tap Off.

3.5.8 SETTING SYSTEM BEEP

In the Media Settings screen, tap System Beep to enable/disable beep sound of infotainment system.

en | 17

3.5.9 SETTING AM ACTIVE

1. In the Media Settings screen, tap AM Active

2. Using the various Tuner Settings options, you can:

Enable/disable the AM Active option.

3.5.10 SETTING DRM ACTIVE

1. In the Media Settings screen, tap DRM Active

2. Using the various Tuner Settings options, you can:

- Enable/disable the DRM Active option.

3.5.11 SETTING DRM

1. In the Media Settings screen, tap DRM.

2. Using the various Tuner Settings options, you can:

- Enable/disable the DRM Interrupt option.

- Enable/disable DRM Text.

NOTE :

Enable the DRM Interrupt, user will

automatic received Interruption if there is warning announcement.

3.5.12 RADIO TEXT

In the Media Settings screen, tap Radio Text to enable/disable radio text.

English

Page 20

18 | en

Getting Started

English

3.5.13 SEEK PRESET WITH CURRENT BAND

You can choose to Enable / Disable crossband / preset up/down while using steering wheel remote control

3.6 MANAGE CONNECTIVITY

SETTINGS

When your smartphone is paired and connected with the system, using the various Connectivity Settings options, you can perform the following actions:

Handle the Paired Device List Handle the Phone settings Handle Wi-Fi Handle Wi-Fi Setting Handle Voice Assistant

3.6.1 ACCESSING THE CONNEC-

TIVITY SETTING SCREEN

Tap the settings screen. The system displays the Connectivity Settings screen with its various options.

icon displayed below the

3.6.2 MANAGING PAIRED DEVICE LIST

1. In the Connectivity Settings screen, tap

Paired Device List.

2. If there is any paired device, system will

go to Paired Devices screen.

3. If there is no paired devices, system will

go to Available Devices screen.

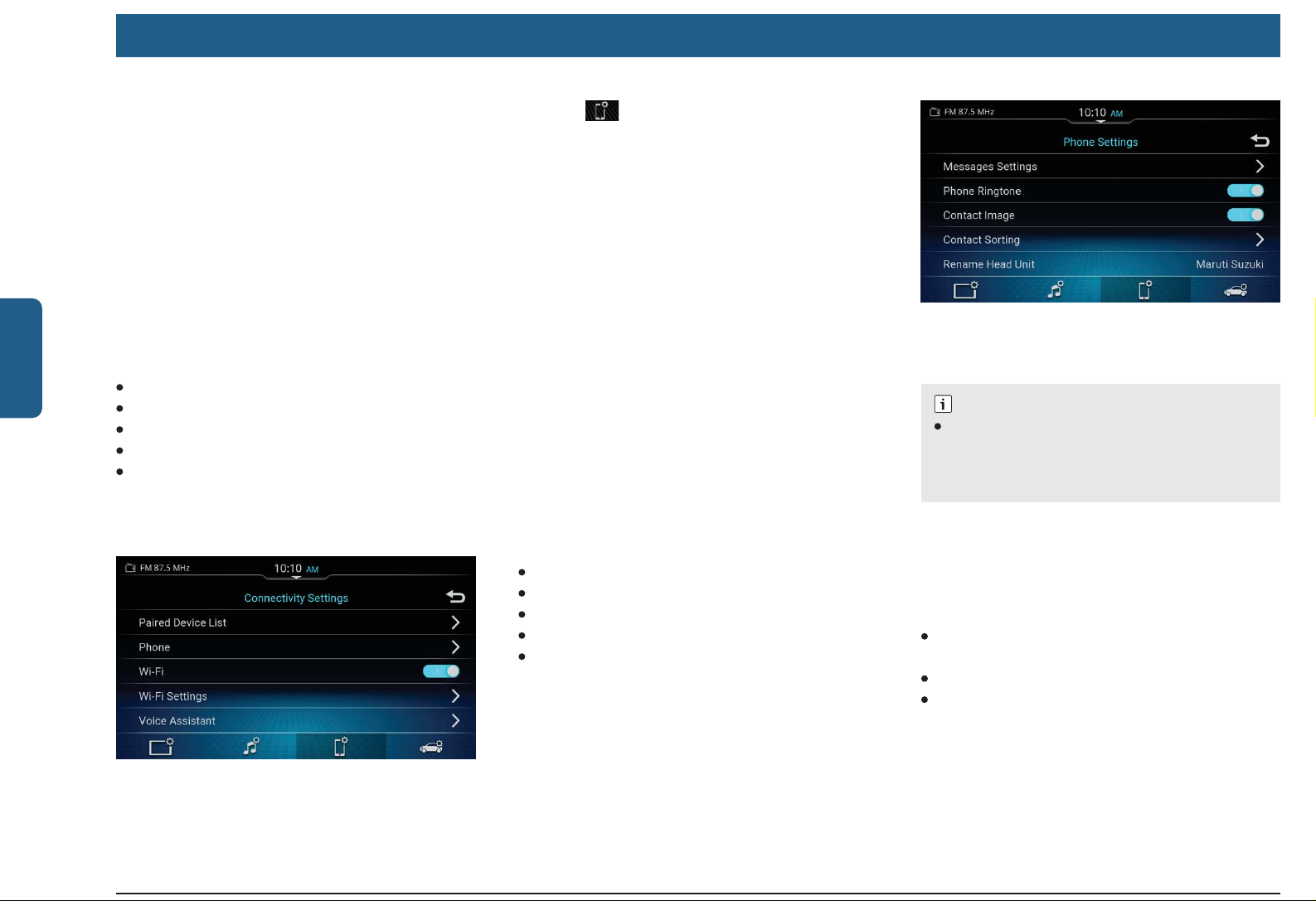

3.6.3 MANAGING PHONE SETTINGS

In the Connectivity Settings screen, tap Phone. The system displays the Phone Settings screen. In the Phone Settings screen you can perform the following actions:

Handle Message Settings Enable/disable the phone ringtone Enable /disable Contact Image Sort the Contacts Rename Head Unit

Figure 26: Phone Settings Screen

MANAGING MESSAGE SETTINGS

NOTE :

If no phone is connected to the system,

the Message Settings, Phone Ringtone, Contact Sorting and Contact Image functionalities are unavailable.

In the Phone Settings screen, tap Message Settings. The system displays the Message Settings screen. In the Message Settings screen you can perform the following actions:

Enable/disable the notication of incom-

ing messages Handle Reject with SMS settings Enable / Disable Auto reply SMS

Figure 25: Connectivity Settings Screen

ENABLING THE NOTIFICATION OF INCOMING MESSAGES

In the Message Settings screen, tap

Incoming Message Notication.

Page 21

Getting Started

en | 19

MANAGING REJECT WITH SMS SETTINGS

1. In the Message Settings screen, tap Reject with SMS. The system displays the Reject with SMS Settings screen.

2. Select a message from the list.

3. Tap

to personalized reject SMS

messaging.

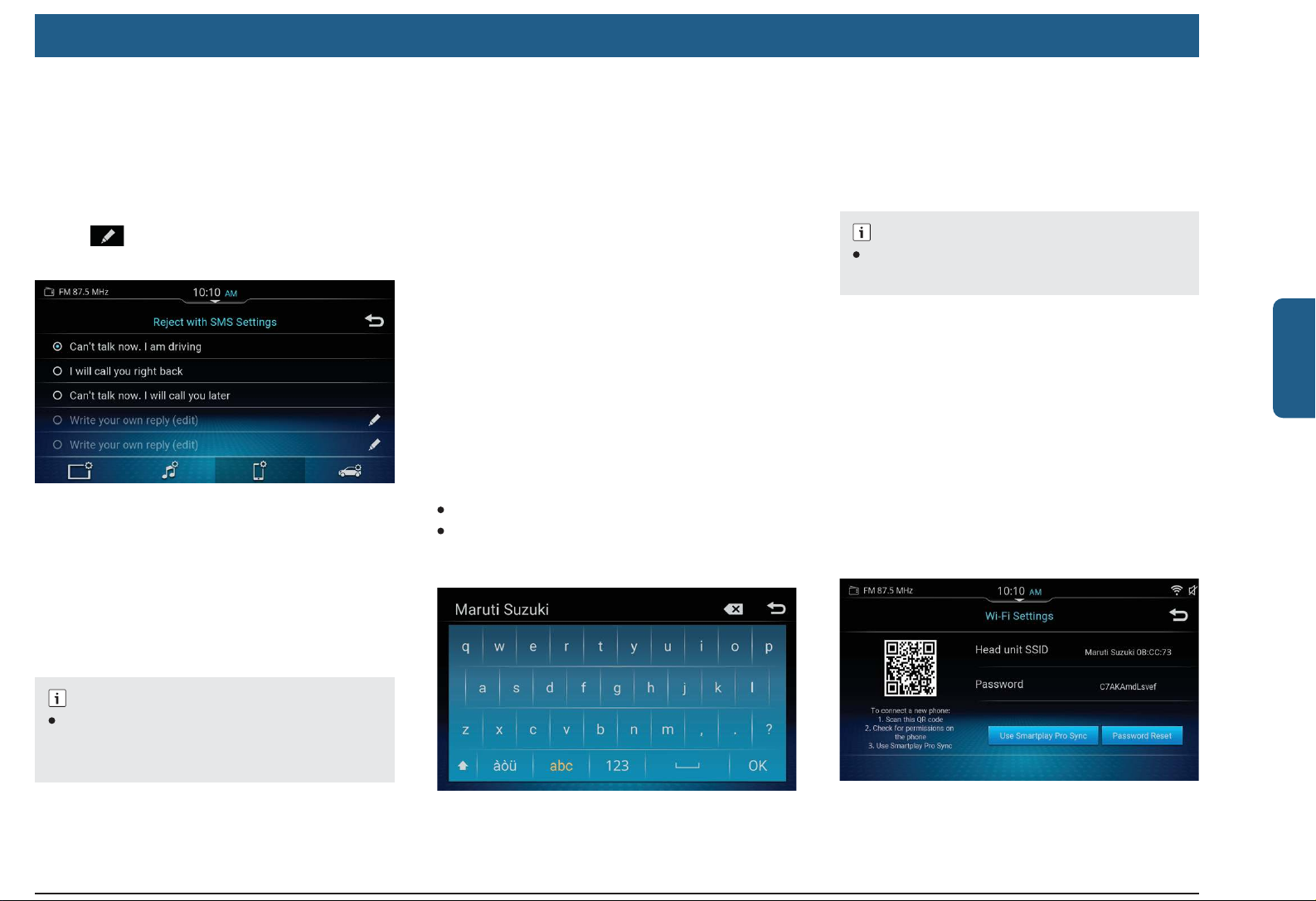

Figure 27: Reject with SMS Settings Screen

ENABLING AUTO REPLY SMS

In the Message Settings screen, tap Auto Reply SMS. When the user selects the

prede ned SMS from “Reject with SMS”

option, the system will reject the incoming

call with the selected prede ned SMS.

ENABLING PHONE RINGTONE

In the Phone Settings screen, tap Phone Ringtone. The system will play your smartphone ringtone when an incoming call is received. However, this feature is supported only if your smartphone projects its ringtone to the system.

ENABLING CONTACT IMAGE

In the Phone Settings screen, tap Contact Image. The system will show contact image when an incoming call received.

SORTING CONTACTS

1. In the Phone Settings screen, tap Contact Sorting. The system displays the Contact Sorting screen.

2. Choose any one of the following sorting methods:

First name, Last name Last name, First name

RENAMING HEAD UNIT

1. In the Phone Settings screen, tap Rename Head Unit.The system displays the keypad.

2. Enter the new name using keypad and tap OK.

NOTE :

The system display Maruti Suzuki as the default system name.

3.6.4 MANAGING Wi-Fi

In the Connectivity Settings screen, tap Wi-Fi to enable the Wi-Fi.

3.6.5 MANAGING Wi-Fi SETTING

1. In the Connectivity Settings screen, tap Wi-Fi Setting.

2. In the Wi-Fi Settings screen,user shall Scan the QR code or input password to connect the Wi-Fi to access software update using Smartplay Pro Sync app.

English

NOTE :

Behavior of reject with SMS and Phone ringtone may vary depending on the connected phone type.

Figure 28: Renaming Head Unit

Figure 29: Managing Wi-Fi Setting

Page 22

20 | en

Getting Started

English

NOTE :

User cannot reset password during Wi-Fi connected.

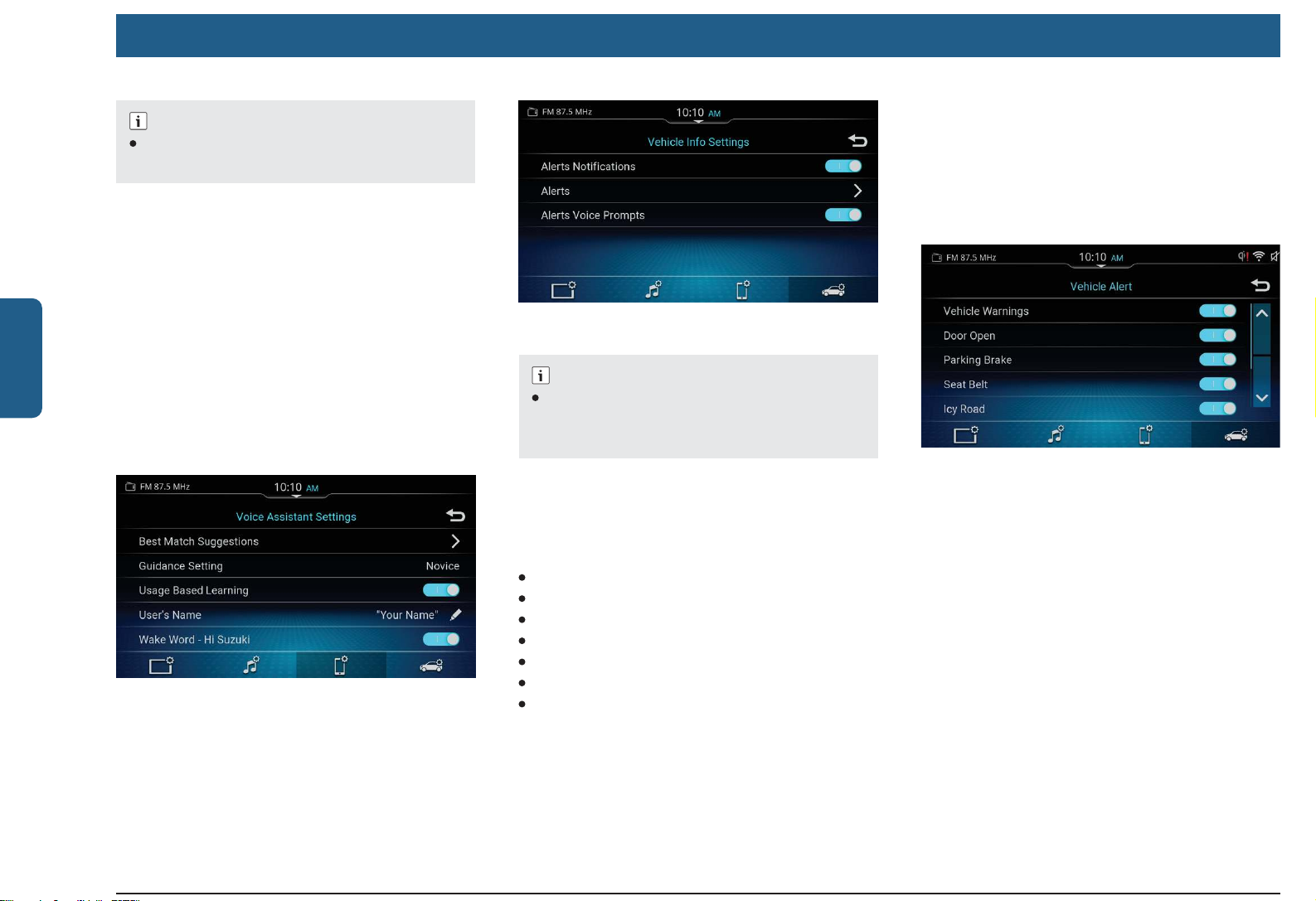

3.6.6 MANAGING VOICE ASSISTANT

1. In the Connectivity Settings screen, tap

Voice Assistant

2. In the Voice Assistance Setting screen

you can perform the following actions:

- User can set best match suggestion

- Set Guidance setting

- Enable/Disable to display Usage Based

Learning

- Set display user’s name

- Enable/Disable Wake word.

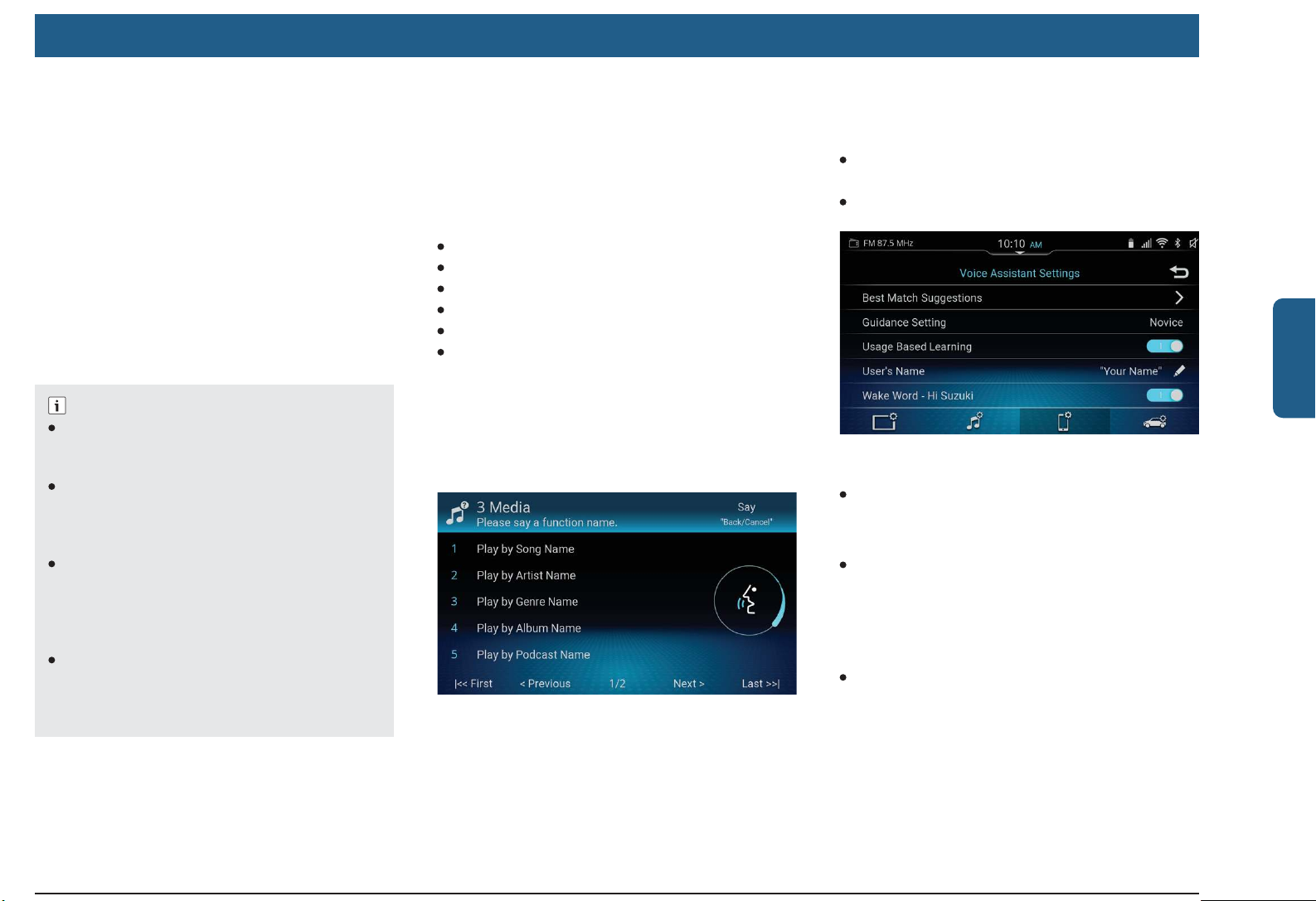

Figure 30: Voice Assistant Settings Screen

1. In the Vehicle Info, tap the Alerts option. The system displays the Vehicle Alerts screen.

2. Tap the required vehicle alert. The system disables the display of the selected vehicle alert.

Figure 31: Vehicle Alerts Settings Screen

NOTE :

Alerts and Alert Voice Prompts setting only

available when Alerts Noti cations enabled

(Turn ON)

Figure 32: Vehicle Alerts Screen

ENABLING/DISABLING VEHICLE ALERTS

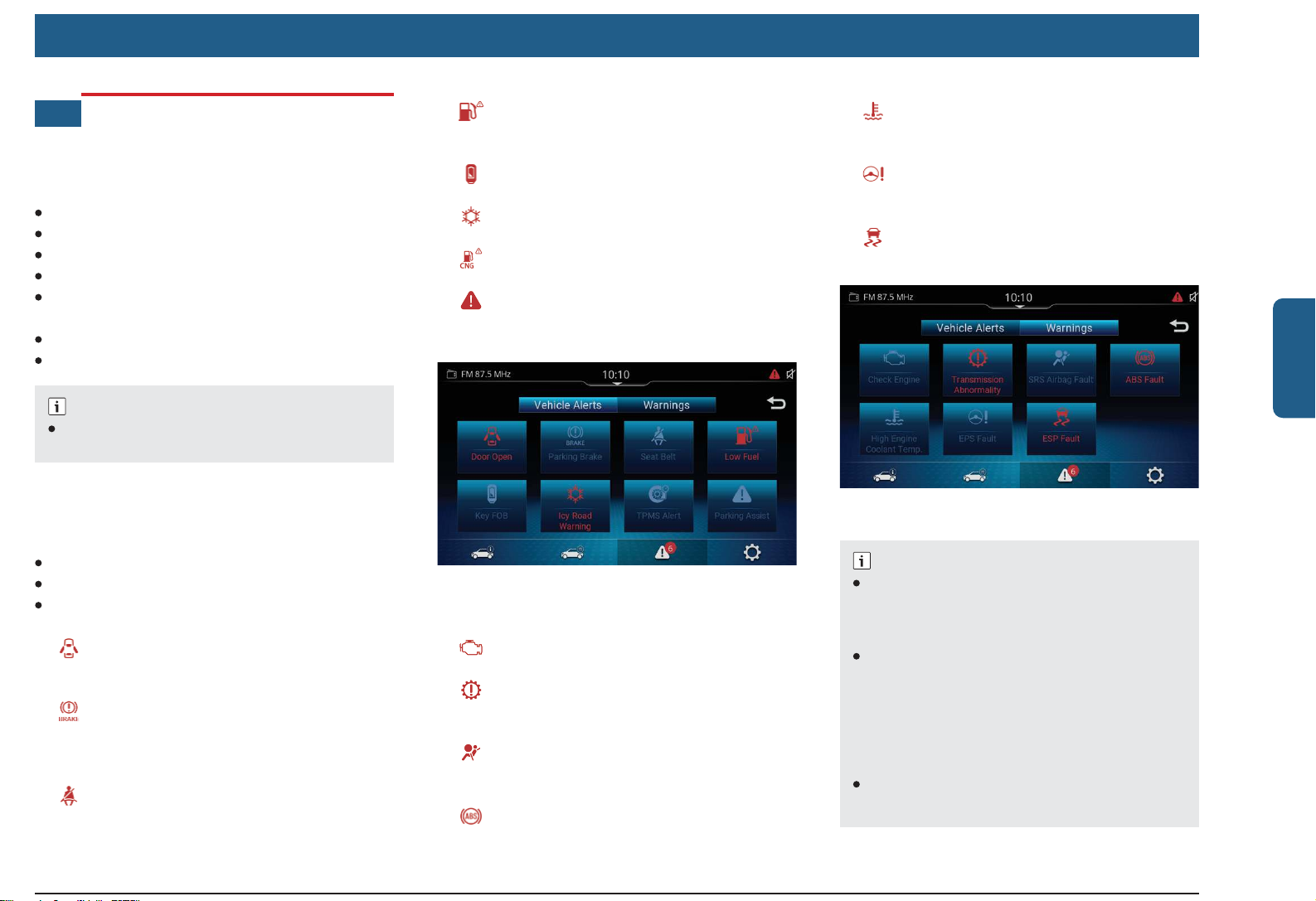

The following vehicle alerts are displayed as popup in the system.

Vehicle Warnings Door Open Parking Brake Seat Belt Icy Road Key FOB Battery Low Fuel

3.7 MANAGING VEHICLE ALERTS

In the Vehicle Info Settings screen, you

can enable/disable the alerts noti cation,

the popup display of vehicle alerts on the system and alert voice prompts.

You can enable or disable the display of these popups, from the Vehicle Alerts screen. By default, the vehicle alerts are enabled. To disable the display of a vehicle alert on the system:

Page 23

Radio

en | 21

4 RADIO

4.1 FM / AM and *DRM Radio Mode

The system supports following radio bands FM, AM and *DRM. Some signal reception information are:

AM reception: Generally, strong AM

signals provide stable sound quality with low signal noise. However at night, atmospheric conditions may sometimes lead to interference from other stations.

FM reception: The FM waveband offers

the highest sound quality. However, the signal may be susceptible to noise due to:

- The limited reach of some transmitters.

- “Shadow zones” wherein the signal reception is obstructed or restricted.

- Due to signal reﬂ ections from hills and

tall buildings, the signal reception quality might deteriorate (multi path effect).

DRM reception: With DRM radio,a ser-

vice represents a programme of a radio station. Several services are transmitted on the same frequency. These services

are combined into a frequency.

NOTE :

Even if broadcasting stations are listed, the signal may not be recieved depending on the current location or radio wave condi tions.

Poor reception may occur in areas where radio waves are easily blocked, such as in tunnels, in mountains, or in valleys of buildings, or in areas where radio waves are weak.

To view the Radio screen, perform any of the following:

Tap on CTP, In the displayed sourc-

es screen, tap FM / AM / *DRM.

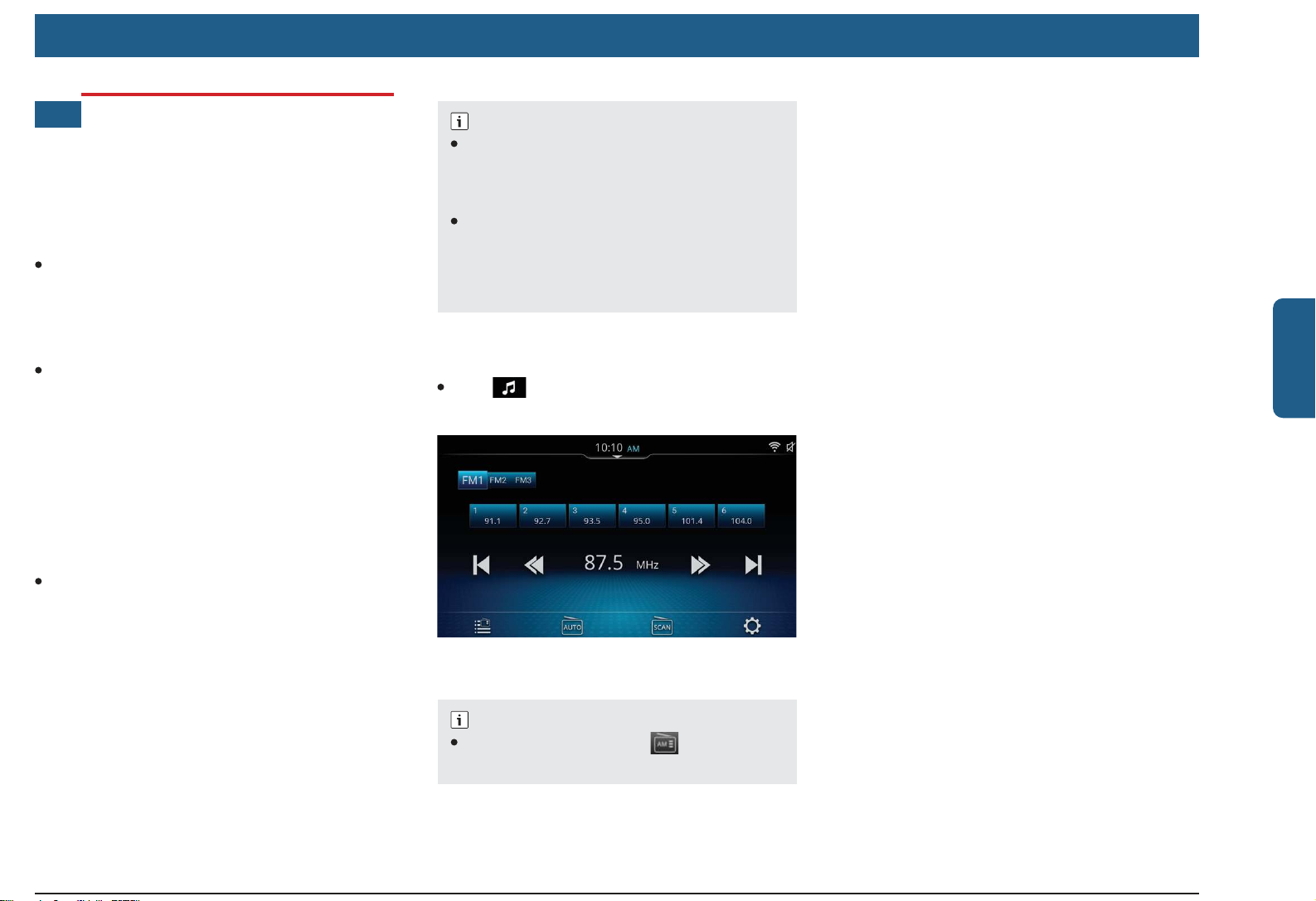

Figure 33: Radio / Tuner screen

English

NOTE :

In the Home screen, tap tile to display the Radio screen.

Page 24

22 | en

Radio

English

6 9

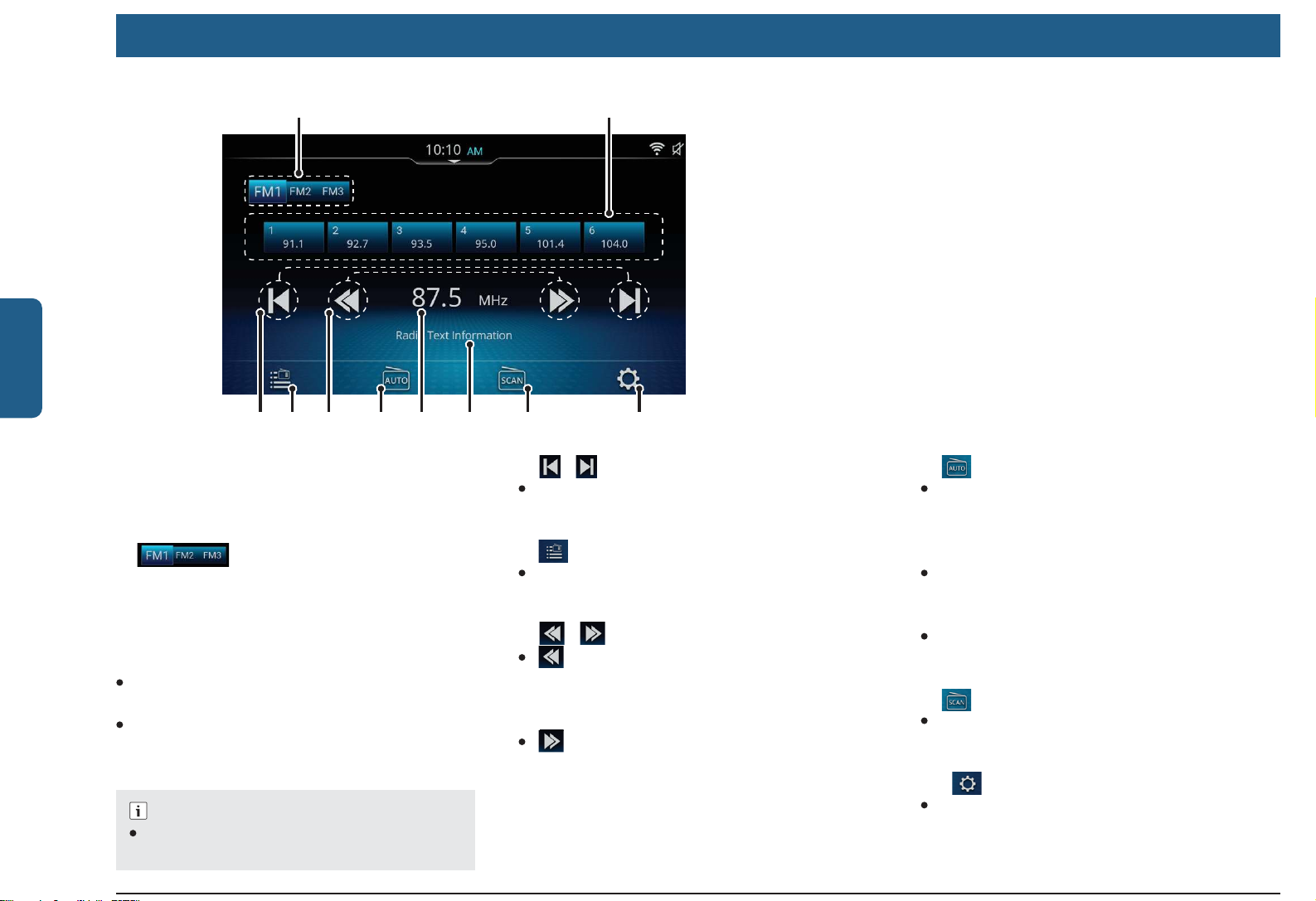

4.1.1 Radio / Tuner Screen

The Radio / Tuner screen contains various buttons, to quickly access important functions.

1. Displays and allows to change the current band of radio, E.g. FM1, FM2, FM3. Each band can contain 6 presets.

2. Preset list

Short tap: Plays the selected preset

station.

Long tap: Saves the currently played

station on the selected preset and gives a beep sound as the indication of storage.

NOTE :

The beep sound will not be played if the System Beep option is disabled.

Band Select

Figure 34: Radio/Tuner Screen

3. / Auto Seek Automatically tune in to receivable

broad cast stations.

Station List

Displays the FM / AM / *DRM Station

103 5

6. Auto Store Storing the valid stations that are auto-

matically tuned in sequentially.

7. Frequency Display current frequency.

List screen.

8. Radio text

/ Manual Seek function : To move a single step to the lower

The content displayed in radio text is de-

pendent upon the broadcasting station.

frequencies.

Long press to continuously seek towards

lower frequencies

: To move a single step to the higher

Scan

Scans to a valid station and dwells for

speci ed time

frequencies.

Long press to continuously seek towards

higher frequencies.

10. Tap Setting, system will display Media

Setting

Settings Screen.

Page 25

Radio

en | 23

4.1.2 CHANGE THE BANDS

Tap the required band. The system changes the band as per your selection.

radio button of the

4.1.3 CHANGE THE RADIO STATION / SERVICE

Use any one of the following options:

4.1.3.1 USING THE STATION LIST

1. Tap the

2. In the Station List screen, browse

through the list of stations and tap on the required radio station.

3. To refresh the station list, tap .

4. To save the frequency as preset.

Station List icon.

4.1.3.2 USING THE SEEK

ELEMENTS

Tap the system plays the previous / next available radio station / service.

/ seek screen elements. The

4.1.3.3 USING THE CHANGE

FREQUENCY ELEMENTS

Tap the tem changes the radio frequency / service.

/ screen elements. The sys-

4.1.3.4 USING THE PRESETS

In the Preset list, tap on the required Preset.

4.1.3.5 USING SWC

Long press or press

to perform Auto Seek Down

to perform Auto Seek Up.

4.1.4 MANAGE THE PRESETS

The system supports 6 presets per radio band. Use any one of the following options:

4.1.4.1 SETTING A PRESET MANUALLY

In the Radio screen, long tap the required preset number on the screen. The currently played frequency / station will be saved in the preset.

4.1.4.2 STORING PRESETS AUTOMATICALLY

In the Radio screen, tap Auto Store The system searches for the available ra-

dio stations. The  rst 6 stations are stored

in the presets of the current radio band in the ascending order of the frequencies. When the system completes checking all the available stations, it automatically stops the presets storing action.

4.1.5 AV OFF FUNCTION

1. In the source screen, when you Tap

the AV source is turned off.

2. All media sources become disabled

state when AV OFF is selected. If other sources are selected, AV OFF automatically will deselect.

English

Page 26

24 | en

Phone

English

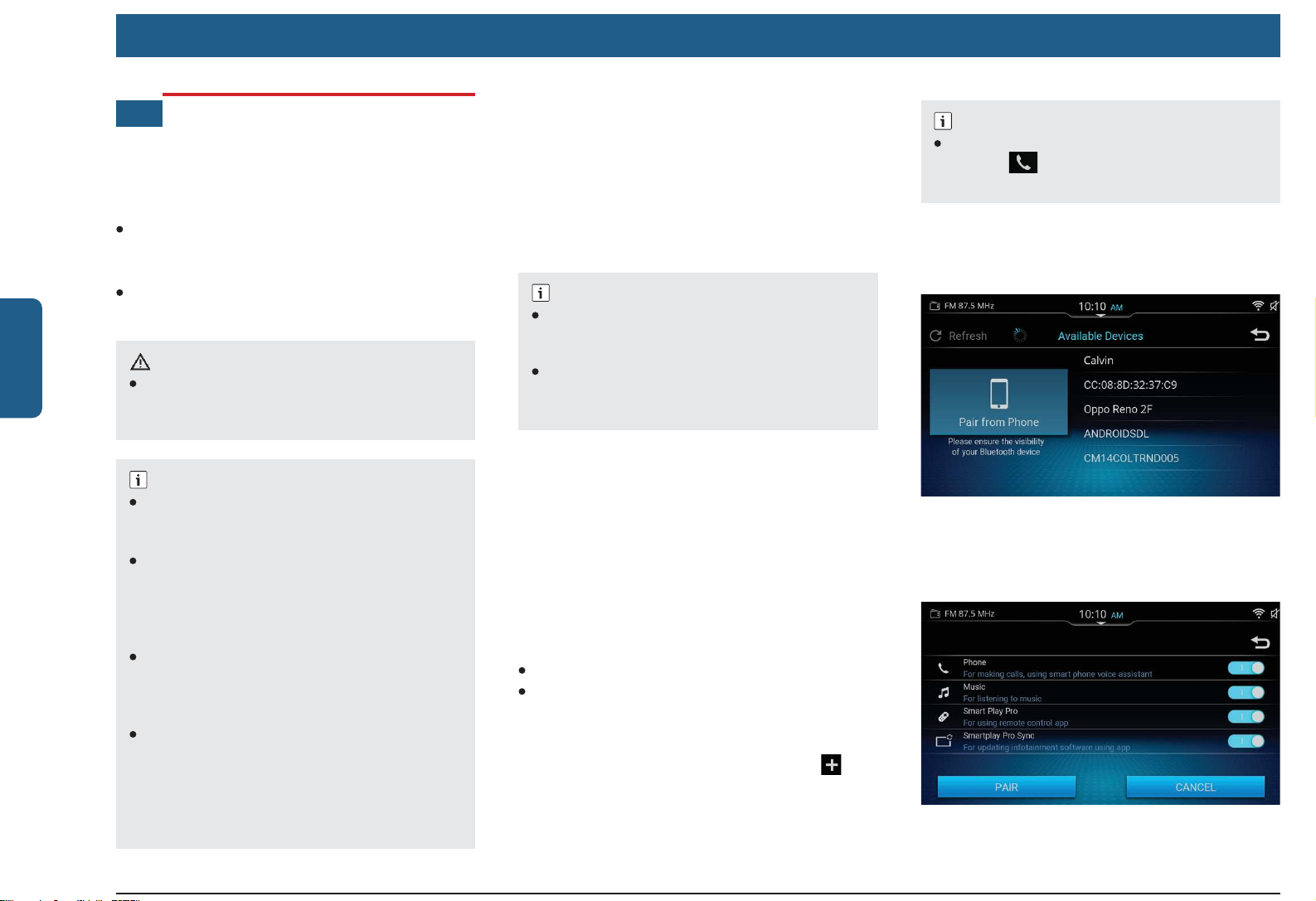

5 PHONE

You can pair and connect your phone to the system using the Bluetooth option of your phone. After connecting, you can perform the following actions from the system:

Handle phone functionalities like make /

attend calls, SMS and access contacts, call logs etc.

Play audio  les stored on the phone

through Bluetooth.

ALERT :

Using the handsfree facility while driving can be dangerous since your attention is reduced during a telephone conversation.

NOTE :

Ensure that you follow the regulations in areas where there might be a risk because of interference by the phone.

This system shares the communication frequency with other private or public wireless communication equipment such as a wireless LAN and other wireless communication radios.

You should stop using this system imme-

diately whenever you are noti ed that your

unit disturbs other wireless communication.

If you are with Implantable Cardioverter

De brillators (ICDs) or Pacemakers, it is

likely that the electromagnetic waves from system shall impair the functionality of ICDs or Pacemaker. However, you can still operate the system at least 20cm away.

5.1 ESTABLISH CONNECTION

To establish connection between the system and your Phone, perform the following steps:

1. Enable Bluetooth on your phone

2. Pair your phone with the system

3. Manage the paired devices

NOTE :

Please refer to the instruction manual of your phone on how to set up a Bluetooth connection.

Information about the supported Bluetooth

devices is available at Maruti Suzuki website.

5.2 ENABLE BLUETOOTH

Turn on Bluetooth and device visibility on your phone.

5.3 PAIR DEVICES

A maximum of 19 devices / phones can be paired with the system at any given point of time. There are two ways of pairing your phone with the system:

Initiating from the system Initiating from the phone

5.3.1 INITIATING FROM SYSTEM

1. In the Paired Devices screen, tap Add Device.

NOTE :

When connecting for the  rst time, you can

tap the play the Bluetooth Pairing option screen.

touch button, The system dis-

2. In the Available Devices screen, scroll through the list of devices and select your phone.

Figure 35: Available Devices

3. Select / deselect the options for which you want to pair your phone.

Figure 36: Pairing Options

Page 27

Phone

en | 25

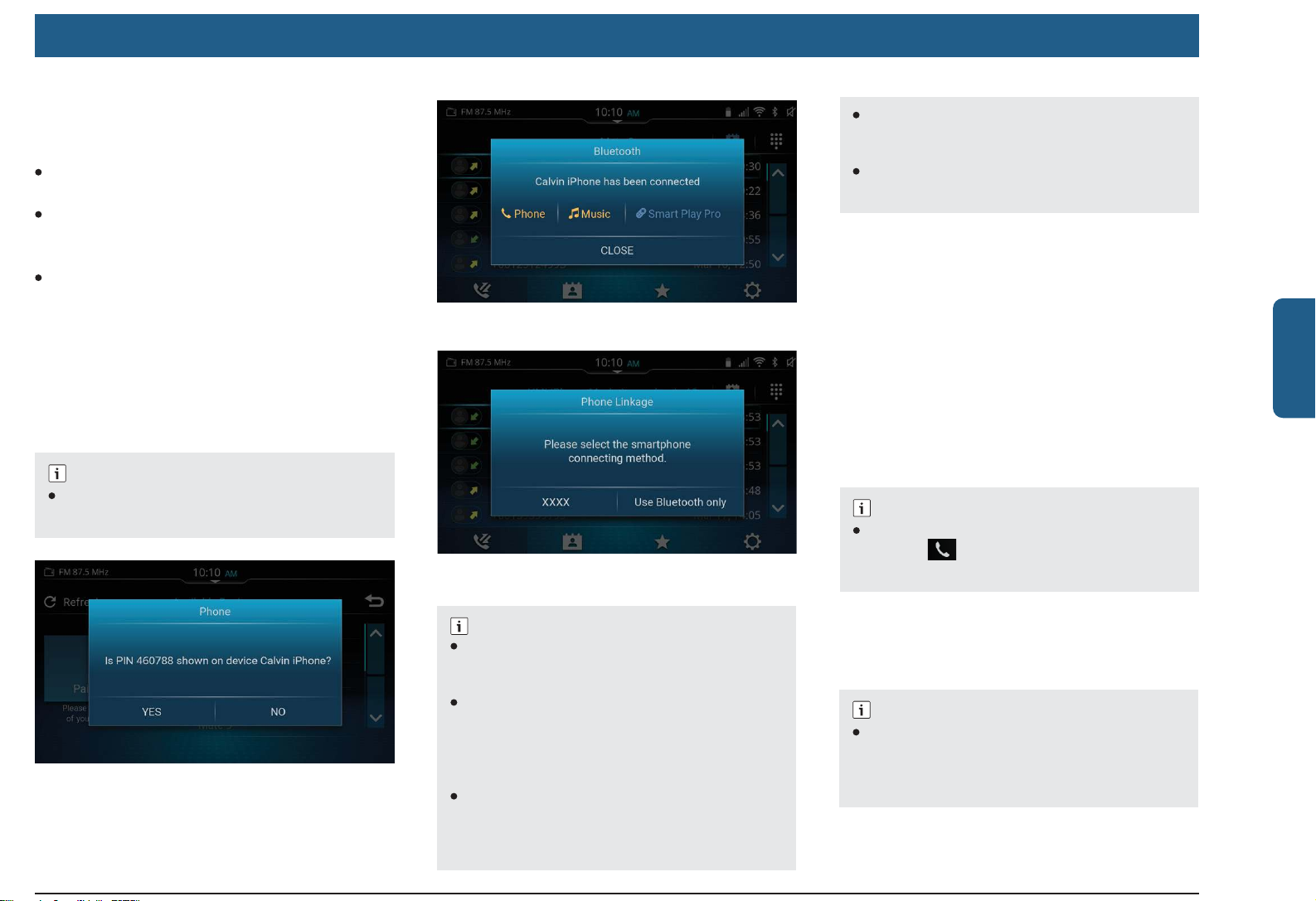

4. Depending on the pairing type sup ported by your phone, take one of the following actions:

Enter the access code in your phone

and click YES.

When an access PIN is displayed on

both the system and your phone, click YES.

After successful pairing of the devices,

your phone will be displayed in the Paired Devices screen. The system attempts to download the call logs, contacts and favourites from your phone to the system. Once the download is completed, the system displays the Call Log screen.

NOTE :

Select bluetooth from the selection pop-up

(Figure 40) to connect to Bluetooth.

Figure 38: Pairing Successful

*Figure 39: Bluetooth Selection Popup

Some proles are not supported depend-

ing on the device. You cannot select a

prole that is not supported by the device.

Bluetooth legacy pairing is not supported

by system.

5.3.2 INITIATING FROM PHONE

1. In the Bluetooth Settings screen, select Pair from Phone option. The system will display the 4 Bluetooth functions (Phone, Music, Smart Play Pro & Smartplay Pro Sync) for which you can pair your phone.

2. Select the required Bluetooth functions. Now the system is discoverable on your phone with the name Maruti Suzuki

default System’s Bluetooth name.

NOTE :

When connecting for the rst time, you can

tap the plays the Available Devices screen screen.

touch button. The system dis-

English

Figure 37: PIN Verication

NOTE :

The time required to download the phone

book and call lists may vary depending on the connected phone.

All Bluetooth functions (Phone and Music)

may not be supported for your phone. Refer to the Maruti Suzuki website for

information on the proles supported for

your phone.

The call, contacts and favourites synchro-

nization action requires premission from phone. Availbility of these items is phone dependent

3. Search for the available Bluetooth devices in your phone and select Maruti

Suzuki from the list of available devices.

NOTE :

To ensure your system is visible to other

devices, launch the make discoverable popup by tapping the Pair option in the Bluetooth Pairing screen.

Page 28

26 | en

Phone

English

NOTE :

You can change the default System’s

Bluetooth name from the Phone Settings

Rename Head Unit option.

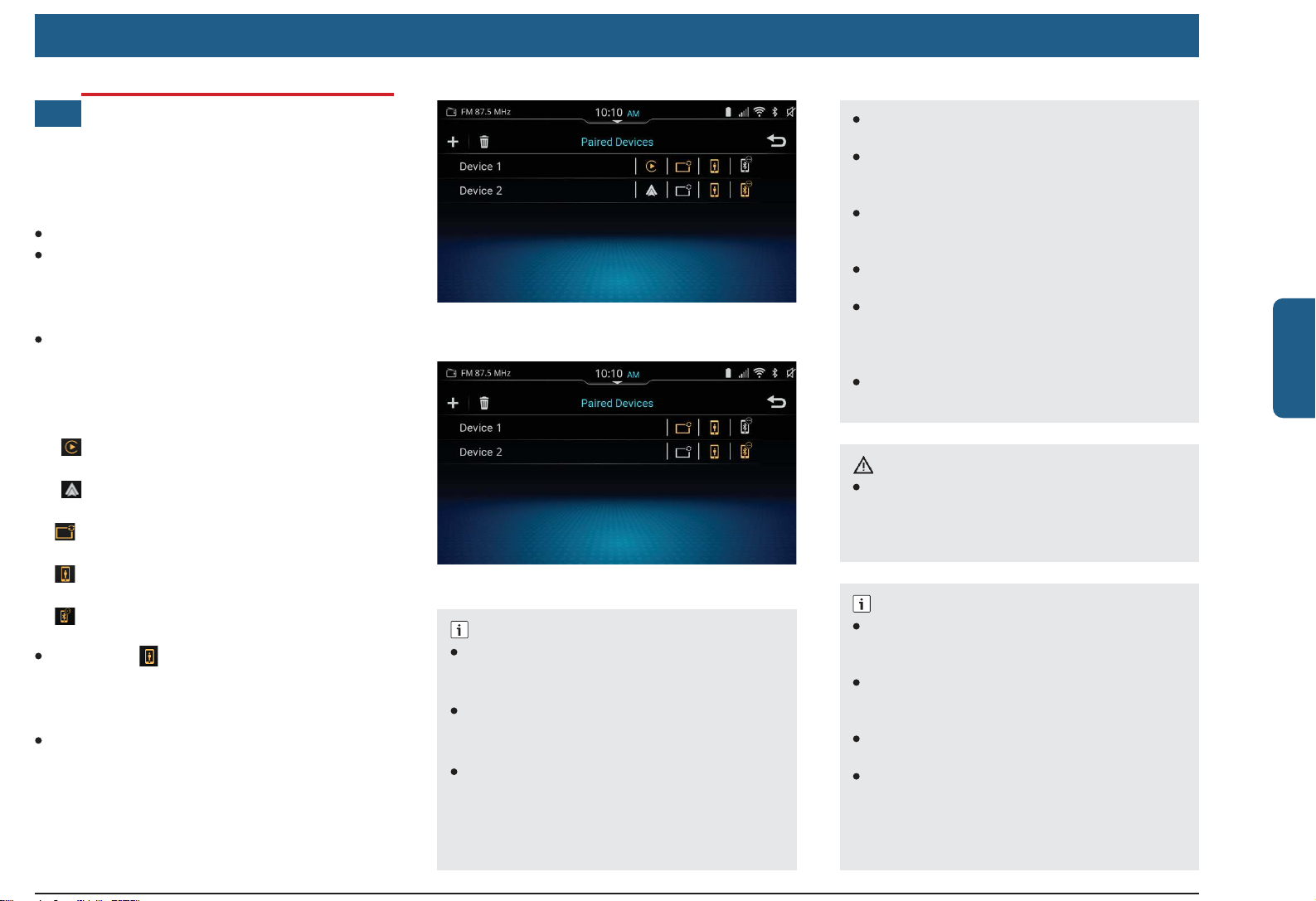

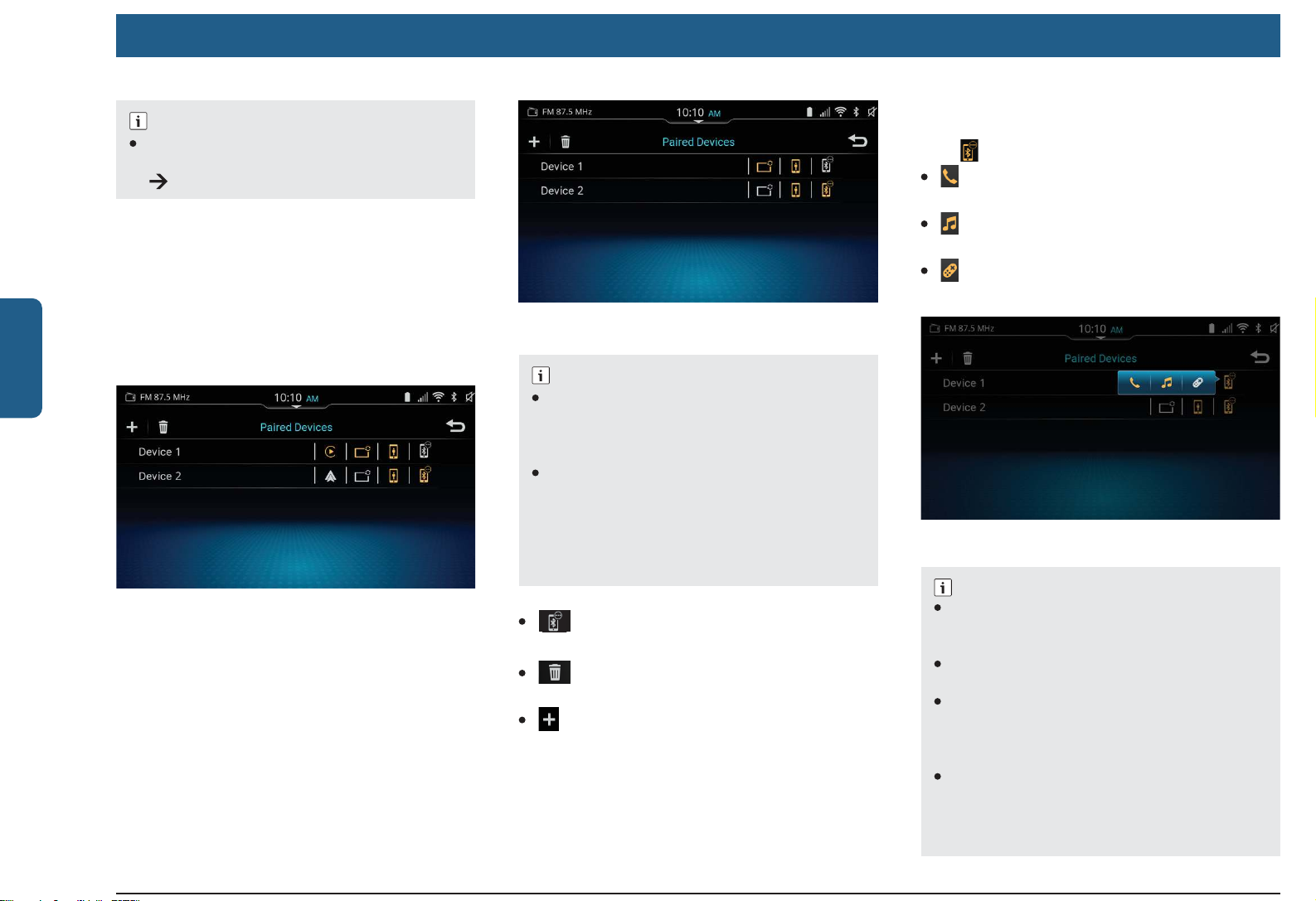

5.4 MANAGE BLUETOOTH PAIRED DEVICES

The devices paired with the system can be managed from the Paired Devices screen. This screen shows the list of Bluetooth devices that are currently paired with the system.

Figure 40: Paired Devices (If Wireless CarPlay / Android Auto is applicable)

Figure 41: Paired Devices

NOTE :

The system supports auto connection of last connected Bluetooth functions, upon ACC OFF/ON. However, the auto connection may differ based on phone behavior.

In case of user initiated disconnection

(for example: By Bluetooth OFF/ON from Phone or function disconnection), the system will not try to reconnect as it is user initiated disconnection. This action may differ based on your phone.

: Display connectivity status of

Bluetooth pro les.

: Used to remove the device from

the paired device list.

: Displays the Available Devices

screen to initiate a new pairing request.

To know the status of connected bluetooth

pro les, tap on Display connectivity status

icon .

: Bluetooth (A2DP) Pro le for audio

connection status

: Bluetooth (HFP) Pro le for call con-

nection status

: Bluetooth (SPP) pro le for remote

control connection status

Figure 42: Paired Devices

NOTE :

To connect the phone to the device again,

proceed as described in the section “Pair Devices” on page 24.

If the phone is unpaired, its phonebook and call logs are deleted.

If already 19 devices are paired with the

system, you will be unable to pair any more devices until you delete a paired device.

If the phone is unpaired during an active

call, the call is interrupted. The call can be continued on the phone, if the phone supports this.

Page 29

Phone

en | 27

5.5 PHONE FUNCTIONS

When your phone is paired and connected to the system over bluetooth can perform the following operations:

Make an Outgoing Call Handle an Incoming Call Handle the Second Incoming Call Handle Active Calls Swap between Multiple Calls Activate Voice Recognition of connected smartphone

5.5.1 MAKING AN OUTGOING CALL

You can perform any one of the following actions:

Use the Call Logs Use the Phonebook Use the Contact Search Use the Dialpad Search Use the Favourite Contacts List

USING CALL LOGS

Tap on the required call / contact. The system dials out to the contact using the same number that was available in the call log.

NOTE :

The date & time displayed in the recent call log history of system may not match with system and connected phone date and time.

The call log list of system may not match with the call log list of phone.

USING PHONEBOOK

1. Tap

displayed in the bottom bar. The system displays the Phonebook screen.

NOTE :

If in another phone screen, tap to display the Call Logs screen.

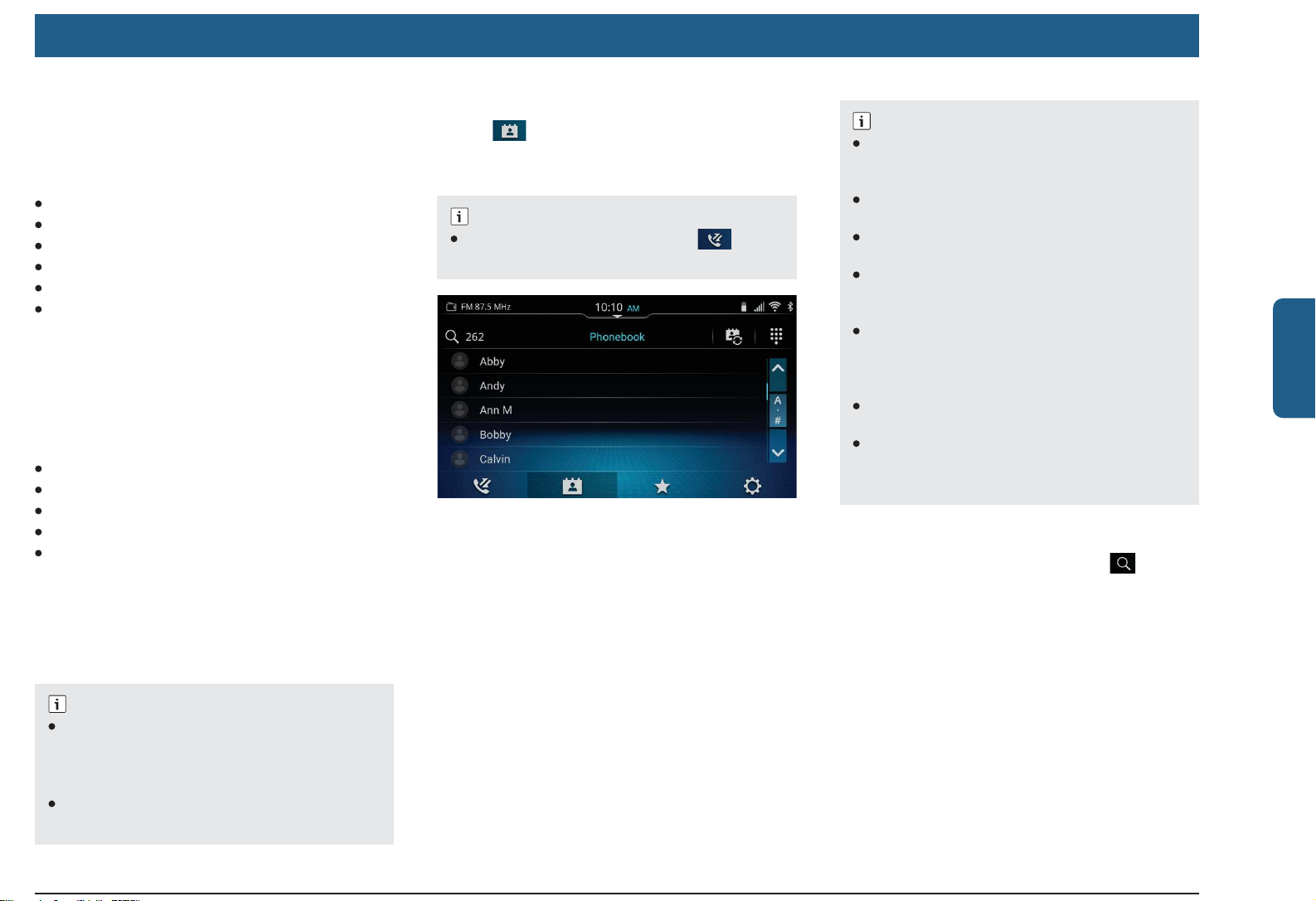

Figure 43: Phonebook Screen

2. Scroll through the contacts list.

3. Tap on the required contact. The system displays the details of the selected contact.

4. Select the required contact number.

NOTE :

Only contacts stored in the memory of the

phone will be synchronized in the unit’s

memory.

The synchronization is limited to 3000

numbers from the paired phone.

Depending on phone setting, the phone-

book will be displayed on the system.

The phonebook displayed on the phone

may not match the display order of the phonebook on the system.

The contact information (contact name,

contact number, etc.) shown on the system may not match with that of contact information shown on the phone.

Valid contacts with proper contact informa-

tion will only be displayed on the system.

Contacts which do not have information,

duplicate contacts, etc. may not be displayed on the system.

USING CONTACT SEARCH

1. In the Phonebook screen, tap

2. Using the keypad displayed, enter a character or the required name. The system displays the list of contacts /

speci c contact that matches the search

criteria.

3. Select the required contact from the list and tap OK. If only one contact is displayed, just tap OK.

English

Page 30

28 | en

Phone

If available in phone, the image associated

with the favourite contact is downloaded. This feature is phone dependent.

User can set contacts as favourite contact

from system and additionally, system also displays favourite contacts which are set as favourite in phone.

Display of phone Favourite contacts in the

system is phone dependent.

English

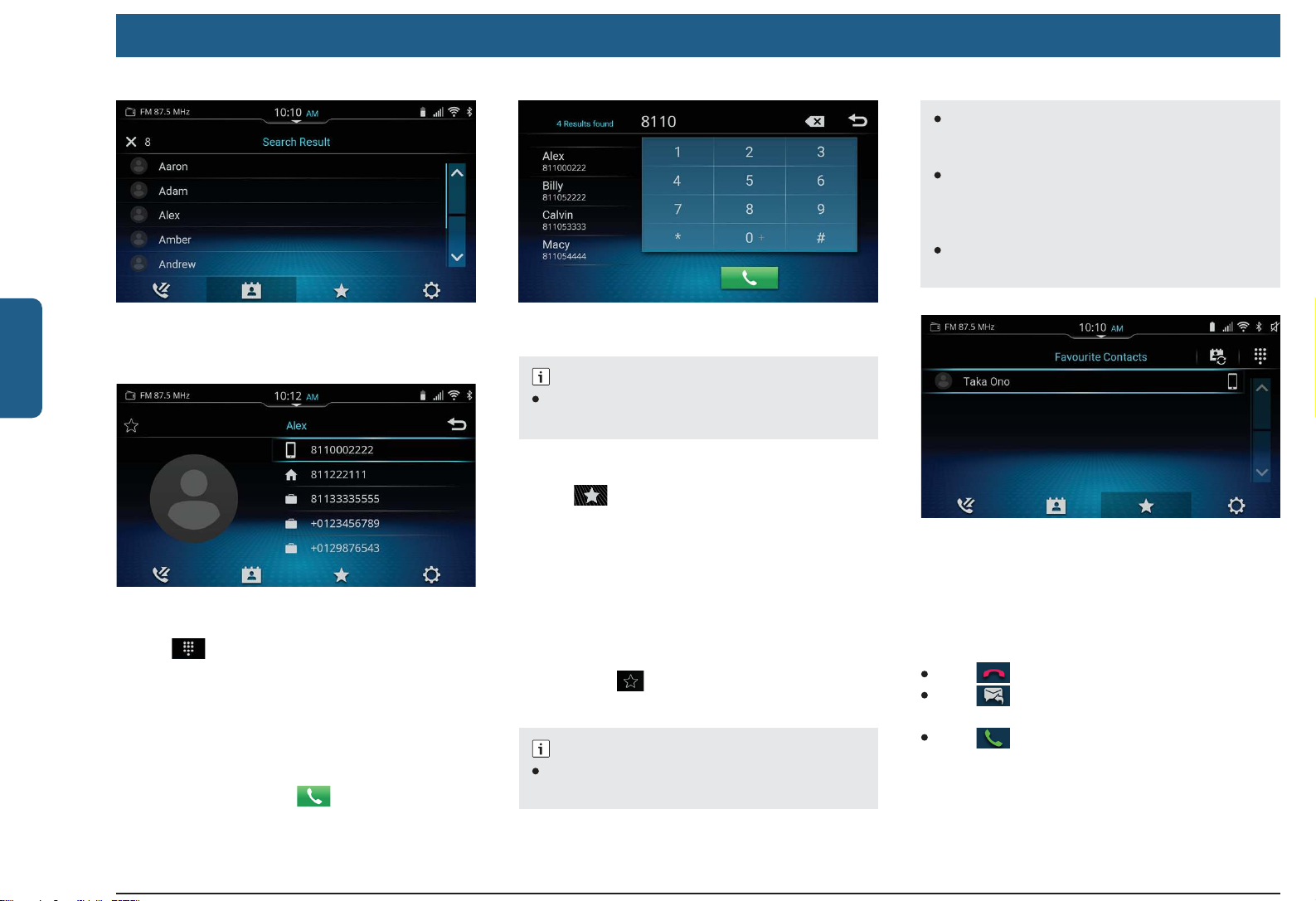

Figure 44: Contact Search Screen

USING DIALPAD SEARCH

Figure 45: Contact Detail Screen

1. Tap

on the top bar.

2. Using the displayed Dialpad, enter few or all numbers of the contact.

3. Select the required contact from the displayed list. The system calls the contact. If no contact matches with the entered number, you can directly dial out to the number by tapping

Figure 46: Phonebook Dialpad Screen

NOTE :

To enter the ‘+’ symbol, long tap on the

number zero (0) on the Dailpad.

USING FAVOURITE CONTACTS LIST

1. Tap

on the bottom bar.

2. Select the required favourite contact from the list. The system displays the details of the selected contact.

3. Select the required contact number, if multiple numbers are available.

SETTING A FAVOURITE CONTACT

In the Contact Pro le screen of the required

screen, tap

on the top left corner.

NOTE :

System can display up to 100 contacts in favourite contact list.

Figure 47: Favourite Contacts Screen

5.5.2 MANAGING AN INCOMING CALL

In the Incoming Call screen, you can perform one of the following actions:

Tap , to reject the incoming call Tap , to reject the incoming call with a message. Tap , to accept an incoming call.

Page 31

Phone

en | 29

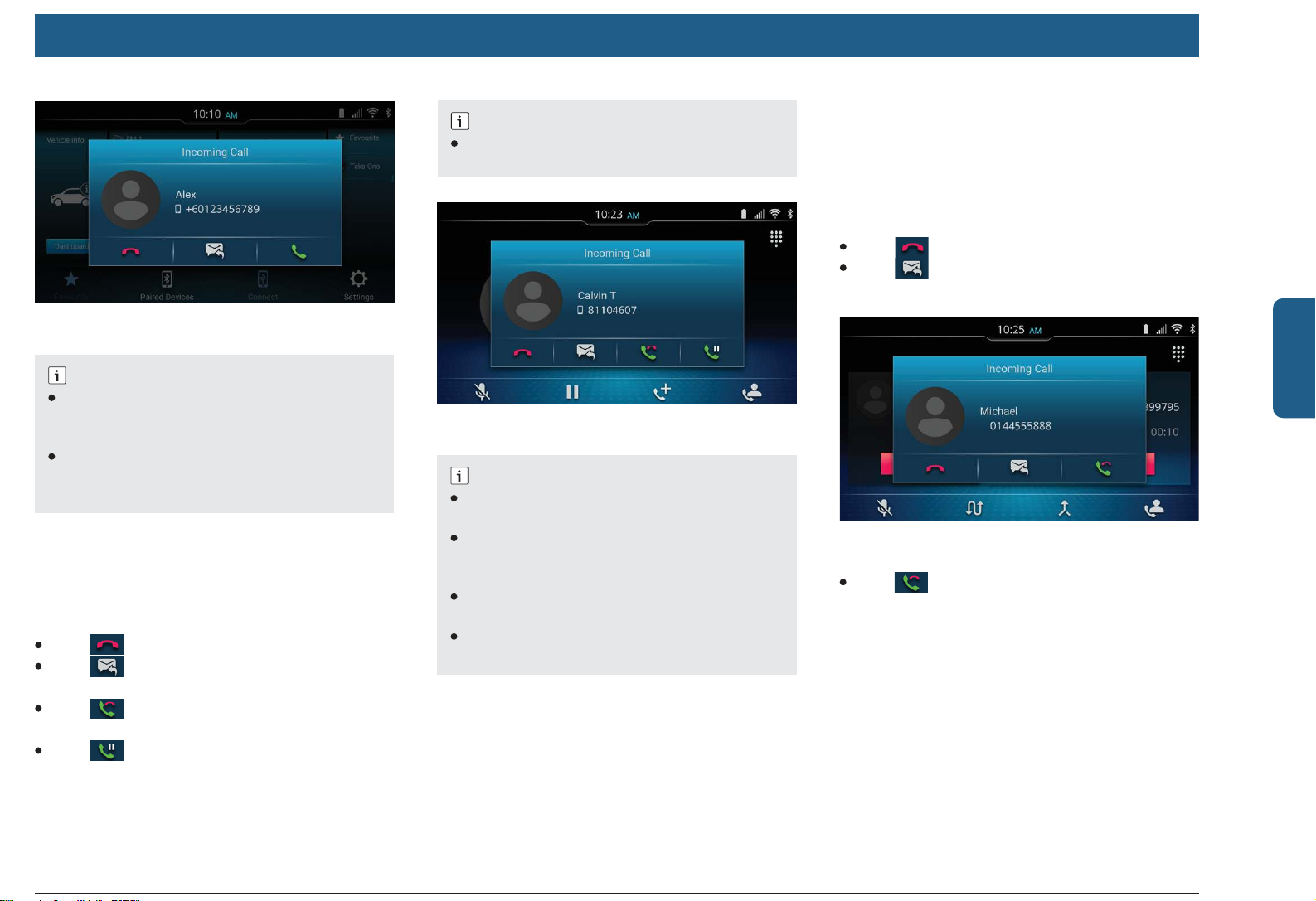

Figure 48: Incoming Call Screen

NOTE :

If the Sending SMS option is not supported by the phone, the “Reject with SMS” function will be disabled.

The call function through third party applications is not guaranteed and may have limited support.

5.5.3 MANAGING THE SECOND INCOMING CALL

To handle two calls simultaneously, perform one of the following actions:

Tap , to reject the incoming call. Tap , to reject the new call with a message. Tap , to put the active call on hold and accepts the new incoming call. Tap , to end the active call and accepts the new incoming call.

NOTE :

Depending on your phone, all the incoming call functions may not be available.

Figure 49: Second Incoming Call Screen

NOTE :

You cannot receive calls immediately after turning on the system.

Depending on what the Caller ID Noti cation Service is used, the caller’s phone

number or name may not be displayed. Audio quality during ongoing call is depen-

dent on phone and network provider. Delivery of SMS using reject with SMS

functionality is network dependent.

5.5.4 MANAGING THE THIRD INCOMING CALL

The system can handle only two calls simultaneously. If you already have two calls in progress and receive a third call, perform one of the following actions:

Tap , to reject the incoming call. Tap ,to reject the incoming call with a message.

English

Figure 50: Third Incoming Call Screen

Tap , to end the call that is on hold ,to hold current conversation and accept the new incoming call.

Page 32

30 | en

Phone

English

5.5.5 MANAGING ACTIVE CALL

The system can display up to two calls at a time. If one of the calls is active, the other will be on hold. An Active Call screen provides you with the following details and functions:

1. Displays the photo, name and currently called number of the contact who you are speaking with, only if supported by the phone and contact is added to the favourites list.

1 2

2. Duration of the current call.

3. Displays the Dialpad to provide responses to an Automated Response System.

4. Sets the MIC mute.

5. Puts the currently active call on hold or resume the call, if it was on hold.

6. Ends an active call.

7. Displays the Call log screen to add a call.

8. Switches between handsfree mode or private (phone) mode.

ACTIVE CALLS TRANSITION

The Active Call screen is displayed when you make a new call or accept an incoming call. During the active call, the system disables other media controls while you are on the call. For example, you cannot access the Radio and Media functions.

5.5.6 MANAGING INTERACTIVE RESPONSES

To provide responses to an Automated Response System. For example, responses to Phone Banking systems etc., use the

icon.

5.5.7 SWAPPING BETWEEN MULTIPLE CALLS

To swap the call that is on hold, tap The other active call will automatically go on hold.

65 74 8

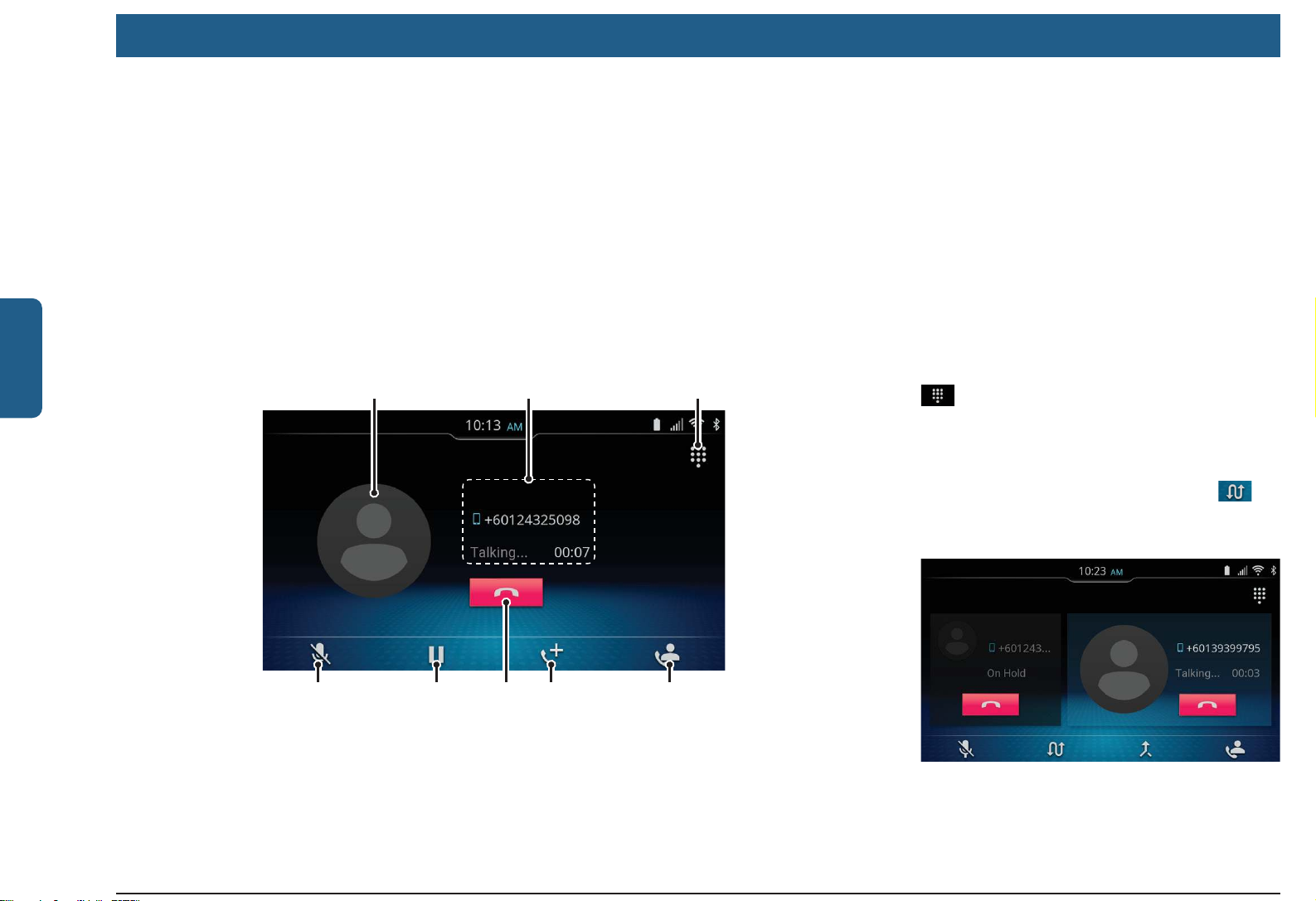

Figure 51 Active Call Screen

Figure 52: Multiple Calls Screen

Page 33

Phone

en | 31

NOTE :

If the person you are calling ends an active call, the other call that is on hold will be activated automatically.

5.5.8 MANAGING MESSAGES (SMS)

You can perform the following SMS related functions from the system:

1. You can enable / disable the display of incoming messages and other message related settings. Refer to “Man aging Message Settings” on page 18 for more information.

2. You can enable / disable Reject with SMS settings.

3. Enable / disable Auto reply SMS

4. When the system displays an incoming SMS, you can: Read aloud the message Preview Read Message Call Sender Close the incoming SMS text

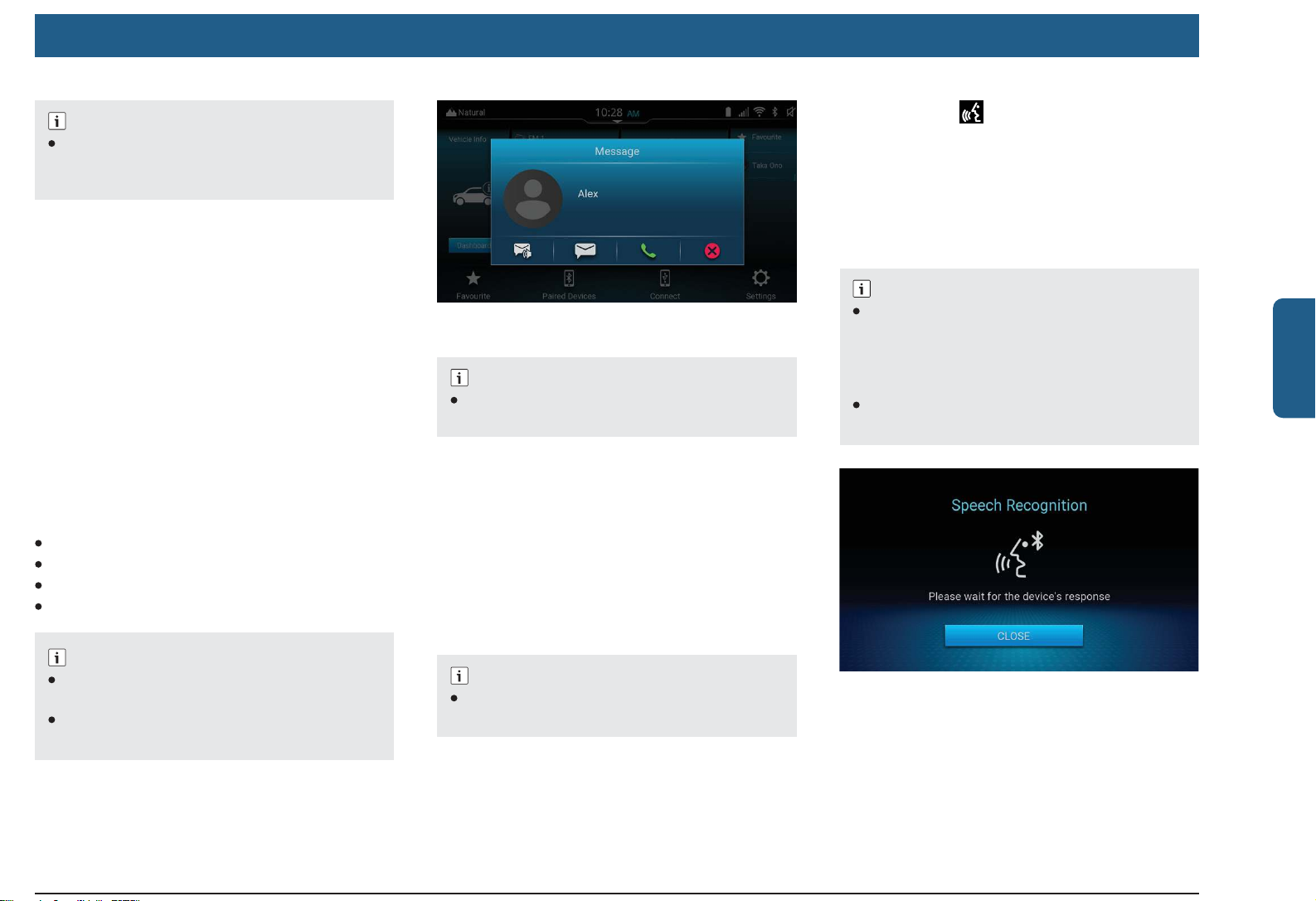

Figure 53: Incoming SMS Screen

NOTE :

Viewing of SMS is unavailable during driving condition.

5.5.9 ACTIVATING SMARTPHONE VOICE RECOGNITION

You can control the system features using voice recognition of connected phone (through Bluetooth).

1. Connect your phone to the system

through Bluetooth. Refer to the section “Establish Connection” on page 24.

2. Long Press

on the steering wheel. The system mutes / pauses currently playing audio and you will hear a beep sound that is an activation of the voice recognition feature. The system also prompts you to hear to the system response.

NOTE :

Please understand that the system uses the phone VR, so errors are inherent in the process. Neither Maruti Suzuki nor its suppliers is liable for any improper functionality. Bluetooth VR is unavailable when Apple CarPlay / Android Auto session is active.

English

NOTE :

System may not correctly spell out the received message.

SMS Read aloud feature will only work in English language.

NOTE :

Bluetooth VR will work only if the phone is paired for Phone Bluetooth Function.

Figure 54: Smartphone Voice Recognition

Page 34

32 | en

Media

English

6 MEDIA

In addition to Tuner, the system supports the following media sources:

USB Bluetooth Audio iPod

NOTE :

Do not leave your media devices or con-

nection cable in the car. High temperatures in the car, especially under the blazing sun may cause the devices or cable to deform, discolor, or malfunction.

Always remove the iPod after turning off

the car engine. You may not be able to turn off your iPod while it is connected, which can drain the iPod battery.

There is no guarantee of the all iPod func-

tions.

Do not use iPod headphones or other

accessories to connect the system.

Depending on the type of iPod and the

software version, some limitations apply. Listed category is dependent on your iPod. The order of the list displayed on the iPod

and the list displayed on the system may

not match. Depending on the location of the Bluetooth

device and the distance with the system,

music playback may be effected. Keep

the Bluetooth device in a location wherein

good communication with the system is

possible.

The supported audio codecs are:

MP3

- Sample rates up to 8k - 48 kHz

- Bitrate: 8 kbps to 320 kbps with VBR

- Decode Format: MPEG-1, 2 &

2.5 Layer-3

WMA

- Sample rates up to 8k - 48 kHz

- Bitrate: 8 kbps to 320 kbps

- Decode Format: v7/8/9

AAC

- Sample rates up to 8k - 48 kHz

- Bitrate: 8 kbps to 320 kbps

- Decode Format: MPEG4-AAC

FLAC

- Sample rates : 8/12/16/20/24 bits per sample stream, up to 192 kHz

- Bitrate: 8 kbps to 320 kbps

- Decode Format: MPEG4-AAC

WMV

- Decode Format: LPCM, DVI-ADPCM, MS-ADPCM, A-law / U-law

The supported video codecs are:

MPEG-1 MPEG-2 MPEG-4 (Up to Advanced Simple Pro-

le)

H.264 (Up to High Prole @ Level 4.2)

WMV v7/8/9

Max video resolution : 1920 x 1080 pixels.

Min video resolution : 16 x 16 pixels.

Frames per second : up to 60fps @ full HD

(1920 x 1080)

The supported image formats are :

PNG JPEG BMP GIF TIFF

Max resolution for Image le is 6000 x

6000 pixels.

6.1 CONNECT MEDIA

You need to connect the required media source to the system to access the media content in the source.

6.1.1 CONNECTING A USB SOURCE

1. Plug in your USB in the USB port.

2. Once the connection is successful, the system indicates to you that a USB source is connected. The system also enables in the screen.

NOTE :

The system supports USB devices with up

to 128 GB of memory. Maximum 11 levels of folder structure Do not use adapters and USB Hub. Maximum 20000 media les and the sup-

ported playlist extensions are M3U, PLS

and WPL.

Media Source List

Page 35

Media

en | 33

The system will not detect / index any les

or folders beyond the dened limit.

The system will show error status if the

inserted USB device is unsupported or undetectable.

Media playback may be interrupted if USB

media device is not plugged properly.

Use only high-quality branded USB cables

which comes with your phone or device.

Video playbacks and viewing of pictures

are supported from USB only.

GENERAL INFORMATION

The external devices connected to the

USB port must comply with the USB

Mass Storage Class specication (USB

MSC).

Devices connected via USB are support-

ed according to USB specication V 2.0.

Devices with USB specication 1.1, 2.0

and BC 1.2 are compatible.

Devices without FAT16 / FAT32 / exFAT

system are not supported.

Hard Disk Drives (HDD) are not general-

ly supported.

External USB hubs are not supported.

NOTE :

Information about the Apple devices sup-

ported by the system is available at Maruti

Suzuki website.

6.1.2 CONNECTING A BLUETOOTH AUDIO

1. Pair your phone with the system. Refer to the “Establish Connection” on page 24 section for the steps and more information on pairing your phone with the system.

2. Once the pairing is established, in the Paired Devices screen, ensure that the

pairing option is enabled for your

phone.

The system also enables in the

Media Source List screen.

NOTE :

Only one paired phone can be enabled for

media at a given point of time.

Bluetooth refers to both Bluetooth

smartphone as well as to Bluetooth audio playback devices such as a Bluetooth MP3 player.

GENERAL INFORMATION

The device supports Bluetooth 4.2. How-

ever, Bluetooth Low energy use cases will not be available.

Media Playback through third party

applications / media sources (YouTube etc.) have limited support.

Playback, display contents, connec-

tivity or voice quality may get affected depending upon circumstances.

A paired Bluetooth device may not re-

connect automatically in some scenarios. For such cases, refer to “Manage Bluetooth Paired Devices” on page 26.

The following Bluetooth proles and

standards are supported:

- A2DP 1.3

- AVRCP 1.6

- HFP 1.7

- MAP 1.2

- PBAP 1.2

- SPP 1.2

NOTE :

Information about the Bluetooth devices

supported by the system is available at

Maruti Suzuki website.

6.1.3 CONNECTING AN iPod

1. Connect your iPod to the system by plugging it in the USB port, using a suitable cable.

2. Once the connection is successful, the system indicates that an iPod source is connected. The system also enables the iPod icon in the Media Source List screen.

NOTE :

When a device is connected as an

iPod over USB, same device cannot be connected on Bluetooth (A2DP) for music playback.

English

Page 36

34 | en

Media

English

6.2 PLAY MEDIA

1. Tap the

2. In the Media Source List screen, tap the required source icon. The system displays the Media screen if it is connected

and enabled.

to control element.

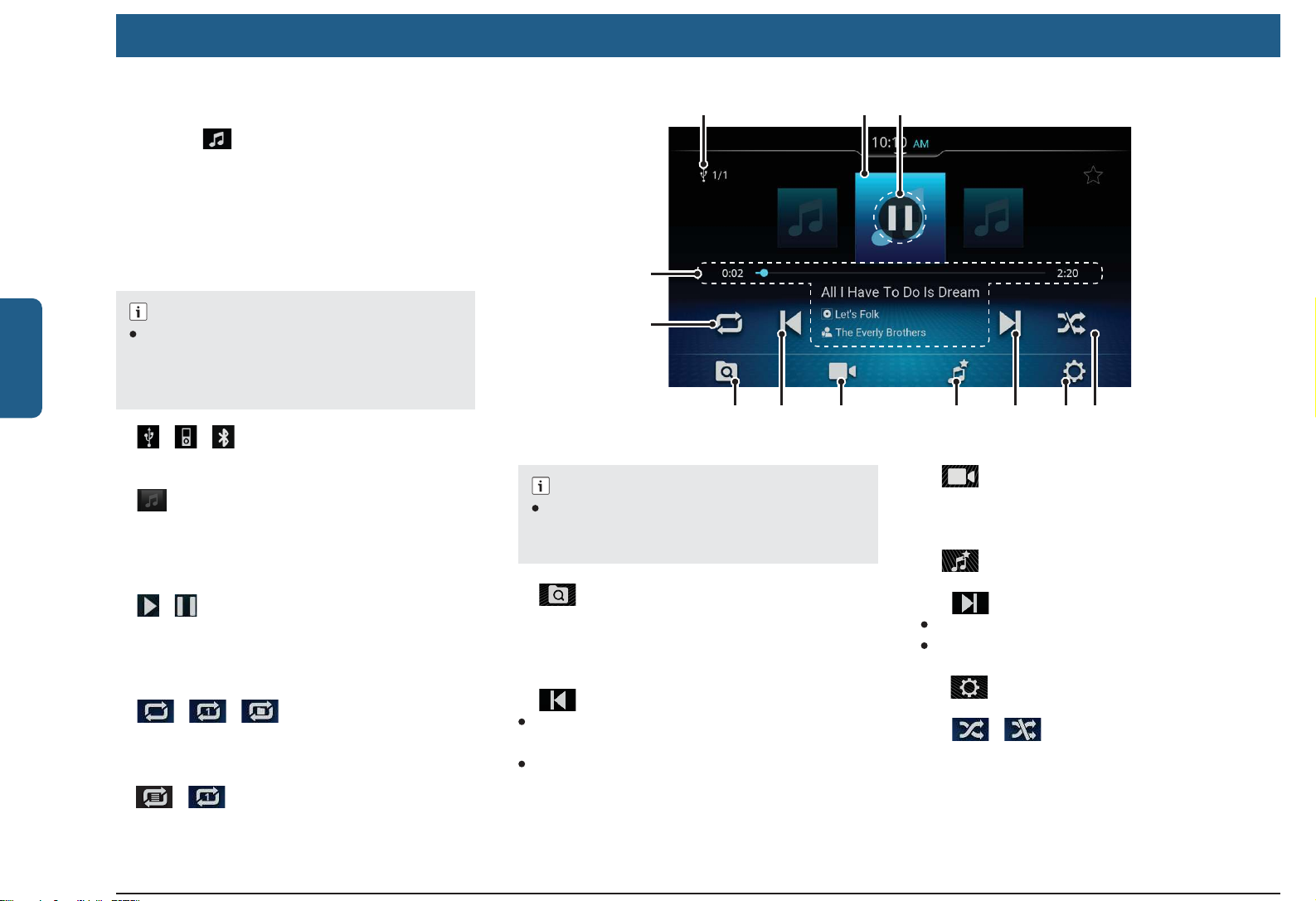

6.3 MEDIA SCREEN

NOTE :

The controls (play, pause etc.) on the media playback screen depends on the device connection to the system. (USB, iPod, Bluetooth)

1. / / Current Audio Source Displays the icon of the audio source currently playing.

Displays the album art of the current

To toggle between playing and pausing.

4. Current Track Information

Album art

active track. In case album art is not available, default album art image will be displayed.

/ Play / Pause button

Displays the details of the currently playing track.

/ /

Repeat toggle (folder browsing)

To toggle between the repeat options : repeat all, repeat track and repeat folder.

Repeat toggle (List browsing)

To toggle between the repeat options : list repeat and repeat track

1 2

7 10 11 128 9

NOTE :

Repeat functionality will change based on the browse category from which songs are accessed and connected media device.

Media Browse

Use the tab to display the Media Browse

screen. You can browse through the me-

dia  les of the currently playing media

source.

Previous Media Track

Short tap: Moves to the previous media

track.

Long tap: Starts fast rewind and contin-

ues till the button is released

Figure 55:

Media Screen

Video button

Toggle between Video / Audio playback.

Button will be disabled if there is no

video  le inside.

Audio Favourite List

Display audio Favourite list if available.

10. Next Media Track

Short tap: Moves to next media track. Long tap: Starts fast forward and contin-

ues till the button is released.

11. Setting To go to Setting Screen.

12. / Media Shufﬂ e To toggle between playing the media

source tracks in a sequence or enabling

shufﬂ ing, For example, playing the

tracks in random order.

Page 37

Media

en | 35

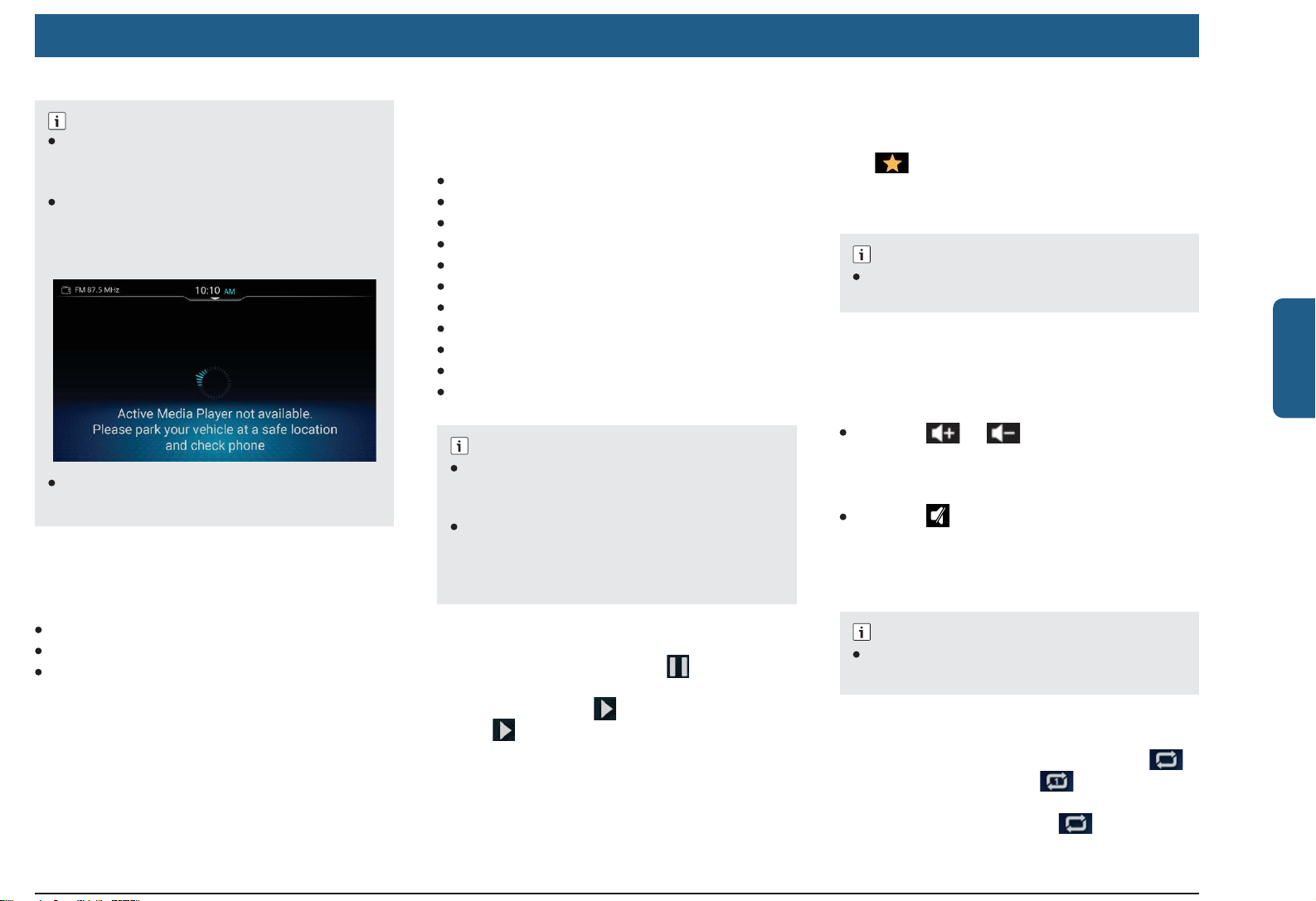

NOTE :

To listen to Bluetooth media playback of

connected device, initially play the music from the device.

In case you see the following popup,

you may need to start playback from the mobile device then access music from the system.

This behaviour is dependent upon the

connected Bluetooth device.

6.4 MANAGE MEDIA

Using the different options in the Media Screen, you can:

Manage Audio View images Play videos

6.5 MANAGE AUDIO

You can perform the following music related operations through the system:

Play / pause music Set a track as favourite Manage music volume Repeat music track Randomly play music tracks Play next / previous music tracks Perform Fast Forward / Fast Rewind Browse through the music content Play tracks from a folder / media group View information of a music track View your favourite media list

NOTE :

You may not be able to access some or all

music operations depending on connected media device.

In case media playback is performed using

3rd party apps / sources, availbility and functionallity of music related operations depend upon 3rd party apps / sources.

6.5.1 PLAYING/PAUSING MUSIC

1. In the Media Screen, tap system pauses the current track and the icon changes to .

2. Tap

to resume playing the track.

. The

6.5.2 SETTING A TRACK AS FAVOURITE

Tap system adds the currently playing track to the Favourites List.

beside the track information. The

NOTE :

This functionality is only supported for

USB and iPod.

6.5.3 MANAGING MUSIC VOLUME

INCREASING / DECREASING THE VOLUME.

Tap the or control elements to

increase / decrease the volume.

MUTING / UN-MUTING THE VOLUME.

Tap the control element. The system

mutes the volume and pauses the track. Tap the control element again to unmute the volume.

NOTE :

Mute and pausing of the track depends on

the audio source.

6.5.4 REPEATING MUSIC TRACK

1. To repeat a single music track, tap .The system displays the current track.

2. To repeat all songs, tap

and repeats

English

Page 38

36 | en

Media

English

3. To repeat play tracklist, tap

4. To repeat the playback of all tracks in the current or playing folder,tap .

6.5.5 PLAYING RANDOM MUSIC

Tap plays tracks in the current folder / media source. If you tap the icon again, the shuf-

ﬂ e action is stopped.

. The system randomly selects and

6.5.6 PLAYING NEXT / PREVIOUS

TRACKS

Tap track respectively.

or to play the next / previous

6.5.7 PERFORMING FAST

FORWARD / FAST REWIND

Long tap Rewind the tracks in the media source.

or to Fast Forward / Fast

6.5.8 BROWSING THROUGH THE

MEDIA CONTENT

1. Tap Media Browse screen with the different media categories like Folders, Playlists, Artists, Album or Genres, etc. supported in the media source.he required category. The system displays the list of media tracks under the selected category.

. The system displays the

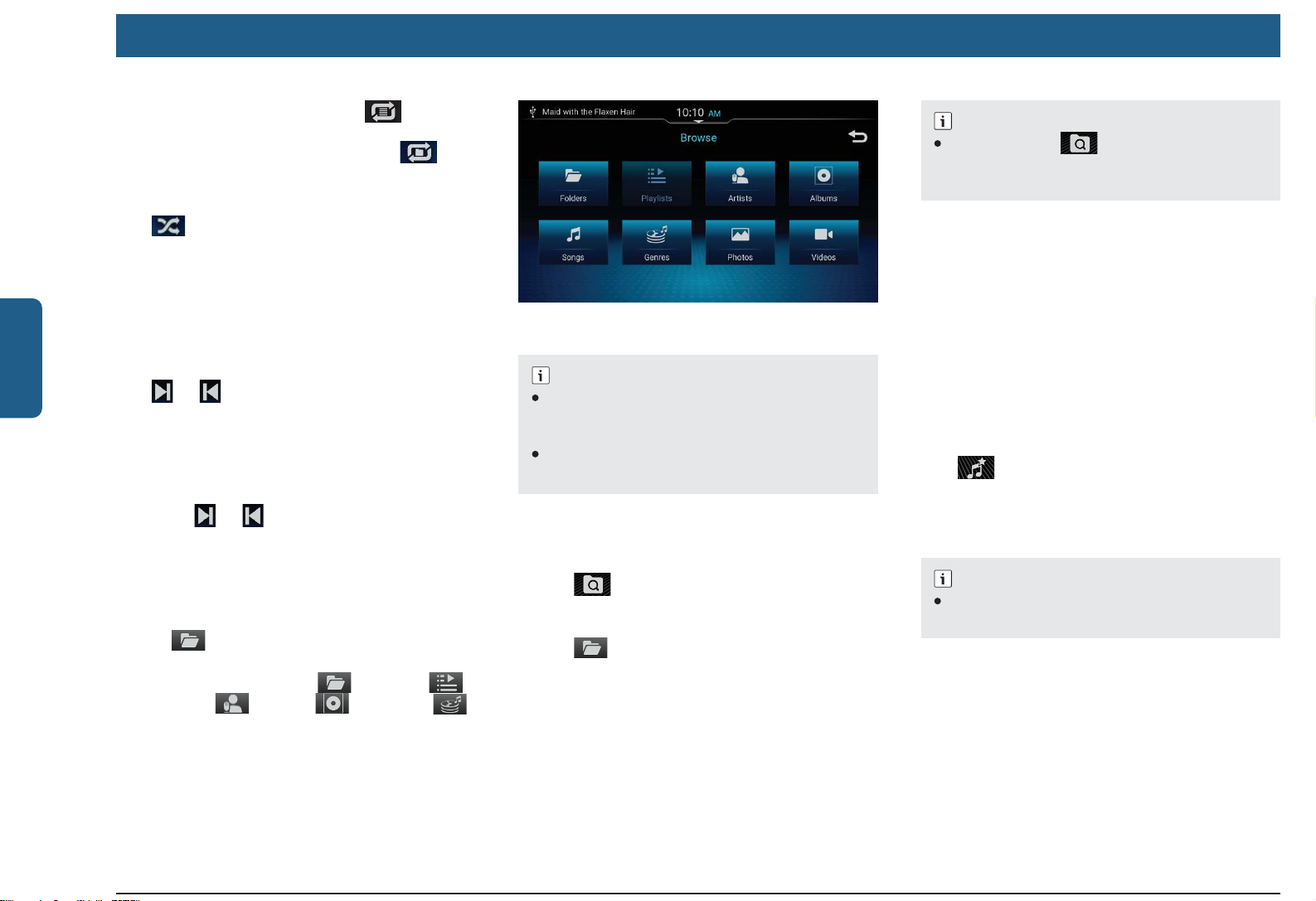

Figure 56: Browse Screen

NOTE :

Folder and browse media categorization are available only for USB, iPod and Bluetooth.

The categories within browse will depend

on type media source.

6.5.9 PLAYING TRACKS FROM A FOLDER / MEDIA CATEGORY

1. Tap Browse screen with the content of the currently played media source.

2. Tap require folder.

3. Tap the  rst or the required music track.

The system plays the selected music track.

Similarly, you can play tracks from any of the other media categories. The icon of the category from which the track is played will be displayed beside the track details.

. The system displays the

. In the Folders list, tap on the

NOTE :

When you tap again, the system

opens the folder of the currently playing track in the Browse screen.

6.5.10 VIEWING MUSIC TRACK INFORMATION

In the Media screen, when a track is playing, the system displays the current track details such as track number, track name,

album name, artist’s name and track dura-

tion.

6.5.11 VIEWING THE MEDIA FAVOURITES LIST

Tap system displays the Media Favourites screen with the list of tracks you have set as favourite.

on the bottom of the screen. The

NOTE :

This functionality is supported only for USB and iPod.

Page 39

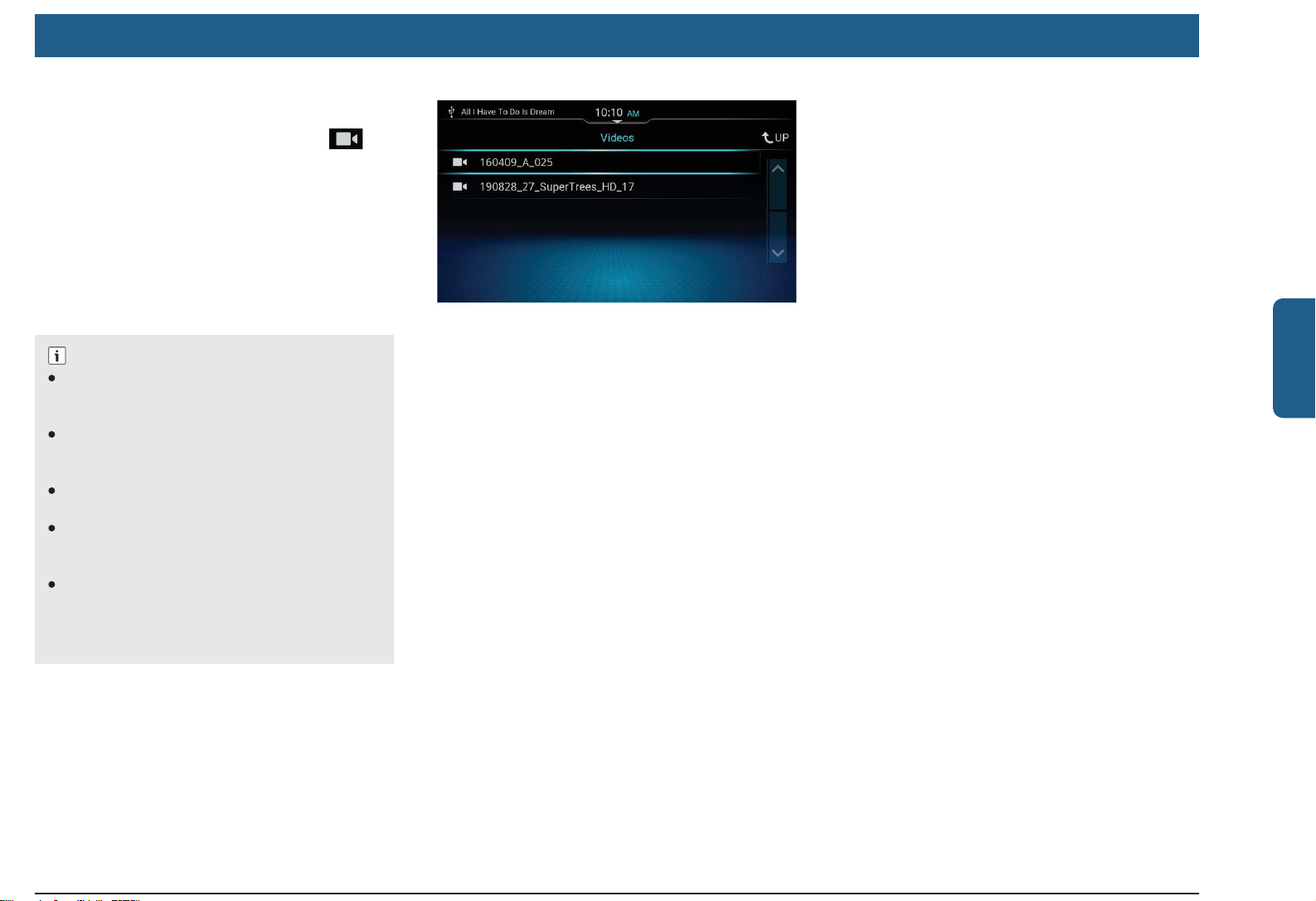

Media

6.6 PLAY VIDEOS

1. In the Media Browse screen, tap The system displays the list of videos available in the currently played USB source.

2. Tap on the required video from the list. The system plays the selected video in the Video List screen.

3. Tap on the video screen to view the video in the full screen view.

NOTE :

Viewing of videos is unavailable during ve-

hicle driving condition. However, the video will continue to play in the background.

Due to System Limitations, some High

Denition (HD) videos may not be played

perfectly at all times.

This functionality is supported only for

USB.

To watch a video, make sure to stop the

vehicle at safe place and engage parking brake.

Please note that using video playback on

the system for commercial purposes or for public viewing may infringe the rights of the author protected under copyright law.

en | 37

Figure 57: Video List Screen

English

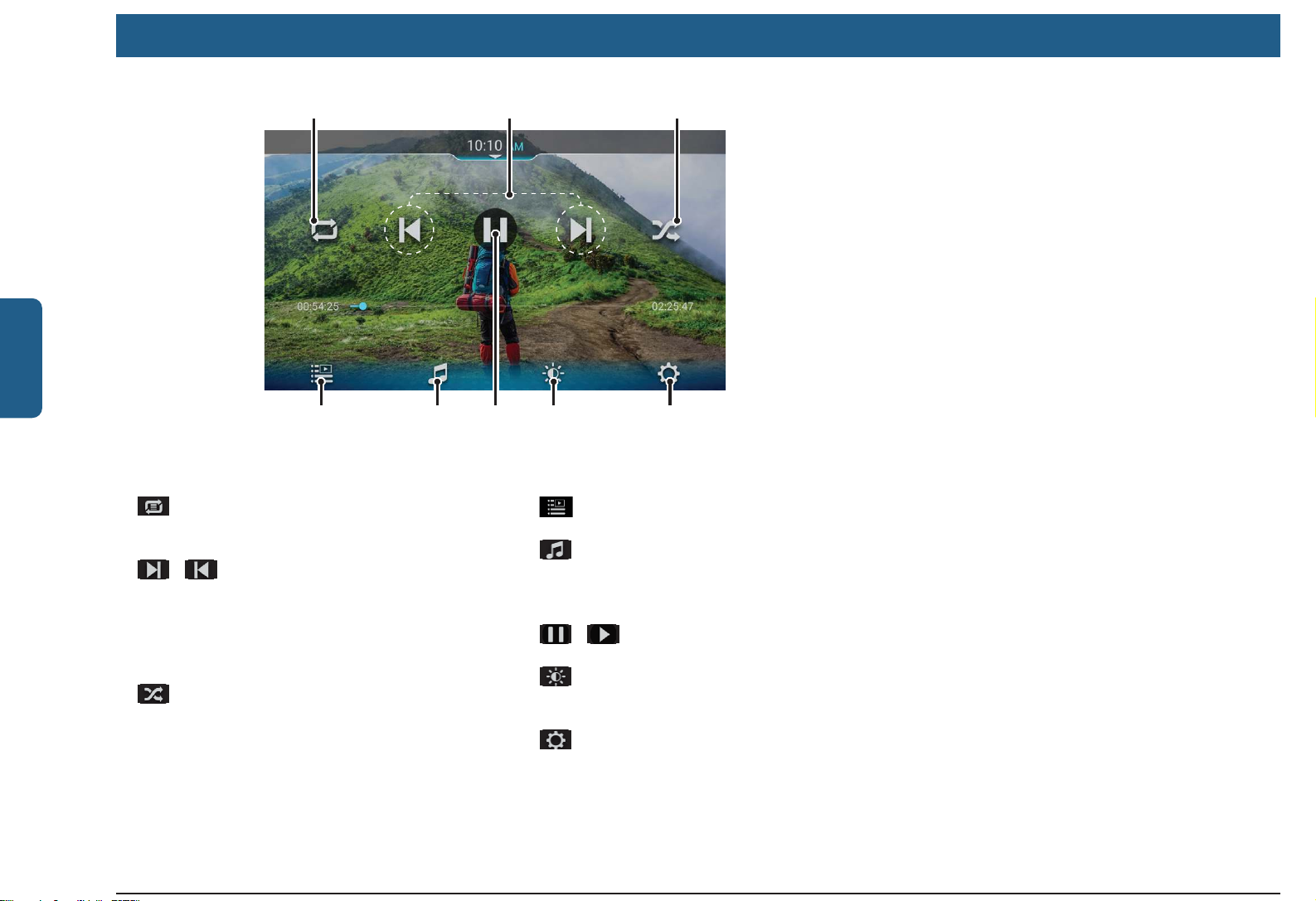

Page 40

38 | en

Media

English

1 3

4 5 6 7

Figure 58: Video Viewer Screen

1. Repeat Toggle To toggle between the 2 repeat options,

repeat List and repeat Track.

/ Next / Previous /

Fast Forward / Fast Rewind

Short tap : To play next or previous

video.

Long tap : To Fast Forward or Fast

Rewind the video.

Media Shufﬂ e

To toggle between playing the media

source tracks in a sequence or enabling

shufﬂ ing. For example, playing the

tracks in random order.

Video Browse

Tap to display the Video List Screen.

Songs

Tap to display USB Media screen. It

will be disabled if no audio  le inside

connected USB device.

/ Pause / Play

Tap to Pause / Play the video

7. Video Display Setting Tap to display Video display setting

Screen.

Setting

Tap to display Media Settings Screen.

Page 41

Smartphone Linkage

en | 39

7 SMARTPHONE

LINKAGE

The system allows you to access the smartphone contents through the following Smartphone Linkage modes:

Android Auto Apple CarPlay

Connect your smartphone to the system through USB or *wireless to launch Android Auto or Apple CarPlay.

Connected phone status is displayed in

paired device list.

This screen shows the list of devices that are currently paired with the system.

: Display connectivity status of Apple

1. *

Carplay.

2. * : Display connectivity status of

Android Auto.

3. : Display connectivity status of

Smartplay Pro Sync app.

4. : Display status of phone linkage (ON

/ OFF)

5. : Display connectivity status of

Bluetooth prole

Press the icon on “Paired device”

screen on individual device to enable (ON) and disable (OFF) phone linkage settings.

Ongoing Apple CarPlay and Android

Auto session will disabled when Phone Linkage setting is turned OFF on selected device.

*Figure 59: Paired Device List Screen (If wireless CarPlay / Android Auto is applicable)

Figure 60: Paired Devices

NOTE :

Turn ON Wi-Fi of system and phone for

wireless connection. System Wi-Fi is ON by default.

*Connection of smartphones through wire-

less Android Auto / Apple CarPlay depends on phone.

The smartphone manufacturers are

responsible for the content and functions of smartphone applications. The device merely provides the option to display and operate these applications.

The screens displayed in the manual are

only for reference purpose.

For information on using smartphone

application, please read your smartphone instruction manual.

For safety reason, you cannot access

some applications when the vehicle is moving.

Download and install the apps from speci-

ed app stores only.

The USB connector is not intended for

charging smartphones, etc., so some products may not be able to charge or may take a long time to charge.

When connected to a smartphone, some

applications have limited functions.

ALERT :

Using smartphone applications while driv-

ing can be dangerous since your attention is reduced. Park your vehicle before you use smartphone applications.

NOTE :

Information about the smartphone sup-

ported by the system is available at Maruti Suzuki website.

For accessing some of the linkage modes,

Bluetooth connection for audio may be required.

SWC Scroll is unavailable in Apple Car-

Play / Android Auto Linkage modes.

When you connect your Android / iOS

Phone for the rst time, the system

prompts you to follow the instruction on your phone. Please follow the instructions for success ful connections.

English

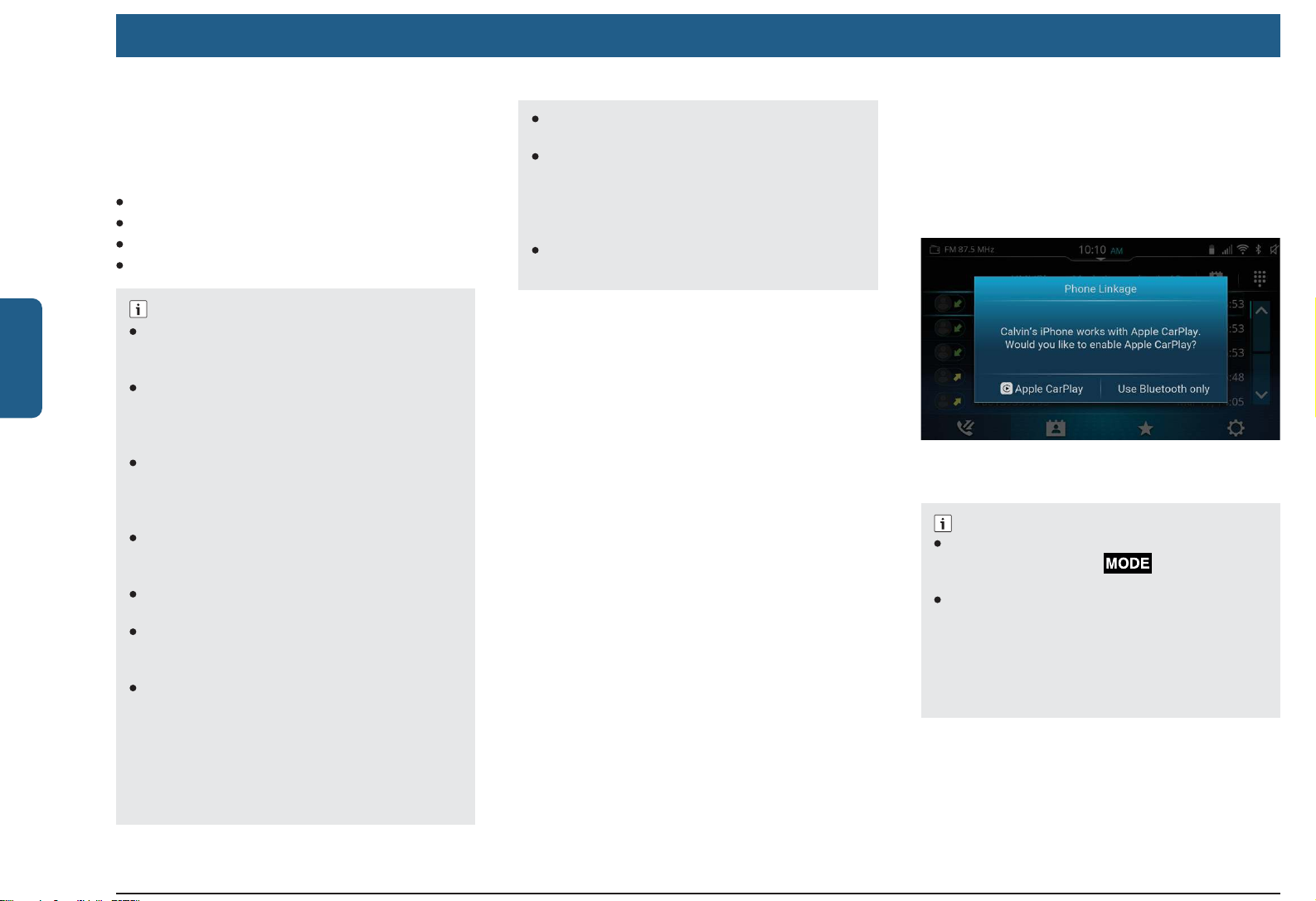

Page 42

40 | en

Smartphone Linkage

English

7.1 Apple CarPlay

The Apple CarPlay provides you with the following features which can be accessed from the system:

Music Message Communication Actions Navigation

NOTE :

Please visit Apple’s website https://www.

apple.com/ios/carplay/ to learn more about Apple CarPlay features.

Apple CarPlay is an iOS feature, which

is compatible with iPhone 6S and above versions. It is incompatible with iPod, iPad and earlier versions of iPhone.

Apple CarPlay uses the Siri application, for

which internet connectivity is necessary. Performance may very depending on data connectivity.

The settings of Apple CarPlay can be

accessed from your iPhone only. Refer to your phone for setting details.

Availablility of features any change based

on updates from Apple.

Most features will not work if you use

Apple CarPlay in a country where it is not currently available.

Telephone functions : To use a connected

iPhone for telephoning, use the telephone app of your iPhone. The telephone functions of the system are not available. If you try to acess the telephone functions of the system, you will be automatically redirected to the telephone app of your iPhone.

Navigation functions : You can only use

one navigation system at a time.

Audio output : The audio output of the

connected iPhone (such as announcements from a navigation app) will be mixed with the current audio output of the device (such as currently playing media).

Bluetooth is not available when using

Apple CarPlay.

7.1.1 ACCESSING Apple CarPlay

1. To access the Apple CarPlay, linkage mode to be turned ON for the connected iPhone.

2. Apple CarPlay App is by default installed on your iOS device (iOS 8.0 and above). You can access the App by connecting your iOS device with the system through USB or *wireless.

CONNECTING WITH USB

For wired connection, connect the iPhone to the system using suitable cable. Check the connection status of iPhone in paired device list.

*CONNECTING WITH WIRELESS

To connect through wireless CarPlay, con-

nect iPhone through bluetooth as specied

on 5.PHONE page 24

1. Press Apple CarPlay on phone linkage pop-up to connect to wireless CarPlay

2. Once the connection is successful, the system indicates that an CarPlay is connected and changes the name of the Connect tile to Apple CarPlay in the Home screen and CarPlay icon will be appear on Paired device screen.

Figure 61: CarPlay Selection Popup Connection Screen

NOTE :

In regions where Apple Maps is supported,

you can Long Press launch Apple CarPlay Maps for Navigation.

If your had connected your iPhone through

Bluetooth and try to connect it for Apple CarPlay too, the Bluetooth connection will be terminated. When the Apple CarPlay session ends, the iPhone will be automatically connected back for Bluetooth.

SWC control to

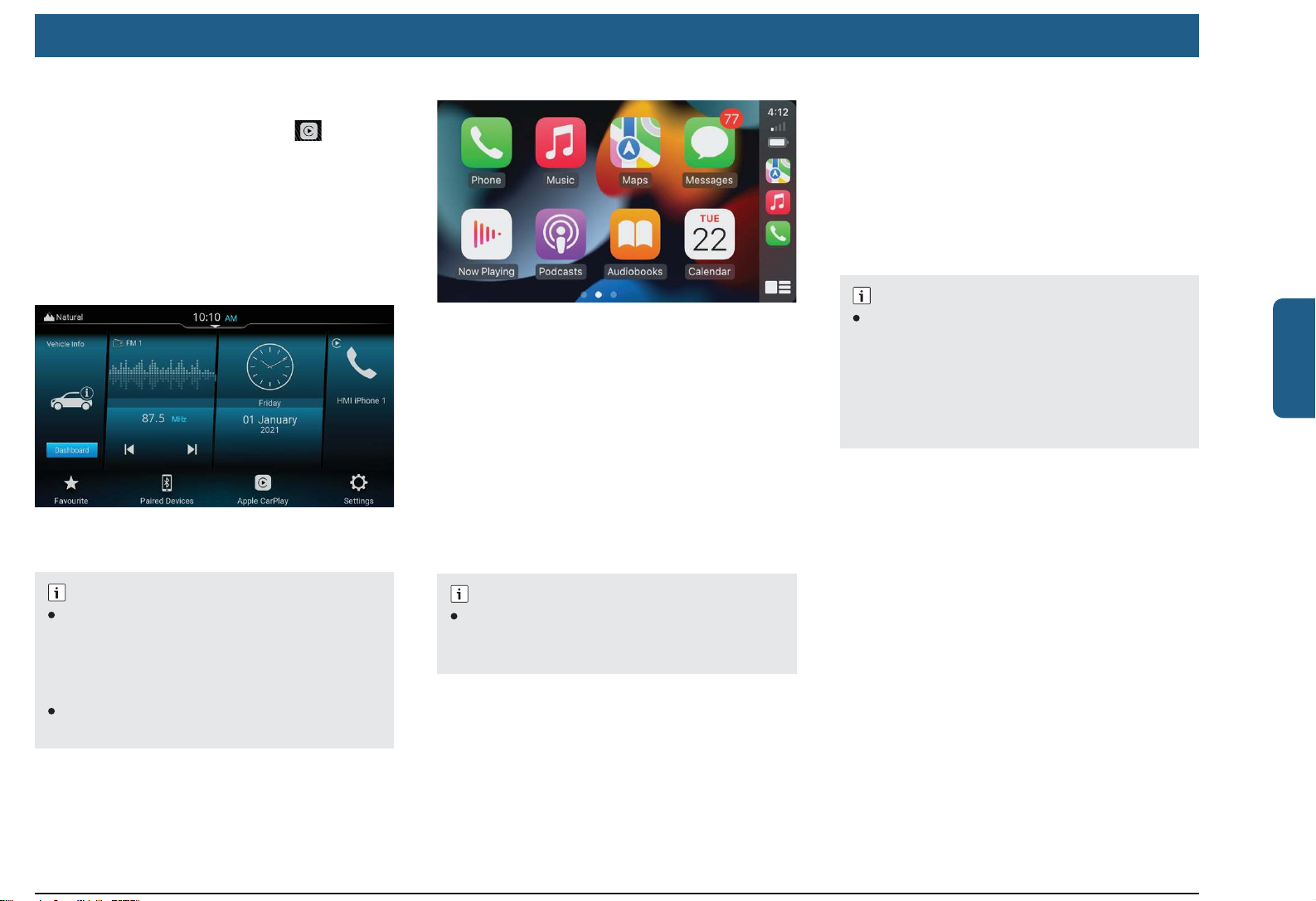

Page 43

Smartphone Linkage

en | 41

LAUNCHING THE APP

1. In the Home screen, tap the

tile. The system displays the Apple CarPlay Home screen.

2. To activate Siri (voice recognition) press and hold the Voice Recognition (VR) icon. When presented with the activation indicator (waves), you can speak your voice action.

Figure 62: Home Screen with Apple CarPlay Active

NOTE :

When you connect your CarPlay phone

for the  rst time, the system prompts you

to follow the instruction on your phone. Please follow the instructions for successful connections.

To connect CarPlay, the system date must be set to current date.

Figure 63: Apple CarPlay Home Screen

7.1.2 MANAGING CALLS, MESSAGE AND COMMUNICATION ACTION

1. Tap the required icon on the Apple Car-

Play Home screen.

2. You can now make calls, receive calls,

read, send and reply to receive message or handle other communication actions from the system.

NOTE :

The other features like, Music, etc. can be similarly accessed from your system using Apple CarPlay.

7.2 Android Auto

Using the Android Auto app, you can access several apps available on smartphone. The Android Auto feature requires the installation of the Android Auto Mobile App.

7.2.1 INSTALLING Android Auto

1. Open Play Store on your Android based

smartphone.

2. Search for Android Auto App.

3. Tap the Install button. The app will be

downloaded and installed on your smartphone.

NOTE :

Android Auto is a feature which is compatible in smartphone with android version 6 and above. If you have android version 9 and below get the Android Auto app on your phone. With Android version 10, Android Auto is built-in. For more information,

refer to Google’s website.

7.2.2 ACCESSING Android Auto

1. To access the Android Auto, linkage mode to be turned ON for the connected Android smartphone.

2. Android Auto can be accessed by connecting your Android smartphone with the system through USB and *wireless.

3. Bluetooth phone will be established automatically between connected Android Auto phone and system.

CONNECTING WITH USB

For wired connection, connect the Android smartphone to the system using suitable cable. Check the connection status of Android smartphone in paired device list.

English

Page 44

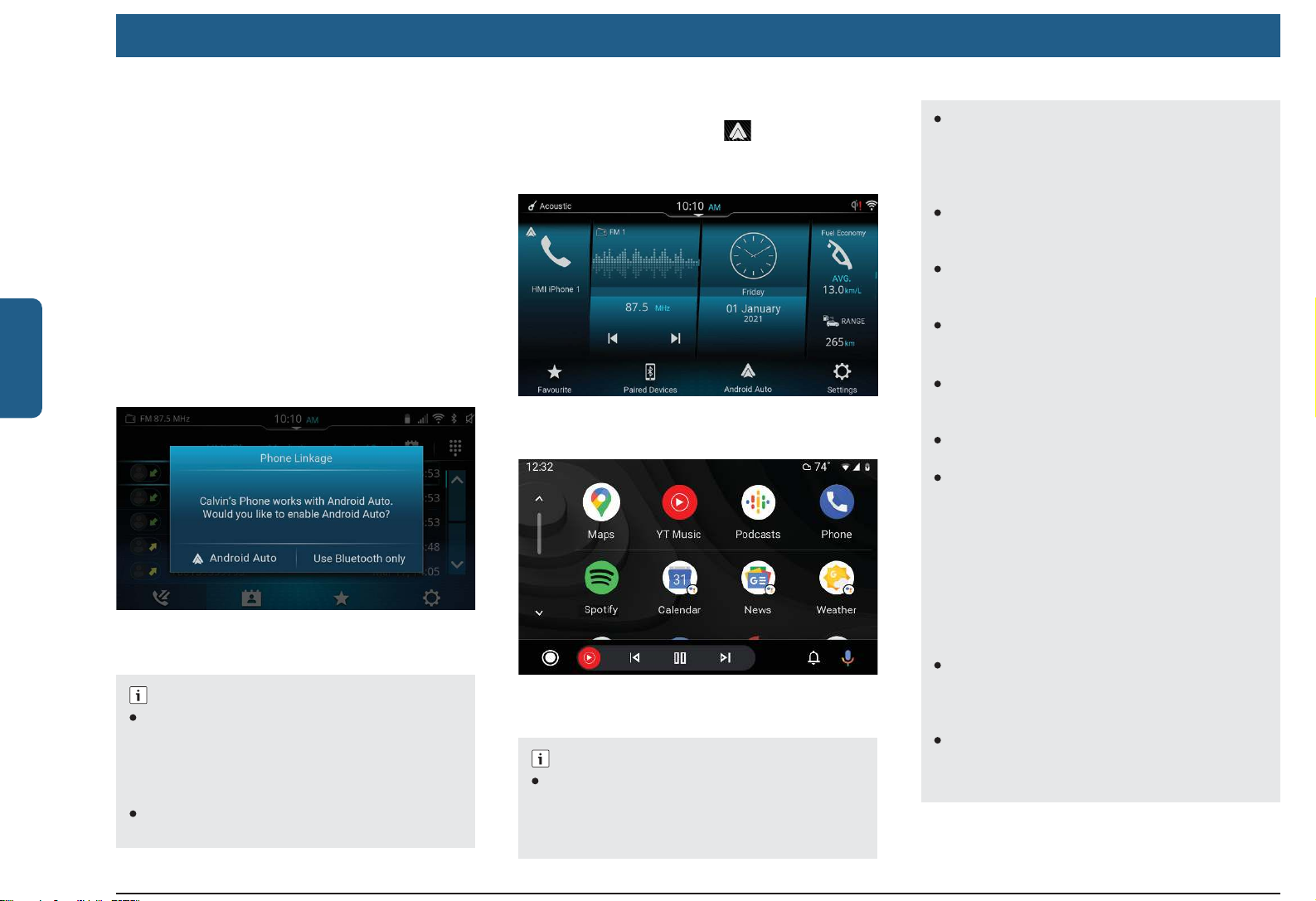

42 | en

Smartphone Linkage

English

*CONNECTING WITH WIRELESS

To connect through wireless Android Auto, connect Android smartphone through

bluetooth as specied on 5. PHONE page

24.

1. Press Android Auto on phone linkage pop-up to connect to wireless Android Auto.

2. Once the connection is successful, the

system indicates that an Android Auto is connected and changes the name of the Connect tile to Android Auto in the Home screen and Android Auto icon will be appear on Paired device screen.

Figure 64: Android Auto Selection Popup Connection Screen

NOTE :

When you connect your Android phone

for the rst time, the system prompts you

to follow the instruction on your phone. Please follow the instructions for successful connections.

To connect Android Auto, the system date

must be set to current date.

LAUNCHING THE APP

In the Home screen, tap

tile. The system displays the Android Auto Home screen with the supported list of apps.

Figure 65: Home screen with Android Auto Active

Figure 66: Android Auto Home Screen

NOTE :

When Android Auto / Apple CarPlay

session is active on wired or wireless, the Phone and Music options are disabled for all the other paired devices.

When an Android Auto / Apple CarPlay

connection is active, pairing of new phone option still available for Phone and Music proles but will be have pop up conrmation.

You cannot delete wired connected An-

droid Auto / Apple CarPlay from the paired device list.

You cannot delete *wireless connected

Android Auto / Apple CarPlay from the paired device list.

Enable location in your smartphone to

access Android Auto / Apple CarPlay map functionallity.

Please visit Google’s website http://www.

android.com/auto/ to learn more about the features available for Android Auto.

You cannot use Bluetooth while using

Android Auto.

Audio output : The audio output of the con-

nected smartphone (e.g. announcements from a navigation app) will be audible at a higher volume, and the current audio output of the device (e.g. currently playing media) will be heard at a lower volume. When connected via Android Auto, the Bluetooth audio player feature will not be available; in this case, please use the Android Auto audio player instead.

You can use Google assistance to control

Android Auto through voice commands (Internet connectivity required) Performance may very depending on data connectivity.

Some Android Auto features might not

work and currently not available in your country.

Page 45

Vehicle Information

en | 43

8 VEHICLE

INFORMATION

The system supports various vehicle information like:

Vehicle Informations Vehicle Controls Vehicle Alerts Vehicle Warnings Reverse Park Assistance System

(RPAS ) Reverse View Camera (RVC) Surround View Camera (SVC)

NOTE :

Vehicle information are shown in IG-ON state.

8.1 *VEHICLE ALERTS

The system displays the status of your various vehicle components in the form of:

Pop-ups Vehicle Alert screen Vehicle warning screen

List of vehicle alerts:

1. Door open: Will appear when any

door (except tailgate) is open when the

vehicle is moving.

3. Seat belt: Will appear when the

Parking brake: Will appear when

the vehicle is moved without releasing

the parking brake. Check that parking

brake is fully released.

vehicle is moving and seatbelts are not

fastened.

Low fuel warning: Will appear

when the fuel level in vehicle is low. Fill the fuel immediately.

Key FOB: Will appear when key

battery need to be replaced.

6. Icy road warning: Will appear when

the road may be icy.

7. Low CNG: Will appear when gas

level is low. Fill the gas immediately.

8. Parking Assist: Will appear when

parking assist information is not available.

Figure 67: Vehicle Alert Screen

List of vehicle warnings:

Check Engine : Will appear when

engine system malfunction detected.

2. Transmission Abnormality: Will

appear when transmission system malfunction detected.

SRS Airbag Fault: Will appear

when SRS airbag system malfunction detected.

ABS Fault: Will appear when ABS

system malfunction detected.

High Engine Coolant Tempera-

ture: Will appear when High engine

coolant temperature detected.

EPS Fault: Will appear when Elec-

tronic power steering system malfunction detected.

ESP Fault: Will appear when ESP

system malfunction detected.

Figure 68: Vehicle Warning Screen

NOTE :

Availability of the various vehicle alerts depends on your vehicle. Some of the alerts are displayed only if they are enabled through Settings.

When a Low Fuel warning vehicle alert

is displayed, the system prompts you to connect to the CarPlay / Android Auto Navigation feature. If already connected to the feature, the system prompts you to use Navigation to reach the nearest fuel station.

Alert voice prompts are available in En-

glish language only.

English

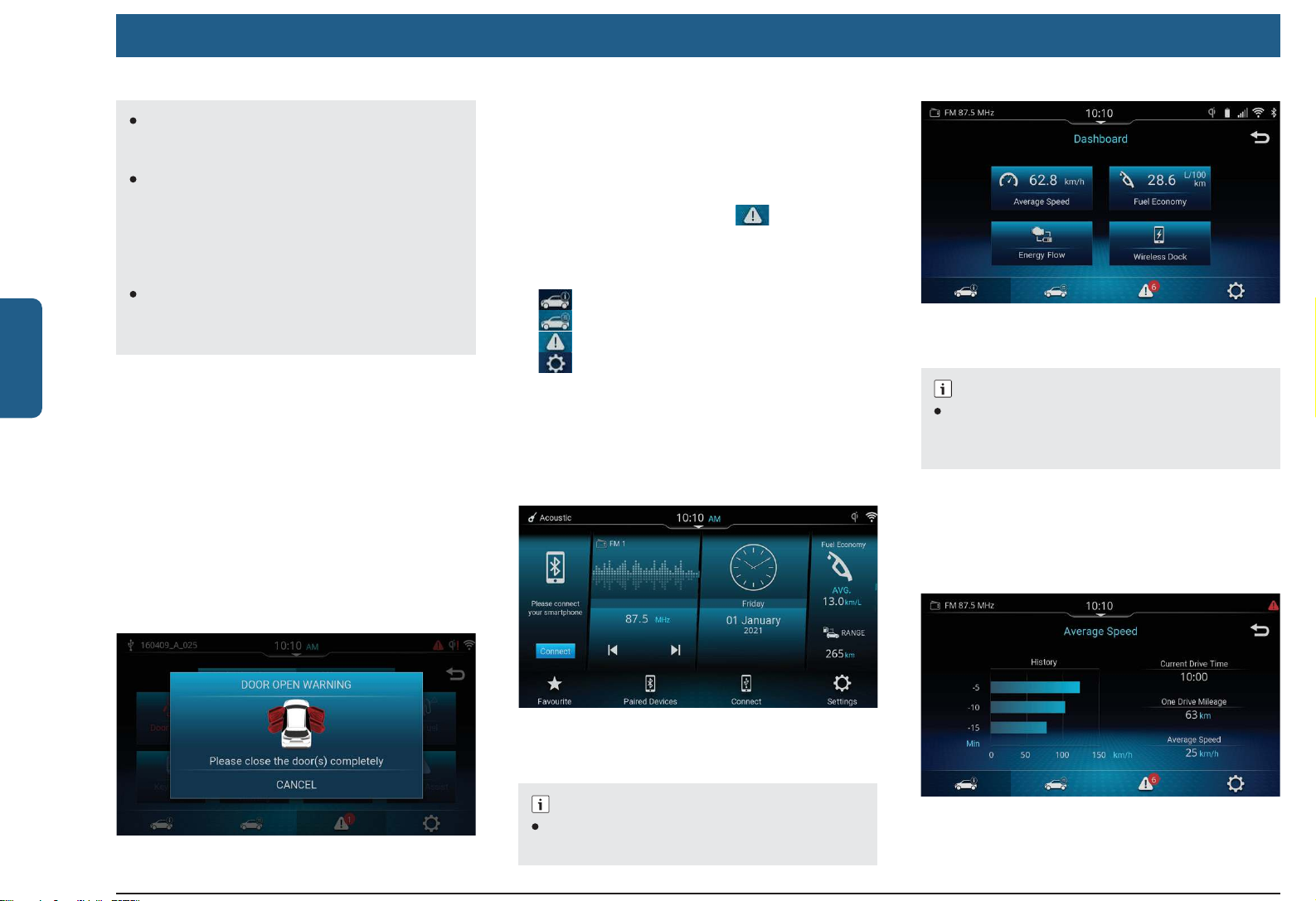

Page 46

44 | en

Vehicle Information

English

If “Vehicle data is not available” is displayed on Head unit, contact your dealer for help.

Some errors and problems can be turned ON or OFF in the settings. For safer vehicle operation, we recommend that you set each item to [ON]. Refer to 3.7 MAN- AGING VEHICLE ALERTS (Page 20) for details about the items that can be set.

Vehicle alerts is not displayed for items that are set to [OFF] in [Vehicle settings] > [Alert information], even if an error occurs.

8.1.1 MANAGING VEHICLE ALERTS

When any vehicle alert is activated, the indication is displayed in the status bar and a corresponding popup screen is also displayed.

Tap CANCEL, to close the popup. The display of these alert popups can be handled in Vehicle Settings (See “Managing Vehicle Alerts” on page 20).

You can also view the alerts in the Vehicle Alerts screen.

1. In the Home screen information tile, tap the Vehicle information panel.

2. The system will display Dashboard Information screen, tap

to display Vehicle Alerts screen. In additional to the vehicle alerts, the screen also displays the following tabs.

1. Vehicle Informations

Vehicle Controls Vehicle Alert Settings

8.2 *VEHICLE INFORMATION

Tap the vehicle information widget at Home Screen. The system display the Vehicle Info Dashboard.

Figure 71: Vehicle Information Dashboard (FUEL)

NOTE :

The displayed units of average speed, fuel Economy, Driving range change in accor-

dance with the vehicle’s instrument cluster.

AVERAGE SPEED

Average Speed screen display with Current Drive Time, One Drive Mileage, Average Speed and Drive History Graph.

Figure 69: Vehicle Alert Popup

Figure 70: Vehicle Information Widget

VEHICLE INFORMATION DASHBOARD

NOTE :

The displayed information differ according to vehicle model and variant.

Figure 72: Average Speed Screen

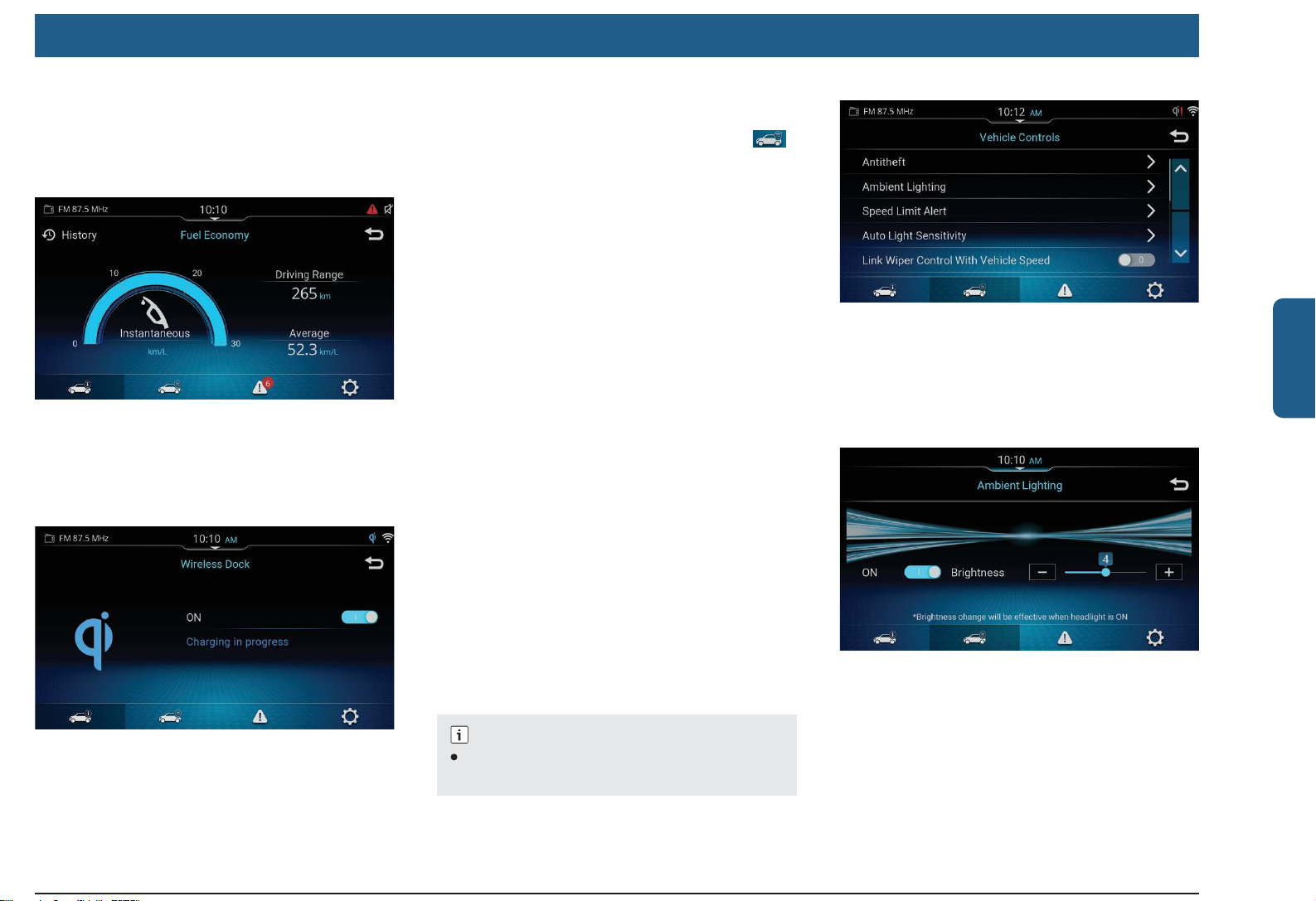

Page 47

Vehicle Information

en | 45

FUEL ECONOMY

Fuel Econ omy screen displays with the Driving Range, Aver age and Instantaneous Fuel Economy.

Figure 73: Fuel Economy Screen

WIRELESS CHARGER

Wireless charger screen display charging status of phone.

8.3 *VEHICLE CONTROL

In Vehicle information dashboard, tap to display list of Vehicle control:

1. Antitheft: Set enable or disable antitheft.

2. Ambient Lighting: Set the brightness and color of ambient lighting.

3. Auto Light Sensitivity: Set slow, standard or fast auto light sensitivity.

4. Link Wiper Control With Vehicle Speed: Set enable or disable link wiper control with vehicle speed.

5. Link Light Control With Wiper: Set enable or disable link light control with wiper.

6. Footwell light: Set the interlock for foot lamp illumination.

7. Door unlock: Set the door locking and unlocking operation for the relevant seat.

8. A/C mode while Idling stop: Set the A/C priority when vehicle is idle and AC is on.

9. Door Lock Flash: Set ﬂ ash by Turn

Signal Lights or Interior Light.

10. Lane Change Winker: Set enable or disable lane change winker.

11. Mirror Auto Retract: Set enable or disable mirror auto retract.

Figure 75: Vehicle Control

AMBIENT LIGHTING

Ambient Lighting screen displays the settings to change the lighting when headlights are on.

Figure 76: Ambient Lighting

English

Figure 74: Wireless Charger Screen

NOTE :

Vehicle controls differ according to vehicle model and variant.

Page 48

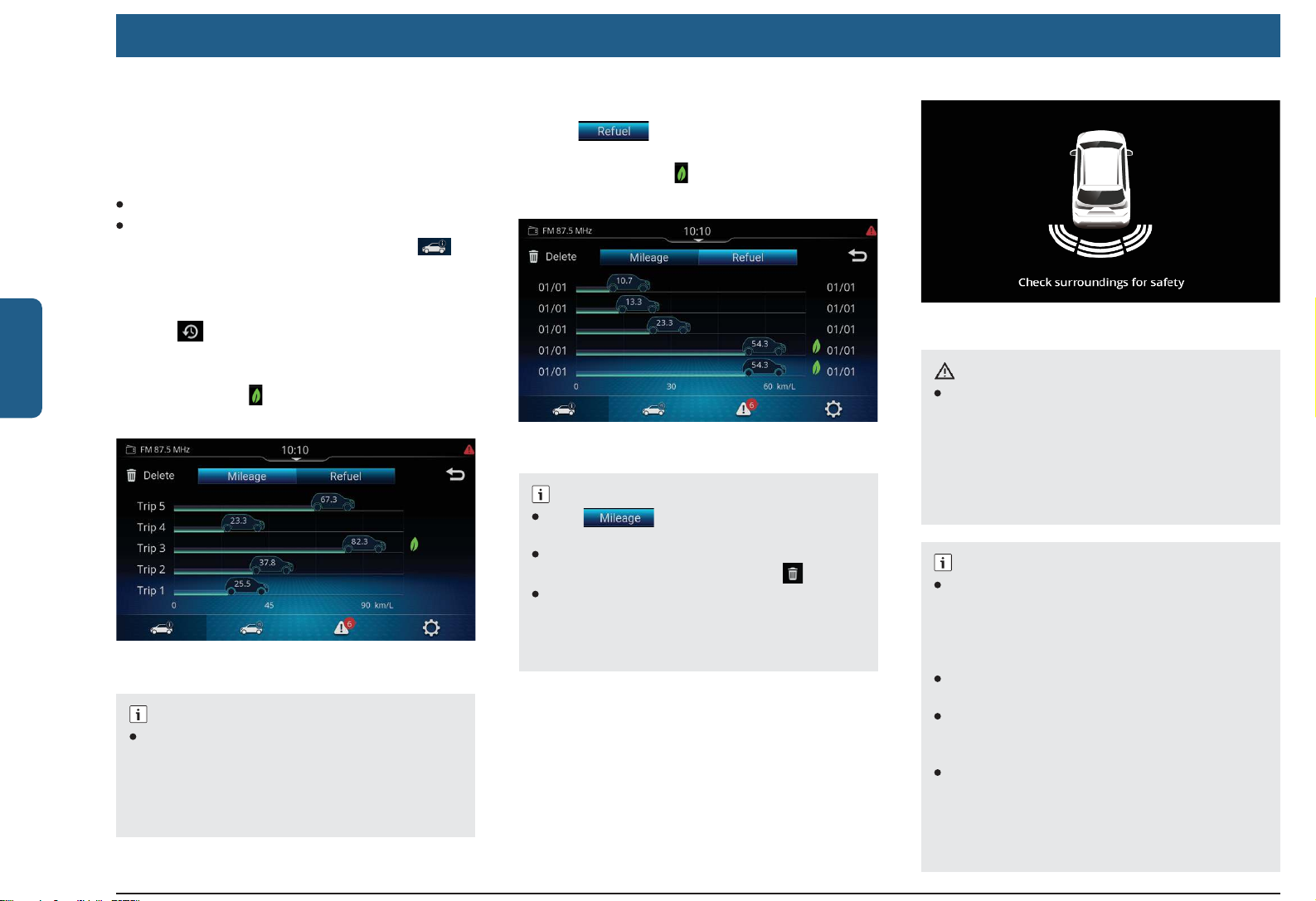

46 | en

Vehicle Information

English

8.4 VIEWING PAST TRIP DETAILS

You can view the following details of your past trips:

Mileage

Refuel Tap on vehicle driving information land on driving information

VIEWING MILEAGE HISTORY

1. Tap

in the Fuel Economy screen. The system displays the Mileage History screen with the past 5 trip details.

2. Eco leaf icon

provides information

about most ef cient trip.

Figure 77: Mileage History Trip Screen

NOTE :

The travel distance, average fuel consumption, and Eco score are displayed for a single trip, which is the interval between turning the engine switch ON and back OFF. A very short trip may not be displayed.

VIEWING REFUEL HISTORY

1. Tap

. The system displays the

Refuel History with the past refuel details.

2. Eco leaf icon provides information

about most ef cient trip.

Figure 78: Refuel History Fuel Screen

NOTE :

Ta p , To return to the Mileage History screen.

To delete all the trip history details in the

Mileage History screen, tap the The display is updated when the vehicle

is refuelled. However, the display may not be updated if only a small amount of fuel is added.

icon.

8.5 REVERSE PARK ASSIST SYSTEM *Installed model only

To enter the RPAS feature performance with the following steps:

1. Engage the reverse gear of the vehicle.

2. The system displays the RPAS screen, if

it is con gured in the vehicle.

Figure 79: RPAS Screen

ALERT :

When reversing, If you only look at the picture / indicator provided by the RVC or SVC, you may fail to notice other road users or objects outside the picture and may cause an accident. Therefore, please always also pay attention to the surrounding of your vehicle.

NOTE :

When the RVC and SVC features are active, the vehicle alerts, popups and any Capacitive Touch Panel (CTP) actions will be disabled. They will resume when disengaging the reverse gear.

RVC / SVC feature are displayed even

when the system is in locked state.

Smartphone voice recognition (VR) will

not be available when the reverse gear is engaged.

If attenuation volume during reverse is

enabled from settings, the system volume automatically reduces whenever the reverse gear is engaged (Even if RVC / SVC are not available).

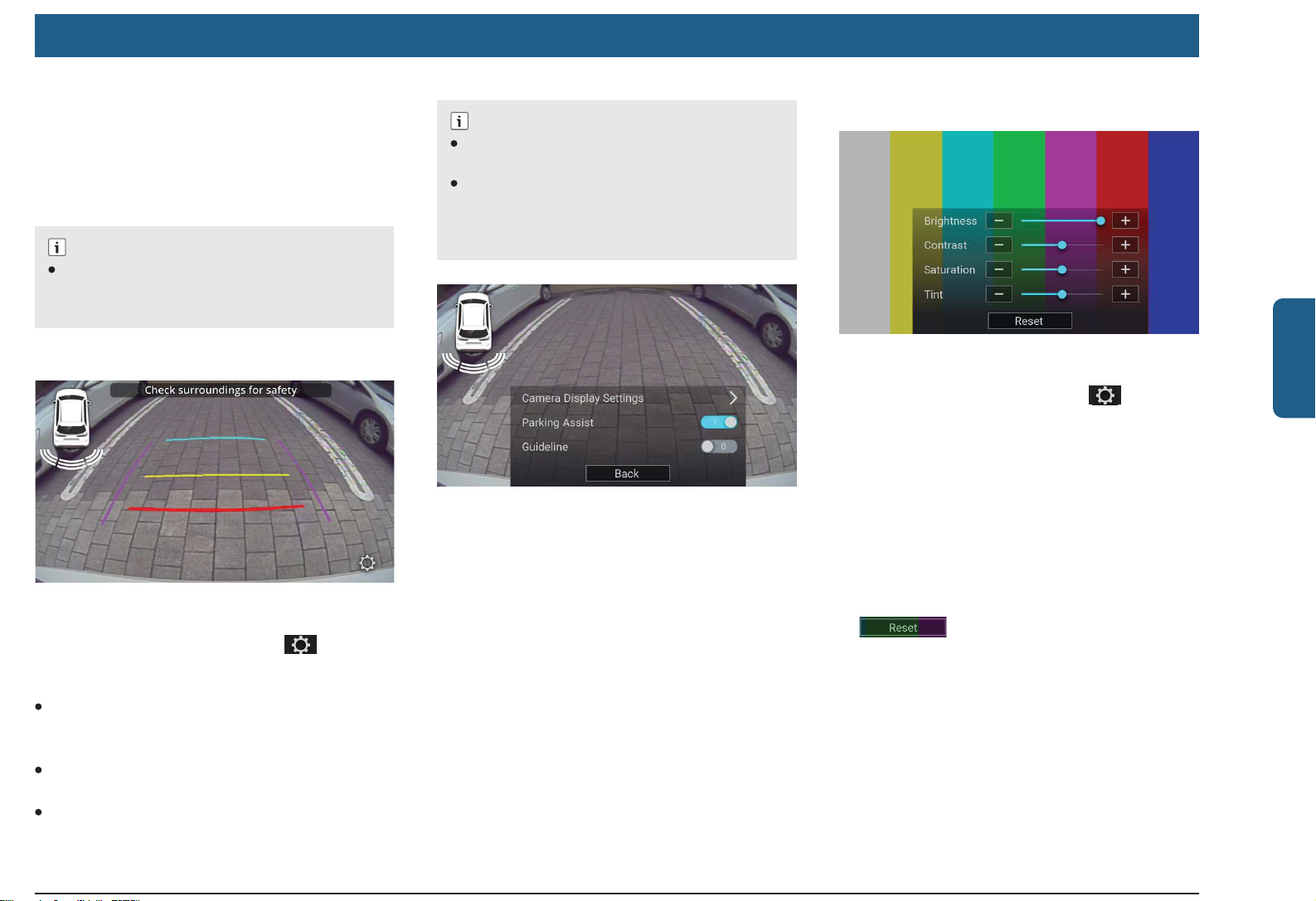

Page 49

Vehicle Information

en | 47

8.6 *REAR VIEW CAMERA (RVC)

To enter the RVC feature performance with the following steps:

1. Engage the reverse gear of the vehicle.

2. The system displays the RVC screen.

NOTE :

The RVC feature will be available on the

system only if the vehicle is  tted with

reverse camera.

8.6.1 RVC SETTINGS

Figure 80: RVC Screen

In the RVC screen, if you tap , the system displays the RVC Settings screen. The details of the screen are as listed:

Camera Display Settings: You can adjust

Brightness, Contrast, Saturation and Tint in this setting.

Parking Assist: Enables / disables park-

ing assist

Guideline: Enables / disables reverse

camera guidelines

NOTE :

You can change the settings only when the reverse gear is engaged.

While adjusting image quality, do it in safe place with nothing near the vehicle, failure to do so will lead to an unexpected accident.

Figure 81: RVC Setting Screen

8.7 *SURROUND VIEW CAMERA (SVC)

To enter the SVC feature performance with the following steps:

1. Engage the reverse gear of the vehicle.

2. The system displays the SVC screen.

8.7.1 *SVC SETTINGS

Figure 82: SVC Setting Screen

In the SVC screen, if you tap tem displays the SVC Settings screen. The details of the screen are as listed :

1. Brightness : Decrease / increase the brightness value.

2. Contrast : Decrease / increase the contrast value.

3. Saturation : Decrease / increase the saturation value.

4. Tint : Decrease / increase the tint value. To reset all the adjustment setting, tap

. The system will start resetting

all settings to defaults.

. the sys-

English

Page 50

48 | en

9 BLUETOOTH REMOTE

CONTROL APP (Smartplay Pro)

Bluetooth Remote Control App (Smart Play Pro)

English

Using Bluetooth Remote Control app, you can control or access the following functions of the system from your smartphone:

Controllable functions

- Radio

- Media

- Settings Accessible functions

- Vehicle Information

9.1 INSTALLING THE APP

Please install the app “Smartplay Pro“ on your smartphone from App Store or Google Play.

9.1.1 SUPPORTED OS VERSION

Android: 8 or later

iOS: 9 or later

NOTE :

Above is the information at the time of release the system, it may change in the future.

9.2 CONNECTING THE APP

1. Launch the app on your smartphone.

2. Pair your smartphone with the system. Refer to the “Establish Connection” on page 24 section for the steps and more information on pairing your smartphone with the system.

3. Once the pairing is established, in the Paired Devices screen, ensure that the

pairing option is enabled for your smartphone. Also, the app changes the connection status from to on your smartphone.

NOTE :

You cannot control the system by the app under the following scenarios:

You cannot use the app and CarPlay at the same time by same smartphone.

You cannot use the app and Android Auto at the same time by same smartphone.

You cannot use the app using smartphone which is connected to the system by USB such as iPod, wired CarPlay and wired Android Auto.

You cannot use the app at the same time by multiple smartphone such as smartphone A and smartphone B.

Page 51

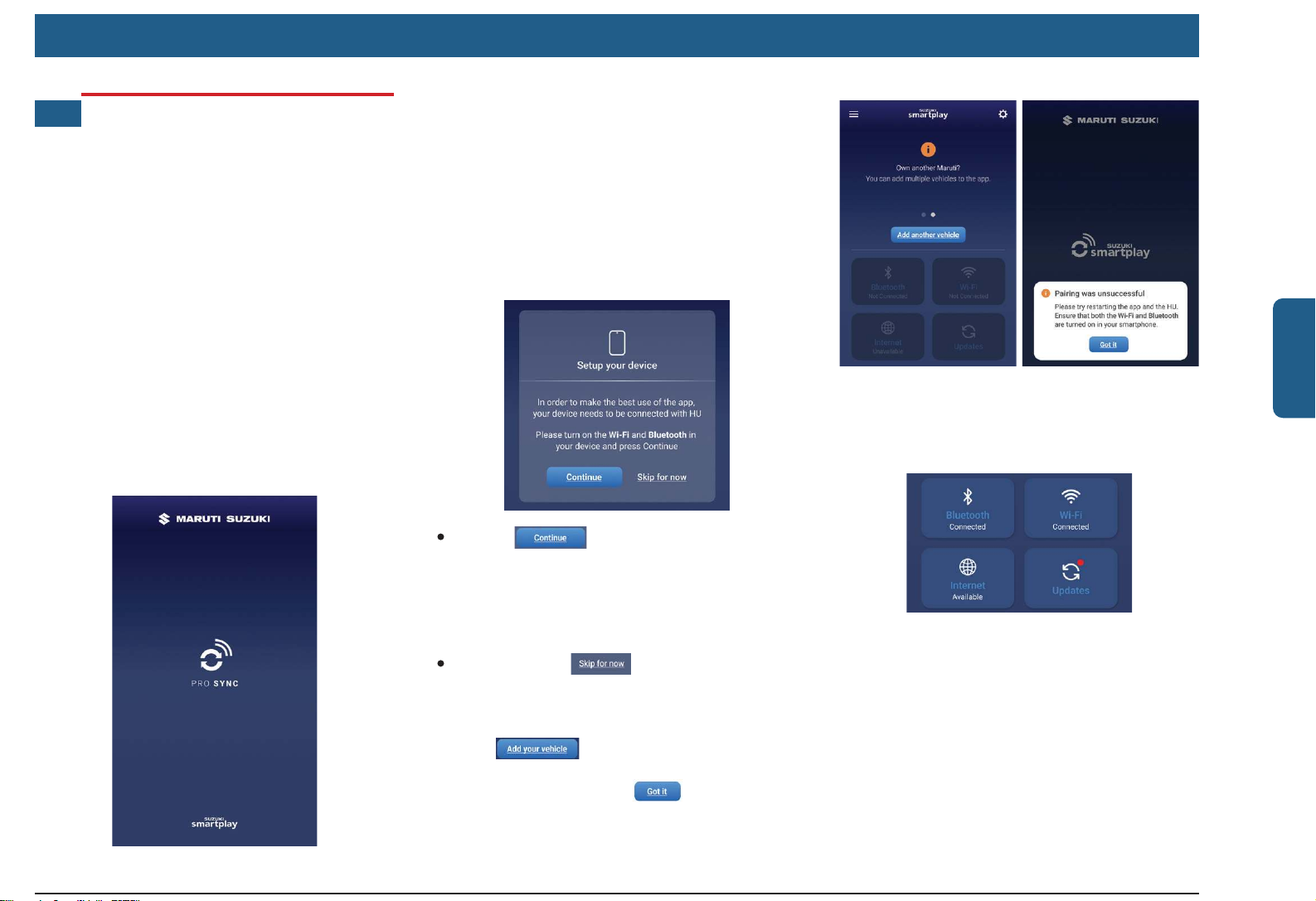

Smartplay Pro Sync App

en | 49

10 SMARTPLAY PRO

SYNC APP

HEAD UNIT CONNECTION

In order to start the online update, the following conditions must be met.

1. Smartplay Pro Sync app installed phone Wi-Fi must be connected to the head unit Wi-Fi.

2. Smartplay Pro sync installed phone must be paired via Bluetooth with the head unit.

Open Smartplay Pro Sync app in the phone. The screens below will appear sequentially.

1. Splash screen with animation will be showed for 3 seconds.

2. If Smartplay Pro head unit connection conditions are met then app will show Home screen with Vehicle connected data.

3. If any of the above connection is not sat-

is ed, the Smartplay Pro Sync app will

show Splash Screen “Setup your device” Dialog with information about how to do set up and two options to proceed.

Select option to connect Smart-

play Pro Sync app installed phone to head unit. After selecting this option you will land to homescreen with detecting text. Homescreen with Vehicle connected data will be displayed.

Select option to continue without

connecting to head unit Wi-Fi and Bluetooth. After selecting this option, homescreen with no vehicle connected screen with will be displayed. Select this option in app will show pairing dialog with instructions and lect this option to enter homescreen with detecting text and show homescreen with Vehicle connected data.

option. Se-

4. Homescreen with Vehicle connected info should show status of Wi-Fi, Bluetooth and Internet connection and software update.

English

Page 52

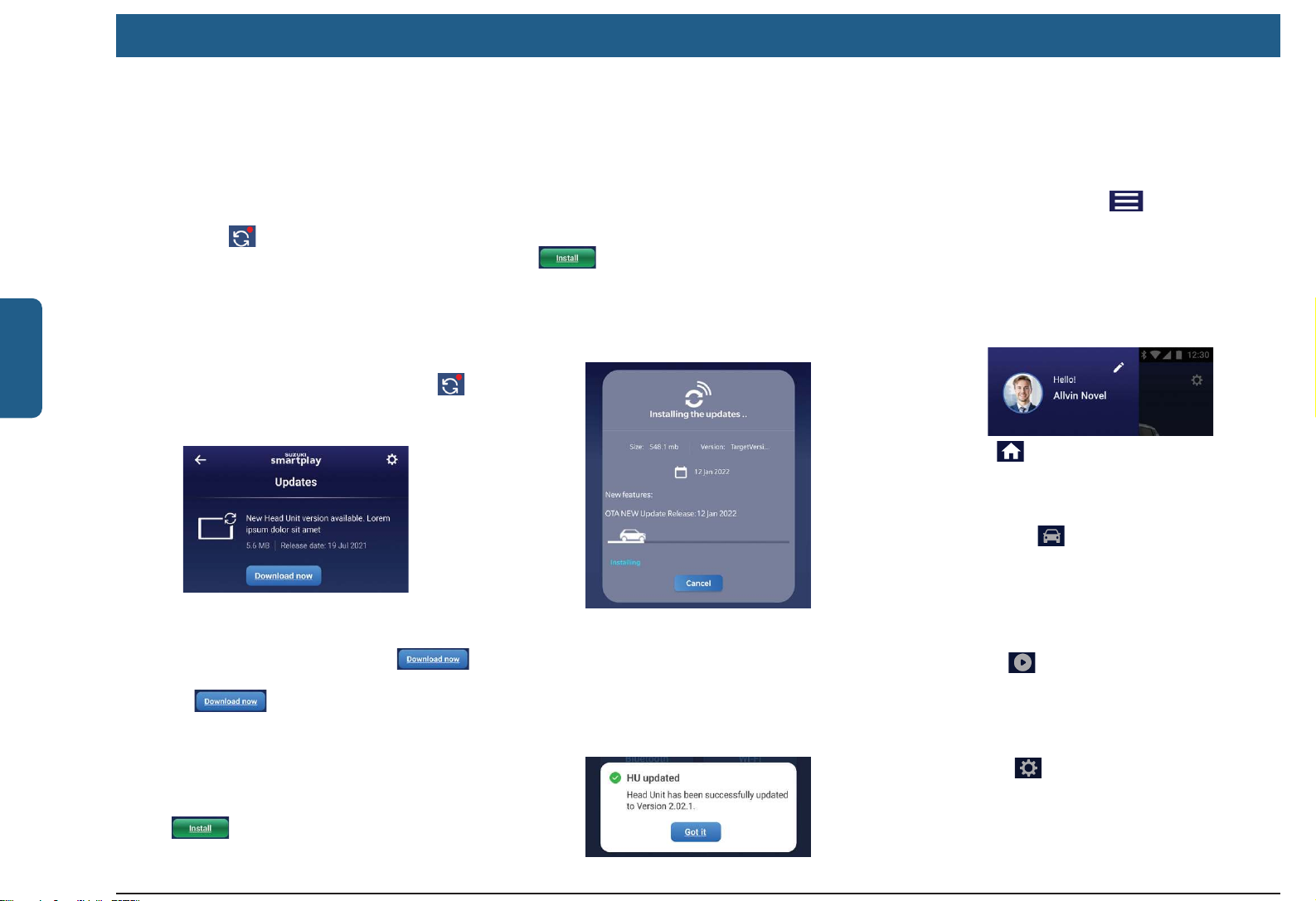

50 | en

Smartplay Pro Sync App

English

SOFTWARE UPDATE NOTIFICATION

In order to get software update noti cation

on Smartplay Pro Sync app, your device must be connected to Internet. If your device is connected to Internet and software update for head unit is available, it will be shown under .

SOFTWARE UPDATE DOWNLOAD

In order to download received Software update, Smartplay Pro Sync app installed device must be connected to Internet.

1. Once Smartplay Pro Sync app received

Software update noti cation, select to go to Software update noti cation

screen.

2. This Software update noti cation screen

will have details of Software update with description about software and option button.

3. Select option, Smartplay Pro Sync app to download updated Software in internal storage of installed device.

4. Once download has started, downloading status will be displayed.

5. After successful software download, you see software to connected head unit.

to transfer this downloaded

SOFTWARE UPDATE INSTALLATION

In order to install downloaded Software, Smartplay Pro Sync app installed device must be connected with head unit through Bluetooth and Wi-Fi.

1. Once successfully connected the head unit through Bluetooth and Wi-Fi, select

button.

2. After selected installation request, software will begin transferring from device to head unit and installation progress dialog box will appear.

3. After the software is successfully downloaded to head unit, a dialog box will prompt the head unit has successfully updated with details of updated software version. This software will be removed

from software update noti cations list.

4. This downloaded software will be removed from Smartplay Pro Sync app installed device.

HAMBERGER MENU

Launch Smartplay Pro Sync app to select the following options.

1. My Pro le

Add Image, First Name, Last Name, Contact Number & Email Id. Other options are save and reset.

2. Home

Move Smartplay Pro Sync app to home screen.

3. My Vehicle

Add vehicle details manually or by pairing. Adding Vehicle by pairing option will show pairing instructions and will navigate to Home Screen with detecting option.

4. Tutorial

Show information related to home screen. E.g. how to add vehicle, how to receive software update, etc.

5. Settings

Show settings related to language selec-

tion. Enable / Disable noti cation and info

on Smartplay Pro Sync app updates.

Page 53

Smartplay Pro Sync App

NOTE :

Navigate to this screen from other screen which contains setting icon on top right corner.

6. FAQ Display information on frequently asked question and some feedbacks from users. This option is also available in every connection home screen.

7. About Display information about Smartplay Pro Sync app build and release.

8. Term & Conditions Display term and conditions about Smartplay Pro Sync app.

en | 51

English

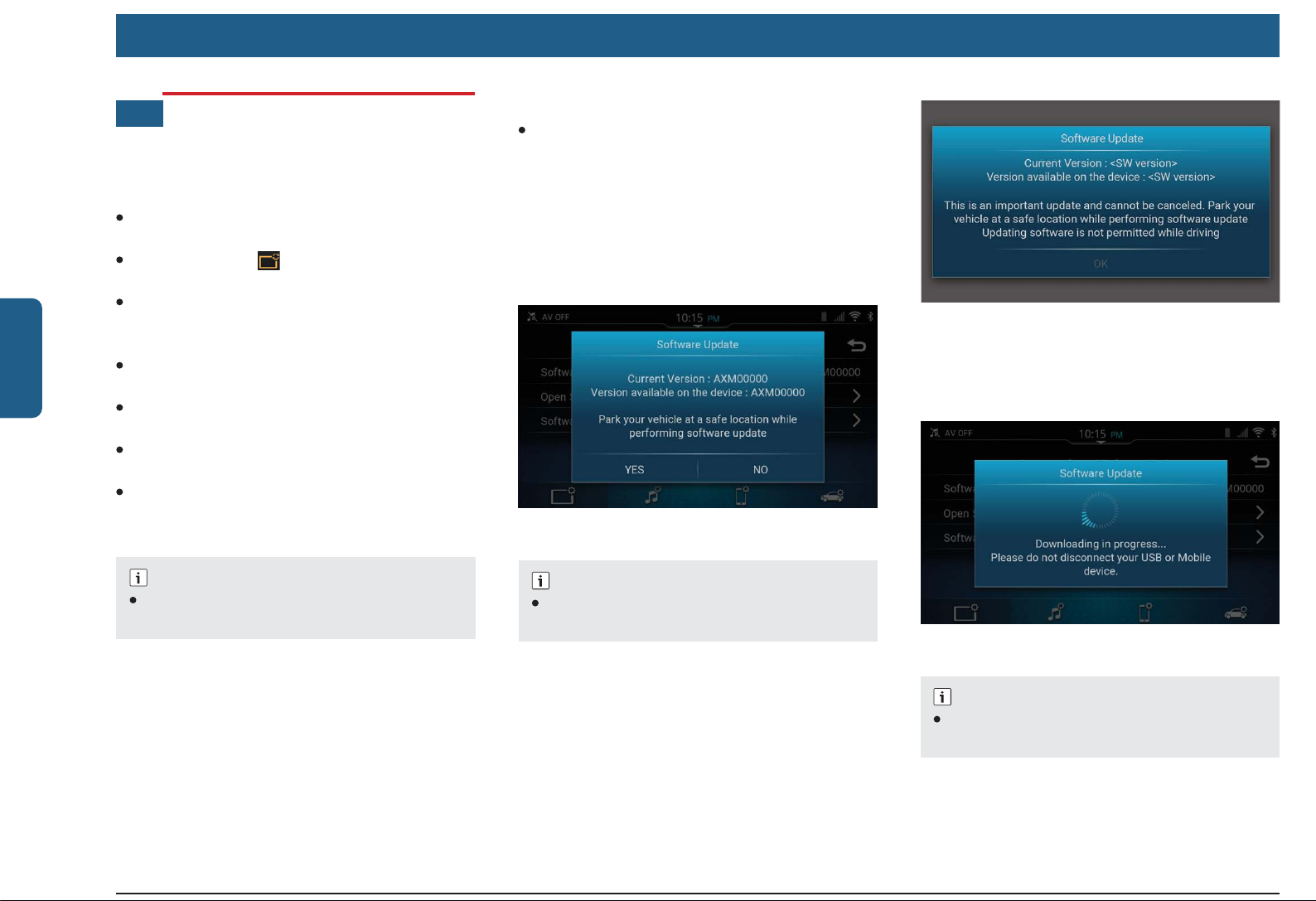

Page 54

52 | en

Software Update

English

11 SOFTWARE UPDATE

In order to start the update, the following conditions must be met.

Head unit must be connected to a phone

that has Smartplay Pro Sync installed.

Click the icon on the Paired Devices

screen to connect to Smartplay Pro Sync.

To connect head unit and “Smartplay

Pro Sync”, you need Bluetooth and Wi-Fi connection.

Please refer to Page 24 “Establish Con-

nection” for BT connection.

Please refer to Page 19 “MANAGING WI-

FI SETTING” for Wi-Fi connection.

The software package must have been

downloaded to the Phone.

To check if it has been downloaded,

please refer to the “Smartplay Pro Sync” manual.

NOTE :

When starting the update, stop the car in a safe place and perform the operation.

START UPDATING

DOWNLOAD

1. Operate Smartplay Pro Sync to start

transferring update  les.

Please refer to the “Smartplay Pro Sync”

manual for instructions.

2. Please click “YES” in the pop-up window that appears on head unit to start the update.

Figure 84: Update Critical Campaign (Driving) Screen

3. The download progress screen is displayed.

Figure 83: Update Version Popup Screen

NOTE :

Some update packages cannot be canceled.

Figure 85: Update Downloading Screen

NOTE :

Most of the function will be disabled during software update.

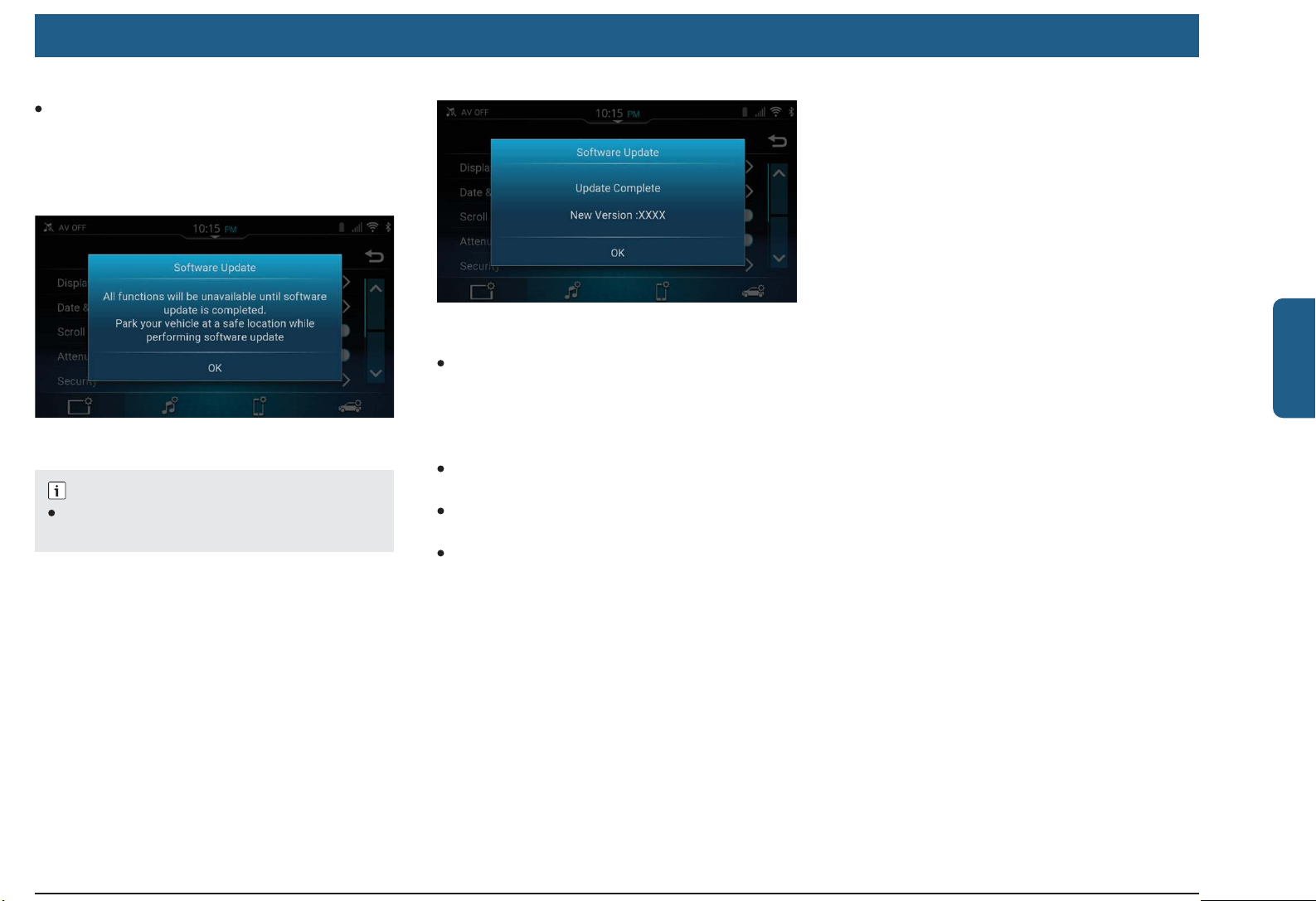

Page 55

Software Update

INSTALL

1. When the download is complete, a popup to start the installation will be displayed. Please click OK on the pop-up window.

Figure 86: Update Driving Caution Popup

NOTE :

Do not turn off the power until the update

is completed.

2. The installation will start and the progress screen is displayed.

3. After the rst stage installation is completed, head unit will restart and start the second stage installation.

4. All the installation is complete, the head unit will restart and run with the new software.

5. Please click OK on the pop-up window that appears after the update is complete.

Figure 87: Complete Updating Screen

ERROR CODE

001-xxxx : Download error 002-xxxx : Install error 003-xxxx : Communication error

If there is a download or install error,

please try again.

If there is a communication error, please

try again from the Phone connection.

If the error still occurs after perform-

ing the procedure again, consult your Maruti Suzuki dealer.

en | 53

English

Page 56

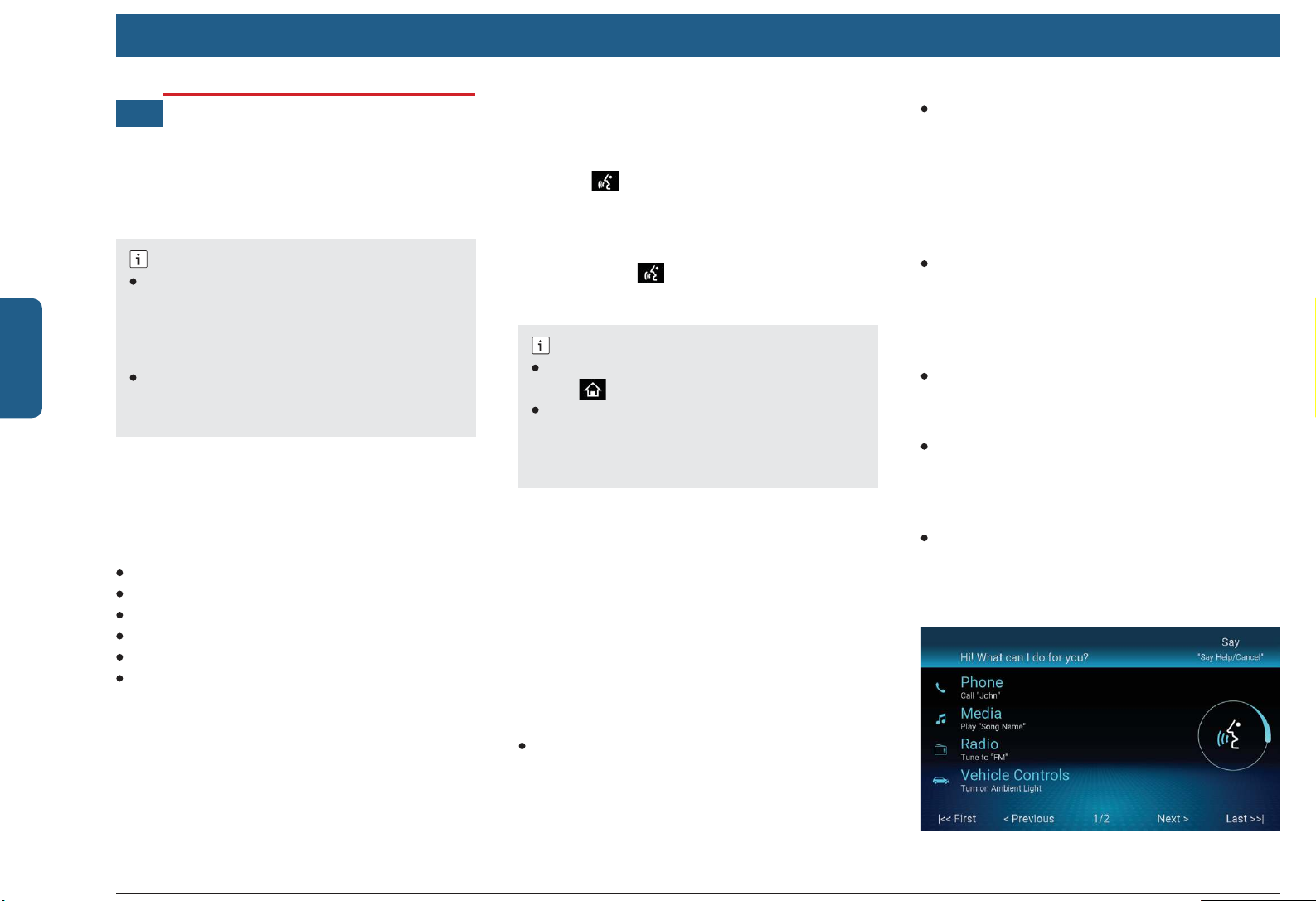

54 | en

Voice Control

English

12 VOICE CONTROL

This feature is only available if selected language is English in system language settings. To select a system language, please read the section “Setting the language”

NOTE :

Please understand that voice recognition errors are inherent in the process. Neither Maruti Suzuki nor its suppliers shall be liable for any damages arising out of errors in the voice recognition process.

Voice recognition performance depends

on the user’s pronunciation and accent of

speech.

Using the voice control feature, you can

select many of the device’s functions by

means of spoken commands. Voice control is available for the following function domains:

Telephone Playing media (audio) Tune Radio Smartphone Connectivity Vehicle control Settings

When voice control is activated, the function domains & example voice commands are shown on the display. Help option can be used to know more commands.

12.1 VOICE CONTROL (START / STOP)

TO START VOICE CONTROL

1. Press

switch or CTP button

2. Say “Hi Suzuki” (Wake word)

TO STOP VOICE CONTROL

1. Long press

switch or CTP button

2. Say “Cancel”.

NOTE :

To stop voice control, you can also tap Wake word may not be recognized

depending on the environment inside or outside the vehicle. (e.g. high sound volume, loud conversation, loud noise etc.)

12.2 HOW VOICE CONTROL WORKS

THE MAIN MENU

As soon as you start voice control, the main menu appears:

In the main menu you will  nd the name of

function domains along with an example command for each. Below are some of the commands for each domain:

Phone

- Call a contact

- Dial a number

- Call recent calls

- Send SMS to contact

- Send SMS to a number

Media

- Play artist name

- Play song name

- Play genre

- Play USB

- Play Bluetooth

Radio

- Tune to <Frequency>

- Show FM station list

- Play FM

Vehicle control

- Driving Range

Smartphone connectivity

- Connect Phone

- Pair my phone

Settings

- System Settings

- Media settings

- Voice assistant settings

Figure 88: Voice Control Screen

Page 57

Voice Control

en | 55

SAYING VOICE COMMANDS

Please visit help option in Voice Assistant for detailed commands for each function. The commands can be spoken by you after the beep. Also, commands can be spoken anytime interrupting the Voice Assistant. Voice Assistant can be interrupted either by pressing the switch or CTP button. It can also be interrupted directly through voice. Say the command to select the corresponding function, for instance, “Play USB” to start playing USB audio.

NOTE :

Voice control for Phone or Media may not be available until the data in the phone or media device is synced to the system.

Certain commands are combined with names or numbers, e.g. “Call <number>”. Say the displayed command and the desired number or name.

Depending on the environment inside or outside the vehicle (eg: high sound volume, loud conversation, loud noise etc.) voice assistant may not detect user interruption.

Depending on the system condition (system start up etc.), the time taken to recognize & execute wake up word and other commands may vary.

12.3 OPENING THE MENU FOR AN OPERATING MODE

For each function domain there is a separate menu containing further commands. To open the menu for an operating mode, say the corresponding command:

Phone Media Radio Vehicle Control Smartphone connectivity Settings

12.4 SELECTING FROM A LIST

If you have various items at your disposal they will be displayed in a list (e.g. various phone number list).

Figure 89: Voice Control Listening List

12.5 VOICE ASSISTANT SETTINGS

Setting Voice Assistant function,

Setting > Connectivity setting > Voice Assistant Say “Voice Assistant Settings”

English

Figure 90: Voice Assistant Setting Screen

Best Match Suggestions Enable or disable the display of the recognized candidate list (Phone Book/Audio)

Guidance Setting Select Novice or Expert mode. In the Expert Mode Operation, command lists and voice guidance in the main menu are omitted.

Usage Based Learning Enable or disable the suggestion feature based on Phone / Media / Radio usage.

Page 58

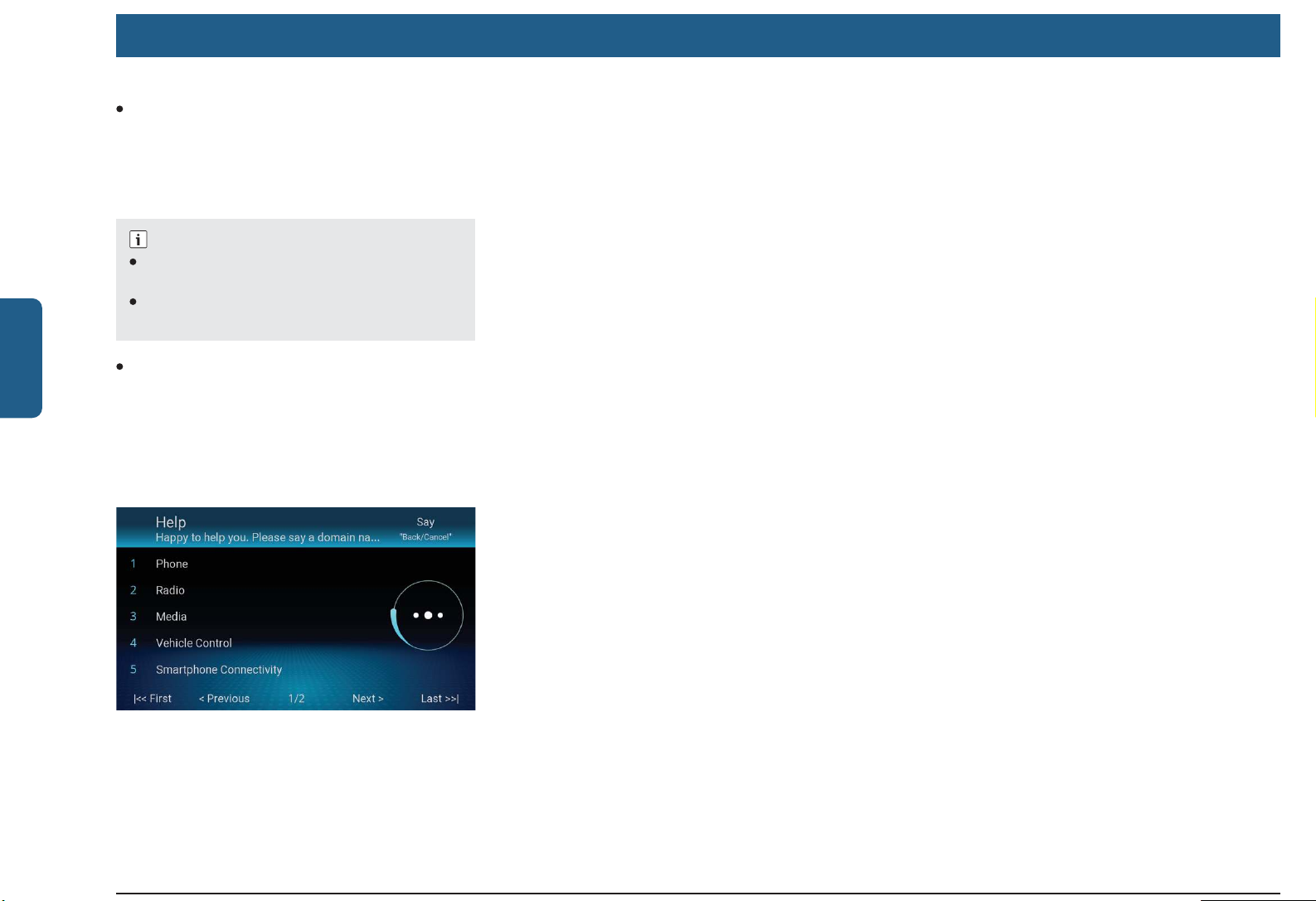

English

56 | en

User’s Name

Edit the name read out in the system guidance.

e.g. Hi! <User’s Name>. What can I do for

you?

NOTE :

Special Characters may not be read out depending on the context.

User’s name can only be set in English

language.

Wake Word

Enable or disable the Wake Word.

12.6 HELP FOR VOICE CONTROL

To obtain help with the voice control system, say “Help”.

Voice Control

Figure 91: Voice Control Help Screen

Page 59

Abbreviations

13 ABBREVIATIONS

The abbreviation used in the guide are listed in the below table.

en | 57

A2DP

AAC Advanced Audio Coding

AM Amplitude Modulation

APPS Applications

AVI Audio Video Interleave

BMP Bitmap Image File

FAT File Allocation Table

FM Frequency Modulation

FPS Frames per Second

GIF

Advanced Audio Distribution

Prole

Graphics Interchange Format

JPEG

MPEG

MSC Mass Storage Class

PNG Portable Network Graphics

RVC Rear View Camera

SVC Surround View Camera

TIFF Tagged Image File Format

USB Universal Serial Bus

VBR Variable Bitrate

VR Voice Recognition

Joint Photographic Experts Group

Moving Picture Experts Group

English

HFP HandsFree Prole

WMA Windows Media Audio

Page 60

58 | en

14 TRADEMARKS

Trademarks

English

Use of the Made for Apple badge means that an accessory has been designed to

connect specically to the Apple products identied in the badge and has been certied by the developer to meet

Apple performance standards. Use of the Apple CarPlay logo means that a vehcle user Interface meets Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

Apple, iPad touch®, App Store, Siri and Apple CarPlay™ are trademarks of Apple Inc., registered in the U.S. and other countries.

Google, Google Play, Android and Android Auto are trademarks of Google LLC.

, iPhone®, iPod® and iPod

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license.

The terms Wi-Fi® is registered trademarks of the Wi-Fi Alliance.

Microsoft WMT License

This Product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft Subsidiary and third parties.

Open Source Software Licenses

The device uses open-source software. For information on open-source software, please access the following internet address:

https://www.global-infotainment-system.com

UPDATING THE SYSTEM SOFTWARE

System software may be upgraded to enhance the system performance. Please check with your MARUTI SUZUKI dealer for latest software availability and installation.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Suzuki Motor Corporation.

Page 61

Information System Security

en | 59

15 INFORMATION SYSTEMS SECURITY

If the system is to be transferred, resold, or disposed of by a third party, all data must be deleted under the appropriate control of the customer, taking into consideration the following.

Initialize all data including personal information stored in the memory according to the content described below.

Initialize the data stored in memory. If copyrighted data is transferred (Paid and free) or resold without the consent of the copyright holder, it may violate the Copyright Law. Our company shall not be held liable in any way for damages suffered by Customers due to leakage of remaining data, etc. Therefore, the Company requests that Customers take appropriate measures based on their own management as described above.

English

Page 62

60 | en

16 CERTIFICATION

Certication

English

Operation temperature: -30°C ~ 80°C

SAR: The device complies with RF speci-

cations when the device is used at 20cm

from your body (SAR limit 10W/m2). The device is in compliance with the requirements.

Device information:

Function Frequency Maximum

Output Power (EIRP)

Wi-Fi 2412 – 2472 MHz 13.37 dBm

5150 – 5250 MHz 11.42 dBm

5725 – 5875 MHz 13.5 dBm

Bluetooth 2402 – 2480 MHz 1.2 dBm

Development:

Faurecia Clarion Electronics Co., Ltd. 7-2 Shintoshin, Chuo-ku, Saitama-shi, Saitama, 330-0081, Japan

Authorized representative:

Clarion Europe S.A.S. 244 rue du Pré à Varois 54670 Custines, France

Model: 77S0/55T0 Input: 10V ~ 16V

English "Hereby, Faurecia Clarion Electronics Co., Ltd. declares that the radio equipment type Car Multimedia Player is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: https://www.global-infotainment-system.com"

Dutch "Hierbij verklaar ik, Faurecia Clarion Electronics Co., Ltd., dat het type radioapparatuur Multimediaspeler conform is met Richtlijn 2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: https://www.global-infotainment-system.com"

French "Le soussigné, Faurecia Clarion Electronics Co., Ltd., déclare que l'équipement radioélectrique du type Lecteur multimédia de voiture est conforme à la

directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: https://www.global-infotainment-system.com"

German "Hiermit erklärt Faurecia Clarion Electronics Co., Ltd. , dass der Funkanlagentyp Auto-Multimedia-Player der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: https://www.global-infotainment-system.com"

Page 63

Certication

Spanish "Por la presente, Faurecia Clarion Electronics Co., Ltd. declara que el tipo de equipo radioeléctrico Reproductor multimedia para coche es conforme con

la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: https://www.global-infotainment-system.com”

Italian "Il fabbricante, Faurecia Clarion Electronics Co., Ltd., dichiara che il tipo di apparecchiatura radio Lettore multimediale per auto è conforme alla direttiva

2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: https://www.global-infotainment-system.com”

Portuguese "O(a) abaixo assinado(a) Faurecia Clarion Electronics Co., Ltd. declara que o presente tipo de equipamento de rádio Reprodutor multimídia está em

conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: https://www.global-infotainment-system.com”

Slovak "Faurecia Clarion Electronics Co., Ltd. týmto vyhlasuje, že rádiové zariadenie typu Multimediálny prehrávač je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese:

https://www.global-infotainment-system.com”

Swedish "Härmed försäkrar Faurecia Clarion Electronics Co., Ltd. att denna typ av radioutrustning Multimedia spelare överensstämmer med direktiv 2014/53/EU.

Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress:

https://www.global-infotainment-system.com”

Romanian "Prin prezenta, Faurecia Clarion Electronics Co., Ltd. declară că tipul de echipamente radio Player Multimedia auto este în conformitate cu Directiva

2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet:

https://www.global-infotainment-system.com”

en | 61

English

Czech "Tímto Faurecia Clarion Electronics Co., Ltd. prohlašuje, že typ rádiového zařízení Přehrávač do auta je v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese:

https://www.global-infotainment-system.com"

Danish "Hermed erklærer Faurecia Clarion Electronics Co., Ltd., at radioudstyrstypen Bil multimedie-afspiller er I overensstemmelse med direktiv 2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan ndes på følgende internetadresse:

https://www.global-infotainment-system.com”

Bulgarian С настоящото Faurecia Clarion Electronics Co., Ltd. декларира, че този тип радиосъоръжение Мултимедиен плейър за кола е в съответствие с

Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес:

https://www.global-infotainment-system.com”

Greek Με την παρούσα ο/η Faurecia Clarion Electronics Co., Ltd., δηλώνει ότι ο ραδιοεξοπλισμός Πρόγραμμα αναπαραγωγής πολυμέσων αυτοκινήτου

πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:

https://www.global-infotainment-system.com”

Hungarian "Faurecia Clarion Electronics Co., Ltd. igazolja, hogy a Multimédia lejátszó rádióberendezés megfelel a 2014/53/EU irány elvnek.

Az EU-megfelelő előségi nyilatkozat teljes szövege elérhető a következő internetes címen:

https://www.global-infotainment-system.com”

Page 64

English

62 | en

Polish "Faurecia Clarion Electronics Co., Ltd. niniejszym oświadcza, że typ urządzenia radiowego Odtwarzacz multimedialny jest zgodny z dyrektywą 2014/53/

UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym:

https://www.global-infotainment-system.com”

Irish "Faurecia Clarion Electronics Co., Ltd. leis seo go gcomhlíonann an gléas raidió de chineál Imreoir ilmheán Treoir 2014/53/AE.

Tá Dearbhú Comhréireachta iomlán an AE ar fáil ag an seoladh idirlín seo a leanas:

https://www.global-infotainment-system.com”

Slovenian "Faurecia Clarion Electronics Co., Ltd. potrjuje, da je tip radijske opreme večpredstavnostni predvajalnik skladen z Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: https://www.global-infotainment-system.com”

Finnish "Faurecia Clarion Electronics Co., Ltd. vakuuttaa, että radiolaitetyyppi Multimediasoitin on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: https://www.global-infotainment-system.com”

Estonian "Käesolevaga deklareerib Faurecia Clarion Electronics Co., Ltd., et käesolev raadioseadme tüüp Auto multimeediumipleier vastab direktiivi 2014/53/EL

nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: https://www.global-infotainment-system.com”

Latvian "Ar šo Faurecia Clarion Electronics Co., Ltd. deklarē, ka radioiekārta Multivides atskaņotājs atbilst Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:

https://www.global-infotainment-system.com”

Certication

Lithuanian "Aš, „Faurecia Clarion Electronics Co., Ltd.“, patvirtinu, kad radijo įrenginių tipas daugialypės terpės grotuvas atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: https://www.global-infotainment-system.com”

Croatian "Faurecia Clarion Electronics Co., Ltd. ovime izjavljuje da je radijska oprema tipa Multimedijski uređaj u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:

https://www.global-infotainment-system.com”

Maltese "B'dan, Faurecia Clarion Electronics Co., Ltd., niddikjara li dan it-tip ta' tagħmir tar-radju Plejer multimedjali huwa konformi mad-Direttiva 2014/53/EU.

It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej:

https://www.global-infotainment-system.com”

Norwegian "Faurecia Clarion Electronics Co., Ltd. erklærer herved at radioenheten av typen Multimedia spiller er i samsvar med direktiv 2014/53/EU.

Den komplette EU-samsvarserklæringen er tilgjengelig på følgende internettadresse:

https://www.global-infotainment-system.com”

Turkey "Faurecia Clarion Electronics Co., Ltd. işbu belge ile Multimedya oynatıcı tipi radyo cihazının 2014/53/EU Direkti ile uyumlu olduğunu beyan eder.

AB Uygunluk Beyanının tamamı aşağıdaki internet adresinde mevcuttur:

https://www.global-infotainment-system.com”

Page 65

Certication

Macedonian Со ова, Фауресија Кларион Електроника копродукции, ООД изјавува дека мултимедијален плеер радио опрема е во согласност со

Директивата 2014/53/ЕУ. Целосниот текст на декларацијата за сообразност на ЕУ е достапен на следната интернет-адреса:

https://www.global-infotainment-system.com

Albanian "Me anë të kësaj, Co Elektronikë Faurecia Clarion, Ltd. deklaron se Luajtës multimedial i makinës i tipit të pajisjes radio është në përputhje me Direktivën

2014/53/BE. Teksti i plotë i deklaratës së BE-së për konformitetin është në dispozicion në adresën e ëposhtme të internetit: https://www.global-infotainment-system.com”

Icelandic "Hér með lýsir Faurecia Clarion Electronics Co., Ltd. því yr að margmiðlunarspilari útvarpsbúnaðargerðarinnar sé í samræmi við tilskipun 2014/53/EU.

Heildartexti samræmisyrlýsingar ESB er að nna á eftirfarandi netfangi:

https://www.global-infotainment-system.com”

Georgian ამრიგად, Faurecia Clarion Electronics Co., Ltd. აცხადებს, რომ რადიო აღჭურვილობის ტიპის მანქანის მულტიმედიური მოთამაშე

შეესაბამება 2014/53/EU დირექტივას. ევროკავშირის შესაბამისობის დეკლარაციის სრული ტექსტი შეგიძლიათ იხილოთ შემდეგ ინტერნეტ მისამართზე: https://www.global-infotainment-system.com

Serbian Овим путем Фаурециа Цларион Елецтроницс Цо., Лтд. изјављује да је аутомобилски мултимедијални уређај типа радио опреме у складу са

Директивом 2014/53/ЕУ. Пун текст ЕУ декларације о усаглашености доступан је на следећој интернет адреси:

https://www.global-infotainment-system.com”

Bosnian "Faurecia Clarion Electronics Co., Ltd. ovime izjavljuje da je automobilski multimedijalni uređaj tipa radio opreme u skladu s Direktivom 2014/53/EU.

Puni tekst EU izjave o usklađenosti dostupan je na sljedećoj internet adresi:

https://www.global-infotainment-system.com”

en | 63

English

Montenegrin "Ovim, Faurecia Clarion Electronics Co., Ltd. izjavljuje da je tip radio opreme Multimedijski uređaj u skladu sa Direktivom 2014/53/EU.

Cjelokupan tekst EU deklaracije o usklađenosti dostupan je na sljedećoj internet adresi:

https://www.global-infotainment-system.com”

Page 66

64 | en

FCC Warning Statement

Certication

English

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help.

CAUTION: Any changes or modications

not expressly approved by the grantee of

this device could void the user’s authority

to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Page 67

Prepared by

MARUTI SUZUKI INDIA LIMITED

Service Division

May, 2022

Part No. 99011M66TD0-74E

Printed in India

For round-the-clock on-road assistance,

call Maruti On-road Service at 1800 102 1800 / 1800 1800 180

# No STD code to be prefixed.

Page 68

99011M66TD0-74E

CODE 02/05/2022/2000

Suzuki MARUTI SMARTPLAY PRO+ User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
