Page 1

60G-74E

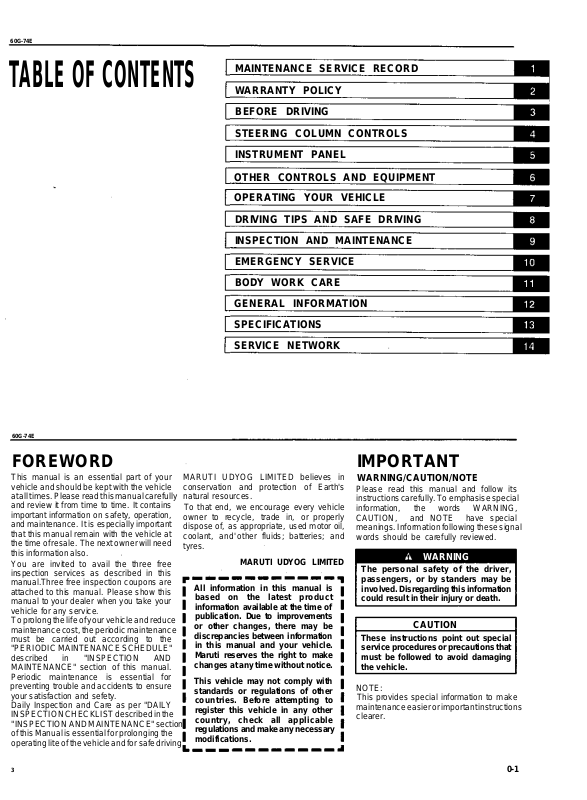

TABLE OF CONTENTS

MAINTENANCE SERVICE RECORD WARRANTY POLICY

BEFORE DRIVING STEERING COLUMN CONTROLS

INSTRUMENT PANEL

OTHER CONTROLS AND EQUIPMENT OPERATING YOUR VEHICLE DRIVING TIPS AND SAFE DRIVING INSPECTION AND MAINTENANCE EMERGENCY SERVICE BODY WORK CARE GENERAL INFORMATION

60G-74E

FOREWORD

This manual is an essential part of your

vehicle and should be kept with the vehicle at all times. Please read this manual carefully and review it from time to time. It contains important information on safety, operation, and maintenance. It is especially important

that this manual remain with the vehicle at the time of resale. The next owner will need this information also.

You are invited to avail the three free inspection services as described in this manual.Three free inspection coupons are attached to this manual. Please show this manual to your dealer when you take your

vehicle for any service.

To prolong the life of your vehicle and reduce maintenance cost, the periodic maintenance must be carried out according to the

"PERIODIC MAINTENANCE SCHEDULE" described in "INSPECTION AND MAINTENANCE" section of this manual. Periodic maintenance is essential for preventing trouble and accidents to ensure your satisfaction and sefety.

Daily Inspection and Care as per "DAILY

INSPECTION CHECKLIST described in the

"INSPECTION AND MAINTENANCE" section

of this Manual is essential for prolonging the

operating lite of the vehicle and for safe driving.

SPECIFICATIONS SERVICE NETWORK

MARUTI UDYOG LIMITED believes in conservation and protection of Earth's natural resources.

To that end, we encourage every vehicle owner to recycle, trade in, or properly dispose of, as appropriate, used motor oil, coolant, and' other fluids; batteries; and tyres.

MARUTI UDYOG LIMITED

All information in this manual is based on the latest product information available at the time of publication. Due to improvements or other changes, there may be discrepancies between information in this manual and your vehicle. Maruti reserves the right to make changes at any time without notice.

This vehicle may not comply with standards or regulations of other countries. Before attempting to register this vehicle in any other country, check all applicable regulations and make any necessary modifications.

IMPORTANT

WARNING/CAUTION/NOTE

Please read this manual and follow its instructions carefully. To emphasise special information, the words WARNING, CAUTION, and NOTE have special meanings. Information following these signal words should be carefully reviewed.

WARNING

The personal safety of the driver, passengers, or by standers may be involved. Disregarding this information could result in their injury or death.

CAUTION

These instructions point out special service procedures or precautions that must be followed to avoid damaging the vehicle.

NOTE:

This provides special information to make maintenance easier or important instructions clearer.

0-1

Page 2

MODIFICATION WARNING

60G-74E

60G-00-004

The circle with a slash in this manual means "Don't do this" or "Don't let this happen".

0-2

Do not modify this vehicle. Modification could adversely affect safety, handling, performance, or durability and may contravene regulations. In addition, damage or performance problems resulting from modification may not be covered under warranty.

Improper installation of mobile communication equipment such as cellular talephones or CB (Citizen's Band) radios may cause electronic interference with your vehicle's ignition system, resulting in vehicle performance problems. Consult your MARUTI dealer or qualified service technician for advice on installing such mobile communication equipment.

Copying, quoting or reproduction of any part of this manual is not permitted without explicit approval by MARUTI UDYOG LIMITED.

Page 3

60G-74E

WARRANTY POLICY

Maruti Udyog Limited (hereinafter called "Maruti"), warrants that each new Maruti vehicle distributed in India by Maruti and sold by an authorised Maruti dealer will be free, under normal use and service, from any defects in material and workmanship at the time of manufacture SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS:

(1) Qualification:

To qualify for this warranty: (a) The Maruti vehicle must be delivered by Maruti authorised

dealer and set-up, serviced by Maruti authorised dealer/ service station.

(b) The warranty registration card in respect of each vehicle

must be completed by the dealer at the time of delivery of the vehicle and dealer should retain the same.

(2) Term:

The term of the warranty shall be twenty four (24) months or 40,000 kilometers (whichever occurs first) from the date of delivery to the first owner.

(3) Maruti's Warranty Obligation:

If any defect(s) should be found in a Maruti vehicle within the term stipulated above, Maruti's only obligation is to repair or replace at its sole discretion any part shown to be defective, with a new part or the equivalent at no cost to the owner for parts or labour, when Maruti acknowledges that such a defect is attributable to faulty material or workmanship at the time of manufacture. The owner is responsible of any repair or replacements which are not covered by this warranty.

(4) Limitation:

This warranty shall not apply to: (a) normal maintenance service required other than the three

free services, including without limitation, oil and fluid changes, headlight aiming, fastener retightening, wheel balancing, wheelalignment and tyre rotation, cleaning of injectors, adjustments of carburettor, ignition timing, clutch and valve clearance.

(b) the replacement of normal wear parts including without

limitation, bulbs, battery, tyres and tubes, spark plugs, belts, hoses, filters, wiper blades, brushes, contact points, fuses,

clutch disc, brake shoes, brake pads, cable and all rubber

parts (except oil seal and glass run). (c) any vehicle which has been used for competition or racing. (d) any repairs or replacement required as a result of accidents

or collision.

(e) any defects caused by misuse, negligence, abnormal use or

insufficient care.

(f) any vehicle which has been modified or altered, including

without limitation, the installation of performance accessories.

(g) any vehicle on which parts or accessories not approved by

Maruti have been used.

(h) any vehicle which has not been operated in accordance with

the operating instructions in the Maruti Owner's Manual,

(i) any vehicle which has not received, during the warranty

term, the service inspections prescribed in the Maruti Owner's Manual.

G) any vehicle which has been assembled, disassembled,

adjusted or repaired by other than an Maruti authorised

2-1

Page 4

WARRANTY POLICY

60G-74E

dealer/service station,

(k) any vehicle which has been used for purposes other than

what it was designed for.

(I) any damage or deterioration caused by industrial pollution

and bird droppings,

(m) insignificant defects which do not affect the function of the

vehicle including without limitation sound, vibration and fluid

seep,

(n) any natural wear and tear including without limitation, ageing

etc.

For Maruti Air-Conditioned Vehicles

(o) V-belts, hoses and gas leaks.

(5) Extent of Warranty:

This warranty is the entire written warranty given by Maruti for

Maruti vehicles and no dealer or its or his agent or employee is authorised to extend or enlarge this warranty and no dealer or its or his agent or employee is autorised to make any oral warranty on Maruti's behalf.

Maruti reserves the right to add any improvements or change the design of any model at any time with no obligation to make the same changes on units previously sold.

(6) Warranty Service:

To obtain warranty service, the complete vehicle must be presented at the owner's expenses to any authorised Maruti dealer.

(7) Owner's Warranty Responsibilities:

2-2

It is responsibility of each owner to: (a) make certain that the warranty registration/PDI card was

completed at the time of delivery of the vehicle;

(b) have performed, at his own expenses, by an Maruti

authorised dealer/service station all the service inspections specified in the Maruti "Owner's Manual and Service Booklet" and maintain adequate proof that such service inspections

have been performed.

performing the service inspection has certified the work on the "Maintenance Service Record" page in the "Owner's Manual and Service Booklet" and

(d) present the Maruti "Owner's Manual and Service Booklet" to

the authorised Maruti dealer whenever requesting service

inspections or warranty service.

If the "Owner's Manual and Service Booklet" should be lost or destroyed the owner should consult the authorised Maruti dealer from whom the vehicle was purchased for instructions concerning replacement of the "Owner's Manual and Service Booklet".

(8) Disclaimer of Consequential Damage:

Maruti assumes no responsibility for loss of vehicle, loss of time, inconvenience or any other indirect incidental or consequential damage resulting from the vehicle not being available to the owner because of any defect covered by this warranty.

(9) Change of owner

Even if ownership of the vehicle changes, the remaining

warranty period is effective for the new owner.

60G-74E

EMISSION WARRANTY

Maruti offers the Emission Warranty on all Maruti vehicles (aparts from the Regular warranty and will run parallel to the regular product warranty) only in four metropolitan cities (New Delhi, Kolkata, Mumbai and Chennai) with effect from July 1st, 2001.

Terms:

The Emission Warranty will be applicable for 80,000 kms or 3 years (Whichever comes earlier) from the date of delivery to the first owner. The remaining warranty terms will be valid in case of any change in ownership provided the production of all valid documents.

Conditions :

1. Under Emission Warranty, Warranty claims will be admitted for a prima facie examination, in case vehicle fails to meet to the Emission Standard as specified In sub rule (2) of rule no. 115 of Central Motor Vehicles Rules (CMVR), 1989.

2. The warranty claims will only be accepted after examination carried out by Maruti or it's dealer which leads to firm conclusions

that the a) Original settings have not been tempered in any case. b) Part (as given in Annexure-A) has a manufacturing defect. c) Vehicle is unable to meet the Emission Standards (as given in 1.), inspite of the vehicle having been maintained and used

in accordance with the instructions as specified in Owner's Manual and Service Booklet and the used fuel and different oils

(Engine oil, Transmission oil, Brake oil etc.) are also as per specification.

3. The method of examination for deciding the warranty of the parts will be at the sole discretion of Maruti and it's dealer and results of the examination will be final and binding. If after examination, the warrantable condition is not established, Maruti and it's dealer has the right to charge all, or part of the cost of such examination.

4. Under Emission Warranty, the parts (as given in Annexure-A) will be changed free of cost, but the consumables will be charged as per actual.

5. If the part covered under Emission Warranty or the associated parts, are not independently replaceable, on account of these being integral parts of a complete assembly, Maruti and it's dealer will have the sole discretion to replace either the entire assembly

or by using some of the parts of the system through suitable repairs or modifications.

Page 5

EMISSION WARRANTY 60G74E

6. Any consequential repairs or replacement of parts which may be found necessary to establish compliance of Emission Warranty, will not be considered under warranty, unless the same is under product warranty. The consumable will be charged as per actual under such repair or replacement.

7. Maruti will not be responsible for the cost of transportation of the vehicle to the nearest Maruti dealer workshop or any loss due to non-availability of the vehicle during the period of lodging of a warranty claim and examination and/or repair by Maruti dealer.

8. Maruti will not be responsible for any penalty that may be charged by statutory authorities on account of failure to comply with the EMISSION STANDARDS.

9. Emission Warranty will not be affected on the change of owner, provided all the documents are available.

10. All maintenance actions (as specified in the Owner's manual and Service Booklet) need to be followed and recorded in the

manual for emission warranty.

11. The customer needs to produce the PUC (Pollution Under Control) certificate valid for the period preceeding the test during which the failure is discovered. The receipts (for the maintenance of the vehicle as per specification in Owner's Manual and

Service Booklet from the date of original purchase of the vehicle) will also be required.

Conditions under which the Emission Warranty is not APPLICABLE

1. In the absence of valid PUC certificate.

2. Vehicle not serviced from Maruti authorised workshop as per the schedule specified in the Owner's Manual .

3. Vehicle subjected to abnormal use (accident, motor race, rallies or for the purpose of establishing the records etc.)

4. Use of non MGP (Maruti Genuine Part).

5. Vehicle tempered in an unauthorised manner.

6. Tampering with odometer so that the actual kilometer reading can not be read.

7. Use of adulterated fuel and/or unspecified oils (Engine oil, Transmission oil and Brake oil etc.)

60G-74E

Annexure-A

List of parts covered under Emission Warranty

1. Fuel Injection Assembly, Pressure Regulator, Throttle Body Assembly.

2. Electronic Control Module (ECM).

3. Intake Manifold.

4. EGR Valve.

5. Distributor and internal parts.

6. Ignition coil.

7. Canister Assembly.

8. Vapour Liquid Separator.

9. Fuel Tank and Filler Cap.

10. PCV (Positive Crankcase Ventilation) Valve.

11. Oil Filler Cap.

12. Catalytic Convenor.

13. Exhaust Manifold.

14. All fuel Injection System related SENSORS.

EMISSION WARRANTY

Page 6

60G-74E

BEFORE DRIVING

Fuel Recommendation 3-1 Remote Keyless Entry System (if equipped) 3-2 Keys 3-2 Door Locks 3-3 Windows 3-5 Mirrors 3-8 Front Seat Adjustment 3-9 Driver Seat Height Adjuster 3-10 Adjustable Head Restraints (if equipped) 3-10 Seat Belts 3-11

BEFORE DRIVING

FUEL RECOMMENDATION

UNLEADED FUEL ONLY

You must use unleaded petrol with an octane number (RON) of 87 or higher. Your vehicle is fitted with a restrictor in the fuel filler pipe which will not allow the use of large nozzle used for dispensing leaded fuel at filling station. A label is also attached near the fuel filler pipe of your vehicle that states: "UNLEADED FUEL ONLY".

CAUTION

Use of leaded fuel in vehicle equipped with catalytic converter is prohibited, because leads deactivates the pollutant reducing components of catalytic converter and may result in permanent damage to catalytic converter.

Petrol/Ethanol Blends

Blends of unleaded petrol and ethanol (grain alcohol), also known as gasohol, are

commercially available in some areas.

Blends of this type may be used in your vehicle if they are no more than 10% ethanol. Make sure this petrol-ethanol blend

has octane ratings no lower than those

recommended for petrol.

Petrol/Methanol Blends

Blends of unleaded petrol and methanol (wood alcohol) are also commercially available in some areas. DO NOT USE fuels containing more than 5% methanol

under any circumstances. Fuel system damage or vehicle performance problems

resulting from the use of such fuels are not the responsibility of MARUTI and may not be covered under Warranty.

Fuels containing 5% or less methanol may be suitable for use in your vehicle if they contain cosolvents and corrosion inhibitors.

NOTE:

If you are not satisfied with the driveability

or fuel economy of your vehicle when you

are using a petmrol/alcohol blend, you should

switch back to unleaded petrol containing no

alcohol.

60G-74E

CAUTION

Be careful not to spill fuel containing alcohol while refuelling. Fuels containing alcohol can cause paint damage, which is not covered under Warranty.

CAUTION

The fuel tank has an air space to allow for fuel expansion in hot weather. If you continue to add fuel after the filler nozzle has automatically shut off or an

initial blowback occurs, the air chamber will become full. Exposure to heat when fully fuelled in this manner will result

in leakage due to fuel expansion. To prevent such fuel leakage, stop filling after the filler nozzle has automatically shut off, or when using an alternative non automatic system, initial vent blowback occurs.

3-1

Page 7

60G-74E

BEFORE DRIVING

REMOTE KEYLESS ENTRY SYSTEM Other Controls (if equipped)

60G-50-001E

Remote keyless entry system is installed in your vehicle. The general features of keyless entry system are;

1. Remote lock/arming and remote unlock/ disarming.

2. Doors/trunk/bonnet protection.

3. Doors/trunk/bonnet open signal.

4. Personal protection alarm.

5. Mute lock/unlock.

6. Starter immobiliser.

7. Permanent siren chirp enable/disable (programmable mode).

8. Two stage shock/impact sensor (programmable mode).

9. Emergency disarm by personalised PINCODE (programmable mode).

10. Car locator

11. Flashing LE.D.

Initially the system is programmed in factory default. The features operative in factory default are;

1. Remote lock/arming and remote unlock/ disarming.

2. Doors/trunk/bonnet protection.

3. Doors/trunk/bonnet open signal while locking/arming.

4. Personal protection alarm.

5. Starter immobiliser.

6. Mute lock/unlock.

7. Permanent siren chirp enable/disable.

8. Emerging disarm by personalised PINCODE.

9. Car locator.

10. Flashing LE.D.

The system can always be programmed back to factory default for restoration of original setting of the system.

For more detail and warranty condition, please refer to the Owner's Manual of "Maruti Mobile

Security".

KEYS

70F-01-003

Your vehicle comes with a pair of identical keys. Keep the spare key in a safe place. One key can open all of the locks on the vehicle. The key identification number is stamped on a metal tag provided with the keys. Keep the tag in a safe place. If you lose your keys, you will need this number to have new keys made. Write the number down and keep it in a safe accessible place away from the vehicle.

NOTE: Keep the spare key very carefully. When it is lost, consult your dealer by quoting key number.

3-2

BEFORE DRIVING

60G-03-003

Ignition Key Reminder (if equipped)

A buzzer sounds intermittently to remind you to remove the ignition key if it is in the ignition switch when the driver's door is opened.

DOOR LOCKS

72F-03-002E

To lock a front door from outside the vehicle:

a) Insert the key fully and turn the top of

the key toward the front of the vehicle,

b) Push in the lock knob down and hold

the door handle up as you close the

door.

To unlock a front door from outside the vehicle, insert the key fully and turn the top of the key toward the rear of the vehicle.

60G-74E

60G-03-004E

To lock a door from inside the vehicle, push the lock knob down. Pull the lock knob up to unlock the door.

Always lock all doors when driving.

Locking the door prevents occupants from being thrown from the vehicle in the event of an accident. It also helps

prevent unintentional opening of the

doors.

3-3

To lock a rear door from outside the vehicle, push in the lock knob down and close the door.

Page 8

60G-74E

BEFORE DRIVING

72F-03-002E

Central door locking system (if equipped)

You can lock and unlock all the side doors and simultaneously by using the key in the driver's door lock or the front passenger's door lock.

BEFORE DRIVING

60G-03-006E

You can also lock or unlock all the side doors by depressing the right or left of the switch ©, respectively.

NOTE:

• Moving the lock knob on each door locks or unlocks that door only.

• Be sure to hold the door handle up when

you close a locked front door, or the door

will not remain locked.

60G-03-005

Child-Proof Locks (if equipped)

As illustrated, a child-proof lock is provided for both rear doors. When the lock lever is down, position ©, the child proof lock is activated, and when up, in position © the child-proof lock is deactivated, when the child-proof lock is activated, the rear door cannot be opened from the inside even if the inside door lock is unlocked but can be opened from the outside.

Be sure to place the child-proof lock in the locked position whenever children are seated in the rear.

3-4

80G-74E

70F-01-008E

Trunk (Boot) Ud To unlock the lid, insert the key and turn it clockwise. You can also unlock the lid by pulling the release lever located on the outboard side of the driver's seat.

Always make sure that the trunk lid Is closed and latched securely. Closing the lid completely helps to prevent exhaust gases from entering the car.

Do not keep the trunk lid open for a long

time, or the battery will discharge.

3-5

60G-03-007E

CAUTION

Do not use the key to lift up the lid, or the key may break off In the lock.

Page 9

60G-74E

WINDOWS

BEFORE DRIVING

60G-03-009E

Electric window controls (if equipped)

The driver's door has switches ®,®,© & © to operate the driver's window, front passenger's window, rear right and rear left passenger's window respectively.

The passenger's door only has a switch © to operate the passenger's window. The electric windows can only be operated when the ignition switch is in the "ON" position.

To open a window with the driver's door switches, push the top part of the switch and to close the window lift up the top part of the switch.

BEFORE DRIVING

The driver's window has an "auto-down" feature for added convenience (at toll booths or drive-through restaurants, for example). This means you can open the window without holding the window switch in the "Down" position. Press the driver's window switch completely down and release it. To stop the window before it reaches the bottom, lift up the switch briefly.

6OG-O3-010E

To open or to close a window with the passenger's door switch, push down or push

up the switch.

3-6

60G-74E

60G-03-011E

The driver's door also has a lock switch for the passenger's window. When you push in the lock side of the switch, the passenger's windows can not be raised or lowered by operating either of the switches ®,@,® & ©. To restore normal operation, push the unlock side of the switch.

3-7

You should always push the lock side of the lock switch when there are children in the vehicle. Children can be seriously injured if they get part of their body caught by the window during operation.

CAUTION

Since the electric windows consumes a large amount of electricity, the same should not be used excessively with engine in "OFF" condition.

60G-03-012

NOTE:

The rear side door windows are not designed to open fully. They can be opened about 2/3 of the way down.

Page 10

60G-74E

MIRRORS

Day-Night Rearview Mirror (if equipped)

To adjust the interior rearview mirror, set the

selector tab to the day position, then move the mirror up, down, or sideways to obtain the best view.

When driving at night, you can move the selector tab to the night position to reduce glare from the headlights of vehicles behind you.

Always adjust the mirror with the selector set to the day position. Only use the night position if it is necessary to reduce glare from the headlights of vehicles behind you. Be aware that in this position you may not be able to see some objects that

could be seen in the day position.

BEFORE DRIVING

60G-03-013

Outside Rearview Mirrors

Adjust the outside rearview mirrors so you can

just see the side of your vehicle in the mirrors.

A WARNING

Be careful when judging the size or distance of a vehicle or other object

seen in the side convex mirror (if equipped). Be aware that objects look smaller and appear farther away than when seen in a flat mirror.

BEFORE DRIVING

60G-03-014

Electric Mirrors (If equipped)

The switch to control the electric mirrors is

located on the instrument panel.You can only adjust the mirrors when the ignition switch is in the "ON" position. To adjust the mirrors:

1) Move the selector switch to the left or right to select the mirror you wish to adjust.

2) Press the outer part of the switch that corresponds to the direction in which you wish to move the mirror.

FRONT SEAT ADJUSTMENT

72F-03-016

Never attempt to adjust the driver's seat or seatback while driving. The seat or seatback could move unexpectedly, causing loss of control. Make sure that the driver's seat and seatback are

properly adjusted before you start

driving.

3-8

6OG-74E

72F-03-013

Adjusting Seat Position

The adjustment lever for each front seat is

located under the front of the seat, on the inboard side. To adjust the seat position, pull up on the adjustment lever and slide the seat forward or rearward. After adjustment, try to

move the seat forward and rearward to ensure

that it is securely latched.

3) Return the selector switch to the centre position to help prevent unintended adjustment.

3-9

Page 11

60G-74E

BEFORE DRIVING

DRIVER SEAT HEIGHT ADJUSTER (if equipped)

606-03-015

If the driver's seat is equipped with a seat height adjuster knob on the outboard side of the seat, adjust the seat to the proper height by turning the adjuster knob.

WARNING

72F-03-014

Adjusting Seatbacks The seatbacks can be adjusted to different angles. To adjust the seatback angle, pull up the lever on the outboard side of the seat, move the seatback to the desired position, and release the lever to lock the seatback in place.

Seatbacks should always be in an upright position when driving, or seat belt effectiveness may be reduced. Seat belts are designed to offer maximum protection when seatbacks are in the fully upright position.

ADJUSTABLE HEAD RESTRAINTS (if equipped)

70F-01-019

WARNING

Head restraints are designed to help reduce the risk of neck injuries in the case of an accident. Adjust the head restraint to the position which places the top of the head restraint closest to the top or your ears.

BEFORE DRIVING

60G-03-016

To raise the head restraint, pull upward ort the restraint until it clicks. To lower the restraint, push down on the restraint while holding in the lock lever. If a head restraint must be

removed (for cleaning, replacement, etc.), push in the lock lever and pull the head restraint all the way out.

SEAT BELTS

Wear your Seat Belts at All Times.

WARNING

Never allow persons to ride in the cargo area of a vehicle. In the event of an accident, there is a much greater risk of injury for persons who are not riding In a seat with their seat belt securely fastened. Seat belts should always be adjusted so the lap portion of the belt is worn low across the pelvis, not across the waist. Shoulder straps should be

70F-01-022E

60G-74E

WARNING

worn on the outside shoulder only,

and never under the arm. Seat belts should never be worn with the straps twisted and should be adjusted as tightly as is comfortable to provide the protection for which they have been designed. A slack belt will provide less protection than one which is snug. Make sure that each seat belt buckle is inserted into the proper buckle catch. It is possible to cross the buckles in the rear seat. Do not wear your seat belt over hard or breakable objects in your pockets or on your clothing. If an accident occurs, objects such as glasses,

pens, etc. under the seat belt can

cause injury.

Never use the same seat belt on

more than one occupant and never attach a seat belt over an infant or child being held on an occupant's

lap. Such seat belt use could cause serious injury in the event of an accident. _K

3-10

3-11

Page 12

60G-74E

BEFORE DRIVING

Pregnant women should use seat belts, although specific recommendations about restraint use should be made by the woman's medical advisor. Periodically inspect seat belt assemblies for excessive wear and damage. Seat belts should be replaced if webbing becomes frayed, contaminated, or damaged in any way. It is essential to replace the entire seat belt assembly after it has been stressed in an impact, even if damage to the assembly is not obvious. Infants and small children should never be transported unless they are properly restrained. Restraint systems for infants and small children can be purchased locally and should be used. Make sure that the system you purchase meets applicable safety

standards. Read and follow all the directions provided by the manufacturer.

Avoid contamination of seat belt

webbing by polishes, oils, chemicals,

and particularly battery acid. Cleaning may safely be carried out using mild

soap and water.

For children, if the shoulder belt irritates the neck or face, move the child closer to the center of the vehicle.

A WARNING

Be sure to inspect all seat belt assemblies after any collision. Any seat belt assembly which was in use during a collision (other than a very minor one)

should be replaced, even if damage to the assembly is not obvious. Any seat belt assembly which was not in use during a collision should be replaced if it does not function properly or is damaged in any way.

70F-01-021

There are two types of seat belt, "Lap-shoulder belt" and "Lap belt".

To fasten the seat belt, sit up straight and well

back in the seat, pull the buckle tongue attached to the seat belt across your body and slide it into the buckle catch on the opposite

side until you hear a "click".

3-12

BEFORE DRIVING

70F-01-022E

To reduce the risk of sliding under the belt

during a collision, position the lap portion of the belt across your lap as low on your hips as possible and adjust the belt to a snug fit

using the proper method for each type of the

belt as described below. Make sure that the

belt is not twisted.

70F-01-023E

To unfasten the belt, press the release button on the buckle catch.

60G-74E

70F-01-024E

To Adjust the Belt

• Lap-shoulder belt Pull the shoulder portion of the belt upwards through the tongue plate.

The length of the diagonal shoulder strap

adjusts itself to allow freedom of movement. The seat belt has an emergency locking

retractor (ELR), which is designed to lock the

seat belt only during a sudden stop or impact.

3-13

Page 13

60Q-74E

BEFORE DRIVING

70F-01-025

Your vehicle is equipped with the shoulder anchor height adjusters for the front seat belts, adjust the shoulder anchor height so that the shoulder belt rides on the center of the outboard shoulder. To adjust the shoulder anchor height, slide the anchor up or down while pulling the lock knob out. After adjustment, make sure that the acnhor is securely locked.

No modifications or additions of any sort should be made to the seat belt or its operating mechanism.

BEFORE DRIVING

60G-03-017

Seat Belt Hanger (if equipped)

When you move a seatback, make sure the belt webbing is hooked in the belt hangers so the seat belts are not caught by the seatback, seat hinge, or seat latch. This helps prevent damage to the belt system.

60G-03-018E

Lap belt

On this belt the adjuster is incorporated in the tongue unit.

To tighten the belt, pull the free end of the belt across alongside the lap strap until it is adjusted to a snug comfortable position.

3-14

60G-74E

60G-03-019E

To lengthen, release the tongue from the

buckle unit, pull the tongue (adjuster) in the

direction of the arrow, at right angles to the

belt. The tongue should then be refitted into the buckle unit and the belt tightened as previously described.

3-15

60G-03-020E

NOTE:

To identify the center seat belt buckle catch and tongue in the rear seat, "CENTER" is moulded on the buckle catch and tongue of the center lap belt. The buckle catches are designed so a buckle tongue can not be inserted into the wrong buckle catch.

70F-01-030

Child Restraint Systems MARUTI highly recommends that you use a child restraint system to restrain infants and small children. Many different types of child restraint systems are available; make sure that the restaint system you select meets applicable safety standards.

All child restraint systems are designed to be secured in vehicle seats by lap belts or the lap portion of lap-shoulder belts. Whenever possible, Maruti recommends that child restraint systems be installed on the rear seat. According to accident statistics children are safer when properly restrained in rear seating positions than in front seating positions.

Page 14

60G-74E

If you must use a front-facing child restraint in the front passenger's seat, adjust the passenger's seat as far back as possible.

Children could be endangered in a crash if their child restraints are not properly secured in the vehicle. When installing a child restraint system, be sure to follow the instructions below. Be sure to secure the child in the restraint system according to the manufacturer's Instructions.

60G-03-021E

Installation with lap-shoulder seat belts

Note:

The lap-shoulder belts of your vehicle have emergency locking retractors (ELRs) that can not function as an automatic locking retractor

(ALR). Use the installation method described in the instructions provided by the child restraint system manufacturer that does not require the ALR function.

Install your child restraint system according to the instructions provided by the child restraint system manufacturer. Make sure that the seat belt is securely latched.

BEFORE DRIVING

70F-01-031

Try moving the child restraint system in all directions, to make sure it is securely installed. Tighten the belt if necessary.

BEFORE DRIVING

70F-01-032E

Installation with a lap belt

Install your child restraint system according

to the instructions provided by the child

restraint system manufacturer. To lengthen or tighten the belt, refer to the "Lap

belt" item in this "SEAT BELTS" section. After making sure that the seat belt is securely latched, try moving the child restraint system

in all directions, to make sure it is securely installed. If you need to tighten the belt, pull

the free end of the webbing.

3-16

60G-74E

3-17

Page 15

60G-74E

STEERING COLUMN CONTROLS

ignition Switch 4.1

Lighting/Tum Signal Control Lever 4-2 Windscreen Wiper and Washer Lever 4-4 Horn 4.5

Rear Wiper and Washer(lf equipped) 4-5

STEERING COLUMN CONTROLS

60G-04-001E

To avoid possible injury, do not operate

controls by reaching through the steering wheel.

IGNITION SWITCH

70F-02-002

The ignition switch has the following four

positions:

Do not use any locally made key. Should you require duplicate key, place your order with MARUTI dealer only.

60G-74E

60G-04-002E

LOCK

This is the normal parking position. It is the only position in which the key can be removed.

You must push in the key to turn it to the "LOCK" position. The "LOCK" position locks

the ignition, and prevents normal use of the

steering wheel after the key is removed. To release the steering lock, fully insert the

key and turn it clockwise to one of the other positions. If you have trouble turning the key to unlock the steering, try turning the steering wheel slightly to the right or left while turning the key.

4-1

Page 16

6OG-74E

ACC

Accessories such as the radio can operate, but the engine is off.

This is the normal operating position. All electrical systems are on.

START

This is the position for starting the engine using the starter motor. The key should be released from this position as soon as the engine starts.

Never remove the ignition key while the vehicle is moving. The steering wheel will lock and you will not be able to steer the vehicle. Do not leave children alone In a parked vehicle. Unattended children

could cause accidental movement of the vehicle, which could result in severe personal Injury. Always remove the key when parked to prevent unintentional operation of the vehicle and to improve security.

CAUTION

Do not use the starter motor for

more than 15 seconds at a time. If the engine does not start; wait 15 seconds before trying again. If the engine does not start after several attempts, check the fuel and ignition systems or consult your MARUTI dealer. Do not leave the ignition switch in the "ON" position if the engine is not running as the battery will discharge.

STEERING COLUMN CONTROLS

LIGHTING/TURN SIGNAL CONTROL LEVER

60G-04-003

This control lever is located on the outboard side of the steering column. Operate the lever as described below.

Lighting Operation

To turn the lights on or off, twist the knob on the end of the lever. There are three positions: in the "OFF" position all lights are off; in the middle position the front parking lights, taillights, registration plate light, and instrument lights are on, but the headlights are off; in the third position the headlights come on in addition to the other lights.

STEERING COLUMN CONTROLS

60G-04-004E

With the headlights on, push the lever forward to switch to the high beams (main beams) or pull the lever toward you to switch to the low beams. When the high beams (main beams)

are on, a light on the instrument panel will come on. To flash the high beams (main beams) pull the lever slightly towards you and release it.

Lights "On" Reminder (if Equipped)

A buzzer/chime sounds to remind you to turn off the lights if they are left on when the ignition

key is removed and the driver's door is opened.

60G-04-005

Turn Signal Operation

With the ignition switch in the "ON" position,

move the lever up or down to activate the left

or right turn signals.

Normal Turn Signal

Move the lever clockwise until it clicks to signal a right turn or anticlockwise to signal a left turn. When the turn is completed, the signal

will cancel and the lever will return to its normal position.

4-2

60G-74E

6OG-04-006

60G-04-006

Lane Change Signal

Some times, such as when changing lanes, the steering wheel is not turned far enough to cancel the turn signal. For convenience, you can flash the turn signal by moving the

lever part way and holding it there. The lever will return to its normal position when you release it.

4-3

Page 17

60G-74E

WINDSCREEN WIPER AND WASHER LEVER

STEERING COLUMN CONTROLS

60G-04-007E

Windscreen Wipers

To turn the windscreen wipers on, move the

lever down to one of the three operating positions. In the "INT position (if equipped),

the wipers operate intermittently. The "INT'

position is very convenient for driving in mist or light rain. In the "LO" position, the wipers operate at a steady low speed. In the "HI" position, the wipers operate at a steady high speed. To turn off the wipers, move the lever back to the "OFF position.

STEERING COLUMN CONTROLS

60G-04-008E

If the lever is equipped with "INT TIME" control, turn the control toward the "SLOW" or "FAST' positions to adjust the intermittent wiper operation to the desired interval.

60G-04-011E

The operation of windscreen wiper and washer Type-2 is same as Type-1.

HORN

60G-04-009E

Windscreen Washer

To spray windscreen washer fluid, pull the lever toward you. The windscreen wipers will automatically turn on at low speed if they are not already on and the "INT" position is equipped.

To prevent windscreen icing in cold

weather, turn on the defroster to heat the windscreen before and during windscreen washer use.

Do not use radiator antifreeze in the windscreen washer reservoir. It can severely impair visibility when sprayed on the windscreen, and can also damage your vehicle's paint.

4-4

60G-74E

REAR WIPER AND WASHER (if equipped)

CAUTION

To help prevent damage to the windscreen wiper and washer system components, you should take the following precautions:

• Do not continue to hold in the lever when there is no windscreen washer

fluid being sprayed or the washer

motor can be damaged.

• Do not attempt to remove dirt from a dry windscreen with the wipers or you can damage the windscreen and the wiper blades. Always wet the windscreen with washer fluid before operating the wipers.

• Clear ice or packed snow from the wiper blades before using the wipers.

• Check the washer fluid level

regularly. Check it often when the

weather is bad.

• Only fill the washer fluid reservoir 3/4 full during cold weather to allow

room for expansion if the temperature falls low enough to freeze the solution.

60G-04-010

Press the horn button of the steering wheel to

sound the horn. The horn will sound with the

ignition switch in any position.

Press the button located at the end of the windscreen wiper and washer lever to operate the rear washer and turn the lever anti clockwise to operate the rear washer.

4-5

Page 18

60G-74E

INSTRUMENT PANEL

Instrument Panel 5-1 Instrument Cluster 5-2 Warning and Indicator Lights 5-3 Speedometer/Odometer/Tripmeter (if equipped) 5-5 Tachometer (if equipped) 5-6 Fuel Gauge 5-6 Temperature Gauge 5-6 Hazard Warning Switch 5-7 Rear Window Defroster Switch (if equipped) 5-7 Cigarette Lighter (if equipped) 5-7 Ashtray 5-8 Glove Box 5-8 Heating System (if equipped) 5-9 System Operating Instructions 5-10 Air Conditioning System (if equipped) 5-13 System Operating Instructions 5-13

INSTRUMENT PANEL

60G-74E

1. Instrument cluster

2. Ignition switch

3. Lighting switch/Turn signal and dimmer switch

4. Windscreen wiper and washer switch

5. Hazard warning switch

6. Rear window defroster switch (if equipped)

7. Other switches (if equipped)

8. Heater control panel

9. Audio system (if equipped)

10. Cigarette lighter (if equipped)

11. Ashtray

12. Bonnet release

13. Center ventilator

14. Side ventilator

15. Side defroster

16. Glove box

17. Fuse box

18. Cup holder (if equipped)

5-1

Page 19

60G-74E

INSTRUMENT CLUSTER

INSTRUMENT PANEL

60G-05-002

INSTRUMENT PANEL 60G-74E

WARNING AND INDICATOR LIGHTS

2) Test the brakes by carefully starting and stopping at the side of the road.

3) If you determine that it is safe, drive carefully at low speed to the nearest dealer for repairs.

Have the vehicle towed to the nearest

Brake fluid level warning/Parking Brake

70F-07-070

Indicator light

This light operates under three conditions:

1) when the ignition switch is turned to the "START' position, 2) when the fluid in the brake fluid reservoir falls below the specified level

or 3) when the parking brake is not fully released and the ignition switch is in the "ON" position. The light should go out after starting

the engine and fully releasing the parking

brake, if the fluid in the brake fluid reservoir is adequate. If the light does not go off or comes on whilst you are driving, it may mean that there is something wrong with the vehicle's braking system. If this happens, you should:

1) Pull off the road and stop carefully.

dealer for repairs.

If any of the following conditions occur, you should Immediately ask your

MARUTI dealer to inspect the brake

system.

• If the brake fluid level warning light does not go out after the engine has

been started and the parking brake has been fully released.

• If the brake fluid level warning light

does not come on when the ignition switch is turned to the "START" position.

• If the brake fluid level warning light

comes on at any time during vehicle operation.

Oil Pressure Light

This light comes on when the ignition switch is turned on, and goes out when the engine is started. The light will come on and remain on if there is insufficient oil pressure. If the light comes on when driving, pull off the

road as soon as you can and stop the

engine. Check the oil level and add oil if

necessary (see pages 9-8 and 9-9). If there is enough oil, the lubrication system should be inspected by your MARUTI dealer before

you drive the vehicle again.

70F-03-039

NOTE:

Remember that stopping distance may be longer, you may have to push harder on the pedal, and the pedal may go down farther than normal.

Because the disc brake system is self adjusting, the fluid level will drop as the brake pads become worn.

Replenishing the brake fluid reservoir is

considered normal periodic maintenance.

5-3

5-2

Page 20

60G-74E

INSTRUMENT PANEL

CAUTION

If you operate the engine with this light on, severe engine damage can result. Do not rely on the Oil Pressure Light

to indicate the need to add oil. Be

sure to periodically check the engine oil level (see pages 9-8 and 9-9).

INSTRUMENT PANEL

60G-09-002

70F-03-009

Charging Light

This light comes on when the ignition switch

is turned on, and goes out when the engine is

started. The light will come on and remain on

if there is something wrong with the battery

charging system. If the light comes on when

the engine is running, the charging system

should be inspected immediately by your

MARUTI dealer.

CAUTION

Do not continue driving long with the

charging light ON as this will drain the

battery 'dead'.

"Malfunction Indicator" Light

72F-05-027

Your vehicle has a computer-controlled emission control system. A "Malfunction

Indicator" light is provided on the instrument panel to indicate when it is necessary to have the emission control system serviced. The "Malfunction Indicator" light comes on when the ignition switch is turned to "ON" and goes out when the engine is started.

If the "Malfunction Indicator" light comes on when the engine is running, there is a problem with the emission control system. Take the vehicle to your MARUTI dealer to have the problem corrected.

CAUTION

Continuing to drive the vehicle when the "Malfunction Indicator" light is on can cause permanent damage to the vehicle's emission control system, and can affect fuel economy and driveability.

5-4

60G-74E

70F-03-042

Turn Signal Indicators When you turn on the left or right turn signals, the corresponding green arrow on the

instrument panel will flash along with the respective turn signal lights. When you turn on the hazard warning switch, both arrows will

flash along with all of the turn signal lights.

70F-03-043

Main Beam (High Beam) Indicator Light This indicator comes on when headlight main beams (high beams) are turned on.

SPEEDOMETER/ODOMETER/ TRIPMETER (if equipped)

60G-05-003

The speedometer indicates vehicle speed in

km/h.The odometer records the total distance the vehicle has been driven. The tripmeter can be used to measure the distance travelled on

short trips or between fuel stops. You can reset the tripmeter to zero by pushing the reset

knob.

CAUTION

Keep track of your odometer reading and check the maintenance schedule regularly for required services.

Increased wear or damage to certain parts can result from failure to perform required services at the proper mileage intervals and your warranty rights may be affected.

5-5

Page 21

60G-74E

INSTRUMENT PANEL

TACHOMETER (if equipped)

60G-05-004

The tachometer indicates engine speed in revolutions per minute.

Never drive with the engine speed indicator in the red zone or severe

engine damage can result.

FUEL GAUGE TEMPERATURE GAUGE

60G-05-005

This gauge gives an approximate indication of the amount of fuel in the fuel tank as shown in figure. "P stands for full and "E" stands for empty.

If the indicator gets in the red zone, refill the tank as soon as possible.

Note:

This vehicle has fuel gauge of new design. Even when the ignition switch is "OFF", the needle will not return to "E" position but will show the reading.

When the ignition switch is on, this gauge

indicates the engine coolant temperature. Under normal driving conditions, the indicator should stay within the normal, acceptable

temperature range between "H" and "C". If the

indicator approaches "H", and maintains that reading, overheating is indicated. Follow the instructions for engine overheating in the EMERGENCY REMEDIES section.

CAUTION

Continuing to drive the vehicle when engine overheating is indicated, can result in severe engine damage.

60G-05-006

INSTRUMENT PANEL

HAZARD WARNING SWITCH

60G-05-007

Push in the hazard warning switch to activate the hazard warning lights. All four turn signal lights and both turn signal indicators will flash simultaneously. To turn off the lights, push the switch again.

Use the hazard warning lights to warn other traffic during emergency parking or when your vehicle could otherwise become a traffic hazard.

60G-74E

REAR WINDOW DEFROSTER SWITCH CIGARETTE LIGHTER (if equipped) (if equipped)

60G-05-008

When the rear window is misted, push this

switch to clear the window. An indicator light

will be lit when the defroster is on. The

defroster will only work when the ignition

To use the cigarette lighter, push it all the way

into the receptacle and release it. It will automatically heat up and will pop out to its normal position when it is ready for use.

60G-05-009

switch is in the "ON position. To turn off the

defroster, push the switch again.

CAUTION

The rear window defroster uses a large amount of electricity. Be sure to turn off after the window has become clear.

5-6

5-7

Page 22

60G-74E

INSTRUMENT PANEL

ASHTRAY

60G-05-010

Front Ashtray

To remove the front panel ashtray for cleaning, push down on the metal plate, and pull the ashtray completely out of its holder.

843-05-011E

Rear Ashtray

To remove the rear ashtray, push down on the

tongue and pull the ashtray out of its holder.

Make sure tobacco is fully extinguished before closing the ashtray. Never throw waste in the ashtray: it could create a fire hazard.

GLOVE BOX

60G-05-011

To open the glove box, pull the latch lever. To close it, push the lid until It latches securely.

If a lock is equipped on the latch lever, lock the glove box by inserting the key and turning it clockwise and unlock the glove box by turning the key counterclockwise.

Never drive with the glove box lid open. It could cause injury if an accident occurs.

INSTRUMENT PANEL

HEATING SYSTEM (if equipped)

The heating system provides heating demisting, and ventilation.

a. Windscreen defroster b. Side defroster c. Side outlet d. Center outlet e. Floor outlet

5-8

60G-74E

60G-05-012

5-9

RECIRCULATED AIR FRESH AIR

60G-05-013

Page 23

60G-74E

INSTRUMENT PANEL

Description of Controls

Function Buttons ©: These buttons are used

to select one of the functions described below:

VENTILATION ©: Temperature-

70F-03-029

70F-03-030

70F-03-031

70F-03-032

controlled air comes out of the center and side air outlets.

BI-LEVEL ®: Temperaturecontrolled air comes out of the floor outlets and cooler air comes out of the center and side outlets. When the temperature control lever is in the fully "COOL" position or fully "HOT" position, however, the air from the floor outlets and the air from the center and side outlets will be the same temperature.

HEAT ©: Temperature-controlled air comes out of the floor outlets.

HEAT & DEFROST ©: Temperature-controlled air comes out of the floor outlets, the windscreen de-

froster outlets, and the side defroster

outlets.

DEFROST ©: Temperaturecontrolled air comes out of the windscreen defroster outlets and the side defroster outlets.

Air Intake Lever ©:This lever is used to select

between circulating outside air (FRESH AIR) or recirculating inside air (RECIRCULATED AIR).

Temperature Control Lever ©: This lever is

used to control the temperature of the air that

comes out of the air outlets.

Fan switch ©: This switch is used to turn on the fan and to select fan speed. There are five

positions: OFF, LOW, MEDIUM, MEDIUM

HIGH and HIGH.

SYSTEM OPERATING INSTRUCTIONS

60G-05-014

Natural Ventilation

Push the "VENTILATION" button and move the air intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to "OFF. Fresh air will flow through the vehicle when it is moving.

INSTRUMENT PANEL

60G-05-015

Forced Ventilation

The lever settings are the same as for natural ventilation except you move the fan switch to a position other than "OFF".

A/C

OFF

| | ••

= =11

60G-05-016

Normal Heating (Using outside air)

Push the "HEAT" button and move the air

intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to the desired fan speed position. Moving the fan switch to a higher fan speed position increases heating efficiency.

5-10

60G-74E

60G-05-017

Quick Heating (Using recirculated air)

The lever settings are the same as for normal

heating except you move the air intake lever to "RECIRCULATED AIR". If you use this heating method for an extended period of time,

the air in the vehicle can become

contaminated and the windows can become misty. Therefore, use this method only for quick heating and change to the normal heating method as soon as possible.

5-11

Page 24

60G-74E

INSTRUMENT PANEL

60G-05-018

Cool Face/Warm Feet

Push the "BI-LEVEL" button and move the air intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to the desired fan speed position. Unless the temperature control lever is in the fully "COOL" position or fully "HOT position, the air that comes out of the center and side outlets will be cooler than the

air that comes out of the floor outlets.

INSTRUMENT PANEL

AIR CONDITIONING SYSTEM

(if equipped)

60G-05-019

Defrosting/Warm Feet

Push the "HEAT & DEFROST' button and move the air intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to "HIGH". When the windscreen has become clear, move the fan switch to the desired fan speed position.

SYSTEM OPERATING INSTRUCTIONS

60G-05-020

Defrosting

Push the "DEFROST' button and move the air intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to "HIGH" Moving the temperature control lever to a higher temperature position increases defrosting efficiency. When the windscreen has become clear, move the fan switch to the desired fan speed position.

5-12

60G-74E

60G-05-021

The air conditioning system can be used to

provide cooling and dehumidifying, as described below. To turn on the air conditioning system, push in the A/C button and move the fan switch to a position other than "OFF". An

indicator light will come on when the air conditioning system is on. To turn off the air conditioning system, push the A/C button again.

During operation of the air conditioner, you may

notice slight changes in engine speed. These changes are normal, the system is designed so that the compressor turns on or off to

maintain the desired temperature. Less

operation of the compressor results in better

fuel economy.

5-13

60G-05-022

Normal Cooling (using outside air) Push in the A/C button and the

"VENTILATION" button, and the move the air

intake lever to "FRESH AIR", the temperature control lever to the "COOL" position, and the fan switch to the desired fan speed position.

Moving the fan switch to a higher fan speed

position increases cooling efficiency.

If the ambient temperature is high enough to cause insufficient cooling, use the "Quick Cooling" as following.

60G -05-023

Quick Cooling (Using recirculated air) The lever settings are the same as for normal cooling except you move the air intake lever to "RECIRCULATED AIR". If you use this cooling method for a extended period of time, the air in the vehicle can become contaminated. Therefore, you should occasionally move the air intake lever to

"FRESH AIR".

NOTE: If your vehicle has been left in the sun with

the windows closed, it will cool faster if you open the windows briefly while you operate the air conditioner with the air intake lever at "FRESH AIR" and the fan at high speed.

Page 25

60G-74E

INSTRUMENT PANEL

60G-05-024

Dehumidifying

Push in the A/C button, and the desired function button and move the air intake lever to "FRESH AIR", the temperature control lever to the desired temperature position, and the fan switch to the desired fan speed position.

NOTE: Because the air conditioner dehumidifies the air, turning it on will help keep the windows clear, even when blowing heated air using the DEMIST or HEATER & DEMIST functions.

NOTE:

There are two types of air conditioning systems used in MARUTI vehicles. One type uses refrigerant CFC-12, commonly called R-

12; the other type uses the new refrigerant HFC-134a, commonly called R-134a. For each system, the correct refrigerant must be used.

To identify the system, a label that states

"R134a" or "HFC 134a" is stuck on the front side of the engine compartment if the system uses R-134a refrigerant.

60G-05-025

CAUTION

Using the wrong refrigerant may damage the air conditioning system. Use correct refrigerant only. Do not mix the two refrigerants.

5-14

Page 26

60G-74E

OTHER CONTROLS AND EQUIPMENT

Parking Brake Lever 6-1 Pedals 6-2 Gear Lever 6-2 Fuel Filler Cap 6-3 Folding Rear Seats 6-4 Sun Visor 6-5 Interior Light Switch 6-5 Assist Grips 6-5

Bonnet 6-6

Cup Holder (if equipped) 6-7 Tyre Changing Tools 6-7 Luggage Compartment Trim 6-8 Trunk (Boot) Light 6-8 Front Seat Back Pocket (if equipped) 6-9 Rear spoiler with Stop lamp (if equipped) 6-9 Alloy Wheels (if equipped) 6-9 Power Antenna (if equipped) 6-10 Leather Cover (if equipped) 6-10

High Mount Stop Lamp 6-10

OTHER CONTROLS AND EQUIPMENT

Page 27

OTHER CONTROLS AND EQUIPMENTS

PARKING BRAKE LEVER

63B-06-001E

The parking brake lever is located between the seats. To apply the parking brake, hold the brake pedal down and pull the parking brake lever all the way up.

63B-06-002E

To release the parking brake, hold the brake

pedal down, pull up slightly on the parking brake lever, push the button on the end of the lever with your thumb, and lower the lever to its original position.

60G-74E

Never drive your vehicle with the parking brake on: rear brake effectiveness can be reduced from over heating, brake life may be shortened, or permanent brake damage may result. If the parking brake does not hold the vehicle securely or does not fully release, have your vehicle inspected immediately by an authorized

MARUTI dealer.

Always apply the parking brake fully

before leaving your vehicle or it may move, causing injury or damage. When parking, make sure the gear shift lever is left in first gear or reverse. Remember, even though the

transmission is in gear, you must

always apply the parking brake fully.

6-1

60G-74E

PEDALS

60G-06-001

Clutch Pedal © The clutch pedal is used to disengage the drive to the wheels when starting the engine, stopping, or shifting the transmission lever. Depressing the pedal disengages the clutch.

CAUTION

Do not drive with your foot resting on the clutch pedal. It could result in excessive clutch wear, clutch damage, or unexpected loss of engine braking.

Brake Pedal ®

Your MARUTI vehicle is equipped with front disc brakes and rear drum brakes. Depressing the brake pedal applies both sets of brakes.

You may hear occasional brake squeal when you apply the brakes. This is a normal condition caused by environmental factors such as cold, wet, snow, etc.

If brake squeal is excessive and occurs each time the brakes are applied, you should have the brakes checked by your MARUTI dealer.

A WARNING

Do not "ride" the brakes by applying

them continuously or resting your foot

on the pedal. This will result in overheating of the brakes which could cause unpredictable braking action, longer stopping distances, or permanent brake damage.

Accelerator Pedal ®

This pedal controls the speed of the engine.

Depressing the accelerator pedal increases power output and speed.

OTHER CONTROLS AND EQUIPMENT

GEAR LEVER

70F-04-005E

The gear change pattern is shown in the illustration. For details on how to use the transmission, refer to USING THE TRANSMISSION in the OPERATING YOUR VEHICLE section.

6-2

Page 28

OTHER CONTROLS AND EQUIPMENTS

FUEL FILLER CAP

60G-74E

60G-06-002

The fuel filler cap is located on the left rear side of the vehicle. The fuel filler lid can be

unlocked by pulling up the opener lever located on the outboard side of the driver's seat and locked by simply closing the lid.

Remove the fuel filler cap slowly. The fuel may be under pressure and may spray out, causing injury.

6-3

60G-74E

Petrol Is extremely flammable. Do not smoke when refuelling, and make sure there are no open flames or sparks in the area.

60G-06-OO3

The fuel tank filler cap has a "screw-on ratcheting type" feature.

• To remove - turn the cap counterclockwise. Turn the cap slowly to allow any residual

pressure to escape.

• To install - turn the cap clockwise and

tighten it securely until a "ratcheting" (clicking) sound is heard. The "ratcheting" sound indicates that the cap is on properly.

OTHER CONTROLS AND EQUIPMENT

70F-04-008E

If you need to replace the fuel cap, use only a cap specified for your model. Using an improper fuel cap can cause a serious malfunction of the fuel system. You can get the correct replacement cap from your MARUTI dealer.

FOLDING REAR SEATS

63B-06-013

The rear seat of your vehicle can be folded forward ro provide additional luggage space.

To lower the seatback, hook the webbing of

both outboard lap-shoulder belts in the belt

hangers, pull up the lock knobs (© and @) simultaneously and fold forward the seatback. To raise the seatback, lift it up and push back

until it locks into place.

When you move a seatback, make sure the belt webbing is hooked in the belt hangers (if equipped) so the seat belts are not caught by the seatback, seat

hinge, or seat latch.This helps prevent

damage to the belt system.

63B-06-014

When returning a rear seat to the

normal position, make sure that movement of the seatback is unobstructed and the seatback is securely latched.

6-4

Page 29

OTHER CONTROLS AND EQUIPMENTS

60G-74E

Luggage or other cargo should be stowed in the luggage compartment with the rear seat in an upright position, whenever possible. If you need to carry cargo in the passenger compartment with the rear seat back folded forward, be sure to secure the cargo or it may be thrown about, causing injury. Never pile cargo higher than the seatbacks.

SUN VISOR

70F-04-024

The sun visors can be pulled down to block glare coming through the wind screen, or they can be unhooked and turned to the side to block glare coming through the side window.

CAUTION

When unhooking and hooking a sun visor, be sure to handle it by the hard plastic parts or the sun visor can be damaged.

INTERIOR LIGHT SWITCH

60G-06-004

This light switch has three positions which function as described below:

regardless of whether the door is open or closed.

opened.

® The light remains off even when the door

is opened.

NOTE: Both Front and Rear doors are involved in lighting operation of the interior light.

6-5

60G-74E

ASSIST GRIPS

70F-04-015

Assist grips are provided for passenger convenience.

Do not hang Herns on the assist grips.

They could obstruct the driver's view,

resulting in an accident, or could be

thrown about in an accident or abrupt

manoeuvre, causing injury.

BONNET

60G-06-005

To open the bonnet:

1) Pull the bonnet release handle located on the outboard side of the driver's side of the instrument panel. This will disengage the bonnet lock halfway.

OTHER CONTROLS AND EQUIPMENT

60G-06-006

Push the under-bonnet release lever

2) sideways with your finger, as shown in the

illustration. While pushing the lever, lift up the bonnet.

6-6

Page 30

OTHER CONTROLS AND EQUIPMENTS

60G-74E

60G-06-007

Continue to lift up the bonnet until it is high

3) enough to support with the prop rod.

Make sure the bonnet Is fully closed and latched before driving. If it is not, it can fly up unexpectedly during driving, obstructing your view and resulting in an accident.

CUP HOLDER (if equipped)

60G-06-008

To use the cup holder, pull it out fully. After using the holder, push it back in.

Do not use the cup holder to hold cups containing hot liquids, or objects other than cups. Objects in the cup holder may be thrown about during a sudden stop or impact, and could cause personal injury.

TYRE CHANGING TOOLS

60G-06-009

The jack, wheel wrench and jack crank are

stowed in the luggage compartment behind

the rear seat. To remove the jack, turn its shaft

counterclockwise and pull the jack out of the storage bracket. To stow the jack, place it in the storage bracket and turn the shaft clockwise until the jack is securely held in place.

6-7

60G-74E

60G-06-010

The jack should be used only to change wheels. It is important to read the jacking Instructions in the EMERGENCY SERVICE section of this manual before attempting to use the jack.

OTHER CONTROLS AND EQUIPMENT

LUGGAGE COMPARTMENT TRIM TRUNK (BOOT) LIGHT (if equipped)

Luggage or other cargo placed in the luggage

compartment are hidden from view by a

luggage compartment trim.

Do not carry items on top of the luggage compartment trim, even if they are small and light. Objects on top of

the trim could be thrown about In an

accident, causing injury, or could obstruct the driver's rear view.

6OG-O6-O11

When you open the trunk (boot) lid, the trunk (boot) light comes on and remains on as long as you keep the lid open.

Do not leave the boot (trunk) lid open for a long time, or the battery will discharge.

After using the jack, jack crank and wheel wrench, be sure to stow them securely or they can cause injury if an accident occurs.

6-8

Page 31

OTHER CONTROLS AND EQUIPMENTS

60G-74E

FRONT SEAT BACK POCKET

(if equipped)

63B-06-022

This pocket is provided for holding light and

soft things such as gloves, newspapers or magazines.

Do not put hard or breakable objects In the pocket. If an accident occurs, objects such as bottles, cans etc. can injure the occupants in the rear seat.

REAR SPOILER WITH STOP LAMP

Other Controls (if equipped)

60G-50-002E

Rear Spoiler is provided to improve aerodynamic stability at higher speeds and better asthetics. Stop Lamp (if equipped) is

fitted inside the Rear Spoiler. The stop lamp

will glow as and when the Brake Pedal is depressed.

CAUTION

Never close the dicky door too hard or with jerk or lift the dicky by holding spoiler, rear spoiler may get damaged. Close the dicky door gently and make sure it is closed properly.

ALLOY WHEELS Maintenance with tyre wears (if equipped)

60G-50-003E

Wider alloy wheels are provided in the vehicle

for better grip on the road and more fuel economy. For balancing of wheels please consult MARUTI authorised workshop.

CAUTION

Never try to remove the tyre from alloy wheel rim in convention manner (by hammering), it will damage the wheel rim. Always insist on tyre changing machine.

6-9

60G-74E

POWER ANTENNA Other Controls

(if equipped)

Power antenna on the rear side will

automatically come up on switching on the

AM/FM receiver fitted in the vehicle.

60G-50-004E

LEATHER COVER Steering Column Controls (if equipped)

60G-50-006E

For better control on steering wheel leather cover is provided.

OTHER CONTROLS AND EQUIPMENT

HIGH MOUNT STOP LAMP (if equipped)

High mount stop lamp is provided with your vehicle and is fitted on rear parcel tray. The stop lamp will glow as when the brake pedal will be depressed.

To change the bulb of the stop lamp, remove the clips at both sides of the cover, by pressing the inner pin inside so that the clip gets loose and remove the bulb on turning it anticlock-wise

The rating of bulb is 21W/12V.There are one bulb in high mount stop lamp.

6-10

Page 32

S0G-74E

OPERATING YOUR VEHICLE

Exhaust Gas Warning 7-1 Daily Inspection Checklist 7-1 Starting the Engine 7-2 Using the Transmission 7-3 Braking 7-4

Running-in 7-5 Catalytic Converter (if equipped) 7-6 Improving Fuel Economy 7-7 Trailer Towing 7-7

OPERATING YOUR VEHICLE

OPERATING YOUR VECHILE

EXHAUST GAS WARNING

60G-07-001E

Avoid breathing exhaust gases. Exhaust gases contain carbon monoxide, a potentially lethal gas that is colourless and odourless. Since carbon monoxide is difficult to detect by itself, be sure to take the following precautions to help prevent carbon monoxide from entering your vehicle.

• Do not leave the engine running in garages or other confined areas.

• Do not park with the engine running for a long period of time, even in an open area. If it is necessary to sit for a short time in a parked vehicle <=>

7-1

with the engine running, make sure the air intake lever is set to "FRESH AIR" and the fan is at high speed. To allow proper operation of your vehicle's ventilation system, keep the air inlet grille in front of the windscreen clear of snow, leaves, or other obstructions at all times.

Keep the exhaust tailpipe area clear of snow and other material to help reduce the buildup of exhaust gases

under the vehicle.This is particularly

important when parked in blizzard conditions.

Have the exhaust system inspected

periodically for damage and leaks.

Any damage or leaks should be

repaired immediately.

60G-74E

DAILY INSPECTION CHECKLIST

70F-05-007

Before driving:

1) Make sure that windows, mirrors, lights, and reflectors are clean and unobstructed.

2) Check the tyres.

3) Look for fluid and oil leaks.

NOTE: It is normal for water to drip from the air conditioning system after use.

4) Adjust the seat/head restraint.

5) Check the brake pedal and the parking brake lever.

6) Adjust the mirrors.

7) Make sure that you and passengers have properly fastened your seat belts.

8) Make sure that all warning lights come on

as the key is turned to the "ON" or "START' position.

9) Check all gauges.

10) Make sure that the brake fluid level warning light is off when the parking brake is released with the ignition switch in "ON" position.

Page 33

60G-74E

OPERATING YOUR VEHICLE

STARTING THE ENGINE

Once a week, or each time you fill your fuel tank, perform the following under-bonnet checks:

1) Engine oil level.

2) Coolant level.

3) Brake fluid level.

4) Power steering (if equipped) fluid level.

5) Windscreen washer fluid level.

6) Battery solution level.

7) Bonnet latch operation. Pull the bonnet release handle inside the vehicle. Make sure that you can not open the hood all the way without releasing the secondary latch. Be sure to close the hood securely after checking for proper operation. See "All Latches, Hinges & Locks" of "PERIODIC MAINTENANCE SCHEDULE" in the "INSPECTION AND MAINTENANCE" section for lubrication schedule.

Make sure the bonnet is fully closed and latched before driving. If it is not, it can fly up unexpectedly during driving, obstructing your view and resulting in an accident.

Before starting the engine:

1) Make sure the parking brake is applied fully.

2) Manual Transmission - Shift into "N" (neutral) and depress the clutch pedal all the way to the floor. Hold it while starting the engine.

Make sure that the parking brake is

applied fully and the transmission is in

Neutral before attempting to start the

engine.

CAUTION

Stop turning the starter immediately after the engine has started or the starter system can be damaged. Do not crank the engine for more than 15 seconds at a time. If the engine doesn't start on the first try, wait about 15 seconds before trying again.

Starting a Cold Engine

Engine which is started after 6 hours should be treated as cold engine.

For Electronic fuel injection models

• With your foot off the accelerator pedal, crank the engine by turning the ignition key to "START1. Release the key when the engine starts.

• If the engine does not start after 15 seconds of cranking, wait about 15 seconds, then press down the accelerator pedal to 1/3 of its travel and try cranking the engine again. Release the key and accelerator pedal when the engine starts.

• If the engine still does not start, try holding the accelerator pedal all the way to the floor while cranking. This should clear the engine if it is flooded.

Starting a Warm Engine For Electronic fuel injection models:

Use the same procedure as for "Starting a cold Engine".

OPERATING YOUR VECHILE

USING THE TRANSMISSION

70F-04-005E

Starting off

To start off, depress and maintain pressure upon the clutch pedal and change into 1st gear. After releasing the parking brake, gradually release the clutch. When you hear a change in the engine's sound (speed), gently apply pressure to the accelerator to keep the engine sound (speed) constant whilst continuing to gradually release the clutch.

Gear changing

All forward gears are synchronized, which

provides for quiet, easy changing. Always depress the clutch pedal fully before changing gears.The following table shows the maximum allowable speed for each gear.

GEAR

First Second Third Fourth

Fifth

7-2

60G-74E

MAXIMUM SPEED

50 km/h 95 km/h

140 km/h Top Speed Top Speed

7-3

Page 34

60G-74E

OPERATING YOUR VEHICLE

BRAKING

Reduce your speed and change down to a lower gear before going

down a long or steep hill. A lower gear will allow the engine to provide braking. Avoid riding the brakes or they may overheat, resulting in brake failure. When driving on slippery roads, be sure to slow down before changing down. Excessive and or sudden changes in engine speed may cause

loss of traction, which could cause you to lose control.

Make sure that the vehicle is completely stationary before you change into reverse.

CAUTION

To help avoid clutch damage, do not use the clutch pedal as a footrest while driving or use the clutch to keep the vehicle stationary on a hill. Depress the clutch fully when changing gear. When changing gears or starting off, do not race the engine. Racing the engine can shorten engine life and prevent smooth operation.

The distance needed to bring any vehicle to a halt increases with the speed of the vehicle. The braking distance needed, for example, at 60 km/h will be approximately 4 times greater than the braking distance needed at 20 km/h. Start to brake the vehicle when there is plenty of distance between your vehicle and the stopping point, and slow down gradually.

If water gets into the brake drums,

brake performance may become poor and unpredictable. After driving through water or washing the underside of the vehicle, test the brakes while driving at a slow speed to see if they have maintained their normal effectiveness. If the brakes are less effective than normal, dry them by repeatedly applying the brakes while driving slowly until the brakes have regained their normal effectiveness.

OPERATING YOUR VECHILE

Servo assisted brakes

Your vehicle has servo assisted brakes which works with the assistance of engine vacuum.

Do not switch off the engine while vehicle is in motion, for example, while driving down a hill as this will cause loss of vacuum assistance leading to reduction of braking efficiency substantially.

If servo assistance is lost due to a stalled engine or other failures, the system is still fully operational on reserve power and you can bring the vehicle to a complete stop by pressing the brake pedal once and holding it down. The reserve power is partly used up each time you depress the brake pedal. Apply smooth and constant pressure to the pedal. Do not pump the pedal.

Even without reserve power in the brake system, you can still stop the vehicle by pressing the brake pedal harder than normally required.

However, the stopping distance may be

lonaer.

On loose surface where the wheels can easily loose traction (such as gravel, etc.), the stopping distance required for your vehicle may be greater than for a comparable vehicle with a conventional

brake system. Allow for extra stopping distance when driving on loose surfaces.

7-4

60G-74E

RUNNING-IN

CAUTION

The future performance and reliability of the engine depends on the care and restraint exercised during its early life. It is especially important to observe the following precautions during the initial 1000 km of vehicle operation.

• After starting, do not race the engine. Warm it up gradually.

• Avoid prolonged vehicle operation at a constant speed. Moving parts will bed in better if you vary your speed.

• Do not exceed 100 km/h.

• Start off from a stop slowly. Avoid full throttle starts.

• If possible, avoid hard braking, especially during the first 300 km of driving.

• Do not drive slowly with the transmission in a high gear.

• Drive the vehicle at moderate engine speeds.

7-5

Page 35

60G-74E

CATALYTIC CONVERTER (if equipped)

70F-05-005

The purpose of the catalytic converter installed on your vehicle is to convert exhaust pollutants to harmless water vapour, carbon dioxide, and nitrogen. Use of leaded fuel in vehicles equipped with catalytic converters is prohibited, because lead deactivates the pollutant-reducing components of the catalyst system.

It is very important to keep the engine properly tuned. Engine misfiring, which can result from an improperly tuned engine, may cause overheating of the catalyst. This may result in

permanent heat damage to the catalyst and other vehicle components.

CAUTION

To minimize the possibility of catalyst or other vehicle damage:

• Maintain the engine in the proper operating condition.

• In the event of an engine malfunction, particularly one involving engine misfire or other apparent loss of performance, have the vehicle serviced promptly.

• Do not turn off the engine or interrupt the ignition when the transmission is in gear and the vehicle is in motion.

• Do not try to start the engine by

pushing or towing the vehicle, or

coasting down a hill.

• Do not idle the engine with any spark

plug wires disconnected or removed, such as during diagnostic

testing.

• Do not idle the vehicle for prolonged

periods if idling seems rough or

there are other malfunctions.

• Do not allow the fuel tank to get near the empty level.

OPERATING YOUR VEHICLE

60Q-07-002E

Be careful where you park and drive;

the catalytic converter and other

exhaust components can get very hot. As with any vehicle, do not park or operate this vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust system.

OPERATING YOUR VECHILE

IMPROVING FUEL ECONOMY

The following instructions will help you improve fuel economy.

Avoid excessive idling:

If you are to wait for more than a minute while you are parked, stop the engine and start it again later. When warming up a cold engine, allow the engine to idle until the temperature gauge pointer comes up to the "C" position. In this position, the engine is sufficiently warm for starting off.

Avoid "fast" starts:

Fast starts away from lights or stop signs will consume fuel unnecessarily and shorten engine life. Start off slowly.

Avoid unnecessary stops:

Avoid unnecessary deceleration and stopping. Try to maintain a slow, steady speed whenever

possible. Slowing down and then accelerating

again uses more fuel.

Keep a steady cruising speed:

Keep as constant a speed as road and traffic

conditions will permit.

7-7

Air Outlet side (Facing up)

60G-09-010

Keep the air cleaner clean:

A dirty air cleaner will cause the carburation system to supply too much fuel to the engine for the amount of air being supplied. The result

is waste of fuel due to incomplete combustion.

Keep weight to a minimum:

The heavier the load, the more fuel the vehicle consumes. Take out any luggage or cargo when it is not necessary.

Keep tyre pressures correct:

Under-inflation of the tyres can waste fuel due

to increased running resistance of the tyres.

Keep your tyres inflated to the correct pressure shown on the label on the driver's side door or door lock pillar.

7-6

60G-74E

TRAILER TOWING

Your MARUTI was originally designed to carry people and a normal amount of cargo, not to tow a trailer. Maruti does not recommend you use your vehicle to tow a trailer.Towing a trailer can adversely affect handling, durability, and fuel economy.

Page 36

60G-74E

DRIVING TIPS AND SAFE DRIVING

High Speed Driving 8-1 Driving on Hills 8-1 Driving on Slippery Roads 8-2 Driving on Wet Roads 8-2 Do's and Don'ts for Safe Driving 8-3

DRIVING TIPS AND SAFE DRIVING

70F-06-001

Wear Your Seat Belts at All Times. The driver and passengers should

be property restrained at all times, using the seatbelts provided. Refer

to the "SEATBELTS" section for

instructions on proper use of the

seatbelts.

Never drive while under the influence of alcohol or other drugs. Alcohol and drugs can seriously impair your ability to drive safely,

greatly increasing the risk of injury to yourself and others. You should also avoid driving when you are tired, sick, irritated, or under stress.

8-1

HIGH-SPEED DRIVING

When driving at a high-speed, pay attention to the following:

• Stopping distance progressively increases with vehicle speed. Apply the brakes far enough ahead of the stopping point to allow for the extra stopping distance.

• On rainy days, "Aquaplaning" can occur. "Aquaplaning" is the loss of direct contact between the road surface and the vehicle's tyres due to a water film forming between them. Steering or braking the vehicle while "Aquaplaning" can be very difficult, and

loss of control can occur. Keep speed

down when the road surface is wet.

• At high speeds, the vehicle may be affected by side winds. Therefore, reduce

speed and be prepared for unexpected buffeting, which can occur at the exits of

tunnels, when passing by a cut of a hill, or

when being overtaken by large vehicles,

etc.

DRIVING ON HILLS

• When climbing steep hills, the vehicle may

begin to slow down and show a lack of power. If this happens, you should change

to a lower gear so that the engine will again

be operating in its normal power range.

Change rapidly to prevent the vehicle from

losing momentum.

60G-74E

When driving down a hill, the engine should be used for braking by shifting to next lower gear.

Try not to hold the brake pedal down too long or too often while going down a steep or long hill. This could cause the brakes to overheat, resulting in

reduced braking efficiency. Failure to

take this precaution could result in loss

of vehicle control.

CAUTION

When descending a down hill, NEVER turn the ignition key to the "OFF"

position. Emission control system and automatic transmission (if equipped) damage may result.

DRIVING ON SLIPPERY ROADS

Under wet road conditions you should drive at a lower speed than on dry roads due to possible slippage of tyres during braking. When driving on icy, snowcovered, or muddy roads, reduce your speed and avoid sudden acceleration, abrupt braking, or sharp steering movements.

Page 37

60G-74E

Snow Chains

If you must use snow chains to increase tyre

traction, observe the following precautions:

• Choose a safe place away from traffic to install the chains.

• When installing the chains carefully follow

the manufacturer's instructions.

• Install the chains on the front tyres.

• With the chains on, drive only at slow and moderate speeds.

• If Your Vehicle Gets Stuck If your vehicle gets stuck in snow, mud, or

sand, follow the directions below:

1) Change back and forth between first gear and reverse. This will create a rocking motion which may give you enough momentum to free the vehicle. Press gently on the accelerator to keep wheel spin to a minimum. Remove your foot from the accelerator while changing gear.

Do not race the engine. Excessive wheel spin will cause the tyres to dig deeper, making it more difficult to free the vehicle.

2) If your vehicle remains stuck after a few minutes of rocking, get another vehicle to pull you out.

Do not allow anyone to stand near the vehicle when you are rocking it, and do not spin the wheels faster than an indicated 40 km/h on the speedometer. Personal injury and/or vehicle damage may result from spinning the wheels

too fast.

CAUTION

Do not continue rocking the vehicle for more than a few minutes. Prolonged rocking can cause engine overheating or transmission damage.

DRIVING ON WET ROADS

CAUTION

When driving on wet roads, avoid driving through large amount of standing water on the road. Large amount of water entering the engine compartment may cause damage to the engine and or electrical components. If stuck in deep water, do not start till water level drops.

Water Is incompressible substance, water inside engine is harmful to the engine."

DRIVING TIPS AND SAFE DRIVING

Make sure your tyres are in good condition and always maintain the specified tyre pressure. Refer to

"TYRES" in the "INSPECTION AND MAINTENANCE" section for details.

Do not use tyres other than those specified by MARUTI. never use different sizes or types of tyres on the front and rear wheels. For

information regarding the specified tyres, refer to ^"SPECIFICATIONS" section.

Never use oversized tyres or special shock absorbers and springs to raise (jack up) your vehicle.This will change the handling characteristics. After driving through water, test the

brakes while driving at a slow speed to see if they have maintained their normal effectiveness. If the brakes are less effective than normal, dry them by repeatedly applying the

brakes while driving slowly until the

brakes have regained their normal effectiveness.

DRIVING TIPS AND SAFE DRIVING

DO'S AND DON'TS FOR SAFE

DRIVING

Exercise care in handling your vehicle. Be conscious of not only your own safety but also the safety of others on the road, and thus enjoy the best and most comfortable driving experience.

This section contains basic rules for safe driving. Read it carefully for good understanding of the content so that you can enjoy safe and pleasant driving in your Maruti vehicle.

72F-08-001

Starting

1. Adjust the driver's seat for the proper driving posture.

2. Adjust the rear view mirror so as to obtain the best possible rear view.

3. Before moving off, look forward and back to confirm safety.

8-2

60G-74E

72F-08-002

8-3

72F-08-003

Page 38

60G-74E

DRIVING TIPS AND SAFE DRIVING

72F-08-004

4. Don't start quickly, for it is dangerous and wastes fuel.

DRIVING TIPS AND SAFE DRIVING

72F-08-006

Always follow other vehicles at a safe distance in order to prevent a rear-end collision, should the vehicle ahead make a sudden stop.

72F-08-005

General driving

1. Be sure to stop before the stop light and stop sign. When moving into the intersection without any traffic lights or signs, drive slowly to confirm safety.

8-4

60G-74E

Turn ON the turn signal at least 30 meters before making a turn or changing the lane so as not to be hit from behind.

8-5

72F-08-007 72F-08-008

4. Before entering a corner, decelerate to a safe speed. Don't apply brakes during cornering, or a cornering skid may occur.

5. When overtaking other vehicles, watch out for the oncoming vehicle and carefully confirm the safety.

6. Don't attempt zigzag driving which will hinder your control over the vehicle and cause an accident.

72F-08-009

72F-08-010

Page 39

60G-74E

DRIVING TIPS AND SAFE DRIVING

72F-08-011

Braking

1. Use the parking brake when parking your vehicle and shift the gear shift lever into the first gear or reverse gear position for the sake of safety.

DRIVING TIPS AND SAFE DRIVING

72F-08-012

Don't use handbraking unless

unavoidable. It causes the vehicle to skid and a rear end collision occur. It is especially dangerous when the tyres are worn, for they allow a larger skid.

Use foot brake in three stages

(1) Warn the vehicle behind you

(2) Gradually apply the brake.

(3) Bring the vehicle to a halt.

72F-08-013

3. When driving on a downhill, try not to apply the brake but use the engine brake effectively. Overuse of the footbrake may

result in total brake failure.

8-6

60G-74E

Avoid reckless high speed driving and try to drive at a safe speed suitable for the

road conditions while maintaining a

constant speed.

8-7

72F-08-014

The higher the speed, the narrower the

5. driver's visual range becomes. In such a state, it is difficult to anticipate any hazard and the driver feels much fatigued.

Never do sharp handling during high speed driving. You will lose your control over your car.

When overtaking or changing the lane while driving at a high speed, keep an ample car-to-car distance.

72F-08-015

72F-08-016

72F-08-017

Page 40

60G-74E

DRIVING TIPS AND SAFE DRIVING

72F-08-018

Long distance driving

1. Be sure to perform safety checks before starting a trip.

DRIVING TIPS AND SAFE DRIVING

72F-08-021

2. Don't overtake other vehicles at night.

Darkness bothers your sense of speed and hinders your judgement on the carto-car distance.

3. Don't use the high headlight beam unless

its use is inevitable. Its dazzle may blitz the driver of the oncoming vehicle, thus causing an accident.

4. Always keep the window glasses clean.

Don't operate the windshield wiper when

the windshield glass is dry or the wiper

blade and glass may get damaged.

72F-08-019

2. Take rest at certain intervals to prevent an accident which may occur when you are sleepy or tired.

72F-08-022

72F-08-023

72F-08-020

Night time driving

1. Drive more slowly at night than in the daytime, for the visual range is restricted at night.

8-8

60G-74E

MARGIN FOR SAFETY

It is important to allow yourself a margin for safety during driving so that you can cope with erroneous or unexpected driving of other drivers. For that, observe the following.

• Drive at a safe speed.

• Maintain a sufficient distance between

your vehicle and the vehicle ahead.

• Don't force yourself to overtake other

vehicles.

• Don't make quick start, hard steering or

sudden stops.

• Allow an ample time in the driving

schedule.

• Observe traffic rules and regulations.

CONCLUSION

A perfect driver does not exist. The endeavour

of every motorist should be to strive for

perfection. Safety consciousness not only

ensures your safety and the safety of other

road users, it also helps reduce the wear and

tear on your vehicle, prolongs its life, gives

more mileage and ensures a comfortable

driving experience.

Follow the do's and don'ts listed, and

driving will never be the same again.

8-9

Page 41

60G-74E

INSPECTION AND MAINTENANCE

Periodic Maintenance Schedule.. 9-2 Engine Oil and Filter 9-7 Gear OH 9-10 Engine Coolant 9-11 Windscreen Washer Fluid 9-13 Air Cleaner 9-13 Spark Plugs 9-14 Brakes 9-15 Steering 9-17 Power Steering (if equipped) 9-18 Clutch Pedal 9-18 Tyres... 9-19 Battery 9-22

Fuses 9-23 Bulb Replacement , 9-25

Wiper Blades 9-29

INSPECTION AND MAINTENANCE

70F-05-002

You should take extreme care when working on your vehicle to prevent accidental injury. Here are a few precautions that you should be especially careful to observe:

• Do not leave the engine running in garages or other confined areas.

• When the engine Is running, keep hands, clothing, tools, and other objects away from the fan and water pump belt. Even though the fan may not be moving, it can automatically turn on without warning. ^

60G-74E

When it is necessary to do service work with the engine running, make

sure that the parking brake is applied fully and the transmission is in Neutral. Do not touch ignition wires or other ignition system parts when starting the engine or when the engine is running, or you could receive an electric shock. Be careful not to touch a hot engine, exhaust manifold and pipes, muffler, radiator and water hoses. Do not allow smoking, sparks, or

flames around gasoline or the

battery. Flammable fumes are present. Do not get under your vehicle if it is supported only with the portable jack provided in your vehicle. Be careful not to cause accidental short circuits between the positive and negative battery terminals. Keep used oil, coolant, and other fluids away from children and pets. Dispose of used fluids properly; never pour them on the ground, into sewers, etc.

9-1

Page 42

60G-74E

PERIODIC MAINTENANCE SCHEDULE

INSPECTION AND MAINTENANCE

The following table shows when regular maintenance on your vehicle is required. This table shows in kilometres and months when inspections, adjustments, lubrication and other services should be performed.

Maruti recommends that maintenance on your Maruti vehicle be performed by Maruti Authorised Dealer/Service Station.

CAUTION

Whenever it becomes necessary to replace parts on your vehicle, it is recommended that you use MARUTI GENUINE PARTS (MGP).

INSPECTION AND MAINTENANCE

6OG-74E

PERIODIC MAINTENANCE SCHEDULE

A....Ad]ust. l....lnspect and correct or replace If necessary.

T....Tighten to specified torque. C....CIean.

R....Replace or change. O....Rotate

L....Lubrlcate.

Note: This table includes services as scheduled up to 80,000 km mileage. Beyond 80,000 km, carry out the same services at the same intervals respectively.

Interval: This interval should be judged by odometer reading or months, whichever comes first.

ENGINE

1. Water pump drive belt (tension, wear)

2. Engine coolant (level, leakage)

3. Engine oil (API GRADE SF, SG, SH) & Oil filter

4. Cooling system hoses and connections (leakage, damage)

5. Engine bolts (All cylinder head and manifold fixings)

6. Engine mounting (loose, damage)

7. Valve clearance

8. Camshaft timing belt (damage, wear)

9. Exhaust system (noise, leakage or otherwise defective)

10. Positive crankcase ventilation System (Hoses, connections and valve;

IGNITION

1. Ignition wiring, (damage, deterioration)

2. Spark plugs (clean and adjust the gap)

km (x 1,000) months

FREE INSPECTIONS

Replace every 1,00,000 km

I I I

I I

PERIODIC MAINTENANCE SERVICE AT COST

70 84

T T

R R

I I

9-2

9-3

Page 43

60G-74E

INSPECTION AND MAINTENANCE

Interval: This interval should be Judged by odometer reading or months, whichever comes first.

km (x 1,000) months

FUEL

1. Air cleaner Paved-road Dusty condition

2. Accelerator cable and Throttle shafts

3. Fuel tank cap, fuel lines & connections(leakage,damage)

4. Fuel filter (leakage)

CLUTCH AND TRANSMISSION

1. Clutch pedal (play)

2. Clutch slipping (dragging or excessive damage)

3. Manual Transmission/Transfer and Differential oil (level, leakage)

DRIVE SHAFTS

1. Drive shafts boots (bent of boots damage)

BRAKE

1. Brake fluid (level, leakage)

2. Brake pedal (pedal-to-wall clearance)

3. Parking brake lever and cable (play, damage)

4. a. Brake discs and pads, (wear)

b. Brake drums & shoes

5. Master cylinder and wheel cylinder or calliper (oil leakage.boot kit)

6. Brake hoses and pipes (leakage, damage)

FREE

INSPECTIONS

Clean every 5,000 km. F

PERIODIC MAINTENANCE

202430

40 48

Replace every 40,000 krr

SERVICE

50 60

60 72

AT 70

COST

Clean every 2,500 km or as required. Replace every 40,000 km. More frequent replacement if dust condition is severe.

I&L

I I

I I I

R I I I I I

I I

80 96

I&L

I I

INSPECTION AND MAINTENANCE

Interval: This Interval should be judged by odometer reading or months, whichever comes first

WHEEL

1. Tyres (air pressure, abnormal wear, crack, ROTATION)

2. Wheels (damage)

3. Front wheel bearings (loose, damage)

4. Rear wheel bearings (loose, damage)

FRONT AND REAR SUSPENSION

1. Suspension strut (oil leakage, damage)

2. Suspension arms and knuckle supports (loose.damage)

3. Rear spring (damage)

4. Shock absorbers (oil leakage, damage)

5. All bolts and nuts (loose)

6. Suspension arms and Tension rods

STEERING

1. Steering wheel (play, loose)

2. Power steering fluid (level, leakage)/connections

3. All rods and arms (loose, damage, wear)

ELECTRICAL

1. Battery electrolyte (level, leakage)

2. Wiring harness connection (looseness, damage)

3. Lighting system (operation, stains, damage)

4. Horn (operation)

5. System voltage

BODY

1. All chassis bolts and nuts (tighten)

2. All Latches, Hinges & Locks (function)

km (x 1,000)

months

FREE

1 1

Rotate and

I I I

I I

INSPECTIONS

inspect every 5,000

I I

I&L

PERIODIC

20 24

I I I

I I I I

I I I

I I I I I

I&L

MAINTENANCE

30 36

I I I

I I I I

I I I

I I I I I

I&L

40 48

9-4

60G-74E

SERVICE

50 60

I I

I&L

COST

I I I

I I I I

I I I

I I I I I

I&L

I I

I&L

9-5

Page 44

60G-74E

INSPECTION AND MAINTENANCE

Interval: This Interval should be judged by odometer reading or months, whichever comes first.

ROAD TEST

1. Operation of Brakes, Gear shifting & speedometer

2. Body and Chassis noise

AIR CONDITIONER (if equipped)

1. Check belt tension

2. Check Receiver Drier bubbles.

3. Tighten compressor mounting bolts

4. Check all hose joints, tighten if necessary

5. Check functioning of Recirc flap .*

6. Clean condenser with low pressure water

7. Check belt for frayed edges, change if necessary

8. Check all mounting bolts

km (x 1,000) months

The rear shock absorbers are filled with

high pressure gas. Never attempt to

disassemble it or throw it into a fire. Avoid storing it near a heater or heating device. When scrapping the absorber, the gas must be released from the absorber safely. Ask your dealer for assistance.

FREE

1 1

I I

—

I I

INSPECTIONS

10 12

PERIODIC 20 24

I I

MAINTENANCE 30 36

I I

40 48

AT,

70 84

COST

80 96

SERVICE

T I I

C I I

INSPECTION AND MAINTENANCE

All maintenance should be carried

out with the Ignition switch in the

"OFF" position and the car parked securely on the level ground unless otherwise specified. If you are In any way unsure of your ability to undertake a task, then do

not start it but contact your Maruti dealer to perform the work for you.

9-6

60G-74E

ENGINE OIL AND FILTER

70F-07-004E

Specified oil

Be sure that the engine oil you use comes under the API classification of SF, SG or SH. Select the appropriate oil viscosity according to the above chart.

9-7

Page 45

60G-74E

INSPECTION AND MAINTENANCE

60G-09-002E

Oil Level Cheek

It is important to keep the engine oil at the

correct level for proper lubrication of your vehicle's engine. Check the oil level with the vehicle on a level surface. The oil level indication may be inaccurate if the vehicle is on a slope. The oil level should be checked either before starting the engine or at least 5 minutes after stopping the engine.

Pull out the oil dipstick, wipe oil off with a clean cloth, insert the dipstick all the way into the engine, then remove it again. The oil on the stick should be between the upper and lower

limits shown on the stick. If the oil level indication is near the lower limit, add enough oil to raise the level to the upper limit.

INSPECTION AND MAINTENANCE

60G-09-003E

Refilling

Remove the oil filler cap and pour oil slowly

through the filler hole to bring the oil level to the

upper limit on the dipstick. Be careful not to

overfill. Too much oil is almost as bad as too

little oil. After refilling, start the engine and allow it to idle for about a minute. Stop the engine,

wait for five minutes and check the oil level again.

Changing Engine Oil and Fitter

Drain the engine oil while the engine is still

warm.

1) Remove the oil filler cap.

2) Place a drain pan under the drain plug.

3) Using the correct spanner remove the drain plug and drain out the engine oil.

60G-09-004

The engine oil temperature may be high enough to burn your fingers when the drain plug Is loosened. Watt until the drain plug is cool enough to touch with your bare hands.

9-8

60G-74E

New and used oil can be hazardous. Children and pets may be harmed by swallowing new or used oil. Keep new and used oil and used oil fitters away from children and pets. Continuous contact with used engine oil has been found to cause (skin)

cancer in laboratory animals. Brief contact with used oil may irritate skin.

To minimize your exposure to used oil,

wear a long-sleeve shirt and moistureproof gloves (such 'as dishwashing gloves) when changing oil. If oil contacts your skin, wash thoroughly with soap and water. Launder any clothing or rags if wet with oil. Recycle or properly dispose of used oil and filters.

4) Reinstall the drain plug and gasket. Tighten the plug to a torque of

5.0 kg-m (36.5 Ib-ft).

9-9

70F-07-010

Replace the oil filter

1) Using an oil filter wrench, turn the oil filter counterclockwise and remove it.

2) Using a clean rag, wipe off the mounting surface on the engine where the new filter will be seated.

3) Smear a little engine oil around the rubber gasket of the new oil filter.

4) Screw on the new filter by hand until the filter gasket contacts the mounting surface.

60G-09-005

CAUTION

To tighten the oil filter properly, it is

important to accurately identify the position at which the filter gasket first

contacts the mounting surface.

5) Tighten the filter 3/4 turn from the point of contact with the mounting surface, [or to

1.4 kg-m (10.5 Ib-ft)] using an oil filter wrench.

Page 46

60G-74E

CAUTION

To prevent oil leakage, make sure that the oil filter is tight, but do not overtighten it.

Refill with oil and check for leaks.

1) Pour 3.1 litres of oil through the filler hole and install the filler cap.

2) Start the engine and look carefully for leaks at the oil filter and drain plug. Run the engine at various speeds for at least 5 minutes.

3) Stop the engine and wait for 5 minutes. Check the oil level again and add oil if necessary. Check for leaks again.

CAUTION

When replacing the oil filter, it is recommended that you use a genuine MARUTI replacement filter.

60G-09-006

CAUTION

Oil leaks from around the oil filter or drain plug indicate incorrect

installation or gasket damage. If you find any leaks or are not sure that the fitter has been properly tightened, have the vehicle inspected by your MARUTI

dealer.

INSPECTION AND MAINTENANCE

GEAR OIL

70F-07-012E

Specified Manual Transmission oil When adding gear oil, use the appropriate viscosity and grade as shown in the chart below. We highly recommend you use API GL-4 SAE 75W-90 gear oil.

Type of oil

Gear oil, API GL-4

INSPECTION AND MAINTENANCE

70F-07-013E

Gear oil level check

To check the gear oil level, use the following procedure:

1) Park the vehicle on a level surface with the parking brake applied.

2) Clean casing around oil filler plug to remove risk of any loose dirt or debris entering oil filler plug hole. Remove the oil

filler plug ©.

3) Feel the inside of the hole with your finger. If the oil level comes up to the bottom of

the plug hole, the oil level is correct. If so,

reinstall the plug.

4) If the oil level is low, add gear oil through

reaches the bottom of the filler hole, then reinstall the plug.

After driving the vehicle, the

transmission oil temperature may be

high enough to burn you. Wait until the

oil filler plug is cool enough to touch with your bare hands before inspecting transmission oil.

CAUTION

When tightening the plug, apply sealing

compound to the plug threads to prevent oil leakage.

Gear oil change

Since special procedures, materials and tools are required, it is recommended that you trust this job to your authorized MARUTI dealer.

9-10

60G-74E

ENGINE COOLANT

60G-09-007

Coolant Level Check

Check the coolant level at the reservoir tank, not at the radiator. With the engine cool, the coolant level should be between the "FULL" and "LOW" marks.

Adding Coolant

If the Coolant level is below the "LOW" mark, more coolant should be added. Remove the reservoir tank cap and add coolant until the

reservoir tank level reaches the "FULL" mark. Never fill the reservoir tank above the "FULL" mark.

9-11

Page 47

60G-74E

CAUTION

When adding or replacing coolant, use a high quality ethylene glycol antifreeze and anticorrosion (NonAmine type) diluted with distilled

water. If the lowest ambient temperature in your area is expected to be -15°C (5°F) or above, make the

antifreeze concentration of the

mixture you use at least 30% but no

more than 50%. If -16°C (3°F) or below, make the concentration at

least 50%. If the 50% concentration does not provide adequate protection against freezing, follow the instructions on the antifreeze container to obtain the desired freezing point.

When putting the cap on the

reservoir tank, line up the arrow on the cap and the arrow on the tank,

or coolant can leak out.

70F-07-019E

Coolant Replacement

1) When the engine is cool, remove the radiator cap by turning it slowly to the left until a "stop" is felt. Do not press down while turning the cap. Wait until any pressure is released, then press down on the cap and continue turning it anticlockwise.

INSPECTION AND MAINTENANCE

60G-09-039E

It is dangerous to remove the radiator cap when the water temperature is high, because scalding fluid and steam may be blown out under pressure. Watt until the coolant temperature has lowered before removing the cap.

2) Remove the reservoir tank cap. Remove the reservoir by lifting it up, and drain the reservoir completely by pouring the coolant in to a suitable container.

95 9-12

INSPECTION AND MAINTENANCE

60G-09-008

3) Loosen the drain plug attached to the lower part of the radiator and drain the coolant into a suitable container.

4) Tighten the drain plug on the radiator, fill the radiator with coolant and install the

radiator cap.

5) Refit the reservoir and fill it with the correct coolant to the "FULL" line. Refit the reservoir tank cap, ensuring the arrows are correctly aligned.

WINDSCREEN WASHER FLUID

63B-09-001

Check that there is washer fluid in the tank. Refill it if necessary. Use a good quality windscreen washer fluid, diluted with water as necessary.

Do not use "antifreeze" solution in the windscreen washer reservoir.This can severely impair visibility when sprayed on the windscreen, and can also damage your vehicle's paint.

AIR CLEANER

If the air cleaner is clogged with dust, there will be greater intake resistance, resulting in decreased power output and increased fuel consumption.

Take out the air cleaner element after

unhooking the clamps shown in the illustration.

Blow off dust on air cleaner element by compressed air. If the air cleaner element appears to be dirty, replace it with a new one.

60G-74E

6OG-09-009

CAUTION

The coolant must be replaced with the

vehicle on level ground.

9-13

Damage may result if the washer motor is operated whilst the fluid or fluid nozzles are frozen or with no fluid in the washer tank.

CAUTION

Page 48

60G-74E INSPECTION AND MAINTENANCE

SPARK PLUGS

60G-09-010E

CAUTION

The air cleaner element should be replaced every 40,000 km. More

frequent replacement is necessary

when you drive under dusty conditions.

INSPECTION AND MAINTENANCE

60G-09-011E

You should inspect spark plugs periodically for carbon deposits. When carbon accumulates on a spark plug, a strong spark

may not be produced. Remove carbon deposits with a wire or pin and adjust the spark plug gap.

60G-09-012E

CAUTION

When disconnecting the spark plug

cables, pull on the boot, not on the cable itself. Pulling on the cable can damage it. When installing the spark plugs, screw them in with your fingers to avoid stripping the threads.Tighten with a torque wrench to 2.0-3.0 kgm (20.0-30.0 N-m, 15.0-22.0 Ib-ft). Do

not allow contaminants to enter the engine through the spark plug holes when the plugs are removed. Never use spark plugs with the wrong thread size or length.

9-14

60G-74E

BRAKES

70F-07-026E

CAUTION

When replacing spark plugs, you should use the brand and type specified for your vehicle. For the specified plugs, refer to the "SPECIFICATIONS" section at the end of this book.

9-15

60G-09-013E

NOTE: If you experience some firing problem of spark

plugs, such as, hard engine-starting, misfire

etc., the cause may be located not only on spark plugs but also on deteriorated ignition wiring (generally, used for more than 80,000 km or five years). If spark plug replacement does not solve the problem, have the ignition wiring and other ignition system inspected by your MARUTI dealer.

60Q-09-014E

Brake Fluid

Check the brake fluid level by looking at the reservoir in the engine compartment. Check

that the fluid level is between the "MAX" and

"MIN" lines. If the brake fluid level is near the "MIN" line, fill it up to the "MAX" line with SAE J1703 or DOT-3 brake fluid.

Failure to follow the guidelines below can result in personal injury or serious damage to the brake system.

• If the brake fluid in the reservoir drops below a certain level, the brake warning light on the instrument

Page 49

60G-74E

panel will come on (the engine must be running with the parking brake

fully disengaged). Should the light

come on, immediately ask your MARUTI dealer to inspect the brake system. A rapid fluid loss Indicates a leak in the brake system which should be

inspected by your MARUTI dealer immediately. Brake fluid can harm your eyes and damage painted surfaces. Use caution when refilling the reservoir.

70F-07-029

Do not use any fluid other than SAE

J1703 or DOT-3 brake fluid. Do not

use reclaimed fluid or fluid that has been stored in old or open containers. It is essential that foreign particles and other liquids are kept out of the brake fluid reservoir.

CAUTION

The brake fluid should be replaced every two years or 20,000 km.

NOTE:

With disc brakes, the fluid level can be

expected to gradually fall as the brake pads

wear.

INSPECTION AND MAINTENANCE

70F-07-030

Brake Pedal

Check if the brake pedal stops at the regular height without "spongy" feeling when you depress it. If not, have the brake system inspected by your MARUTI dealer. If you doubt the brake pedal for the regular height, check it as follows:

With the engine running, measure the distance between the brake pedal and floor wall when the pedal is depressed with approximately 30 kg (66 lbs) of force. The minimum distance required is 80 mm (3.1 in). Since your vehicle's brake system is self-adjusting, there is no need for pedal adjustment. If the pedal to floor wall distance as measured above is less than the minimum distance required, have your vehicle inspected by your MARUTI dealer.

INSPECTION AND MAINTENANCE

60G-09-015E

NOTE:

When measuring the distance between the brake pedal and floor wall, be sure not to include any floor covering in the measurement.

If you experience any of the following problems with your vehicle's brake system, have the vehicle inspected

immediately by your MARUTI dealer.

Poor braking performance Uneven braking (Brakes not working uniformly on all wheels.)

Excessive pedal travel

Brake dragging

Excessive noise

Pedal pulsation (Pedal pulsates

when depressed.)

63B-09-00SE

Parking brake

Check the parking brake for proper adjustment by counting the number of clicks made by the ratchet teeth as you slowly pull up on the parking brake lever to the point of full engagement. The parking brake lever should stop between the 3rd and 5th ratchet tooth and the rear wheels should be securely locked.

If the parking brake is not properly adjusted or the brakes drag after the lever has been fully released, have the parking brake

inspected and/or adjusted by your MARUTI dealer.

9-16

60G-74E

STEERING

60G-09-016

Check the play of the steering wheel by gently turning it from left to right and measuring the distance that it moves before you feel slight resistance. The play should be between 0 30

(0.0 -1.2 in).

Check that the steering wheel turns easily and smoothly without rattling by turning it all the way to the right and to the left while driving very slowly in an open area. If the amount of free play is outside the specification or you find anything else to be wrong, an inspection must be performed by your MARUTI dealer.

9-17

100

Page 50

60G-74E

INSPECTION AND MAINTENANCE

POWER STEERING (if equipped)

60G-09-017

Check the steering box case, vane pump and hose connections for leaks or damage.

Power steering fluid

Check the fluid level by looking at the reservoir in the engine compartment when the fluid is cold (about room temperature).

Check that the fluid level is between the "UPPER" and "LOWER" lines. If the fluid level is near the "LOWER" line, fill it up to the "UPPER" line with an automatic transmission fluid equivalent to DEXRON»-IIE or DEXRON'-III. Do not overfill.

63B-09-00SE

Power steering belt

The tension of the belt should be such that there is a deflection of 8-10mm (0.31 -0.39 in.) when you press your thumb midway between the pulleys.

The belt should also be examined to ensure that it is not damaged. If necessary, have the belt adjusted or replaced by your MARUTI dealer.

CLUTCH PEDAL

70F-07-034

Measure the clutch pedal piay by moving the clutch pedal with your hand and measuring the distance it moves until you feel slight resistance. The play in the clutch pedal should be between 15-20 mm (0.6 - 0.8 in). If the play is more or less than the above, or clutch dragging is felt with the pedal fully depressed, have the clutch inspected by your MARUTI dealer.

101

INSPECTION AND MAINTENANCE

TYRES

60G-09-018

The front and rear tyre pressure specifications for your vehicle are listed on the Tyre Inflation Pressure Label and in the "SPECIFICATIONS" section at the end of this book. Both the front and rear tyres should have the specified tyre pressure.

Tyre Inspection

Inspect your vehicle's tyres periodically by performing the following checks:

1) Measure the air pressure with a tyre gauge. Adjust the pressure if necessary.

Air pressures should be checked when the tyres are cold or you may

get inaccurate readings.

Check the inflation pressure from time to time while inflating the tyre gradually, until the specified

pressure is obtained.

Never underinf late or overinf late the tyres.

Underinflation can cause unusual

handling characteristics or can cause the rim to slip on the tyre

bead, resulting in an accident or damage to the tyre or rim. Overinflation can cause the tyre to

burst, resulting in personal injury.

Overinflation can also cause

unusual handling characteristics which may result In an accident.

9-18

60G-74E

70F-07-037E

2) Check that the depth of the tread groove is more than 1.6 mm (0.06 in). To help you

check this, the tyres have moulded in tread wear indicators in the grooves. When the

indicators appear on the tread surface, the remaining depth of the tread is 1.6 mm (0.06 in) or less and the tyre should be replaced.

3) Check for abnormal wear, cracks and damage. Any tyres with cracks or other damage should be replaced. If any tyres show abnormal wear, have them inspected by your MARUTI dealer.

9-19

102

Page 51

60G-74E

INSPECTION AND MAINTENANCE

Hitting curbs and running over rocks can damage tyres and affect wheel alignment. Be sure to have tyres and wheel alignment checked periodically by your MARUTI dealer.

4) Check for loose wheel nuts.

5) Check that there are no nails, stones, or other objects sticking into the tyres.

Your MARUTI is equipped with tyres which are all the same type and size. This is important to ensure proper steering and handling of the vehicle. Never mix tyres of different size or type on the four wheels of your vehicle. The

size and type of tyres used should be only those approved by MARUTI as standard or optional equipment for your vehicle.

103

Replacing the wheels and tyres equipped on your vehicle with certain combinations of aftermarket wheels and tyres can significantly change the steering and handling characteristics of your vehicle. Therefore, use only those wheel and tyre combinations approved by MARUTI as standard or optional equipment for your vehicle.

CAUTION

Replacing the original tyres with tyres of a different size may result in false speedometer or odometer readings.

60G-09-019E

Tyre Rotation To avoid uneven wear of your tyres and to prolong their life, rotate the tyres as illustrated. Tyres should be rotated every 5,000 km as recommended in the periodic maintenance schedule. After rotation, adjust front and rear tyre pressures to the specification listed on your vehicle's Tyre Inflation Pressure Label.

9-20

INSPECTION AND MAINTENANCE

60G-06-009

Changing Wheels

To change a wheel, use the following

procedure:

1) Remove the jack , tools and spare wheel from the vehicle

2) Loosen, but do not remove the wheel nuts. '

3) Jack up the vehicle (follow the jacking instructions in the EMERGENCY SERVICE section in this manual)

60G-09-020E

Install the new wheel and replace the

wheel nuts with their cone shaped end facing the wheel. Tighten each nut snugly by hand until the wheel is securely seated on the hub.

Lower the jack and fully tighten the nuts [to 8.5 kg-m (61.5 Ib-ft)] in a crisscross fashion with a wrench as shown in the illustration.

60G-74E

60G-09-021

Full Wheel Cover (if equipped)

Your vehicle includes a jack crank, which has a flat end. Use the jack crank to remove the

full wheel cap, as shown above.

4) Remove the wheel nuts and wheel.

9-21

104

Page 52

60G-74E

60G-09-022E

When installing the cover, make sure that it is positioned so that it does not cover or foul the air valve.

BATTERY

60G-09-038

Batteries produce flammable hydrogen gas. Keep flames and sparks away from the battery or an explosion may occur. Never smoke when working in the vicinity of the battery .

When checking or servicing the battery, disconnect the negative cable. Be careful not to cause a short circuit by allowing metal objects to contact the battery posts and the vehicle at the same time.

INSPECTION AND MAINTENANCE

To avoid harm to yourself or damage to your vehicle or battery, follow the jump starting instructions in the

EMERGENCY SERVICE section of this manual if it is necessary to jump start

your vehicle.

The level of the battery solution must be kept

between the "UPPER" and the "LOWER" level lines at all times. If the level is found to be below the "LOWER" level line, add distilled

water to the "UPPER" level line. You should

periodically check the battery, battery terminals, and battery holddown bracket for corrosion. Remove corrosion using a stiff

brush and ammonia mixed with water, or baking soda mixed with water. After removing corrosion, rinse with clean water.

If your vehicle is not going to be driven for a month or longer, disconnect the cable from the negative terminal of the battery to help

prevent discharge.

105

INSPECTION AND MAINTENANCE

FUSES

60G-09-024E

This vehicle has three types of fuses, as described below:

Main Fuse - The main fuse takes current

directly from the battery.

Primary Fuses - These fuses are between the main fuse and individual fuses, and are for electrical load groups.

Individual Fuses - These fuses are in the fuse

box and for individual electrical circuits.

MAIN FUSE / PRIMARY FUSES

80A

All Electric Load

60A

HEAD-R, HEAD-L, TAIL/DOME, STOP/HORN, HAZARD

60A

CIGAR/RADIO, I.G. COIL/ METER, WIPER/WASHER, REAR DEF, TURN/BACK, HEATER RELAY.

30A

RADIATOR FAN MOTOR

60A

A/C, HTR

Main Fuse and Primary Fuses The main fuse and primary fuses are located

in the engine compartment. If the main fuse blows, no electrical component will function.

If a primary fuse blows, no electrical component in the corresponding load group will function. When replacing the main fuse or a primary fuse, use a genuine MARUTI replacement.

If the main fuse or a primary fuse blows,

be sure to have your vehicle inspected by an authorized MARUTI dealer. Always use a genuine MARUTI

replacement. Never use a substitute such as a wire even for a temporary repair, or extensive electrical damage and a fire can result.

9-22

60G-74E

60G-09-025E

Fuse Box

The fuse boxes are located in the engine

compartment and under the driver's side of

the dashboard. To remove the fuse box cover under the

dashboard pull off the cover.

9-23

106

Page 53

60G-74E

INSPECTION AND MAINTENANCE

60G-09-026

Always be sure to replace a blown fuse

with a fuse of the correct amperage.

Never use a substitute such as aluminium foil or wire to replace a blown fuse. If you replace a fuse and the new one blows In a short period of time, you may have a major electrical problem. Have your vehicle Inspected immediately by your MARUTI dealer.

107

INSPECTION AND MAINTENANCE

BULB REPLACEMENT

60G-09-027E

NOTE: Make sure that the fuse box always carries spare fuses.

70F-07-04SE

60G-09-028E

9-24

60G-74E

Light bulbs can be hot enough to burn your finger right after being

turned off.This is true especially for

halogen headlight bulbs. Replace

the bulbs after they become cool

enough. The headlight bulbs are filled with pressurized halogen gas. They can burst and injure you if they are hit or dropped. Handle them carefully.

CAUTION

The oils from your skin may cause a halogen bulb to overheat and burst when the lights are on. Grasp a new bulb with a clean cloth.

CAUTION

Frequent replacement of a bulb indicates the need for an inspection of

the electrical system. This should be

carried out by your MARUTI dealer.

9-25

60G-09-029

Interior Light

Press down the lens by using a plain screw

driver covered with a soft cloth as shown. To

install it, simply push it back in.

The bulb can be removed by simply pulling it out. When replacing the bulb, make sure that the contact springs are holding the bulb securely.

60G-09-030

NOTE: If the air cleaner inlet duct (A) obstructs replacement of the bulbs in the right headlight housing, remove the duct (A).

After reinstalling the duct, make sure it is

secured in place

108

Page 54

60G-74E

INSPECTION AND MAINTENANCE

60G-09-031

Headlights

Open the bonnet. Disconnect the coupler.Turn the lock ring counterclockwise and remove it. Remove the sealing rubber.

NOTE:

Your vehicle is provided with two spare headlight bulbs for replacement in emegency.

109

INSPECTION AND MAINTENANCE

60G-09-037

Push the retaining spring forward and unhook it. Then remove the bulb. Install a new bulb in the reverse order of removal.

NOTE:

Your vehicle is provided with two spare headlight bulbs for replacement in emergency situations.

70F-07-0S0E

Front Clearance/Turn Signal Light, Side

Turn Signal Light, rear Combination

Light, Registration Plate Light.

To remove a bulb holder from a light housing, turn the holder counterclockwise and pull it out. To install the holder, push the holder in and turn it clockwise.

Two types (small oval and round) of bulb are

used for these lights. To remove and install a small oval bulb, simply pull out or push in the bulb.

9-26

60G-74E

70F-07-051E

To remove a round bulb from a bulb holder, push in the bulb and turn it counterclockwise. To install a new bulb, push it in and turn it clockwise. You can access the individual bulb holders as described above:

9-27

60G-09-032

Front clearance light (A)

Open the bonnet.

Front turn signal light (B)

Trust this replacement job to your authorized

MARUTI dealer as the front bumper and the headlight housing must be removed for this

job.

70F-07-054

Side turn signal light

Remove the lens by using a plain screw driver covered with a soft cloth.

110

Page 55

60G-74E

INSPECTION AND MAINTENANCE

60G-09-033

60G-09-034

60G-09-035

Rear combination light (tail, stop, turn Registration plate tight Trunk (boot) light (if equipped)

signal, etc.) Undo the two screws and remove the light Turn the lens counterclockwise and pull it off.

Undo the screws that secure the housing and housing. remove the housing by sliding in the direction of the white arrow in the illustration.

111

INSPECTION AND MAINTENANCE

60G-74E

WIPER BLADES

9-28

60G-09-036

High mount stop light

Trust this replacement job to your authorized MARUTI dealer.

70F-07-059

If the wiper blades become brittle or damaged, or make streaks when wiping, replace the wiper blades.

To install new wiper blades, follow the procedure below.

CAUTION

To avoid scratching or breaking the window, do not let the wiper arm strike the windshield while replacing the wiper blade.

NOTE: Some wiper blades may be different from the ones described here depending on vehicle specifications. If so consult your MARUTI dealer for proper replacement method.

The left and the right wiper arm

assemblies are different from each other. In case you have to remove the wiper arm assemblies for any reason, remember not to interchange the two while fitting them back. Wrong fitment may lead to windshield breakage.

9-29

112

Page 56

60G-74E

INSPECTION AND MAINTENANCE

70F-07-060

For windshield wipers:

1. Hold the wiper arm away from the window.

113

72F-09-008

2. Squeeze lock lever (A) towards wiper arms (B) and remove the wiper frame from the

arm as shown.

9-30

Page 57

60G-74E

EMERGENCY SERVICE

Jacking Instructions 10-1 Jump Starting Instructions 10-2

Towing 10-4

Emergency Remedies 10-4

Warning Triangle 10-5

115

Page 58

EMERGENCY SERVICE

JACKING INSTRUCTIONS

60G-74E

60G-06-009

1) Park the vehicle securely on hard level ground.

2) Apply the parking brake firmly and shift into "R" (Reverse). Choke the front and rear wheel diagonally opposite the wheel to be changed.

3) Switch on the hazard warning flasher if your vehicle is in or near traffic.

4) Slacken but do not remove wheel nuts on the wheel to be changed.

5) Position the jack vertically and raise the jack by turning the jack handle clockwise until the jack head recess fits the frame boss.

6) Continue to raise the jack slowly and smoothly

until the tyre clears the ground. Do not raise

the vehicle more than necessary.

10-1

60G-74E

63B-10-001E

60G-10-001

NOTE:

Use the wheel nut wrench in combination with

jack crank to raise or lower the jack as shown

in the illustration.

70F-08-001

Use the jack only to change wheels. Never jack up the vehicle on an inclined surface. Never raise the vehicle with the jack in a location other than under the frame boss near the wheel to be changed. Make sure that the jack is raised at least 2 inches (51 mm) before it contacts the vehicle. Use of the jack when it is within 2 inches of being

fully collapsed may result in failure

of the jack. Never get under the vehicle when it

is supported by the jack. t=>

116

EMERGENCY SERVICE

60G-10-002

Never run the engine when the

vehicle is supported by the jack and

never allow passengers to remain in

the vehicle.

60G-10-003

JUMP STARTING INSTRUCTIONS

Never attempt to jump start your vehicle if the battery appears to be frozen. Batteries in this condition may explode or rupture if jump starting is attempted. When making jump lead connections, be certain that your hands and the Jump leads remain clear from pulleys, belts, or fans. Batteries produce flammable hydrogen gas. Keep flames and sparks away from the battery or an explosion may occur. Never smoke when working in the vicinity of the

battery.

If the booster battery you use for jump starting is installed in another vehicle, make sure the two vehicles are not touching each other.

If your battery discharges

repeatedly, for no apparent reason,

have your vehicle inspected by an

authorized MARUTI dealer.

To avoid harm to yourself or damage

to your vehicle or battery, follow the

jump starting instructions below

precisely and in order. If you are in

doubt, call for qualified road service.

10-2

Page 59

EMERGENCY SERVICE

60G-74E

CAUTION

Vehicle equipped with electronic fuel injection system will not start by pushing or towing as the fuel pump will not work in this condition. This starting method could also result in permanent damage to the catalytic converter. Use jump leads to start a vehicle with a weak or flat battery.

10-3

60G-10-004E

When jump starting your vehicle, use the following procedure:

1) Use only a 12 volt battery to jump start your vehicle. Position the good 12V battery close to your vehicle so that the jump leads will reach both batteries. When using a battery installed on another vehicle, DO NOT LET THE VEHICLES TOUCH. Apply

the parking brakes fully on both vehicles.

2) Turn off all vehicle accessories, except those necessary for safety reasons (for example, headlights or hazard lights).

3) Make jump lead connections as follows: a) Connect one end of the first jump lead

to the positive (+) terminal of the flat

battery.

b) Connect the other end to the positive

(+) terminal of the booster battery.

c) Connect one end of the second jump

lead to the negative (-) terminal of the booster battery.

d) Make the final connection to an

unpainted, heavy metal part of the

engine of the vehicle with the flat

battery.

Never connect the jump lead directly

to the negative (-) terminal of the

discharged battery, or an explosion may occur.

4) If the booster battery you are using is fitted

to another vehicle, start the engine of the vehicle with the booster battery. Run the engine at moderate speed.

5) Start the engine of the vehicle with the flat

battery.

6) Remove the jump leads in the exact

reverse order in which you connected

them.

118

60G-74E

TOWING

If you need to have your vehicle towed, contact a professional service.

CAUTION

To help avoid damage to your vehicle

during towing, proper equipment and

towing procedures must be used.

Manual Transmission

Whenever possible, your vehicle should be

towed from the front with the front wheels lifted.

If the steering and drivetrain are in good

condition, your vehicle may be towed from the

rear with the rear wheels lifted and the front wheels on the ground. Before towing, make sure the steering is unlocked and the transmission is in neutral.

EMERGENCY REMEDIES If the Starter Does Not Operate:

1) Try turning the ignition switch to the "START" position with the headlights turned on to determine the battery condition. If the headlights go excessively dim or go off, it usually means that either the battery is flat or the battery terminal contact is poor. Recharge the battery or correct battery terminal contact as necessary.

2) If the headlights remain bright, check the fuses. If the reason for failure of the starter is not obvious, there may be a major electrical problem. Have the vehicle inspected by your authorized MARUTI dealer.

If the Engine is Flooded

If the engine is flooded with petrol, it may be hard to start. If this happens, press the accelerator pedal all the way to the floor and hold it there while cranking the engine. (Do not operate the starter motor for more than 15 seconds). Release the accelerator as soon as the engine has started.

EMERGENCY SERVICE

If the Engine Overheats

The engine could overheat temporarily under severe driving conditions. If the engine coolant temperature gauge indicates overheating during driving:

1) Turn off the air conditioner, if equipped.

2) Take the vehicle to a safe place and park.

3) Let the engine run at normal idle speed for a few minutes until the indicator is within the normal, acceptable temperature range between "H" and "C".

If you see or hear escaping steam, stop the vehicle in a safe place and Immediately turn off the engine to let it cool. Do not open the bonnet when steam is present. When the steam can no longer be seen or heard, open the hood to see if the coolant is still boiling.

If it is, you must wait until it stops boiling before you proceed.

119

10-4

Page 60

EMERGENCY SERVICE

If the temperature indication does not come

down to within the normal, acceptable range:

1) Turn off the engine and check that the water pump belt and pulleys are not damaged or slipping. If any abnormality is found, correct it.

2) Check the coolant level in the reservoir. If it is found to be lower than the "LOW" line, look for leaks at the radiator, water pump, and radiator and heater hoses. If you locate any leaks that may have caused the

overheating, do not run the engine until these problems have been corrected.

3) If you do not find a leak, carefully add

coolant to the reservoir and then the

radiator, if necessary. (Refer to "ENGINE COOLANr in the "INSPECTION AND MAINTENANCE" section.)

10-5

K is dangerous to remove the radiator

cap when the water temperature is

high, because scalding fluid and steam may be blown out under pressure. The cap should only be taken off when the coolant temperature has lowered.

To help prevent personal Injury, keep

hands, tools and clothing away from the engine cooling fan and airconditioner

fan (if equipped). These electric fans

can automatically turn on without

warning.

60G-74E

WARNING TRIANGLE (TYPE-1)

843-10-004

In case of vehicle break-down or during emergency stopping where your vehicle could become a potential traffic hazard, please keep the warning triangle, provided with your vehicle, on the pathway (road) behind the vehicle so as to warn the approaching traffic, at an approximate distance of 5-15 m, such that reflecting side of the triangle faces the rear. Please activate the hazard warning lamps before alighting the vehicle to keep the warning triangle.

120

60G-74E

WARNING TRIANGLE (TYPE-2)

In case of vehicle breakdown or during emergency stopping where your vehicle

could become a potential traffic hazard,

keep the warning triangle, provided with your vehicle, on the road free from any obstacles behind your vehicle so as to warn the approaching traffic, at an approximate distance of 50-100 m, the reflecting side of the triangle should face the on coming traffic. Please activate the hazard warning

lamps before alighting the vehicle to keep the warning triangle.

Remove the warning triangle

carefully from the box as shown by arrow

Open both the reflector arms as shown by arrows and lock arms with each other with the clip provided in the right arm. Open the bottom stand in counter clockwise direction as shown by arrow 3. Position the warning triangle behind the vehicle on a plain surface.

Reverse the removal procedure

for

keeping inside the box.

EMERGENCY SERVICE

121

10-6

Page 61

60G-74E

BODY WORK CARE

Corrosion Prevention 11-1 Vehicle Cleaning 11-2

123

BODY WORK CARE

CORROSION PREVENTION

It is important to take good care of your vehicle

to protect it from corrosion.

Listed below are instructions for how to maintain your vehicle to prevent corrosion. Please read and follow these instructions carefully.

Important Information About Corrosion Common causes of corrosion

1) Accumulation of road salt, dirt, moisture,

or chemicals in hard to reach areas of the vehicle underbody or frame.

2) Chipping, scratches and any damage to

treated or painted metal surfaces resulting from minor accidents or abrasion by stones and gravel.

Environmental conditions which accelerate

corrosion

1) Road salt, dust control chemicals, sea air

or industrial pollution will all accelerate the corrosion of metal.

2) High humidity will increase the rate of corrosion particularly when the temperature range is just above the freezing point.

3) Moisture in certain areas of a vehicle for an extended period of time may promote corrosion even though other body sections may be completely dry.

11-1

4) High temperatures will cause an accelerated rate of corrosion to parts of the vehicle which are not well ventilated to permit quick drying.

This information illustrates the necessity of keeping your vehicle (particularly the

underbody) as clean and dry as possible. It is equally important to repair any damage to the paint or protective coatings as soon as possible.

How to Help Prevent Corrosion Wash your vehicle frequently

The best way to preserve the finish on your

vehicle and to help avoid corrosion is to keep it clean with frequent washing. Wash your vehicle regularly during the winter and immediately after the winter. Keep your vehicle, particularly the underside, as clean and

dry as possible.

If you frequently drive on salted roads, your

vehicle should be washed at least once a month during the winter. If you live near the ocean, your vehicle should be washed at least once a

month throughout the year. For washing instructions, refer to the "VEHICLE

CLEANING" section.

Remove foreign material deposits

Foreign material such as salts, chemicals, road

oil or tar, tree sap, bird droppings and industrial fall-out may damage the finish of your vehicle

60G-74E

if it is left on painted surfaces. Remove these types of deposits as quickly as possible. If these deposits are difficult to wash off, an additional cleaner may be required. Be sure that any cleaner you use is not harmful to painted surfaces and is specifically intended for your purposes. Follow the manufacturer's directions when using these special cleaners.

Repair finish damage

Carefully examine your vehicle for damage to the painted surfaces. Should you find any chips or scratches in the paint, touch them up immediately to prevent corrosion from starting. If the chips or scratches have gone through

to the bare metal, have a qualified body shop

make the repair.

Keep Passenger and luggage compartments clean.

Moisture, dirt or mud can accumulate under

the floor mats and may cause corrosion.

Occasionally, check under these mats to

ensure that this area is clean and dry. More frequent checks are necessary if the vehicle

is used off road or in wet weather.

Certain cargos such as chemicals, fertilizers, cleaners, salts, etc., are extremely corrosive

by nature. These products should be

transported in sealed containers. If a spill or

leak does occur, clean and dry the area immediately.

124

Page 62

60G-74E

BODY WORK CARE

VEHICLE CLEANING

Store your vehicle in a dry, well-ventilated area.

Do not park your vehicle in a damp, poorly ventilated area. If you often wash your vehicle in the garage or if you frequently drive it in when wet, your garage may be damp.The high humidity in the garage may cause or accelerate corrosion. A wet vehicle may corrode even in a heated garage if the

ventilation is poor.

Do not apply additional undercoating or rust preventive coating on or around exhaust system components such as the exhaust pipes, etc. A fire could be started if the undercoating substance becomes overheated.

Cover your vehicle

If you cannot regularly park your vehicle in a

garage, we recommend you use a vehicle cover. Years of exposure to midday sun can cause the colours in paint, plastic parts, and fabrics to fade. Covering your vehicle with a

high-quaiity, "breathable" vehicle cover can help protect the finish from the harmful UV

rays in sunlight, and can reduce the amount of dust and air pollution reaching the surface.

When cleaning the interior or exterior of the vehicle, NEVER USE flammable solvents such as lacquer thinners,

petrol, benzene or cleaning materials such as bleach or strong household detergents. The materials could cause

personal injury or damage to the

vehicle.

Cleaning the Interior Vinyl upholstery

Prepare a solution of soap or mild detergent

mixed with warm water. Apply the solution to the vinyl with a sponge or soft cloth and let it soak for a few minutes to loosen dirt. Rub the surface with a clean, damp cloth to remove dirt and the soap solution. If some dirt still

remains on the surface, repeat this procedure.

Fabric upholstery

Remove loose dirt with a vacuum cleaner. Using

a mild soap solution, rub stained areas with a clean damp cloth. To remove soap, rub the areas again with a cloth dampened with water.

Repeat this until the stain is removed, or use a commercial fabric cleaner for tougher stains. If you use a fabric cleaner, carefully follow the

manufacturer's instructions and precautions.

Seat Belts

Clean seat belts with a mild soap and water. Do not use bleach or dye on the belts. They may weaken the fabric in the belts.

Vinyl floor mats

Ordinary dirt can be removed from vinyl with water or mild soap. Use a brush to help loosen dirt. After the dirt is loosened, rinse the mat thoroughly with water and dry it in the shade.

Carpets

Remove dirt and soil as much as possible with a vacuum cleaner. Using a mild soap solution, rub stained areas with a clean damp cloth.To

remove soap, rub the areas again with a cloth dampened with water. Repeat this until the stain is removed, or use a commercial carpet cleaner for tougher stains. If you use a carpet

cleaner, carefully follow the manufacturer's

instructions and precautions.

125

BODY WORK CARE

Cleaning the Exterior

CAUTION

It is important that your vehicle be kept clean and free from dirt. Failure to keep your vehicle clean may result in fading of the paint or corrosion to various parts of the vehicle body.

Washing

Never attempt to wash and wax your vehicle with the engine running. When cleaning the underside of the body and fender, where there may be sharp-edged parts, you should wear gloves and a longsleeved shirt

to protect your hands and arms from

being cut. After washing your vehicle, carefully test the brakes before driving to make sure they have maintained

their normal effectiveness.

When washing the vehicle, follow the

instructions below:

1) Flush the underside of body and wheel housings with pressurized water to remove mud and debris. Use plenty of water.

CAUTION

When washing the vehicle, avoid directing steam or hot water of more than 80°C (176°F) on plastic parts.

2) Remove dirt and mud from the body exterior with running water. You may use

a soft sponge or brush. Do not use hard materials which can scratch the paint.

3) Wash the entire exterior with a mild detergent or car wash soap using a sponge or soft cloth. The sponge or cloth should be frequently soaked in the soap solution.

CAUTION

When using a commercial car wash

product, observe the cautions specified by the manufacturer. Never use strong household detergents or soaps.

11-2

60G-74E

4) Once the dirt has been completely removed, rinse off the detergent with running water.

5) After rinsing, wipe off the vehicle body with

a wet chamois or cloth and allow it to dry

in the shade.

6) Check carefully for damage to painted surfaces. If there is any damage, "Touchup" the damage following the procedure below: a) Clean all damaged spots and allow

them to dry.

b) Stir the paint and "touchup" the

damaged spots lightly using a small brush.

c) Allow the paint to dry completely.

Waxing

After washing the vehicle, waxing and polishing are recommended to further protect and beautify the paint.

• Only use waxes and polishes of good

quality.

• When using waxes and polishes, observe

the precautions specified by the

manufacturers.

11-3

126

Page 63

60G-74E

GENERAL INFORMATION

Vehicle Identification 12-1

127

GENERAL INFORMATION

VEHICLE IDENTIFICATION

70F-10-001

Chassis Serial Number

The chassis and/or engine serial numbers are

used to register the vehicle.They are also used to assist your dealer when ordering or referring to special service information. Whenever you

have occasion to consult your MARUTI dealer,

remember to identify your vehicle with this

number. Should you find the number difficult to read, you will also find it on the identification

plate.

60G-74E

70F-10-002

Engine Serial Number

The engine serial number is stamped on the cylinder block as shown in the illustration and also on the identification plate.

12-1

128

Suzuki Baleno User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
