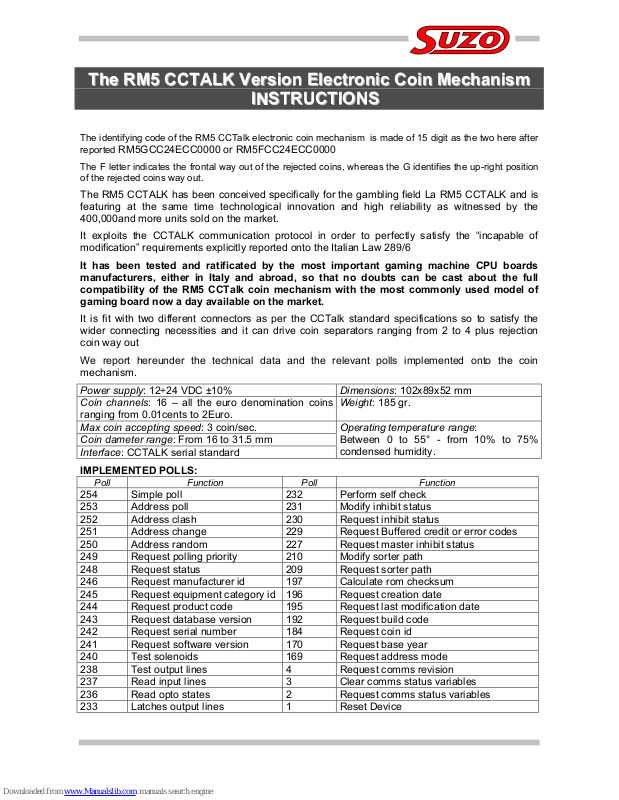

Page 1
TThhee RRMM55 CCCCTTAALLKK VVeerrssiioonn EElleeccttrroonniicc CCooiinn MMeecchhaanniissm
m
IISSTTRRUUCCTTIIOONNS
S
The identifying code of the RM5 CCTalk electronic coin mechanism is made of 15 digit as the two here after
reported
RM5GCC24ECC0000 or RM5FCC24ECC0000
The F letter indicates the frontal way out of the rejected coins, whereas the G identifies the up-right position
of the rejected coins way out.
The RM5 CCTALK has been conceived specifically for the gambling field La RM5 CCTALK and is
featuring at the same time technological innovation and high reliability as witnessed by the
400,000and more units sold on the market.
It exploits the CCTALK communication protocol in order to perfectly satisfy the “incapable of
modification” requirements explicitly reported onto the Italian Law 289/6
It has been tested and ratificated by the most important gaming machine CPU boards
manufacturers, either in Italy and abroad, so that no doubts can be cast about the full
compatibility of the RM5 CCTalk coin mechanism with the most commonly used model of
gaming board now a day available on the market.
It is fit with two different connectors as per the CCTalk standard specifications so to satisfy the
wider connecting necessities and it can drive coin separators ranging from 2 to 4 plus rejection
coin way out
We report hereunder the technical data and the relevant polls implemented onto the coin
mechanism.
Power supply: 12÷24 VDC ±10% Dimensions: 102x89x52 mm
Coin channels: 16 – all the euro denomination coins
ranging from 0.01cents to 2Euro.
Weight: 185 gr.
Max coin accepting speed: 3 coin/sec.
Coin dameter range: From 16 to 31.5 mm
Interface: CCTALK serial standard
Operating temperature range:
Between 0 to 55° - from 10% to 75%
condensed humidity.
IMPLEMENTED POLLS:
Poll Function Poll Function
254 Simple poll 232 Perform self check
253 Address poll 231 Modify inhibit status
252 Address clash 230 Request inhibit status
251 Address change 229 Request Buffered credit or error codes
250 Address random 227 Request master inhibit status
249 Request polling priority 210 Modify sorter path
248 Request status 209 Request sorter path
246 Request manufacturer id 197 Calculate rom checksum
245 Request equipment category id 196 Request creation date
244 Request product code 195 Request last modification date
243 Request database version 192 Request build code
242 Request serial number 184 Request coin id
241 Request software version 170 Request base year
240 Test solenoids 169 Request address mode
238 Test output lines 4 Request comms revision
237 Read input lines 3 Clear comms status variables
236 Read opto states 2 Request comms status variables
233 Latches output lines 1 Reset Device
N
N
Page 2

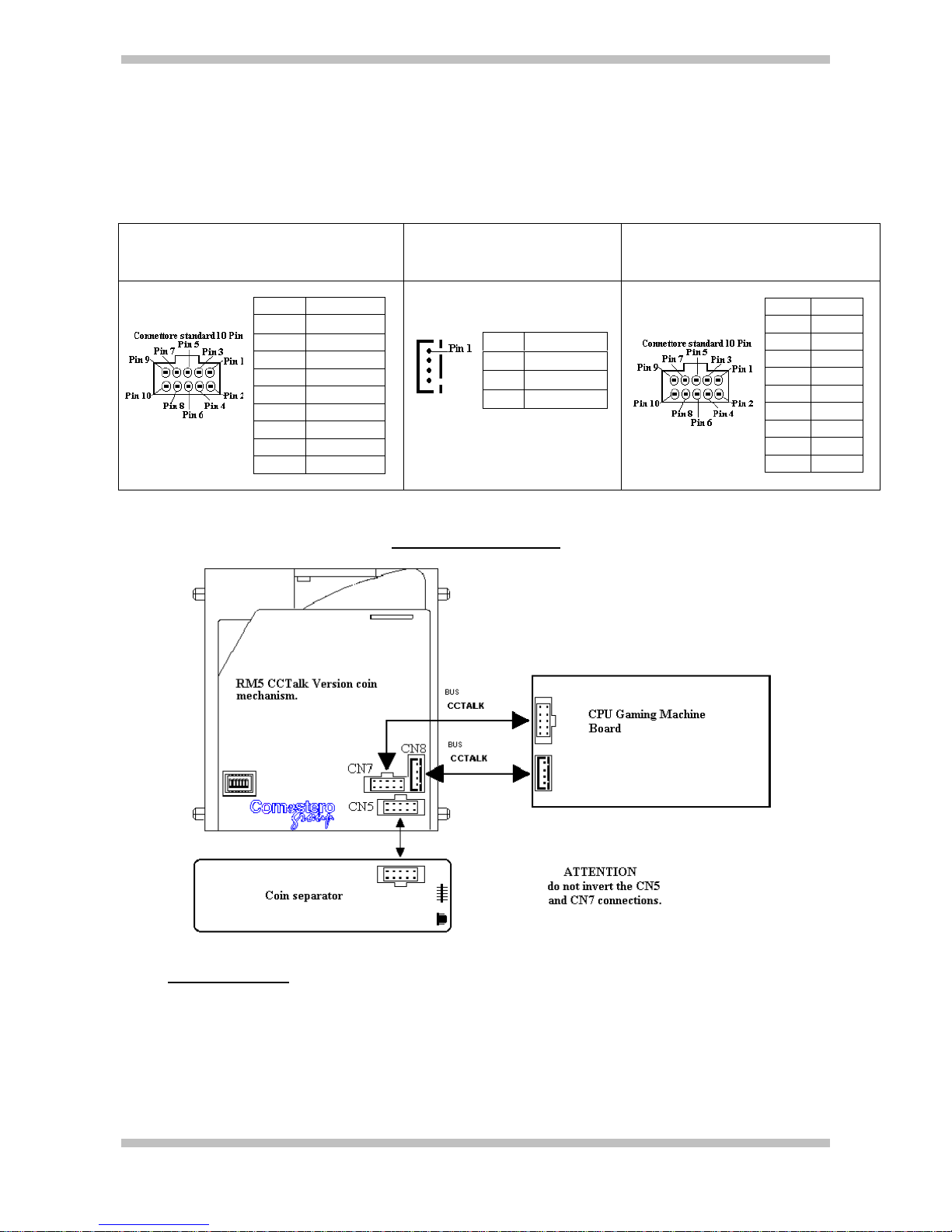

Connecting RM5 CC TALK to
The Comestero Coin Separator (SPS31LCC3-SPS31SCC3-SPS300CC3) and to the
machine CPU.
Parallel Standard 10 Pin (CN5) Connector CC TALK 4 pin (CN8) connector
Mod. B 4B-XH-A (JST)
CCTalk 10 Pin (CN7) Connector (CN7)
Connecting Scheme
Used Connectors :
CN5: Parallel standard 10 Pin connector
CN7: 10 Pin CCTALK Connector
CN8: 4 Pin CCTalk Connector
Pin 1 Gnd
Pin 2
+12÷24 Vdc
Pin 3 CH 5
Pin 4 CH 6
Pin 5 Not Used
Pin 6 Inhibit
Pin 7 CH 1
Pin 8 CH 2
Pin 9 CH 3
Pin 10 CH 4
Pin 1
+12÷
24 Vdc
Pin 2
N.U.
Pin 3
0 V
Pin 4
Data
Pin 1 Data
Pin 2 N. U.
Pin 3 N.U.
Pin 4 N.U.
Pin 5 N.U.
Pin 6 N.U.
Pin 7 + V
Pin 8 0 V
Pin 9 N.U.
Pin 10 N.U.
