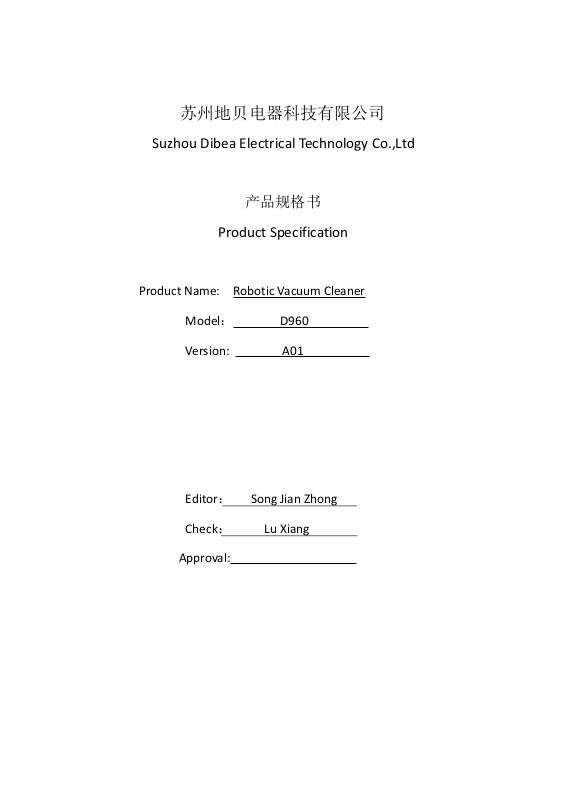

苏州地贝电器科技有限公司
Suzhou Dibea Electrical Technology Co.,Ltd
产品规格书
Product Specification
Product Name: Robotic Vacuum Cleaner
Model： D960
Version: A01
Editor： Song Jian Zhong
Check： Lu Xiang
Approval:
1
Product Specification
File No.：PE-D960-001
Version：A01
Name：Robotic Vacuum Cleaner
Model：D960
Effective Date：2018/3/20
1. Product Picture
2. Product Features
–
Different working modes, Auto cleaning / Edge cleaning / Spot cleaning /Lune
line cleaning and so on;
–
Be able to work on different kind of floors, such as thin carpet, laminate and
hard floor;
–
Be able to work under mute cleaning mode
–
Can be recharged with adaptor directly or use self- recharge function .
–
D960 has 3 different self-recharge modes: 1. Low power self-recharge; 2. Task
finished self-recharge; 3. Button controlled self-recharge mode.
– Can be controlled by 2.4G remote controller and infrared；
–
Li-ion battery acceptable;
–
Avoid charging home base when working;
–
Wet mop function ( sweep & mop 2-in-1);
–
Schedule setting mode and can work automatically every day
2
Product Specification
File No.:PE-D960-001
Version: A01
Name: Robotic Vacuum Cleaner
Model：D960
Effective Date: 2018/3/20
3. Safety Protection
–
With anti-falling function, can avoid to drop down;
–
With multi- infrared detection function, can slow down by itself when working
close to furniture or other objective;
–
Tangled free;
–
With safety protection circuit which can avoid incidents such as battery burning
caused by circuit;
–
With locked rotor protection for drive wheel motor/ side brush motor/ vacuum
motor/ roller motor;
–
With drive wheel off ground protection;
–
With nose wheel stuck protection.
4. Key components
–
PCB–Adaptor
–
Motor
- Roller brush motor
- Side brush motor
- Wheel motor
–
Vacuum motor
–
Switch
3
Product Specification
File No.:PE-D960-001
Version: A01
Name: Robotic Vacuum Cleaner
Model: D960
Effective Date: 2018/3/20
5. Parameters
– Working time≥2hours
–
Standby power≤1w
– Direct recharging power≤15w
– Docking recharging power≤15w
–
Recharging Hour≤5 hours
– Battery Capacity：2600mAh 14.8V
– Adaptor parameters：20v DC 600mAh Constant Voltage
–
Motor parameters
：
- Roller brush motor*1：14VDC/6500RPM
- Side brush motor*2：14.4VDC/6100RPM
- Drive wheel motor*2：14VDC/6500RPM
– Vacuum motor：12V/15V 800Pa/1200Pa
– Test method for drive wheel speed：HALL test
–
Test method for dust bin：HALL test
– Test method for drive wheel self raise：HALL test
– Bumper：Micro switch*4 pairs
–
Sensor：Infrared*7 pairs
– Infrared receiver：*8 pairs
– Anti-falling height≤100mm
–
Grade-ability≤15 degree
– Remote Control≤10m
– Schedule time lag≤2seconds/day
–
Edging distance≤45mm
– Noise≤60dB
– Cross obstacle≤15mm
4
Product Specification
File No.: PE-D960-001
Version: A01
Name: Robotic Vacuum Cleaner
Model: D960
Effective Date: 2018/3/20
6. Life tests
–
From start working to self-recharging as a cycle, working circularly;
–
After 450 continuous working circulations, the machine work normally;
– After 450 continuous circulations test, noise is less than 65dB；
–
Machine work normally without motor fire phenomenon after full test.
7. Packaging Requirements
– Pass the package drop test （ Height: 76cm Method: drop carton by one
corner-three edges-six sides one by one；
–
Pass the transportation vibrate simulate test (Test time: 6hours Rotate speed:
200±10RPM/min）；
–
Pass the extreme temperature & damp heat resistance test and storage test.
5
Product Specification
File No.: PE-D960-001
Version: A01
Name: Robotic Vacuum Cleaner
Model: D960
Effective Date: 2018/3/20
8、BOM
6
