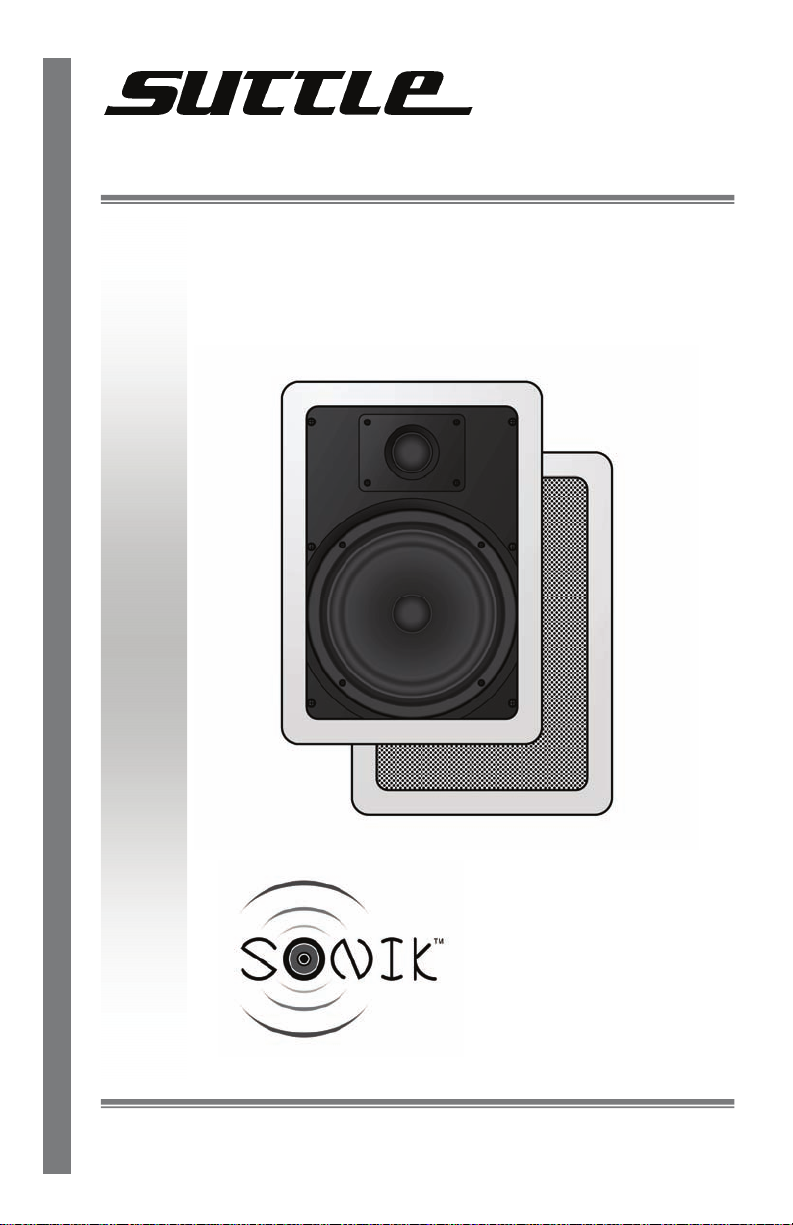

SAS-6W In-wall Speakers
User Guide
1001 East Hwy 212
Hector, MN 55342
www.suttlesoho.com
Toll Free: 1-800-852-8662
Local: 1-320-848-6711
Fax: 320-848-2361
Installation:
• Use the included template to mark and cut the mounting hole in the
drywall. Be sure the hole location allows the speaker to clear the
wall stud.
• We recommend wiring with AWG 16 or larger, stranded wire.
• Find the speaker wire leads and pull them through the hole and carefully
connect the leads to the speaker terminal block. Pry up the red (+) and
black (-) levers and insert the wire. Then snap the levers into the ‘down’
or closed position, making sure to capture the wire securely. Be sure to
observe proper polarity when connecting the speaker wire to the
terminal bock and make sure both speakers are connected the same
way. To simplify installation the speaker connector may be detached
from the speaker for insertion of the wire, then plugged back into the
header after the wire is captured.
• Install the SAS-6W in hole. Tighten the mounting screws clockwise.
The clamps will rotate outward and begin to grip the drywall. Tighten
until snug.
• The speaker system is now ready to be turned on.
Features:
• 1” Ultra-wide dispersion dome tweeter
• Polypropylene cone
• 1” aluminum voice coil easily copes with the heat and power of
extended use
• Two-piece speaker connector simplifies installation and provides a
better connection
Specifications:
• Nominal Input Power - 20 Watts
• Maximum Input Power - 60 Watts
• Sensitivity – 89dB
• Impedance – 8Ω
Limited One Year Standard Warranty:
Suttle warrants its complete product offering to be free of factory defects in
material and workmanship for a period of One Year (1) from date of
shipment. Suttle will replace, FOB factory, within One Year (1) from date of
shipment any product returned with proof of failure due to factory defect s,
provided the product has not been subjected to alterations, misuse,
negligence or accident.
The exchange of any factory defective Suttle product is at the option of
Suttle and in no event does Suttle assume liability for any damage beyond
refund of purchase price of its nonconforming goods, or repair or
replacement of the same. Do not return any product without prior
authorization. To obtain approval to return merchandise, address
correspondence to Suttle Customer Service.
Suttle reserves the right to modify, replace or alter material design and/or
specification where form, fit and/or function of the product is unaffected. In
the event of such change the level of product quality will be retained or
improved.
