SOHO Access
TM
Module User Guide

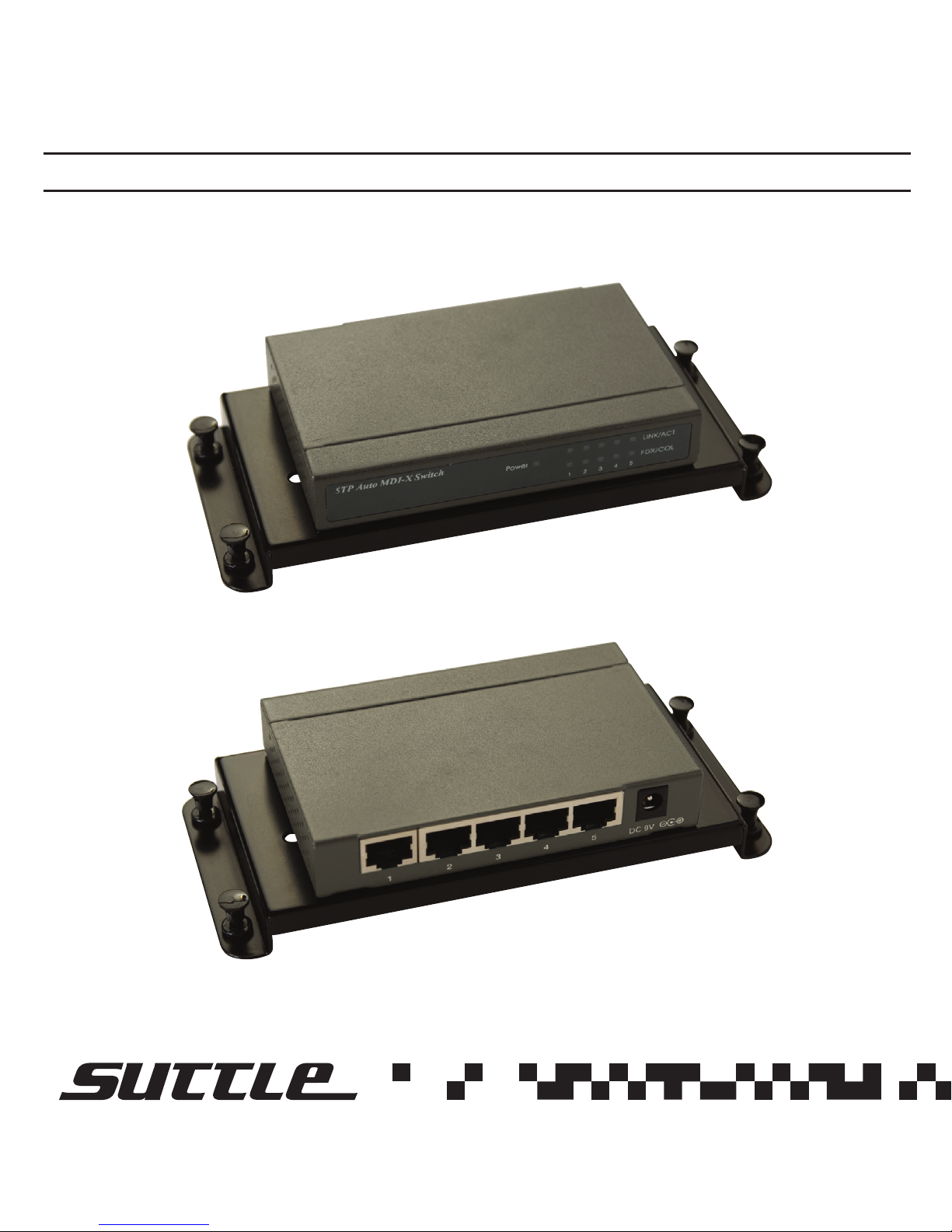

SAM-SW5U: 5-port 10/100 Ethernet Switch
SOHO Access
TM
Module User Guide
1. Introduction
The 5 port 10/100BASE-TX Switch is compact and attractively designed for
use within Suttle’s SOHO Access
TM
Enclosure. They are ideal solution for
small office or home office network user. The Switches provide wire-speed,
Fast Ethernet switching function that allows high-performance, low-cost
connection.
The 5 port 10/100BASE-TX Switch will automatically detect the speed of the
device that you plug into it to allow you to connect both 10 and 100Mbps
device. They feature a store-and forward switching and it can auto-learn and
store source address.
Features
• Conforms to IEEE 802.3, 802.3u and 802.3x standard
• 5 10/100Mbase-TX Switch
• Auto MDI/MDI-X on all ports
• N-way auto-negotiation
• IEEE802.3x Flow control
o Flow control for full duplex
o Backpressure for half duplex
• Store-and-forward switching architecture
• 1 Mbits memory buffer
• 1K MAC address table
Module Installation
Align the mounting pins with the grid holes on the back of the enclosure.
With the mounting pin plungers in the “out” position, press the unit into the
grid in the desired location and secure by pushing the plungers in.
SOHO Access
TM
Module User Guide

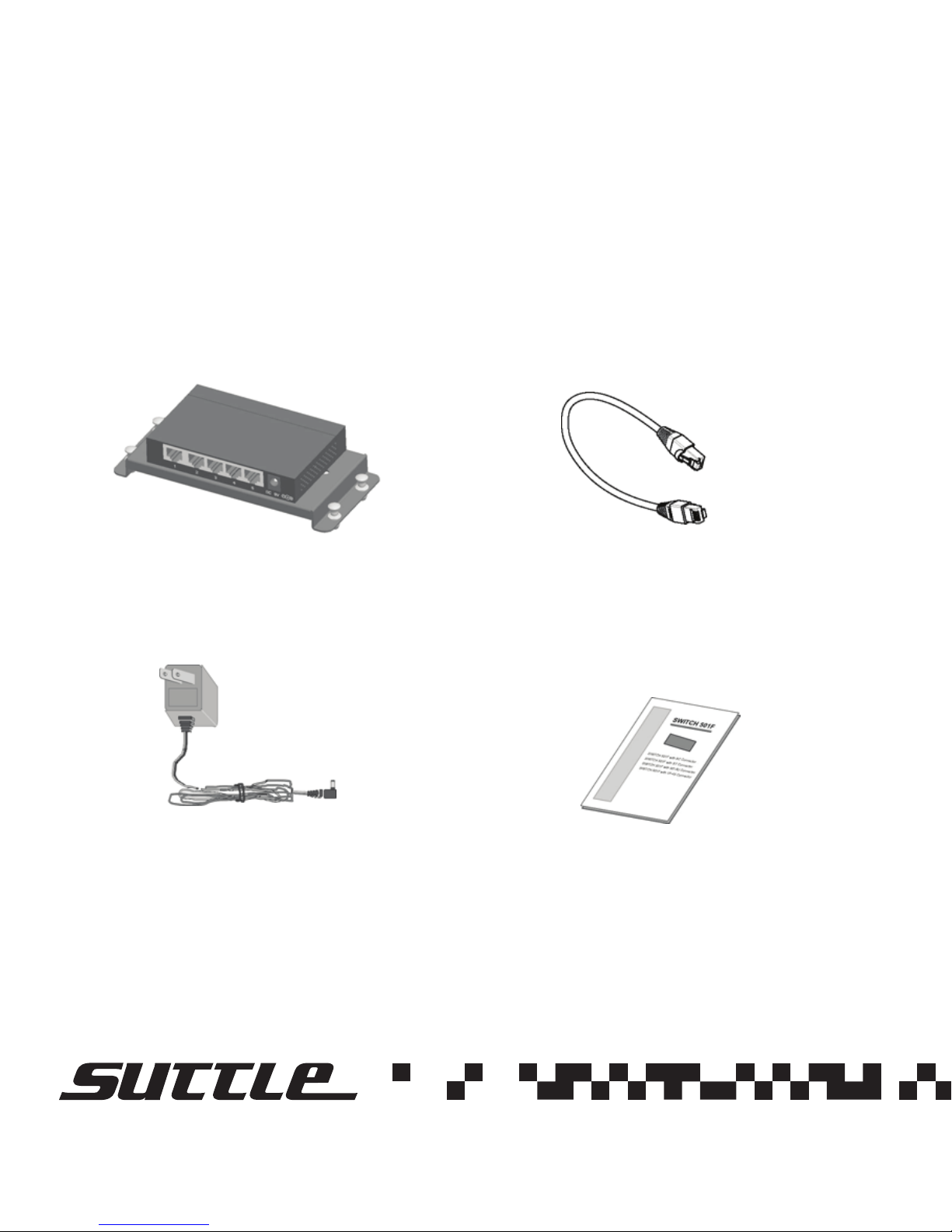

Package Contents
• 5 10/100BASE-TX switch on SOHO Access
TM
mounting bracket
• 5 CAT5e RJ45 Patch Cords
• DC Power Adapter
• User’s Guide
Compare the contents of your switch with the standard checklist above. If
any item is missing or damaged, please contact your local dealer for service.
5 port 10/100BASE-TX Switch
(
bracket not shown
)
DC Power Adapter
User’s Guide
5
–
CAT.5e Patch Cords, 12in.
SOHO Access
TM
Module User Guide
2. Hardware Description
This section mainly describes the hardware of the 5-port switch.
The physical dimensions of the 5 10/100BASE-TX SOHO switch is 110mm
x 70mm x 19mm (L x W x H) excluding the bracket.
Front Panel
The LED indicators are located on the frond panel of the switch. They
provide a real-time indication of systematic operation status. The Front
Panels 5 10/100BASE-TX SOHO switch is as the following figure shown.
LED
Powe
r
LED Status Color Description
Power
On Green The power of the switch is on.
On Green The port is successfully connecting with the device
Blinks Green The port is receiving or transmitting data.
LNK/
ACT
Off No device attached.
On Green Link on 100Mbps
100M
Off Link on 10Mbps or no device connected.
SOHO Access
TM
Module User Guide
Rear View
The rear panel of the 5-port switch consists of 5 – 10/100N RJ-45 ports
(Auto MDI/MDIX) and one DC power connector.
• RJ-45 Ports: 5 – 10/100 N-Way Auto MDI/MDIX for 10Base-T or
100Base-TX connections.
• Auto MDI/MDIX: It can detect the cable straight connect NIC or cascade
to a hub or switch without changing the connector, the maximum
distance between the switch and another device is 100 meters.
• DC Power Connector: Plug DC Power Adapter’s female end into the
switch and the male end of the DC Power Adapter into a power outlet.
The Adapter supplies the Switch with DC 9V, 700mA.
SOHO Access
TM
Module User Guide
3. Network Application
This section provides you a few examples of network topology in which
the 5-port switch can be used. The switch is designed to be used as a
segment switch.
The switch automatically learns node addresses, which are
subsequently used to filter and forward all traffic based on the
destination address.
Stand Alone
The 5-port switch is designed to be a compact switch, which is an ideal
solution for a home or small workgroup. The switch can be used as a
standalone switch to which personal computers, servers, and printer servers
are directly connected to form small workgroups.
SOHO Access
TM
Module User Guide
Enlarge Your Network
You can use the any port of the 5-port switch to connect with another hub or
switch to interconnect each of your small-switched workgroups to form a
large switched network.
You can connect any one switch port to a hub or switch without a crossover
cable by the use of the Auto MDI/MDI-X function.
In the below illustration, two switches are used to interconnect two small
workgroups. All the devices in this network can communicate with each
other. Connecting a server to the switch allows other users to access the
server’s data.
SOHO Access
TM
Module User Guide
Typical Use in the SOHO Access Enclosure
The Suttle SOHO Access Enclosure is the central distribution device where
incoming voice, data, and video are re-distributed throughout the home.
The switch is required to distribute the data to outlets through the home. On
the next page a diagram shows the typical application of a switch being fed
by a DSL modem deployed within the SOHO Access Enclosure.
SOHO Access
TM
Module User Guide
Typical Module Wiring Configuration
SOHO Access
TM
Module User Guide
4. Trouble Shooting
The switch can be easily monitored through panel indicators to assist in
identifying problems. This section describes common problems you may
encounter and where you can find possible solutions.
• Diagnosing LED Indicators
If the link indicator does not light up after making a connection check to
see if the network interface (e.g., a network adapter card on the attached
device), network cable, or switch port is defective. Be sure the cable is
plugged into both the switch and corresponding device. Verify that the
proper cable type is used and its length does not exceed specified limits.
• Power
If the power indicator does not turn on when the power cord is plugged
in, you may have a problem with the power outlet or power cord.
However, if the switch powers off after it has been running, check for a
loose power connection or power losses or surges at the power outlet. If
you still cannot resolve the problem contact your local dealer for
assistance.
• Cabling
RJ-45 Ports: Use unshielded twisted-pair (UTP) or shielded twisted-pair
(STP) cable for RJ-45 connections: 100Ω Category 3,4,5,5e or 6 Cable
for 10Mbps connections or 100Ω Category 5, 5e or 6 Cable for 100Mbps
connections. Also be sure that the length of any twisted-pair connection
does not exceed 100 meters (328 feet).
SOHO Access
TM
Module User Guide
5. Technical Specification
This section provides the specifications of the 5-Port Switch:
Specification
Standards Compliance
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3x Flow Control and Back-pressure
Connector
10/100TX: RJ-45
Protocol
CSMA/CD
Technology
Store-and-Forward switching architecture
Transfer Rate
14,880 pps Ethernet port,
148,800 pps per Fast Ethernet port
LED Indicators
Per Port: Link/Activity, Full/Collision, 100M
Per Unit: Power
Network Cables
10Base-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 cable
(100m), EIA/TIA-568 100-ohm STP (100m)
100Base-TX: 2-pair UTP Cat. 5, 5e,6 cable
(100m), EIA/TIA-568 100-ohm STP (100m)
Dimensions
164mm x 100mm x 26mm (W x D x H)
MAC Address
1K Mac address table
Data Buffer
1Mbits
Operating Temperature
0ºC to 45ºC (32ºF to 113ºF)
Operating Humidity
10% to 90% (Non-condensing)
Power Supply
External power supply, DC 9V, 700mA
Power Consumption
4.2 Watt for 5-Port Switch
EMI & Safety
FCC Class B, CE & UL, cUL
1001 East Highway 212 • Hector, MN USA 55342 • suttlesolutions.com
Toll Free: 1 (800) 852-8662 • Local: (320) 848-6711 • Fax: (320) 848-6218
Specifications subject to change without notice. Copyright 2015.
SOHO Access
TM
Module User Guide
100184-00 Rev B
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC rules. These limits are
designed to pro reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not stalled and used in accordance with the
instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measure:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: shielded-type power cord is required in order to meet FCC
emission limits and also prevent interference to the nearby radio and
television reception. It is essential that only the supplied power cord be
used. Use only shielded cables to connect I/O device to this equipment.
You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate the
equipment.
