SERVICE & SUPPORT
Thank you for choosing Sutter Instrument products. To guarantee the highest
standards of quality and performance, every instrument is fabricated on site
by highly skilled technicians. The instrument contained herein has been
assembled with care and tested to assure it meets rigid quality control
standards.
LG-Z20, LG-Z25, LG-Z35
We hope that our instruments and products continually meet your needs.
However, should a problem arise, please contact our technical support sta
to discuss your concerns. If the instrument requires factory service, we will
furnish shipping instructions. Items under warranty will be repaired free of
any costs, for parts or service. Both delivery and return shipping costs are the
responsibility of the owner.
This product carries a limited warranty of 2 years for parts and labor.
Our oce hours are 8:00 am to 5:00 pm Pacific Standard Time, Monday through
Friday.
Phone 1.888.883.0128
Fax 1.888.883.0900
Intl. Phone 1.415.883.0128
Intl. Fax 1.415.883.0572
Sutter Instrument
One Digital Drive
Novato, CA 94949
[email protected]
www.sutter.com
LG-Z40, LG-Z45, LG-Z50
LIGHT GUIDE ADAPTER FOR ZEISS MICROSCOPES
INSTALLATION INSTRUCTIONS
Page 2
INSTALLATION INSTRUCTIONS
LG-Z20, LG-Z25, LG-Z35, LG-Z40, LG-Z45, LG-Z50
LIGHT GUIDE ADAPTER FOR ZEISS MICROSCOPES
The adapter to connect the liquid light guide to a Zeiss microscope (that
uses the standard Zeiss dovetail) consists of three pieces:
(a) the lens tube that fits over the end of the liquid light guide
(b) the dovetail tube that houses the lens tube and fits into the microscope
adapter
(c) the microscope adapter that connects the entire assembly to the
microscope
Read the instructions carefully. If you have any questions, please contact
Sutter Instrument for assistance.
INSTALLATION INSTRUCTIONS
This adapter is shipped assembled and ready for installation. Slide the end
of the liquid light guide into the lens holder. Point the lens holder at a flat
surface approximately 8-10 feet (~3m) away and focus the output to a well
defined spot. Secure the liquid light guide in place with the thumbscrew.
Once the output has been collimated the entire assembly can be installed
on the microscope
LG-Z20, LG-Z25 , LG-Z35, LG-Z40, LG-Z45, LG-Z50

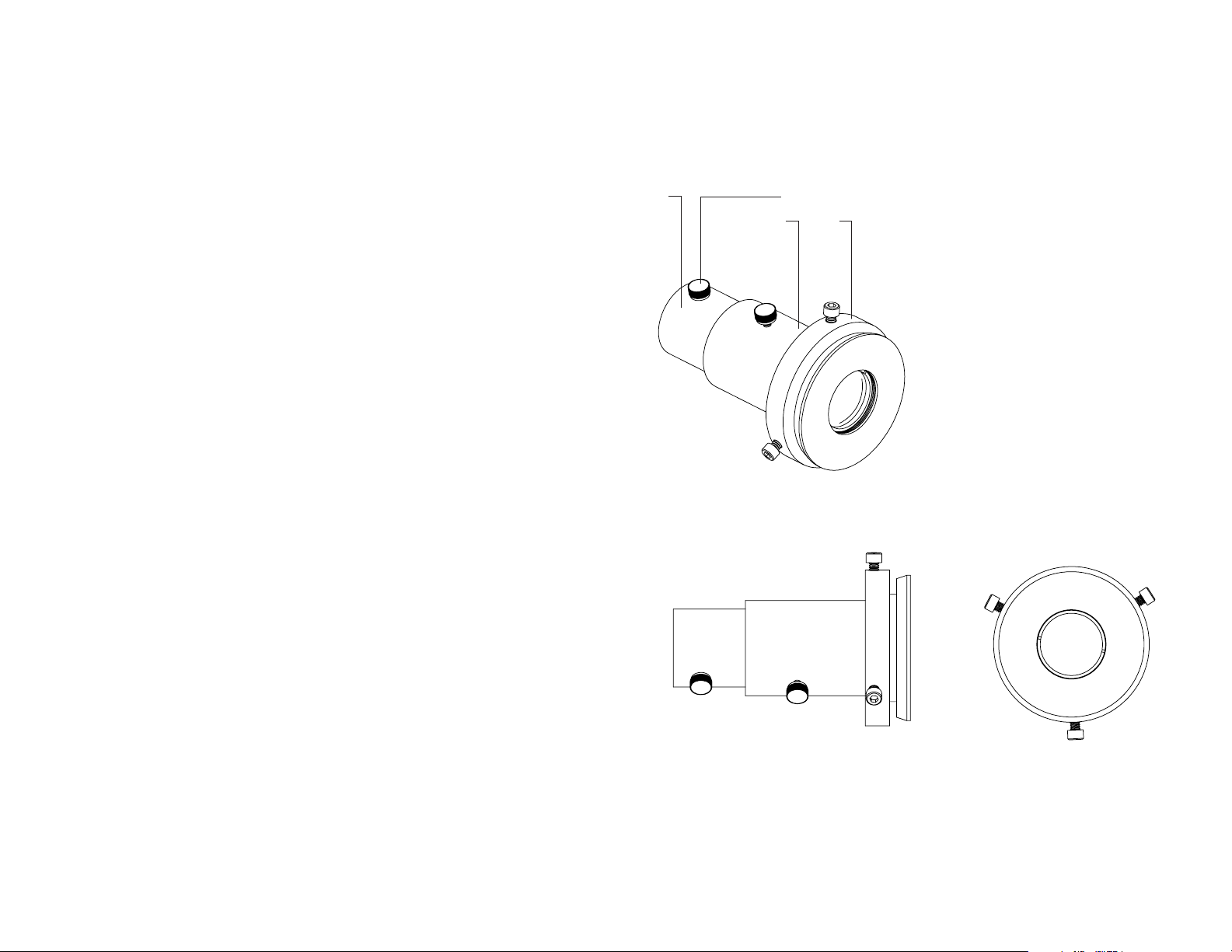

a thumbscrew
b c
This completes the installation. You can move the liquid light guide relative
to the lens holder and use the socket head cap screws to center the output
of the liquid light guide. These two adjustments allow you to optimize filling
of the field and field flatness.
