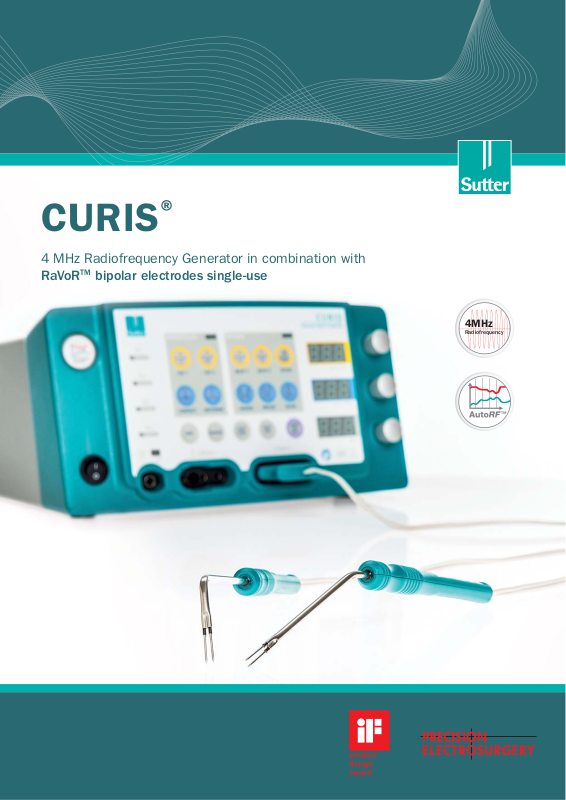

Page 1
®
CURIS
4 MHz Radiofrequency Generator in combination with
RaVoR
TM
bipolar electrodes single-use
4MHz
Radiofrequency
Page 2
CURIS® 4 MHz Radiofrequency Generator
One unit – many applications
The CURIS® 4 MHz radiofrequency generator relies on innovative 4 MHz technology:
It is gentle to the tissue and effective for coagulation, for submucosal shrinkage, and for cutting.
Scienti c studies have shown that tissue trauma may be reduced by using CURIS® 4 MHz radiofrequency technology.*
CURIS® 4 MHz Radiofrequency Technology
The higher the frequency, the less the resistance of biological tissue to electromagnetic elds –
up to the point where cell membranes are capacitively coupled. This effect is created by the CURIS®
4 MHz radiofrequency generator in all monopolar and bipolar modes. When using conventional
electrosurgical units the electromagnetic eld concentrates between the cells and only heats up
the outer layer. However, with the CURIS® 4 MHz radiofrequency generator cell membranes are
conductive, and energy is absorbed evenly inside the cells. As a result, energy is administered
gently and in a highly focused fashion. Precise monopolar cuts are possible while lateral heat
damage is kept to a minimum*
*1 Muehlfay G et al., A study on the type of lesions archieved by three electrosurgical methods and their way of healing. Romanian Journal of Morphology &
Embryology. 2015; 56(4): 1383 - 1388
2
*
Hoffmann TK et al., Comparative analysis of resection tools suited for transoral robot - assisted surger y. European Archives Oto - Rhino - Laryngology.
2014; 271 (5) : 1207 - 1213
1
2
.
4MHz
Radiofrequency
Permittivity/Frequency
Muscle
Fat tissue
Blood

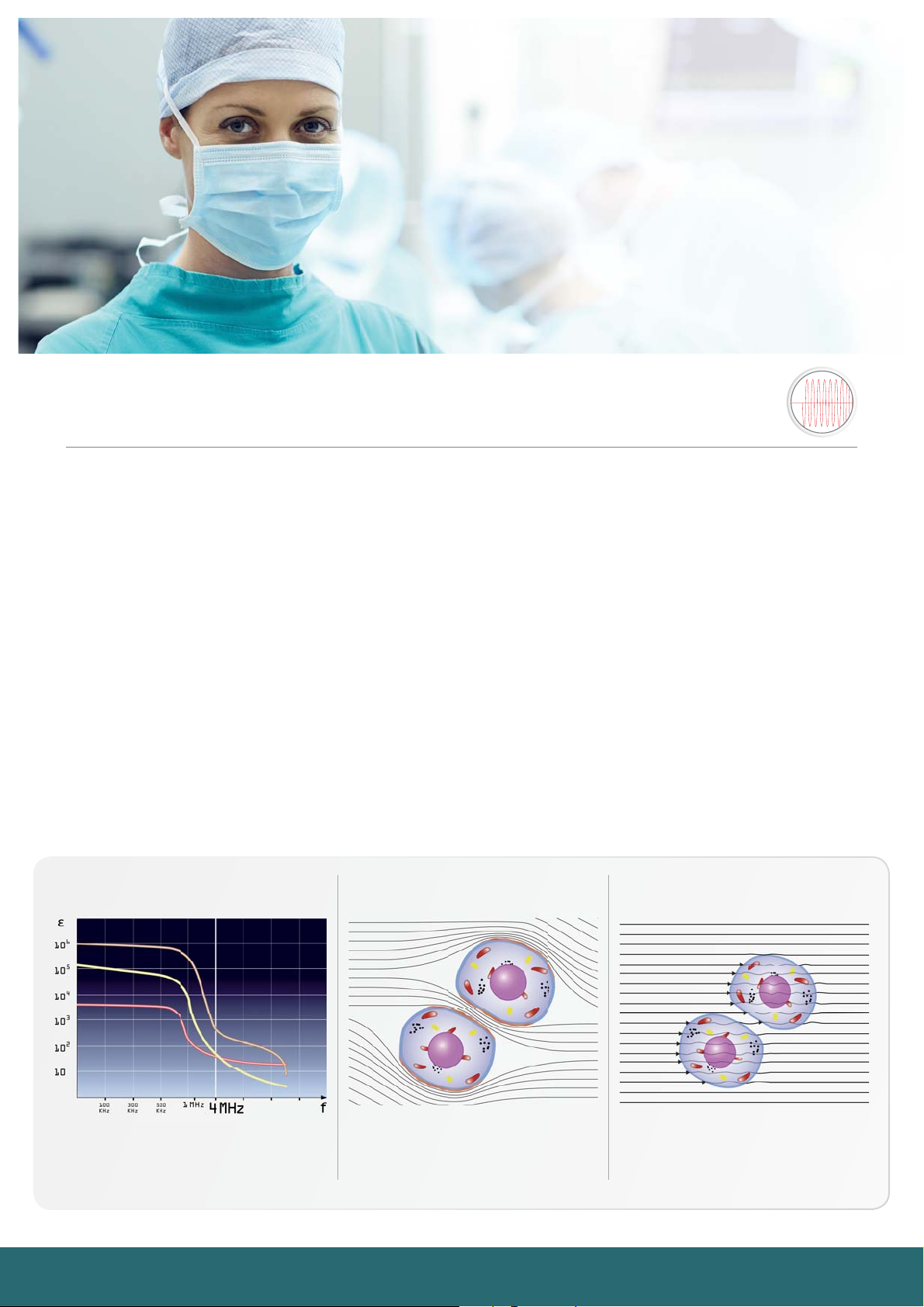

This diagram shows the permittivity of tissue,
which depends on the frequency of the electromagnetic eld.
2 | Sutter • CURIS®• 2018
Conventional electrosurgical units CURIS®4 MHz Radiofrequency
Generator
The electromagnetic eld concentrates between
the cells and heats up only the outer layer.
Cell membranes are conductive and the
energy is absorbed evenly inside the cells.
The results are highly focussed tissue effects.
Sold through Sutter Exclusive Partners
Page 3

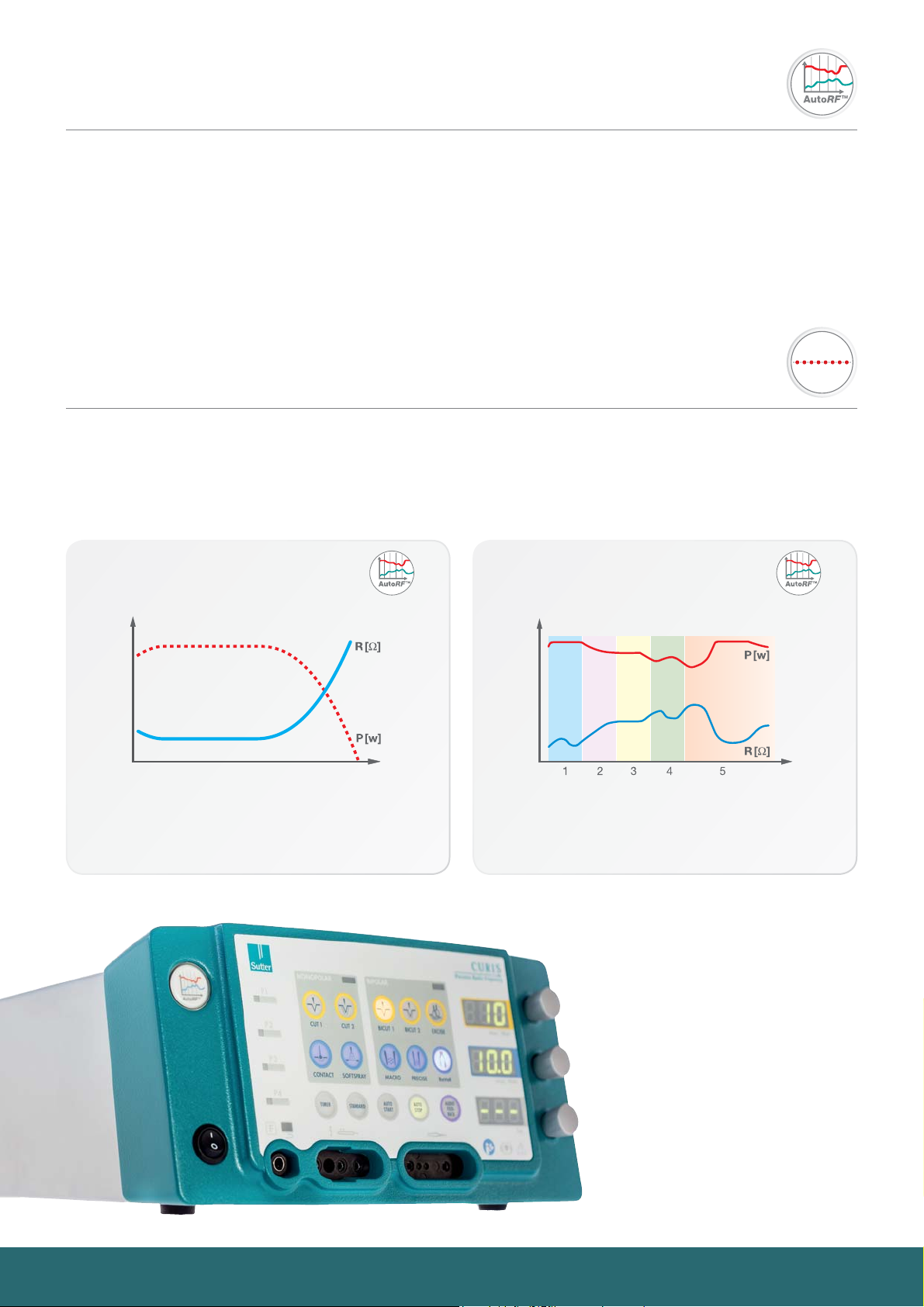

Precision thanks to AutoRF ™
AutoRF™ is a smart impedance control function that will tailor the power output of the CURIS® 4 MHz radiofrequency generator to the tissue condition. Whether it is cutting through different types of tissue (such as
mucosa, muscle, fat or connective tissue) or altering tissue conditions during coagulation, the AutoRF™
feature will deliver adapted power output as required by the different tissue impedance.
When dissecting different types of tissue in one cut (skin, fat, muscles), the unit has to process and
respond to the AutoRF™ data in a ash. For this reason, the CURIS® 4 MHz radiofrequency generator has
two microprocessors for additional safety and speed.
3TM
p
-Technology
3TM
p
, which stands for pulsed power performance, is active in all coagulation modes of the CURIS® 4 MHz
radiofrequency generator. Radiofrequency energy is delivered in about 50 small packages per second.
Due to the pulsed power output, there are short breaks between the individual packages, giving the tissue
enough time to absorb the energy. Highly focused, yet gentle coagulation with minimal thermal damage is
possible.
3
p
pulsed power
performance
™
®
CURIS
RaVoR
RaVoR™ mode:
The pulsed power output with short intervals between
the individual packages gives enough time for the
coagulated tissue to absorb the applied energy.
™
®
CURIS
CUT
Monopolar cutting:
Sections 1 to 5 show the different kinds of tissues and
cutting speeds to which the unit adjusts its power output
automatically. “R“ signi es electric tissue resistance and
“P“ the actual power output.
Sold through Sutter Exclusive Partners
CURIS®: one device
– many applications
| 3Sutter • CURIS®• 2018
Page 4
% 50
40
RaVoR™ of the inferior turbinates
RaVoR™ of the soft palate
“Bipolar radiofrequency volumetric tissue reduction, using Sutter
technology, appears to have promising results for patients with snoring
and mild OSA. One treatment session resulted in signi cant reduction
in snoring intensity, improvement in sleep quality and QOL, and reduction
in daytime sleepiness.“
Pang KP et al. Sutter bipolar radiofrequency volumetric tissue reduction of palate
for snoring and mild obstructive sleep apnoea: is one treatment adequate? The
Journal of Laryngology & Otology. 2009; 123(7): 750-754
30
20
10
0
Snoring intensity pre- and postoperatively after treatment of nasal turbinates and soft palate
Marinescu, A, Innovative Bipolar Radiofrequency Volumetric
Reduction with “ORL - Set” for Treatment of Habitual Snorers.
Laryngo-Rhino-Otol, 2014; 83 (9): 610 – 616
1234
0
Pat. preop.
Pat. postop.
NAS Score

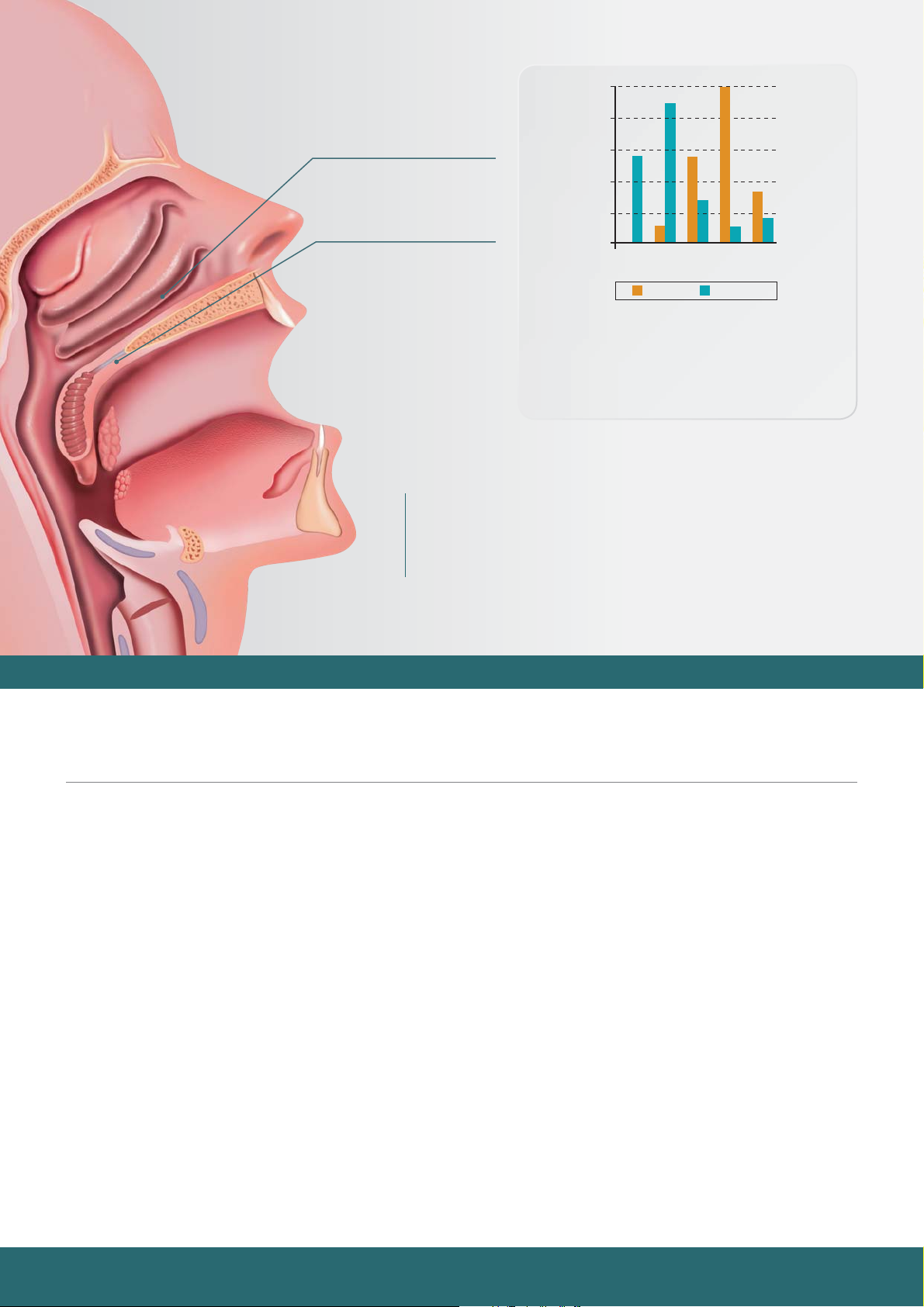

RaVoRTM Radiofrequency Volume Reduction
RaVoR™ of the inferior turbinates, soft palate, tongue base, etc. is an interstitial application
for submucosal tissue shrinkage. Precise delivery of energy and smart power adjustment depending
on actual tissue impedance aid in creating consistent and repeatable lesions. As soon as the
right size of a lesion has been achieved, the CURIS® 4 MHz radiofrequency generator will automatically stop the activation (AUTO STOP mode), and give an acoustic signal. The treated tissue is
decomposed by the body’s own immune system and transformed into fibrous scar tissue. This
process leads to a shrinkage and stiffening of the treated area. Sutter has developed different
bipolar electrodes for the treatment of sleep - related breathing disorders based on the anatomical
sites of obstruction.
Audio Feedback
If desired, an acoustic feedback function (AUDIO FEEDBACK) can be activated. While a lesion is
created in RaVoR™ mode, the change in tissue condition is signaled by a changing pitch: The further
the lesion progresses, the higher the activation sound. This mode may also be used to potentially
increase the patient’s comfort. The patient will be able to listen and follow what happens inside the tissue.
4 | Sutter • CURIS®• 2018
Sold through Sutter Exclusive Partners
Page 5

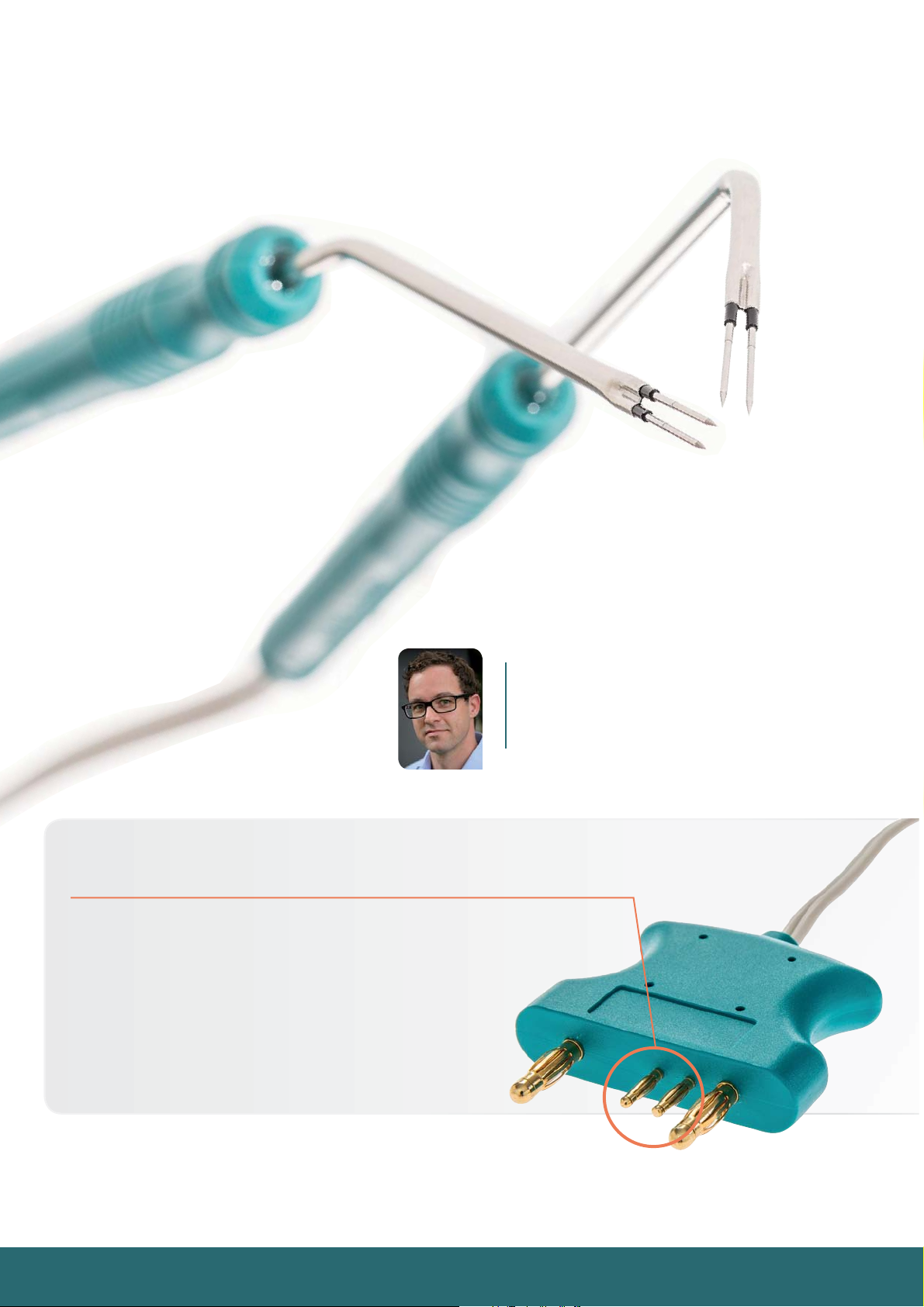

RaVoR™ bipolar electrodes
single-use
Plug and operate
• Convenient handling for surgeon and staff
• Perfect match with the
CURIS® 4MHz radiofrequency generator
• Auto recognition of the instrument and
instant selection of the RaVoR
• CURIS®– Precision thanks to AutoRF
™
program
™
“The RaVoR™ bipolar electrodes single - use
for the reduction of the inferior turbinates are
a convenient solution for my private practice.
My staff and I enjoy the ease of use due to
the new plug and operate feature.”
S. Grupp, MD, Freiburg (Germany)
Sold through Sutter Exclusive Partners
| 5Sutter • CURIS®• 2018
Page 6

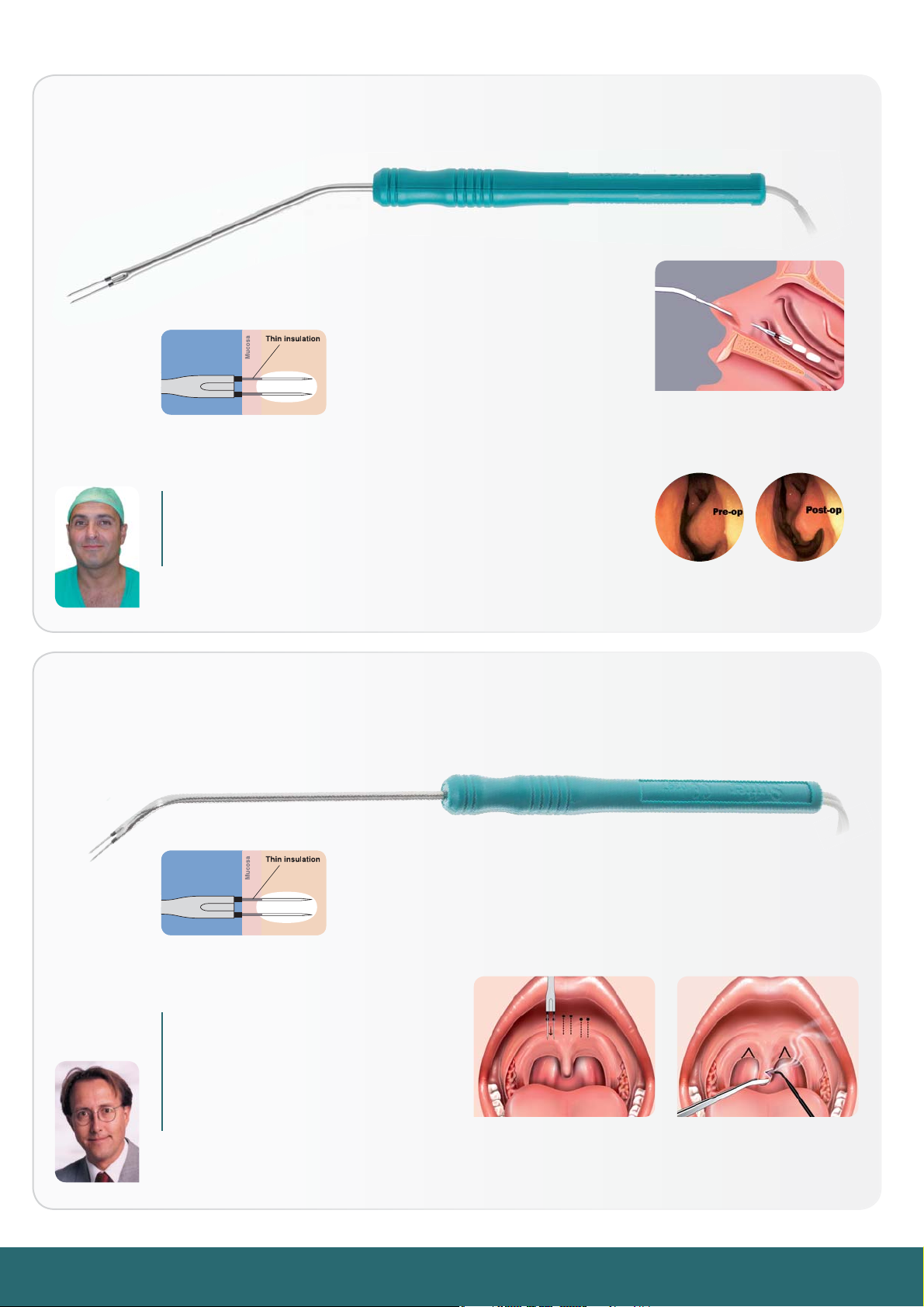

RaVoR™ of the inferior turbinates
70 44 62
RaVoRTM bipolar electrode
for the inferior turbinates, single-use
working length: 103 mm
“RaVoR™ is a modern surgical technique showing good and
long-lasting treatment results when used to reduce the volume
of hypertrophic turbinates. At the same time it preserves the
mucosa and its function.”
R. Romeo, MD, Israelitic Hospital
Rome (Italy)
Schematic view of the puncture sites
for the application of radiofrequency
energy of the hypertrophic turbinates.
Inferior turbinate – Preoperative
condition and six months postoperatively with signi cantly enlarged
nasal passage.
RaVoR™ of the soft palate
70 44 95
RaVoRTM bipolar electrodes
for the soft palate, single-use
working length: 110 mm
“The radiofrequency assisted soft
palate procedure is a minimally invasive,
safe and quick procedure. It is well
tolerated by patients. We have not
observed any bleeding that needed
special attention.”
D. Brehmer, MD
Göttingen (Germany)
Puncture sites for the application of
radiofrequency energy in the soft palate
Dissection of surplus uvula tissue and
incision lines for the triangular excision
of the posterior palatal pillars.
(With ARROWtip™ monopolar microdissection electrode, REF: 36 03 42)
6 | Sutter • CURIS®• 2018
Sold through Sutter Exclusive Partners
Page 7

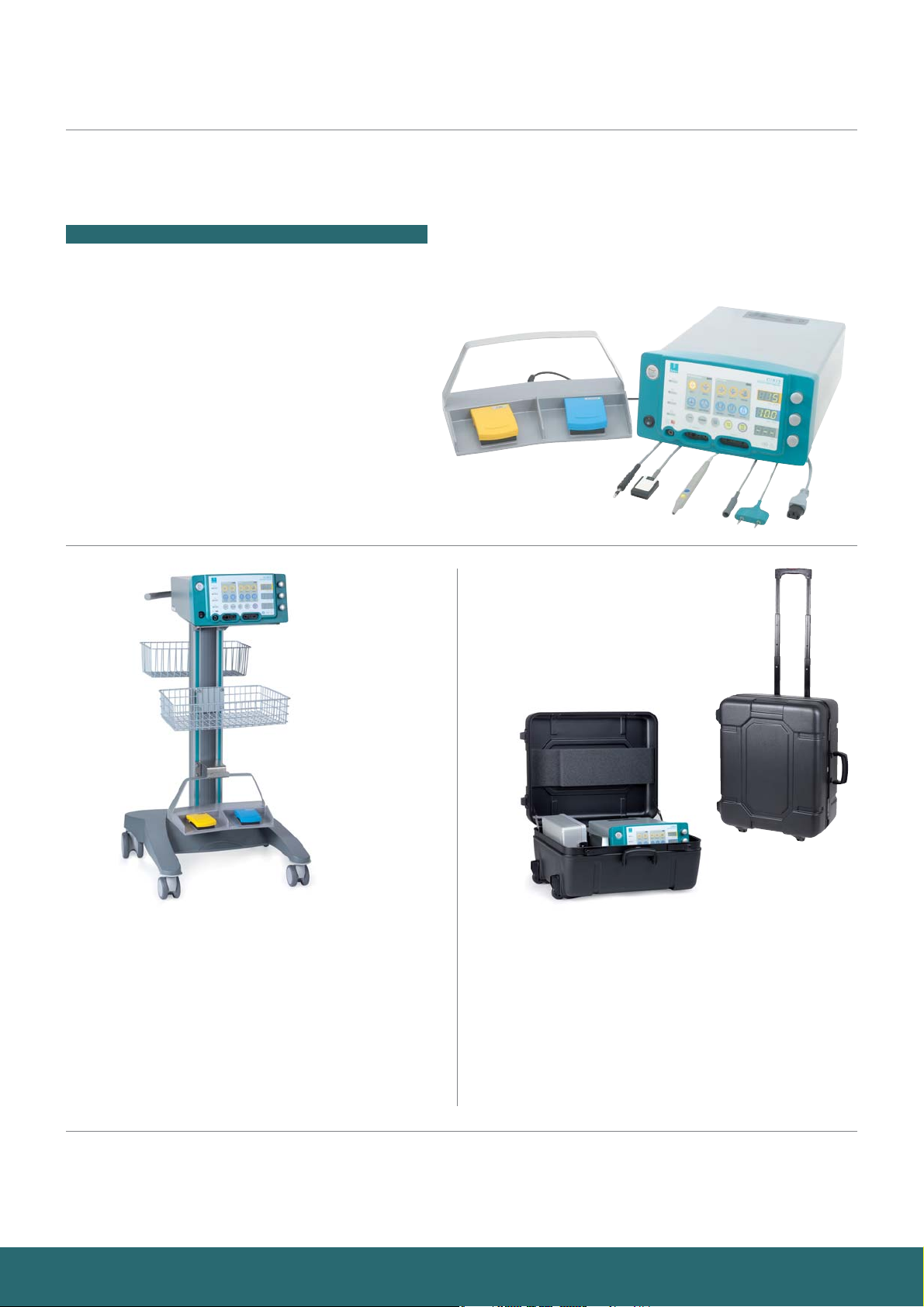

CURIS® Basic set/Accessories
CURIS® Basic set
87 00 10 – CURIS® basic set with single-use patient plates
Anzahl REF Beschreibung
1
1 36 01 10 Foot switch two pedals for CURIS® (cut & coag),
1 37 01 54L
1 36 07 04 Monopolar handpiece (pencil) cut & coag,
1 36 02 38 Cable for single-use patient plates, length: 3 m
1 (x50)
36 01 00-01
36 02 22
CURIS® 4 MHz radiofrequency generator
(incl. mains cord, user‘s manual and test protocol)
cable length: 4 m
Bipolar cable for CURIS®, length: 3 m
shaft 2.4 mm, cable length: 3 m
Safety patient plates, single-use,
packing 5 x 10 pcs. (not shown)
36 09 00
Fuego trolley
Fuego Trolley
99 01 10
CURIS® trolley case
Trolley Case for
CURIS® 4 MHz radiofrequency generator
The trolley has a solid design and guarantees that the
CURIS® 4 MHz radiofrequency generator will not shift.
It also comes with a hook to mount the foot switch.
Two storage baskets for accessories and documentation.
Disclaimer:
The information presented herein has been carefully researched and compiled with the help of specialist physicians. They are not meant to serve as a
detailed treatment guide. They do not replace the user instructions for the medical devices used. Sutter accepts no liability for the treatment results beyond
the mandatory legal regulations.
Products shown in this catalog are available in the EU. Availability in other markets may vary.
Sold through Sutter Exclusive Partners
The CURIS® trolley case is ideally suited to preserve
your radiofrequency generator from damage.
| 7Sutter • CURIS® • 2018
Page 8
CURIS
RF output max. performance operating frequency
monopolar
CUT 1 (unmodulated)
CUT 2 (modulated) 80 W ± 20 % 600 Ω 4.0 MHz
CONTACT (Coag) 80 W ± 20 % 400 Ω 4.0 MHz
SOFTSPRAY (Coag) 60 W ± 20 % 600 Ω 4.0 MHz
bipolar
BICUT 1 80 W ± 20 % 300 Ω 4.0 MHz
BICUT 2 80 W ± 20 % 300 Ω 4.0 MHz
EXCISE (Cut) 80 W ± 20 % 300 Ω 4.0 MHz
MACRO (Coag) 80 W ± 20 % 50 Ω 4.0 MHz
PRECISE (Coag) 50 W ± 20 % 50 Ω 4.0 MHz
RaVoR™ 40 W ± 20 % 50 Ω 4.0 MHz
®
– Technical data
monopolar
100 W ± 20 % 600 Ω 4.0 MHz
Modulation frequency 33 kHz
Mains supply 100-240 V; 50/60 Hz
Measurements W x H x D 320 mm x 170 mm x 385 mm
Weight approx. 5.0 kg
Mode of operation Intermittent INT 10 s / 30 s equals 25 % ED
Standards DIN EN 60601-1; DIN EN 60601-2-2
Safety class I
EMC (Interference suppr.) EN 60601-1-2
Type CF (cardiac oating), de brillator-proof
German MPG class. II b
Quality assurance EN ISO 13485
© Sutter Medizintechnik · Subject to change · REF 1259 A – R09 · printed on acid free paper
