CAM6160/6180

D1 Speed Dome IP66 Outdoor Network Camera

User Manual

Release 1.0 October 2010

Surveon CAM6160/6180

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written consent of Surveon Technology Inc.

Surveon Technology makes no representations or warran ties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Surve on Technology reserves the right to revise this publication and to make changes

AllRightsReserved©SurveonTechnology2010

Disclaimer

from time to time in the content hereof without obligation to notify any person of such revisions or changes. Product s pe cifications are als o subject to change without notice.

Trademarks

Surveon and Surveon logo are trademarks of Surveon Technology Inc. All other names, brands, products or services are trademarks or registered trademarks of their respective owners

Surveon Network Camera User Manual

Surveon CAM6160/6180

Table of Contents

Table of Contents ............................................................................. 2

Chapter 1. Overview.......................................................................... 4

1.1. Network Camera Introduction ......................................................4

1.2. Network Camera Features...........................................................4

1.3. Network Camera Specifications ....................................................5

Network Camera Hardware Installation ...............................................7

Chapter 2. Connecting to the Network Camera......................................... 8

2.1. Connecting with a Web Browser ...................................................9

Logging into the System for the First Time ......................................... 10

Installing Active X Components in Internet Explorer .............................. 11

Logging Out of the System ............................................................. 12

Using the Help Interface ............................................................... 12

2.2. Connecting with an RTSP Player .................................................13

Connecting with a Mobile Device RTSP Player...................................... 13

Chapter 3. Web Interface...................................................................14

3.1. Interface Layout .....................................................................14

Control Descriptions .................................................................... 15

3.2. Settings ................................................................................18

General.................................................................................... 18

Basic Settings ....................................................................... 18

User Account ........................................................................ 20

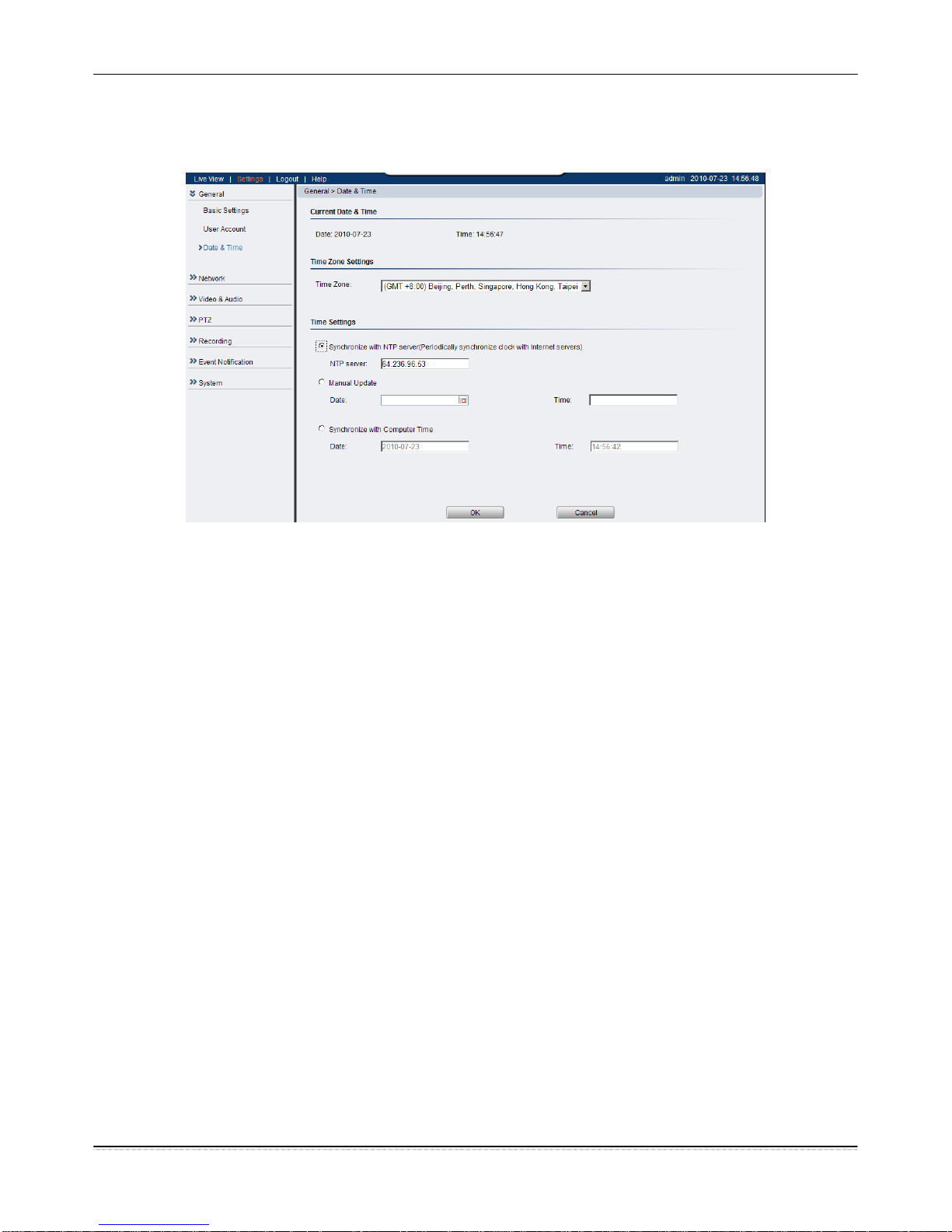

Date & Time......................................................................... 23

Network................................................................................... 24

Network Configuration............................................................. 25

Port Settings......................................................................... 26

UPnP.................................................................................. 27

Video & Audio Settings ................................................................. 28

Basic Settings ....................................................................... 28

www.surveon.com

Surveon CAM6160/6180

Image Appearance.................................................................. 29

Video Streams....................................................................... 32

Audio Settings....................................................................... 34

PTZ......................................................................................... 35

Speed Adjustments:................................................................ 36

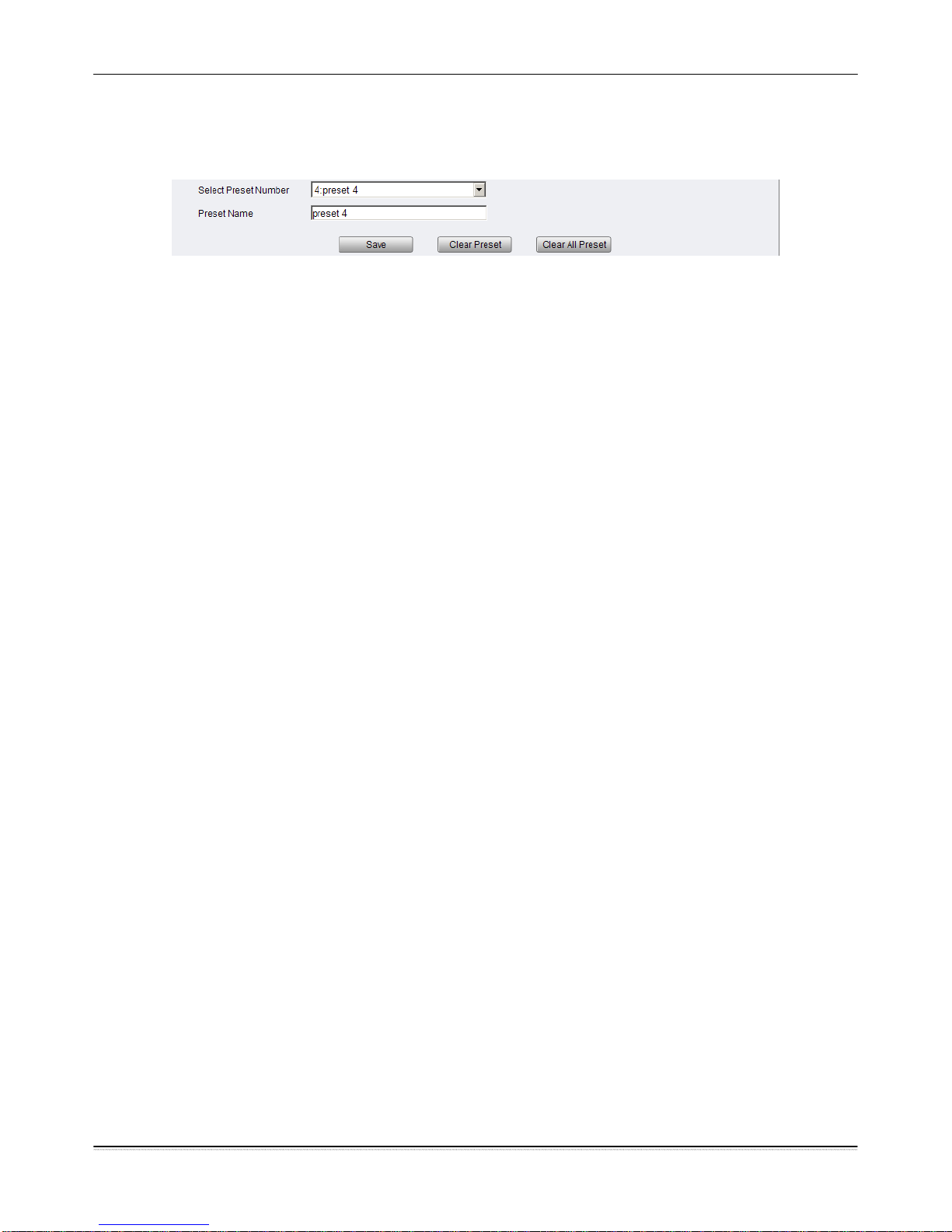

PTZ Presets:......................................................................... 37

Recording ................................................................................. 38

Recording Basic Settings .......................................................... 38

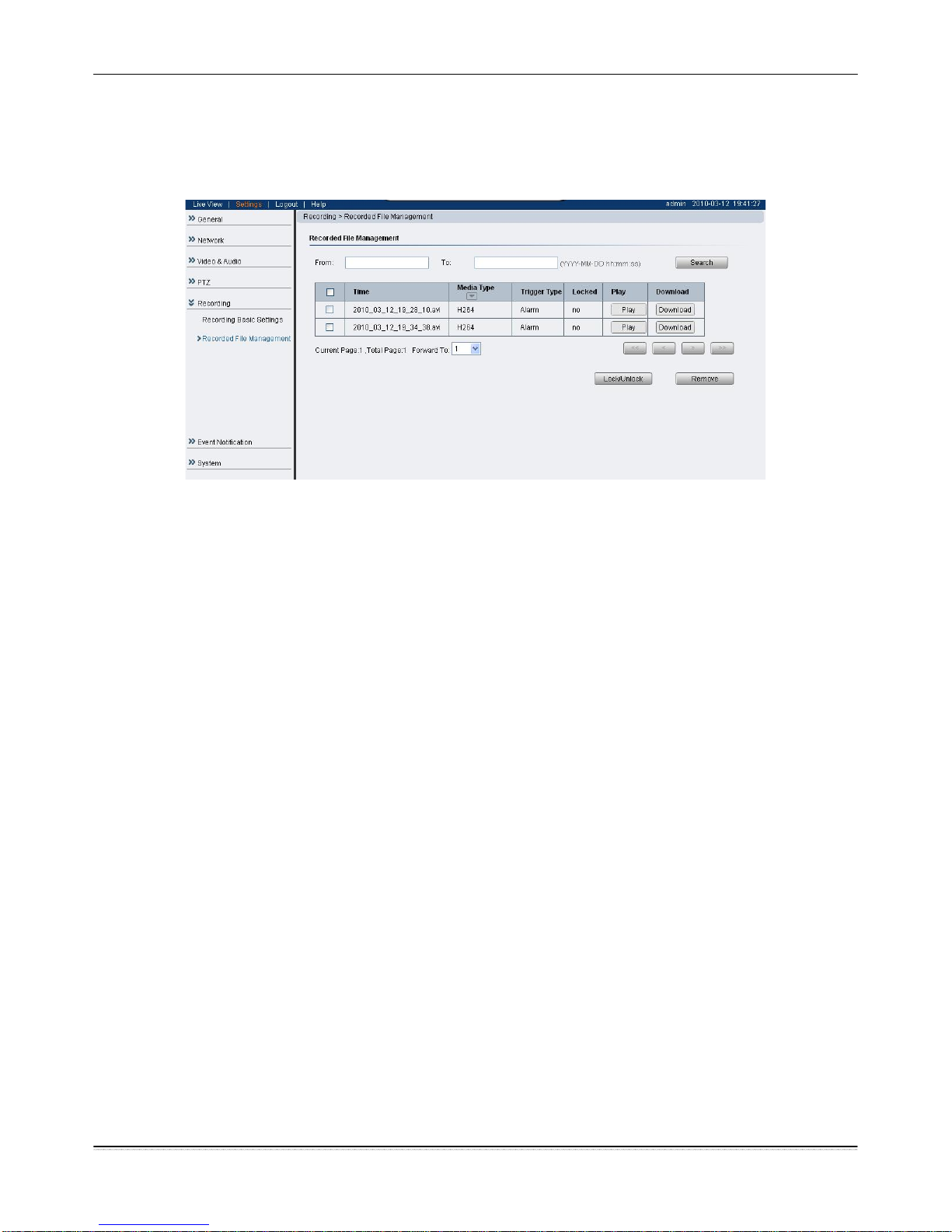

Recorded File Management.......................................................39

Event Notification....................................................................... 41

Event Server......................................................................... 41

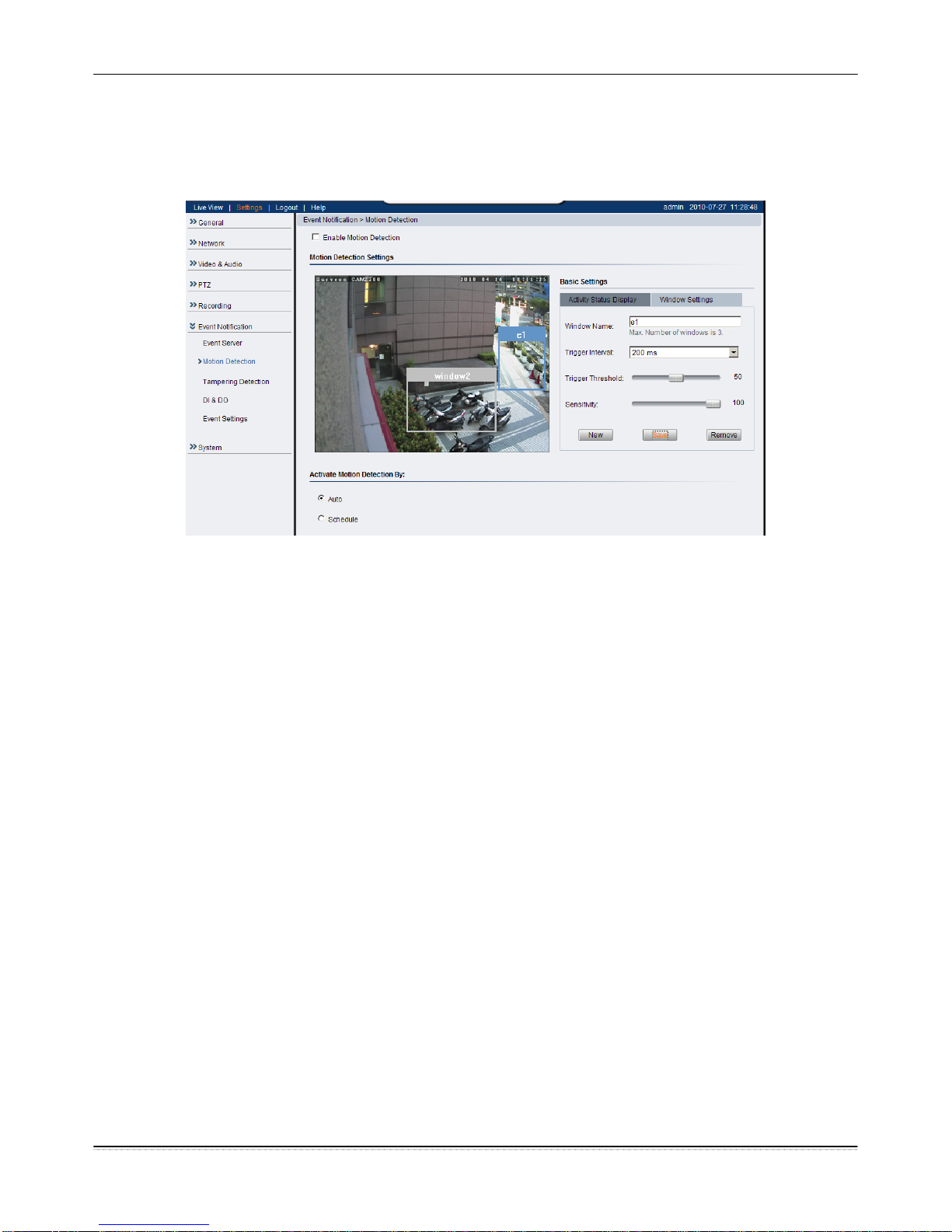

Motion Detection ................................................................... 43

Tampering Detection .............................................................. 44

Tampering Detection .............................................................. 45

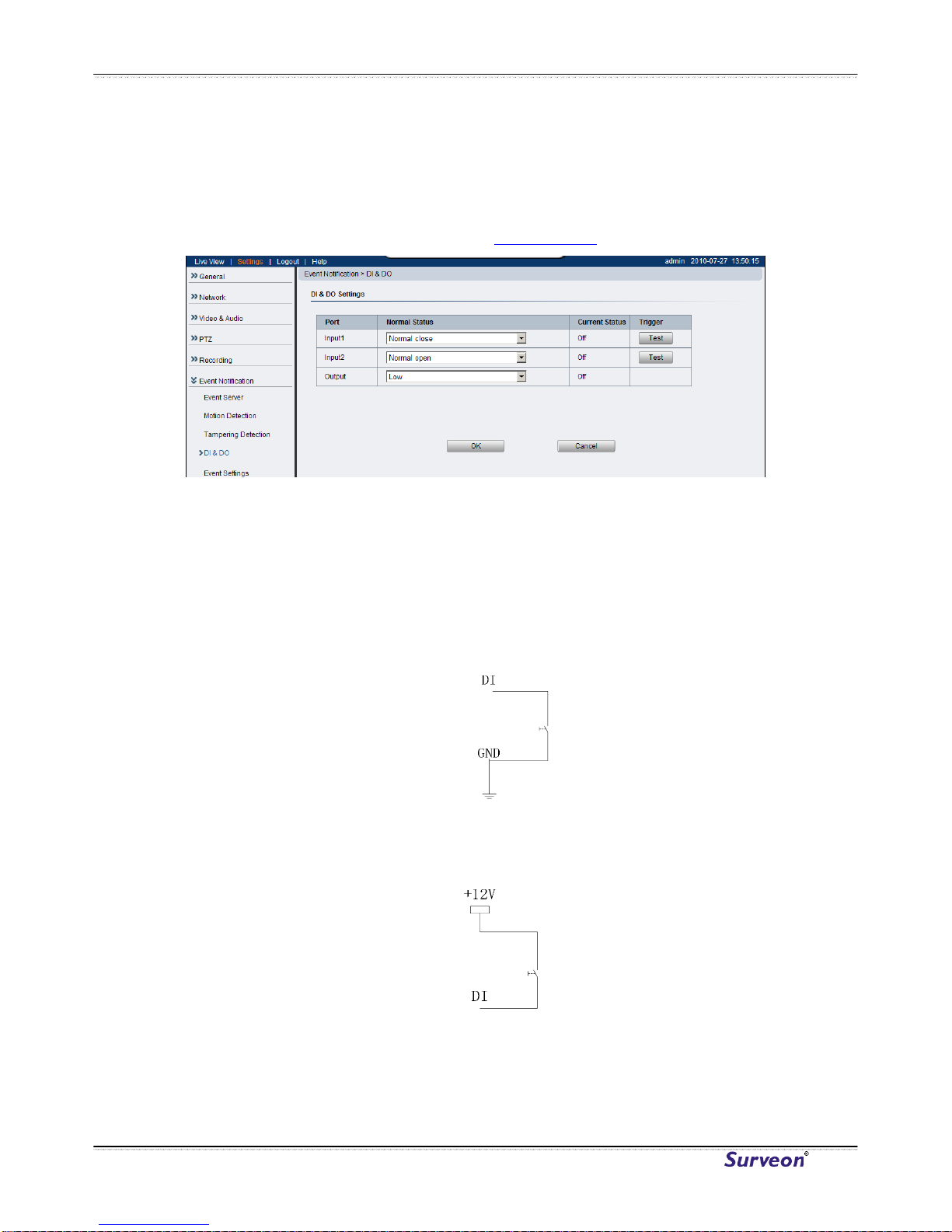

DI & DO ............................................................................... 46

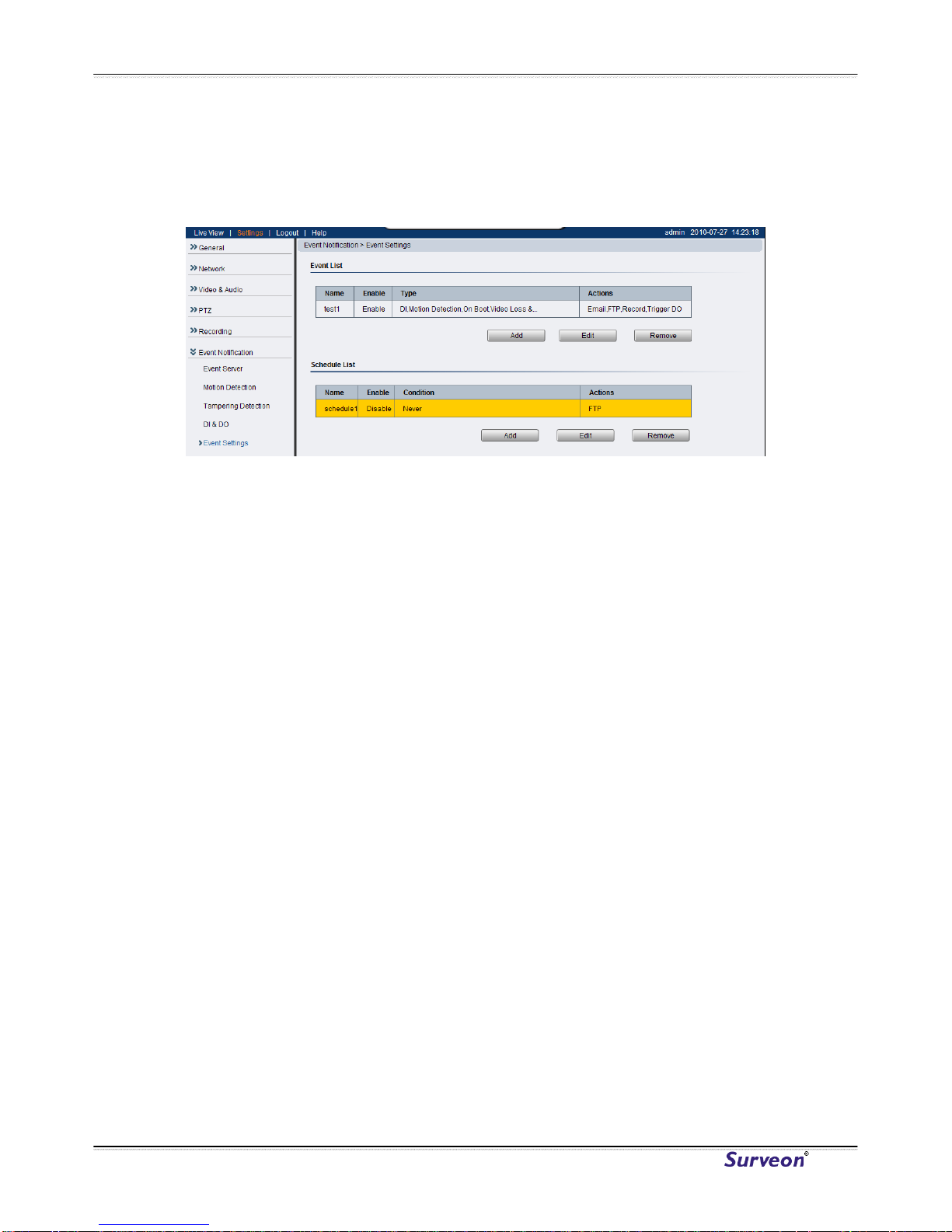

Event Settings....................................................................... 48

System..................................................................................... 54

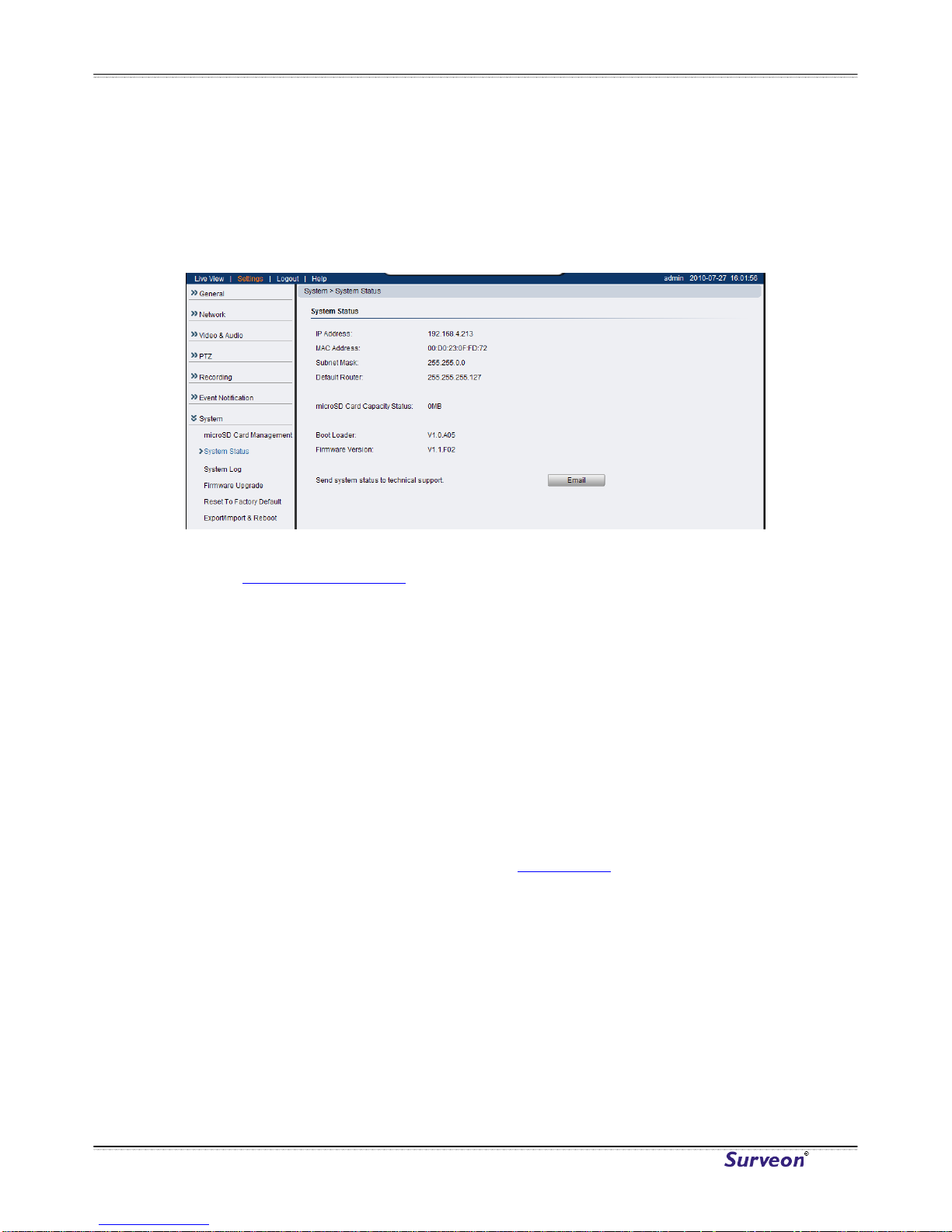

System Status ....................................................................... 54

System log ........................................................................... 55

Firmware Upgrade.................................................................. 56

Reset to Factory Default .......................................................... 57

Export/Import & Reboot .......................................................... 58

Surveon Network Camera User Manual

Surveon CAM6160/6180

1.1. Network Camera Introduction

CAM6160/6180 are professional IP network speed-dome cameras capable of making 360 degree continuous rotations at 0.15 to 360 degrees per second, ensuring direct and accurate target positioning. Fully IP66 Certified, CAM6160/6180 use Internet Protocol (IP) to transmit video streams and control signals over networks, and is capable of operating over both LANs and WANs. CAM6160/6180 provide a complete budget-conscious remote surveillance solution that is ultra clear and highly integrated. CAM6160/6180 combine a user-friendly interface and simplified installation with a powerful feature set, including Motion Detection and Tampering Detection to provide users an easy upgrade path to new digital surveillance system in a virtual environment. These highlights make CAM6160/6180 ideal choices for

Chapter 1. Overview

outdoor environments that require remote surveillance or video transmission.

1.2. Network Camera Features

 Supports up to 10 simultaneous users  Built-in web server to allow real-time remote surveillance and control

using standard web browsers

 Supports dynamic IP, LAN, and the Internet (ADSL, Cable modem)  Supports most network protocols including: HTTP, TCP/IP, SMTP, DDNS,

DNS, DHCP, FTP, RTSP,CIFS, PPPoE

 Automatically adapts image compression rate to available bandwidth  Provides Signal loss and motion-detection alerts (adjustable area and

sensitivity level)

 Supports image recording and still image capture

www.surveon.com

Surveon CAM6160/6180

1.3. Network Camera Specifications

CAM6160 CAM6180 Image sensor SONY 1/4” EXview HAD CCD

Lens 3.43 - 85.7 mm

Viewing Angle Diagonal:

Day/Night Yes IR LED No

Min illumination

Iris control Automatic / Manual Iris control

varifocal lens, F1.6 (wide) – F3.7 (telephoto), 25X

68.6°~3.12° Horizontal:

57.8°~2.53° Vertical: 43.7°~1.83°

0.01 Lux@F1.6 (Monochrome)

0.1Lux@F1.6 (Color)

3.43 - 120 mm varifocal lens,

F1.6 (wide)

- F4.5 (telephoto), 35X

Diagonal: 68.6°~2.23° Horizontal:

57.8°~1.70° Vertical: 43.7°~1.30°

Shutter time 1/5 ~ 1/15,000 s Pan/Tilt/Zoom Pan: 360° endless,

1° – 255°/s Tilt: -6° ~ +96°, 1° – 255°/s 25x optical zoom and

16x digital zoom, Total 400x zoom

Video compression

Resolution Up to 720 x 480 Video control Auto Gain Control, Auto White Balance, Back Light

Frame rate 30 fps at D1 (720 x 480),

Video stream 2 simultaneous streams

Bit rate 32K ~ 10Mbps, VBR, CBR

H.264 / MPEG-4 / MJPEG

Compensation, Image adjustment, Privacy zone: On/Off (8 zones)

30 fps at VGA (640 x 480), 30 fps at QVGA (320 x 240), 30 fps at QQVGA (160 x 120)

at H.264, MPEG-4, and MJPEG

Pan: 360° endless, 1° – 255°/s

Tilt: -6° ~ +96°, 1° – 255°/s 35x optical zoom and

16x digital zoom, Total 560x zoom

Video Jack BNC

Surveon Network Camera User Manual

Surveon CAM6160/6180

Intelligent video

Motion detection, tempering detection (blocked, redirected, defocused, or spray-painted)

Built-in MIC N/A Audio

N/A

compression Audio input N/A

Audio output N/A Alarm in 6, terminal block Alarm out 1, terminal block AUX Power

12VDC 400mA

Output Video buffer 2 second pre-alarm

30 second post-alarm

Event action Send snapshot or video clip by FTP or email, record

to remote storage, record to local storage, trigger DO

Supported protocols

IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP

Ethernet 10/100 Base-T / RJ45 RS-485 1 (2 pin on terminal block) SDK Surveon SDK 2.0 OS Microsoft Windows XP/Vista/7 Browser Microsoft IE 6.0 or above Software Surveon VMS 2.0 Temperature

Operation: -10 ~ 50 ℃ (14 ~ 122℉) Storage: -20 ~ 80 ℃(4 ~ 176℉)

Humidity 0% ~ 90% Power 24VAC

Power

Max. 15.8W

consumption Dimension ø210mm x 326mm (H)

ø8.26” x 12.83" (H)

Weight Net: 3.8kg

Gross: 4.0kg

Certification Sa f e ty: LVD

EMC: FCC, CE IP66

www.surveon.com

Surveon CAM6160/6180

Network Camera Hardware Installation

Before the network camera is configured:

1. Install the camera in a suitable spot. The camera should have an unobstructed view of the area to be surveyed.

2. Connect the camera to a power source.

3. Connect the camera to a switch using an Ethernet cable. The Ethernet

port is located on the rear of the camera.

Surveon Network Camera User Manual

Surveon CAM6160/6180

This section demonstrates how to connect to the network camera through two methods:

• Web Browser – A simple web-based interface. Internet Explorer is the recommended web browser for use with Surveon network cameras, and our examples will be from this browser. Usage on other browsers will be similar.

• RTSP Player – These include common streaming media players, such as RealPlayer or Quicktime Player. These players can provide live view of the camera using the Real-Time Streaming Protocol (RTSP).

Chapter 2. Connecting to the

Network Camera

www.surveon.com

Surveon CAM6160/6180

2.1. Connecting with a Web Browser

To connect to the Network Camera with a web browser:

1. Launch the web browser (Microsoft ® Internet Explorer 6.0 or higher is recommended).

2. Enter the IP address of the network camera in the address bar of your browser and press enter. The IP address can be obtained using the Surveon IP Utility, or if your network does not have DHCP service, the default IP address is 192.168.88.10.

3. The camera will start the web interface with a live-view page. Click the Login button at the top of this page.

4. The camera will prompt for a user name and password. The default user name and password is admin/admin. Enter your user name and password, and click OK to login. If this is your first time accessing the camera, please read the subsectio ns to set up a new password and/or install ActiveX, otherwise the live feed from the network camera will be displayed in your web browser.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Logging into the System for the First Time

If this is the first time that the network camera is being accessed, the camera will prompt you to change the administrator password after your first login. Click Okay

1. Click OK when informed of the need to change your password. This will cause a Configure Admin Password popup to display.

2. In the Old password field, fill in the old password (default is admin).

3. In the New password and Confirm new password field, fill in the new

password.

4. Click OK to change the password. If at any time you lose this password, performing a hard reset of the camera will restore the password back to admin.

www.surveon.com

Surveon CAM6160/6180

Installing Active X Components in Internet Explorer

You may be prompted to install ActiveX® components when accessing the network camera’s Live View page; click Yes when prompted. You will be able to access the camera after installation is completed. Under Windows, this action may require administrator privileges.

If the dialog box suggests that you are not allowed to install ActiveX components, try resolving the problem using the following steps:

1. In Internet Explorer, open Tools> Internet Options> Security. Click the Custom level button.

2. Search for Download signed Acti veX co ntrols . Under this heading select Prompt and then click OK.

3. Continue installing the Active X components.

4. After installing ActiveX, go to Tools> Internet Options> Trusted Websites> Sites and add the IP Address of the camera.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Logging Out of the System

Logging off of the camera can be performed by closing the browser window. Users can also choose to click the Logout link located at the top of the

screen.

Using the Help Interface

While using the web interface, you may click on the Help link located under the title bar. This will bring up a pop-up containing the IP Camera Help manual. This provides simple explanation of the camera settings, and will automatically open to the page relevant to your current screen.

The help manual is organized so that it matches the system menus, with sections corresponding to each settings menu and the Live-view window.

www.surveon.com

Surveon CAM6160/6180

2.2. Connecting with an RTSP Player

Surveon cameras support connections through RTSP Media Players such as Real Player and QuickTime Player.

1. Launch Real Player or QuickTime Player；

2. Select File> Open URL, to open a URL dialog box.

3. Enter the camera URL in the address bar.

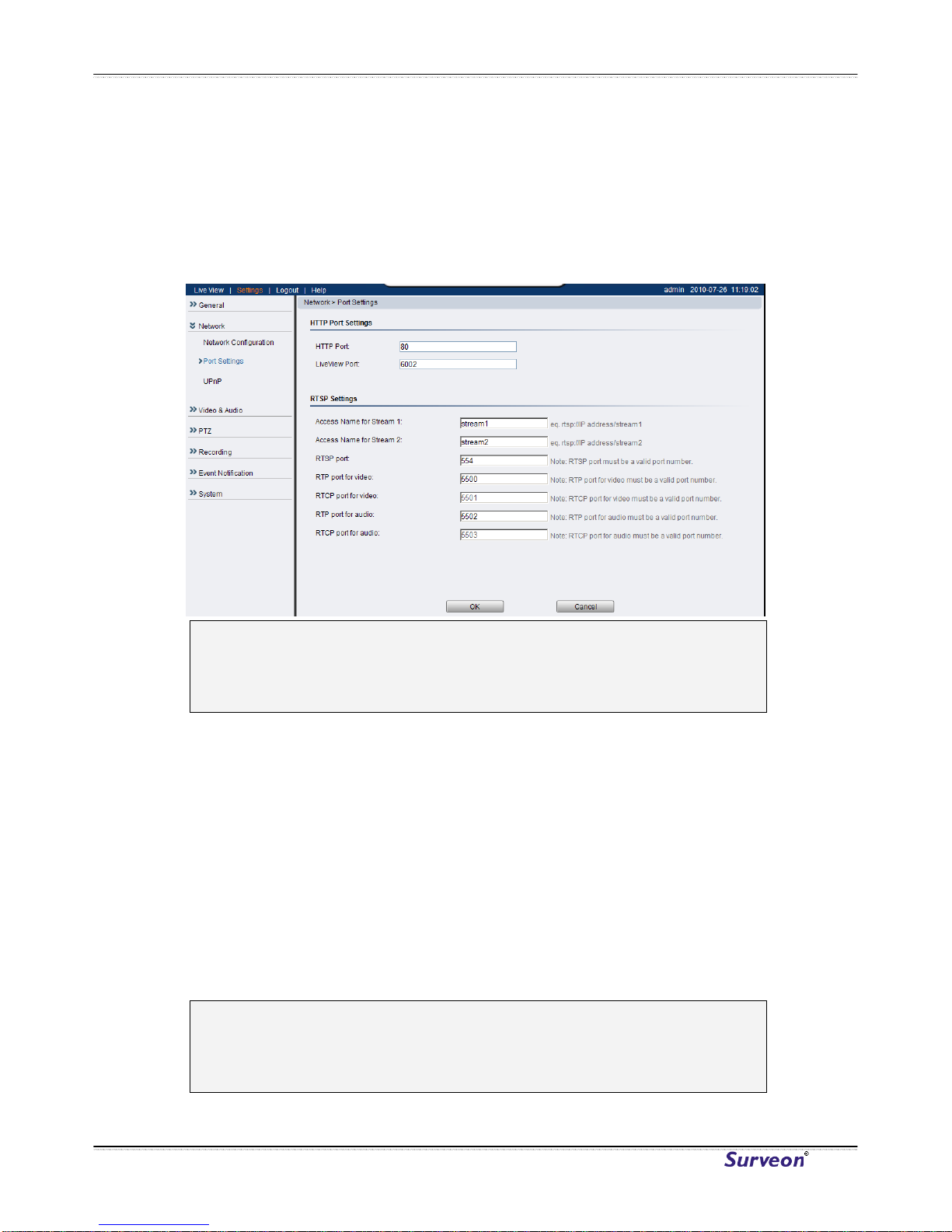

Note: The format for RTSP is: rtsp://<IP Address>/<Access>, where

<Access> can be found at Settings> Network> Port Settings> RTSP Setting. By default the <Access> value should be stream1 and

stream2.

4. Click OK, the stream should begin playing.

Connecting with a Mobile Device RTSP Player

In order to access streaming video on 3GPP mobile devices, please make sure the network camera is already online and connected to the Internet. In the IP field under the IP Address section of the window, enter the IP addre ss of the IP camera.

1. Change the settings under Settings> Video & Audio> Stream2 Setting to 3GPP Mode

2. Launch the RTSP Player on the 3GPP mobile device and enter the URL address for the camera. The video should start playing.

Note: The format for RTSP is: rtsp://<IP Address>/<Access>, where

<Access> can be found at Settings> Network> Port Settings> RTSP Setting. By default the <Access> value should be stream1 and

stream2.

Surveon Network Camera User Manual

Surveon CAM6160/6180

3.1. Interface Layout

This section demonstrates the layout of the network camera’s main interface. The 5 main areas on the interface are:

Chapter 3. Web Interface

1. Menu Bar - The links on this bar allow users to toggle between liveview and settings screens, as well as logout and pull up the help menu.

2. Live View Controls - These controls allow users to configure the live view streams and camera live view functionality.

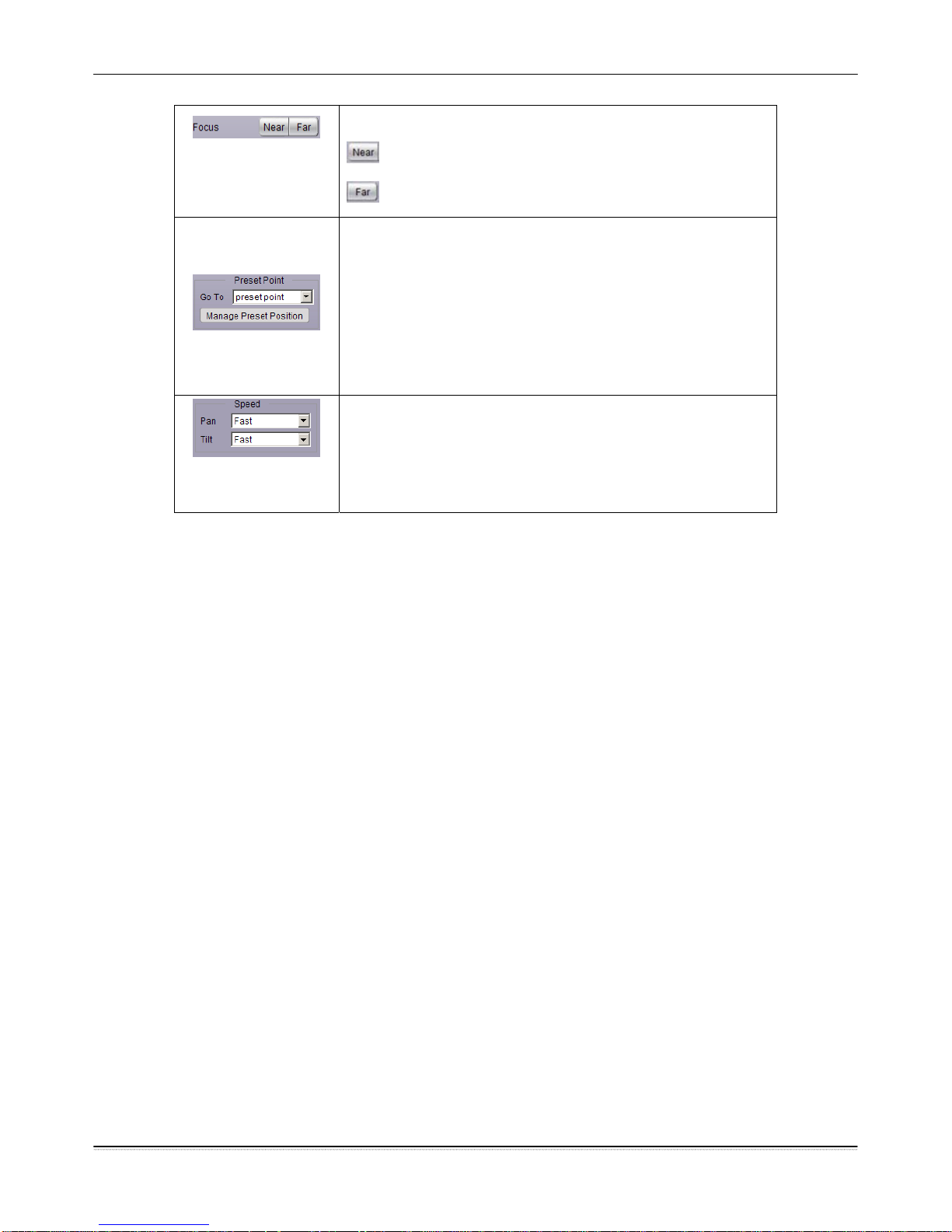

3. PTZ Controls – These controls allow users to control the camera’s pan/tilt/zoom functions.

4. Button Ba r - These controls allow the user to quickly access common features such as live view window resizing, video and still frame capture, interface language, and audio controls.

5. Live View Window - This portion of the screen displays the stream selected in the Live View Control section of the web interface.

www.surveon.com

Surveon CAM6160/6180

Control Descriptions

Control Description

Adjust Window Size: When clicked, the display window

Full-Screen: Goes to full-screen when clicked; press

Image Capture: When clicked, captures the current

size can be adjusted manually to fit the screen. The screen size changes back to the actual image size (resolution).

“ESC” to return to windowed view.

screen as an image in a new pop-up window and saves it in C:\Surveon\Record. This location can be changed under Settings> Recording> Recording Basic Settings. The file name is set to “Camera Name”+yyyymmdd_hhmmss (the Camera Name can be changed under Settings> General> Basic Settings

Play Back: Enables video playback by linking to the to

Audio-In: Turned off by default; clicking once allows

Manual Record: When clicked, records the current live

video. Stops recording when clicked again. The default location for storing the recording is C:\Surveon\Record. This location can be changed under Settings>

Recording> Recording Basic Settings.

the Record File Management page when clicked.

audio to be transmitted from a local microphone to the camera. Clicking again stops audio transmission. Multiple users may access the live view page and receive audio from the camera, but only one user at

Mute: Mutes the audio captured by the camera when

Surveon Network Camera User Manual

once is allowed to send audio to the camera.

clicked, un-mutes the audio when clicked again.

Volume: Sets to the cu rrent co mput er vol ume; Dr aggin g the slider adjusts the volume.

Surveon CAM6160/6180

Control Description

Language: Sets the UI language. Available languages

include English, Simplified Chinese, and Traditional Chinese.

Streams: Allows users to choose which camera stream to view. The indicator above the stream will turn light green when the stream is selected.

Video Format: Sets the compression format for the

current stream. Available formats are H.264, MPEG4, and MJPEG.

Video Resolution: Sets the resolution of the stream

currently selected. 3 options are available for each stream: D1 (720 x 480), VGA (640 x 480), QVGA (320 x

240), QQVGA (160 x 120) for stream 1 and VGA (640 x

480), QVGA (320 x 240), QQVGA (16 0 x 120) for stream

Digital Zoom: When clicked, activates digital zoom in

the current live-view stream. 2 options are available when clicked:

Zoom In Zoom Out

Optical Zoom: Adjusts the camera zoom distance.

Digital Output: Sets the Digital Output to High, Low, or Off. Default is Off.

Pan/Tilt Control: The four directional buttons pan and tilt the camera view in the direction pressed. The home button at the center returns the camera to the default startup position when clicked.

Zoom In Zoom Out

www.surveon.com

Surveon CAM6160/6180

Focus: Adjust the focal distance.

Moves the focus point nearer to the camera.

Moves the focus point further from the camera.

Preset Point Management: The Go To dropdown

contains all the presets configured in this camera. Selecting a preset from the dropdown will cause the camera to move to the preset position.

Manage Preset Position: This button will open the preset management menu.

Pan/Tilt Speed: The Pan and Tilt dropdowns define

the amount which the camera will pan or tilt when one of the directional buttons is clicked in the Pan/Tilt Control. There are 3 options: Slow, Normal and Fast.

Surveon Network Camera User Manual

Surveon CAM6160/6180

3.2. Settings

Camera settings may be changed by clicking on the Settings link located in the title bar. This will bring up a menu list of configuration menus for all major camera settings.

General

General setting menus are found under Settings> General.

Basic Settings

Basic settings may be accessed under General> Basic Settings. The following settings can be made:

• Host Name: by default set to "model name + MAC address"; displays on the center of the main page. Users may replace the default name with a new name consisting of alphanumeric characters, spaces and the ":" character.

• Camera Name: by default set to "Surveon + model name"; after selecting Camera Name” from Settings> Video & Audio> Basic Settings, the Camera Name will show on the display. Users may replace the default name with a new name consisting of alphanumeric characters, spaces and the ":" character.

• Power/Ethernet LED: turns on or off the power and Ethernet LEDs indicator on the rear of the camera.

www.surveon.com

Surveon CAM6160/6180

• System Status LED: changes the behavior of the status LED on the front of the camera. There are four possible behaviors:

Click OK to save or Cancel to abort the changes before you leave the page.

o LED on when camera is on - LED default on, flashing during

camera access.

o LED on during camera access - LED default off, flashing during

camera access

o LED off during camera access - LED default on, off during

camera access

o LED always off - LED always off

Surveon Network Camera User Manual

Surveon CAM6160/6180

User Account

The User Account section, found under General> User Account, controls the user account information and privileges.

There are two pre-configured accounts:

• admin - This is the default administration account, and cannot be deleted.

• guest - This is an account with only live view capability.

There are also two basic settings under user account settings:

• Enable access without login - Checking the checkbox will allow users to view the camera stream without having to login. This option is enabled by default.

• Maximum number of simultaneous viewers limited to - Enter a number from 1 to 10 in this field to limit the number of users that can view the live view stream for this camera. This option will only be displayed once you add an account.

Click OK to save or Cancel to abort the changes before you leave the page.

www.surveon.com

Surveon CAM6160/6180

Adding Accounts

In Ge neral> User Account under the User Account heading, click on “Add”. Up to 10 accounts can be added to the system.

All User Names and Passwords must be combinations of alphanumeric characters, “:”, “-“, “_” between 4 and 20 characters in length, and must begin with an alphabet letter. Fill out the following fields:

• User Name - The identifier name used to login to the system.

• User Group - The system allows for 2 types of users.

o Administrator - Administrators have full access privileges. o Operator - Operators can only access the live view page.

• Password - a passkey used to control user access. This password should be retyped in the Confirm password field, to ensure that the correct key is saved.

Click OK when finished to add the user to the system.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Editing Accounts

In General> User Account under the User Account heading, select an existing account by clicking on the account entry. The entry will be highlighted in yellow. Clicking Edit will allow you to change the following fields:

• User Group - The system allows for 2 types of users.

o Administrator - Administrators have full access privileges. o Operator - Operators can only access the live view page.

• Password - Aar passkey used to control user access. The password must be a combination of alphanumeric characters, “:”, “-“, “_” between 4 and 20 characters in length, and must begin with an alphabet letter. This password should be retyped in the Confirm password field to ensure that the correct key is saved.

Click OK when finished to save any changes.

Note: Only accounts that are not currently logged-in can be edited.

Deleting Accounts

In General> User Account under the User Account heading, select an existing account by clicking on the account entry. The entry will be highlighted in yellow. Click Remove and, when prompted to confirm deletion, click OK to remove the account.

www.surveon.com

Surveon CAM6160/6180

Date & Time

Date and time settings can be accessed at General> Date & Time.

Current Date & Time displays the current system date and time.

Time Zone Settings

The time zone can be set using the dropdown menu. This menu is only applicable when selectable when Synchronize with NTP Server is chosen under Time Settings.

Time Settings

There are 3 ways to set the system time:

• Synchronize with NTP server - NTP is a protocol for synchronizing the system clock to an external server. If thi s option is chosen, enter the IP address of a known NTP server in the NTP Server field. You must also choose the appropriate time zone under Time Zone Settings.

• Manual update - Updates the time manually. Choose the appropriate date and enter a time for the system.

• Synchronize with computer time - Synchronizes the time with the computer’s internal clock.

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Network

The network settings, including network configuration, port configuration, and universal plug and play (UPnP) settings are used to configure camera connectivity. These settings are found under the Settings > Network context.

www.surveon.com

Surveon CAM6160/6180

Network Configuration

These settings are used to configure basic network access for the camera. They are found under Network> Network Configur ation.

Most of these settings vary with your specific hardware setup; therefore the defaults are set for common SOHO level usage. If you are using the camera in an enterprise environment, please check with your IT department to determine the correct settings for this section.

IP & DNS Settings

These settings are used determine the IP address of the network camera.

• Get IP address automatically - Automatically acquires IP address from a DHCP service. This is the default setting

• Use fixed IP address - Sets a fixed IP address. You must also manually fill in IP address, Subnet mask, Default gateway, Primary DNS, and

Secondary DNS fields. The network camera can be connected to the network upon completion.

PPPoE Settings

This feature is disabled by default. Connecting to the network using PPPoE requires a user name and password from your ISP. Select Enable PPPoE and fill in valid user name and password to connect the camera to the Internet.

DDNS Settings

DDNS (Dynamic Domain Name Server) is a protocol that enables the camera to

maintain a static connection address, even when its IP changes. Access using this feature is disabled by default.

Connecting using DDNS requires registration on third-party websites for DDNS services. Select desired DDNS service website, check the Enable DDNS option, and fill in valid user name and password. You can then access the camera through the registered domain name.

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Port Settings

Ports are a software construct used to multiplex the transmission informat ion to and from the camera. They act as se parate endpoints within an IP address where software "listens" for incoming information. This section, which can be accessed under Network> Port Settings, includes HTTP Port Settings and RTSP Settings.

Note: The default port numbers in this section are, for the most part, well-

known or commonly known values. We recommend that they not be changed unless there is a specific reason to do so.

HTTP Port Settings

The HTTP port number is used access the camera via the HTTP protocol. The LiveView Port number is used to transmit live-view information.

RTSP Settings

Real-Time Streaming Protocol (RTSP) is a protocol used to establish and

control media sessions between end points.

You may change the access name for stream 1, stream 2, the RTSP port number, the RTP port for video, the RTCP port for video, RTP port for audio , and RTCP port for audio.

Note: The RTP port number must be an even number. After entering the

RTP port number, the RTCP port number will automatically be set to the RTP port number + 1.

Click OK to save or Cancel to abort the changes before you leave the page.

www.surveon.com

Surveon CAM6160/6180

UPnP

Universal plug and play (UPnP) is a protocol that simplifies the implementation of networks by allowing new hardware to connect seamlessly to a network. The settings for this feature can be found under Network>UPnP .

To enable UPnP, first check the Enable UPnP box. If you wish to change the default values, there are two fields that can be edited.

• Friendly Name - An identifier for the camera on the network.

• Interval - The time between camera-sent UPnP updates.

Click OK to activate UPnP or Cancel to abort the changes before you leave the page. Once activated, the camera will be visible to other devices on the network.

Note: If the computer does not have UPnP installed, you can add it by going

to Start> Control Panel> Add or Remove Programs. In the Add or Remove Programs page, select Add/Remove Windows Components>Networking Services and click Details. Select UPnP from the popup window, and OK out to install UPnP services.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Video & Audio Settings

Video and audio are the heat of a network camera's functionality. The settings for video and audio can be found under Settings> Video & Audio. Under this section, you can access basic video and audio settings, video appearance parameters, video stream settings, as well as audio parameters.

Basic Settings

Basic settings pertain to simple live-view tweaks. These parameters can be found under Video & Audio> Basic Settings.

Video Orientation

In certain mounting situations, the default video output m ay not be oriented correctly. This setting allows you to change the orientation of the output video.

• Mirror - flips the image horizontally.

Text Overlay Setting

The text overlay involves is the text displayed in the black bar at the top of the output screen. You can display multiple text messages at the same time. (Only the camera name will display if the resolution is 160 x 120).

• Include Date - Displays the current date.

• Include Time - Displays the current time.

• Camera Name - Displays the name of the camera.

www.surveon.com

Surveon CAM6160/6180

Image Appearance

These settings, found under Video & Audio> Image Appearance, deal with the video output of the camera. There are two tabs, Image Attributes and Sensor Configuration, as well as Advanced Settings.

Image Attributes

These parameters deal with the image lighting and color. All parameters are values ranging from (0) to (100). Dragging the slider to the right increases the value, while dragging to the left lowers the value. The adjustments will be displayed in real-time in the window to the left of the sliders.

• Brightness - Adjusts the brigh tness of the imag e.

Note: In certain situations the sensor may experience banding. In these

cases, please turn on the Flickerless option and raise the brightness.

• Saturation - Adjusts the saturation of the image.

• Contrast - Adjusts the contrast of the image.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Sensor Configuration

The Sensor Configuration can be accessed by clicking on the tab to the right of the Image Attributes tab. The following parameters can be changed:

• AGC Gain - Automatic gain control (AGC) adjusts the video gain level to a variety of inputs. This settin g provides a baseline value for the AGC. Values higher than this will be darkened, and values that are lower will be brightened. AGC should be adjusted so that the area of interest is best lit.

• Backlight compe nsation - Backlight compensation adjusts video gain to automatically correct the exposure of objects that are strongly backlit. This brightens the image, at the cost of overexposing areas of high illumination.

www.surveon.com

Surveon CAM6160/6180

Advanced Settings

The Advanced Settings allow changes to the following parameters:

• Flickerless - Reduces flickering caused by the difference in frequency of the system and the environment lighting.

Note: In certain situations, the sensor may experience banding. In these

cases, please turn on the flickerless feature, and raise brightness.

• Shutter Mode - Sets the camera shutter mode. Longer shutter times allow more light into the sensor, resulting in a cleaner picture, however longer shutter times can result in motion blur.

o Auto - The camera will automatically change the shutter s peed

to adjust to the lighting conditions.

 Max Shutter Speed - Used in conjunction with Auto

shutter mode, determines the maximum shutter speed allowed. Options are: Slowest, Slow, Normal, Fast.

o Manual - This setting allows users to specify a shutter speed.

 Shutter Speed - The user may choose the following

shutter speeds: 1/60s, 1/120s, 1/250s, 1/ 500s, 1/1000s, 1/2000s, 1/5000s, and 1/10000s.

• Day/Night Mode - Sets the day (color) and night (black and white, IR cut filter off where applicable.) Night mode sacrifices color information to produce a clear picture with less light.

o Day mode - Forces day mode. o Night mode - Forces night mode.

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Video Streams

The configuration for video streams, including resolution, framerate and image quality parameters can be found under Video & Audio> Video Streams.

The page is split into settings for 2 streams. Common settings are:

• Video format - The compression format for the video stream.

o H.264 - Provides the best compres sion, and clear picture, but

is processor intensive.

o MPEG4 - Provides more compression that MJPEG, but loses

picture quality.

o MJPEG - (Stream 1 only) Provides minimal compression, with

superior picture quality. Each frame is stored as a discrete JPEG image.

• Video Resolution - Sets the resolution of the video output. 4 options are available: D1 (720x480, Stream 1 only), VGA(640x480), QVGA(320x240) , QQVGA(160x120, MPEG4, MJPEG only).

• Video Frames per Second - Sets the number of frames per second. 1, 3, 5, 10, 15, 20, 25, 30 FPS are possible values.

www.surveon.com

Surveon CAM6160/6180

• Key Frame Interval - Sets the period between minimally compressed recovery frames that don't require other video frames to decode. 1/4s, 1/2s, 1s, 2s, 3s, and 4s are possible values.

• Video Quality Settings - Sets the quality of the video image.

There are 2 modes in the Video Stream 2 Settings:

• Normal Mode - All parameters may be changed.

o Constant Bit Rate - In this m ode, the camera will maintain a

constant bit rate output, regardless of video quality. Bit rates available are dependent on the video resolution chosen, and range from 32 kbps to 6 Mbps.

o Fixed quality - In this mode, the camera will attempt to

maintain a constant quality output, up to a maximum bandwidth of 6 Mbps.

• 3GPP Mode - All parameters will default to settings that are compatible with mobile viewing. The default in this case is 5fps QQVGA video, with MPEG4 compression at 128kbps and 2 seconds between key frames. None of the parameters can be changed.

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Audio Settings

The audio settings, under Video & Audio> Audio Settings, contain parameters dealing with audio coming from the cameras built in mic, or an external microphone.

• Mute - Selects whether or not to mute the incoming audio from the camera.

• Audio In - Selects the source for the camera audio feed. Line In specifies an external source connected to the camera's line-in port, while Microphone is the camera's internal microphone.

• ADPCM Bit Rate - Adaptive differential pulse-code modulation (ADPCM) is a method for digitally encoding audio signals. Only one bit rate, 32 Kbps, is currently supported. Audio will be encoded at this bit rate.

Click OK to save or Cancel to abort the changes before you leave the page.

Note: Only Stream 1 supports audio.

www.surveon.com

Surveon CAM6160/6180

PTZ

The CAM6160/6180 Speed Dome has built in pan-tilt-zoom (PTZ) functionality, and is able to quickly change the camera’s viewing angle to pursue action. The PTZ menu Settings> PTZ> PTZ Settings allows configuration of PTZ

functionality.

Pan/Tilt Control: The four directional buttons pan and tilt the camera view in the direction pressed. The home button at the center returns the camera to the

Optical Zoom: Adjusts the camera zoom distance.

Focus: Adjust the focal distance.

Iris: Adjust the iris size.

default startup position when clicked.

Zoom In

Zoom Out

Moves the focus point nearer to the camera.

Automatically adjusts the focal distance. Moves the focus point further from the camera.

Surveon Network Camera User Manual

Opens the iris. Automatically adjusts the iris size.

Closes the iris.

Surveon CAM6160/6180

Speed Adjustments:

Under the PTZ Settings menu, each of the following speeds can be set. There are 3 options for each item: Fast, Slow, and Normal.

• Pan Speed: Determines the amount the camera will pan with each press of the Pan/Tilt Control.

• Tilt Speed: Determines the amount the camera will tilt with each press of the Pan/Tilt Control.

• Zoom Speed: Determines the amount the camera will zoom in and out when the Optical Zoom buttons are pressed.

• Focus Speed: Determines the amount the camera will focus forward and backward when the Focus Near and Far buttons are pressed.

• Iris Speed: Determines the amount the camera will open o r close the iris when the Iris Near and Far buttons are pressed.

www.surveon.com

Surveon CAM6160/6180

PTZ Presets:

Up to 127 presets can be saved in the camera’s memory.

Adding a Preset

To add a preset:

1. Set the camera to the desired preset location using the PTZ, focus and iris controls.

2. Select an unused preset number from the Select Preset Number dropdown.

3. Enter a name for the preset in the Preset Name field.

4. Click Save to save the preset.

Editing a Preset

To edit a preset:

1. Select an existing preset from the Select Preset Number dropdown.

2. (Optional) Set the camera to the new desired preset location using the PTZ, focus and iris controls.

3. (Optional) Enter a new name in the Preset Name field.

4. Click Save to save the preset edits.

Deleting a Preset

To edit a preset:

1. Select an existing preset from the Select Preset Number dropdown.

2. Click Clear Preset to clear the preset settings.

3. Optionally, you may click Clear All Preset to delete all saved presets.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Recording

The Recording menu, Settings> Recording, deals with recording se ttings and managing recorded video files.

Recording Basic Settings

Recording basic settings, Recording> Recording Basic Settings are parameters which deal with the recording location and scheduling.

The following parameters can be configured within this menu:

• Memory Card Recording - When turned on, video will automatically be recorded onto the microSD card if t he network connection is lost. When a network connection is re-established, recording will switch back to the remote destination. If this feature is turned off, there will be no recording at all when if network connection is lost.

• Manual Record To: - Defines the path for manual recording. Screenshots and user recordings will be saved in this location.

• Event/Schedule Record To: - Allows the user to set the destination for event or scheduled recording. Event and scheduled recording settings are found under Settings> Event Notification.

Click OK to save or Cancel to abort the changes before you leave the page.

www.surveon.com

Surveon CAM6160/6180

Recorded File Management

This section, located at Recording> Recorded File Management allows users to manage videos recorded on the microSD cards.

Locating Video Files

To locate video files from a specific time frame, enter a begin and end time in the From: and To: fields below, and click Search.

Each video file will have an entry containing:

• Time - The time the video was recorded, also the filename of the entry: YYYY_MM_DD_HH_MM_SS.avi

• Media Type - The encoding/compression method

• Trigger Type - What type of action triggered this recording eg. if it

was alarm recording or scheduled recording.

• Locked - The lock state of the alarm.

The video records located will be split into pages. The information on these

• << - Click to go to the first page of the recorded files list.

• < - Click to go to the previous page of the recorded files list.

• > - Click to go to the next page of the recorded files list.

• >> - Click to go to the last page of the recorded files list.

• Forward To: - This dropdown can be used to skip to a page number.

You may also narrow the entries displayed by clicking on the Media Type column. This will give you the option of choosing All, H264, MPEG4, or MJPEG types. The system will only show video files of the format selected.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Managing Video Files

Once you have located the video files of interest you may select them by checking the box in the leftmost column of the entry. You can also select all displayed entries by checking the box in the header row.

There will be two buttons in each entry:

• Play - Plays the video file in local helper application.

• Download - Downloads video files. Select one or more video files and

click Download; Choose location to save the video file(s) onto your local PC.

Other actions that you can perform:

• Lock/Unlock - Locks/Unlocks video files. Locked files cannot be removed. Select one or multiple video files and click Lock/Unlock. When a file is locked, the Locked status will display yes.

• Remove - Manually deletes stored video files. Select one or more video files and click Remove to delete the file(s).

Click OK to save or Cancel to abort the changes before you leave the page.

Note: The video files shown in Recorded File Management are files stored in

the microSD card. You can also record live video by clicking the record button in the Live View screen, which will be stored directly into your local computer, and are not managed by this function. Please refer to the section on Manual Rec ord for more information on this functionality.

www.surveon.com

Surveon CAM6160/6180

Event Notification

Event Notification settings, found under Settings> Event Notification, deal with the event detection, scheduled recording, and notification abilities of the camera.

Event Server

The event server, which can be configured under Event Notification> Event Server, is the communications center of the camera. This section deals with

the configuration of E-mail and FTP notifications, as well as remote recording.

Email Settings

Email settings are used to configure e-mail notifications.

• Sender Email Address – The return e-mail address for notifications. This should be your notification address.

• Recipient email address – The e-mail address notification emails will be sent to. Only one email address can be entered.

• Server address - The IP or address of the e-mail server.

• User Name - The user name of the notifications e-mail account.

• Password - The password of the e-mail account.

• SMTP Server Port - the SMTP port of the email server; Default 25.

• Test - Click this button to send a test email. E-mails will only be sent

if all parameters are entered correctly.

Surveon Network Camera User Manual

Surveon CAM6160/6180

FTP Settings

FTP settings are used to configure recording to a remote location via the file transfer protocol.

• Server Address - The address of the FTP server.

• FTP Server Port - The port number of the FTP server; Default 21.

• User Name - The user name of the FTP account.

• Password - The password of the FTP account.

• FTP Folder Name - The name of the folder on the FTP site which

video files will be stored in.

NAS Settings

NAS settings are used to configure recording to network attached storage.

• Server Address - The address of the NAS server.

• User Name - The user name of the NAS account.

• Password - The password of the NAS account.

• Folder Name - The name of the CIFS account folder on the server.

Click OK to save or Cancel to abort the changes before you leave the page.

www.surveon.com

Surveon CAM6160/6180

Motion Detection

The motion detection functionality of the camera can be found under Event Notification> Motion Detection.

Motion Detection Window Management

To detect motion, first a detection window must be created. First click the Window Settings tab to enter the window configuration, and click New to add a new detection window. A maximum of 3 motion detection windows can be added. Each new window will be created with a default name Window N, where N is the number of the window. After creating the window, clicking it will select the window. You can drag and resize the window using your mouse. You can also change the following parameters:

• Window Name - Tthe name of the motion detection window.

• Trigger Interval - The time interval between motion triggers. Options

available are: 200 ms , 400 ms, 800 ms, and 1000 ms.

• Trigger Threshold - The percentage change in the window before a motion alarm is triggered.

• Sensitivity - The sensitivity of the motion box.

Click Save to save all settings. Settings of existing windows can also be changed by selecting the window and changing the settings. To delete a window, select a window in and click Remove.

After windows are set, you can activate motion detection by checking the Enable Motion Detection box.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Activating and Scheduling Motion Detection

Motion detection is activated by checking the Enable Motion Detection box. Activate Motion Detection By: denotes when motion detection will be

triggered as an event.

• Auto – As long as Enable Motion Detection is checked, an event is

• Schedule – Selecting this option allows to manually schedule the

triggered.

times motion detection will be active. Select the days of the week that Motion Detection is active b y checking the corresponding boxes, and fill in a start time and end time for motion detection in the From: and To: boxes.

Click OK to save or Cancel to abort the changes before you leave the page.

Triggering a Motion Event

The video displaying on the window is the live streaming video. The Activity Status Display tab displays the amount of motion detected in a selected window. By raising the Sensitivity of the window the motion values for a given motion, which are in shown in yello w, will be higher. When the motion value reaches or crosses the Trigger Threshold, denoted by the red line, a motion event will be triggered. Motion alarm handling and notifications can be configured under Event Settings.

www.surveon.com

Surveon CAM6160/6180

Tampering Detection

Tampering detection is similar to motion detection in that it detects where there is a sudden unexpected change in the whole camera view. Parameters for this feature are found under Event Notification> Tampering Detection.

Tampering alarm handling and notifications can be configured under Event

Settings.

The tempering detection parameters include:

• Tampering Detection - Turns tampering detection on or off.

• Tampering Sensitivity - Sets the sensitivity of Tampering Detection.

Options are Very Low, Low, Normal, High, and Very High. Higher sensitivities can detect more tampering attempts, but also increase the chances that the camera will produce a false alarm.

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

DI & DO

Digital Input (DI) and Digital Output (DO) stand are used for event triggering. The camera has 1 DO and 2 DI ports. Settings for these p orts can be found under Event Notifica tion> DI & DO. Conditions for DI and DO triggering, as well as notifications for can be set under Event Settings

Digital Input

The two inputs are listed as Input1 and Input2 and connect to external circuits such as window break detectors. These inputs can be tested by clicking the Test button in the input entry.

Each input has a Normal Status:

• Normal Open – the DI requires a low voltage input, with the following configuration.

It is triggered when it does not receive this input.

• Normal Close – the DI requires a high voltage input (+12V), with the following configuration.

It is triggered when it does not receive this input.

• Off - DI inputs are closed at all times. The camera will not respond to any signals on this DI.

www.surveon.com

Surveon CAM6160/6180

Digital Output

The camera can also be configured to send signals through the digital output. Each output has a Normal Status:

• High – DO outputs a high voltage when triggered, and is connected

• Low - DO acts as a ground when triggered, and is connected to the

to the output circuit in the following manner:

output circuit in the following manner:

• Off - Closes DO output; no signals will be sent.



Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Event Settings

Event settings deal with alar m handling and notification, as well as feature scheduling. These settings can be found under the Event Notification> Event Settings menu.

The event handler is rule based. There are lists for both two types of rules:

• Event List – Contains rules based on triggered events such as motion detection or DI triggers.

• Schedule List – Contains time-based rules.

Each rule has an action list. When the conditions for rule are met, the actions specified by the rule are carried out. Users may perform the following actions in both Event and Schedule lists:

• Add – Clicking on the Add button adds a new rule to a list.

• Select – Clicking on an existing rule selects the rule, highlighting it in

yellow.

o Edit – A selected rule may be edited by clicking on the Edit

button.

o Delete – A selected rule may be deleted by clicking on the

Delete button.

www.surveon.com

Surveon CAM6160/6180

Adding/Editing an Event Rule

The Add and Edit screens contain the following triggering actions:

Note: If editing a rule that has not been triggered, the rule will not be

triggered after until after editing is complete. If the rule is triggered, any changes will not be applied until the current trigger is resolved.

Surveon Network Camera User Manual

Surveon CAM6160/6180

General

The following general fields should be filled in:

• Name - Specifies the name of the Event.

• Minimum time interval between tr iggers - The time frame in which a

subsequent trigger of the same event will be ignored (maximum 23:59:59).

Enable Triggering By

The next step is to specify the frequency of trigger response. 3 options are available:

• Always - The default setting; Triggers event when conditions are met.

•

Recurrence Pattern - Enables triggering only if conditions are met during a specified time period.

To specify the period, select the days of the week that the trigger is active by checking the corresponding boxes, and fill in a start time and end time for motion detection in the From: and To: boxes.

• Never – The event is never triggered.

Enable Triggering By

After the frequency is selected, triggering conditions can be set. Multiple conditions can be set at once. Available options include:

• Motion Detection - Trigger when motion is detected. o In Window – Specifies the detection window that will trigger

the event.

Please refer to the section on Motion Detection

for details.

• On Boot - Trigger when camera reboots.

• Video Loss & Tampering Detection - Trigger when video signal is lost

or tampering is detected. Please refer to the section on Tampering

Detection for more detail.

• Disk Full - Trigger when the SD disk installed in the camera is full.

• DI - Trigger when a DI trigger occurs. For more information please

refer to the section on DI & DO

www.surveon.com

Surveon CAM6160/6180

When Triggered

The actions to take when trigger conditions are met are configured here.

The following options are available:

• Streams – Selects the stream from which the snapshot or recording

will be obtained.

• Email – E-mails notifications to the email address specified in the

Event Server

settings. If this option is chosen, fill in the following:

o Subject - The subject line of the notification e-mail. o Additional Information - Contents of the notification e-mail. o Snapshot/Video Clip - Choose to send a snapshot or video

attachment from 5s before to 30s after the trigger.

• FTP - uploads a snapshot or video clip to a FTP location specified in

the Event Server

settings.

o Snapshot/Video Clip - Choose to upload a snapshot or video

file from 5 seconds before to 30 seconds after the trigger. Files are sent as attachments.

• Record - Records video to the server specified in the Event Server

settings and the microSD card when triggered. The video clip stored on both remote storage server and local storage is a video file 35 seconds in length (5 seconds before and 30 seconds after the trigger)

• Trigger DO –A Digital output signal is sent when triggered. o Trigger Duration - The length of time that the DO signal is

sent. Options are 1, 2, 5, 10, 20 or 30 seconds. For more information please refer to the section on DI & DO

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Adding/Editing a Scheduled Rule

The Add and Edit screens contain the following actions:

Note: If editing a rule that has not been triggered, the rule will not be

triggered after until after editing is complete. If the rule is triggered, any changes will not be applied until the current trigger is resolved.

General

The following general fields should be filled in:

• Name - Specifies the name of the Event.

• Set Time Interval (When Activated) - The trigger time of the event

(00:00 to 23:59).

Enable Triggering By

The next step is to specify the frequency of trigger response. 3 options are available:

• Always - The default setting; Triggers event when conditions are met.

•

Recurrence Pattern - Enables triggering only if conditions are met during a specified time period.

• Never – The event is never triggered.

www.surveon.com

Surveon CAM6160/6180

When Triggered

The actions to take when trigger conditions are met are configured here.

The following options are available:

• Streams – Selects the stream from which the snapshot or recording will be obtained.

• Email – E-mails notifications to the email address specified in the

Event Server

settings. If this option is chosen, fill in the following:

o Subject - The subject line of the notification e-mail. o Additional Information - Contents of the notification e-mail. o Snapshot/Video Clip - Choose to send a snapshot or video

attachment from 5s before to 30s after the trigger.

• FTP - uploads a snapshot or video clip to a FTP location specified in the Event Server

settings.

o Snapshot/Video Clip - Choose to upload a snapshot or video

file from 5 seconds before to 30 seconds after the trigger. Files are sent as attachments.

• Record - Records video to the server specified in the Event Server settings wh en trig gere d. The video clip stored on both rem ote storage server and local storage is a video file 35 seconds in length (5 second s before and 30 seconds after the trigger)

• Trigger DO –A Digital output signal is sent when triggered.

o Trigger Duration - The length of time that the DO signal is

sent. Options are 1, 2, 5, 10, 20 or 30 seconds. For more information please refer to the section on DI & DO

Click OK to save or Cancel to abort the changes before you leave the page.

Surveon Network Camera User Manual

Surveon CAM6160/6180

System

The system settings, which deal with hardware and firmware parameters, logs, and configuration lists, can be found under Settings> System.

System Status

The camera status can be found under System> System Status.

This section displays useful system information including:

• Network Configuration

o IP Address o MAC Address o Subnet Mask o Default Router address

• Camera System Information

o Boot Loader Version o Firmware Version

Clicking on the Email button will send the system status information out to the notification e-mail address specified in Event Server or reference purposes.

defined manually or obtained from DHCP

for troubleshooting

www.surveon.com

Surveon CAM6160/6180

System log

The system log, System> System Log, provides a log for system messages and events. The log lists important information such as login in formation, change s to camera settings (both successful and unsuccessful), triggered events, and error messages.

This information can be very useful in the event of a camera failure or unauthorized entry.

Clicking Email will send the log out as an email the notification e-mail address specified in Event Server download process to download the log to the local PC.

Surveon Network Camera User Manual

; Clicking Download will begin the browser

Surveon CAM6160/6180

Firmware Upgrade

In certain cases, improvements to the camera firmware will be made to improve the image quality or enhance the usability of the camera. These upgrades will be made available via Surveon support or our website

www.surveon.com

. Once you have obtained a new firmware file, firmware

upgrades can be performed under System> Firmware Upgrade. There are 2 ways to upgrade the firmware:

• Upgrading through firmware stored locally on a PC

• Upgrading through firmware stored in a microSD card

If upgrading through firmware stored locally, enter the path of the file in the provided field or click Browse to find the file.

Select Keep customized configuration to keep current configuration settings, or Upgrade all configurations to clear all settings back to factory defaults.

Click Upgrade to start the upgrade. Upon completion of firmware upgrade, the camera will reboot (you will be logged off). During the firmware upgrade, the LED indicator in front of the camera will show steady amber. When the LED indicator turns green, the firmware upgrade is complete.

Click Cancel to exit without upgrading. To perform a firmware upgrade from the MicroSD card, copy the new

firmware onto the MicroSD card, and reboot (cycle camera power) or reset the camera. The camera will automatically detect the firmware and perform the upgrade. Remove the MicroSD card and delete the firmware when the upgrade is complete.

www.surveon.com

Surveon CAM6160/6180

Reset to Factory Default

Camera resets can be performed under System> Reset To Factory Default.

There are 2 types of reset. You can either reset all settings and configurations, or you can choose to keep the Network configuration, and reset all other settings and configurations.

Click OK after choosing a reset option to perform a reset. Alternately, you may press the “Reset” button on the bottom of the camera

to perform a complete reset of the camera (no configurations retained). To reset the camera by pressing the “Reset” button on the bottom of the camera, press and hold the “Reset” button for 3 seconds. D uring this time, the LED indicator in front of the camera will blink in red.

Surveon Network Camera User Manual

Surveon CAM6160/6180

Export/Import & Reboot

In certain situations it may be necessary to restart your network camera (network settings changed, DHCP added, etc). The settings under System> Export/Import & Reboot allow you to restart the camera.

This menu also contains options to expo rt configur ation details (for backup or replication purposes), as well as import configuration details. The follow ing options are available:

• Restart Camera - Resets the camera when Apply is clicked.

• Export Configuration - Export the camera’s settings and

configurations by clicking Export, this will start a browser dialogue to download the configuration.

• Import C onfiguration - Imports previously exported camera settings. The field should contain the path for the camera configuration file. Click Browse: to browse your PC for the configuration file. Click Apply to import the settings.

www.surveon.com

Surveon CAM6160, CAM6180 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
