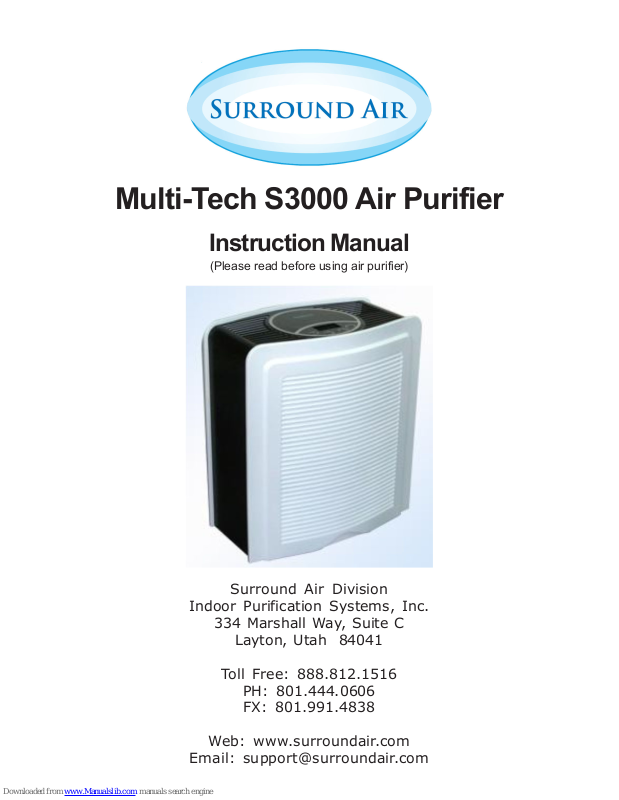

Multi-Tech S3000 Air Purifier
Instruction Manual
(Please read before using air purifier)
Indoor Purification Systems, Inc.
Email: support@surroundair.com
Surround Air Division
334 Marshall Way, Suite C
Layton, Utah 84041
Toll Free: 888.812.1516
Web: www.surroundair.com
Specifications
z Plug Type US: 120V (120VAC/60HZ)
EU: 230V (230VAC/50HZ)
UK: 240V (240VAC/50HZ)
z Power: 80W +/- 5W
z Washable HEPA Cleaning Efficiency: 99%
z Dimensions: 19 x 16.5 x 10.25 (in)
z Weight: 13 lbs.
Functions
z Washable HEPA (High-Efficiency Particulate Arrestor) Filter to remove airborne particles such as
dust and other allergens.
z Activated Carbon Filter to adsorb chemicals, cigarette smoke and odors.
z Washable Pre-Filter to remove larger particles.
z Photocatalytic Filter (TiO2) to remove airborne chemicals and bacteria.
z Germicidal UV (Ultraviolet) Lamp to destroy micro-organisms.
z Negative Ion Generator to circulate air-cleaning negative ions throughout the room.
z LCD Display with attractive graphics.
z Air Purifier Timer.
z Three Efficiency Settings: High, Medium, Low.
Operating Instructions
1. Plug in and turn on air purifier.
2. Push button on panel to turn ON or OFF.
3. Push button on panel to switch fan speed between High, Medium and Low.
4. Push button to initiate the timer. Set the time to “0” to run the machine continuously.
5. Push button to turn the UV+Ion+TiO2 functions ON or OFF. This is ON by default. When
ON, the Ion and UV graphics will be animated.
Changing/Cleaning Filters
3. Installing/Removing UV Lamp
Replace UV lamp about every 12 months.
1. Removing Front Cover
Lift the Front Cover upwards from the bottom (A), then pull out at the bottom (B), then pull the case downward (C).
Installing UV Lamp: Hold both ends of the lamp, insert into lamp holders, then twist clockwise.
Removing UV Lamp: Holding ends of the lamp, twist counter­clockwise, then pull outward.
4. Cleaning Washable HEPA Filter
Check the HEPA filter periodically. If it is dark gray in color, then clean it with a brush or vacuum hose until it is light gray or white. You can also
clean the black pre­filter attached to the side of the HEPA, facing outward. For optimal performance, change the HEPA filter every two years.
2. Removing Filters
Pull the strings attached to either side of the HEPA filter, then pull out.
Activated Carbon Filter:
This is next in line after the HEPA. It needs to be re­placed every 6 to 12
months. TiO2/Photocatalytic Filter: This is next in line after the activated carbon filter. It needs to be replaced about every 12 months.
5. Re-Inserting Front Cover
When finished, reinsert the front cover. Place the bottom clips into place first, then make sure you push the front cover tightly back into place.
Troubleshooting
Air Purifier Will Not Turn On
Remove the front cover, then reinstall. Make sure it is pushed firmly into place (especially at the top), to ensure it engages the switch inside. The LCD screen should quickly flash on and off when properly installed.
LCD Screen is Frozen
Remove the front cover, then reinstall.
Caution!
1. Make sure that air filter cartridge is in place before operating the S3000 air purifier, or direct UV rays may escape through the front cover of the unit. Direct UV light can cause skin or eye damage.
2. Do not block the air inlet or outlet.
3. Do not move while the unit is in operation.
Placement
* Since the S3000 air purifier uses a fan, and blows a strong current of air out the top of the unit, it is not necessary to place the unit at a high elevation. It can be placed on the floor, on a table, a countertop, or on a shelf. * The back of the S3000 should be at least 8 inches away from the wall to prevent discoloration of the the wall. Also, there should not be any obstructions above the air outlet on top of the S3000 air purifier. There should be at least 2 feet of space between the top of the air purifier and any object or surface above it. * Keep the S3000 at least 3 feet away from computers, televisions, and sensitive electrical equipment, and two feet from occupants in the room while in operation.
Warranty
What is covered: All parts defective in material and workmanship. Exclusions: Regular replacement parts such as air filter cartridges and UV lamps. For how long: Three years from purchase date. What we will do: Repair or replace any defective parts. What you must do:
1. Contact us for return and shipping instructions. You can call us at (888) 812-1516, or email us at service@surroundair.com.
2. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
3. Include proof of purchase inside box.
4. Label and ship the unit, freight prepaid, to the address provided.
Other Conditions
The provisions of this warranty are in lieu of any other written warranty, whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer’s maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that resulted from improper or unreasonable use or maintenance, accident, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.
90-Day Replacement Policy
If any part requires repair during the first 90 days after receiving your air purifier, due to manufacturer defect, then Surround Air will replace it with a new machine.
What you must do:
1. Contact us for return and shipping instructions. You can call us at (888) 812-1516, or email us at service@surroundair.com.
2. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
3. Include proof of purchase inside box.
4. Label and ship the unit, freight prepaid, to the address provided.
Spare Parts
1. Washable HEPA Filter/Pre-Filter
2. Activated Carbon Filter
3. TiO2/Photocataytic Filter
4. UV Lamp
Where to Buy
Surround Air http://www.surroundair.com Toll Free: 888.812.1516
