USER MANUAL
VERSION 2
2
PINLOCjG
USER MANUAL
sureshotlaser.com
Congratulations on your purchase of the Sureshot PINLOCjG.
The PINLOCjG is packed with features such as:
• Intelligent Pin Seeking Technology – This advanced mode uses uniquely developed
software that ensures the closest object is chosen eliminating objects beyond the flag.
• Pulse – The pulse feature provides a short vibration when the target is acquired.
Red Power ON
Once activated the LCD will
remain active and display the
last distance measurement for
15 seconds
GETTING STARTED
Black Mode Button
1. Press and hold for 2 seconds
to move between Metres/Yards
2. Quick press to move scan
mode ON/OFF
3. Quick press to move to Pulse
mode ON/OFF
Adjustable Eye Piece
Battery Door
Pulse On/Off Switch
(Pulse works in PINLOC mode only)
3
PINLOCjG
USER MANUAL
sureshotlaser.com
The PINLOCjG is one of the most compact laser rangefinder on the market, weighing a mere
173 grams and made to fit into the palm of your hand.
Registering
It’s simple. It is recommended that you register your sureshotlaser for warranty purposes.
Follow the easy instructions at www.sureshotgps.com/my-sureshotgps and enter the serial
code found on the box/unit. The serial code starts with 5 and then an uppercase i eg. 5I...
Why should I register my warranty?
It’s simple. Registering your warranty helps you by allowing our customer service team to
quickly view which equipment you own, where you purchased it, if you misplace or lose
your sureshot and the unit is found, we can get in touch and get your sureshot returned to
you asap – as well as other important information to provide service to you as efficiently as
possible. The faster we find your information, the faster we can help you.
Operating Instructions
While looking through the laser, depress the RED power button once to activate the display.
Place the aiming square (located in the centre of the field of view) upon a target at least
5m away, depress the RED power button and the range reading will be displayed near the
top of the in-view display.
Once the LCD screen is active you can switch between the various modes. Use the BLACK
Mode button activate individual features.

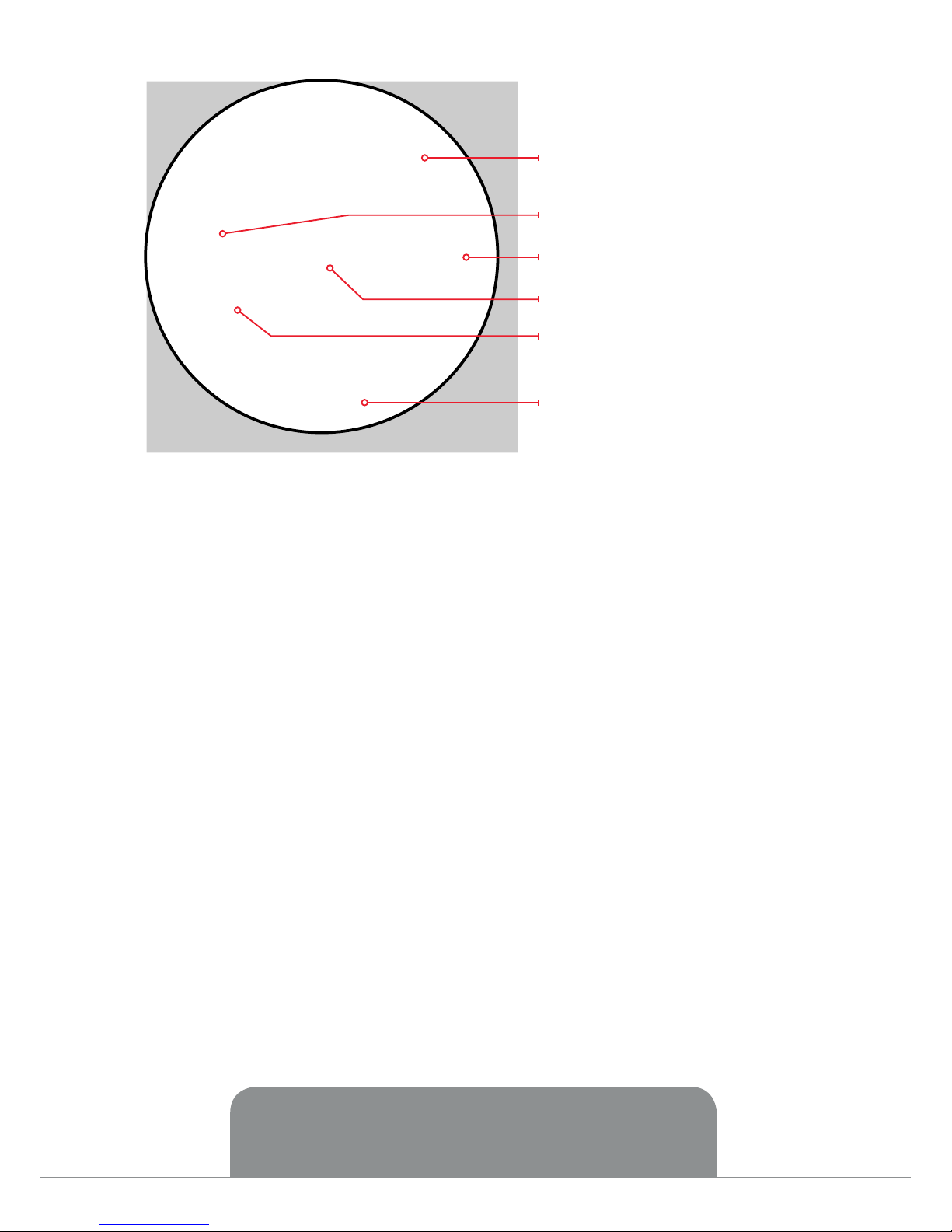

Distance M/Y
PINLOC
Scan
Pulse
Low Battery Indicator
Target Mark
4
PINLOCjG
USER MANUAL
SCAN MODE ( )
To operate Scan Mode > Select Black
Mode button to bring up Scan Mode (“S”
displayed on left of screen)
To activate – Press Red Power button once
to begin continuous scan (4 lines appear
surrounding target mark)
To deactivate – Press Red Power button
once to stop scanning.
PINLOC MODE ( )
To operate Pin Loc Mode > Select Black
Mode button to bring up Pin Loc Mode
(“Flag” displayed on right of screen)
To activate – Press Red Power button once
when target aligned with target mark on
display (4 lines appear surrounding target
mark)
Pulse only works with Pin Loc Mode on
(lightning bolt symbol)
Pulse can also be turned on/off via the slide
button below eyepiece.
255 255
CLEANING
Gently blow away any dust or debris on the lenses (or use a soft lens brush). To remove dirt
or fingerprints, clean with a soft cotton cloth, rubbing in a circular motion. Use of a coarse
cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent
damage. For a more thorough cleaning, photographic lens tissue and photographic-type
lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning
cloth – never directly on the lens.
Your PINLOCjG comes with a carrying pouch, lens cleaner, battery and Quick Start Guide.
For protection of your PINLOCjG always store in the pouch provided.
Need Help?
Contact us directly for the fastest after sales support. Our friendly support team is standing
by to help.
Email: support@sureshotgps.com
5
PINLOCjG
USER MANUAL
sureshotlaser.com
SPECIFICATIONS
Product Top Model: PINLOCjG
Low level battery indicator YES
Auto battery saving Yes after 15 sec
Scan mode YES
PINLOC [how long does the dist stay on screen?] YES - 15 sec
Priority Loc [ignores background images] YES
Multi coated lens for optimum clarity YES
Weight 173 grams
Water resistant Shower proof
Measure Range 1005m
Objective Lens 24 mm
Magnification 6 X
Field of View 6.5 degrees
Exit Pupil Diameter 4.0mm
Battery Type CR2 3V lithium
Dimensions 106.2*75.7*41mm
Accuracy ± 1 m
Display LCD
Special Functionality Intelligent + Pulse
Multilingual User manual Yes
6
PINLOCjG
USER MANUAL
sureshotlaser.com
WARRANTY
Limited Warranty
Sureshotgps™ Pty Ltd (“SS”) warrants the product delivered in this package will be free from material defects for one
(1) year following the date of purchase from SS or its authorised reseller. For the purpose of this warranty, “material
defect” means any defect in a SS product that can be reproduced by SS and is a substantial nonconformity from the
published specifications for such product. SS shall not be responsible for any loss or damage whatsoever resulting
from any defect in or associated with its products which occur or are notified by the purchaser to SS or its authorised
repairer more than one year from said date of purchase. This Limited Warranty does not apply to the battery, normal
wear and tear or if any component of the sureshotlaser hardware is opened or repaired by an unauthorised person or
company, and does not cover repair or replacement of any sureshotlaser hardware damaged by: MISUSE, MOISTURE
OR LIQUIDS, EXPOSURE TO HEAT, ACCIDENT, ABUSE OR NEGLECT. Dropping your sureshotlaser can permanently
damage the laser, optical lenses and LCD, which is not covered under the terms of the Limited Warranty. This Limited
Warranty does not cover physical damage to the surface of the SS, including cracks or scratches on the LCD screen
and Lenses. This Limited Warranty does not extend to any defects which have been caused or contributed by neglect,
misuse or accident, nor in respect of product which has been altered by other than authorised SS personnel or its
authorised repairers. The determination as to whether the terms of this warranty are to apply to returned products is
within the sole discretion of SS or its authorised repairer. Provided any returned product is determined to be covered by
this warranty, SS or its authorised repairers shall at SS’s sole discretion, repair or replace, free of charge, any products
or parts thereof. In no event whatsoever shall SS be liable for any incidental, special or consequential loss or damage
resulting from the purchase and/or use of its products howsoever caused and howsoever claimed. Any liability on SS
under this warranty in respect of any repair and /or replacement and/or any action involving any of its products shall
be limited to and not exceed the purchase price of the product in question. The terms of this warranty are subject
to relevant provisions of any Federal, State or Municipal law. Any dispute or action in relation to this warranty or the
construction of it shall be subject to and conducted in accordance with the laws of Victoria, Australia. Made in China.
