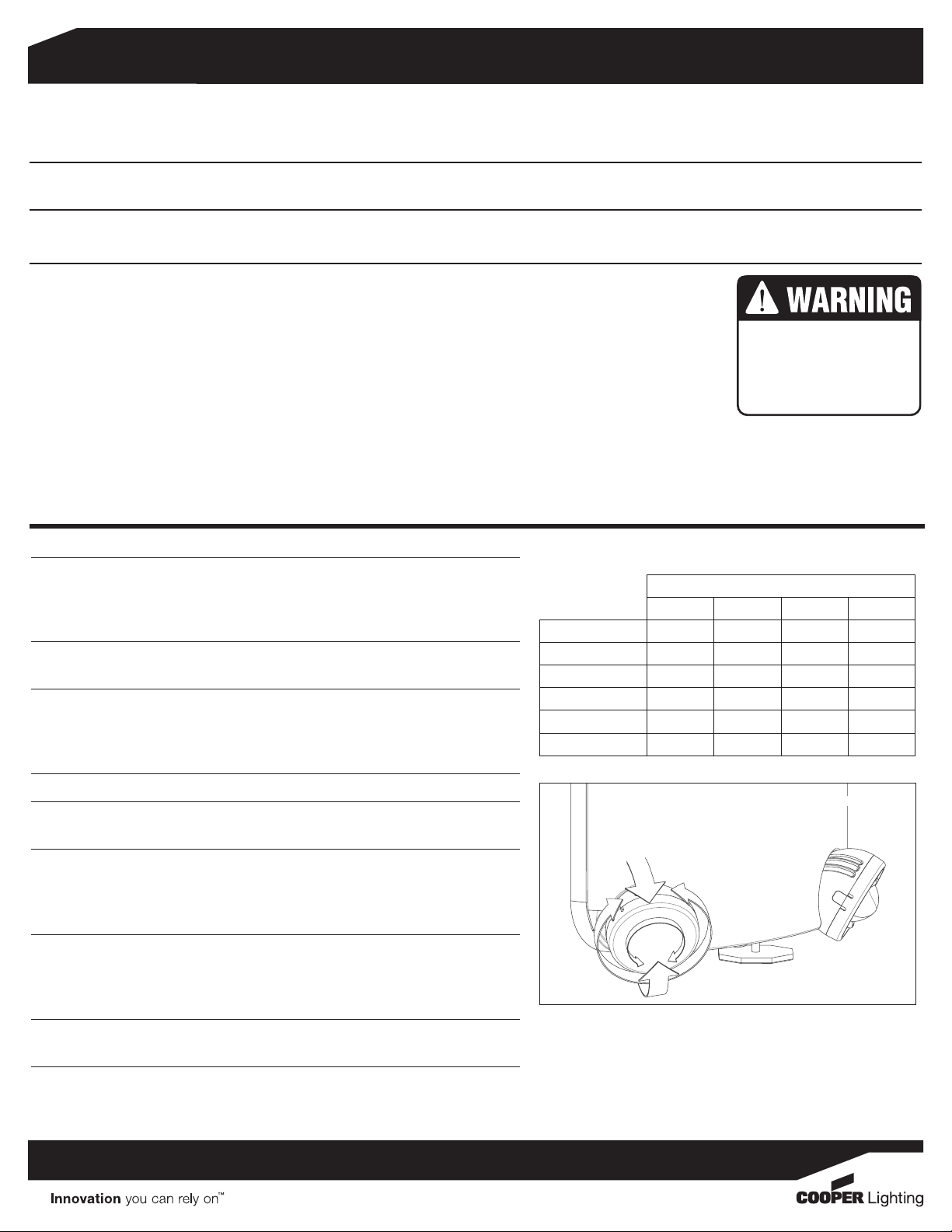

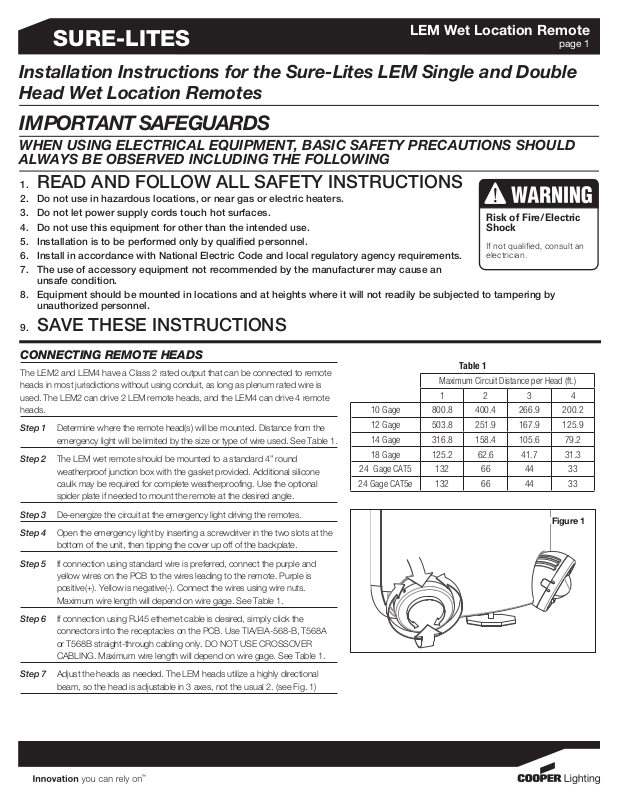

Installation Instructions for the Sure-Lites LEM Single and Double
Head Wet Location Remotes
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD
ALWAYS BE OBSERVED INCLUDING THE FOLLOWING
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use in hazardous locations, or near gas or electric heaters.
3. Do not let power supply cords touch hot surfaces.
4. Do not use this equipment for other than the intended use.
5. Installation is to be performed only by qualified personnel.
6. Install in accordance with National Electric Code and local regulatory agency requirements.
7. The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
8. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
Risk of Fire/Electric
Shock
If not qualified, consult an
electrician.
9. SAVE THESE INSTRUCTIONS
CONNECTING REMOTE HEADS
The LEM2 and LEM4 have a Class 2 rated output that can be connected to remote
heads in most jurisdictions without using conduit, as long as plenum rated wire is
used. The LEM2 can drive 2 LEM remote heads, and the LEM4 can drive 4 remote
heads.
Step 1 Determine where the remote head(s) will be mounted. Distance from the
emergency light will be limited by the size or type of wire used. See Table 1.
Step 2 The LEM wet remote should be mounted to a standard 4” round
weatherproof junction box with the gasket provided. Additional silicone
caulk may be required for complete weatherproofing. Use the optional
spider plate if needed to mount the remote at the desired angle.
Step 3 De-energize the circuit at the emergency light driving the remotes.
Step 4 Open the emergency light by inserting a screwdriver in the two slots at the
bottom of the unit, then tipping the cover up off of the backplate.
Step 5 If connection using standard wire is preferred, connect the purple and
yellow wires on the PCB to the wires leading to the remote. Purple is
positive(+). Yellow is negative(-). Connect the wires using wire nuts.
Maximum wire length will depend on wire gage. See Table 1.
Step 6 If connection using RJ45 ethernet cable is desired, simply click the
connectors into the receptacles on the PCB. Use TIA/EIA-568-B, T568A
or T568B straight-through cabling only. DO NOT USE CROSSOVER
CABLING. Maximum wire length will depend on wire gage. See Table 1.
Table 1
Maximum Circuit Distance per Head (ft.)
1 2 3 4
10 Gage 800.8 400.4 266.9 200.2
12 Gage 503.8 251.9 167.9 125.9
14 Gage 316.8 158.4 105.6 79.2
18 Gage 125.2 62.6 41.7 31.3
24 Gage CAT5 132 66 44 33
24 Gage CAT5e 132 66 44 33
Figure 1
Step 7 Adjust the heads as needed. The LEM heads utilize a highly directional
beam, so the head is adjustable in 3 axes, not the usual 2. (see Fig. 1)
Page 2
LEM Wet Location Remote
WHITE
-NEUTRAL
BLACK
-120V
ORANGE
- 277V
TDI
ICSP
c
N120 277
REMOTE
-
LAMPS
BATT
+
F2
C8
JP10
JP8
JP3
JP11
JP1
JP2
C7
J1
CN4
SW1
MOV2
MOV1
JK5
JK4
JK2
JK1
CN2
CN1
D5
PR1
R9
R18
R19
LED1
CN3
F1
C6
C9
CN5
JP7
Q2
JP6
JP9
JP5
JP4
Q5
+
+
JK3
LAMPS
c
RMT+ RMT-
U2
U1
R5
R4
R3
R2
R1
Q2
Q1
D1
JK2
JK1
LAMPS
c
RMT+ RMT-
U2
U1
R5
R4
R3
R2
R1
Q2
Q1
D1
JK2
JK1
REMOTE LED
HEADS
REMOTE LED HEAD DRIVER REMOTE LED HEAD DRIVER
INTEGRAL LED HEADS
REMOTE LED
HEADS
BATTERY
LEM 2/4 CHARGER
/DRIVER PCB
HEADS CONNECTED USING
STANDARD WIRES AND WIRE
NUTS
HEADS CONNECTED USING
ETHERNET "EZ CLICK"
CONNECTORS
SURE-LITES
OPERATION
Depress the test switch briefly. The LED heads will light and the charge LED will extinguish. Afterwards, the charge LED will illuminate and
the LED heads will turn off.
MAINTENANCE: None required.
NOTE: Servicing of any parts should be performed by qualified personnel. Only use replacement parts supplied by Cooper Lighting.
TROUBLE SHOOTING GUIDE
If LED heads or charge indicator LED does not illuminate, check the following:
1. Check AC supply – verify that unit has 24 hour AC supply.
2. Unit is shorted or battery is not connected.
3. Battery discharged. Permit unit to charge for 24 hours and then re-test.
4. If following the above trouble shooting hints does not solve your problem, contact your local Cooper Lighting representative for assistance.

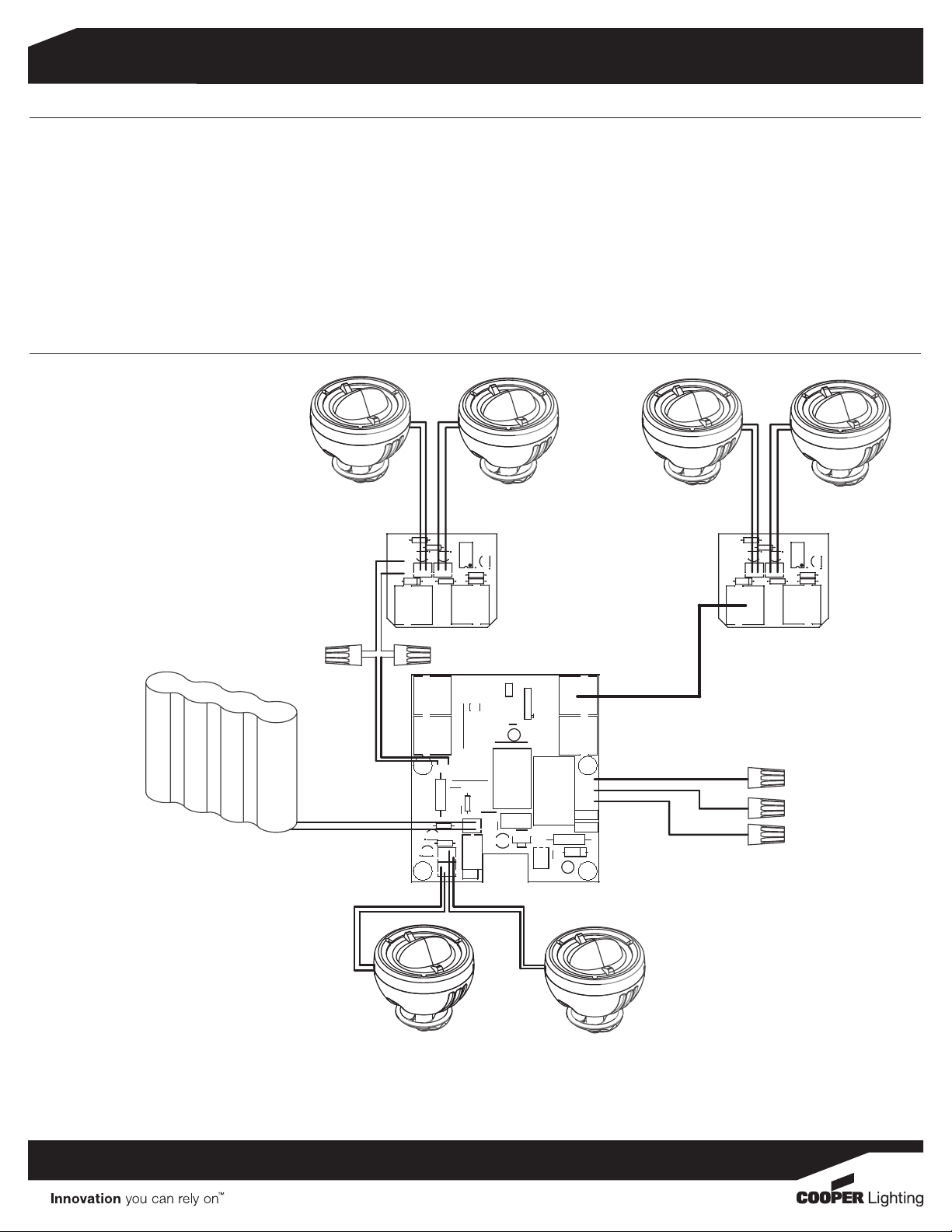

SCHEMATIC
