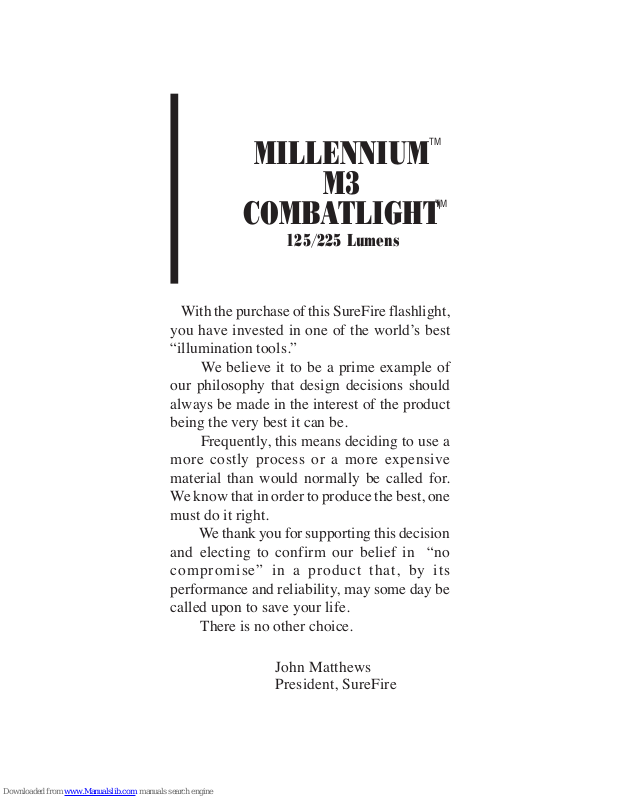

Page 1
125/225 Lumens
MILLENNIUM
M3
COMBATLIGHT
TM
TM
John Matthews
President, SureFire
With the purchase of this SureFire flashlight,
you have invested in one of the world’s best
“illumination tools.”
We believe it to be a prime example of
our philosophy that design decisions should
always be made in the interest of the product
being the very best it can be.
Frequently, this means deciding to use a
more costly process or a more expensive
material than would normally be called for.
We know that in order to produce the best, one
must do it right.
We thank you for supporting this decision
and electing to confirm our belief in “no
compromise” in a product that, by its
performance and reliability, may some day be
called upon to save your life.
There is no other choice.
Page 2
WELCOME
TO THE SUREFIRE TEAM
SUREFIRE lights provide overwhelming
power, and they do this with a quality of
beam that is unmatched in brilliance and
performance.
SUREFIRE’s high pressure Xenon/
Halogen lamps operate at the highest
temperatures possible, producing
extraordinary, brilliant, white light.
Our reflectors are machined from solid
billets of aircraft grade aluminum.
Each SUREFIRE lamp assembly is
permanently prefocused to within less than
five thousands of an inch to achieve the
absolutely flawless SUREFIRE beam.
The switch is ergonomically located for inthe-dark positive activation.
Whether you need a small light that can
be carried in your pocket or a multipurpose
professional light, SUREFIRE offers you
models that range in power from 15
lumens to 500 lumens.
You can have confidence that your choice
of a SUREFIRE light will always reward
you with years of superb, unfailing
performance.
You have just become the owner of one of the
most incredible pieces of lighting technology
ever conceived. It is a masterpiece of
engineering, a member of the SUREFIRE
family which has gained the acceptance and
respect of military and law enforcement
professionals around the world.
Page 3
MILLENNIUM
M3 COMBATLIGHT
Power and performance advances have made
a quantum leap with the M3 CombatLight.
Supplied with Lamp Assemblies of 125
and 225 lumens, you have a light that pierces
the night field of view beyond 100 yards. The
intense beam improves your ability to prevail by safely rendering an attacking person
temporarily blind. The flawless beam combines an intense prefocused spotlight center
surrounded by a smooth, uniform wide floodlight, free of irregularities.
Special protection against lamp assembly failure due to impact is provided by
SUREFIRE’s exclusive shock isolation design.
The unique streamlined shape and lightweight, precision-engineered, cut-away flashlight body is specifically designed to be used
with advanced shooting methods such as the
Rogers/SUREFIRE shooting technique and
the Harries technique.
As a member of the Millennium series of
SUREFIRE lights, many of the components
are interchangeable with the M500A and
M100 WeaponLights should they be needed
during field operations.
An unqualified choice for tactical operations, the M3 exceeds all expectations in application and light power.
Page 4
For Constant Light
ON - Turn Tail Cap clockwise
(viewed from the tail)
OFF - Turn Tail Cap counterclockwise
For Momentary Light
ON - Press Push Button
OFF - Release Push Button
Push
For
“ON”
To Turn Light “ON”
M3 COMBATLIGHT
There are two ways to activate the light from
the M3. The Tail Cap switch of the Flashlight can be activated by rotating the Tail Cap
in a clockwise direction for a constant “ON”
setting or by pressing on the Push Button for
temporary light.
Turn
Tail Cap
for
“ON”
Switch Lockout Procedure
1. From the constant “ON” position, back the
M3 Tail Cap “OFF” until the light goes out
and turn the Tail Cap one full turn counterclockwise from this position.
2. Push Button switch is now locked out.
3. Restore Push Button function, rotate the
Tail Cap one full turn clockwise.
Page 5
Power Output MN10 - 125 Lumens
MN11 - 225 Lumens
Run Time MN10 - 60+ Minutes
MN11 - 20 Minutes (Approx.)
Battery Type Lithium SF123A
Number Required Three (3)
Supplied Yes
Length 7.25 inches
Weight 7.6 ounces
Diameter Body - 1.00 inches
Bezel - 1.62 inches
Lamp Assembly MN10, MN11 - High Pressure
Xenon & Halogen
Lens Pyrex, Tempered
Switch Tail Cap Type:
Rotation/Pressure Activation
w/ Lock-Out Disable
Body Material Aircraft Grade Aluminum
Finish External: Hard Anodized
Mil-A-8625, Type III, Class 2
Internal: Chemfilm Mil-C-5541
Color Grey
Water Resistant O-Ring Sealed
Lanyard Nylon w/Button Restraints
SPECIFICATIONS
Page 6
Component Part No.
Lithium Battery SF123A
Bezel Assembly 13703-1
Flashlight Body 13443-1
Grip Ring Spacer 12446-1
Grip Ring 12447-1
125 lumen Lamp Assembly MN10
225 lumen Lamp Assembly MN11
Lanyard 12452-31
Lanyard Ring 12455-11
Rear O-Ring Seal (front) 19-01-040
Rear O-Ring Seal (end) 19-01-077
Front O-Ring Seal 19-01-057
Lock Out Tail Cap Assembly 12708-11
PARTS REPLACEMENT LIST
Page 7
LANYARD W/RING
FRONT O-RING
BEZEL ASSEMBLY
LENS
PUSH BUTTON
BATTERY
(3)
LOCKOUT
TAIL CAP
LAMP ASSEMBLY
GRIP RING
W/SPACERS
BODY
M3 COMBATLIGHT
Page 8
1. Remove the Bezel from the M3 Body
by holding the Body and rotating the Bezel
counterclockwise (as viewed from the front
of the light) until it is free of the Body.
2. Remove the Lamp and replace with the
desired Lamp.
Avoid touching the inside of the Lamp
envelope or Reflector as this will degrade
the performance of your SureFire Light.
3. Install the Bezel back on to the Body.
BEZEL
BODY
LAMP
CHANGING THE LAMP
Page 9
TAIL CAP
BATTERY (3)
BODY
+
+
+
1. Remove the Tail Cap by unscrewing it until
it is free of the Body.
2. Remove the Batteries from the Body and
replace, observing proper Battery polarity.
3. Install the Tail Cap back on to the Body,
turning it until the light comes on. Then back
off 1/2 to 1 turn until the light turns off.
4. The M3 is now ready for use.
INSTALLING THE BATTERY
Page 10
CUSTOMER SERVICE
REPAIRS AND REPLACEMENTS
To obtain repair or replacement contact Cus-
tomer Service at 800-828-8809 (toll free) or
714-545-9444 and obtain a Return Authorization number (RA#). Then package the unit
carefully and return (no COD’s please) to:
SUREFIRE LLC
Repairs Department, RA# ___
17680 Newhope Street, Suite B
Fountain Valley, CA 92708
SUREFIRE will pay any reasonable shipping
costs to return the unit to you.
SUREFIRE LLC 2001 ALL RIGHTS RESERVED
©
14150-12/2-13-01
Protected by U.S. Patent Number(s)
6,046,572 , 6,222,138
Page 11
BeamFilters FM15 Red
FM16 Blue
FM13 Infrared
Tip-Off Cover FM17
Polymer Holster V71
Tail Cap Lanyard Ring Z26
Lanyard, Black Z27
Tail Cap Lanyard Kit Z33
Spares Carrier SC2
Hurricane™ Emergency 12B
Battery Pack Light
(includes 12 each SF123A)
ACCESSORIES
Custom Engraving:
Engraving of name, logo, slogan or other icons is available to
personalize your SUREFIRE product.
Call Customer Service.
