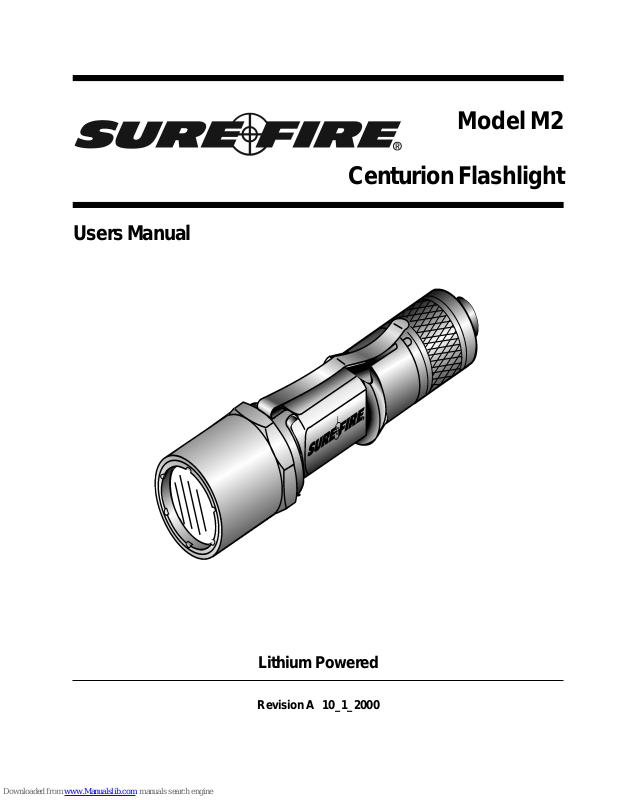

Page 1
Users Manual
Model M2
Centurion Flashlight
Lithium Powered
Revision A 10_1_2000
Page 2
Model M2 Centurion Flashlight
Introduction
The Centurion uses the P60 High Pressure Xenon Lamp Assembly to produce
a superlative beam rated at 65 lumens. Powered by two lithium Duracell
DLl23A batteries, it has a run time of one hour. The brighter P61 Lamp Assembly, produces 120 lumens at a shorter run time of 20 minutes. Both lamp
assemblies are furnished standard with the Centurion.
The Model M2 Centurion incorporates features that make it the ultimate Personal Defense Light. Waterproof, with stainless steel pocket clip, it features the
SURE-FIRE lock-out tail cap switch which disables the light from activation
during transport, storage or operations. This Tail Cap allows for Momentary
use, constant ON and Disable. The octagonal bezel keep s the light from rolling
on non-level surfaces, and holds a Pyrex, scratch resistant window . The Centurion also features an ergonomic, flat-sided body and rubber grip ring, which
provides an excellent grip, similar to that on our CombatLights. Precision
machined from solid aircraft grade aluminum, the Centurion has mil-spec Type
3 hard anodizing, giving it increased ruggedness and resistance to wear over
the years. Each SURE-FIRE lamp assembly is individually focused at the
factory, bonded in its reflector , to assure a perfect, flawless beam.
Kit Contents
! Centurion Flashlight
! P61 Lamp Assembly
! DL123A Battery (2)
! Users Manual
Installation
1. Remove the Bezel and Lamp Assembly from the Flashlight by unscrewing the
Bezel (counterclockwise) until it comes off theFlashlight.
2. Install the two batteries with the + terminal facing out.
3. Re-install the Bezel and Lamp Assembly by placing the Lamp Assembly
inside the Bezel and then screwing the Bezel (clockwise) onto the Flashlight
Body until it is seated.
4. DO NOT T OUCH the reflector or Lamp surfaces. The oil from your skin can
degrade the surfaces and reduce the performance of your flashlight.
Page 3
Sure-Fire LLC
Operation
1. LAMP ON. T urn the Tail Cap clockwise in relation to the Lamp Housing until
snug, the Lamp will come ON.
2. MOMENT ARY OFF/ON. T urn off the flashlight by rotating the Tail Cap
counterclockwise 1/8 turn from the constant ON position. Press on the rubber
Push Button on the rear of the Flashlight and the light will come ON and stay ON
as long as the button is depressed.
3. REMOVAL OF THE BELT CLIP. Unscrew Bezel and slide Belt Clip off body
of flashlight.
4. STORING. Unscrew the T ail Cap one full turn counterclockwise and the switch
is locked out.
Lamp Replacement
1. Unscrew Bezel from Flashlight Body and lift Lamp/Reflector Assembly out of Bezel.
2. Install replacement Lamp/Reflector Assembly in Bezel and reassemble by
screwing onto Flashlight Body .
Battery Replacement
1. Unscrew Bezel from Flashlight Body and shake out old Batteries.
2. Install new Batteries with the + terminal facing out.
3. Reinstall Lamp Module.
Note: Use only Duracell™ DL123A batteries in order to achieve the high output
expected from the Centurion flashlight. Do not mix old and new batteries.
Page 4
Sure-Fire LLC
Centurion Accessories
! Hurricane Battery Pack Light - 12 DL123A Batteries in case
! S pares Carrier Model SC1 holds extra Lamp and 6 DL123A Batteries
Beamshaper™& Beam Filter
! F24 Wide Angle Beamshaper
! F26 Red
! F16 Infrared
! F27 Blue
Holsters/Light Transport Systems attach to belts
! V50 Carry All Pouch, Black
! V51 Carry All Pouch, Camo
! V52 Carry All Pouch, Blue
! V53 Carry All Pouch, Green
Page 5
Model M2 Centurion Flashlight
Specifications
P60 Lamp/Reflector Assy Prefocused
Light Output 65 Lumens
Run Time Approx. 1 hour
Lamp Type High Press. Xenon
P61 Lamp/Reflector Assy Prefocused
Light Output 120 Lumens
Run Time Approx. 20 Min.
Lamp Type Xenon/Halogen
Battery Type Lithium
Battery Shelf Life 5 to 10 years
CAUTION
The battery used in the light is very powerful. Be sure that the switch is not touching
anything when the light is stored. If the lamp is turned on while in a case or other
container, the lamp can overheat and damage the light or surrounding materials.
Remove the battery or unscrew the Lockout Tail Cap one full turn to prevent the
lamp from turning on when stored. If it is necessary to dispose of any batteries, do
not do so by fire, mutilation or by disassembly , as this may cause toxic chemicals to
be released.
WARNING
Lithium batteries can explode or cause burns if disassembled, shorted, recharged or
exposed to fire or high temperatures. Please handle with care.
CAUTION
Do Not attach Centurion flashlights to weapons. The lamps and batteries will FAIL!
Lamps and batteries used in Laser Products tactical lights are shock isolated to
withstand the shock of weapons being fired. Centurion flashlight lamps and batteries
are not.
Page 6
Repairs & Replacements
To obtain repair or replacement call Customer Service at 800-828-8809 (toll free) or
714-545-9444 and obtain a Return Authorization number (RA). Then pack the unit
carefully and return (no COD’s please) to:
Laser Products
Repairs Department, RA# _____
18300 Mt. Baldy Circle
Fountain Valley , CA 92708-6122
Laser Products will pay any reasonable shipping costs to return the unit to you.
Warranty
Laser Products warrants that its products will be free from defects in materials and
workmanship. Laser Products will repair or replace (at its option), without charge, any
product or part which is found to be defective under normal use and service. Such
repair or replacement shall be the purchaser’s sole and exclusive remedy under this
warranty . This warranty does not include normal maintenance and services and does not
apply to any products or parts which have been subject to modification, misuse,
negligence, accident, improper maintenance or repair by anyone other than Laser
Products.
“Fine Print” Warranty Limitation
There is no other express warranty. Laser Products hereby disclaims any and all
implied warranties, including, but not limited to fitness for a particular purpose.
Laser Products shall not be liable for incidental, consequential, or special damages
arising out of, or in connection with product use or performance.
18300 Mt. Baldy Circle, Fountain V alley , CA 92708-6122 (714) 545-9444
um_M2_0.C01
71-01-308
www .surefire.com
