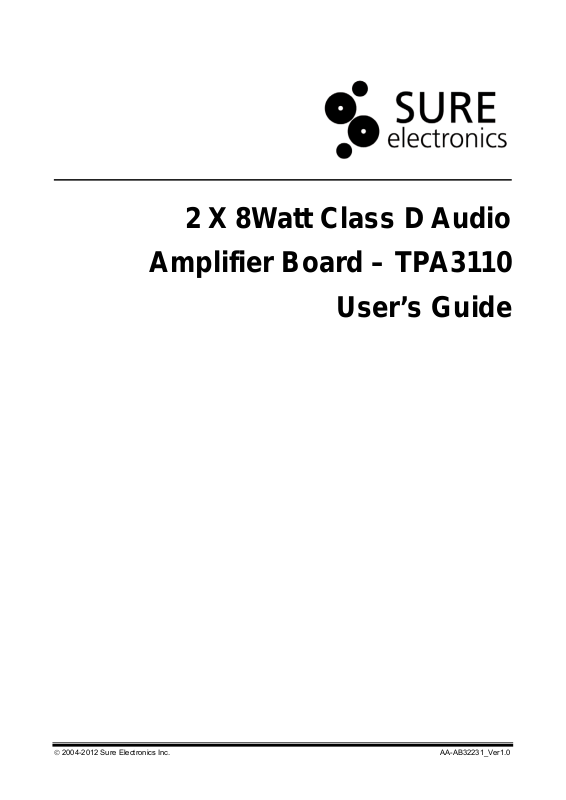

Sure Electronics TPA3110 User Manual

2 X 8Watt Class D Audio

Amplifier Board – TPA3110

User’s Guide

2 X 8W att Class D Audio Amplifier Board –TPA3110

Note:

Please read this manual carefully before you use the product. To keep the product in a best working condition

and having a long service time, please operate it according to the relevant steps. The warranty lapses if the

product is damaged because of incorrect use and your negligence.

Please read this manual carefully before you use the product and check if the product is a good one. DC12V

is recommended to be used to power the product for one hour. Never use this product in an extreme

condition.

Warning: Never immerse the product in the rain or any other humid environment to prevent the fire or

electric shock.

Safety Precautions:

1. In order to achieve a better sound quality, please use stable power supply since a bad or unstable power

supply may worsen the sound quality or even cripple the amplifier board.

2. Avoid metal objects. Protect this product well and move away metal objects from this product.

2 X 8WATT CLASS D AUDIO

A

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Table of Contents

Chapter 1. Overview ..........................................................................................................1

1.1 Overview.............................................................................................................. 1

1.2 Accessories......................................................................................................... 1

1.3 Features............................................................................................................... 1

1.4 Applications......................................................................................................... 2

1.5 Benefits................................................................................................................ 2

1.6 Quick Start........................................................................................................... 2

Chapter 2. Hardware Detail...............................................................................................4

2.1 Power Connection............................................................................................... 4

2.2 Input Connections............................................................................................... 5

2.3 Output Connections............................................................................................ 5

2.4 Mute Settings....................................................................................................... 6

2.5 LED Indicators..................................................................................................... 7

2.6 Volume Control.................................................................................................... 7

2.7 Notes.................................................................................................................... 8

Chapter 3. Electrical Characteristics ...............................................................................9

Chapter 4. Mechanical Drawing......................................................................................11

Chapter 5. Contact Us .....................................................................................................12

A-AB32231_Ver1.0_Page i

2 X 8W att Class D Audio Amplifier Board - TPA3110

A

NOTES:

Product Version ： Ver 1.0

Document Version ： Ver 1.0

A-AB32231_Ver1.0_Page10

A

1.1 Overview

2 X 8WATT CLASS D AUDIO

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Chapter 1. Overview

Welcome to use this self-made 2*8W audio amplifier board which is a perfect class-D

architecture integrated TPA3110D2 chip to achieve the dual-channel 8W power output.

This board can be powered by any DC power supply ranging from +8 to 19V, which can be

used to drive any 4Ω or 8Ω passive speakers.

High quality components, high efficiency chip and self-dissipation make this product

perfect for hi-fi applications.

FIGURE 1-1 OVERVIEW

Note: All the diagrams in this manual are for reference only.

1.2 Accessories

We don’t provide audio accessories together with this product. Please go to

www.sure-electronics.com

to choose what you need.

1.3 Features

y A perfect "Class D" architecture

y Full bridge stereo audio output

y Wide supply range: DC 8V to 19V

y Two ways of audio input: line level and analog

y Frequency response: 20Hz to 20KHz(±3dB)

A-AB32231_Ver1.0_Page 1

2 X 8W att Class D Audio Amplifier Board - TPA3110

A

y High Output Power

5W @ 8Ω, < 10.0% THD+N

8W @ 4Ω, < 10.0% THD+N

y High Efficiency

92% @ 4W 8Ω

85% @ 6W 4Ω

y Audiophile Quality Sound

0.1% THD+N @ 3W 8Ω

0.1% THD+N @ 6W 4Ω

y Over/under voltage protection

y Over current protection

y Over temperature protection

1.4 Applications

y Active subwoofer

y Home DIY

y Multiple-channel Distribution

y Active DVD System

y Mini/Micro Systems

1.5 Benefits

y Mounting holes facilitate installation and fixing

y Several wiring methods facilitate connection：RCA Socket (Default),Terminal

Block(Optional)

y Excellent heat dissipation eliminates the requirement of an extra heat sink.

1.6 Quick Start

Suggested connection is shown in figure 1-3.

FIGURE 1-3 CONNECTION SCHEMATIC

A-AB32231_Ver1.0_Page10

Overview

A

Note: Please observe the following steps to complete verification so as to ensure the

products are intact during transit.

1. Open the amplifier package and make sure the product is intact (No missing

or damaged components and no deformation.

2. Please observe the connection schematics when connecting the amplifier

board. Use a nearby sound source, such as MP3 or CD player to have a trial.

This amplifier board can be deemed as qualified if you can hear the sound

corresponding to that sound source

A-AB32231_Ver1.0_Page 3

A

2.1 Power Connection

This product is powered through an on board DC jack which is anode inside and cathode

outside. If you prefer to power the board with terminal block, please visit our website

the accessories package and install them manually.

FIGURE 2-1 POWER CONNECTION

2 X 8WATT CLASS D AUDIO

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Chapter 2. Hardware Detail

for

TABLE 2-1 POWER CONNECTION

Connector Mark Description

Jack J7 DC 8-19V power supply socket

Terminal blocks*

A-AB32231_Ver1.0_Page 4

VCC Positive of power supply

J6

GND Negative of power supply

A

Note:

1. You are allowed to use only one way to power the amplifier board at a time.

2. The maximum supply voltage shall be referred to Chapter 3.

3.

2.2 Input Connections

This product uses 3.5 audio jack to for audio input. If you prefer to power the board with

terminal block, please visit our website

manually.

FIGURE 2-2 INPUT CONNECTION

Hardware Detail

12V Switching Power Supply is recommended.

for the accessories package and install them

TABLE 2-2 INPUT CONNECTION

Connector Mark Description

3.5mm audio jack J5 Stereo input

Terminal blocks

Warning: You are allowed to feed only one group (dual channel) of audio signal to the amplifier board at a time.

2.3 Output Connections

This product uses terminal block for audio output.

J1

J2

CH1 Channel 1 Input

GND GND CH2 Channel 2 Input GND GND

A-AB32231_Ver1.0_Page 5

2 X 8W att Class D Audio Amplifier Board - TPA3110

A

FIGURE 2-3 OUTPUT CONNECTION

TABLE 2-3 OUTPUT CONNECTION

Connector Mark Description

Terminal blocks

Note:

2.4 Mute Settings

For Mute settings, just connect GND and SD together with a wire. Normally, SD is not

connected. If you prefer to power the board with terminal block, please visit our website

the accessories package and install them manually.

J3 Output of Channel 1

J4 Output of Channel 2

1. Never connect more than one group of speaker to the audio output

2. Never connect CH1_OUT-, CH2_OUT- together since they belong to different NETs.

3. Refer to on-board descriptions for connection details.

for

A-AB32231_Ver1.0_Page10

A

FIGURE 2-4 MUTE SETTINGS

Hardware Detail

TABLE 2-4 OUTPUT CONNECTION

Terminal blocks Description

J8（optional）

2.5 LED Indicators

This amplifier has 1 power LED indicator which is marked as “Status”. It will be

illuminated in green when power-up.

FIGURE 2-4 LED INDICATOR

2.6 Volume Control

No potentiometer is provided for manually adjusting the volume. The volume control of

sound source like MP3 or PC can be used to adjust the volume of the audio output or a

50KΩ potentiometer can be installed by users themselves, which may cause signal

attenuation.

Please be aware that audio clippings may occur to some portable players because of the

audio source not the amplifier itself.

SD

Connect SD and GND, and then two channels will be in Mute mode. Leave SD unconnected and two channels will restore normal working.

A-AB32231_Ver1.0_Page 7

2 X 8W att Class D Audio Amplifier Board - TPA3110

A

2.7 Notes

In order to protect amplifier board and extend its service lifetime, please read the

following warnings carefully since warranties will be voided if you do not observe the

following warnings:

Warning 1:

Quality-related issues caused by potentiometers installed by buyers.

Warning 2:

In order to achieve a better sound quality, please use stable power supply since a bad or

unstable power supply may worsen the sound quality or even cripple the amplifier board.

Warning 3:

Never equip a pre-amplifier to the audio input since the amplifier itself has powerful

amplification ability and a high signal input will burn out the amplifier chip.

Warning 4:

In order to protect amplifier and speaker, please turn the volume output to the minimum

when hooking up the amplifier and you may readjust the volume when you are sure that

the amplifier is functioning properly.

A-AB32231_Ver1.0_Page10

2 X 8WATT CLASS D AUDIO

A

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Chapter 3. Electrical Characteristics

Following table lists all typical data of the Amp board. For full specification, please refer to

the data sheet of TI’s TPA3110 chip. All the parameters are tested @

f=1000Hz, sine ware input, RL=4Ω, Gain=20dB.

TABLE 3-1 ELECTRICAL CHARACTERISTICS

Parameter Condition Min. Typ. Max.

Supply Voltage - 8V 12V 19V

Input Sensitivity Gain=26dB - 0.283V -

Maximum output

at THD+ N < 1%,

S/N Ratio

THD+N

Efficiency

f = 1 kHz,

Gain=20db,

A-weighted

Vcc = 16 V, f = 1

kHz, Po = 7.5 W

(half-power)

RL = 8 Ω, f = 1

kHz, Po = 5 W

(half-power)

Vcc=12V,

RL=8Ω, Pout=5W

Vcc=12V,

RL=8Ω,

Pout=10W

- 102dB -

0.1% -

0.06% -

- 86% -

89% -

TA=20 ,℃ ＤＣ12Ｖ；

Input Impedance - - 30K ohm -

Gain - 26dB

Output Power

Frequency Response - -

SD

Quiescent Current SD = 2 V, no - 20mA 35mA

THD+ N= 10%, f

= 1 kHz, Vcc = 16

V

THD+N = 10%, f

= 1 kHz; Vcc = 13

V

High-level input

voltage

Low-level input

voltage

- 15W -

- 10W -

20HZ-20KHz

（±3dB）

2V - -

- - 0.8V

A-AB32231_Ver1.0_Page 9

-

2 X 8W att Class D Audio Amplifier Board - TPA3110

A

load, Vcc = 12V

Load - 3.2 ohm 4 ohm -

Operating Temperature - -40℃ 20℃ 65℃

Storage Temperature - -60℃ 20℃ 105℃

Thermal Shutdown - - 150℃ -

Note: Some data above come from the datasheet of TI’s TPA3110. For more details, please refer to relevant documents.

A-AB32231_Ver1.0_Page10

2 X 8WATT CLASS D AUDIO

A

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Chapter 4. Mechanical Drawing

FIGURE 4-1 MECHANICAL DRAWING

A-AB32231_Ver1.0_Page 11

2 X 8WATT CLASS D AUDIO

A

AMPLIFIER BOARD - TPA3110

USER’S GUIDE

Chapter 5. Contact Us

Sure Electronics Co., Ltd.

East zone, 3F, Building 6 Jingang Technology Innovation Center No.108 Ganjiabian Rd (ZIP: 210000) Qixia District Nanjing P.R.China Tel: +86-25-68154800-860 Fax: +86-25-68154891-832 Website: www.sure-electronics.com Email: customerservice@sure-electronics.com
