16
Ref. Descripon Code
- SYDNEY KEYPAD CONTR.ASS.Y 19702030
604 GASKET FOR ROUND CONTROL PANEL 19563034
608 KEYPAD HOUSING FOR SIDNEY KEYPAD 19563124
610 ON/OFF DECAL FOR SIDNEY KEYPAD 19420163
612 S/S BUTTON 19410135.08
614 S/S BUTTON W/LAMP 19410136.08
620A PRINTED CIRCUIT BOARD 230-110 V 19411102
620B PRINTED CIRCUIT BOARD 400 V 19411103
Drawing nr. 5/5
SERVICE CENTRE
AUTHORISED DEALER
1

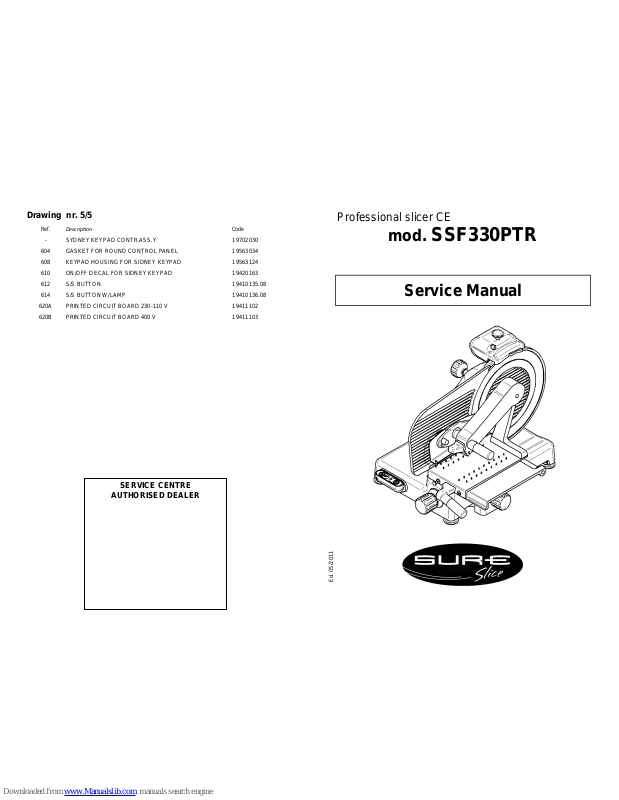

Service Manual
Professional slicer CE
mod. SSF330PTR
Ed. 05/2011
2
15
Drawing nr. 5/5
14
Drawing nr. 4/5
Ref. Descripon Code
626 CAPACITOR FOR SLICER 10UF 19410307
632 WIRE WAY HOUSING FOR SLICER 19563127
640 PLATE FOR CABLE 19541743
642A POWER CORD SUKO 1PH PA 205 19410530
648A MOTOR 230/50 FOR SLICER 300 19400107
648B MOTORE 300 TF C.PIATTA 380-50 19400407
652 GROUNDING PLATE FOR SLICER 19420177
658 GROUND WIRE UL FOR SLICER 300-385 19410739
664 MICROSWITCH SINGLE-PHASE 19410201
668 MOTOR PIVOT LNR 350-385 SV 19540554
676 STAFFA TIR. MOTORE MNT 300 19540345
680 WIRE WAY HOUSING COVER FOR SLICER 19563148
684 BOTTOM ENCLOSURE PANEL FOR SLICER 19563160
690 UPPER HEX ROD OF COVER FOR SLICER 19540752.07
692 PIN FOR MOTOR SUPPORT 19540746
642B POWER CORD SUKO 3PH PA 205 19410536
3
115 V. ELECTRICAL DIAGRAM - 230V. SINGLE-PHASE - 230V.
THREE-PHASE - 400V. THREE-PHASE, PUSH-BUTTON
Fig. n°21
115 V. tension selection
Single-phase 230 V. tension selection
4
Three-phase 230 V. tension selection
Three-phase 400 V. tension selection
13
Drawing nr. 4/5
12
Ref. Descripon Code
- SHARPENER COMPLETE LNR 300-385 19800020
402 SHARPENER HOUSING_LEON/PALL 300-385 19511252C
404 RED SHARPENER KNOB FOR LNR/PLD 19522652R
410 SHARPENER PINS SPRING FOR SLICER 19390309
412 DEBURRING PIN FOR SLICER 330-370 19540709
414 BUSHING_LNR/PLD.USA 19540718
416 DEBURRING STONE D.50 H.8 F.8 19300209
424 SHARPENING STUD FOR SLICER 330-370 19540708
426 DEBURRING PUSH BUTTON FOR SLICER 19550208
427 BUTTON SCREW _ SLICER 250-370 19335025
430 VIBRATION DAMPER FOR LEONARDO 19560152
432 THUMB SCREW SHARPENER LNR 19335023
436 BOTTOM ENCLOSURE_LNR 300-385 19511253C
437 CONICAL SCREW FOR RING_SLICER 19336055.09
442 SHARPENER ROD _ LNR 300-385 19540452
444 LOCK BOLT FOR SHARPENER_LNR 19336056.09
456 SHARPENER FOR LNR 300-385 19021352
Drawing nr. 3/5
470 SHARPENING STONE D.48 H15 Y10 19300108C.10
5
Drawing nr.
Ref. SSF350PTR
5/5
620A
620B
Pc board
5/5 - On/Off touch panel
3/5
416
470
Grinding stones (couple)
1/5 24 Belt
1/5
03
04
Feet (4x)
2/5 294 Plexi hand-guard
Page
15
15
11
6
6
8
Recommended Spare Parts
6
Drawing nr. 1/5
11
Drawing nr. 3/5
10
Drawing nr. 2/5
Ref. Descripon Code
320 BLOCK 19525052
326 PIVOT FOR BUSH 19533666.04
327 WASHER FOR PLATE BS2 LNR 350-385 19563654
328 SPRING FOR SLIDING RELEASE BS2 DAL 2004 19390454.04
329 PIVOT -PLATE BS2 LNR 350-385 19540820
330 BUSH FOR SLIDING REALEASE BS2 DAL 04 19538056.04
332 BLADE COVER KNOB FOR SLICER 19021110
337 SCREW FOR PLATE FIXING MNT 300 19335044
7
Drawing nr. 1/5
Ref. Descripon Code
2 BASE 300-330-350 MNT 19510145
3 FOOT BUFFER '05 LEONARDO 350-385 19560156.05
4 FOOT ASSEMBLY '05 LNR 350-385 19522620.05
5 FOOT PLATE PLD 300 19540660
6 BLADE COVER Y08 SLICER 330 19510243
8 KNOB FOR SLICE DEFLECTOR_SLICER 19021156
10 PIN FOR RING MNT 330 19534072
14 LOCK NUT 250-330 19530905
15 SEAL NBR_SLICER PLD 330-350 195621360
16 BLADE 330 - 57/4/270 CE 18330574270F
18 BLADE RIM GUARD 330 MNT 19513046
22 PULLEY MNT 300 19700347
24 BELT TB2 526X10 FOR SLICER 19310252
28 MICROSWITCH HOLDER RING FOR SLICER 19540905
32 TIE ROD LNR 250 - MNT 19530551
34 TIE ROD RED KNOB 19522610R
36 SLICE DEFLECTOR MNT 330 19531049
38 BLADE COVER KNOB FOR SLICER 19021110
39 S/S PRONG SHOULDER SCREW FOR SLICER 19335011
40 GAUGE 19510346
41 PRONG SHOULDER SCREW FOR SLICER 19336052
44 GAUGE SCREWM8 X 24 MRR.300 SV 193350032
48 PIVOT+GAUGE SUPPORT MNT 300 19530745
52 COVER,TABLE SUPPORT_SLICER PLD 19512260
56 KNOB, COVER FOR SLICER LNR 19335021
62 COVER GASKET_SLICER PLD 300 19563060
64 THICKNESS PLATE SLIDE PLD 300 19500150
66 TABLE SLIDE GUIDE FR SLICER 300-370 19540609
75 STUD BOLT 6X25 FOR SLICER 19337002
76 SPRING FOR SLICER 19390760
84 STUD BOLT M6 X 17 FOR SLICER 19337032
90 SLIDE ROD 19336073.08
92 CAM+SLIDE ROD 19563570
96 CORRUGATED SPRING WASHER 19 19342006
98 KNOB WASHER SLICER 300-370 19562150
99 BUSHING 18.20.20 19324108
102 DIAL KNOB LNR 300-330 19522605
106 RING FOR SLICER 300-385 19534066
120 BLADE EXTRACTOR TOOL 330 19702510
140 OIL BOTTLE 19563008
8
Drawing nr. 2/5
9
Drawing nr. 2/5
Ref. Descripon Code
202 PIAST. SGANCIO CARR. PLD 300 DAL 08 19533260.08
204 PLATE FOR SLICER 19533200
206 PUSH ROD _ SLICER 300-385 CE 19565001
212 CARRIAGE SLIDE_SLICER PALLADIO 300 19500560
214 BUSH 22.25.30 FOR SLICER 19324106
220 STUD BOLT M8 FOR SLICER LEONARDO 19337054
223 HEX ROD,CARRIAGE RELEASE_SLICER 19534036
224 CARRIAGE RELEASE SPRING FOR SLICER 19390601
225 SPACE WASHER 19346015
226 RELEASE BUSHING FOR SLICER 300-330 19534025
227 BEARING ROD FOR SLICER 250-330 19540805
228 LOCKRING(EXT THREADING)FOR SLICER 19534030
232 CARRIAGE PLATE FOR SLICER 300-330 19533007
236 BEARING FOR SLICER 6000 2RS R11 19320154
242 CARRIAGE ROUND BAR 22X495_SLICER 19530607
244 SPRING_ROUND RAIL_SLICER 300-330 CE 19390117
246 SLIDE BUMPER LEONARDO 350-385 19560154
248 SQUARE RAIL FOR SLICER 300-330 19540107
252 HARDENED PLATE FOR SLICER 300-330 19530807
254 Round bar chromed screw FOR SLICER 19335002
256 CARRIAGE LOCKING KNOB FOR LEONARDO 19522615R
257 STUD BOLT FOR SLICER M10 19336038
258 GAMBO MNT 300 OSSIDATO 19510645
259 S/S ARM BUSHING 300 LNR-MNT 19534022
261 BUSHING FOR SLICER 300-370 CE 19534016
263 PLATE SPACER LEO+BS2 19521154
264 PLATE MNT BS 195104451
268 BUFFER RING FOR PLATE MNT 300 19563252
270 MEAT PRESS BAR MNT BS2 19530445
272 BUSH 14.16.20 19324103
280 SCORREV. 300 MNT BS2 OSSIDATO 19511645
282 THUMB SCREW FOR LEONRDO BS2 350-385 19335256
290 ARM .SV 300 19700119
291 S/S SPACER LNR BS1 19522830
295 END WEIGHT FLANGE _ SLICER 350-385 19511845
296 STAFFA+PUNT.LNR BS1 350/385 19700146
297 MEAT PRESS BUFFER 19563207
302 HANDGUARD FOR ARM SPEC VAS 19562376
306 MEAT PRESS HANDLE 19522545
308 RED HANDLE GUARD FOR SLICER 19522640R
310 PRODUCT PUSHER RED +HANDLE 19522645R
