5V-16V Linear Power Supply Kit User’s Guide
Note:

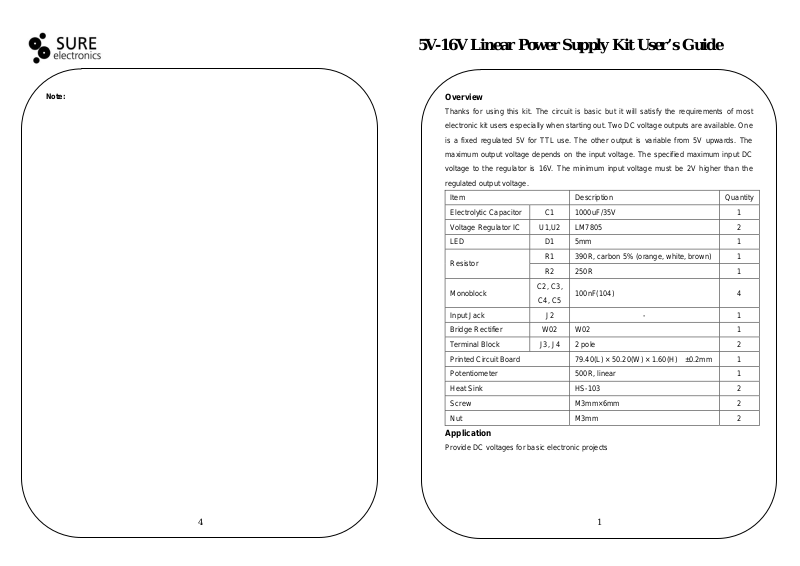

Overview
Thanks for using this kit. The circuit is basic but it will satisfy the requirements of most
electronic kit users especially when starting out. Two DC voltage outputs are available. One
is a fixed regulated 5V for TTL use. The other output is variable from 5V upwards. The
maximum output voltage depends on the input voltage. The specified maximum input DC
voltage to the regulator is 16V. The minimum input voltage must be 2V higher than the
regulated output voltage.
Item Description Quantity
Electrolytic Capacitor C1 1000uF/35V 1
Voltage Regulator IC U1,U2 LM7805 2
LED D1 5mm 1
Resistor
Monoblock
Input Jack J2 - 1
Bridge Rectifier W02 W02 1
Terminal Block J3, J4 2 pole 2
Printed Circuit Board 79.40(L) × 50.20(W) × 1.60(H) ±0.2mm 1
Potentiometer 500R, linear 1
Heat Sink HS-103 2
Screw M3mm×6mm 2
Nut M3mm 2
R1 390R, carbon 5% (orange, white, brown) 1
R2 250R 1
C2, C3,
C4, C5
100nF(104) 4
Application
Provide DC voltages for basic electronic projects
1 4
5V-16V Linear Power Supply Kit User’s Guide
Circuit Diagram
J3
1
2
CON2
R1
390R
12
GND
2
7805AE/TO-220
Vin +5V
1 3
J2
U1
12
4
321
DJ005B
C3
C2
100nf
100nf
D1
J4
-+
W02
1
3
7805AE/TO-220
2
Pin Definition of 7805
1
2
CON2
12
R2
C5
250R
100nf
2
13
R3
500R
What to Do If It Does Not Work
An LED has been put into the output of the fixed 5V regulator to indicate that the circuit is
working. (It may be left out of the circuit if you do not want it.) Poor soldering is the most
likely reason that the circuit does not work. Check all solder joints carefully under a good
GND
2
Vin +5V
1 3
U2
12
C4
100nf
+
12
light. Next, check that all components are in their correct position on the PCB. Thirdly, follow
the track with a voltmeter to check the potential differences at various parts of the circuit.
