20x4 LCD Smartie Asset

User’s Guide

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Table of Contents

Chapter 1. Overview ..........................................................................................................1

1.1 Overview.............................................................................................................. 1

1.2 Quick Start........................................................................................................... 2

1.2.1 Installation..................................................................................................................2

1.2.2 Connection................................................................................................................. 2

1.2.3 Run LCD Smartie...................................................................................................... 3

1.2.4 Select Sure-LCD V1.0 As Your Application ....................................................... 5

1.2.5 How to Use Tips Function...................................................................................... 7

Chapter 2. Tips for Usage................................................................................................11

Chapter 3. Mechanical Drawing......................................................................................12

Chapter 4. Appendix........................................................................................................14

Chapter 5. Contact Us .....................................................................................................17

DE-LP14111_Ver1.1_Page i

20x4 LCD Smartie Asset

NOTES:

Product Version ： Ver 1.0

Document Version ： Ver 1.0

DE-LP14111_Ver1.1_Page ii

1.1 Overview

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Chapter 1. Overview

Thanks for using this 2004 LCD Smartie Asset by Sure Electronics. It features an easy-to-install aluminum alloy housing which makes this product shapely and durable to be used in many applications. It’s also populated with a mirror screen which blocks your eyes from seeing the inside but ensuring perfect display effect when the item is powered. Its basic functions include displaying system information of your computer, such as Everest status, MBM status (Your CPU temperature, fan/cooler speed, etc.), BBC world news (or any other RSS feeds), WinAmp status (currently playing tracks title, length, position, etc), network status (speed, total bytes, etc), CPU speed, free disk space, memory usage, E-mail details, game status and many others. Features like ambient temperature display, conversion between ℃and ℉, feedback current LCD contrast ratio, backlight brightness level, tips function and product info are added. In addition, users may adjust the contrast ratio of LCD display and backlight brightness.

FIGURE 1-1 OVERVIEW

DE-LP14111_Ver1.1_Page 1

20x4 LCD Smartie Asset

FIGURE 1-2 ACCESSORY

1.2 Quick Start

1.2.1 Installation

First, install LCD Smartie application, Sure-LCD 1.1 and CP2102 driver. All of them are available on the following links: LCD_smartie_v5.4:

http://www.sureelectronics.net/drivers/lcd_smartie_v5.4.zip

Sure-LCD V1.1

http://www.sure-electronics.net/download/Sure-LCD_1.0.zip

CP2102 driver:

http://www.sureelectronics.net/goods.php?id=393.

1.2.2 Connection

Connect LCD Smartie and computer with mini USB cable like shown in figure 1-3. LCD will display the defaulted graphs like shown in figure 1-4.

FIGURE 1-3 SCHEMATIC OF CONNECTION WITH MINI USB

DE-LP14111_Ver1.1_Page 2

Overview

FIGURE 1-4 DIS[LAY SCHEMATIC AFTER POWER-UP

1.2.3 Run LCD Smartie

1. Click “Setup” at the lower left corner of the main page to perform the following

configuration (as shown in figure 1-5)

FIGURE 1-5 SIMULATION DISPLAY INTERFACE

Select “matrix.dll” from the “Display Plugin” drop-down list under “Screens” tab. Fill the COM port name in “Startup Parameters” under “Display settings”, the communication speed is 9600bps (As shown in figure 1-6). FIGURE 1-6 SELECT PLUG-IN AND FILL IN PORT NAME

Port name can be obtained by the following means: Right-click “My Computer” and locate “Silicon Labs CP210x USB to UART Bridge” after Properties→Hardware→Device Manager→Ports. The content in its following bracket is the port name. Select “4x20” from the “LCD size” drop-down list under the “Screen” tab of Display Settings, as shown in figure 1-7. Click “OK” or “Apply” at the lower right-hand corner to enable communication. After that, the display on LCD will be consistent with what is being simulated with LCD Smartie.

DE-LP14111_Ver1.1_Page 3

20x4 LCD Smartie Asset

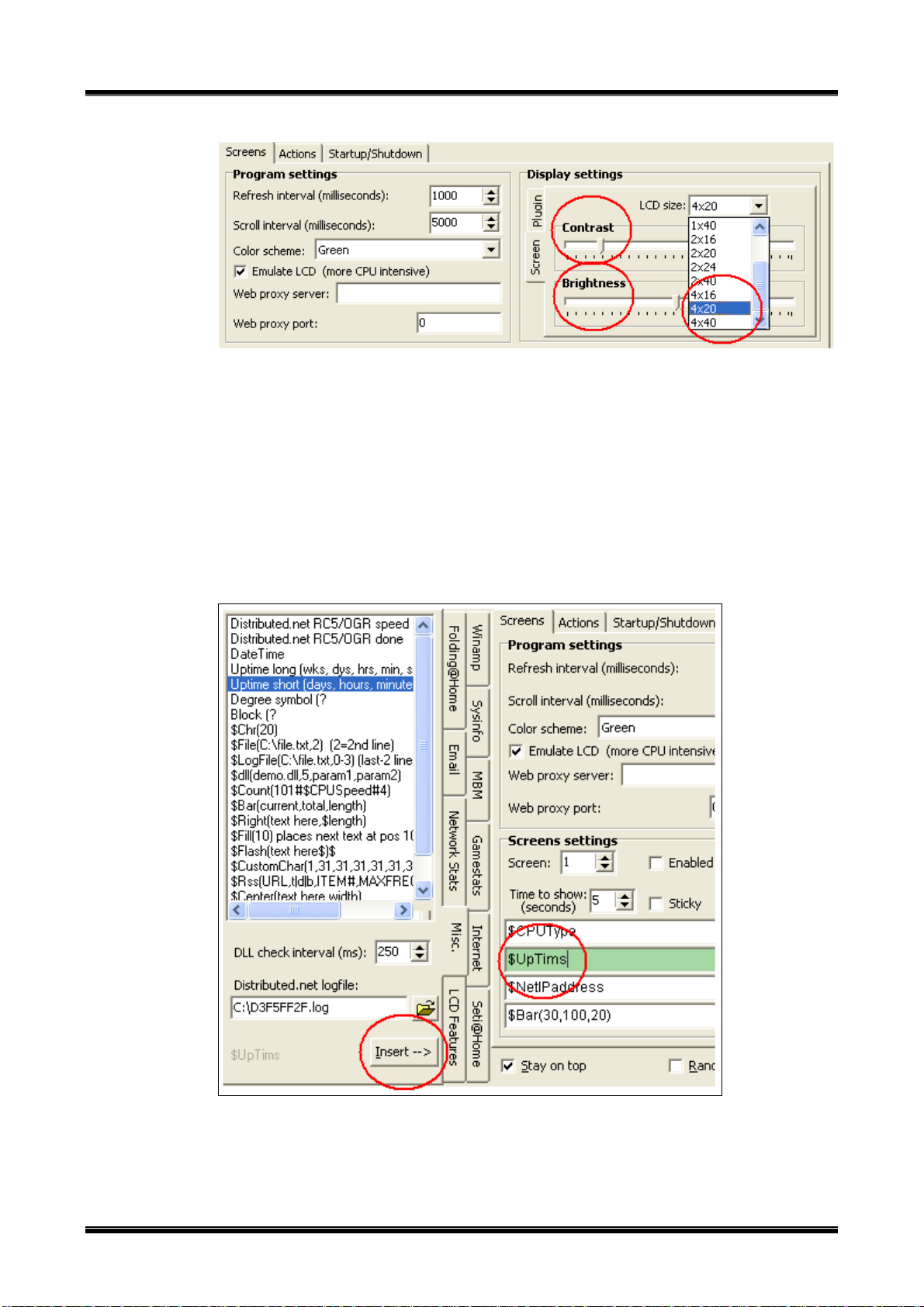

FIGURE 1-7 SELECT THE TYPE OF LCD DISPLAY

2. Other settings can be conducted after LCD functions normal. To adjust the contrast ratio and brightness, just drag the slide bar. To turn the backlight of LCD off, click the small icon at the lower right-hand corner and select “Commands”->”Backlight Off”, like shown in figure 1-5. With the same path, you can turn on the backlight again. An example of how the time of PC is displayed. In the left task bar of LCD Smartie, highlight “Uptime short (days, hours, minutes)” first and click “Insert -->” button and “$UpTims” will appear in the place where cursor flashed, as shown in figure 1-8. Click “Apply” will make the LCD display the time of your PC system, as shown in figure 1-9.

FIGURE 1-8 SELECT THE CONTENTS TO BE DISPLAYED

DE-LP14111_Ver1.1_Page 4

Overview

FIGURE 1-9 SIMULATION DISPLAY

1.2.4 Select Sure-LCD V1.0 As Your Application

1. If you select Sure-LCD V1.0 as your application, a 16×2 sized LCD simulator screen (blue backlight & white character) will pop up like shown in figure 1-10

FIGURE 1-10 A 16×2 SIZED LCD SIMULATOR SCREEN

2. Right-click the simulator and select “Config” in the popped up window and a configuration page will be displayed as shown in Figure 1-11. Select “4*20” from “LCD Size” drop-down list like shown in Figure 1-12 and a 20×4 sized simulator pops up like shown in Figure 1-13. FIGURE 1-11 A CO NFIGURATION PAGE

DE-LP14111_Ver1.1_Page 5

20x4 LCD Smartie Asset

FIGURE 1-12 LCD SIZE SELECTION

FIGURE 1-13 A 20×4 SIZED SIMULATOR

3. Select “Com3” from “Com” drop-down list of “Com Settings” and click “Start” button to establish a communication as shown in Figure 1-14. The content displayed here is for reference only.

FIGURE 1-14 ESTABLISH A COMMUNICATION

FIGURE 1-15 EDIT MEMO

The following is an example of how to use this application. Select command “About

4.

me” from “Select” drop-down list under “Command Group” and then click “Send” like shown in Figure 1-16. You will read from the simulator screen 20040202000 like shown in Figure1-17

FIGURE 1-16 SELECT COMMAND “ABOUT ME”

DE-LP14111_Ver1.1_Page 6

Overview

FIGURE 1-17 VERSION NUMBER

1.2.5 How to Use Tips Function

1. Firstly, select “Send Memo to MCU” from “Select” under “Command Group” as shown in Figure 1-18.

FIGURE 1-18 SELECT COMMANDS FOR TIPS EDIT

2. In the interface of “Edit Memo”, edit content of tips as shown in Figure 1-19 with entering maximum 20 letters (including spaces) in each row and 10 rows at most.

FIGURE 1-19 EDIT TIPS

3. Close the configuration page. Right-click the simulator screen and select “Exist” as shown in Figure 1-20. Tips will be displayed on LCD screen soon afterwards.

FIGURE1-20 TIPS WILL BE DISPLAYED ON LCD SCREEN

DE-LP14111_Ver1.1_Page 7

20x4 LCD Smartie Asset

The tips are displayed progressively and repeatedly like shown in Figure 1-21. The interval of adjacent contents is approximately 3 seconds. The last screen will last for about 10 seconds. When the content of tips doesn’t exceed 4 rows, displayed will be automatically switched between defaulted power-on content and the tips.

the content

DE-LP14111_Ver1.1_Page 8

FIGURE 1-21 A FLOW SIMULATING THE DISPLAY OF TIPS

Overview

5. Restart LCD Smartie or Sure-LCD, tips display will end.

DE-LP14111_Ver1.1_Page 9

20x4 LCD Smartie Asset

Note: Figure 1-1- Figure1-21 are provided for reference only

DE-LP14111_Ver1.1_Page 10

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Chapter 2. Tips for Usage

1 If the contrast ratio, backlight brightness and displaying contents vary after running

LCD Smartie application, it proves that LCD display has successfully received the info from LCD Smartie.

2 The backlight brightness can be adjusted only when the backlight is turned on.

Otherwise, the backlight brightness cannot be adjusted once the backlight is turned off. LCD display will turn the backlight off upon receiving the command of “Turn backlight off” even when the communication is in progress. Therefore, the backlight brightness cannot be adjusted by the slider bar and users need to click “Backlight off” first and click “Backlight On” again. Please refer to item 4 in Quick Start for details.

3 Katakana will be displayed if the characters sent by your computer exceed the

range of common ASCII code. 4 Please refer to 5 Do not use LCD Smartie and Sure-LCD simultaneously. 6 Tips will not be displayed once the power is off. If you send newly-created tips to

MCU, previous tips will be replaced. 7 You may refer to help of application for use of Sure-LCD.

http://lcdsmartie.sourceforge.net/ for more details about LCD Smartie.

DE-LP14111_Ver1.1_Page 11

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Chapter 3. Mechanical Drawing

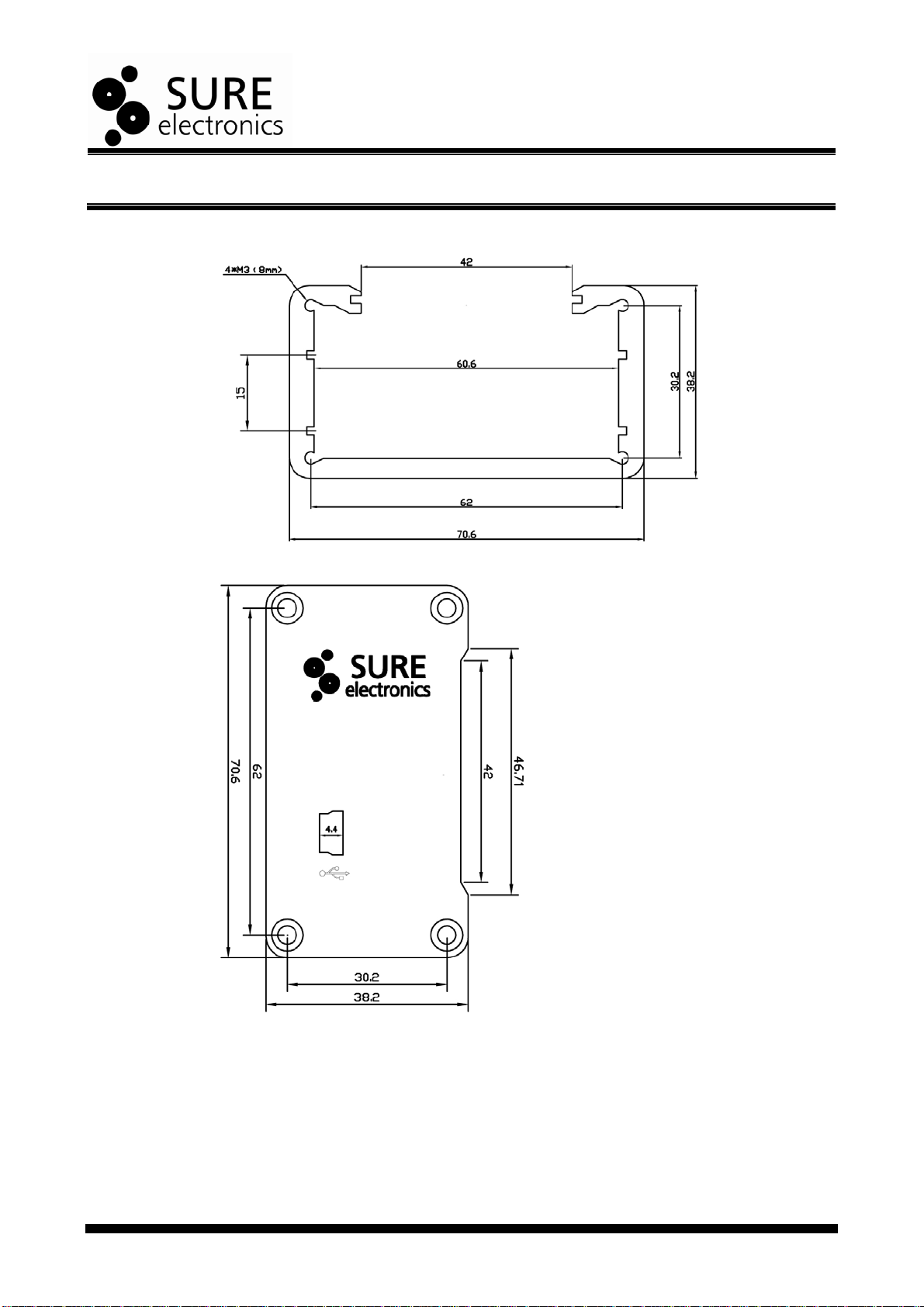

FIGURE 4-1 MECHANICAL DRAWING OF THE HOUSING

FIGURE 4-2 MECHANICAL DRAWING OF THE LEFT PANEL

DE-LP14111_Ver1.1_Page 12

20x4 LCD Smartie Asset

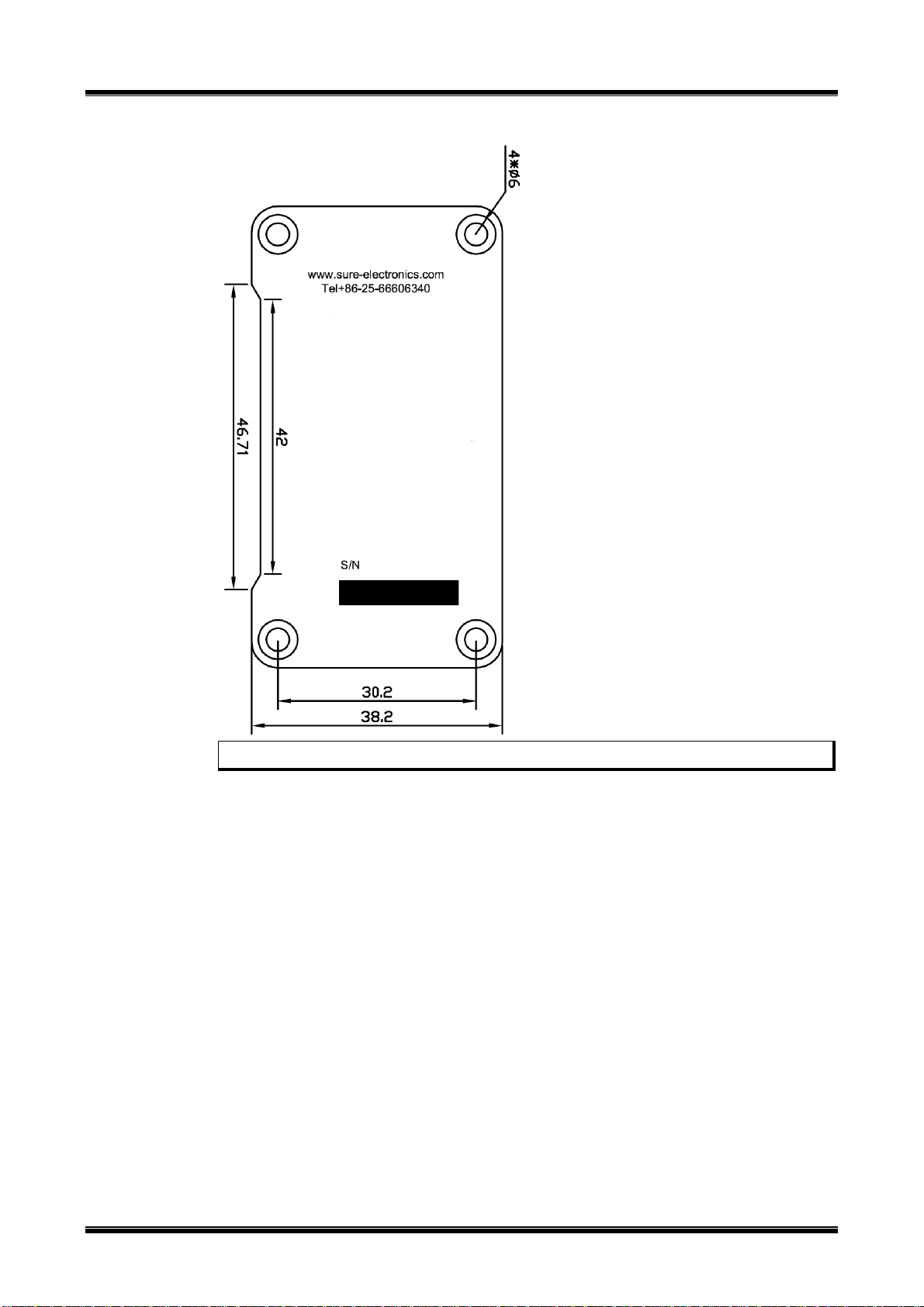

FIGURE 4-3 MECHANICAL DRAWING OF THE RIGHT PANEL

Note: The unit is mm.

DE-LP14111_Ver1.1_Page 13

Command Set

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Chapter 4. Appendix

No Command to MCU

Started with

0xFE,0x47 ,0x01, i and

1

2

3

4 0xFE,0x46 Turn backlight off - Y Y

5 0xFE,0x42,0x00

6

7 0xFE,0x63

8 0xFE,0x62

followed by 20

characters (range of i is

0x01~0x04)

started with 0xFE,0x50

and followed by a hex

ranging from 0x01~0xFE

started with 0xFE,0x98

and followed by a hex

ranging from 0x01~0xFE

Started with 0xFE,0x4E, i

and followed by 8 hex numbers (range of i is

0~7)

Command

Description

Display 20

characters that

followed in row i of

LCD

Adjust LCD contrast

ranging from

0x01~0xFE

Adjust backlight

brightness ranging

from 0x01~0xFE

Turn backlight on

(with the latest

configuration)

Customize character

pattern of

0~7CGRAM

Request MCU to

send LCD contrast

reading

Request MCU to

send LCD backlight

reading

MCU to PC

- Y Y

- Y N

CR 1~CR254

represents contrast

values at different

levels

BKLT 1~BKLT254

represents backlight

brightness at different

level

Applicable in

LCD

Smartie

N Y

Sure-LCD

DE-LP14111_Ver1.1_Page 14

20x4 LCD Smartie Asset

Request MCU to

9 0xFE,0x76

10 0xFE,0x77

send version

number

Request MCU to

send temperature

abcdpeltrrr

abcd:Indicates the size

of LCD screen, e.g.:

1602, 2004

P: indicates whether

RX8025 exists or not, 1

indicates yes, 0

indicates no and USB

is adopted. 24C04 is

only available in higher

version.

e: indicates the size of

n

EEPROM, 2

as 2 indicates 2

Kbit such

2

Kbit,

i.e. 4Kbit.

l: indicates whether a

photosensitive resistor

exists or not, 0 indicates no, 1

indicates yes.

t: indicates whether a

thermal resistor (or

LM75) exists or not. 0

indicates no, 1

indicates thermal

resistor exists, 2

indicates LM75 exists.

rrr: defaulted as 000,

reserved

abc°d

abc: temperature

reading. If the absolute

value of the

temperature is less

than 99, “a” will be null,

if less than 10, “b” will

be null. “°” is degree. d

is C or F, indicates

centigrade and

Fahrenheit.

The returned value of

temperature ranges

from 0 to 60℃ (32 to

140℉). If the value is

over the range, “Temp

N Y

DE-LP14111_Ver1.1_Page 15

Started with 0xFE,0x57

11

and followed by i (the

range of i is 0x01~0x04)

display temperature

in row i of LCD

Out of Range” will be

returned.

Refer to 10 for the way of display, the contents

will be aligned left

when display, while the

remaining is space

e.g. Temp：26℃

Appendix

N Y

12

13

14

15 0xFE,0x64

16 0xFE,0x66

Note: Please enter start command (command in the 12 not response to the ports.

0xFE,0x53,0x75

0x72,0x65

Started with

0xFE,0x48,0x01, i and

followed by 16 or 20

characters (range of I is

0x01~0x0a in hex)

Started with 0xFE,0x57

and followed by i (i is

either 0x46 or 0x43)

Establish

communication

Save tips and simulate contents displayed in row i,

the minimum of i is

0x02 in 16*2 LCD.

Set temperature

type: F: Fahrenheit

C: centigrade

Turn LCD display

ON or OFF

Close application

and this command

can also be used to

start tips

- N Y

th

row) first after power-on, or other commands will

DE-LP14111_Ver1.1_Page 16

20X4 LCD SMARTIE ASSET

USER’S GUIDE

Chapter 5. Contact Us

Sure Electronics Co., Ltd.

East zone, 3F, Building 6 Jingang Technology Innovation Center No.108 Ganjiabian Rd (ZIP: 210000) Qixia District Nanjing P.R.China Tel: +86-25-68154800-860 Fax: +86-25-68154891-832 Website: www.sure-electronics.com Email: customerservice@sure-electronics.com
